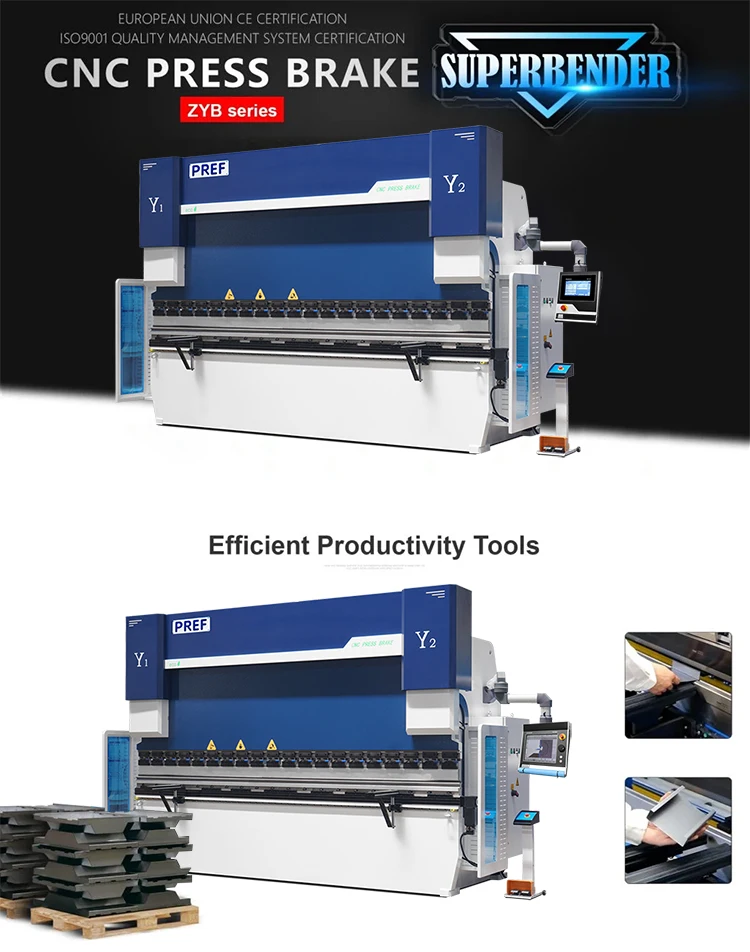

CNC Press Brake 110T 135T Sheet Metal Bending Machine with 6 1 Axis
- Category: >>>
- Supplier: Anhui Zymt Cnc Machine Tool Co. Ltd.
Share on (1601075809114):
Product Overview
Description
Product Overview
Product overview

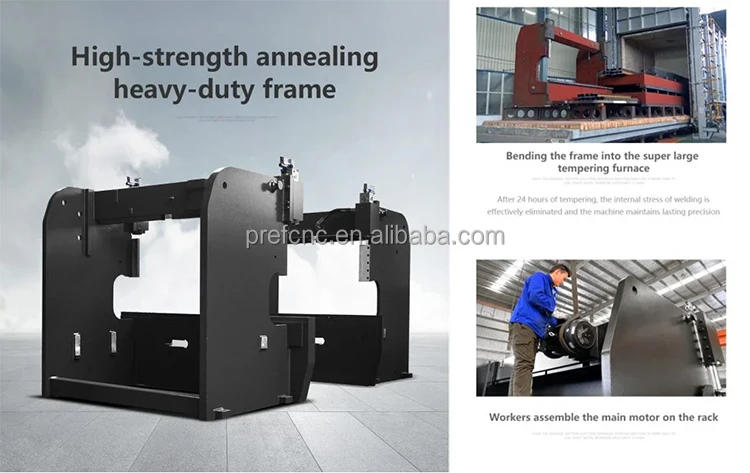

Overall welded and processed structure.
Closed loop control mode composed of electric-hydraulic servo valve and measure ruler.

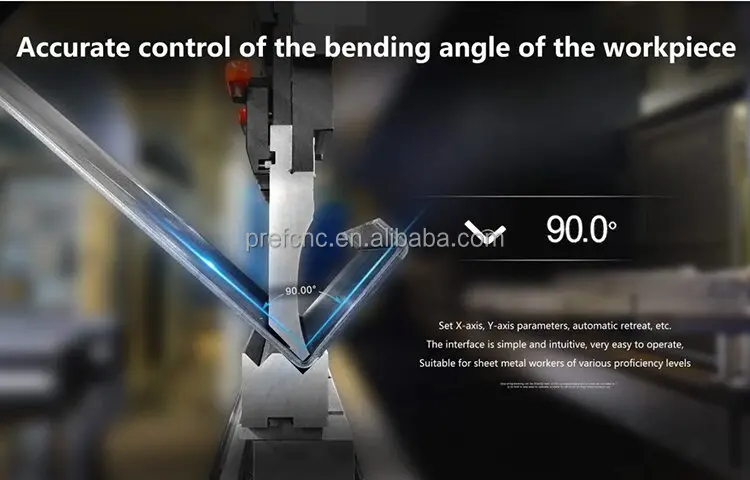

Ensure the highest control precision, bending accuracy and repositioning accuracy are also reach to the highest level.

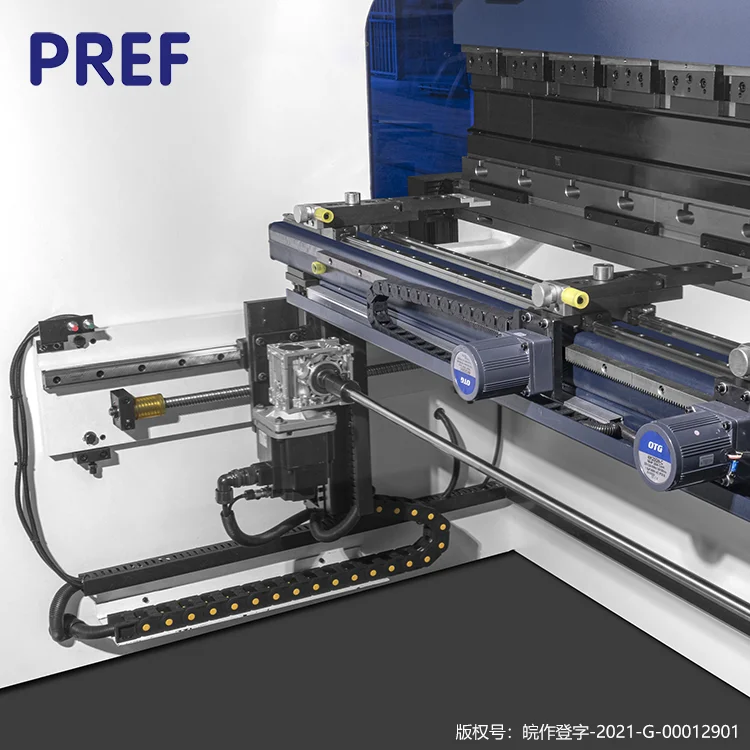

Back gauge mechanism can be multi-axes controlled.
Integrated hydraulic system decreases the pipe connections, oil leakage, and increases the stability and overall beautifies.
Worktable equipped with hydraulic and mechanical compensation to avoid the deformed upper beam from affecting the quality of the work piece, it is automatically adjusted by the CNC controller with convenient and accuracy.
CNC controller normally uses Holland DELEM, Italy ESA, Swiss CYBELEC, all with multi-languages.
Integrated hydraulic system decreases the pipe connections, oil leakage, and increases the stability and overall beautifies.
Worktable equipped with hydraulic and mechanical compensation to avoid the deformed upper beam from affecting the quality of the work piece, it is automatically adjusted by the CNC controller with convenient and accuracy.
CNC controller normally uses Holland DELEM, Italy ESA, Swiss CYBELEC, all with multi-languages.

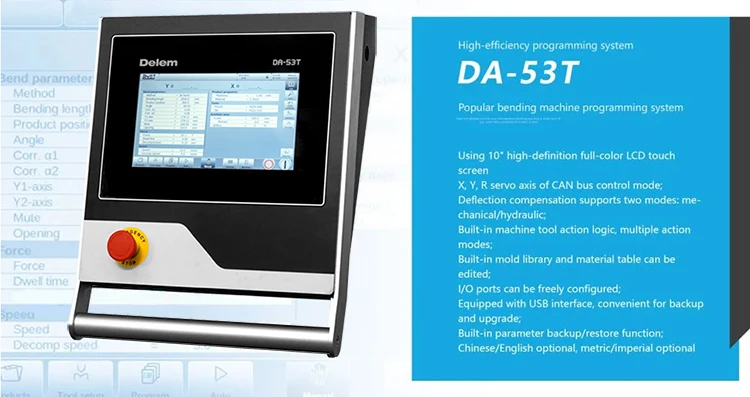

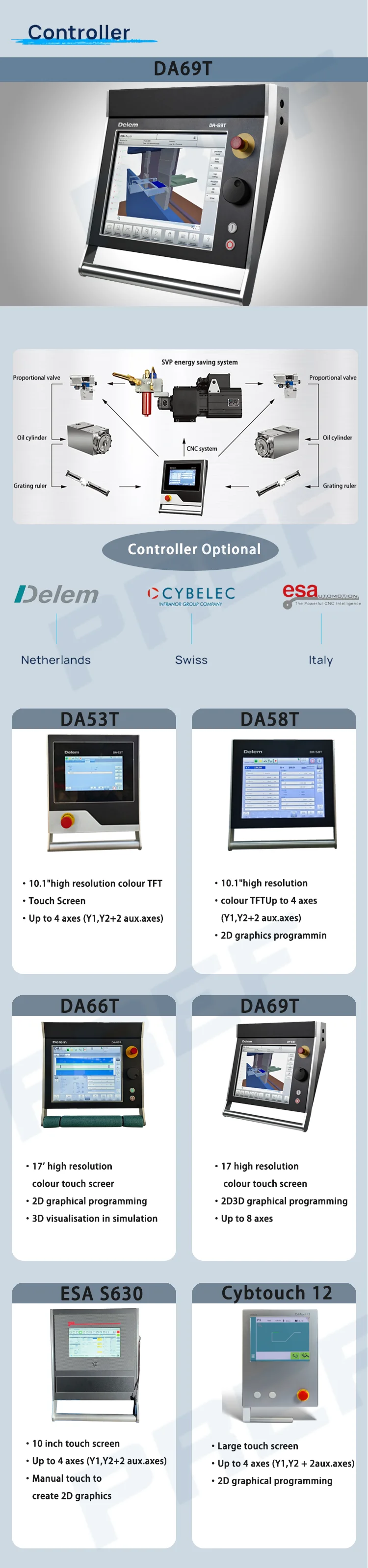

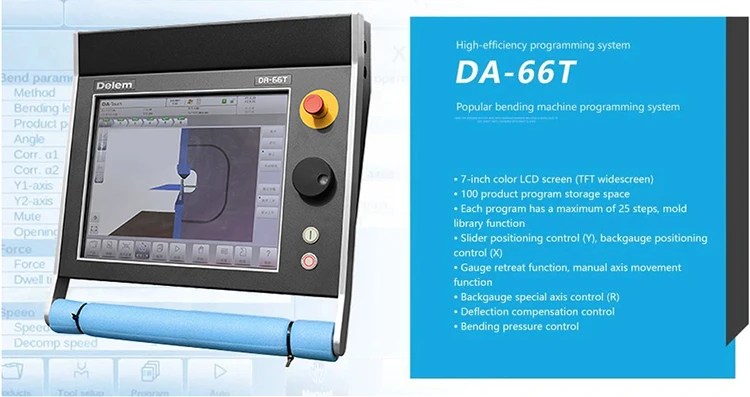

MACHINE CONTROLER
PRODUCT SPECIFICATIONS
Model | Bending length | Bending capacity/KN | Main motor power | weight/KG |
30t/1600 | 1600 | 300 | 5.5 | 2000 |
40t/1600 | 1600 | 400 | 5.5 | 2500 |
40t/2500 | 2500 | 400 | 5.5 | 3000 |
50t/2500 | 2500 | 500 | 5.5 | 3400 |
63t/2500 | 2500 | 630 | 5.5 | 4000 |
80t/2500 | 2500 | 800 | 7.5 | 5000 |
80t/3200 | 3200 | 800 | 7.5 | 6000 |
100t/2500 | 2500 | 1000 | 7.5 | 6000 |
160t/3200 | 3200 | 1600 | 13.2 | 11000 |
Standard Equipments & Options

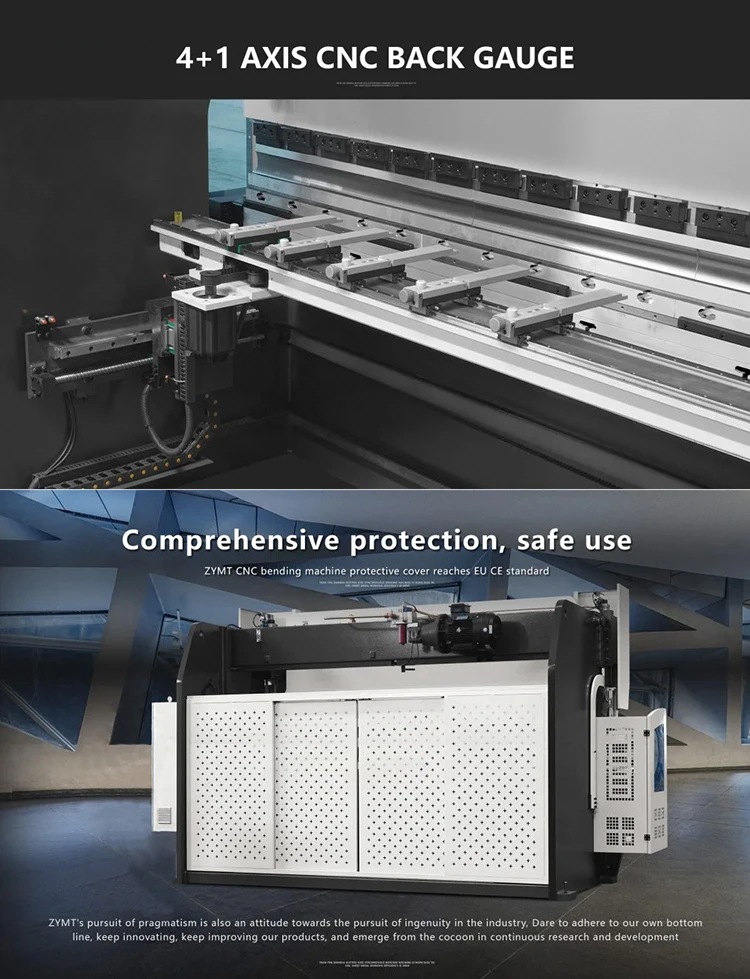

√ CNC Axis Control : 3+1 (Y1-Y2-X+V ) 4+1 (Y1 -Y2- X-R + V ) & 6+1 (Y1-Y2-X-R-Z1-Z2+V)
8+1 ( Y1-Y2-X1-X2-R1-R2+V)
√ Hydraulic Valve: BOSH-Rexroth
√ Oil Pump: BOSH-Rexroth
√ Oil Cylinder: CHINA famous brand
√ Main Motor: Estun Servo Motor & Siemens Normal Motor;

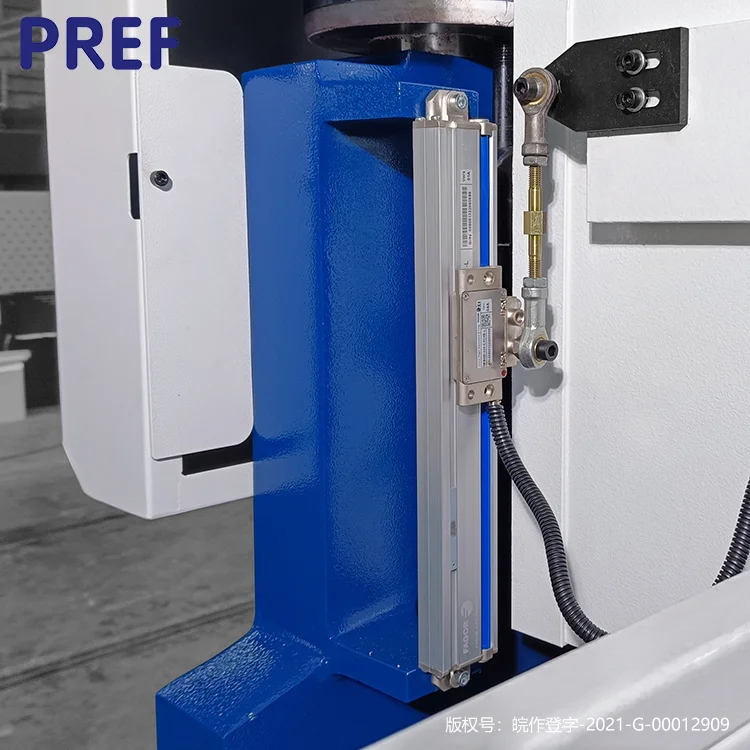

√ Linear Encoder: Fagor & Heidenhain
√ Crowning: Motorized Crowning & Hydraulic Cylinders & Manual
√ Pedal Switch: CHINA famou brand

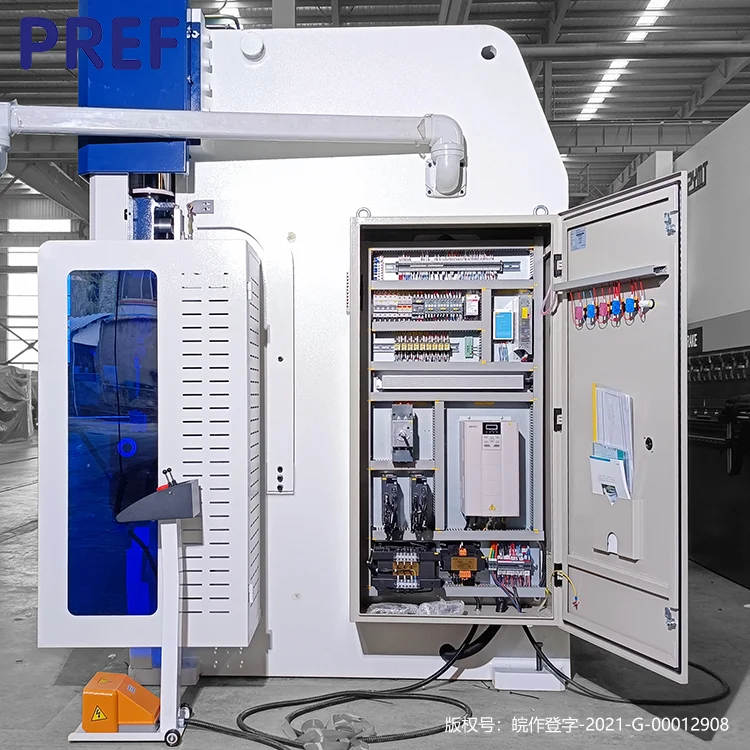

√ Electrics: Schneider
√ Clamps: WILA Hydraulic Clamping & KMechanical fast Clamp
√ Ball Screw Rod: TAIWAN HIWIN
√ Linear Guide: TAIWAN HIWIN
√ Front Support: Support with Dual Linear Guide & Following Supports Systems
√ Tooling: WILA Tooling & China Famous Brand tooling & Customized
√ Backgauge Motor: Estun Servo Motor
√ Finger Amount: 2/3/4/6 & Customized
√ Front | Back Safe Protection: DSP Laser & Light Curtain Protection
√ Metal Protection: Rear & Back

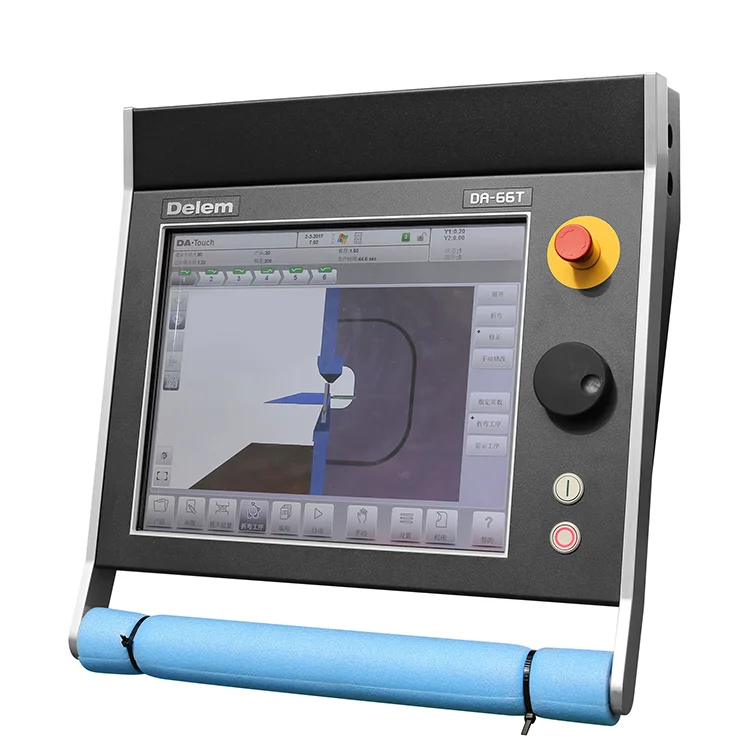

√ Controller: Delem DA69T & DA66T & DA56S & DA52S & ESA -S540 & Customized
Details Images

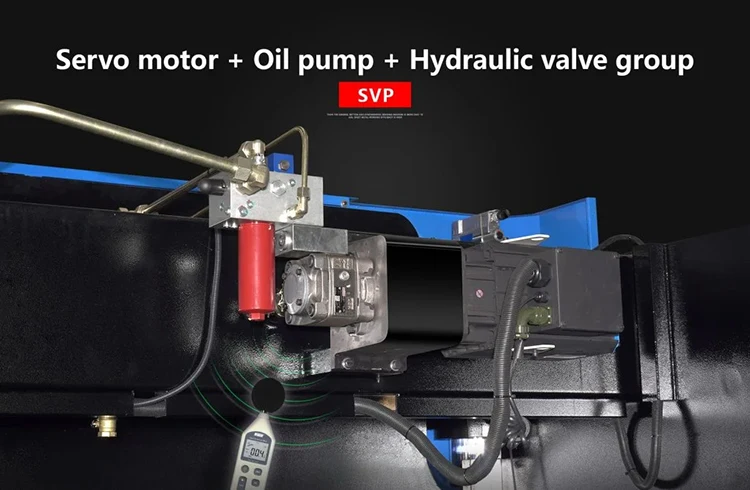

Servo motor + Oil pump + Hydraulic valve group
Energy saving: The servo pump system supplies oil on demandwhich greatly improves the energy saving effect.Reduced noise: The servo pump system only rotates whenneeded, resulting in a 30% overall reduction in noise.
OUR SERVICE
Quality Control
Nearly 50 years of expertise in the manufacture of press brakes and guillotines machines give us the security that is needed for future challenges-High standards of quality and a team with the best training and knowledge are a major condition for our success.Our products are the result of a continued focus on improving internal processes underpinned by high quality levels, that result in the recognition of PREF ' s machines as quality guarantee equipment.
Why choose us?

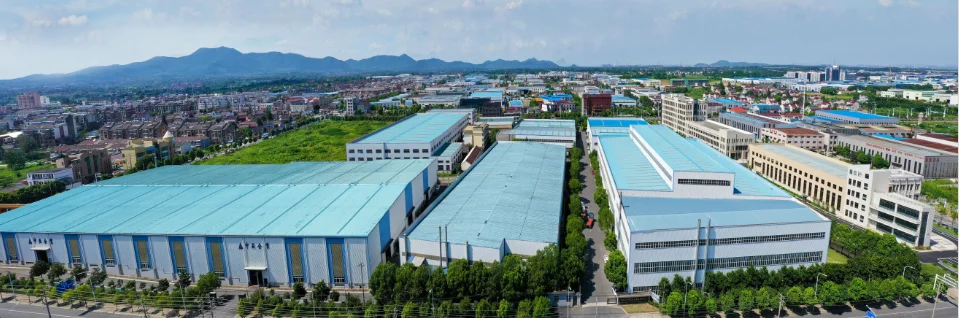

Anhui Zymt Cnc Machine Tool Co., Ltd. is a famous manufacturer of metal sheet equipments in world market. Its Brand PREF has been leading brand for many years in the field of international metal sheet equipments. Our group devote ourselves to product development, production and sales.
Our main products are: CNC Press Brake, Shears, Hydraulic press, Laser Cutter and CNC rolling machine these sheet metal processing equipments.we are using advanced technology from German, Japan, and Italy.we can produce large Hydraulic Press and Press Brake more than 16000 ton & 16m.we are with professional R&D team, and we have World-class design and manufacturing capabilities.
Our main products are: CNC Press Brake, Shears, Hydraulic press, Laser Cutter and CNC rolling machine these sheet metal processing equipments.we are using advanced technology from German, Japan, and Italy.we can produce large Hydraulic Press and Press Brake more than 16000 ton & 16m.we are with professional R&D team, and we have World-class design and manufacturing capabilities.

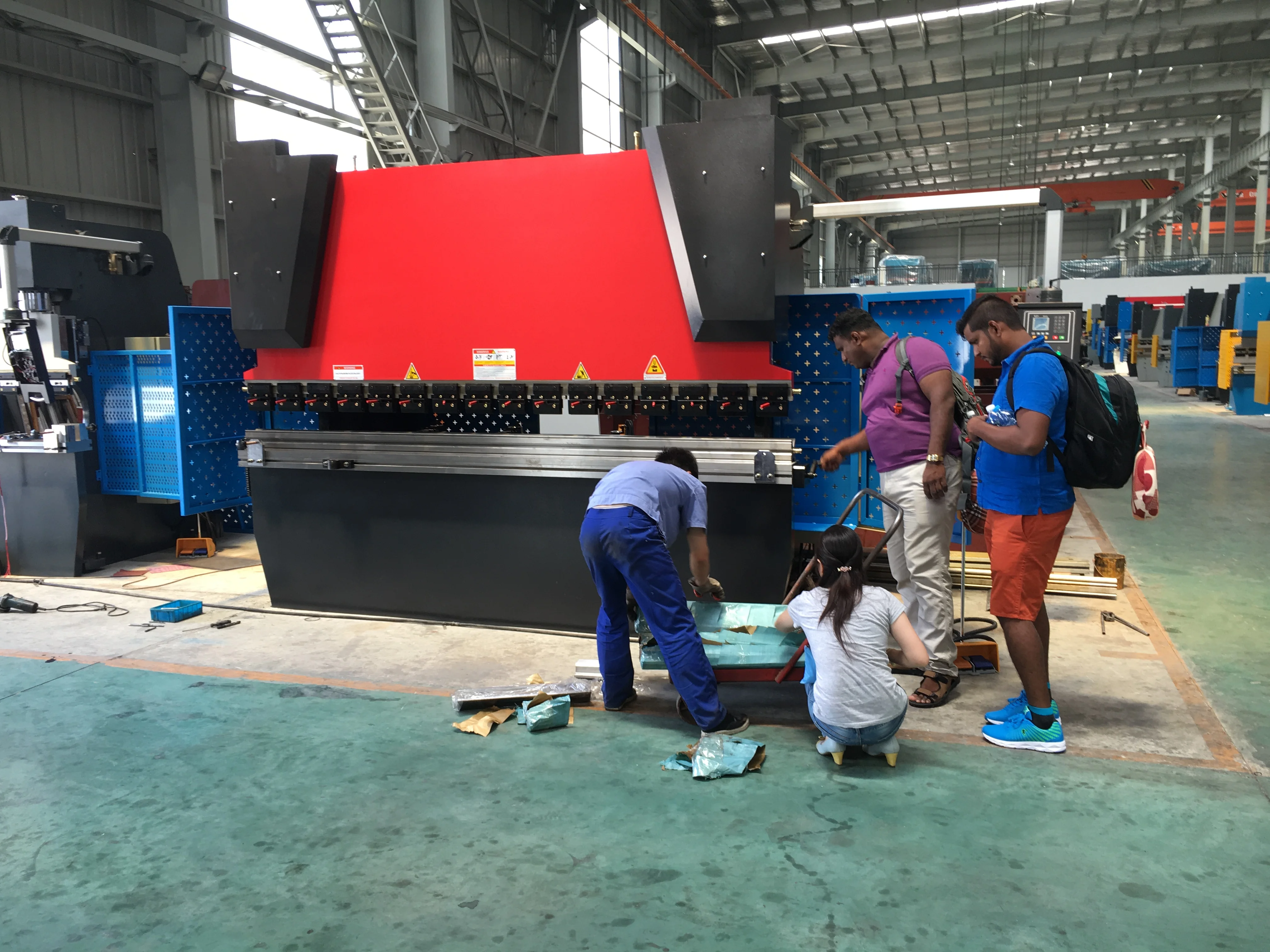

Exhibition&Customer visit

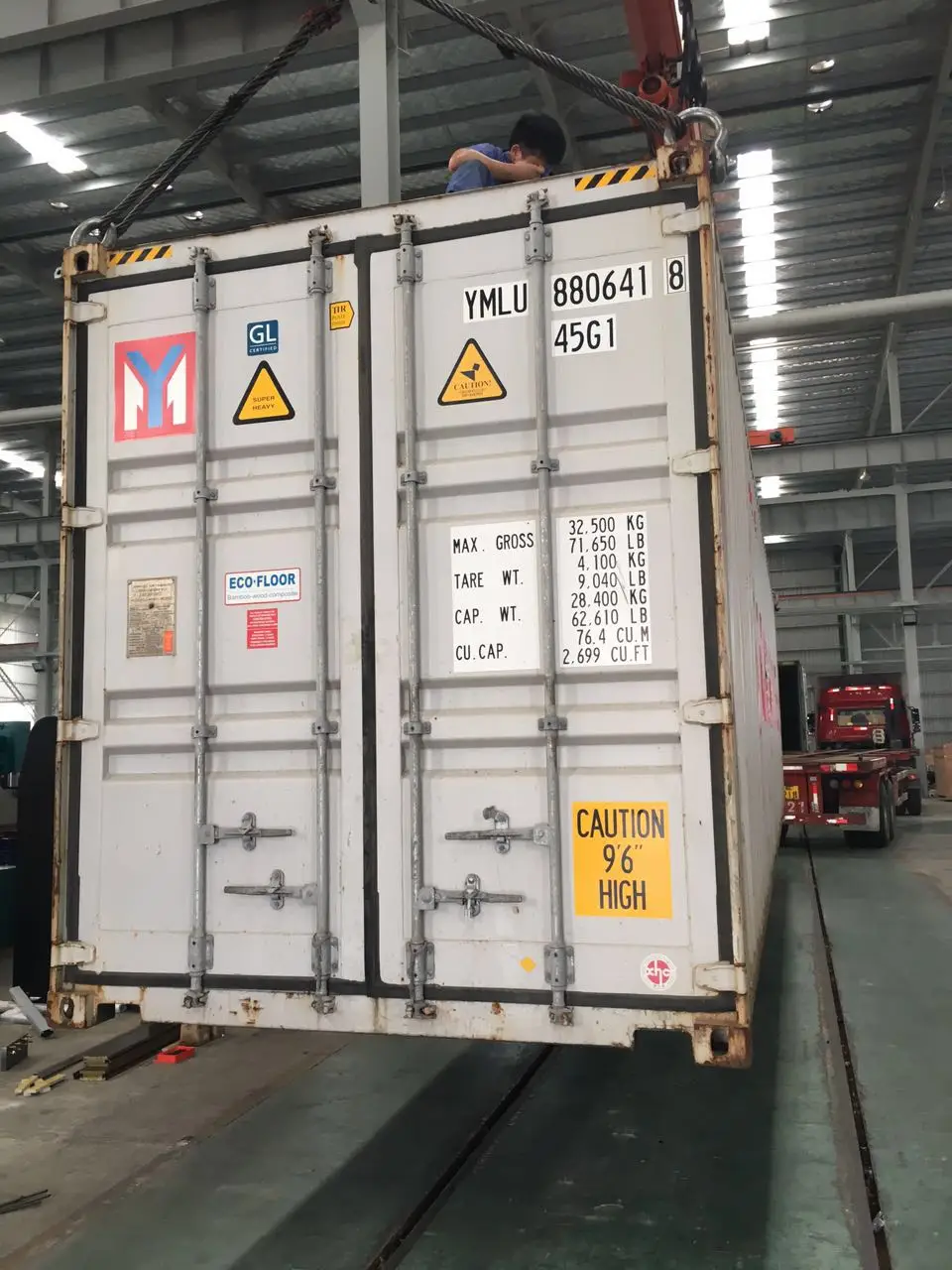

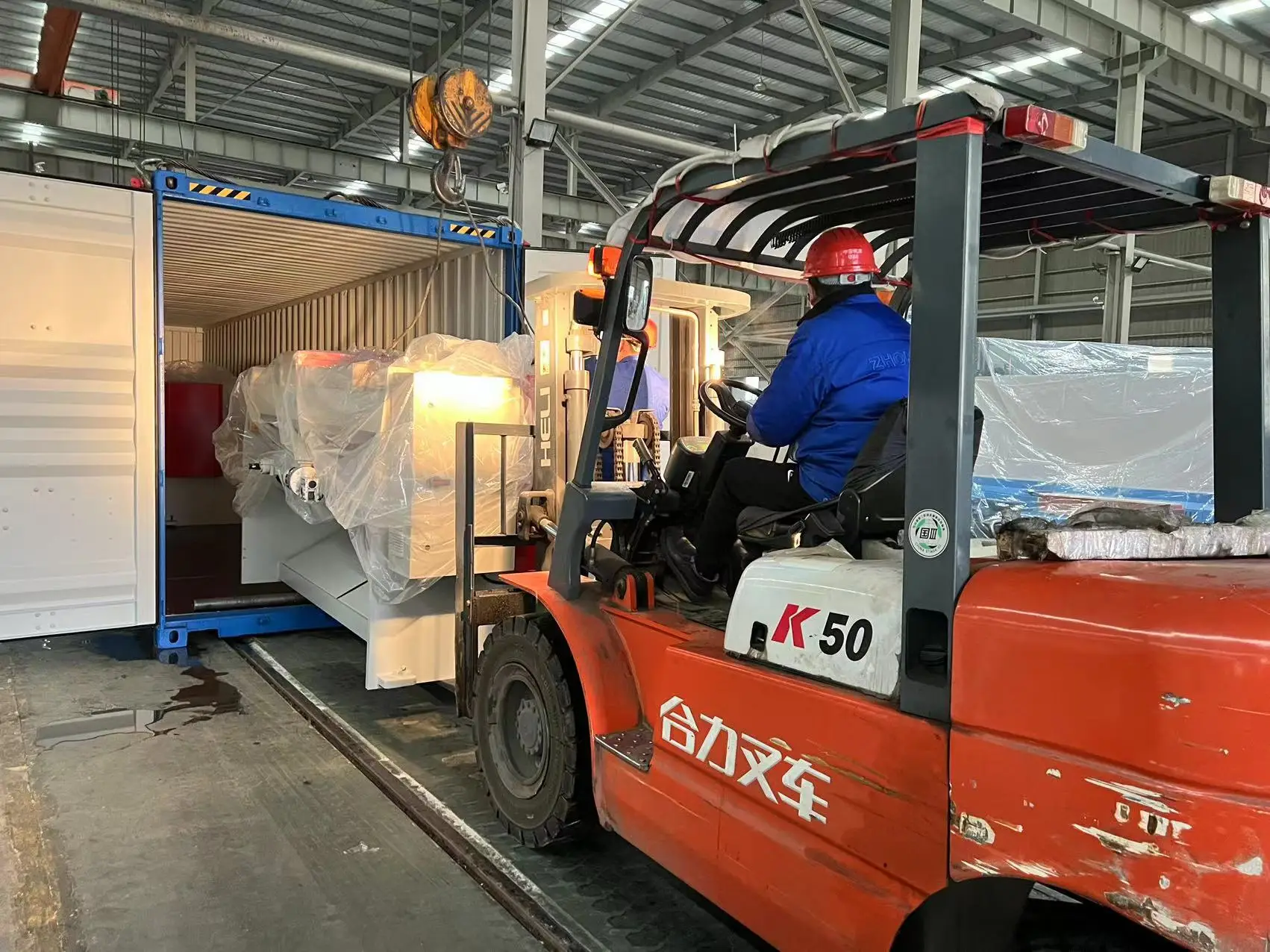

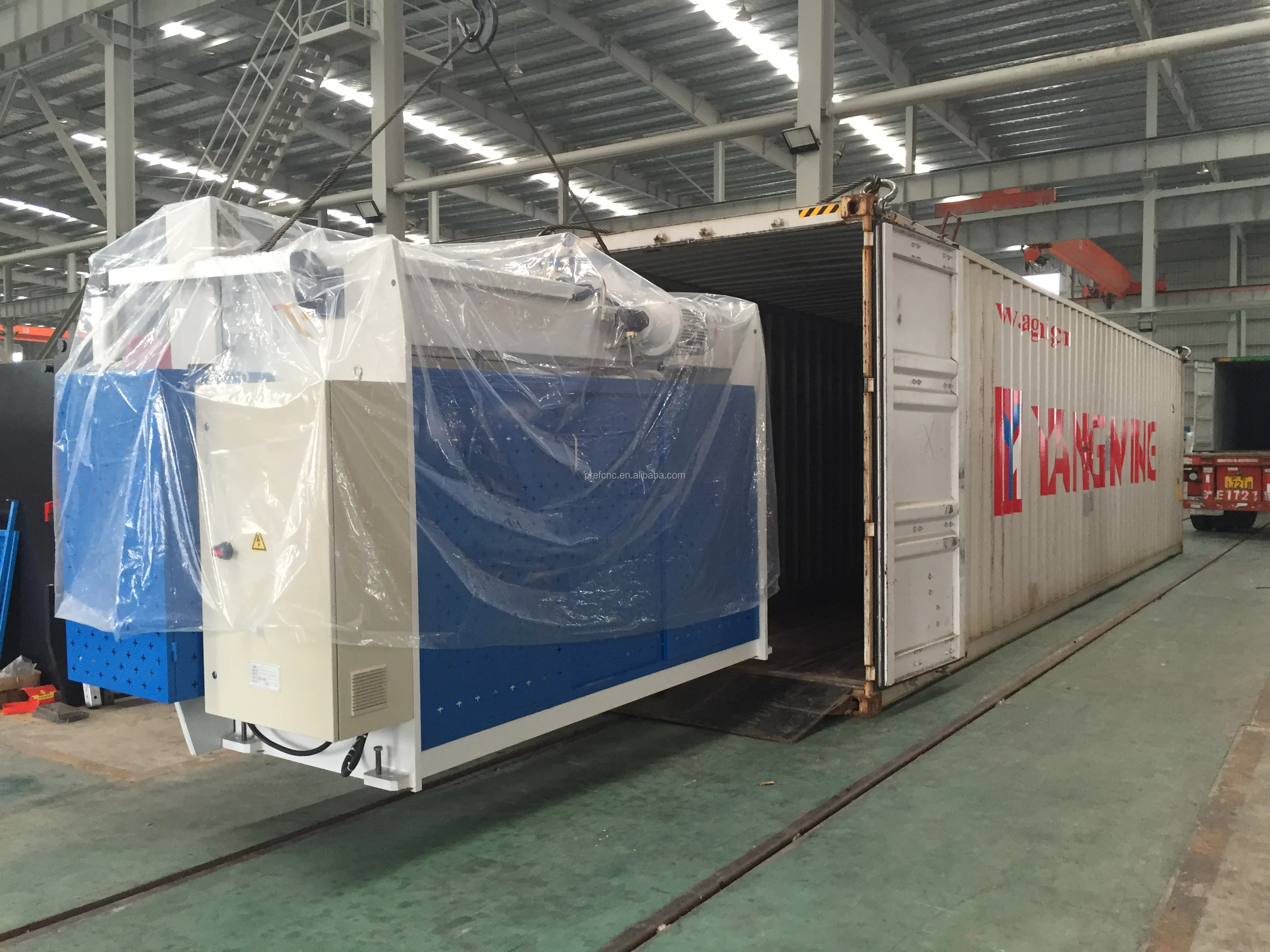

DELIVERY
1.Our wooden case is after fumigation treatment. Needn't timber inspection, saving shipping time.
2.All the spare parts of the machine were covered by the some soft materials mainly using pearl wool.
3.The outmost is wooden case with fixed formwork.
4.The bottom of the wooden case has firm iron jack, convenient to handling and transport.
2.All the spare parts of the machine were covered by the some soft materials mainly using pearl wool.
3.The outmost is wooden case with fixed formwork.
4.The bottom of the wooden case has firm iron jack, convenient to handling and transport.
FAQ
1.Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis /Conformance; Insurance; Origin, and other export documents where required.
2.What is the average lead time?
For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment.The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
3.What kinds of payment methods do you accept?
You can make the payment to our bank account, Western Union or PayPal:30% deposit in advance, 70% balance against the copy of B/L.
4.What is the product warranty?
We warranty our materials and workmanship. Our commitment is to your satisfaction with our products. In warranty or not, it is the culture of our company to address and resolve all customer issues to everyone’s satisfaction.
5.Do you guarantee safe and secure delivery of products?
Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.
6.How about the shipping fees?
The shipping cost depends on the way you choose to get the goods. Express is normally the most quickest but also most expensive way. By sea freight is the best solution for big amounts. Exactly freight rates we can only give you if we know the details of amount, weight and way. Please contact us for further information.
2.What is the average lead time?
For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment.The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
3.What kinds of payment methods do you accept?
You can make the payment to our bank account, Western Union or PayPal:30% deposit in advance, 70% balance against the copy of B/L.
4.What is the product warranty?
We warranty our materials and workmanship. Our commitment is to your satisfaction with our products. In warranty or not, it is the culture of our company to address and resolve all customer issues to everyone’s satisfaction.
5.Do you guarantee safe and secure delivery of products?
Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.
6.How about the shipping fees?
The shipping cost depends on the way you choose to get the goods. Express is normally the most quickest but also most expensive way. By sea freight is the best solution for big amounts. Exactly freight rates we can only give you if we know the details of amount, weight and way. Please contact us for further information.
