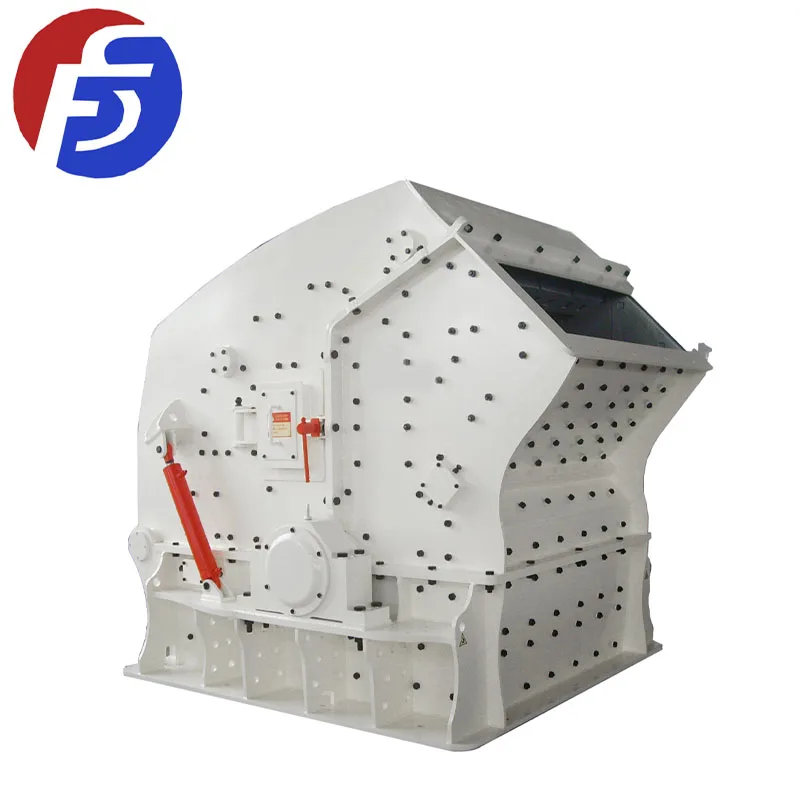

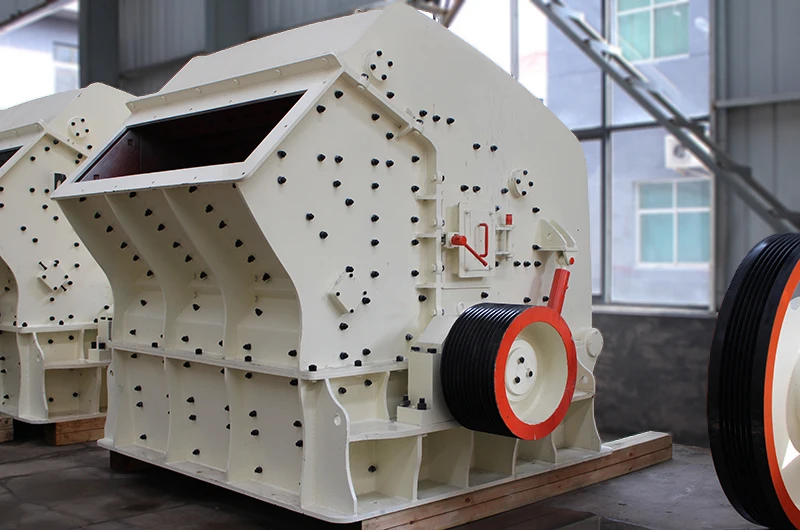

Competitive Price Hard Stone Best Impact Crusher PF 1210 Mining Coal Granite Limestone Impact Crusher For Crushing Rock
- Category: >>>
- Supplier: Zhengzhou Safed Machinery Equipment Co. Ltd.
Share on (1601075818336):
Product Overview
Description
Product Description
IMPACT CRUSHER
DESCRIPTION
An impact crusher is a type of crushing machine that uses striking force to break up materials. Its working principle is based on using an external force to apply pressure and cause the material to break up, rather than relying on sheer force or pressure.
WORKING PRINCIPLE
Impact crushers reduce mineral materials such as concrete, asphalt and natural rock in size to produce a valuable commodity product. A fast spinning rotor throws the material against a solid stationary impact wall. The striking and impacting causes the material to shatter into smaller pieces.

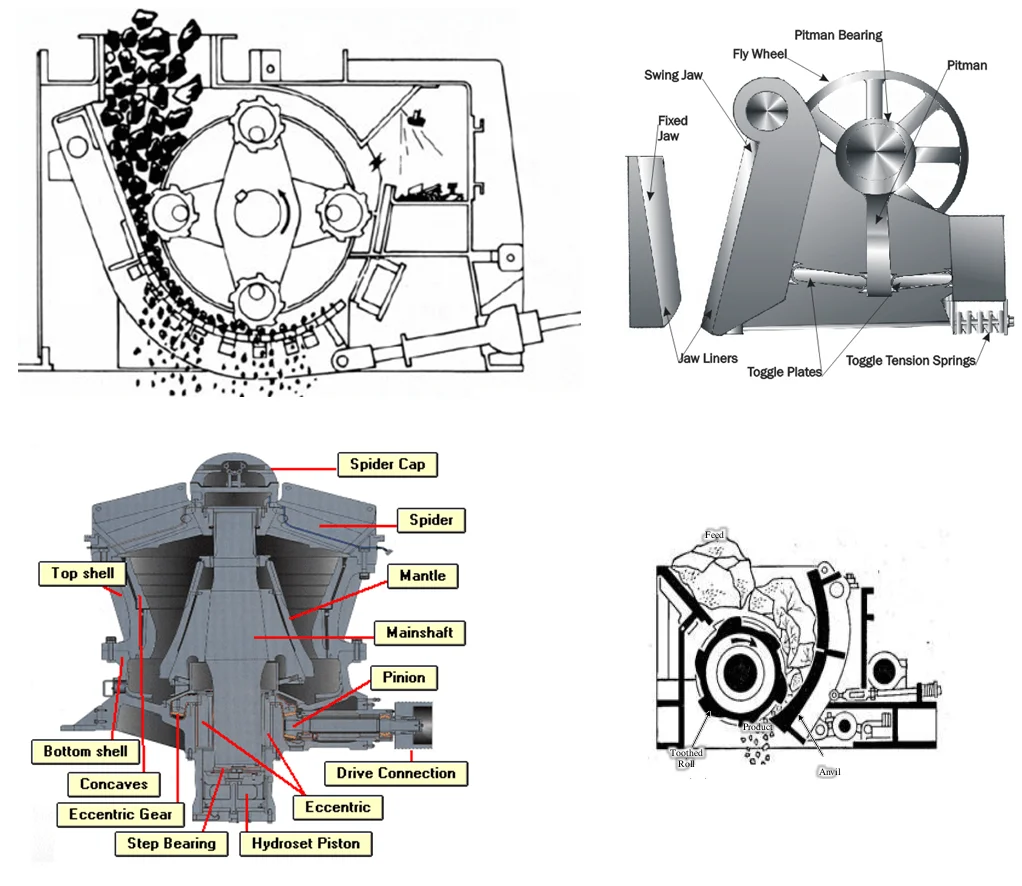

STRUCTURE

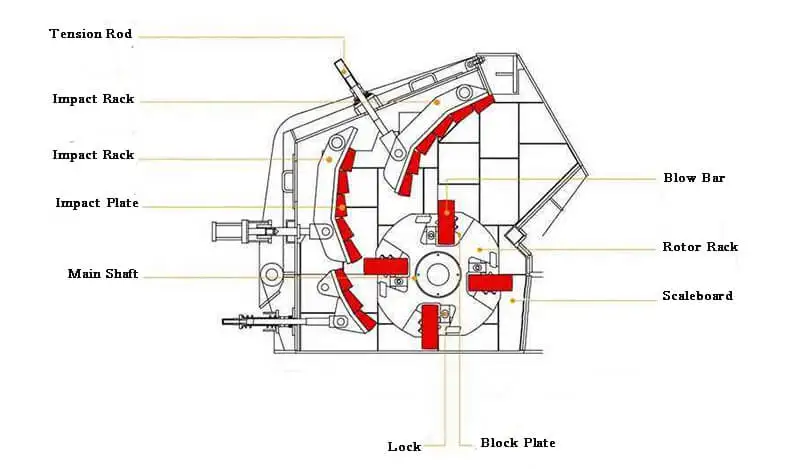

The impact crusher consists of impact rack, impact plate, main shaft, blow bar, rotor, rotor rack, machine body, etc.A power plant's crusher consists of several major parts. These include the crusher body, the drive motor, the support bearings, the rotor, the hammers or blades, the breaker plates and the adjustable cage bars
PRODUCT TECHNICAL PARAMETERS
| Model | Size (mm) | Inlet Size (mm) | Max. Inlet Length (mm) | Capacity (t/h) | Power(kw) |
| PF-0807 | 850*700 | 400*730 | 300 | 15-30 | 30-45 |
| PF-1008 | 1000*800 | 400*830 | 300 | 30-50 | 37-55 |
| PF-1010 | 1000*1050 | 400*1080 | 350 | 50-80 | 55-75 |
| PF-1210 | 1250*1050 | 400*1080 | 350 | 70-120 | 110-132 |
| PF-1214 | 1250*1400 | 400*1430 | 400 | 130-180 | 160-200 |
| PF-1315 | 1320*1500 | 860*1520 | 500 | 160-250 |
Packaging & Shipping
| Delivery time | Within 7-15 working days after receiving your payment; |
| Payment terms | T/T, L/C, Western Union, Trade Assurance; |
| Packing | a. Machines are wrapped in plastic film first before packing, which is to avoid moisture on the sea; b. The machines are put in standard export wooden case, lined with metal wire if necessary. |
| Quality Guarantee Terms | Quality guarantee term is for one year. Malfunctions caused by machine itself and quality will be responsible for our manufacturer. Other malfunctions caused by operation mistakes, man-made problem etc., we won't take responsible. |
FAQ
Q1: If you want us recommend a suitable type and best offer for you ,please let us know as follows:
1). You only need one cone crusher or a whole crushing line? (Include the feeder ,crusher, screen, conveyor and so on)
2).What is the max size of the stone (mm/inch)?
3).What is the output size you need?
Q2:What could you help me to do for the business?
Many thanks for your trust, we can provide you with proposal chart for complete production lines Crusher, spot inspection and operator training according to your demands and the conditions of applied spot, we can help you choose the right equipment, drilling rig, loader, trucks, excavators and so on.
Company Information
Henan Mind Machinery Equipment Co., Ltd. has been designing, developing, manufacturing and marketing Machinery for more than 12 years. After these years of development, we have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect aftersales service system. So choose us, equaling to choose the competitive price and stable quality both.
