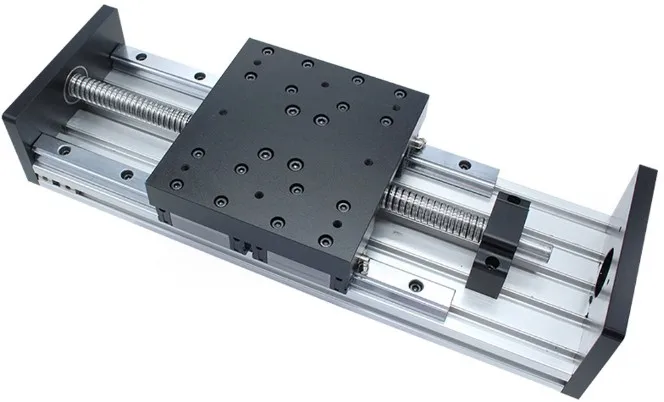

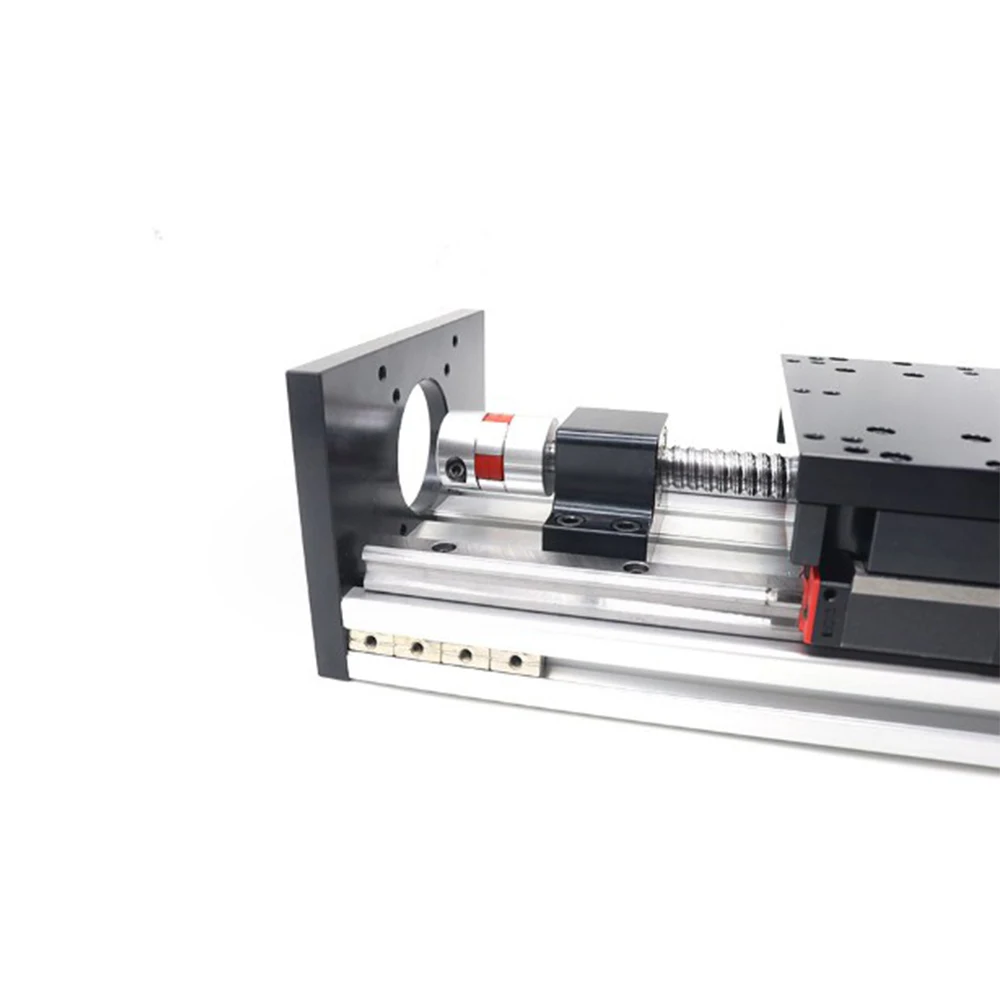

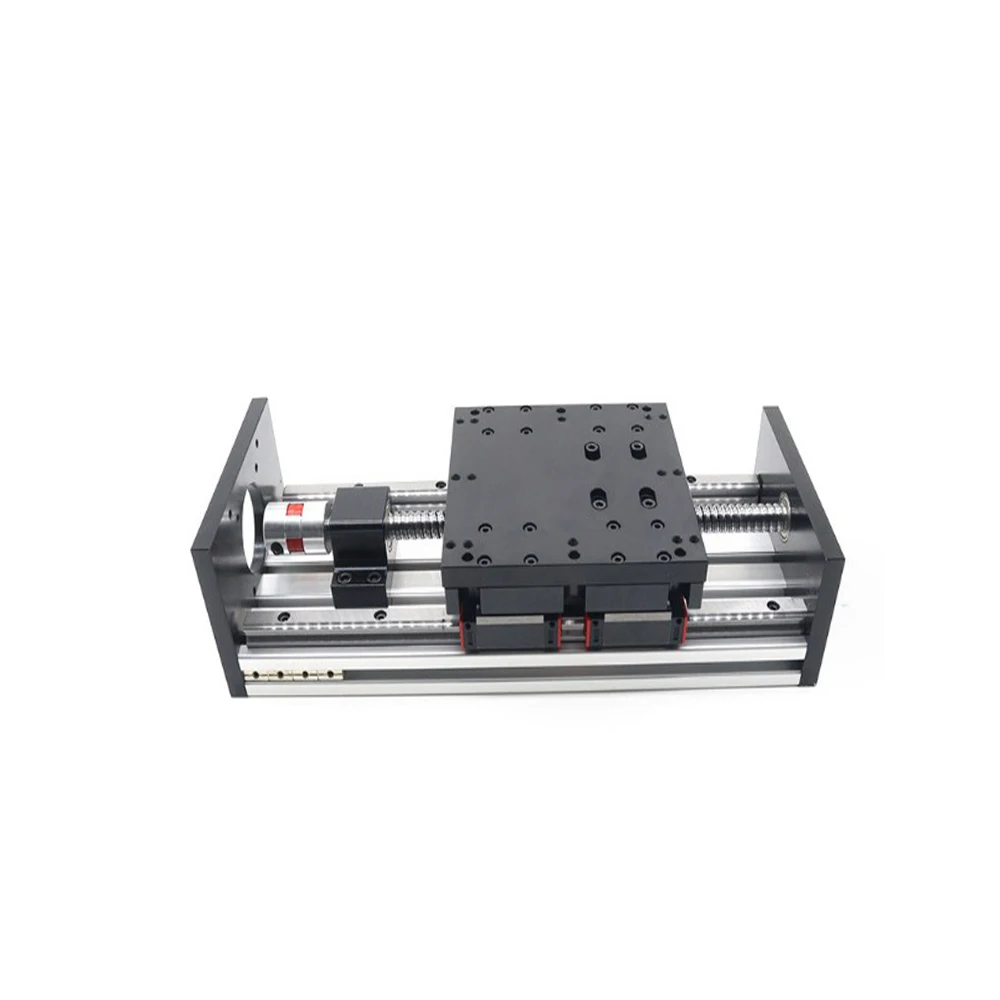

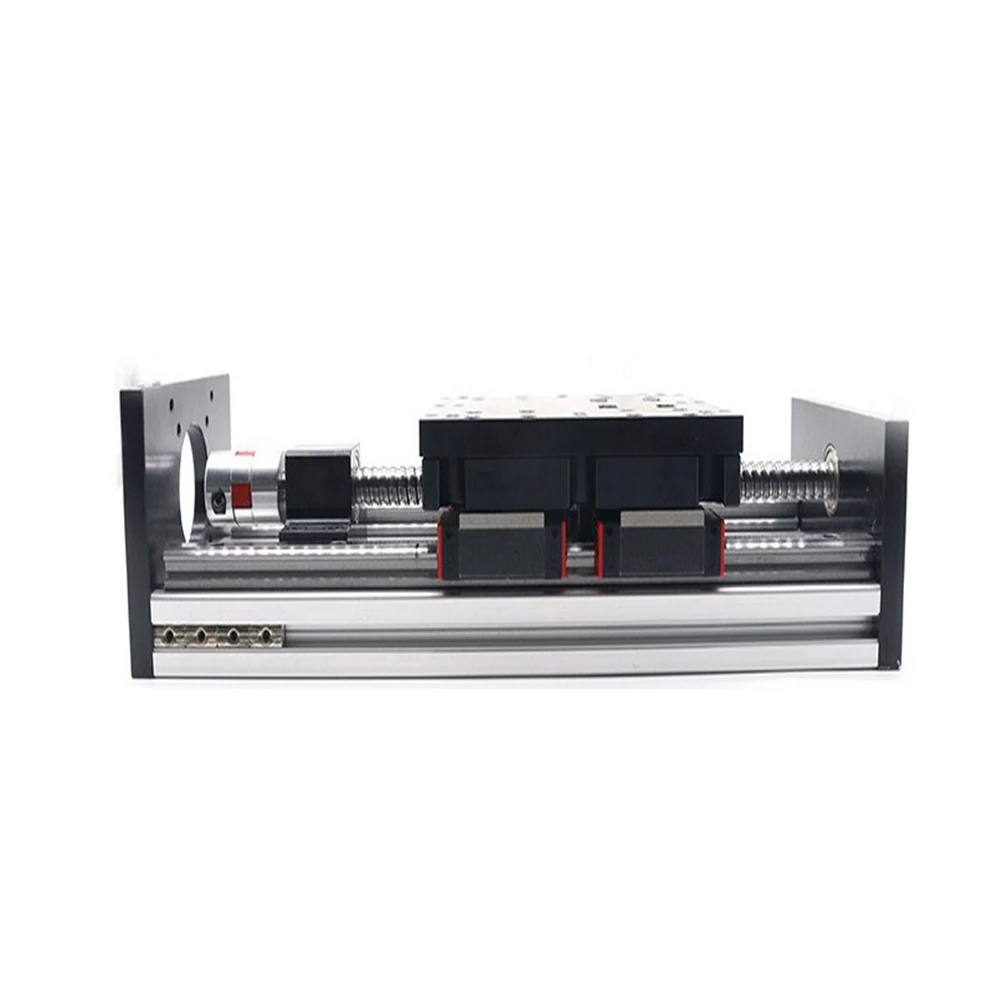

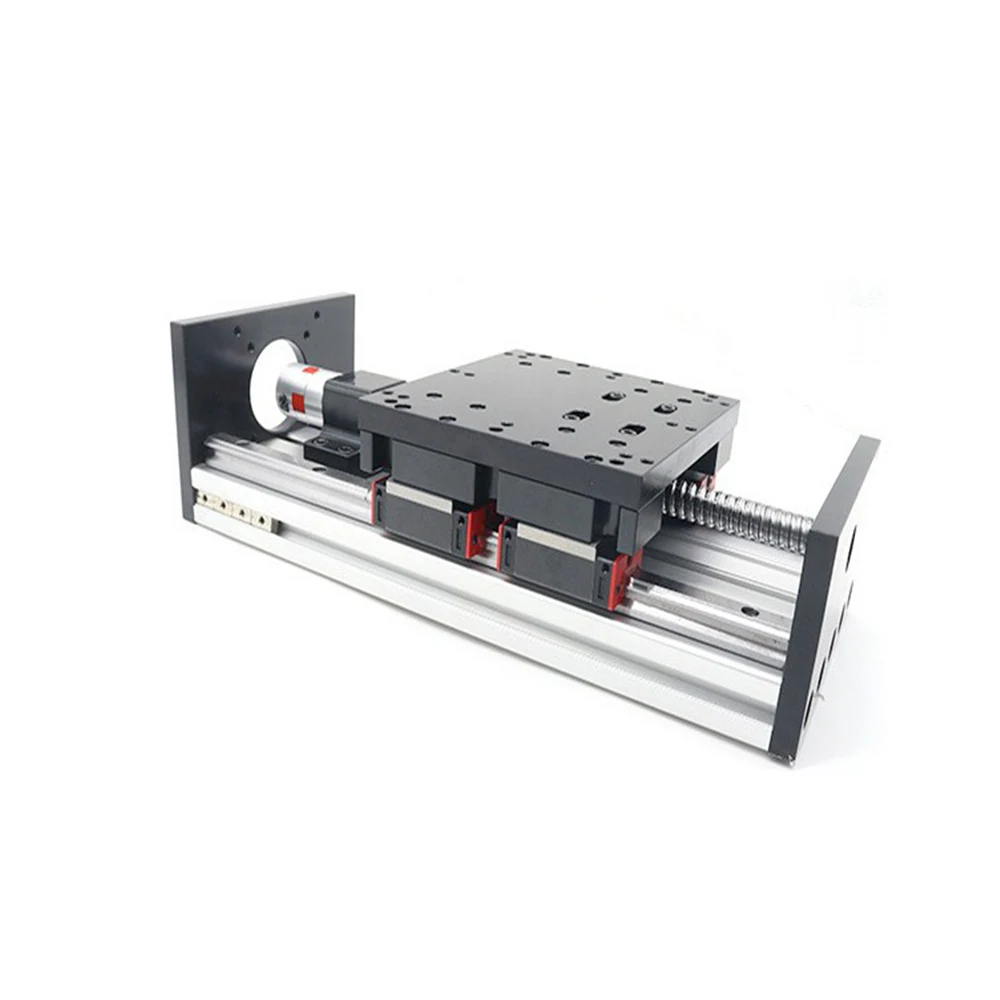

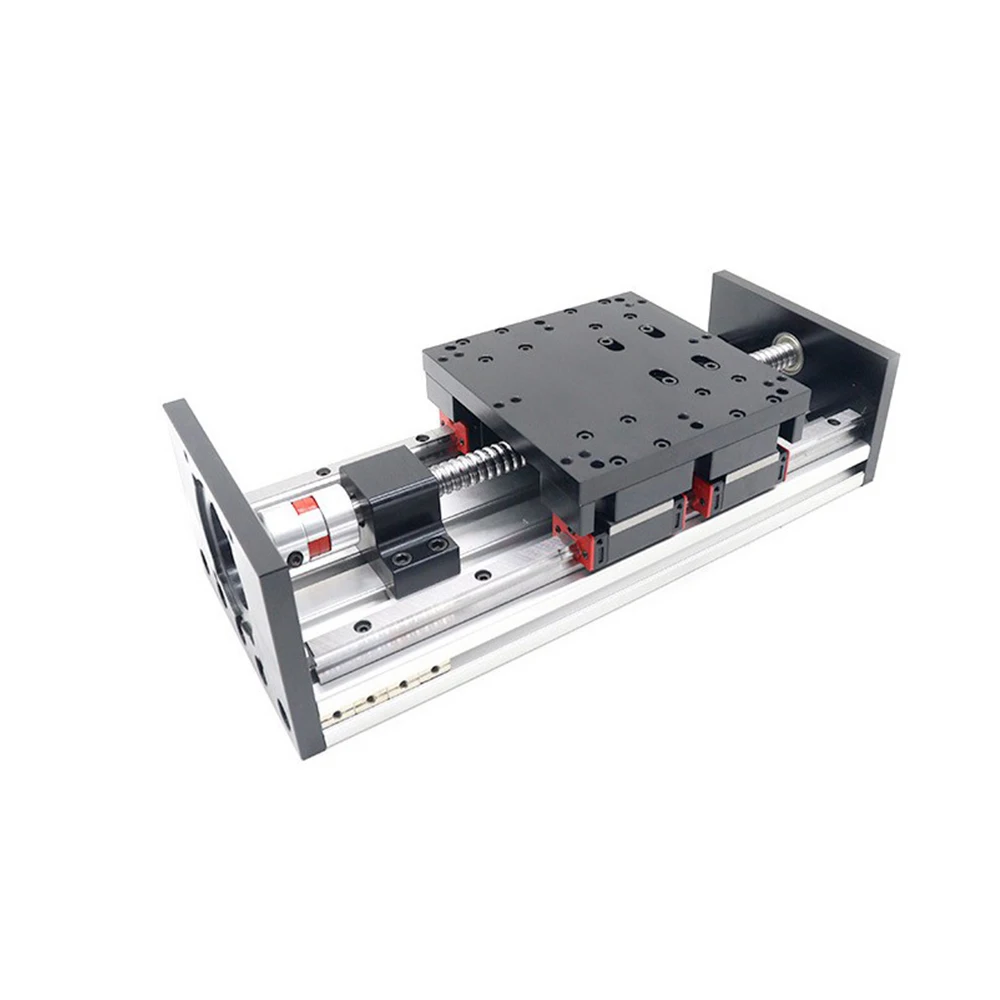

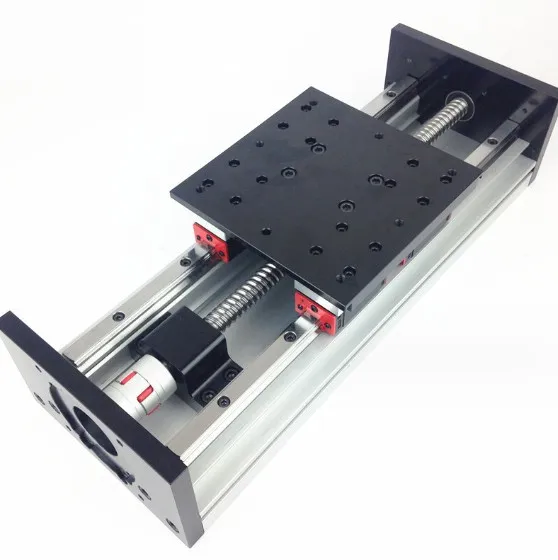

Linear Guide Rail xyz Axis Cross Sliding Table 57 Nema Motor Sliding Table Linear Actuator
Linear Guide Rail xyz Axis Cross Sliding Table 57 Nema Motor Sliding Table Linear Actuator
Linear Guide Rail xyz Axis Cross Sliding Table 57 Nema Motor Sliding Table Linear Actuator
Linear Guide Rail xyz Axis Cross Sliding Table 57 Nema Motor Sliding Table Linear Actuator
Linear Guide Rail xyz Axis Cross Sliding Table 57 Nema Motor Sliding Table Linear Actuator
Linear Guide Rail xyz Axis Cross Sliding Table 57 Nema Motor Sliding Table Linear Actuator
Linear Guide Rail xyz Axis Cross Sliding Table 57 Nema Motor Sliding Table Linear Actuator

Linear Guide Rail xyz Axis Cross Sliding Table 57 Nema Motor Sliding Table Linear Actuator

Share on (1601075848759):


Price:$99.90 - $125.00

Quantity:


Product Overview

Description



Products Description

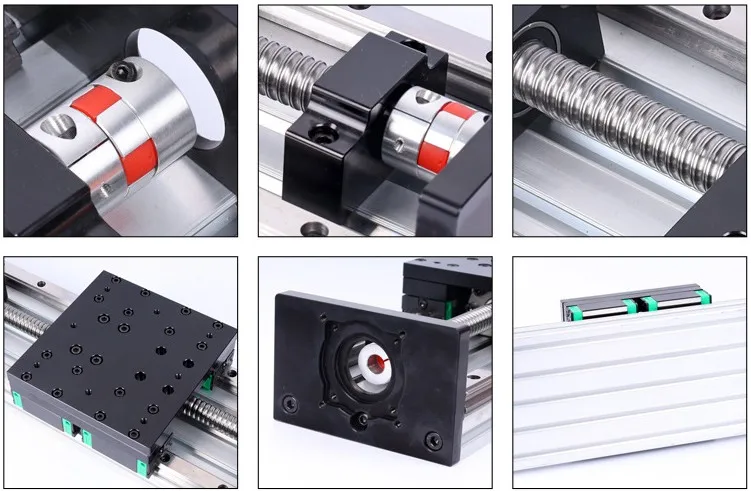

Material: Aluminum alloy + carbon steel
Ball screw specification: 2005/2010
Product type: Double track double slide screw linear module
Screw diameter: 20mm

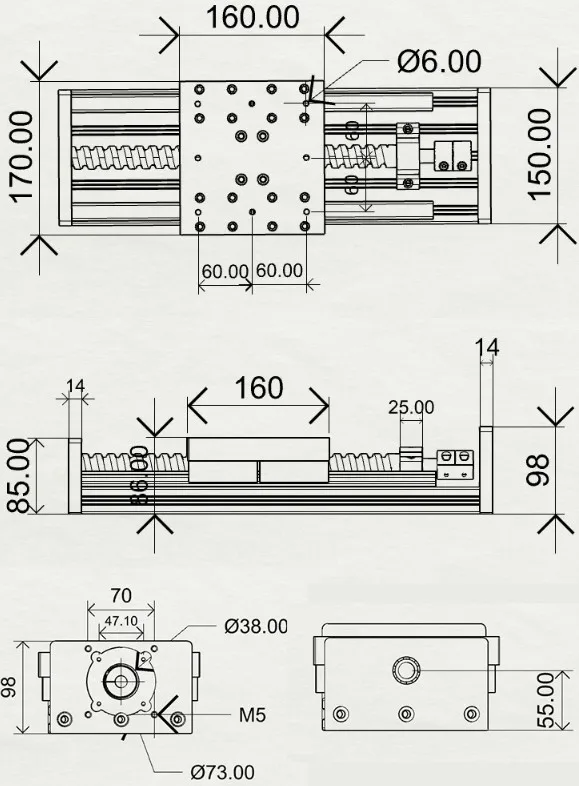

Profile width: 150m
Lead :5mm/10mm
Stage specifications: 160*170mm
Ball screw accuracy: C7
Effective stroke: 100mm-1500mm (customizable)
Repeated positioning accuracy: +-0.03mm
Guide block model: HGH20CA/HGR20
Reference load: horizontal 100KG, vertical 50KG
Recommended motor: 60/86 stepper motor, 400/750W servo motor


Applicable motor:
1. 57 Stepper motor/closed loop motor - torque range 1.2NM-2.8NM
2.86 Stepper motor/closed loop motor - torque range 24NM-12NM
3. 60 Servo motor 200W-600W
4.80 Servo motor 750W-1000W
