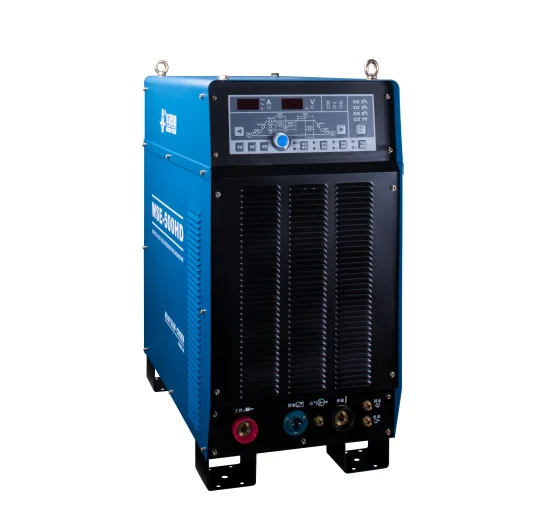

HUAYUAN Inverted AC/DC pulse argon arc welding machine WSE 350MD 380v 50/60hz

Product Overview

Description

Product Introduction

   HUAYUAN WSE-350MD/500/600HD inverter AC/DC pulse argon arc welding machine.

AC+DC, water-cooled gun WP-18 with 5-meter cable.



Product technical parameters





model		WSE-350MD
Input power supply		3~380+15% 50/60
Rated input capacity		15.5kVA
Rated input current		23.6A
Rated output current		350A
Rated output voltage		24v
Rated No-Load Voltage		72v
Rated load duration		35%(40℃)
efficiency		70%
power factor		0.76
Range of arc current regulation	AC	20~350A
	DC	10~315A
Welding current adjustment range	AC	20~350A
	DC	10~315A
Peak current regulation range	AC	20~350A
	DC	10~315A
Base current regulation range	AC	20~350A
	DC	10~315A
Range of arc current regulation	AC	20~350A
	DC	10~315A
Pulse frequency adjustment range		0.2~99.9 HZ
Pulse duty cycle adjustment range		10%~90%
AC frequency regulation range		20~200 HZ
Cleaning width adjustment range		-40~40
Current ramp up time adjustment range		0.0~10.0 S
Current ramp down time adjustment range		0.0~10.0 S
Pre air time adjustment range		0.0~10.0 S
Adjustment range of delayed gas interruption time		0.0~20.0 S
Geometric dimensions (length x width x height)		705x350x650MM
Net weight of power supply		52KG











 Product features
1. Adopting digital inverter control technology
2. Possess all the characteristics required for DC TIG and AC TIG welding
3. All parameters of TIG and MMA can be preset, stored, and called up before welding
4. It has the function of selecting self-locking/non self-locking/repeated non self-locking states
5. It has a gas detection function, which facilitates the adjustment of argon gas flow rate
6. It has complete protection and indication functions
7. Optional interface for foot pedal controller and dual machine synchronous communication interface







 Product application
      Mainly used for welding materials such as carbon steel, stainless steel, aluminum and aluminum alloys, copper and copper alloys, heat-resistant steel, titanium alloys, magnesium alloys, aluminum bronze, etc
     Widely used in aerospace, locomotives, ships, pressure vessels, air separation, heat exchangers, petrochemicals, substations, automobiles, motorcycles, bicycles and other fields.
