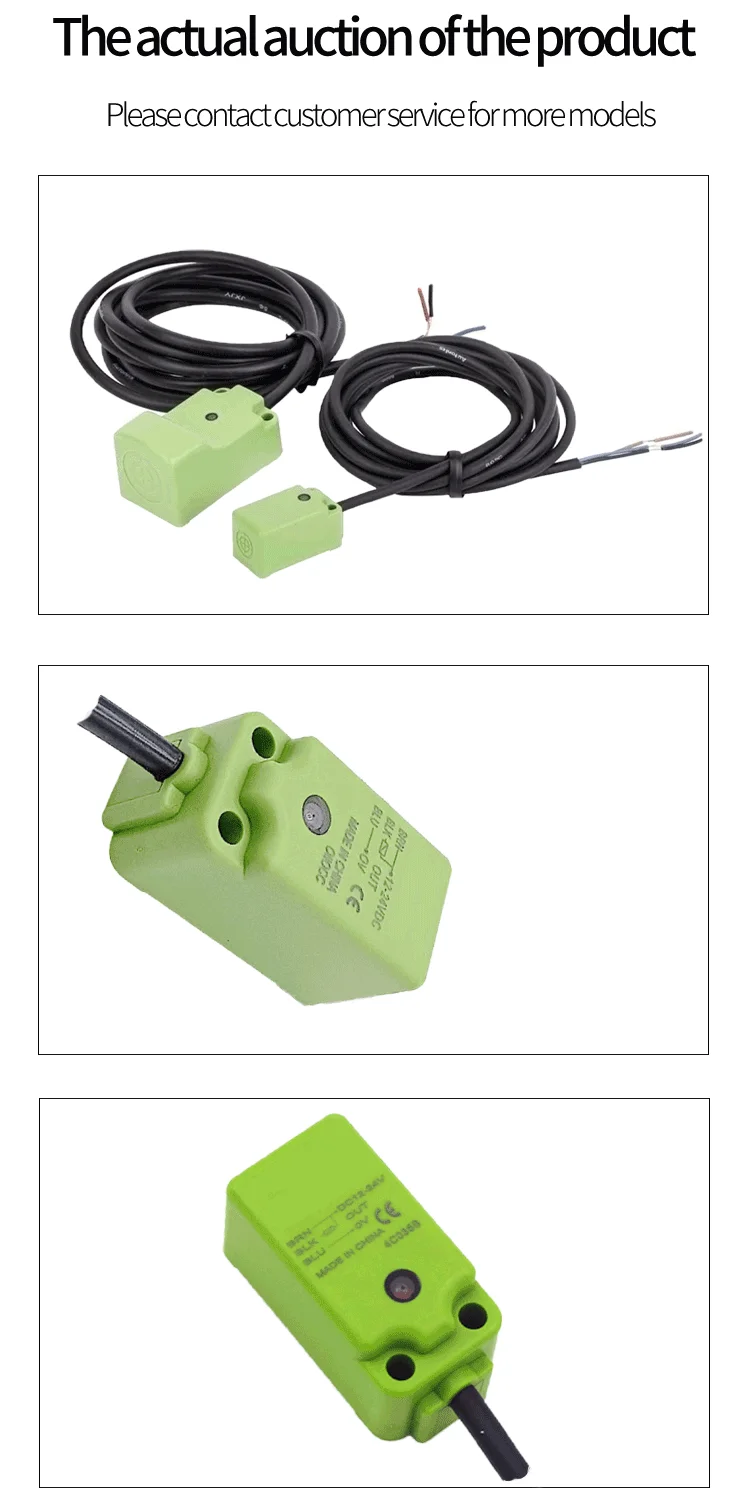

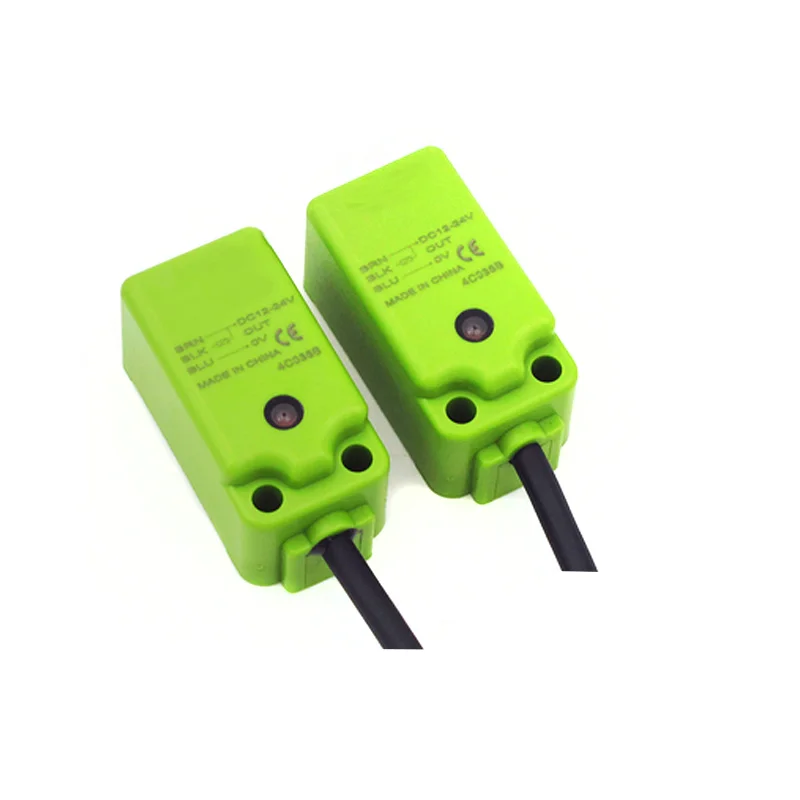

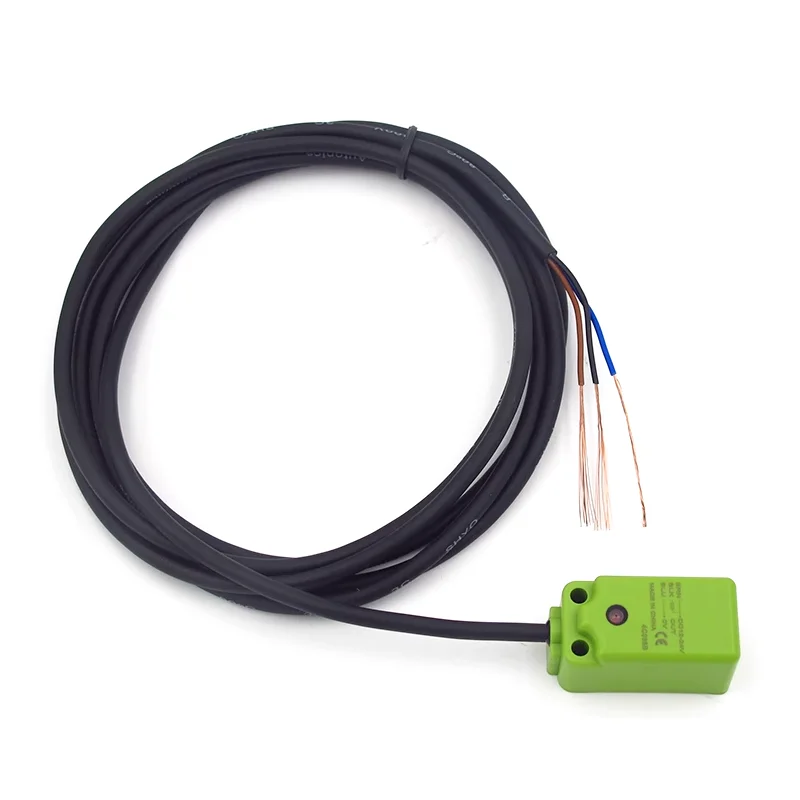

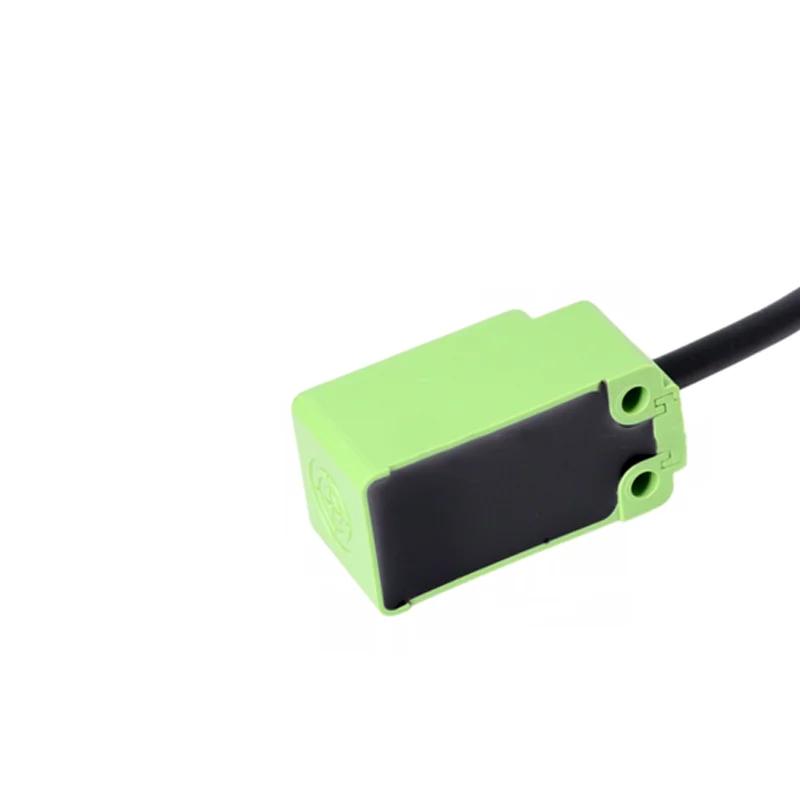

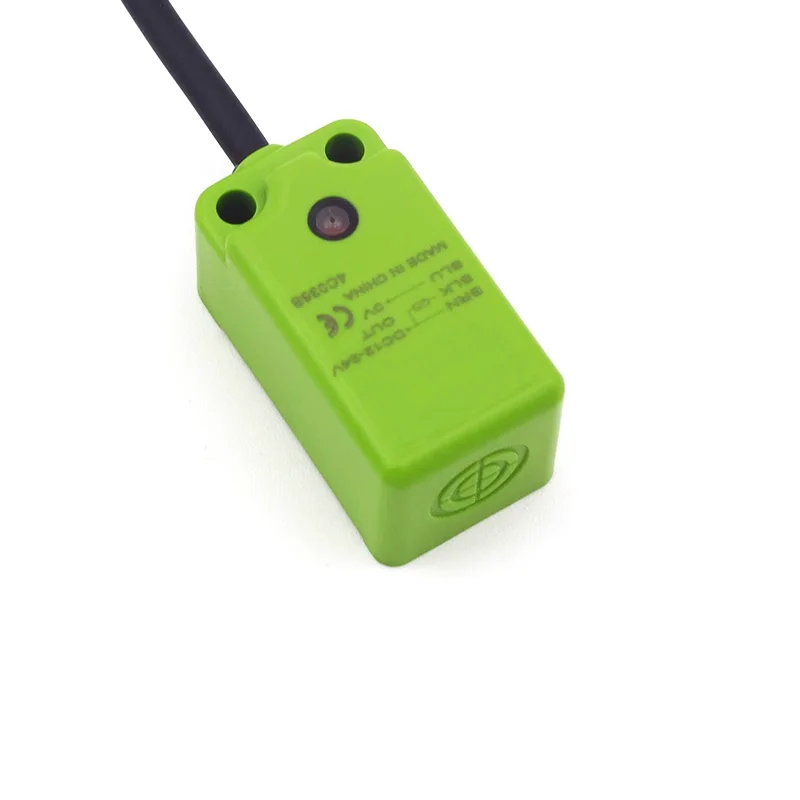

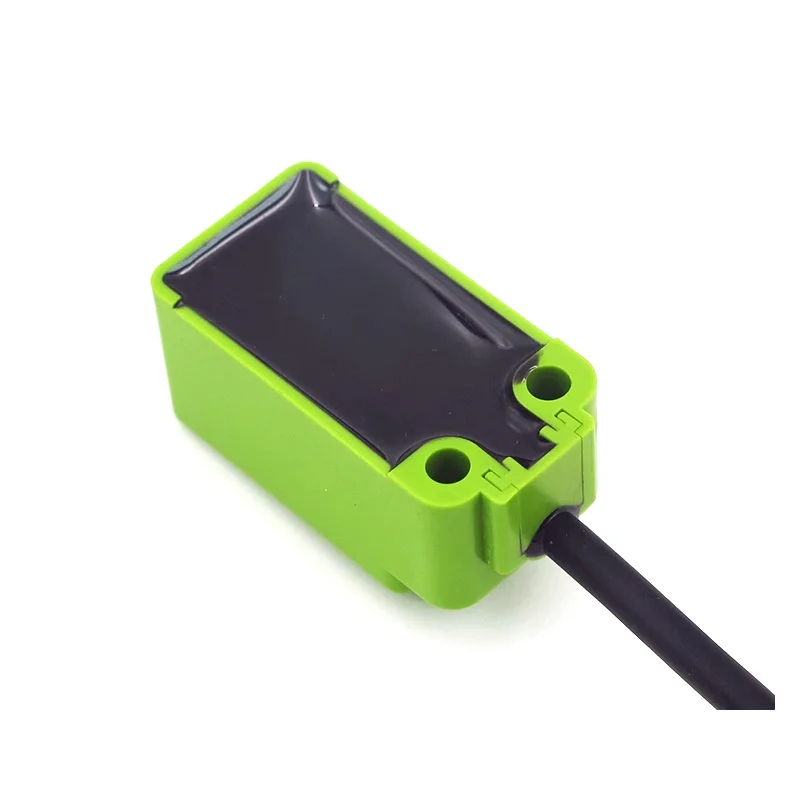

BXUAN PSN17 5mm detection distance DC 2 wire NO NC 10 30V 12 24V NPN PNP Inductive proximity switch sensor
- Category: >>>
- Supplier: Yueqing Bxuan Electrical Co. Ltd.
Share on (1601075962899):
Product Overview
Description
Product recommendations
Product Description

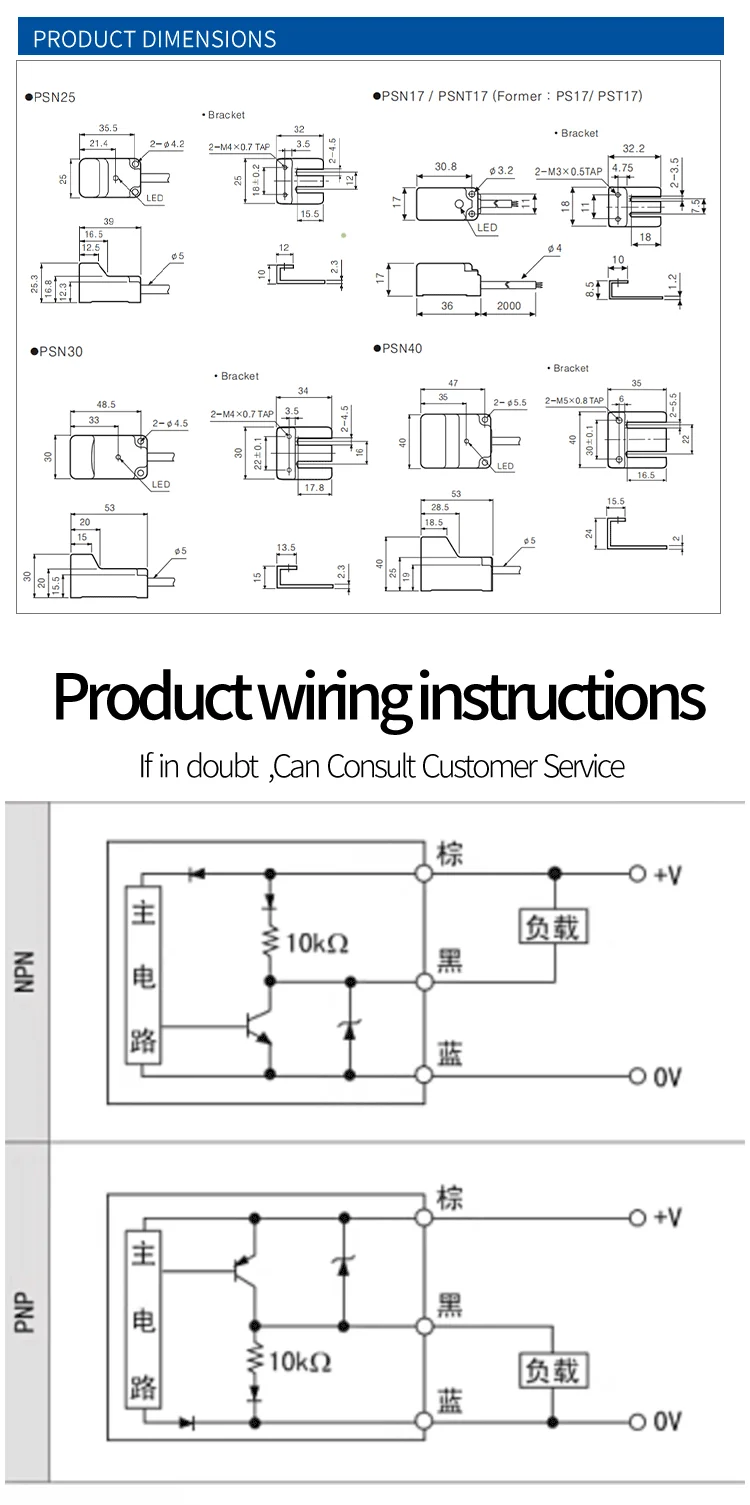

model | BLN5-PSN17-N1 BLN5-PSN17-P1 BLN5-PSN17-N2 BLN5-PSN17-P2 BLN5-PSN17-D1 BLN5-PSN17-D2 | BLN8-PSN25-N1 BLN8-PSN25-P1 BLN8-PSN25-N2 BLN8-PSN25-P2 | BLN5-PSN25-N1 BLN5-PSN25-P1 BLN5-PSN25-N2 BLN5-PSN25-P2 BLN5-PSN25-A1 BLN5-PSN25-A2 | BLN10-PSN30-N1 BLN10-PSN30-P1 BLN10-PSN30-N2 BLN10-PSN30-P2 BLN10-PSN30-A1 BLN10-PSN30-A2 | |||
sensing distance | 5mm ±10% | 8mm ±10% | 5mm ±10% | 10mm ±10% | |||
Hysteresis | Max. 10% of sensing distance | ||||||
Standard sensing target | 18x18x1mm(Iron) | 25x25x1mm(Iron) | 30x30x1mm(Iron) | ||||
Power supply (Operation voltage) | 12-24VDC(1-30VDC) 100-240VDC(85-264VC) | ||||||
Current consumption | Max.10mA | ||||||
frequency(*1) | 700Hz | 200Hz | 300Hz | 250Hz | |||
Residual voltage | Max. 1.5V | ||||||
Affection by Temp | Max. for sensing distance at +20℃ within temperaturerangeof-25~+70℃ | ||||||
Control output | Max.200mA | ||||||
Insulation resistance | Min.50MQ(at 500VDC mega) | ||||||
Dielectric strength | 1500VAC50/60Hz for 1minute | ||||||
Vibration | lmm amplitude at frequency of 10~ 55Hz in each of XYZ directions for 2 hours | ||||||
Shock | 500m/s²(50G)in X.Y.Z direction for 3times | ||||||
Indicator | Operation indicator(Red LED) | ||||||
Ambient temperature | -25~+70℃(at non-freezing status) | ||||||
Storage temperature | -30~+80℃(at non-freezing status) | ||||||
Ambient humidity | 35~95%RH | ||||||
Protection circuit | Surge. Reverse power polarity protection circuit | Surge. Reverse power polarity ,Overcurrent protection circuit | |||||
Protection | IP67(IEC standard) | ||||||

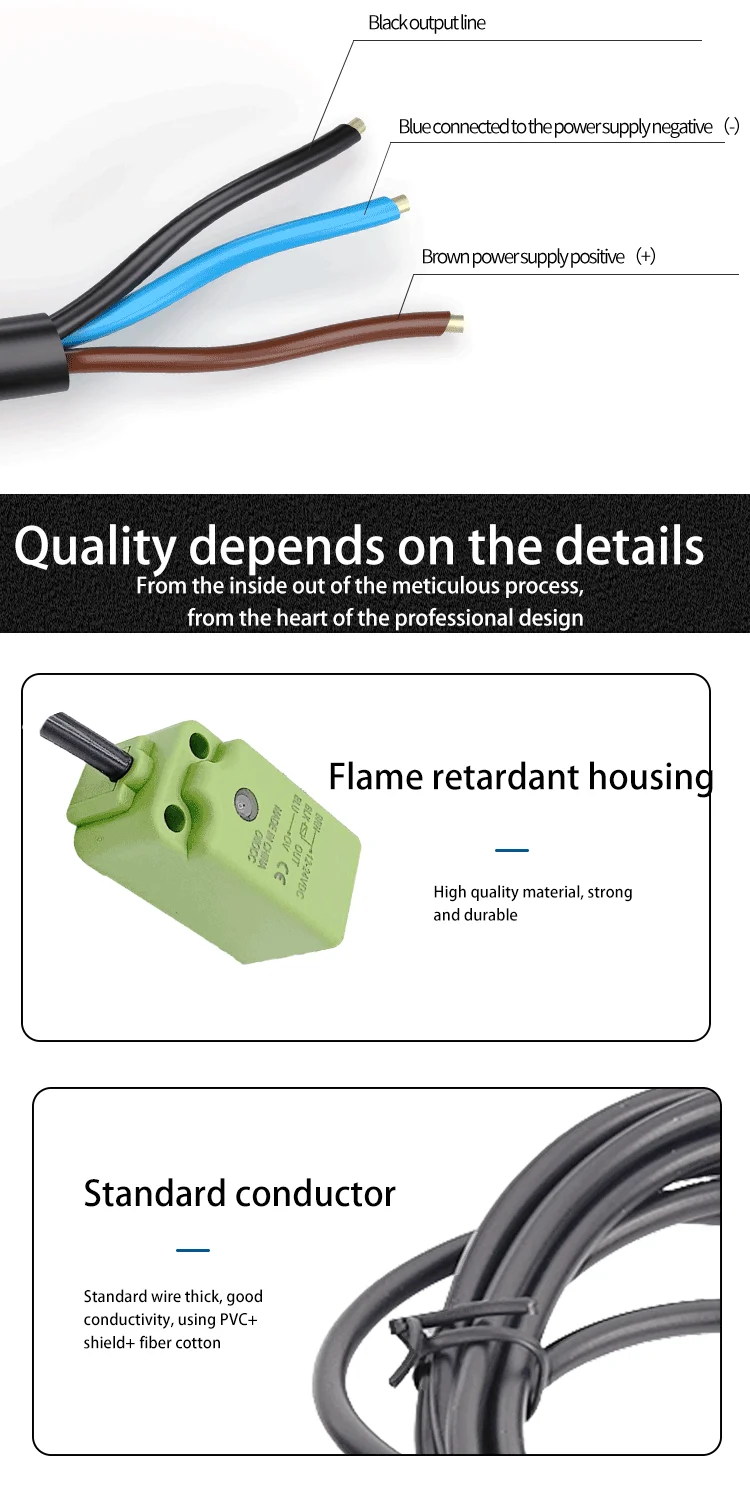

Cable spec. | ф4x2P,2m | ф5x2P,2m | |||||
Approval | CE | ||||||
Why Choose Us
1.Our production speed is very fast,Ship within a short period of time
2.Our products have CE certification and comply with EU production standards
3.Support product customization
4.Free samples can be provided
5.Provide a one-year quality assurance for the product
2.Our products have CE certification and comply with EU production standards
3.Support product customization
4.Free samples can be provided
5.Provide a one-year quality assurance for the product
Packing & Delivery
Company Profile
Yueqing binxuan Electric Co., Ltd. is a modern enterprise specializing in R & D, manufacturing and sales of sensors. The main products are ultrasonic sensors, pressure sensors, inductive sensors, capacitive sensors, Hall switches and various proximity switches. Products are widely used in printing, plastic, petroleum, textile, chemical, food, metallurgy, tobacco, electricity and other mechanical equipment and automatic assembly line equipment. It can be used for limit, location detection, speed measurement, automatic counting, automatic protection, industrial assembly line and microcomputer signal transmission, etc. it plays an important role in improving the automatic control system. The company adheres to the tenet of "considerate service, exquisite technology and high quality", adopts international standards, and meticulously designs and manufactures interchangeable products with similar foreign products. The company has perfect production facilities and advanced testing equipment, professional and technical personnel, and has established a perfect quality inspection system. The company with high efficiency, high quality constantly high automatic control system has a great role. The company adheres to the tenet of "considerate service, exquisite technology and high quality", adopts international standards, and meticulously designs and manufactures interchangeable products with similar foreign products. The company has perfect production facilities and advanced testing equipment, professional and technical personnel, and has established a perfect quality inspection system. With high efficiency and high quality, the company constantly develops new products to meet customers' demand for specific product functions. The company always adheres to the principle of "quality-oriented, reasonable price, service first" and constantly optimizes the product structure. Customer satisfaction is our goal, we will insist on using good products and services to repay our customers.
