Automatic 10x2000mm CNC Sheet Metal 3 Roller Plate Bending Rolling Machine
- Category: >>>
- Supplier: Almaco Machine Tool Co. Ltd.
Share on (1601075972924):
Product Overview
Description
Recommend Products
Product Description

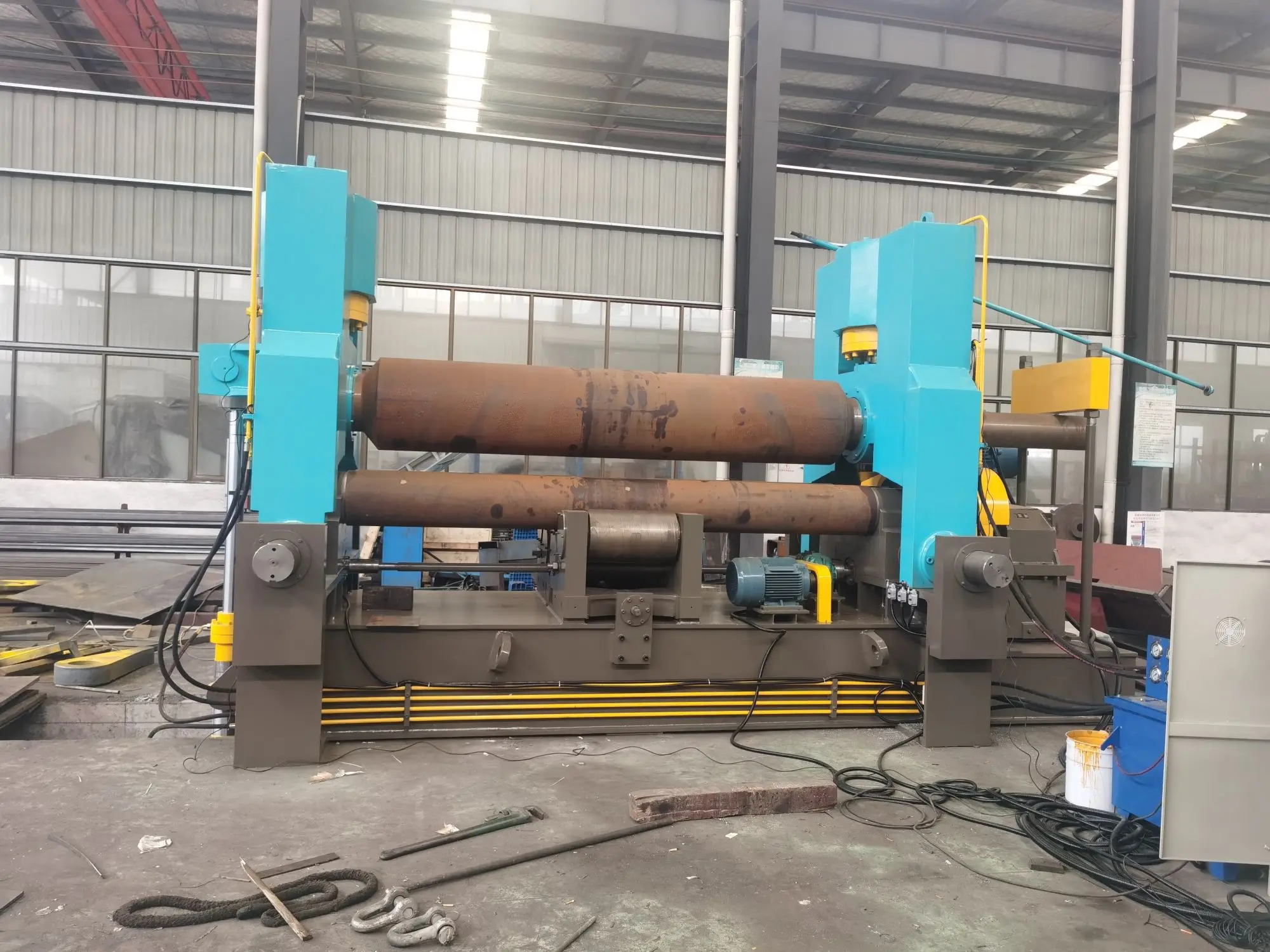

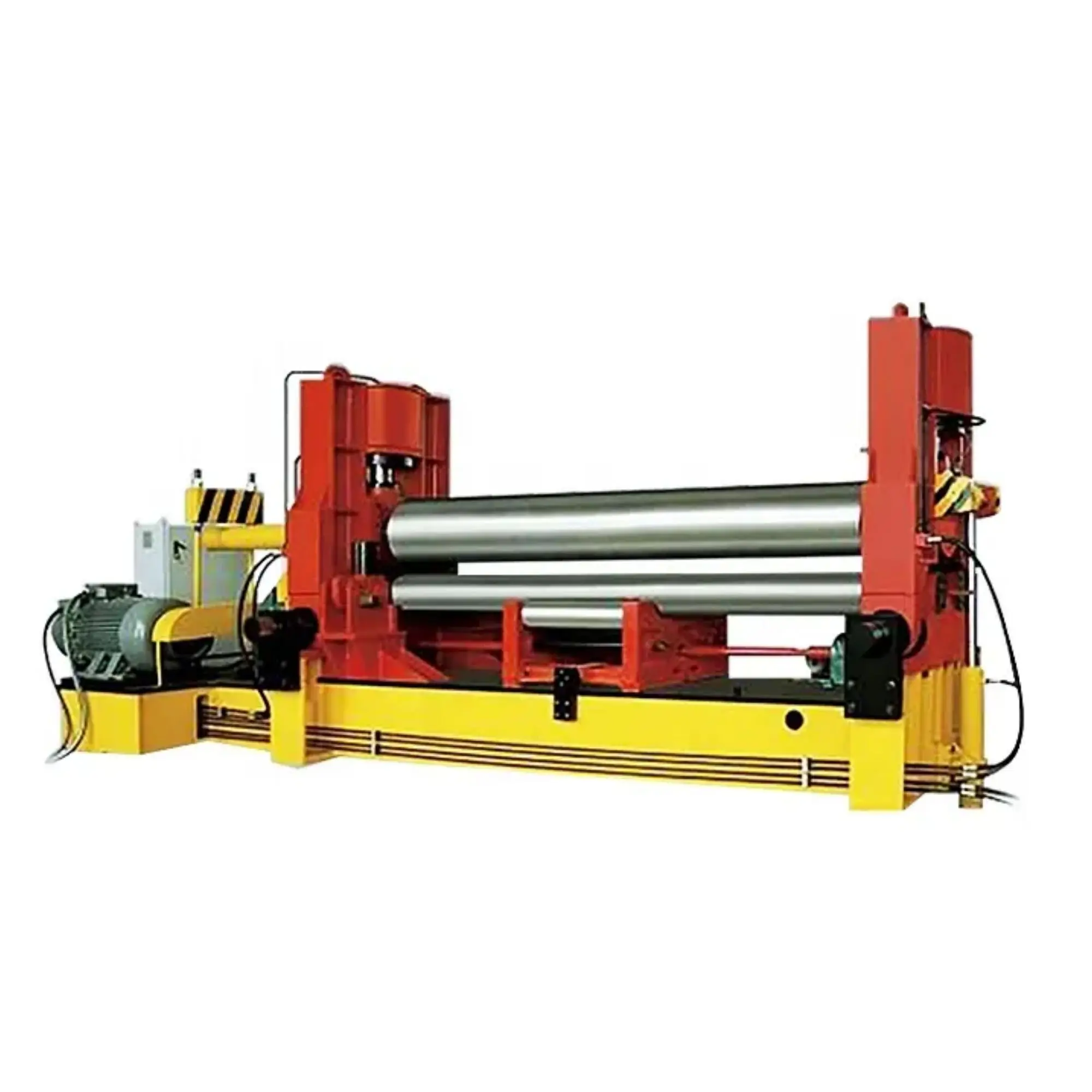

This equipment should be composed of main structure, hydraulic system , electricity control system and cone device.
The main structure is composed of upper roller , down rollers and level motion device support rolls device , tuning device ,
balance device, lubricate device , left and right work frame and bottom plate.
The main structure is composed of upper roller , down rollers and level motion device support rolls device , tuning device ,
balance device, lubricate device , left and right work frame and bottom plate.

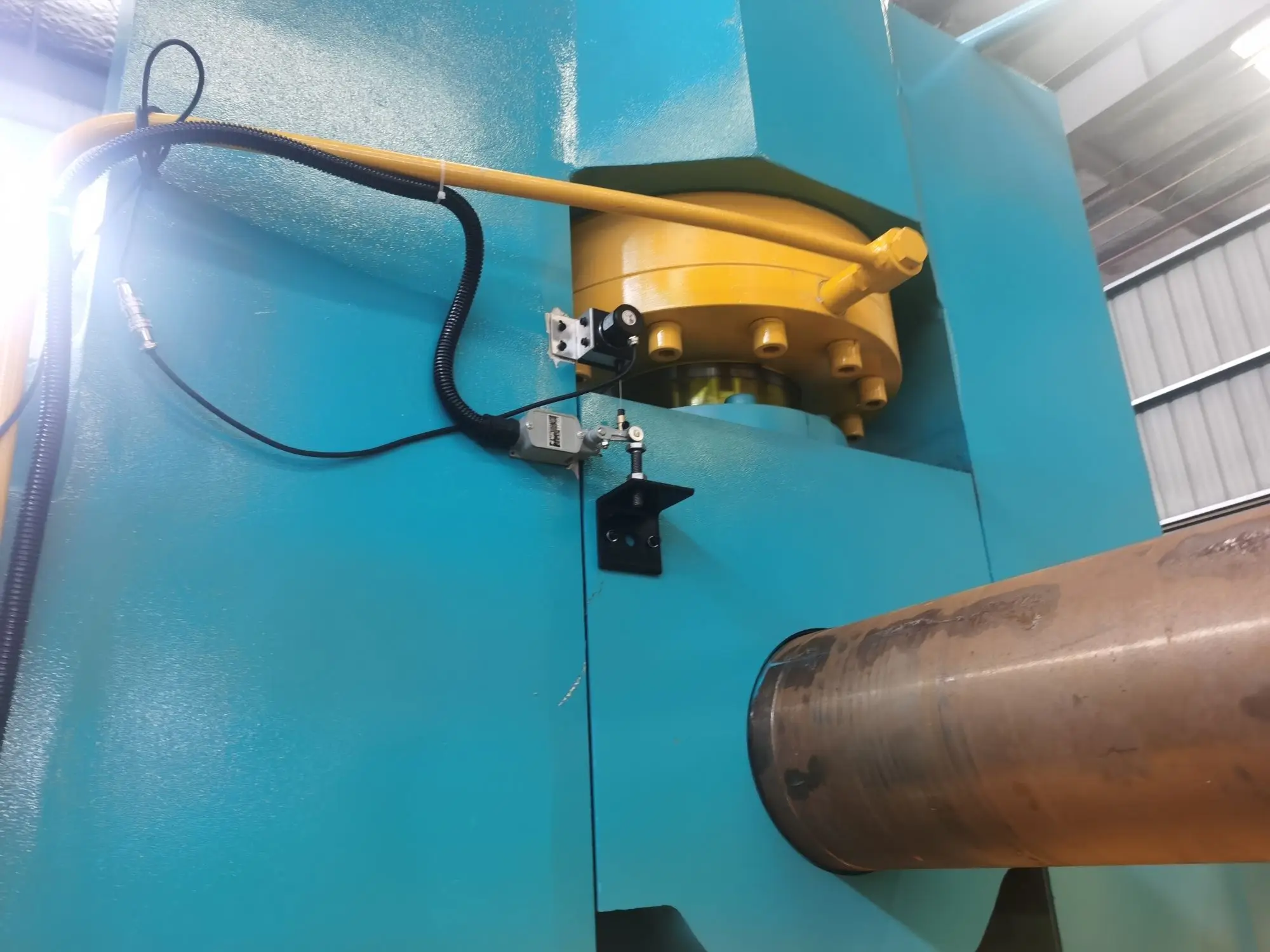

upper rolls device composed of main cylinder, upper bearing pedestal, upper rolls, double self-aligning bearing .two cylinders
provide the pressure for upper roll bending , main cylinder working pressure is 20 Mpa ,max pressure of upper roll multiply 0.8
times to compensate for pre-bending. Upper roll two ends fit with double self-aligning bearing to reduce the friction and motor
power. The material of upper roll is 42CrMo , heat treatment is HB220-280.
times to compensate for pre-bending. Upper roll two ends fit with double self-aligning bearing to reduce the friction and motor
power. The material of upper roll is 42CrMo , heat treatment is HB220-280.
Down roll and level motion device.
The material of down roll is alloy steel; heat treatment is HB220-280. it composed of down of roll, down roll bearing pedestal,
down roll input gear, down roll, glide bearing. Down bearing adopt SF-2 oil glide bearing.
Level motion motor supply the power, through the strap drive to CWU worm wheel and pole speed reducer. Upper roll level motion
drove by worm wheel and pole to finish bending in dissymmetry form.
The material of down roll is alloy steel; heat treatment is HB220-280. it composed of down of roll, down roll bearing pedestal,
down roll input gear, down roll, glide bearing. Down bearing adopt SF-2 oil glide bearing.
Level motion motor supply the power, through the strap drive to CWU worm wheel and pole speed reducer. Upper roll level motion
drove by worm wheel and pole to finish bending in dissymmetry form.
Specification
Project | Units | Technical Data |
Specifications | RPB-20*3000 | |
Upper roller adding pressure | T | 160 |
Max width of roll board | mm | 3000 |
The length of working rolls | mm | 3100 |
Max thickness of plate pre-bending | mm | 16 (σs≤245 Mpa) |
Min diameter can be rolled | mm | 700 |
Up roll diameter | mm | Φ375 |
Down roll diameter | mm | Φ200 |
Distance between two down rolls | mm | 330 |
Yield limit | Mpa | 245 |
Drive speed | m/min | about 4.0 |
Main motor | kw | 18.5 |
Hydraulic motor | kw | 7.5 |
Shift motor | kw | 2.2 |
