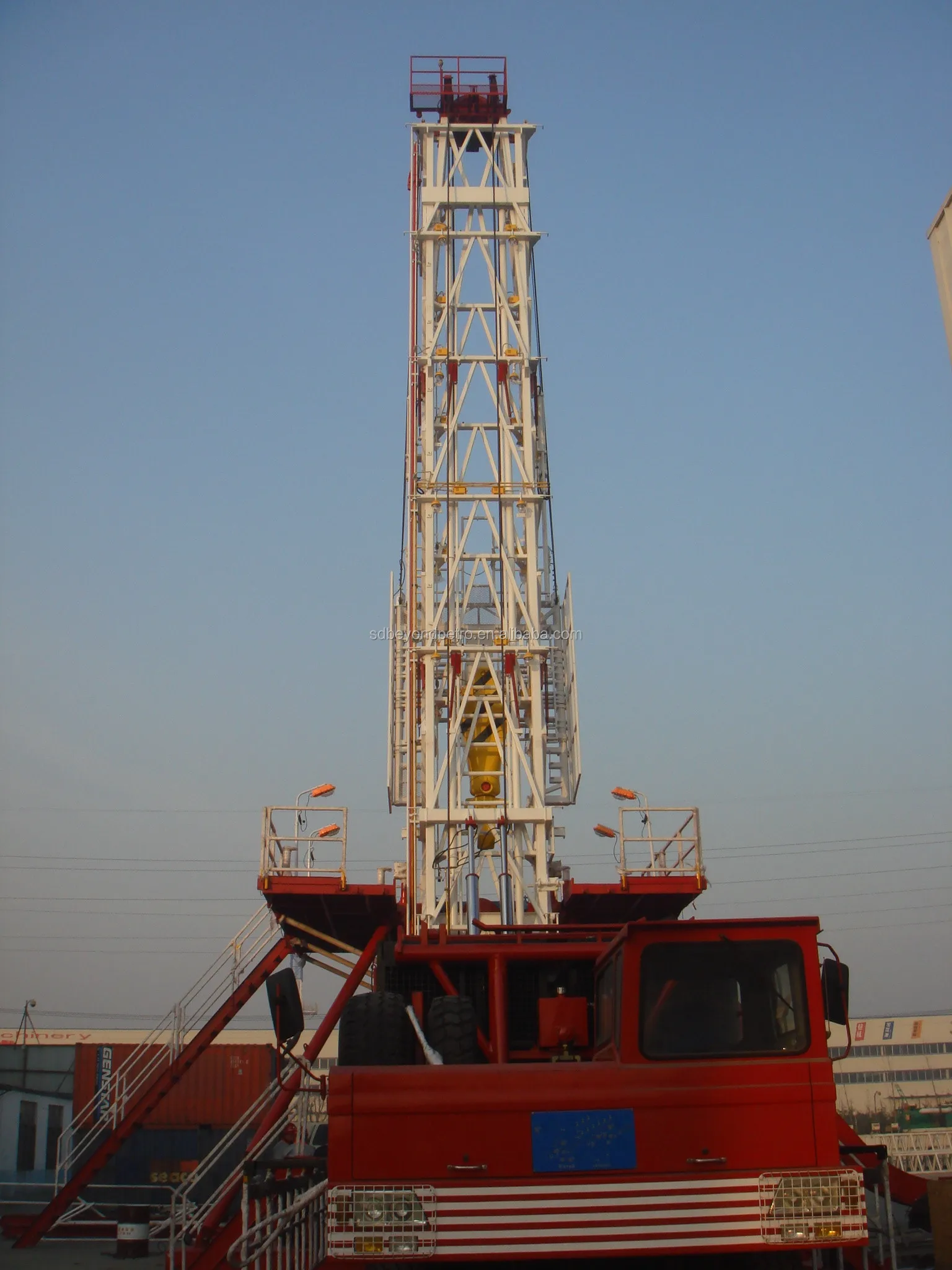

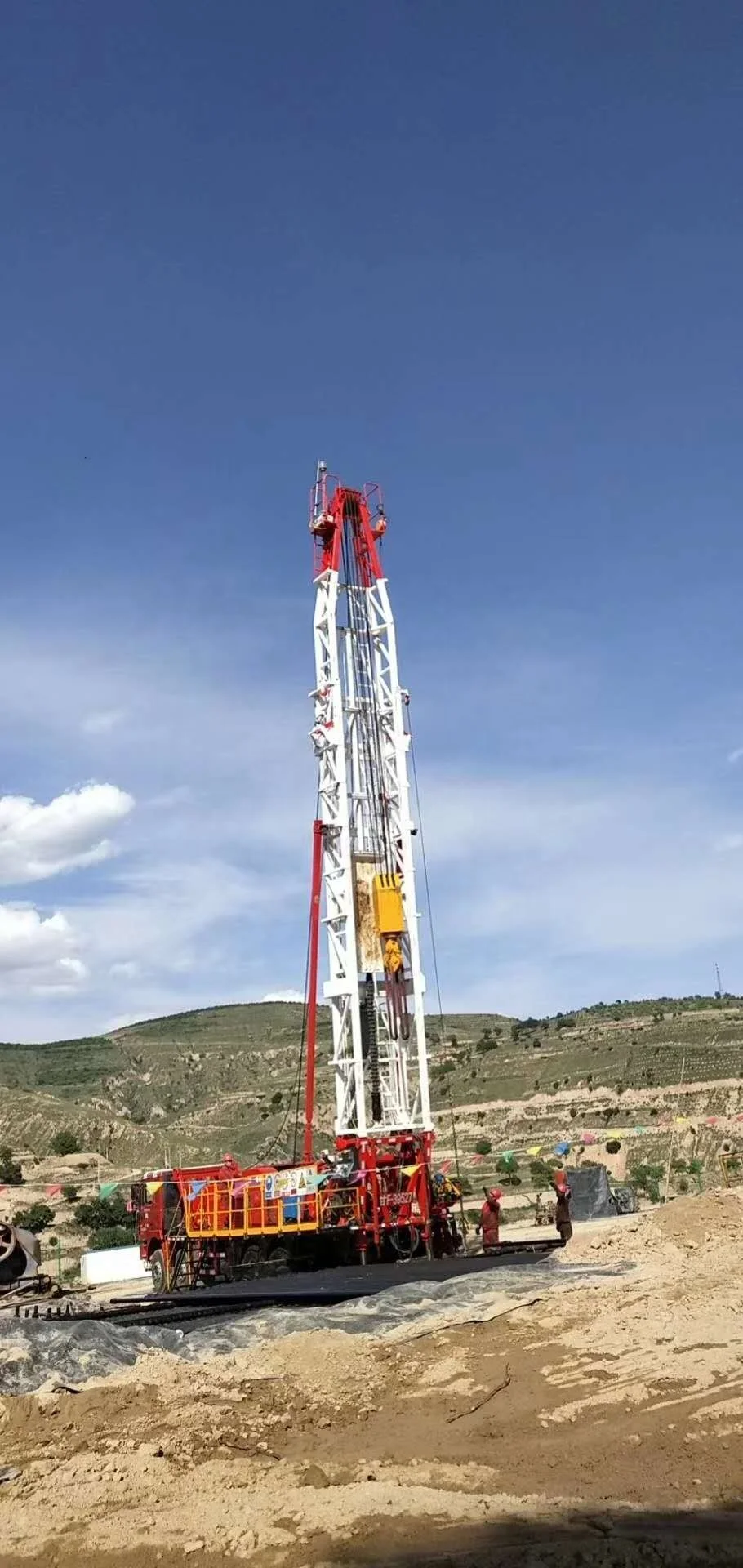

Oilfield Xj150 Xj250 Xj350 Xj450 Xj550 Xj650 Oil Well Truck mounted drilling rig &Workover Rig for oil drilling
- Category: >>>
- Supplier: Shandong Beyond Petroleum Equipment Co. Ltd.
Share on (1601075979430):
Product Overview
Description
Product Description
Description | XJ250 Workover Rig (Overhaul) | XJ250 Workover Rig (Servicing) | |
Workover Depth | 3,200m(10,500ft, 2-7/8'' DP) | 2,000m(6,560ft, 2-7/8'' DP) | |
Servicing Depth | 3200m (10,500ft, 2-7/8''EUE Tubing) | ||
Rated Hook Load | 400kN (90,000 lbf) | ||
Max. Hook Load | 735kN (165,000 lbf ) | 675kN (151,700 lbf) | |
Traveling System | 3×4 {Φ22mm (7/8'') Wireline) | ||
Hook Hoisting Speed | 1.5m/s (4.92ft/s) | ||
Overall Dimensions(l×w×h) | 18.5×2.9×4.2m60.7×9.5×13.8ft | 16.5×2.9×4.2m54.1×9.5×13.8ft | |
Weight | 50,000kg (110,230 lb) | 45,000kg (99,200lb) | |
Max. Travel Speed | 60km/h (37mph), but limit 45km/h(28mph) | ||
Carrier | Self-propeller 10×8 | Self-propeller 6×4 | |
Engine Model and Rated Power | Caterpillar C9/ATAAC260kW(350hp/2100rpm) | ||
Transmission | Allison 4700 OFS | ||
Derrick Height | 31m (102ft) | 27m (89ft) | |
Max. Static Hook Load | 735kN (165,000 lbf) | 675kN (151,700 lbf) | |
Racking Board Capacity | 3200m (10,500 ft, 2-7/8'' EUE TB) | ||
Racking Board Height | 20.1m (66 ft) | 16.8m (55ft) | |
Drawwork Rated Power | 185kW (250hp, Double drum) | ||
Main Drum | Φ336×828mm (Φ13.2'' ×32.6'') | ||
Max. Faster Line Pull | 145kN (32,600 lbf) | ||
Sanding Drum | Φ315 mm×908mm (Φ12.4'' ×35.7'') | ||
Air Assist Brake System | KOBELT Disc 4-7-35'' Caliper 5026-CM | ||
Drill Floor (l×w×h) | 4.2×4.2×3.3m (13.8×13.8×10.8 ft) | ||
Swivel Model and Max. Load | SL90 900kN (202,330 lbf) | ||
ZP125 Rotary Table | Max. Load 900kN (202,330 lbf) Max. Open Dia. 292mm (11.5'') | ||
ZJ series Truck-mounted Drilling Rig adopts double Caterpillar C18 engines with Allison transmissions. It is the best-selling mobile drilling rig for both oil drilling and workover purposes.
Chassis is powered by the deck engine via transfer case. Heavy duty wide wheel distance, high strength beam, hydraulic power
steering.
steering.
Our company has developed truck-mounted drilling rigs with drilling depth of 1500m, 2000m, 3000m and 4000m, and static hook load ranging from 1350kN to 2250kN. The truck- mounted drilling rigs feature heavy working load, reliable performance, good cross-country capability, easy mobilization and low cost, which are suitable for the drilling operation of medium depth and shallow oil well on land, desert and plateau.
Power system is fitted with engine and hydro-mechanical transmission.
Electric, air, and hydraulic system is centrally controlled. Key components are world famous make.

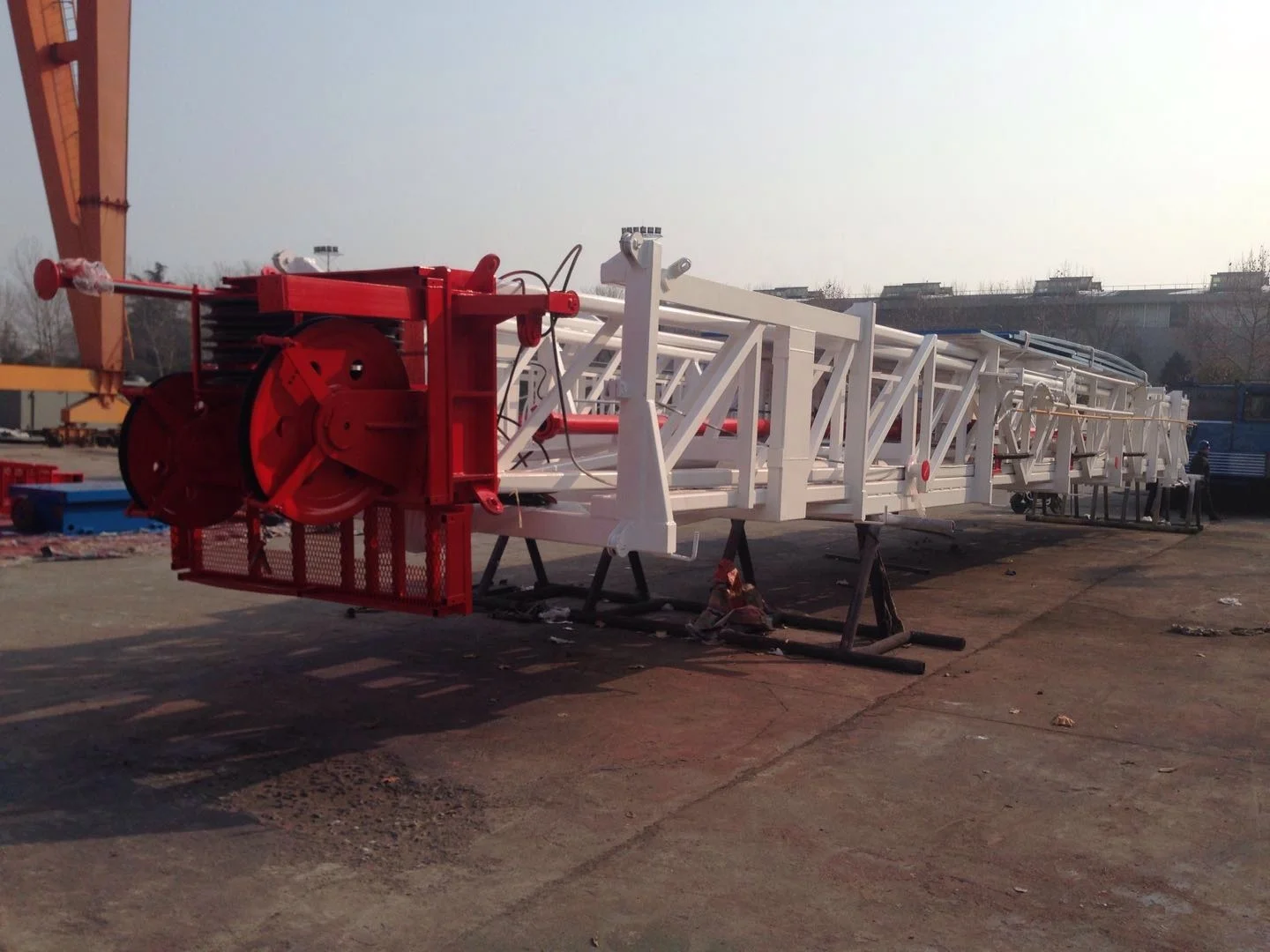

The mast design and manufacturing comply with API 4F and 8C specification. Finite element analysis and stress inspection test will
be conducted for mast. The surface of structural pieces will be sand blasted.
be conducted for mast. The surface of structural pieces will be sand blasted.
