3.2 Inch Square Custom Resolution IPS LCD Screen TFT Temperature Range 240*320 Accepts Custom Sizes
- Category: >>>
- Supplier: Shenzhen Elsun Technology Co. Ltd.
Share on (1601075992570):
Product Overview
Description

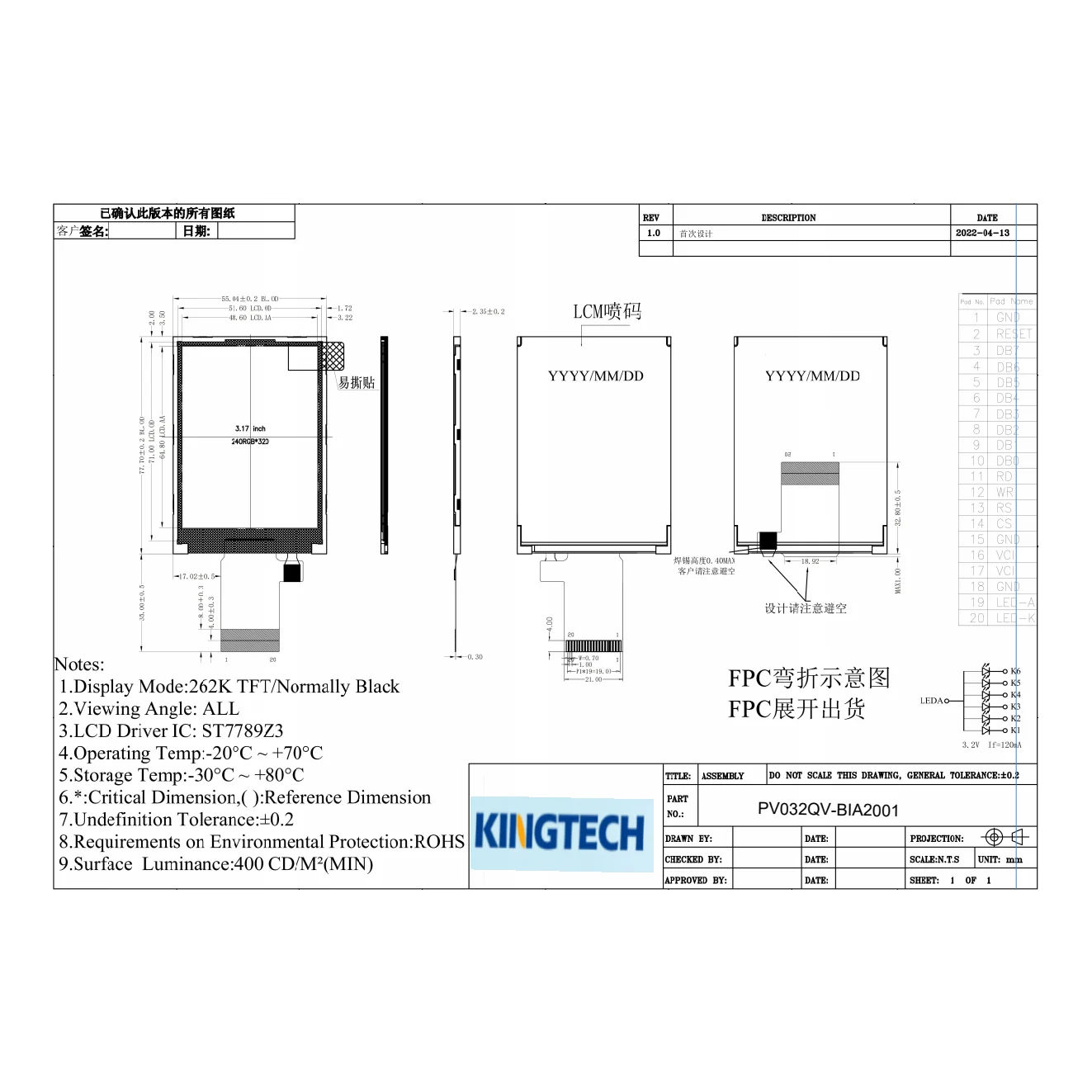

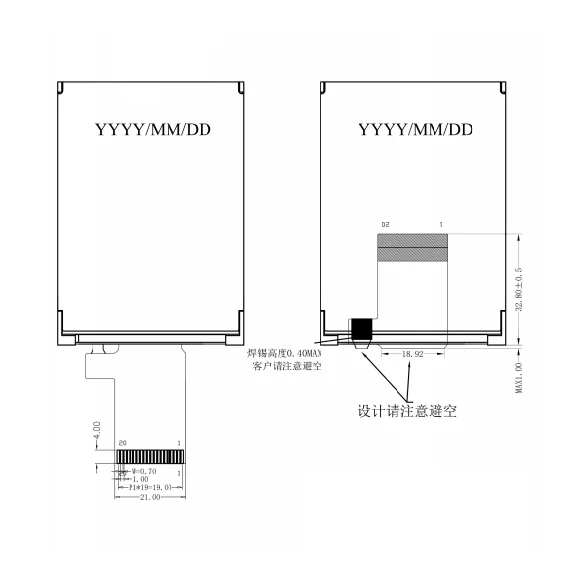

Item | 3.2 inch IPS 240*320 TFT display |
Model No. | PV032QV-BIA2001 |
Resolution | 240*320 |
Outline Dimension (mm) | 55.04*77.70*2.35 |
Active Area (mm) | 48.60*64.80 |
Viewing Angle | All |
Brightness | 400nits |
Interface | MCU 8Bit |
Backlight | 1*6LED |
Driving IC | ST7789Z3 |
PIN No. | 20 |
Operating Temperature | -20~70 |
Storage Temperature | -30~80 |
Touch screen | Can custom resistive and capacitive touch screen |
Application | Medical, hand-held device, industrial, smart home |
More Customized Products
Kingtech as one of leading LCD display module experts since 2003. More than 90% of our products are custom made for projects such as Industrial devices, Medical, POS, Handheld devices, Smart home applications,E-bike&Electronic motor and etc.
We mainly concentrate on display modules from 0.91 inch to 15.6 inch TFT LCD display.Based on LCD display as center, we gradually expanded to touch panel, LCD display related hardware & software solution such as signal convert board, HMI board, AD board.
Our factory is:
* ISO9001, ISO14001, IATF16949 certificated
* 3000m² fully automatically production line
* Hundred and Thousand Class Dust Free workshop
* 200 experienced and skilled employees
* 800K per month production capability
Our product will pass below inspection:
* In-come material inspection
* 100% on-line inspection
* Spot check at end of production line
* Reliability test during production line
* Aging test (high temperature&room temperature)
* OQC
We mainly concentrate on display modules from 0.91 inch to 15.6 inch TFT LCD display.Based on LCD display as center, we gradually expanded to touch panel, LCD display related hardware & software solution such as signal convert board, HMI board, AD board.
Our factory is:
* ISO9001, ISO14001, IATF16949 certificated
* 3000m² fully automatically production line
* Hundred and Thousand Class Dust Free workshop
* 200 experienced and skilled employees
* 800K per month production capability
Our product will pass below inspection:
* In-come material inspection
* 100% on-line inspection
* Spot check at end of production line
* Reliability test during production line
* Aging test (high temperature&room temperature)
* OQC
* High brightness solution |
* Wide working temperature |
* Bar type displays |
* Transflective displays |
* Seamless OCA film/O-film |
* Resistive and capacitive touch panel |
* HMI board, Signal board and AD board |
Email: Helen@kingtechlcd.com |
Skype: kingtechgroup01 |
WhatsApp/Mobile: 86-13925280716 |
What industries are Kingtech LCD used in?
1.For Medical EquipmentB-ultrasound, anesthesia machine, laryngoscopic surgical in ICU,automatic injection equipment, gas station equipment and etc
2.For Industrial Control Equipment
2.For Industrial Control Equipment
equipment contorl panel,elevator,test instrument, energy storage equipment, car electricity charger, ATM, vending machine and etc.
3.For Smart Home
3.For Smart Home
thermostat, HVAC,water dispenser, smart audio, soap dispenser, smart 8-6 houses and etc.
4.For Handheld Devices
4.For Handheld Devices
POS, test meter, alcohol tester, logic device, and etc
5.For Automobile Equipment
5.For Automobile Equipment
GPS, car radio, car black box, agricultural tractor, forklift, E-bike, electrical motor cycle and etc
1.How do you guarantee the quality?
We pass ISO900, ISO14001 and TS16949 certificates.Strict quality control Inspection is done in FOG==>LCM==>LCM+ RTP/CTP==> production online inspection ==>Q.C inspection==>aging test 4 hours with load in 60 ℃ special room (as option)==>OQC
2.Do you have any MOQ limit?
No, small quantity order is also welcome!
3.How can you guarantee stable supply?
1)We have very good source. We always check and choose the most stable supply LCD panel in the beginning.
2.Do you have any MOQ limit?
No, small quantity order is also welcome!
3.How can you guarantee stable supply?
1)We have very good source. We always check and choose the most stable supply LCD panel in the beginning.
2)When EOL happens,usually we will get notification from original manufacturer 3-6 months in advance. We prepare another LCD brand solution as replacement for you or recommend you to do last buy if your annual quantity is small or even tool up a new LCD panel if your annual quantity is big.
4.Why are Kingtech’s products higher in price?
1)Most of our projects are industrial applications, not consumer.
4.Why are Kingtech’s products higher in price?
1)Most of our projects are industrial applications, not consumer.
2)The material we are using are all A grade from formal channels,with strong anti-shock capacity, anti-high-temperature capacity, high reliability and very low rate of reject.
3)Every single piece display will be inspected carfully for more than 5 times. Reliability test will be done for all new projects.
