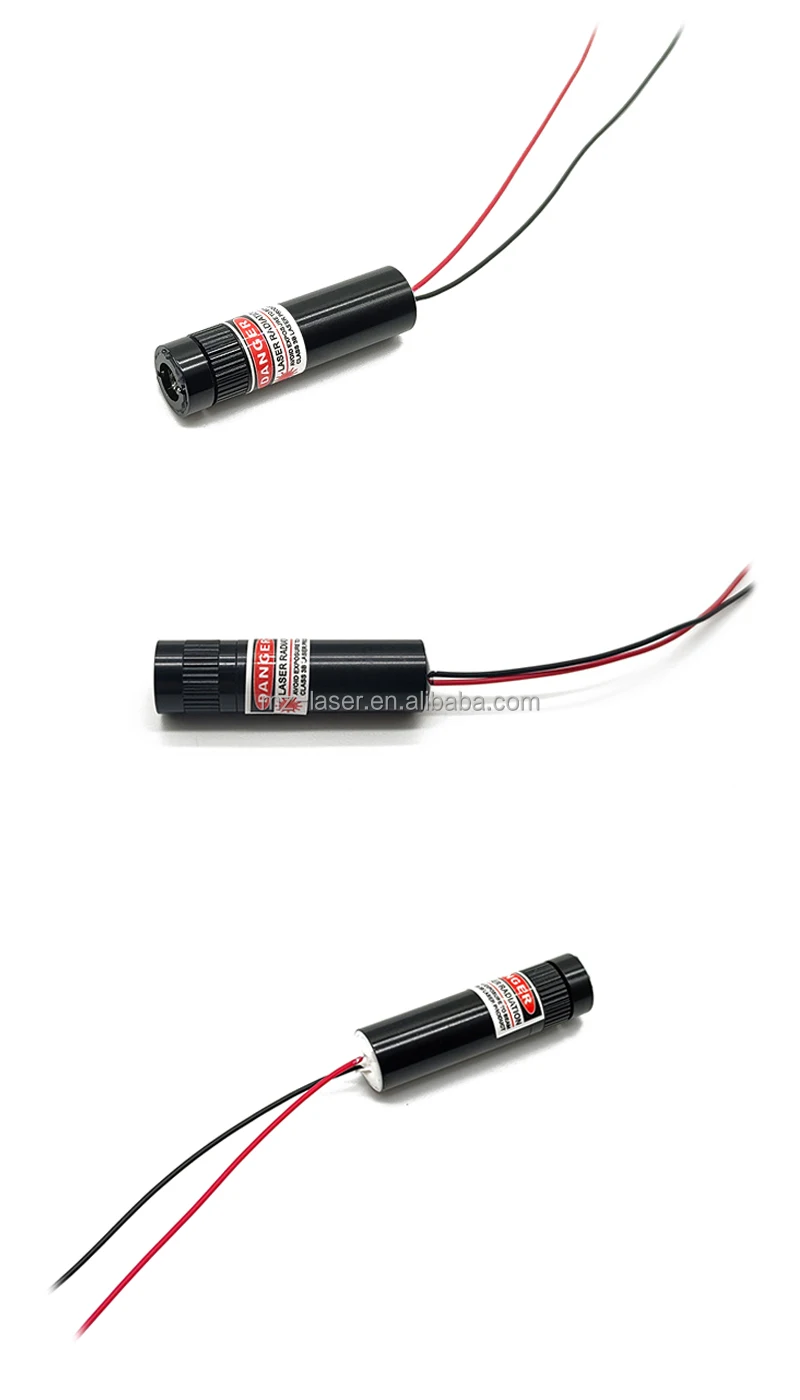

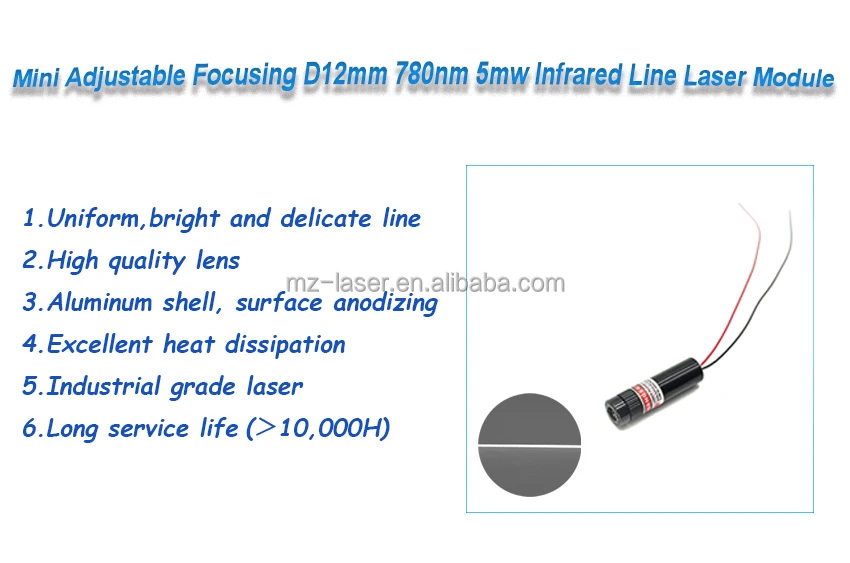

Hot Selling Compact Adjustable Focusing D12mm 780nm 5mw Class IIIB Lower Power Industrial Infrared IR Line Laser Diode Module
- Category: >>>
- Supplier: Zhuhai MZLASER Technology Co. Ltd.
Share on (1601076280040):
Product Overview
Description
Product Paramenters
BASIC PARAMETERS | ||||||||
1 | Model Number | MZAJSBX7805LXX | ||||||

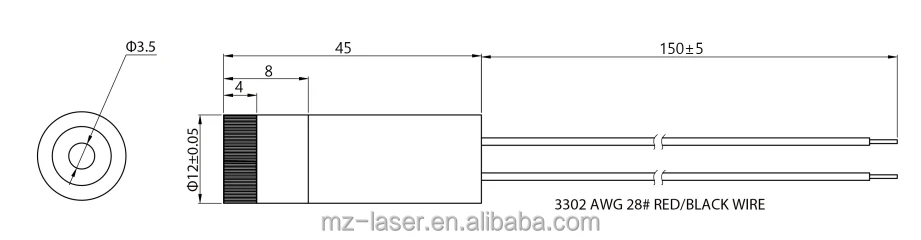

2 | Shell Size | D12x45mm | ||||||
3 | Shell Material | Aluminum | ||||||
4 | Wire Length | 155mm | ||||||
OPTICAL PARAMETERS | ||||||||
1 | Lens Type | Glass+PMMA Lens | ||||||
2 | Divergence Angle | ＜5/15/30/45/60/90/110/130degrees | ||||||
3 | Line Width | Adjustable | ||||||
4 | Output Power | ＜5mW | ||||||
5 | Wavelength | 780nm | ||||||
6 | Laser Safety | Class IIIB | ||||||
TEMPERATURE PARAMETERS (T=25℃) | ||||||||
1 | Operating Temperature | -10℃ ~ +60℃ | ||||||
2 | Storage Temperature | -40℃ ~ +80℃ | ||||||
3 | Power Stability | ＜5% | ||||||
4 | Wavelength Drift | 0.25nm | ||||||
ELECTRONIC PARAMETERS (T=25℃) | ||||||||
1 | Circuit Model | CW | ||||||
2 | Operating Voltage | 3/5/12/24V | ||||||
3 | Operating Current | ＜30mA | ||||||
4 | Drive Type | APC | ||||||
5 | Service Life | ＞10,000H | ||||||
