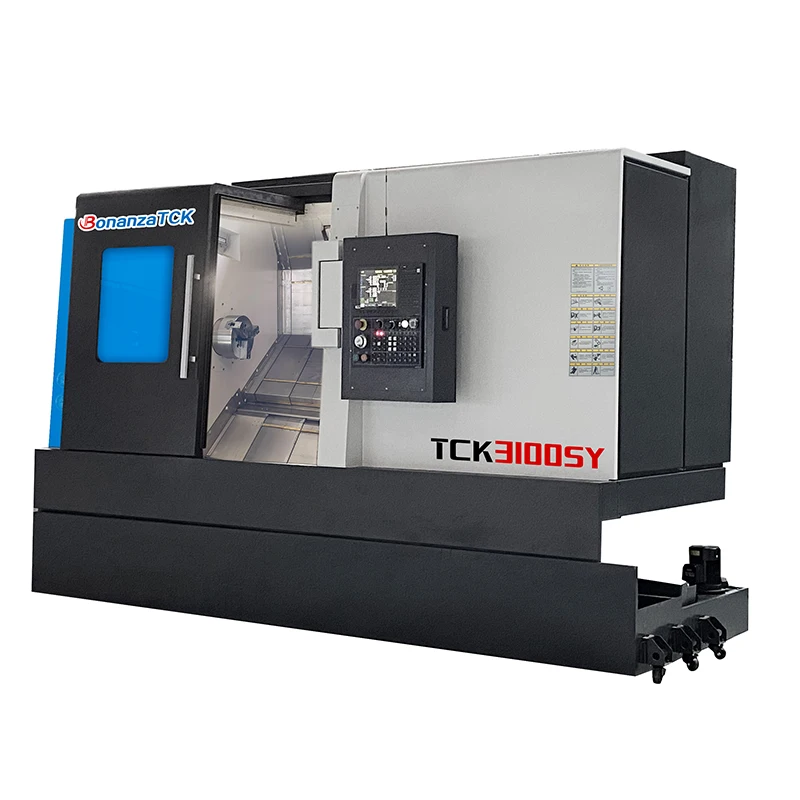

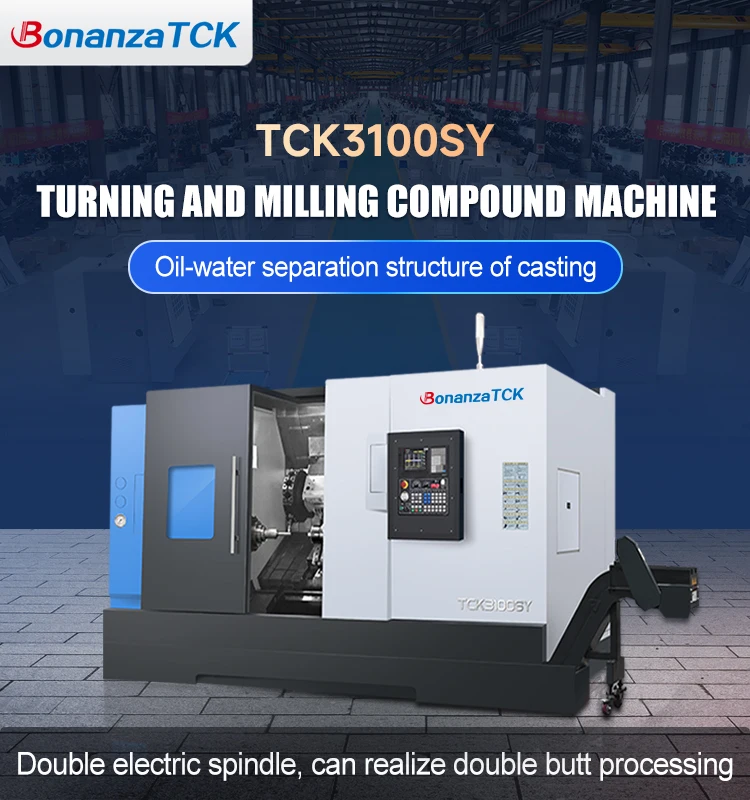

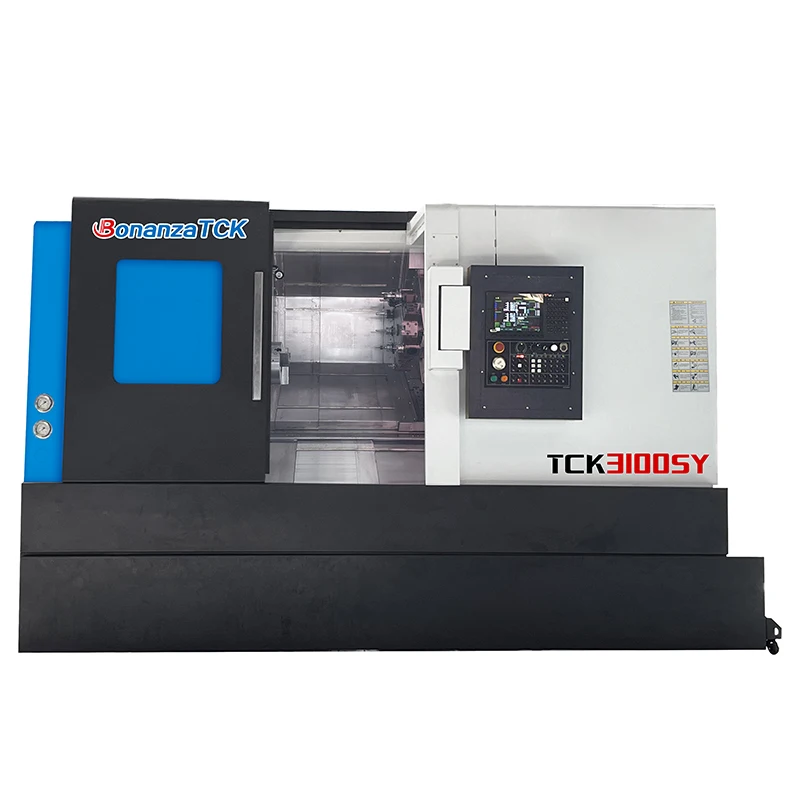

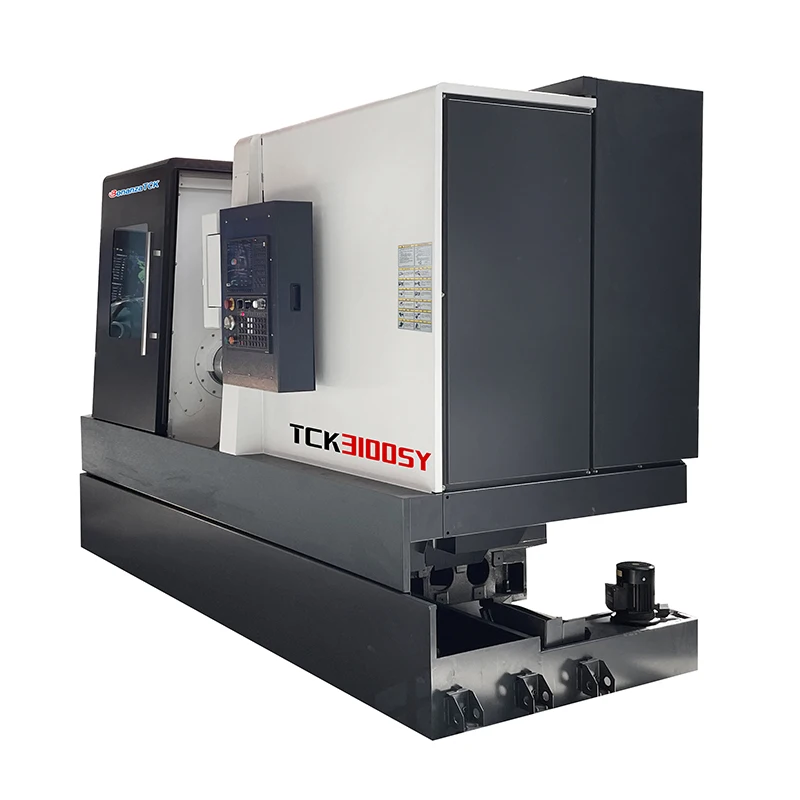

Alloy Wheel CNC Lathe TCK3100SY
- Category: >>>
- Supplier: Shandong Hongyunlai Industrial Technology Co. Ltd.
Share on (1601076330682):
Product Overview
Description

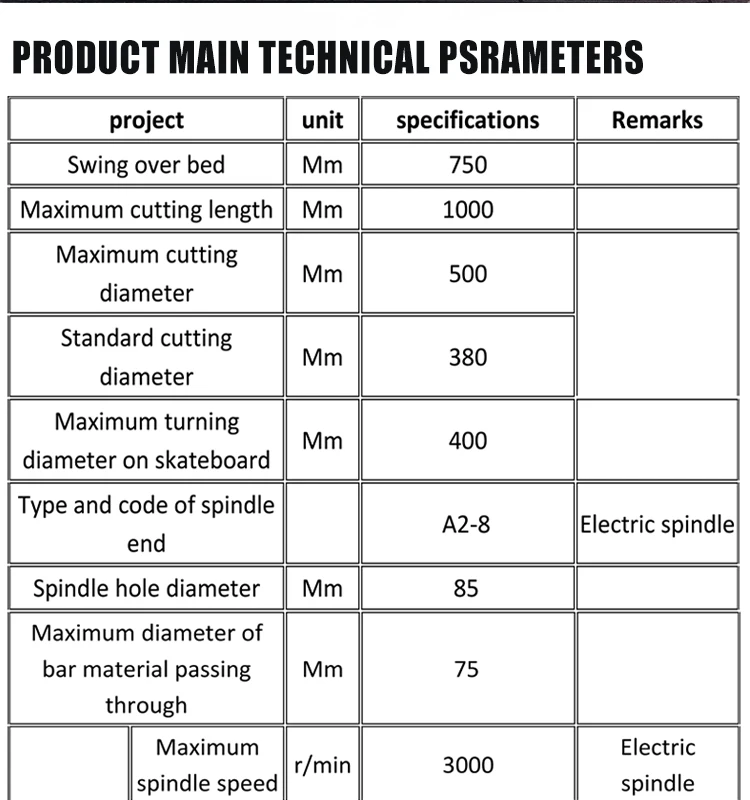

Item | Unit | specification | ||||||
slant bed degree | ° | 45° | ||||||
swing over bed | mm | 750 | ||||||
Maximum cutting length | mm | 1000 | ||||||
maximum cutting diameter | mm | 500 | ||||||
maximum turning diameter on slide plate | mm | 400 | ||||||
spindle nose form and code | href="javascript:;" electro-spindle | A2-8 | ||||||
diameter of spindle hole | mm | 85 | ||||||
Maximum bar diameter | mm | 75 | ||||||

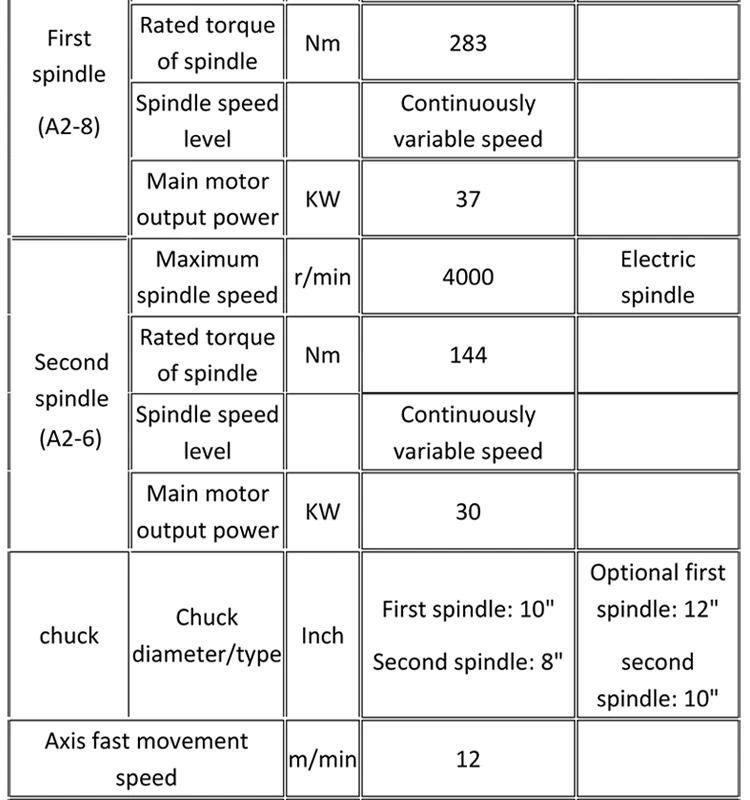

single spindle headstock | spindle speed range/maximum output torque of spindle | r/min/N.m | 50-3000/283 | |||||
|
|
|
| Output power of main motor | 30min/continuity | kw | 37 | |
|
|
|
| Shandard chuck | chuck diameter | inch | 12''/ 10'' | |
|
|
|

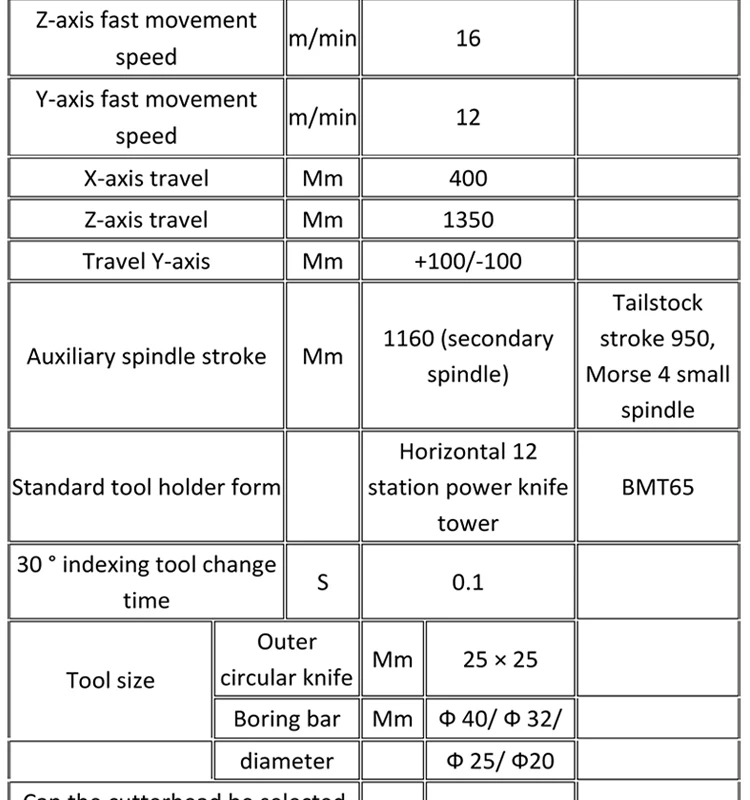

| X-axis fast moving speed | m/min | 12 | ||
|
|
|
| Y-axis fast moving speed | m/min | 12 | ||
|
|
|
| Z-axis fast moving speed | m/min | 16 | ||
|
|
|
| X-axis travel | mm | 400 | ||
|
|
|
| Y-axis travel | mm | ±100 | ||
Z-axis travel | mm | 1350 |
|
|
|
|
| |
C-axis travel | mm | 360° |
|
|
|
|
| |
Second spindle travel | Mm | 1160 |
|
|
|
|
| |
The Second spindle | spindle nose form and code | electro-spindle | A2-6 |
|
|
|
|
|
| diameter of spindle hole | Mm | 65 |
|
|
|
| |
