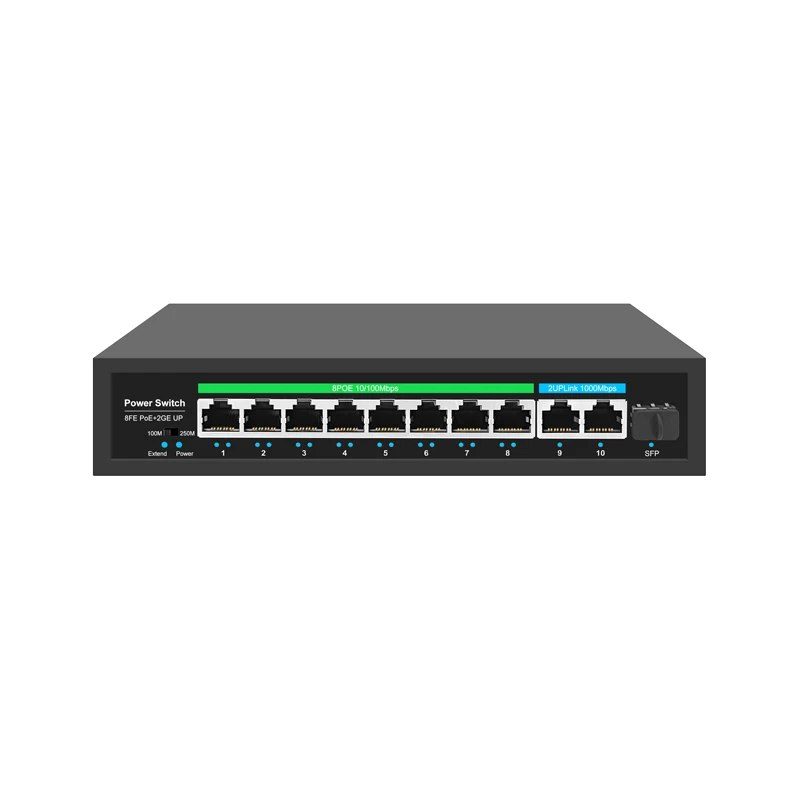

120W Built in Power PoE Switch 8 RJ45 Ports 10/100M 2*Gigabit Uplink 1*1.25G SFP Port For 2024 AHD CVI IP Camera
- Category: >>>
- Supplier: Shenzhen Serat Technology Co. Ltd.
Share on (1601076340515):
Product Overview
Description
About POE SWITCH

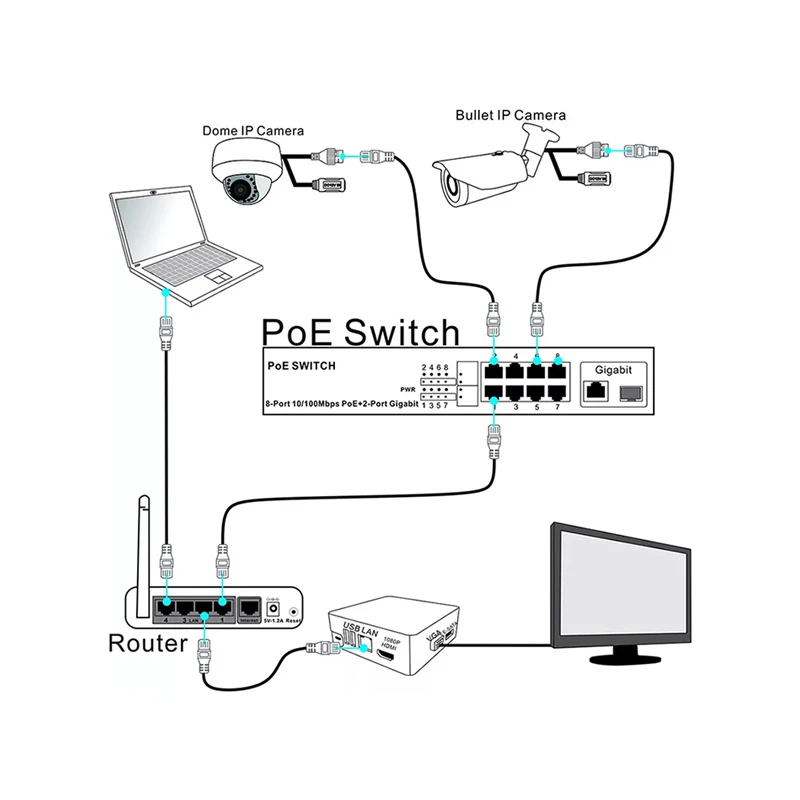

This is a standard PoE switch, designed and developed independently by SERATLINK to meet the needs of the network power supply. It adopts the latest high-speed Ethernet switching chip, ultra-high backplane bandwidth design, and has extremely fast data processing capabilities to improve smooth data transmission performance, With PoE ports and uplink RJ45 ports. Among them, all RJ45 ports support network cable power supply. it's suitable for Hikvision, Dahua and other brands with IEEE802.3af/at PoE powered devices(PD).
Model | POE | Uplink | Total Power | VLAN | Extend |
RD-G0821 | 8*100M | 2*1000M +1SFP | 120W | Yes | Yes |
【 Specification 】
Main Feature:
◆Support IEEE802.3、IEEE802.3u，IEEE802.3x，IEEE802.3af/at;
◆Compatible with IEEE802.3at (30W) and IEEE802.3af (15.4w);
◆Ethernet port supports 10/100/1000M adaptive and POE functions;
◆Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard;
◆Support port auto flip (Auto MDI/MDIX);
◆Compatible with IEEE802.3at (30W) and IEEE802.3af (15.4w);
◆Ethernet port supports 10/100/1000M adaptive and POE functions;
◆Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard;
◆Support port auto flip (Auto MDI/MDIX);
◆All ports support wire-speed switching;
◆Automatically supplied to adaptive devices;
◆Panel indicator monitoring status and help failure analysis;
◆Support VLAN Mode and Extend 250 meters Mode;
◆Support 1U Rack Mount.
◆Automatically supplied to adaptive devices;
◆Panel indicator monitoring status and help failure analysis;
◆Support VLAN Mode and Extend 250 meters Mode;
◆Support 1U Rack Mount.
Ethernet | 8 Port 100M PoE port 2 Port 1000M RJ45 Uplink port 1 Port SFP Gigabit Uplink |
Network protocol | IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab (1000Base-TX) IEEE802.3x (Flow control) |
PoE Protocol | IEEE802.3af （15.4W） IEEE802.3at （30W） |
Industry Standard | EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD)、 EN61000-4-4 (EFT) EN61000-4-5 (Surge) |
Network Medium | 10Base-T : Cat3、4、5 or above UTP(≤100m) 100Base-TX : Cat5 or above UTP(≤100m) 1000Base-TX : Cat5 or above UTP(≤100m) |
Fiber Port | Multimode:550m/2km; Single mode:2~160km; |
Working Environment | Working Temperature：-10~50°C Storage Temperature：-40~70°C Working Humidity ：10%~90%，non-condensing Storage Temperature：5%~90%，non-condensing |
LED Indicators | PWR（power supply），SW（DIP），1-10 Green（Link&Data） |
DIP Switch | VLAN：Port isolation mode. In this mode, the PoE ports (1-8) of the switch cannot communicate with each other, and can only communicate with the UP-link port. Normal: Normal mode, all port can communicate with each other, the transmission distance is within 100 meters Extend：Link extension mode, 1-8 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M |

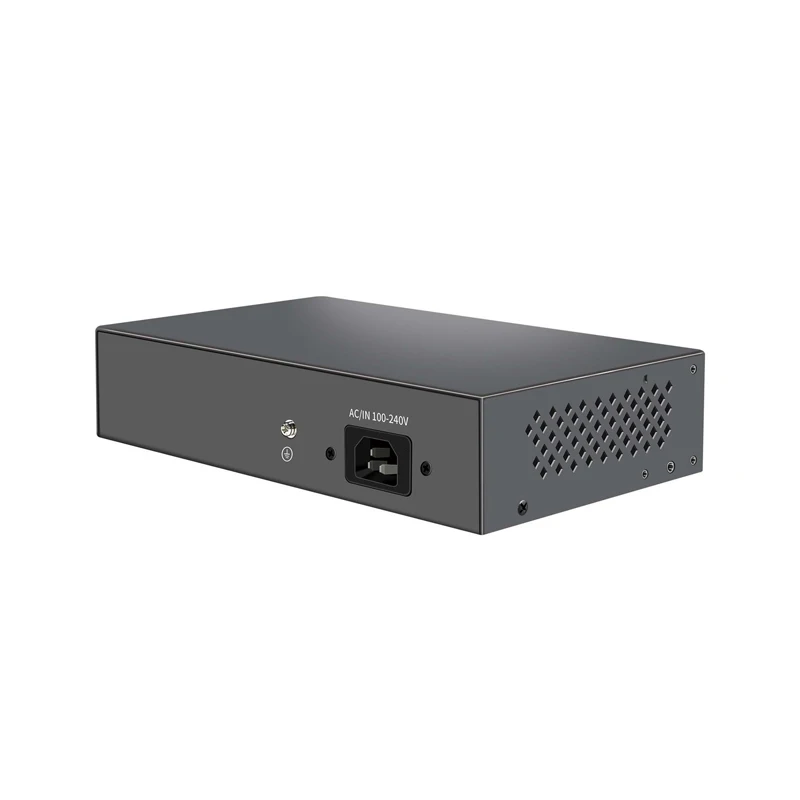

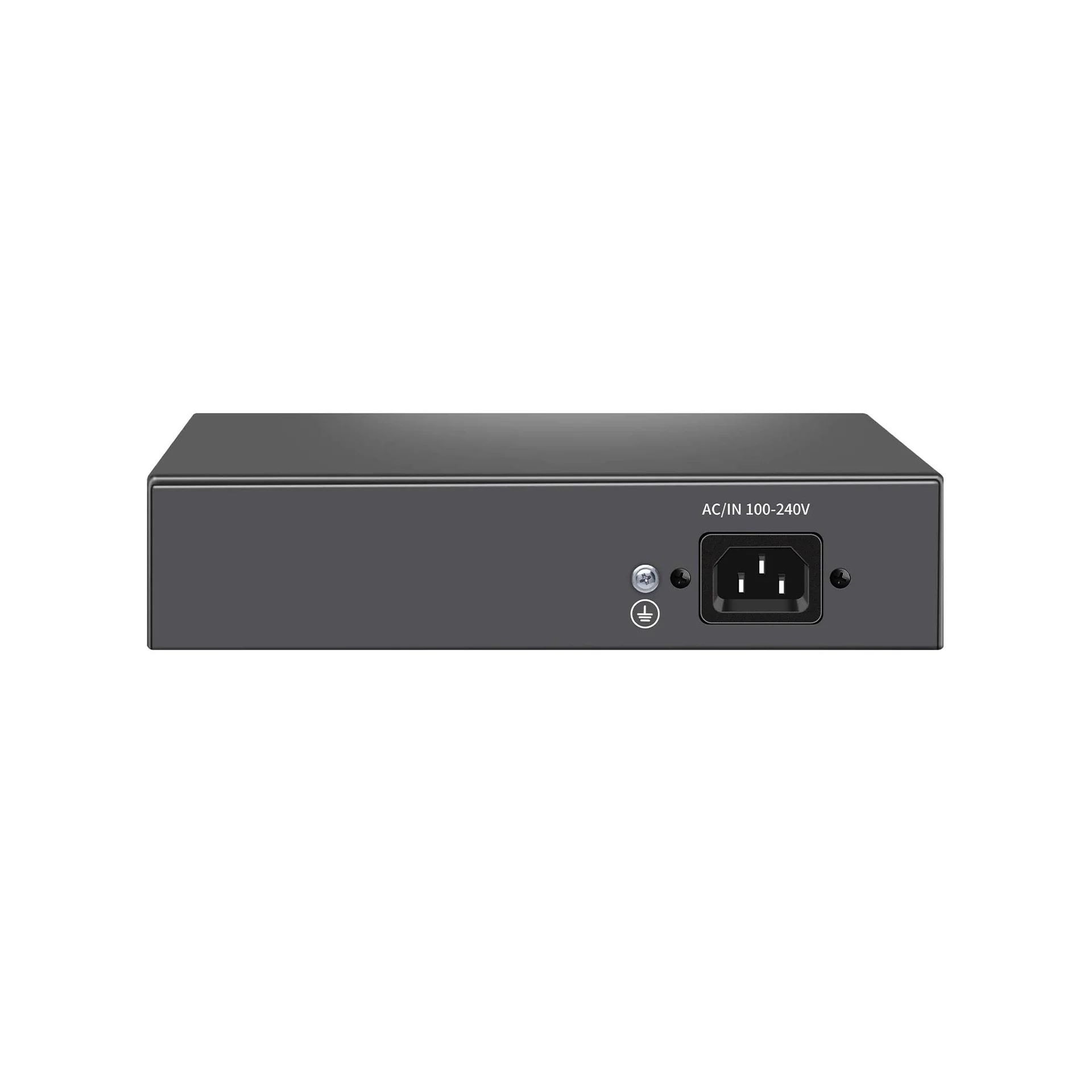

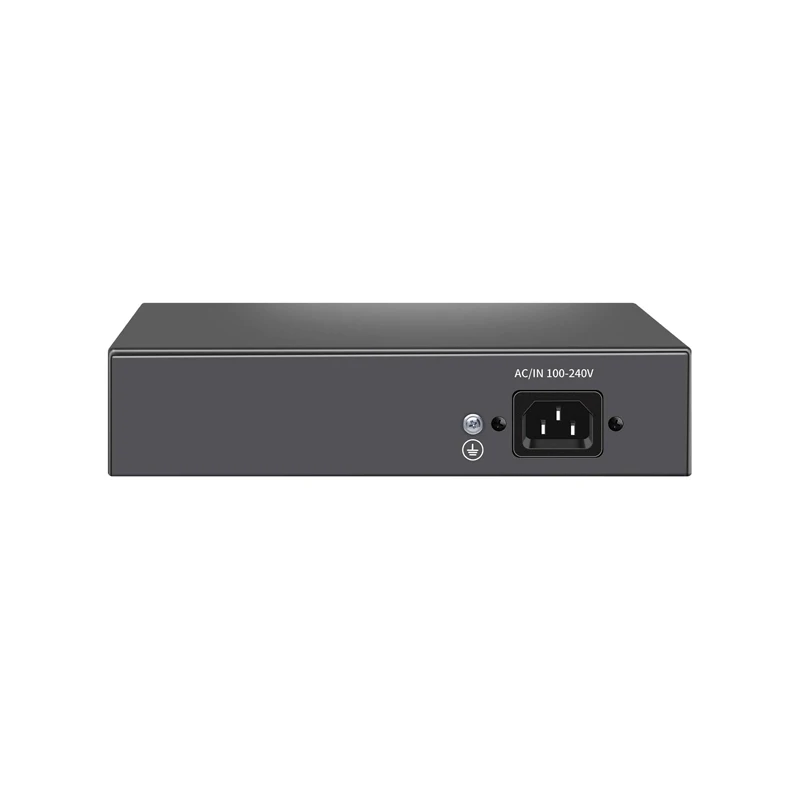

Power Voltage | Input Voltage ：AC 100-240 V Power supply：52V1.85A |

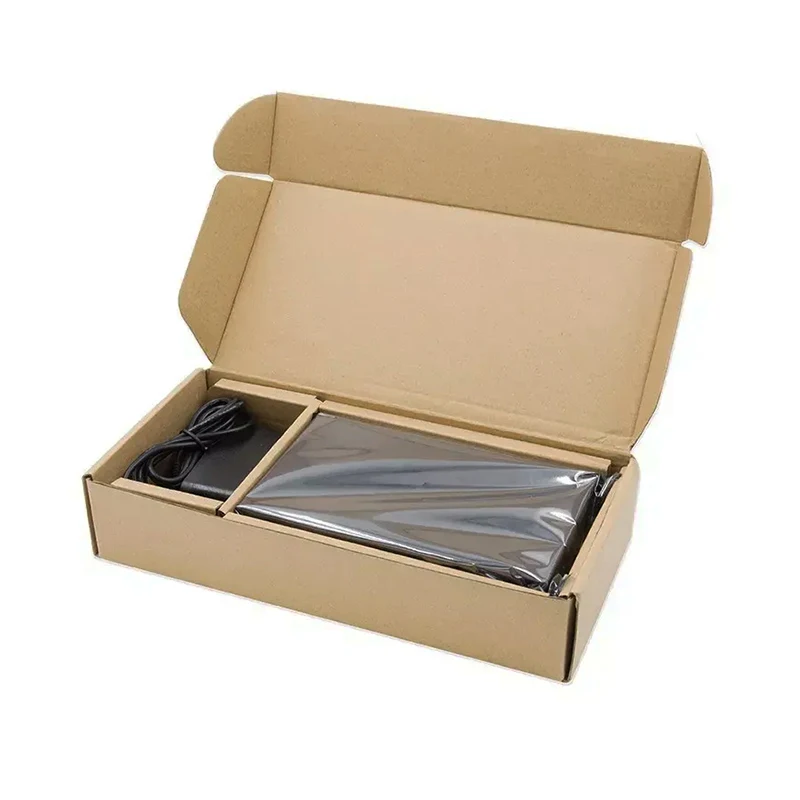

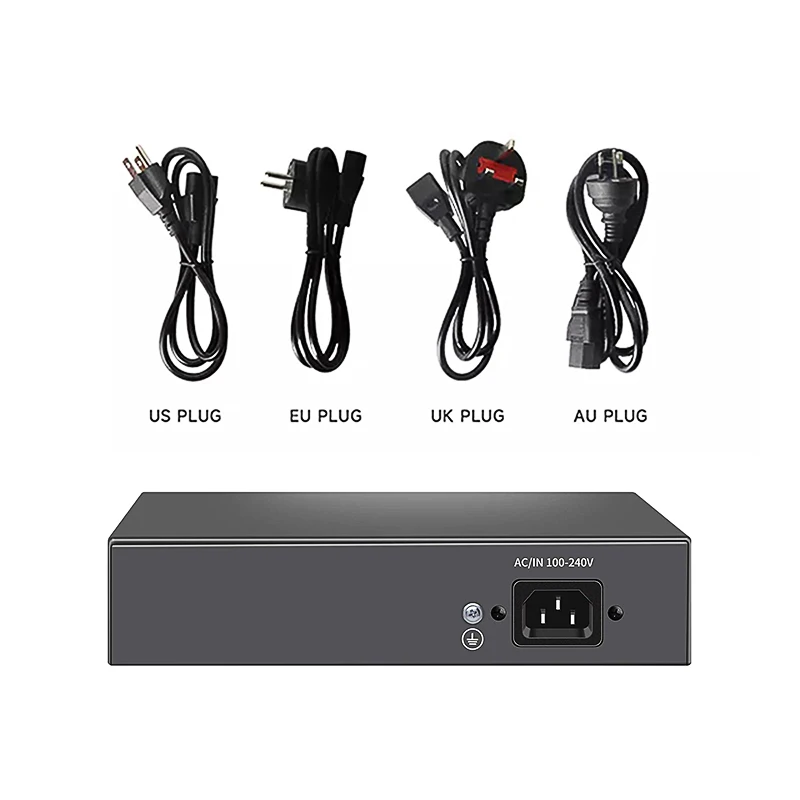

Package List | Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Certification 1 pc |
【 Company Profile 】
【 FAQ 】
Q: Can we get a lower price? Any Discount?
A: Yes, price is not a problem,everything could be negotiated based on the quantity.
Q: OEM,ODM Service is available?
A: Support.
Q: What is your MOQ?
A: No MOQ for any sample test.
Q: Can I have a sample order for this product?
A: Support.
Q: For Trade Terms, such as payment ?
●Payment Terms: We mainly support T/T bank transfer,Paypal and Western Union .
●Price Terms: EXW Shenzhen .
●Shipping Methods: EMS, DHL, Fedex, TNT, UPS, by sea or your own shipping agent .
Q: How about the Warranty?
A:Most products come with a 24-month warranty. Human causes and other brands are not included.
A: Yes, price is not a problem,everything could be negotiated based on the quantity.
Q: OEM,ODM Service is available?
A: Support.
Q: What is your MOQ?
A: No MOQ for any sample test.
Q: Can I have a sample order for this product?
A: Support.
Q: For Trade Terms, such as payment ?
●Payment Terms: We mainly support T/T bank transfer,Paypal and Western Union .
●Price Terms: EXW Shenzhen .
●Shipping Methods: EMS, DHL, Fedex, TNT, UPS, by sea or your own shipping agent .
Q: How about the Warranty?
A:Most products come with a 24-month warranty. Human causes and other brands are not included.
We are the manufacturer of the product, Please contact us,Thank you！
