Solax X1 Hybrid G4 3 7.5kw 3.7kw 4.6kw 5kw 6kw High Voltage Single Phase Solar Energy Storage Invertor Price 5kva Inverter
- Category: >>>
- Supplier: Nanning Shuxin Trading Co. Ltd.
Share on (1601076340984):
Product Overview
Description
Product Description

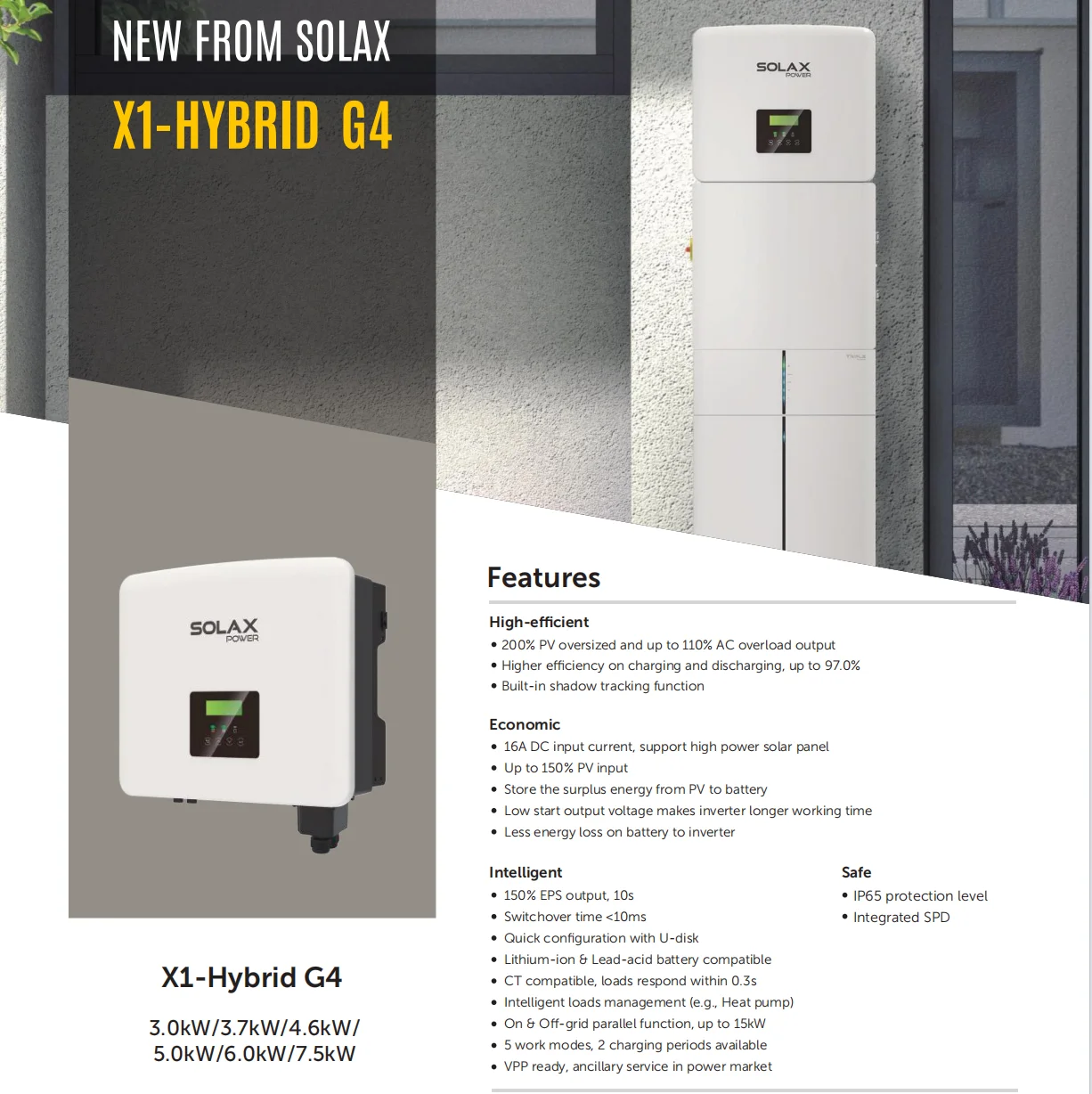

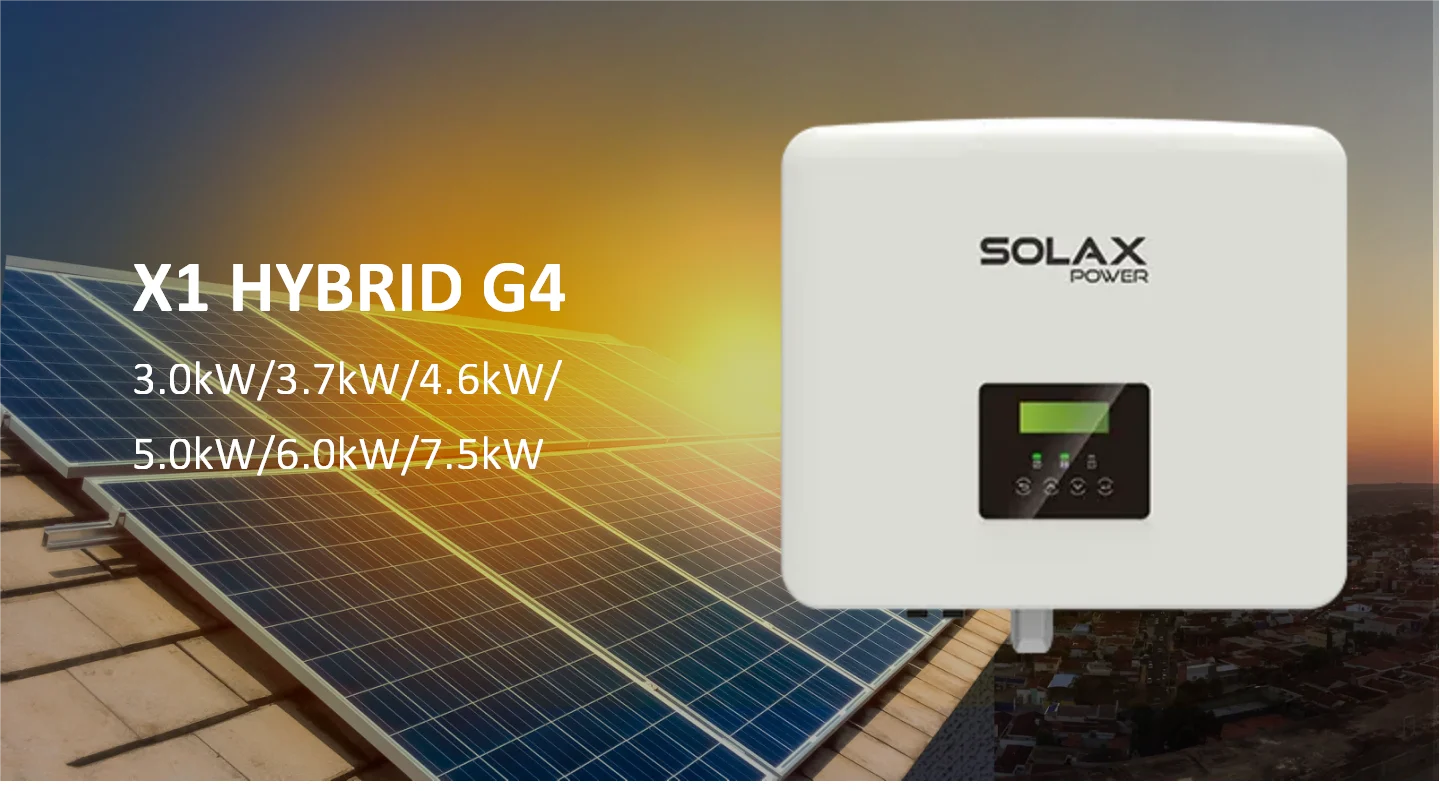

Solax High Voltage Hybrid Inverter X1 HYBRID G4
3kw/3.7kw/4.6kw/5kw/7.5kw
3kw/3.7kw/4.6kw/5kw/7.5kw
High-efficiency
* 200% PV oversized, up to 110% AC overload output
* Higher efficiency on charging and discharging, up to 97.0%
* Shadow tracking function integrated
Economic
* 16A DC input current, supporting high-power solar panels
* Up to 150% PV input
* Store surplus energy from PV to battery
* Low start output voltage for longer working time
Safe
* IP65 protection
* SPD integrated
Intelligent
* Up to 150% EPS output for 10s
* Switchover time < 10ms
* Quick configuration with U-disk
* Lithium-ion & Lead-acid battery compatible
* CT compatible, loads respond within 0.3s
* Intelligent loads management (e.g., Heat pump)
* On & off-grid parallel function, up to 15kW
* 5 work modes, 2 charging periods available
* VPP ready, ancillary service in power market
Why X1 HYBRID G4
SolaX Fourth Generation Inverter
Experience the unrivaled power of our advanced hybrid Inverter, combining efficiency, safety, and intelligence, with a simplified design for easy one-person installation. Benefit from exceptional features such as up to 200% PV oversizing, high charging and discharging efficiency, and built-in shadow tracking.
The inverter guarantees durability and compatibility, even in low-temperature environments, with IP65 protection and support for high-power solar panels. Effortlessly store surplus energy and relish in intelligent load management.
Enjoy seamless solar+storage integration with smart EV chargers.
Choose from versatile operation modes, including on/off-grid parallel and VPP-readiness, unlocking limitless opportunities in the power market. Unleash the full potential of our local energy solution for a smarter, greener future.
Specification
Model | X1-HYBRID-3.0-D X1-HYBRID-3.0-M | X1-HYBRID-6.0-D X1-HYBRID-6.0-M | X1-HYBRID-7.5-D X1-HYBRID-7.5-M | |||
DC Input Data | ||||||
Recommended max.Pv power(kw) | 4.5 | 9 | 10 | |||
Max.input voltage(v) | 600 | 600 | 600 | |||
MPPT voltage range(v) | 70 ~ 550 | |||||
Nominal input voltage [V] | 360 | |||||
INPUT AC | ||||||
Max. apparent AC power[VA] | 6300 | 9200 | 9200 | |||
Max. AC current[A] | 27.4 | 40 | 40 | |||
Nominal grid voltage(AC voltage range)[V] | 220/230/240(180-270) | |||||
Nominal grid Frequency/range[Hz] | 50/60 | |||||
AC Output Data | ||||||
Nominal AC output power(VA) | 3 | 6 | 7.5 | |||
Rated grid voltage/range(V) | 220/230/240(180-270) | |||||
Rated grid frequency(Hz) | 50/60; ±5 | |||||
Power Factor | 0.8 leading ~ 0.8 lagging | |||||
THDi | <2% | |||||
OUTPUT DC (BATTERY) | ||||||
Battery voltage range [V] | 80 ~ 480 | |||||
Max.continuous charge/discharge current [A] | 30 | |||||
Efficiency | ||||||
Max.efficieny | 97.6% | |||||
Euro. eciency | 97.0% | |||||
Protection | ||||||
Over/under voltage protection | Yes | Yes | Yes | |||
DC isolation protection | Yes | Yes | Yes | |||
Monitoring ground fault protection | Yes | Yes | Yes | |||
Grid monitoring | Yes | Yes | Yes | |||
DC injection monitoring | Yes | Yes | Yes | |||
Back feed current monitoring | Yes | Yes | Yes | |||
Residual current detection | Yes | Yes | Yes | |||
Anti-islanding protection | Yes | Yes | Yes | |||
Over temperature protection | Yes | Yes | Yes | |||
SPD | Yes | Yes | Yes | |||
General Data | ||||||
Dimension(mm）（W*H*D) | 482×417×181 | |||||
Net weight [kg] | 24/25 | |||||
Operating ambient temperature range | -30~+60 (Derating above 45) | |||||
Ingress protection | IP65 | |||||
Cooling concept | Natural cooling | |||||
Max.operation altitude(m) | 3000 | |||||
Safety/EMC standard | IEC/EN 62109-1/-2 EN61000-6-1/2/3/4, EN61000-3-2/3/11/12 | |||||
Communications | CT/Meter (optional), External control RS485, Pocket WiFi (Optional: Pocket Lan/4G), DRM, USB Upgrade, NTC (optional) | |||||
Packing & Delivery

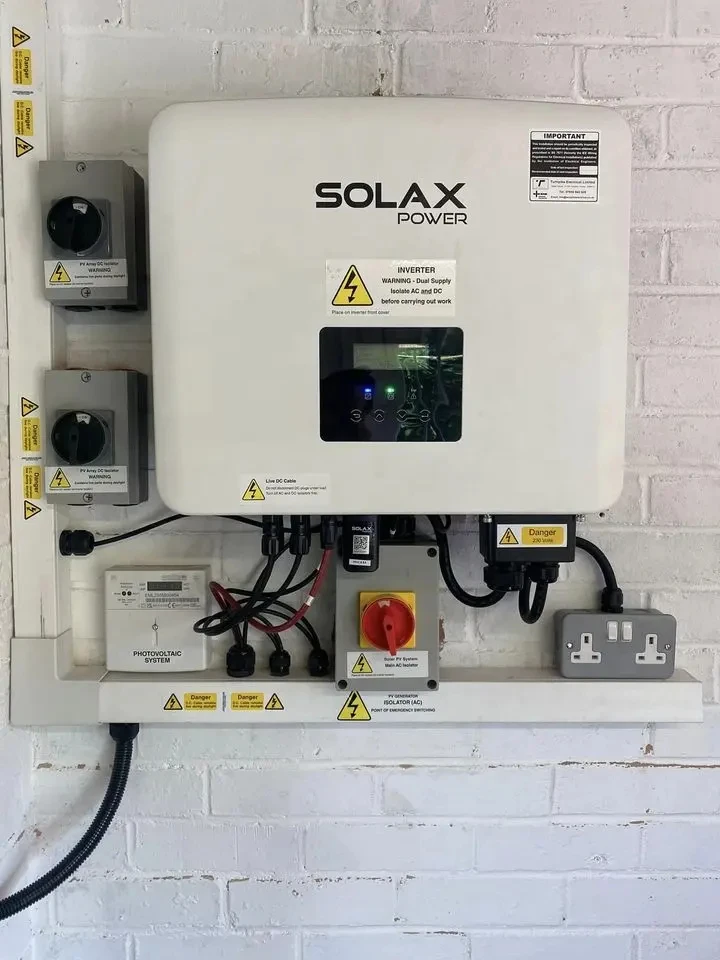

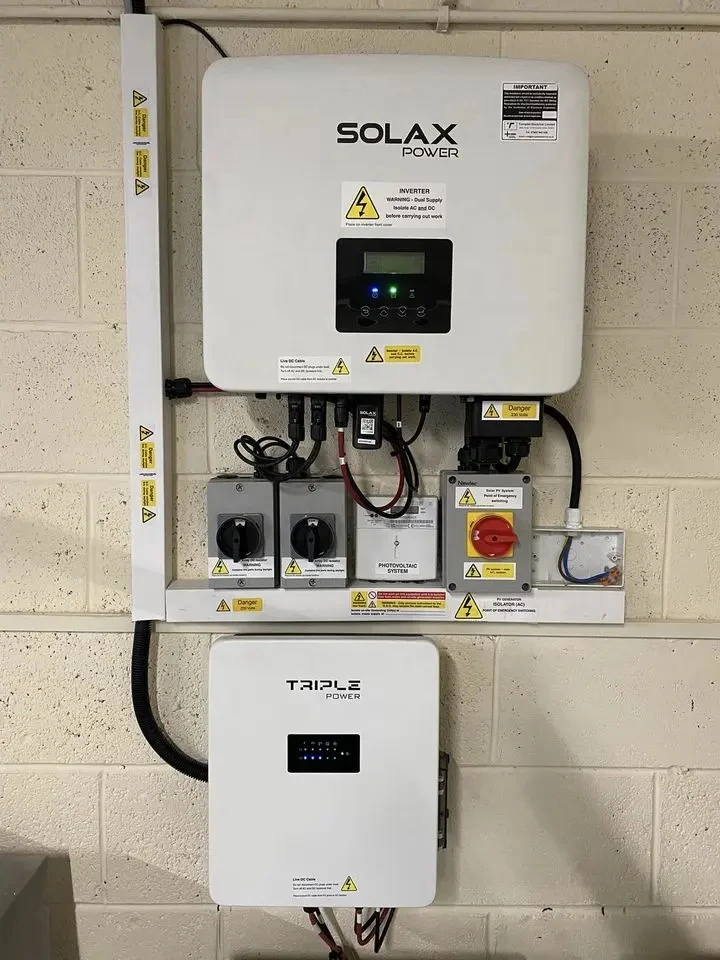

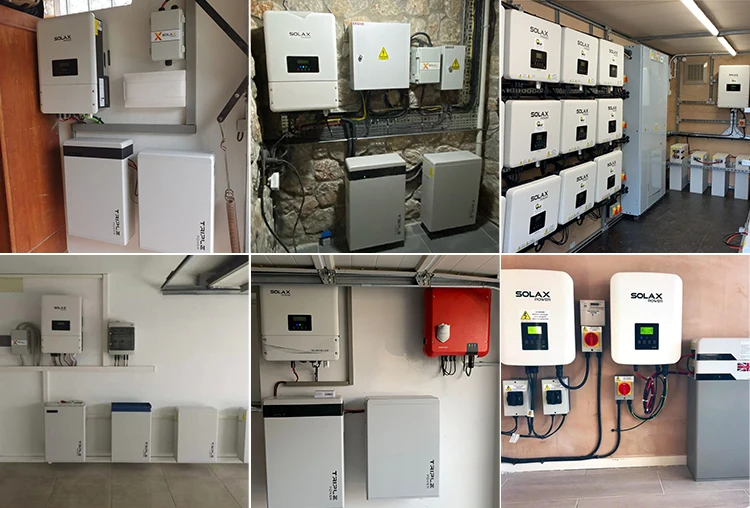

Project Case
Our Factory
FAQ
Q1: How to install and use the solar inverter?
A1: We have the English teaching manual and videos; All the videos about every step of machine Disassembly, assembly, operation will be sent to you.
Q2: What if I don't have import experience ?
A2: We have reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep. Any way, we will help you choose the most suitable shipping service.
Q3: How is your technical support?
A3: We provide online service through Whatsapp / Wechat / Email. Any problem after delivery, we will offer you video call
anytime, our engineer will also go to oversea help our customers if necessary.
Q4: How can I make sure it's a secure transaction ?
A4: Alibaba can protect buyers' interest, all of our transactions will go through alibaba platform.
Q5: Can you get the the solar inverter customized for us ?
A5: Of course, brand name, machine color, designed unique patterns available for customization.
Q6: How to become your agent?
A6:Contact us through Alibaba, we will give you the best price and look forward to your greetings.
Q7: What can you provide?
A7:Residential/Home solar system, Rooftop solar power station, Large-scale ground-mounted solar power station,
Agriculture-complementary Solar Power Station, Aquaculture-complementary Solar Power Station.
