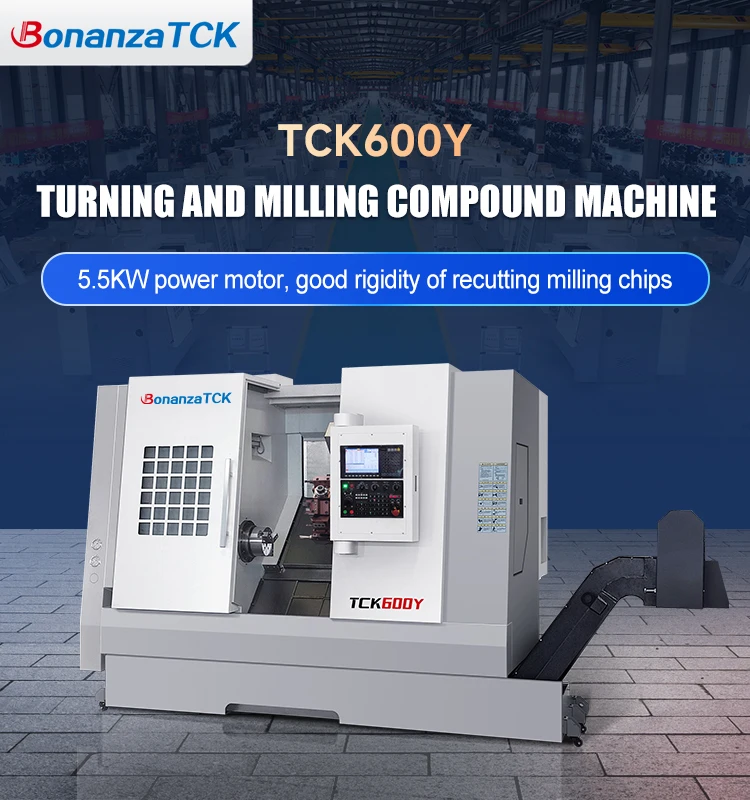

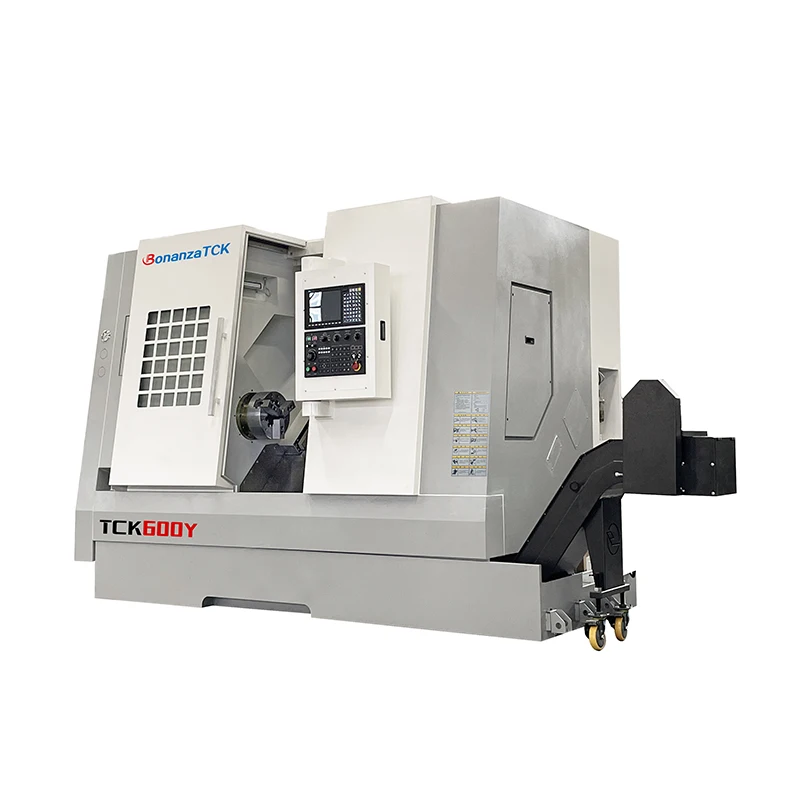

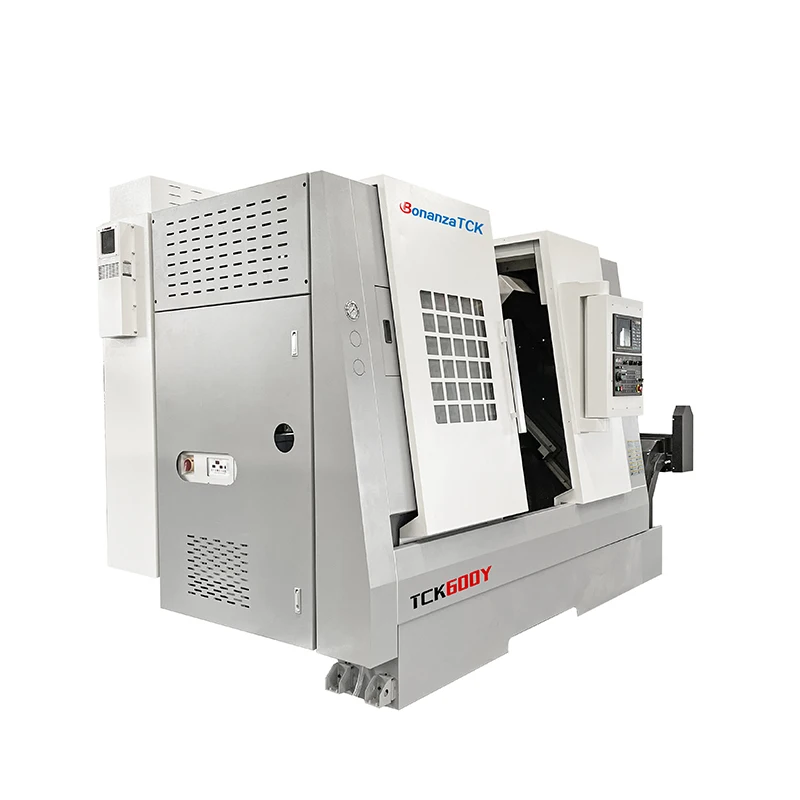

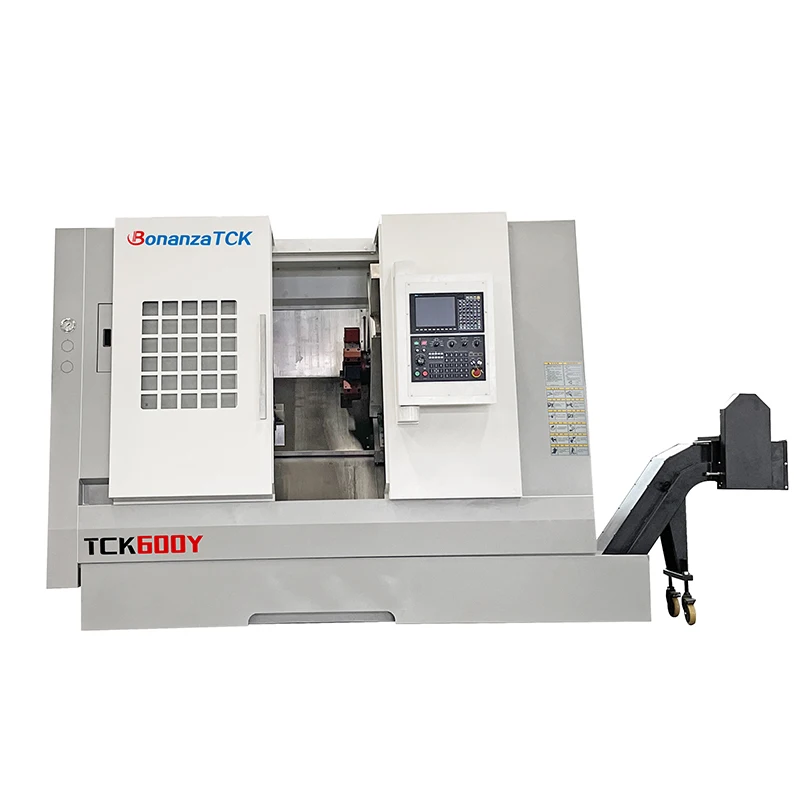

CNC Metal Turning Lathe TCK600Y CNC Lathe For Sale from Factory

Product Overview

Description

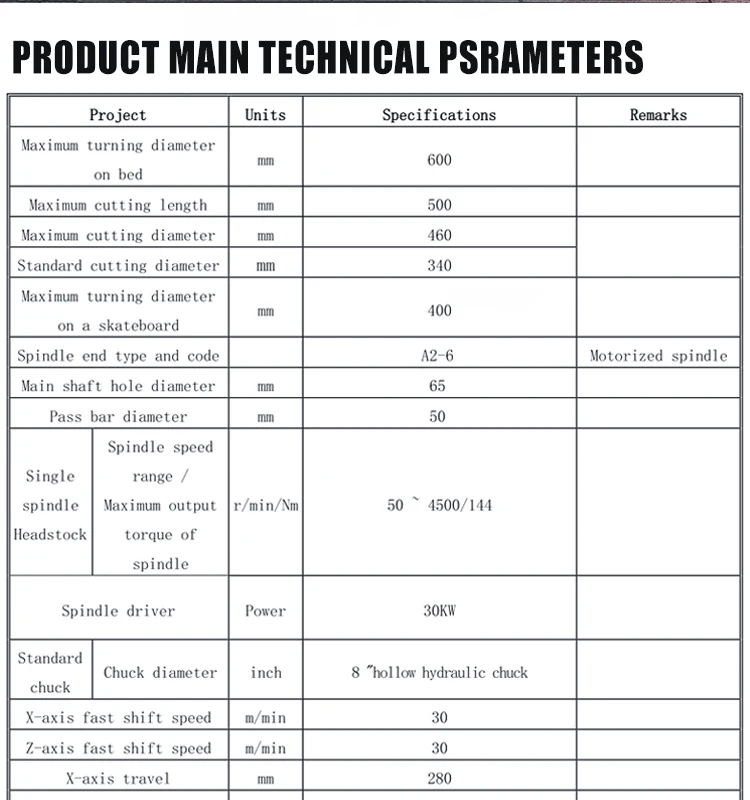

Project			Units	Specifications		Remarks
Maximum turning diameter on bed			mm	600
Maximum cutting length			mm	500
Maximum cutting diameter			mm	460
Standard cutting diameter			mm	340
Maximum turning diameter on a skateboard			mm	400
Spindle end type and code				A2-6		Motorized spindle
Main shaft hole diameter			mm	65
Pass bar diameter			mm	50
Single spindle Headstock	Spindle speed range / Maximum output torque of spindle		r/min/Nm	50 ~ 4500/144
Spindle driver			Power	30KW
Standard chuck	Chuck diameter		inch	8 "hollow hydraulic chuck
X-axis fast shift speed			m/min	30
Z-axis fast shift speed			m/min	30
X-axis travel			mm	280

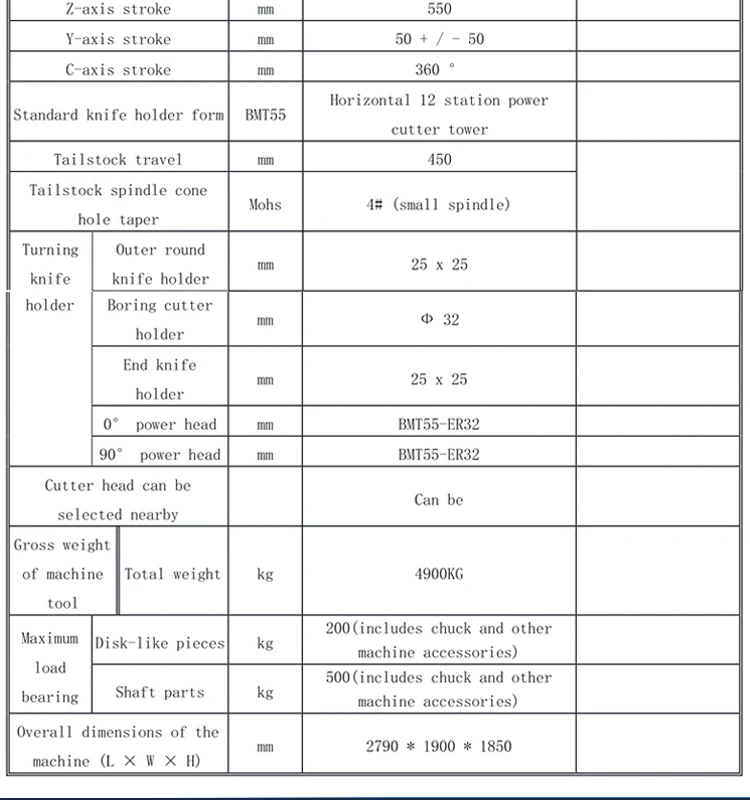

Z-axis stroke			mm	550
Y-axis stroke			mm	50 + / - 50
C-axis stroke			mm	360 °
Standard knife holder form			BMT55	Horizontal 12 station power cutter tower
Tailstock travel			mm	450
Tailstock spindle cone hole taper			Mohs	4# (small spindle)
Turning knife	Outer round knife holder		mm	25 x 25
