High quality soundproof wall panels MDF akupanel wood slatted wall acoustic felt panels for interior decoration Wall And Ceiling
- Category: >>>
- Supplier: Suzhou Runsheng Architectural & Decorative Material Co. Ltd.
Share on (1601076353003):
Product Overview
Description
Quick Details
Product Name | High quality sound absorbing MDF akupanel wood slatted wall acoustic felt panels for interior decoration Wall And Ceiling | ||||||
Material | 100% Polyester Fiber | ||||||
PET Slats Thickness | 12mm | ||||||
PET Backing Thickness | 9mm | ||||||
Finish | Printed wood grain | ||||||
Size | 2400*600*21 mm/ 3000*600*21 mm/Customized | ||||||
Fire rating | SGS -ASTM E84 CLASS A, TUV- EN 13501 CLASS B | ||||||
Application | Studios, home theaters, music halls, schools, offices, KTV | ||||||
Certification | SGS, TUV, INTERTEK | ||||||
Products Description
PET Slats PET Backing Acoustic Panel
Our PET Slats PET Backing Acoustic Panels have been carefully designed to effortlessly transform any space, enhancing the surroundings both visually and acoustically. The wood panels help to create an environment that is not only quiet but beautifully contemporary, soothing and relaxing.
The panels not only offer aesthetic refinement and superior acoustic dampening, but they are also produced using only environmentally friendly materials. All of the materials are sourced from certified sustainable sources— a complete environmentally friendly product.
Simply screw the panels straight into the wall, using the correct fixings, through the acoustic felt or if you are looking to increase the sound properties further, screwing them into batons. If installing on ceilings, the panels can be screwed straight into ceiling joists.
The panel is sound dampening and removes reverberation within the room, which drastically improves the acoustics within the room.

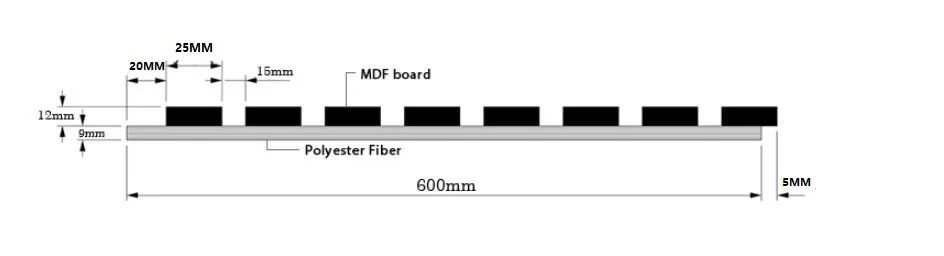

* Available in 2400mm to 3000mm Lengths
* 600mm Wide
* 21mm Deep
* Each slat is 25mm wide and 12mm deep
* There are 15 slats on each panel
* The PET felt backing is 9mm deep
* Polyester core with Veneered Oak Face
* Panel weight is 13.5kg
Product applications
Installation Methods
Installation- Method One
1. You can easily install the PET Slats Acoustic Panel directly to the wall with screws (use a min 3.5mm x 32-42mm screw), each panel is installed with 15 screws. The screws will easily fit between the wooden slats, straight into the felt backing.
2. Cutting the panels is easily done with a fine jagged saw. The underlying acoustic felt is easily cut with a knife.
2. Cutting the panels is easily done with a fine jagged saw. The underlying acoustic felt is easily cut with a knife.
Installation- Method Two
1. Install 45mm (thickness) battens directly to your wall/ ceiling with a distance of 600mm.
2. Install the PET Slats Acoustic Panel directly on to the battens with screws (use a min 3.5mm x 32-42mm screw), each panel is installed with 15 screws. The screws will easily fit between the wooden slats, straight into the felt backing.
3. Cutting the panels is easily done with a fine jagged saw. The underlying acoustic felt is easily cut with a knife.
2. Install the PET Slats Acoustic Panel directly on to the battens with screws (use a min 3.5mm x 32-42mm screw), each panel is installed with 15 screws. The screws will easily fit between the wooden slats, straight into the felt backing.
3. Cutting the panels is easily done with a fine jagged saw. The underlying acoustic felt is easily cut with a knife.
Installation- Method Three
1. Install 45mm (thickness) battens directly to your wall/ceiling with a distance of 600mm.
2.Place 45mm insulation between the studs.
3. Install the panels directly to the battens with screws (use a min 3.5mm x 32-42mm screw), each panel is installed with 15 screws. The screws will easily fit between the wooden slats, straight into the felt backing.
2.Place 45mm insulation between the studs.
3. Install the panels directly to the battens with screws (use a min 3.5mm x 32-42mm screw), each panel is installed with 15 screws. The screws will easily fit between the wooden slats, straight into the felt backing.
4. Cutting the panels is easily done with a fine jagged saw. The underlying acoustic felt is easily cut with a knife.
Packing&shipping

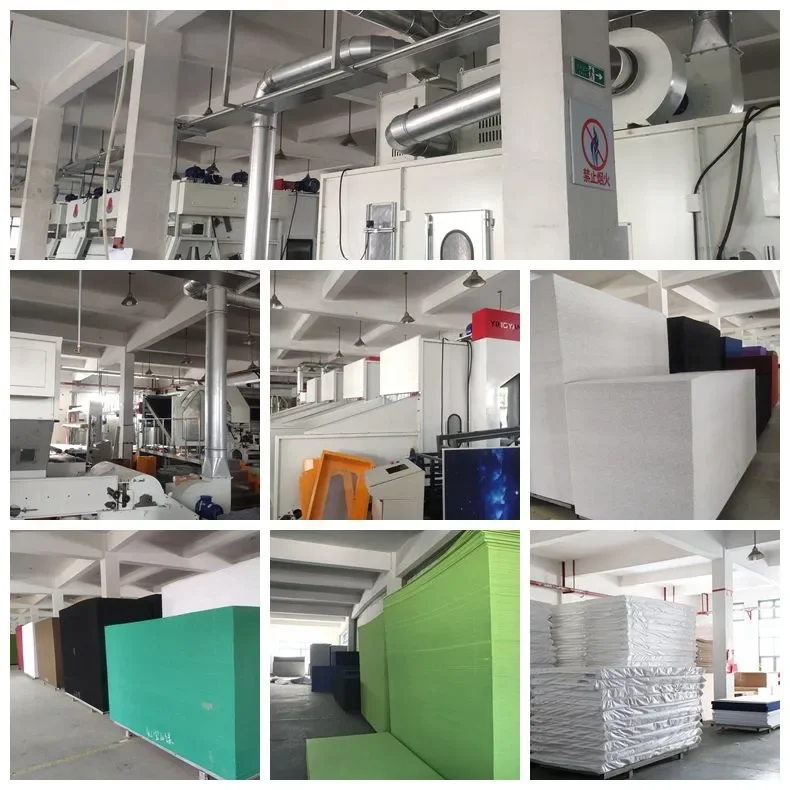

Company Profile
Suzhou Runsheng Architectural & Decorative Material Co., Ltd
Suzhou Runsheng Architectural & Decorative Material Co., Ltd is founded in 2014 which is a professional manufacturer of PET Acoustic panels. We offers everything you need for Noise Control, Soundproofing and Acoustical Products for Commercial,Industrial, Educational, House of Worship, Pro Audio, OEM, Home Theater and other Residential applications. All of our sound absorbing products have independent sound and flammability tests and most products offered are ASTM E84 tested Class A.
Certification
We always make sure that our customers are satisfied with our top quality products. For safety, our PET panels are rated at ASTM E84 CLASS A ( By SGS ) and EN 13501-1 CLASS B ( By TUV). We also pass the tested by Intertek for top acoustic performance effect.
FAQ
Q: Does the panel have a larger size? The acoustic range panel has only one size, 2400 mm x 600 mm.
However, we design them to seamlessly connect horizontal and vertical, so that any length or width can be easily achieved.
Q: Can the panel be used in the bathroom or kitchen?
Yes, but be careful that the panel is not in direct contact with water.
Q: Can I install sound-absorbing panels around sockets, windows, etc.?
Yes, there is no problem adjusting the panel to fit any pre-existing accessories. You can cut the panel horizontally and cut the acoustic felt longitudinally with a sharp blade. You can then place them around any objects
on your surface.
Q: Is it possible to maintain the consistency of the wood finish of the entire panel?
Our wood always comes from the same supplier, so the finish will not have a big color difference. However, as natural wood, knots, slight cracks and color changes may occur.
Q: What can be installed behind the sound-absorbing panel to increase the sound insulation effect?
In order to get the best sound-absorbing effect, we strongly recommend that you install sound-absorbing wood panels with batons. However, if you want them to be used only for decorative purposes while still providing some sound absorption, we recommend that you use black or gray screws to screw the panel directly into the wall through the acoustic felt backing.
Q: Can the sound-absorbing board series be used outdoors?
The wooden slat acoustic series is specially designed for indoor use.
Q: On which surfaces can the sound-absorbing panel be installed?
The sound-absorbing board series can be easily installed on any surface, including brick walls, concrete walls and gypsum board walls.
