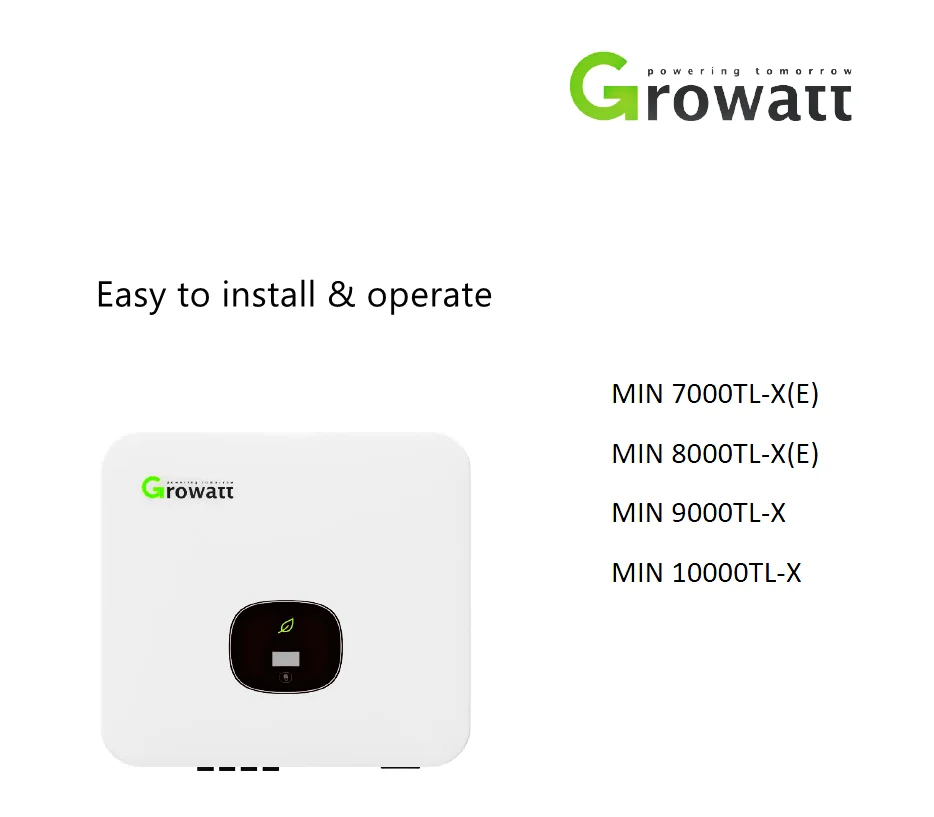

Growatt MIN 10000TL-X 10kw

On Grid Solar Inverter



This is the latest model from Growatt’s Smart Inverter Solutions for your rooftop solar PV at home. The MIN series is a beautiful, compact design that unlike some other inverters, has an easy to use touch button. This is so you can find out what your system has been doing, quickly. While it is a pleasure to use, it has a great efficiency level of 98.1% too.

Advantage

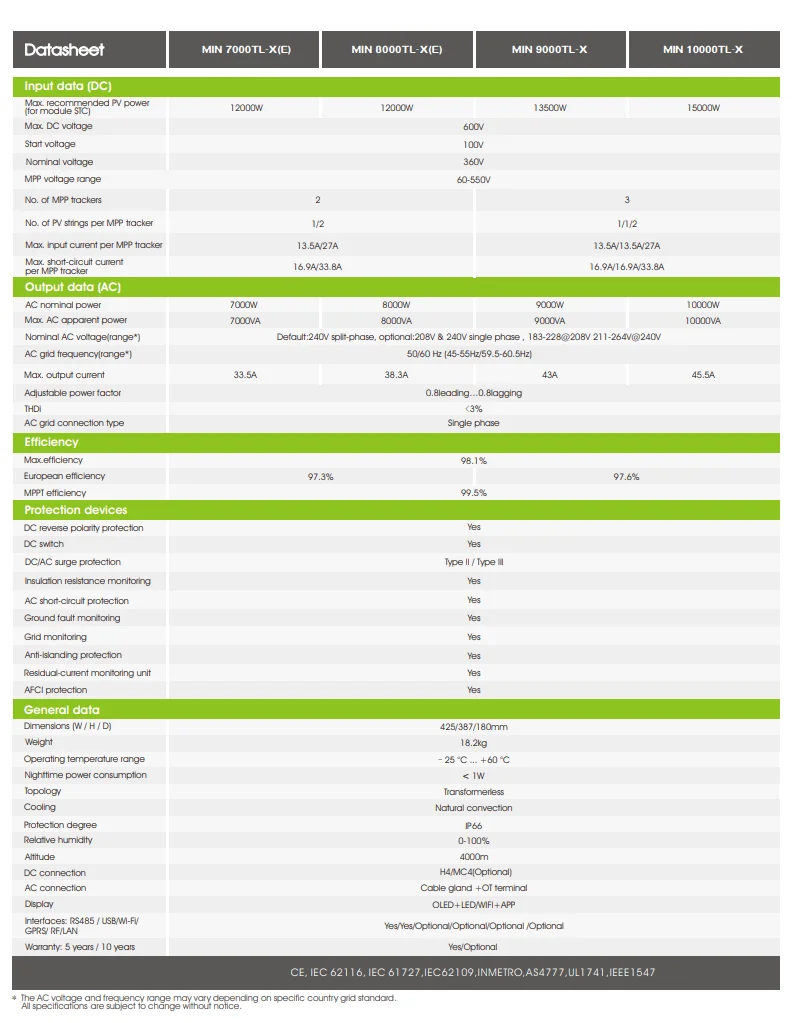

Specification







































































































































Model Name


MIN 7000TL-X(E)


MIN 8000TL-X(E)


MIN 9000TL-X


MIN 10000TL-X


Max input DC voltage


600V




Max input DC current


13.5/27A



13.5/13.5/27A


Start voltage


100V




MPP voltage range


60V~550V




AC nominal voltage


230V




AC grid frequency


50/60 Hz




Max. apparent power


7000VA


8000VA


9000VA


10000VA


AC normal output current


31.8A


36.4A


40.9A


45.5A


Power factor


0.8leading…0.8lagging




Environmental Protection Rating


IP66




DC reverse-polarity protection


Integrated




DC switch


Integrated




DC Surge protection


Type II




AFCI


Optional




AC short-circuit protection


Integrated




AC surge protection


Type III




Operation Ambient temperature


-25...+60℃ (-13...+ 140°F) with derating above 45°C（113°F）


























Product details

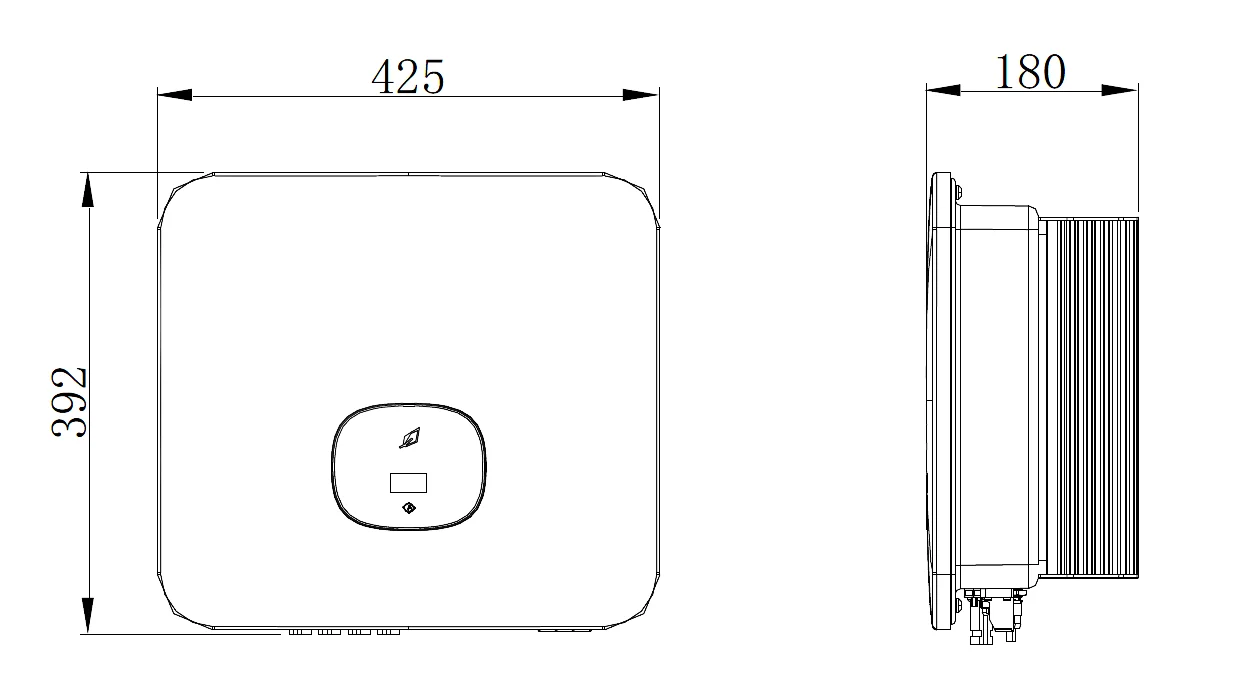

Dimensions and weight


Model: 7000-10000TL-XHeight (H)：425mm 16.7inch
Width (W)：392mm 15.4inch
Depth (D)：180mm 7.1inch
Weight：18.2kg

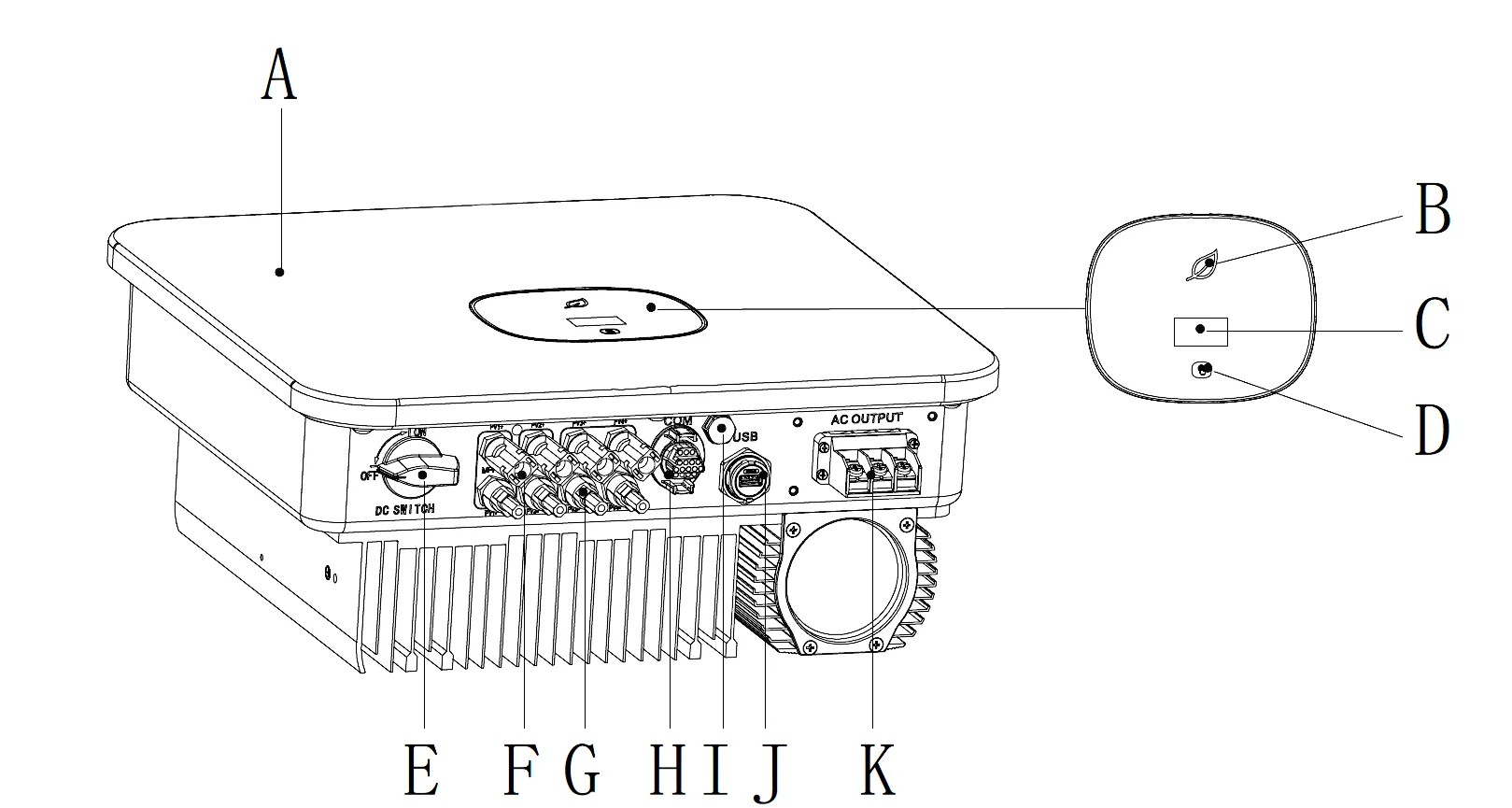

TL-X Overview


























































A: Cover


B: LED


C: OLED


D: TOUCH BUTTON


E: DC SWITCH



F: PV+ INPUT


G: PV- INPUT


H: COM PORT


I: VENTILATION VALVE


J: USB PORT



K: AC OUTPUT

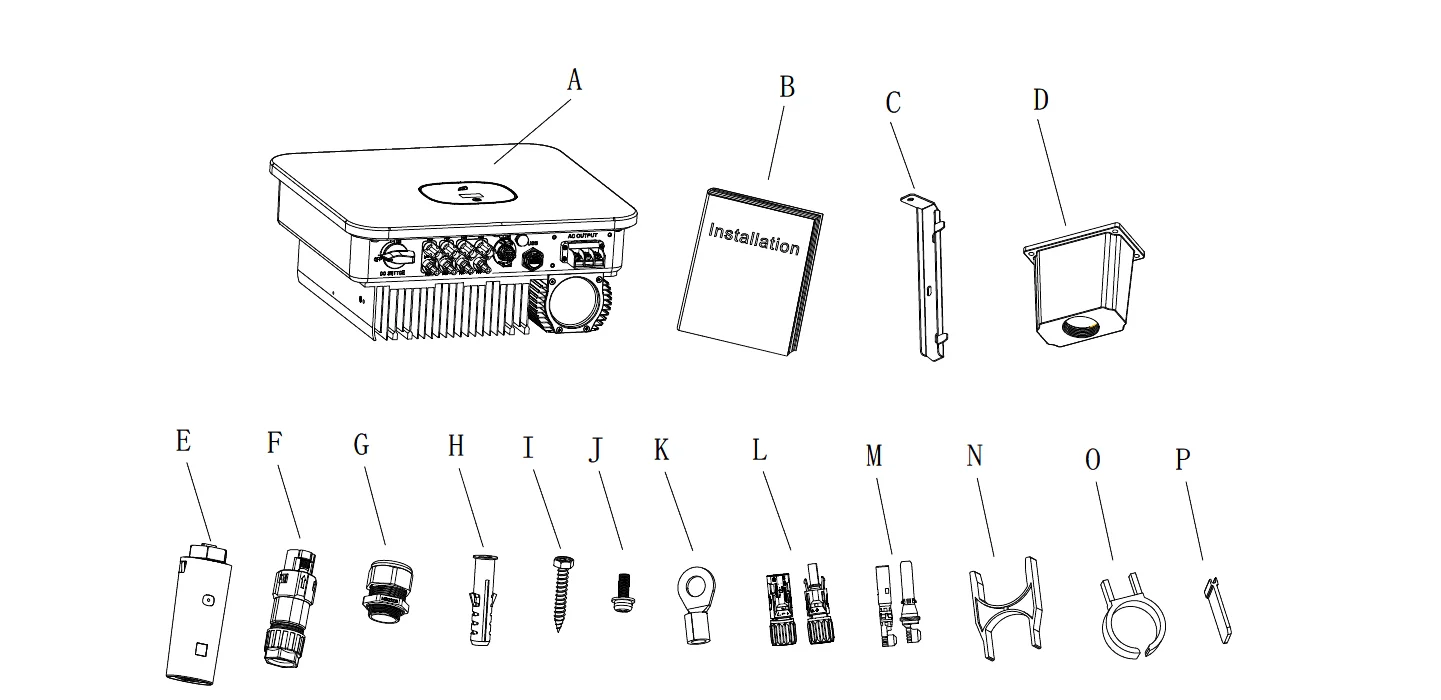

Included accessories





The inverter is thoroughly tested and inspected strictly before delivery. Growatt inverters leave our factory in proper electrical and mechanical condition. Special packaging ensures safe and careful transportation, please check the contents of the box. It should contain the following, Please check all of the accessories carefully in the carton.
















































































































Object


Description


Quantity



A


Inverter


1



B


Quick Guide


1



C


Mounting bracket


1



D


AC waterproof cover


1



E


Monitor(Optional)


1



F


4PIN COM port signal connector


1



G


Waterproof connector


1



H


Plastic expansion tube


3



I


Self-tapping screw


3



J


Security screw


1



K


AC OT terminal


3



L*


PV Male &Female cable coupler


3/4



M*


PV Pin&Socket contacts


3/4



O


PV terminal removal tool


1



P


AC terminal block insulation partition


2



* MIN7000-8000TL- X(E) 3 MIN9000-10000TL-X 4

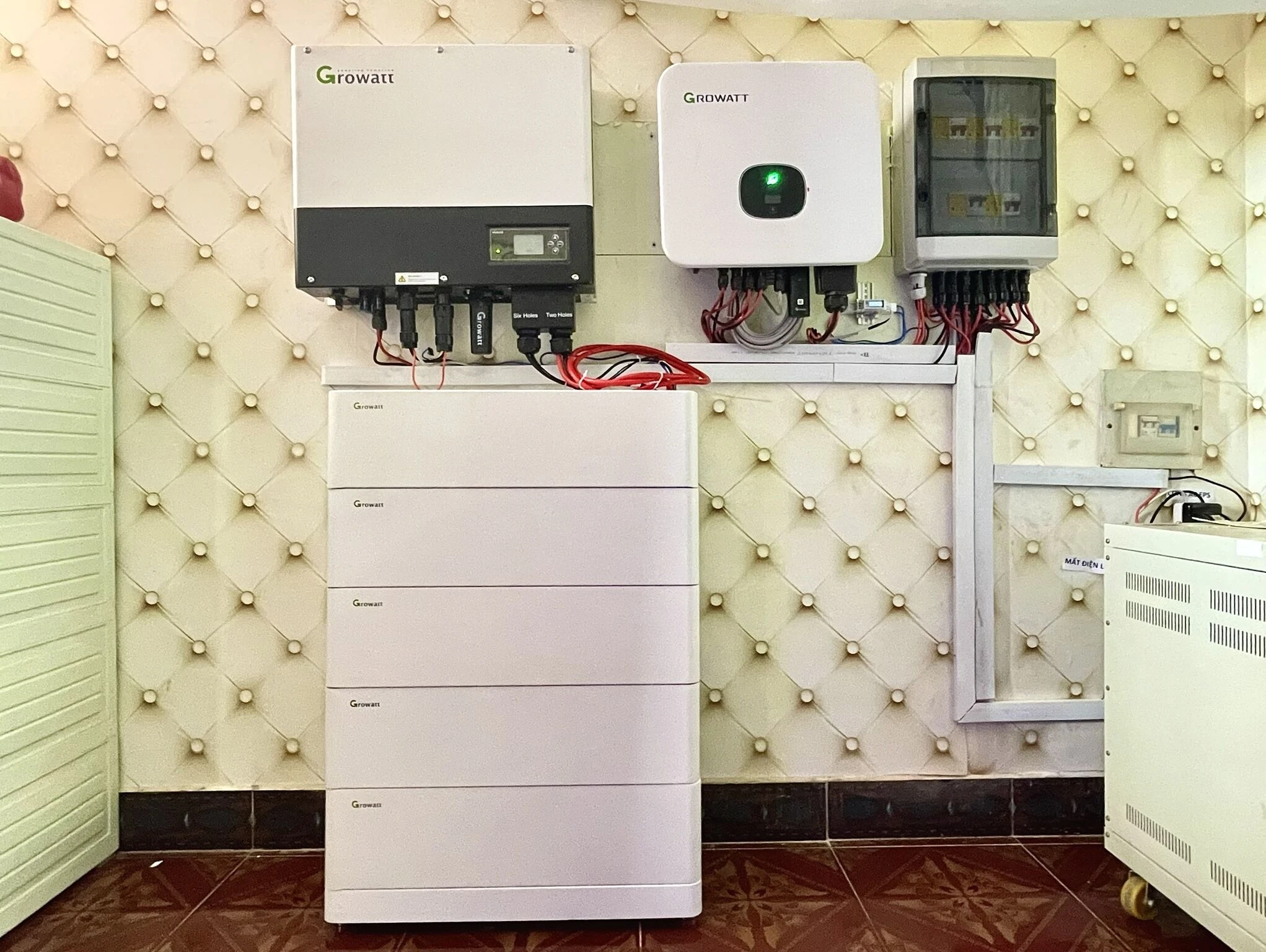

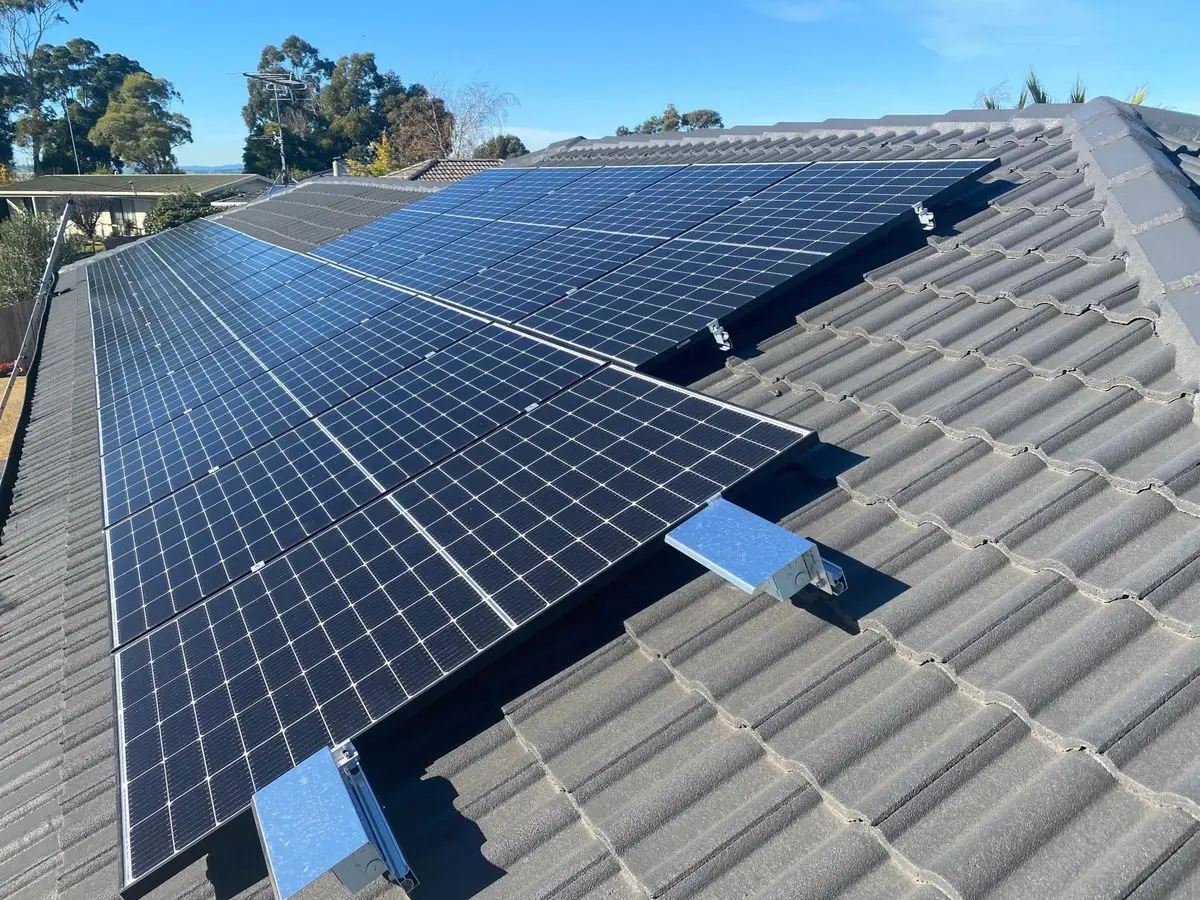

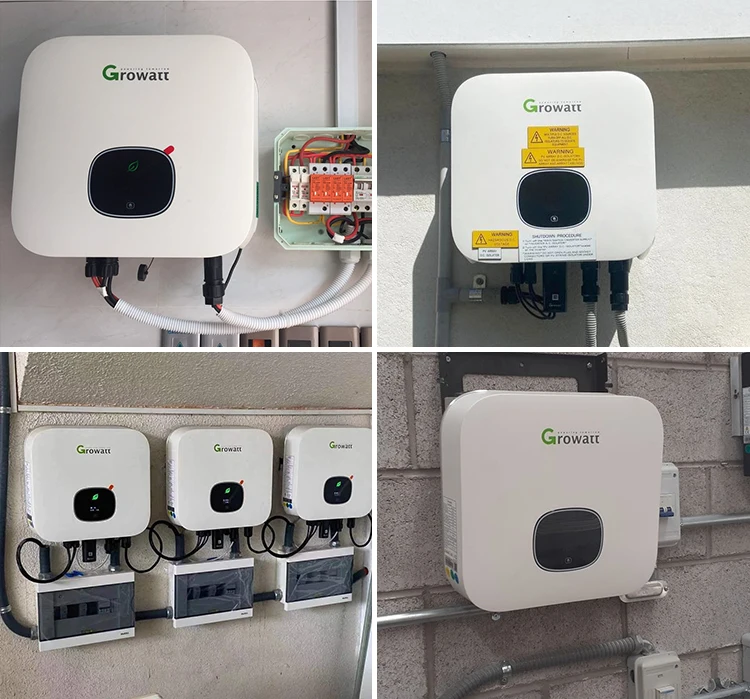

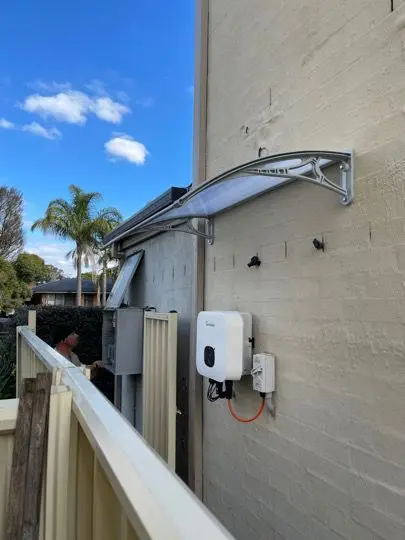

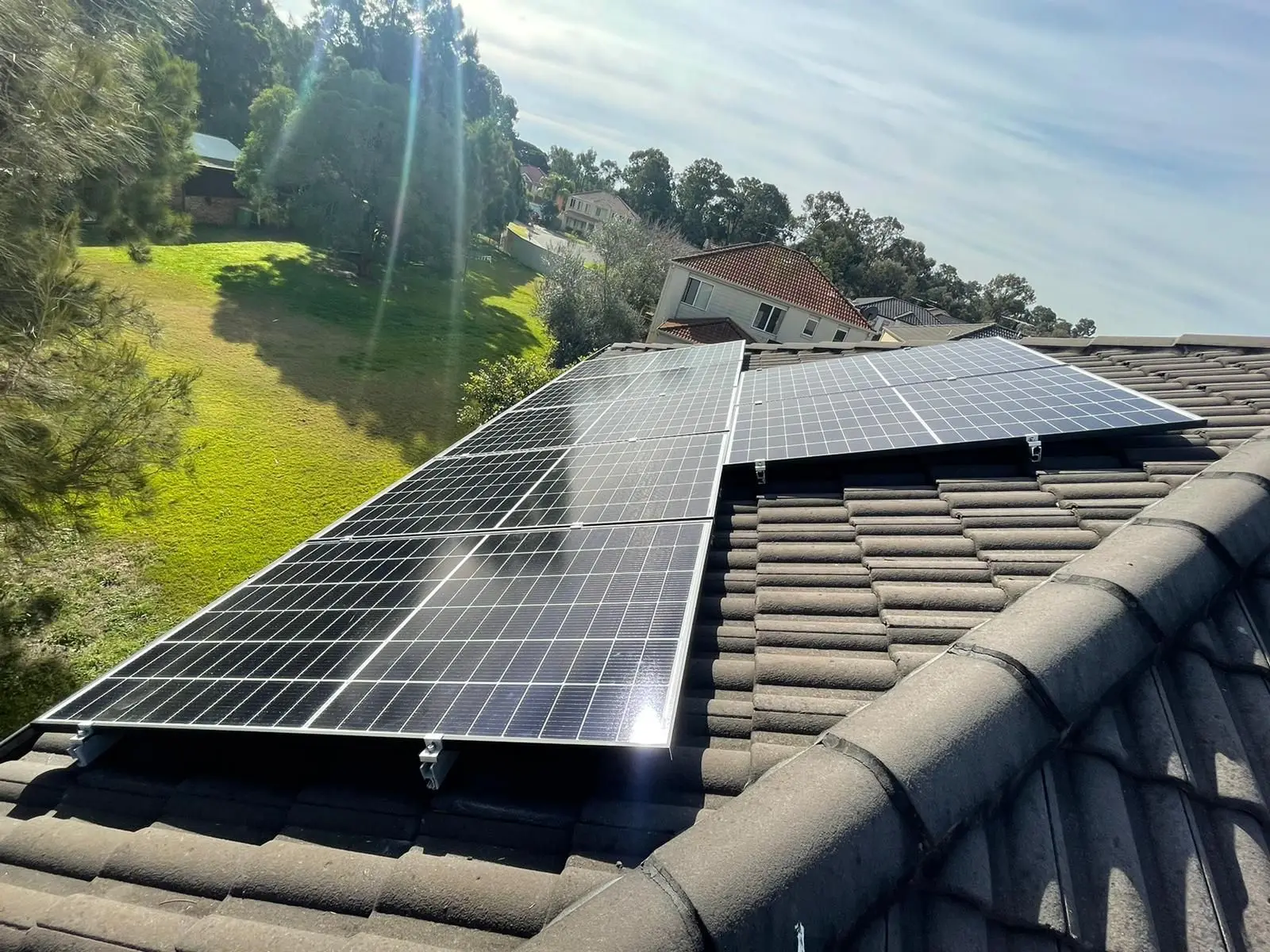

Project Case

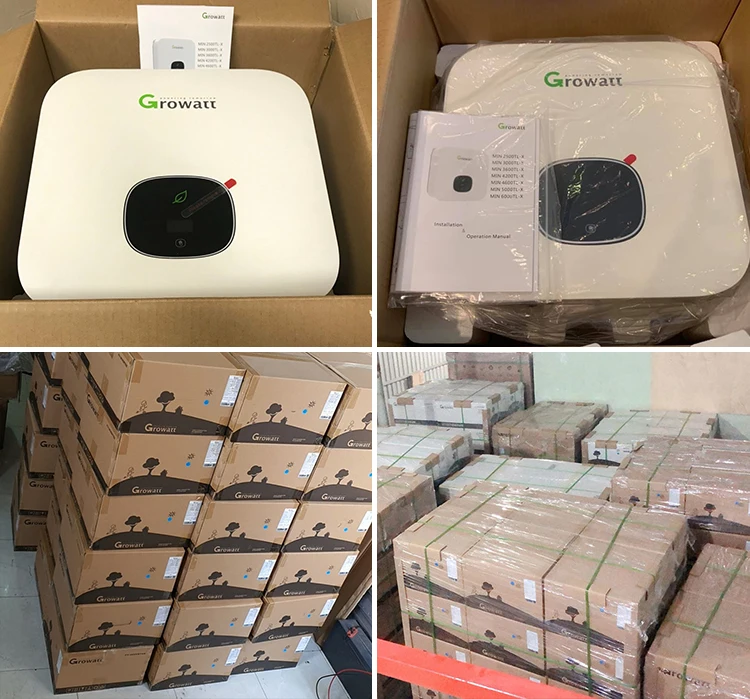

Packing & Delivery

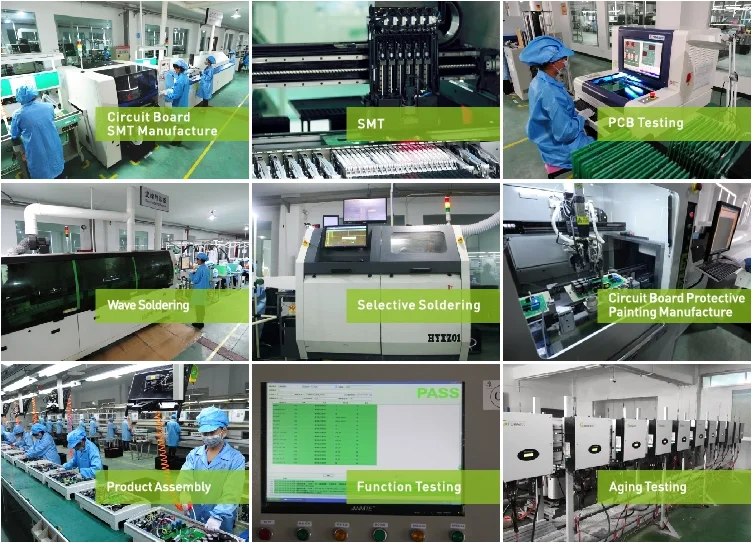

Company Profile











































Certifications

















FAQ








Q1: How to install and use the solar inverter?
A1: We have the English teaching manual and videos; All the videos about every step of machine Disassembly, assembly, operation will be sent to you.

Q2: What if I don't have import experience ?
A2: We have reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep. Any way, we will help you choose the most suitable shipping service.

Q3: How is your technical support?
A3: We provide online service through Whatsapp / Wechat / Email. Any problem after delivery, we will offer you video call
anytime, our engineer will also go to oversea help our customers if necessary.

Q4: How can I make sure it's a secure transaction ?
A4: Alibaba can protect buyers' interest, all of our transactions will go through alibaba platform.

Q5: Can you get the the solar inverter customized for us ?
A5: Of course, brand name, machine color, designed unique patterns available for customization.

Q6: How to become your agent?
A6:Contact us through Alibaba, we will give you the best price and look forward to your greetings.

Q7: What can you provide?
A7:Residential/Home solar system, Rooftop solar power station, Large-scale ground-mounted solar power station,
Agriculture-complementary Solar Power Station, Aquaculture-complementary Solar Power Station.
