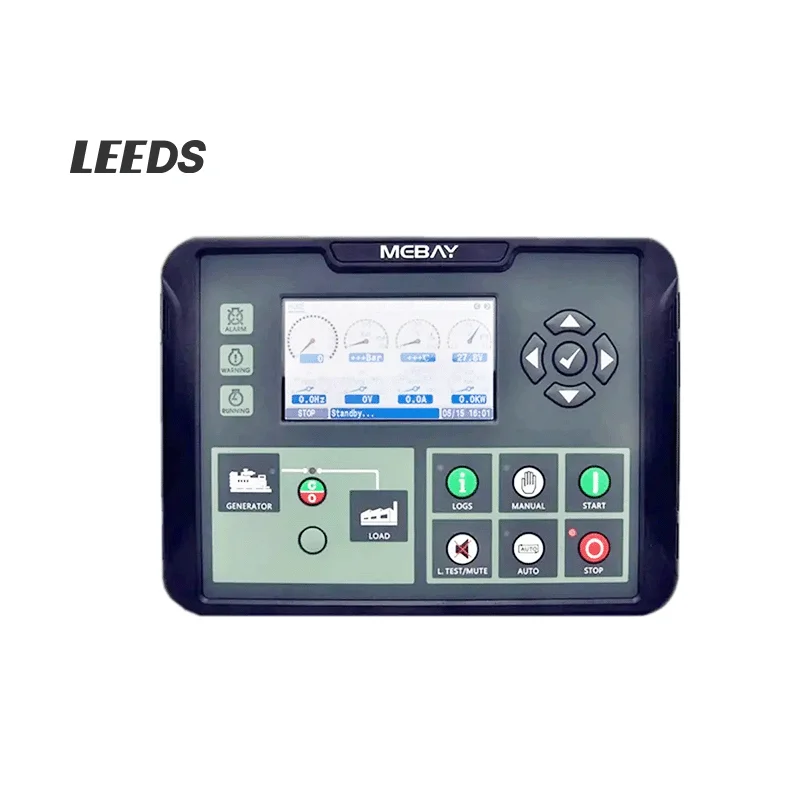

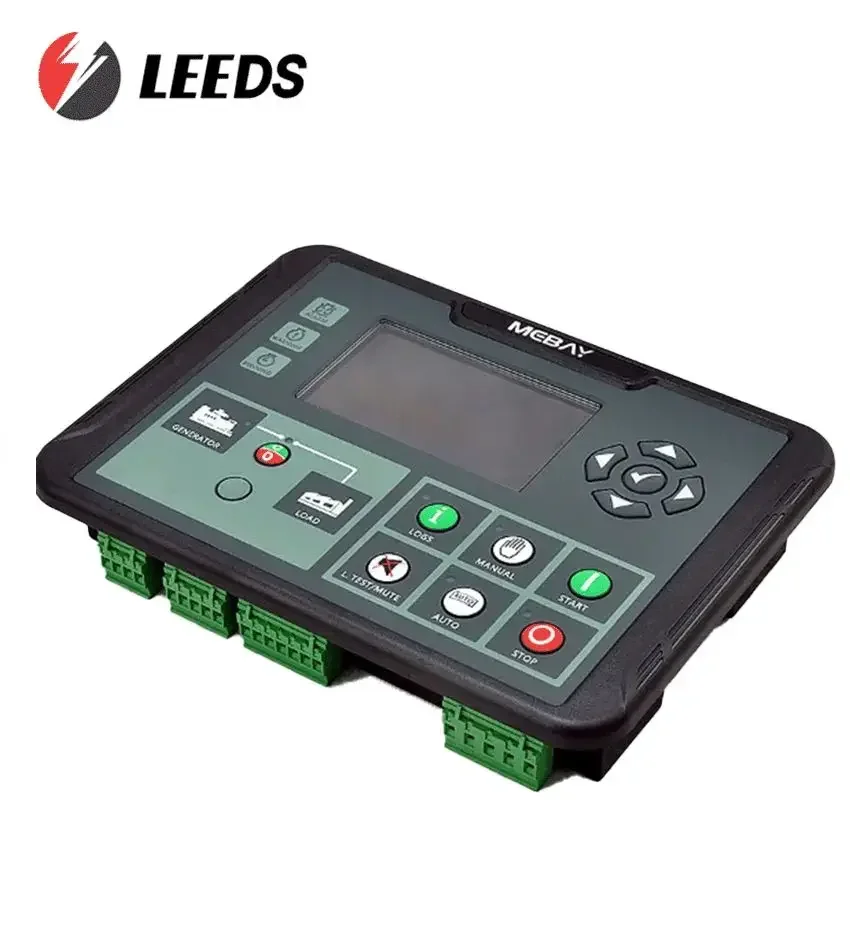

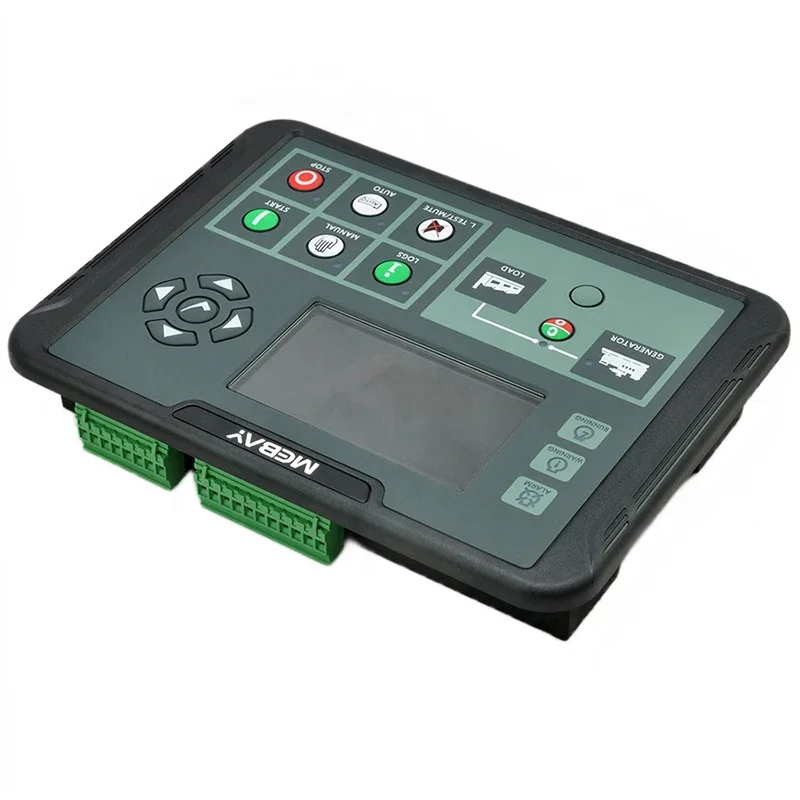

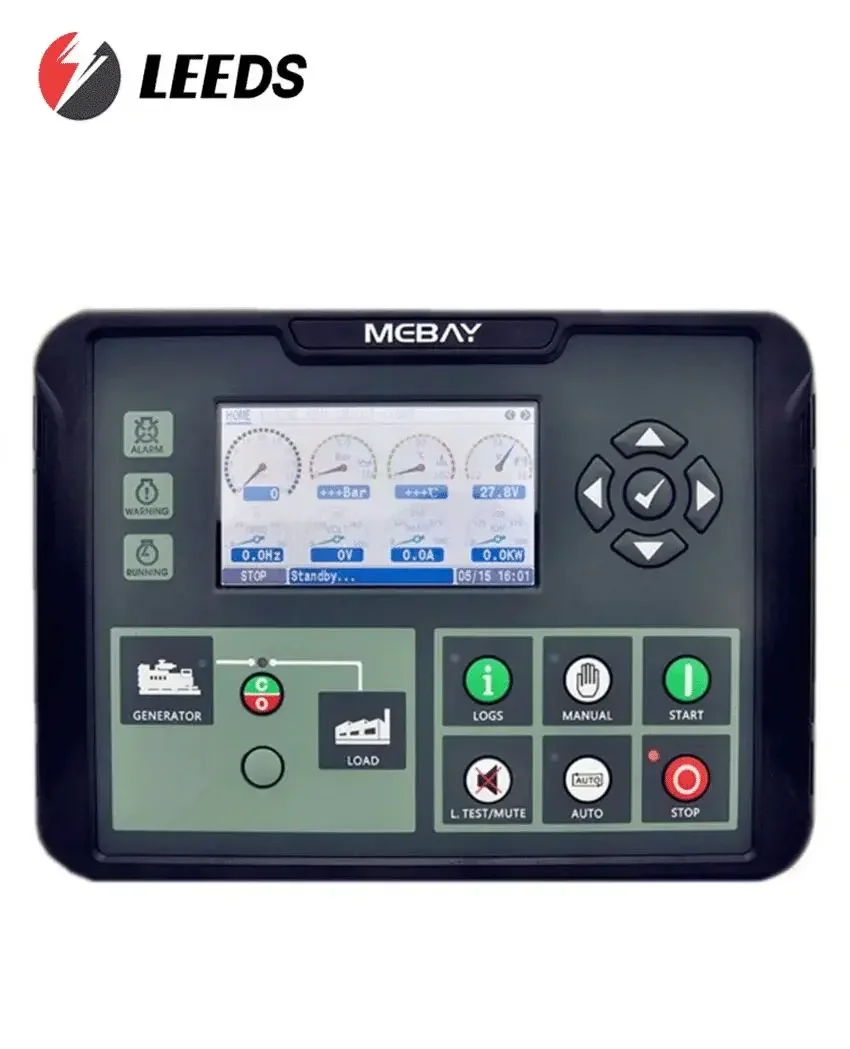

DC82DR MK3 Generator Controller is a Diesel Genset part that features an LCD Display and Self starting Control Board.
- Category: >>>
- Supplier: Fuzhou Leeds Electric Co. Ltd.
Share on (1601076358706):
Product Overview
Description
Products Description
Model Number： | DC82DR | Weight： | 1KG |
Stock： | 1000pcs | Brand Name： | Deep Sea |
Color： | Black | Place of Origin： | Fujian, China |
Quality： | High-Quality | Warranty： | 3months-1year |
Description
DC80D DC82DR MK3 Generator Controller LCD Display Self-starting Control Board Diesel Genset Parts
Summary
This series controller is specialized for Diesel / Gasoline / Gas Genset Start, Stop, Parameters monitoring, faults-checking as
well as data setting.
4.3inch colorful LCD screen display with brand new UI design is adapted in this
controller that the relative failures can be displayed directly. All the parameters can
be displayed by simulated indicators and words. Besides, LCD screen can display
various faults in the same time that the genset will be stopped once it can’t work
smoothly.
There are Simplified Chinese, Traditional Chinese, English, Spanish, Russian
interface options, more language can be set according to user’s request. All the
parameters can be configured through the front face buttons or use programmable
interface by RS485 or USB to adjust via PC. It can be widely applied for all kinds of
auto control system of gensets.
Performance and Characteristics

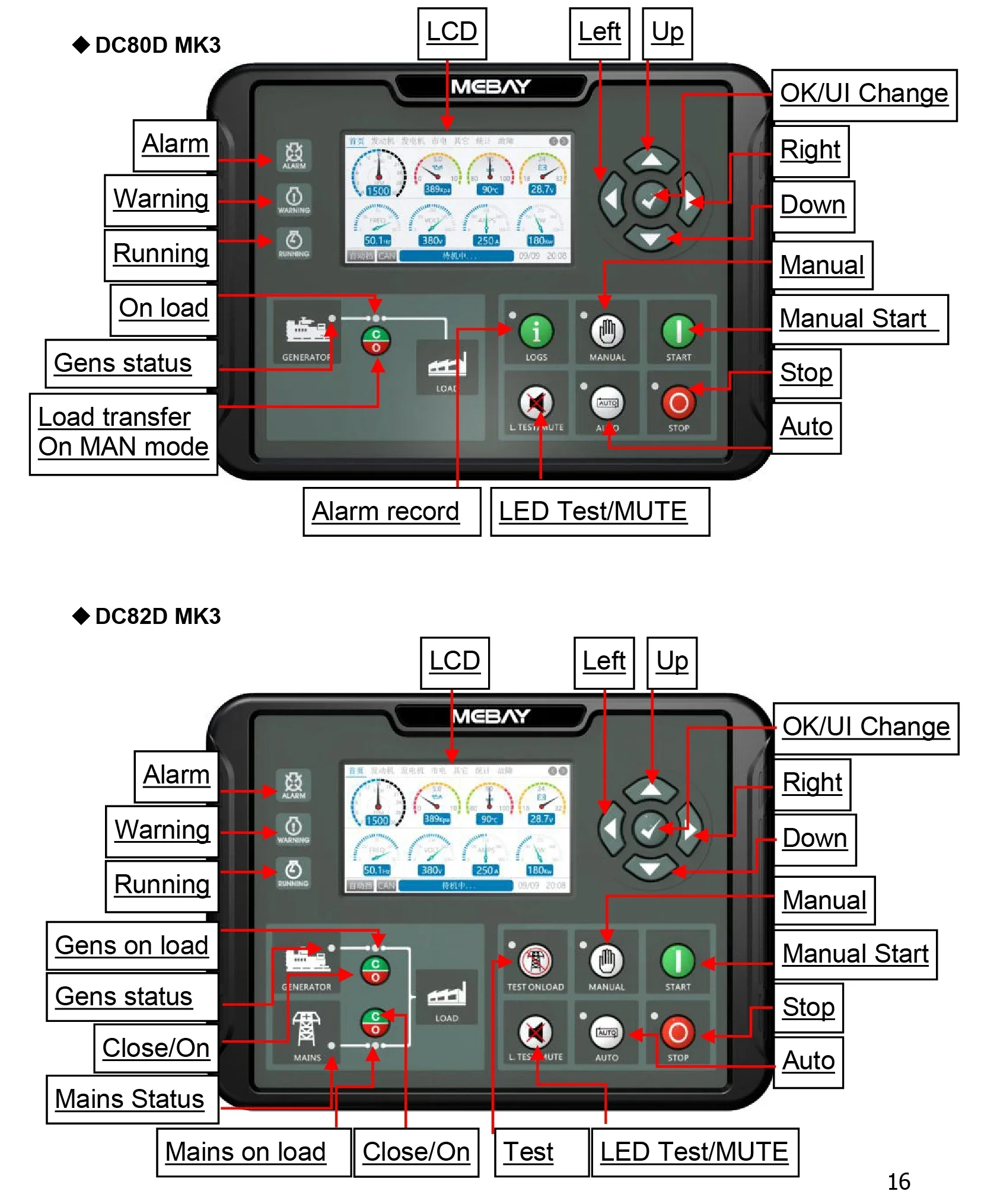

There are four Models under DC8xD MK3 series.
DC80D MK3: used for single machine automation. Start/Stop through remote
start signal.
DC82D MK3: Based on DC80D MK3, it adds Mains monitoring and AMF
(Mains/Generator automatic switching control), especially suitable for the automation
system composed by mains and genset.
DC80DR MK3: Based on DC80D MK3, it adds RS485 port.
DC82DR MK3: Based on DC82D MK3, it adds RS485 port.
Summary
This series controller is specialized for Diesel / Gasoline / Gas Genset Start, Stop, Parameters monitoring, faults-checking as
well as data setting.
4.3inch colorful LCD screen display with brand new UI design is adapted in this
controller that the relative failures can be displayed directly. All the parameters can
be displayed by simulated indicators and words. Besides, LCD screen can display
various faults in the same time that the genset will be stopped once it can’t work
smoothly.
There are Simplified Chinese, Traditional Chinese, English, Spanish, Russian
interface options, more language can be set according to user’s request. All the
parameters can be configured through the front face buttons or use programmable
interface by RS485 or USB to adjust via PC. It can be widely applied for all kinds of
auto control system of gensets.
Performance and Characteristics
There are four Models under DC8xD MK3 series.
DC80D MK3: used for single machine automation. Start/Stop through remote
start signal.
DC82D MK3: Based on DC80D MK3, it adds Mains monitoring and AMF
(Mains/Generator automatic switching control), especially suitable for the automation
system composed by mains and genset.
DC80DR MK3: Based on DC80D MK3, it adds RS485 port.
DC82DR MK3: Based on DC82D MK3, it adds RS485 port.
Product Categories
Company Profile
Company Profile
Fuzhou Leeds Electric Co, Ltd is located in Fuzhou, Fujian, China. lt is aprivate manu facture of generator owning its on-line and off-line sales system.
Leeds mainly produces gen-sets from 10KW to 2000KW and Generator accessories.All generator typesand various brandsof enaines (CUMMNS,VMAN.SHANGCHALYANGDONGECT) are available here,in order to match with different requests and tasteof our customers.
Production Process
Product packaging
FAQ
Q1: What is your MOQ of this item?
A: 1 pcs
Q2: Are the products original ?
A: Most of the products are manufactured by us because we are manufacturers, but can 100% replaced the original one with reliable performance. Also we supply the Original parts for the parts too.Welcome to inquiry
Q3: What' s the warranty?
A: The general warranty is 12 months, long-term customers can apply for a longer warranty
