machine for production PP corrugated plastic board making machine
- Category: >>>
- Supplier: Qingdao Tongsan Plastic Machinery Co. Ltd.
Share on (1601076364629):
Product Overview
Description
Product Description
Turn-key project machine manufacturer since 1997
Plastic Sheet Machine Factory PP corrugated plastic board making machine
PP corrugated plastic board making machine,PP corrugated hollow sheet board manufacturing machine can produce the sheet with the width of 1000-2800mm.We can provide the all auxilairy machine for plastic PP hollow sheet to make box.The PP hollow sheet/corrugated sheet is widely used in fileds of machinery,electron,appliance,food,advertising,interior decoration material,glass, agricultural product etc packing and transporting.
Model | Sheet width | Sheet thickness | Extruder Model | Motor Power |
TSGZB-1400 | 1250mm | 2-6,8-12mm | 100/36 | 55-75kw |
TSGZB-1800 | 1700mm | 2-6,8-12mm | 120/36 | 75-90kw |
TSGZB-2300 | 2150mm | 2-6,8-12mm | 120/36 | 90-110kw |
TSGZB-2600 | 2450mm | 2-6,8-12mm | 120/36 | 90-110kw |
TSGZB-3000 | 2800mm | 2-6,8-12mm | 150/36 | 132kw |
TSGZB-2600(F） | 2450mm | 2-6,8-12mm | 120/36&80/36 | 110+37kw |
Detailed Images

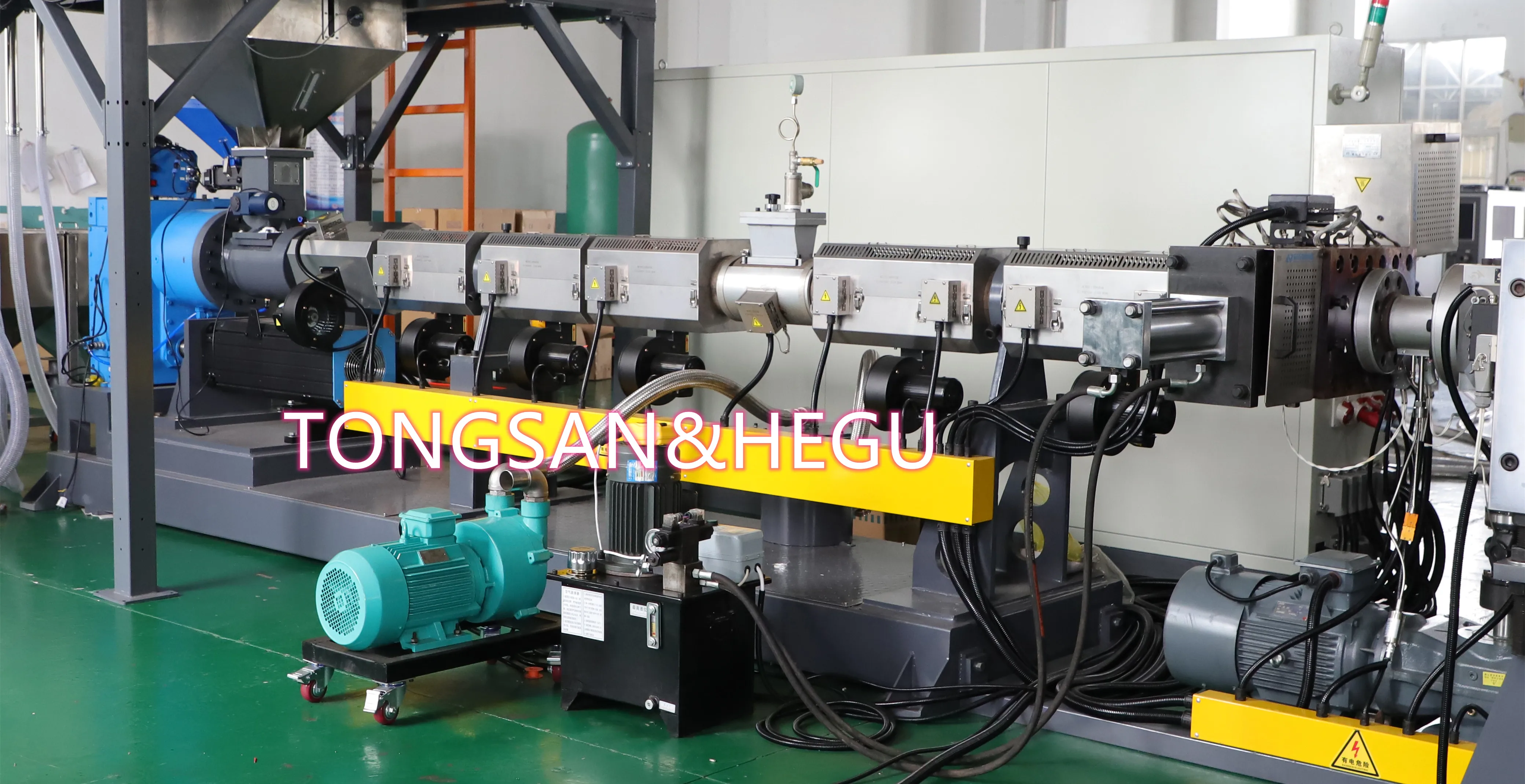

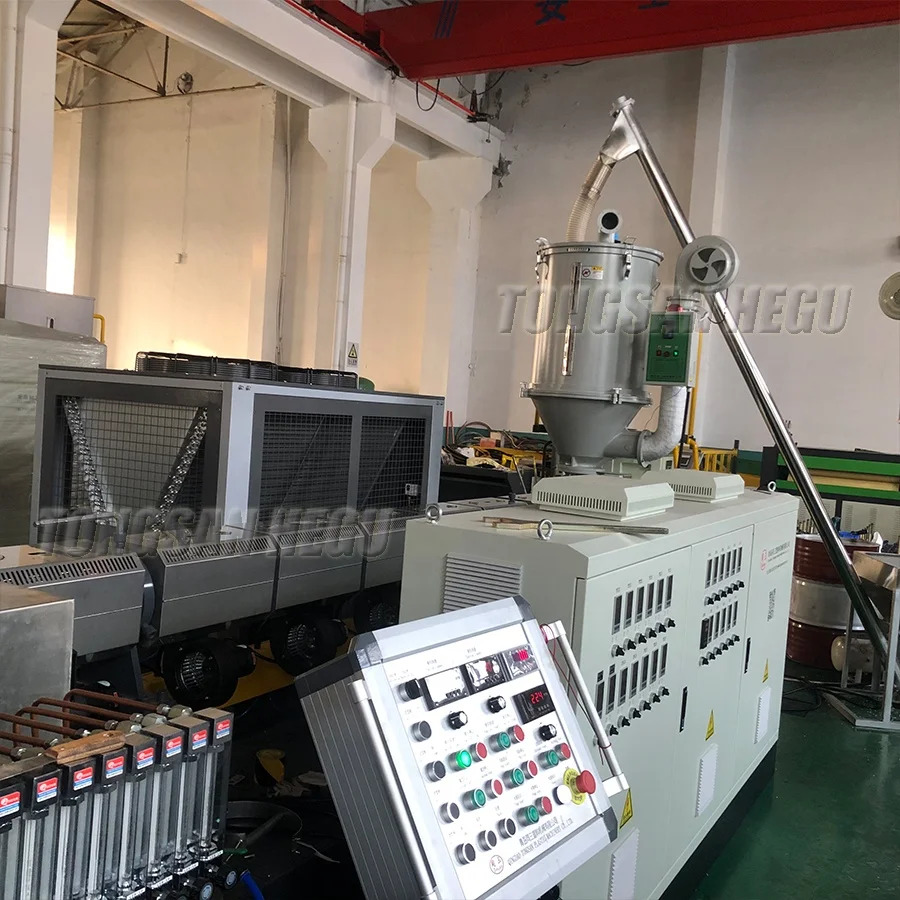

High-efficiency Extruder
High quality single screw extruder
Equipped with:
Automatic loader
Dryer
SIEMENS motor
ABB inverter

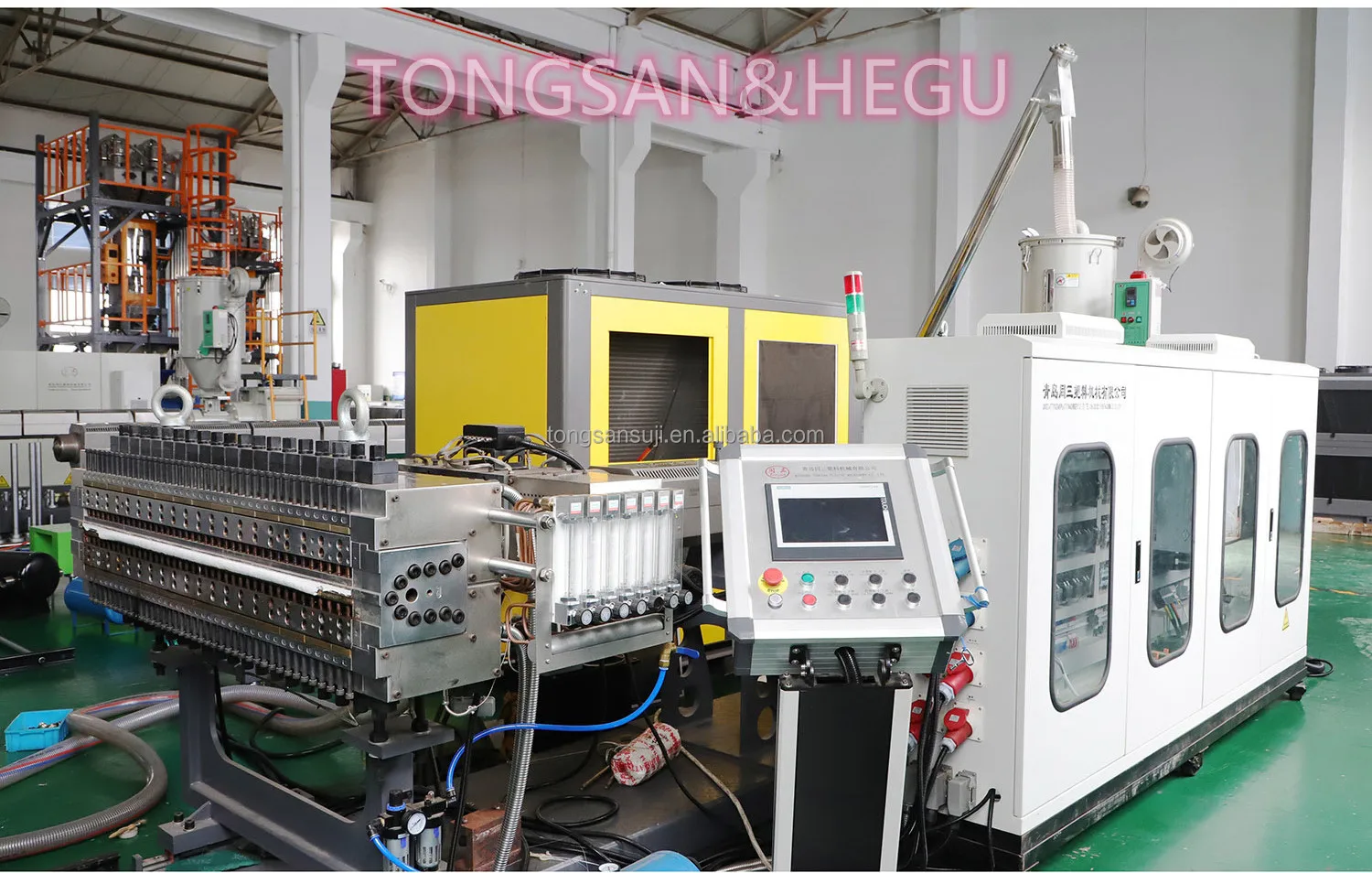

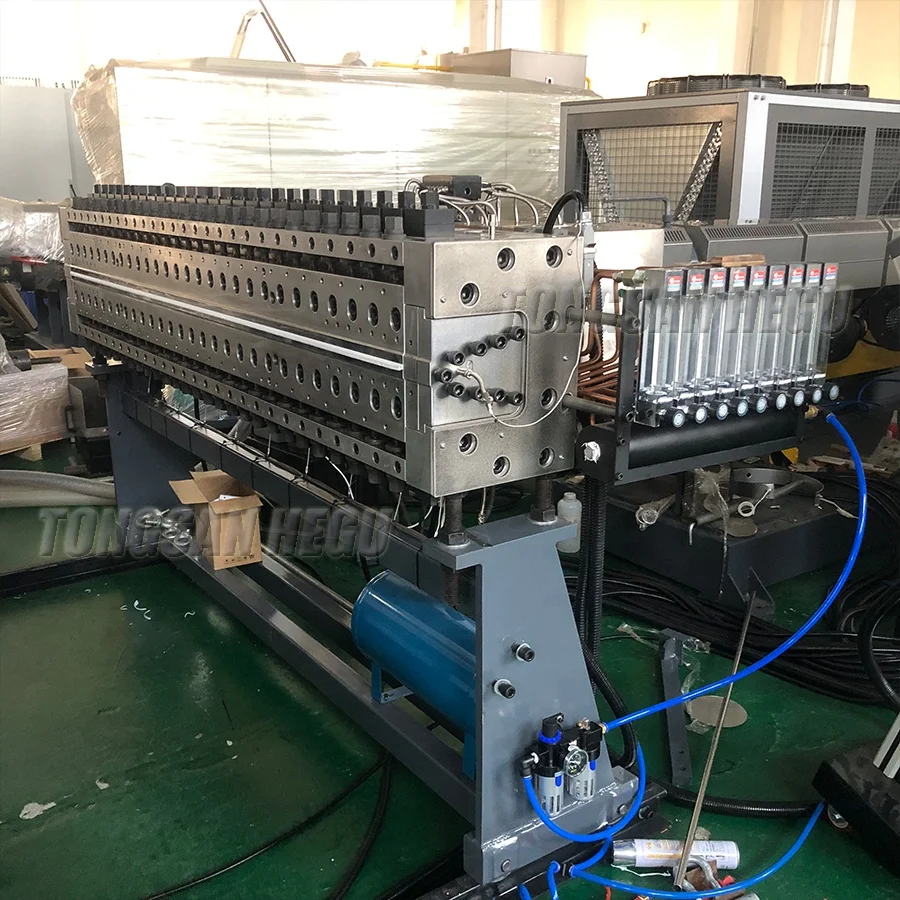

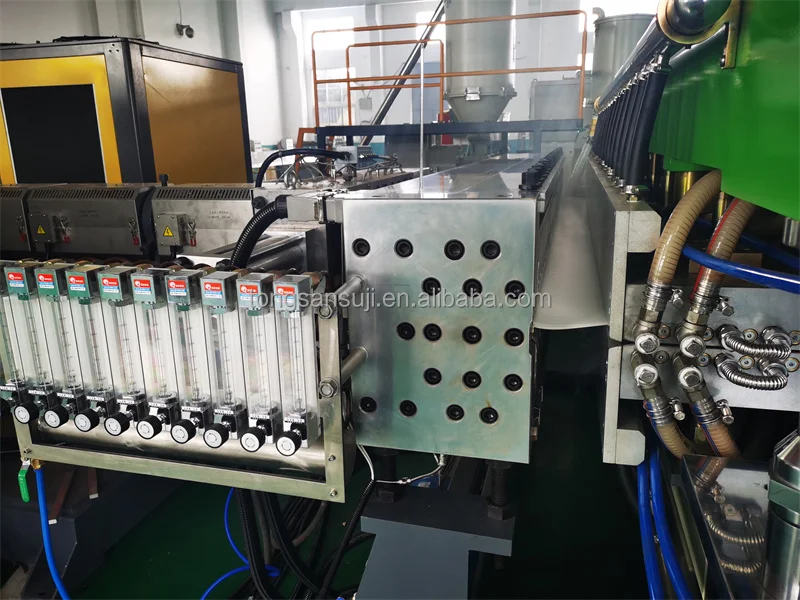

High quality mould
Material:high quality alloy steel
Equipped with :
Screen changer
Melting pump
Accuracy control device
Size can be customized by requirement

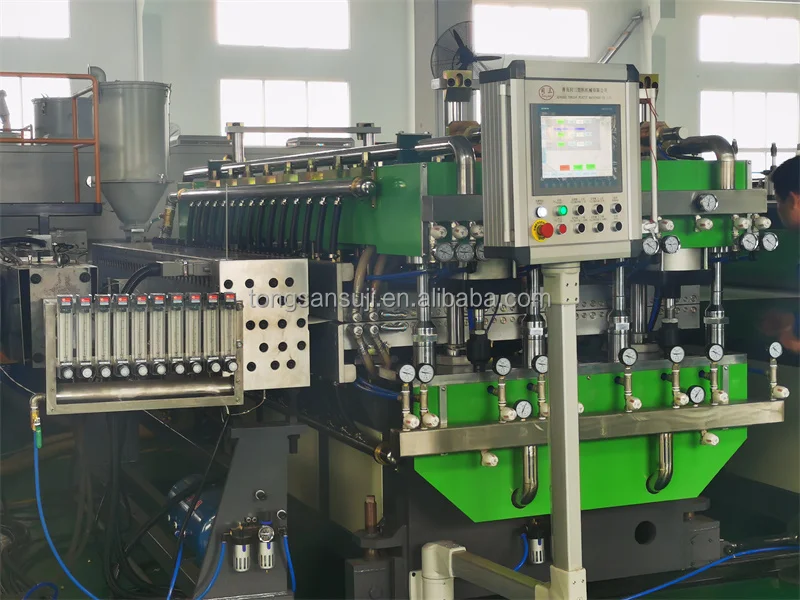

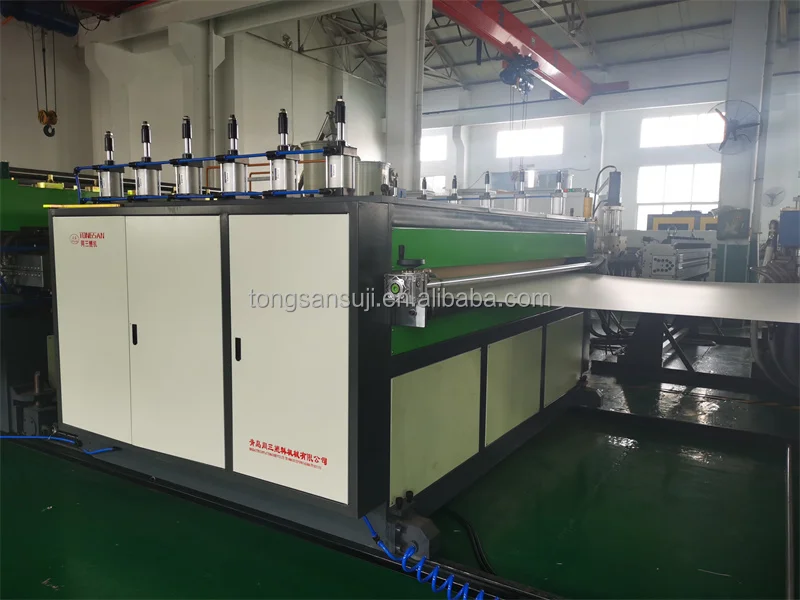

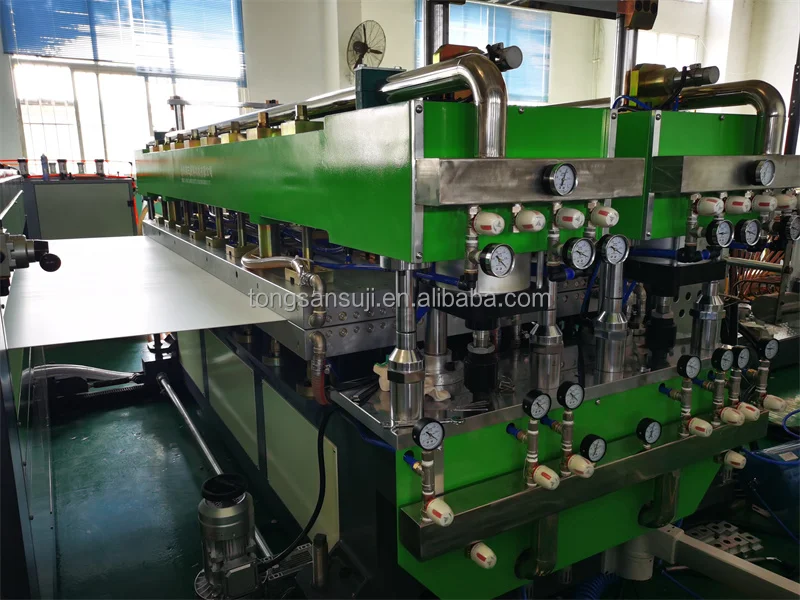

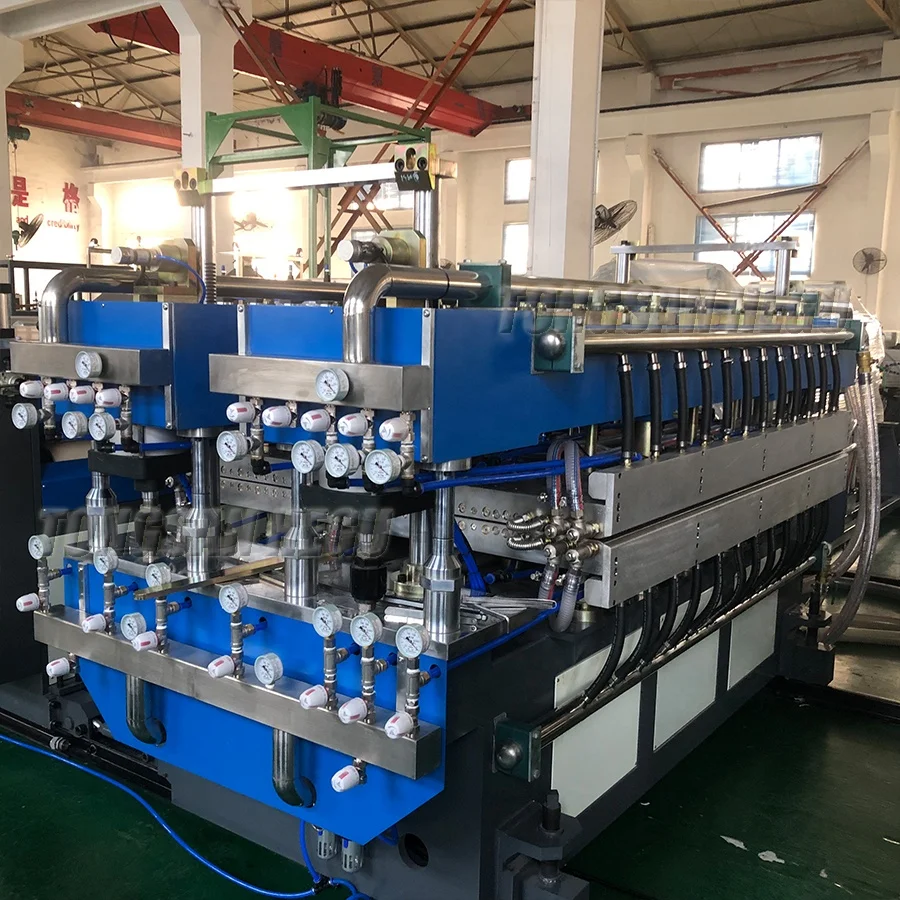

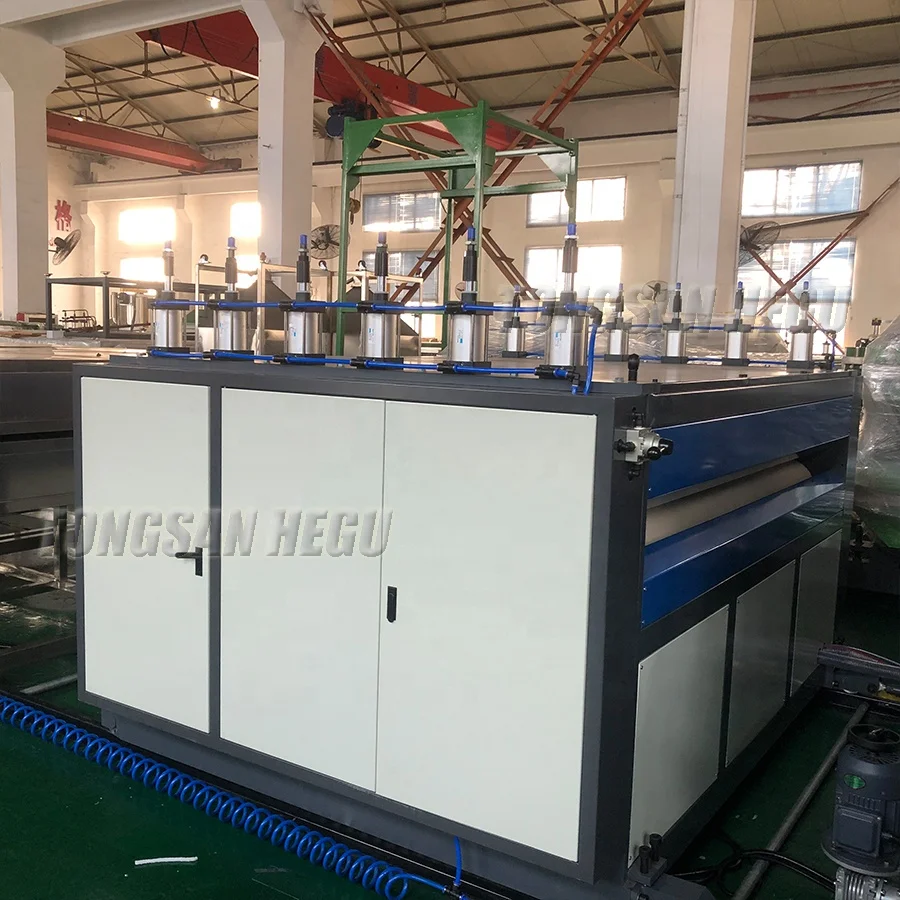

Calibrating table/Sizing platform
Pneumatic lift control
Vaccum system
Vacuum system composes two independent subsystems and each is equipped with several fixed circulating vacuum lines of three-point type.
Haul-off device
There are 2 sets of haul-off device in the line.
Adopt the Nitrile rubber roller.
Heating Oven
Material:304 sainless steel
separately temperature control system
Cooling system
Place in the middle of between oven and second haul-off device.
Make the sheet more flat and harder
.

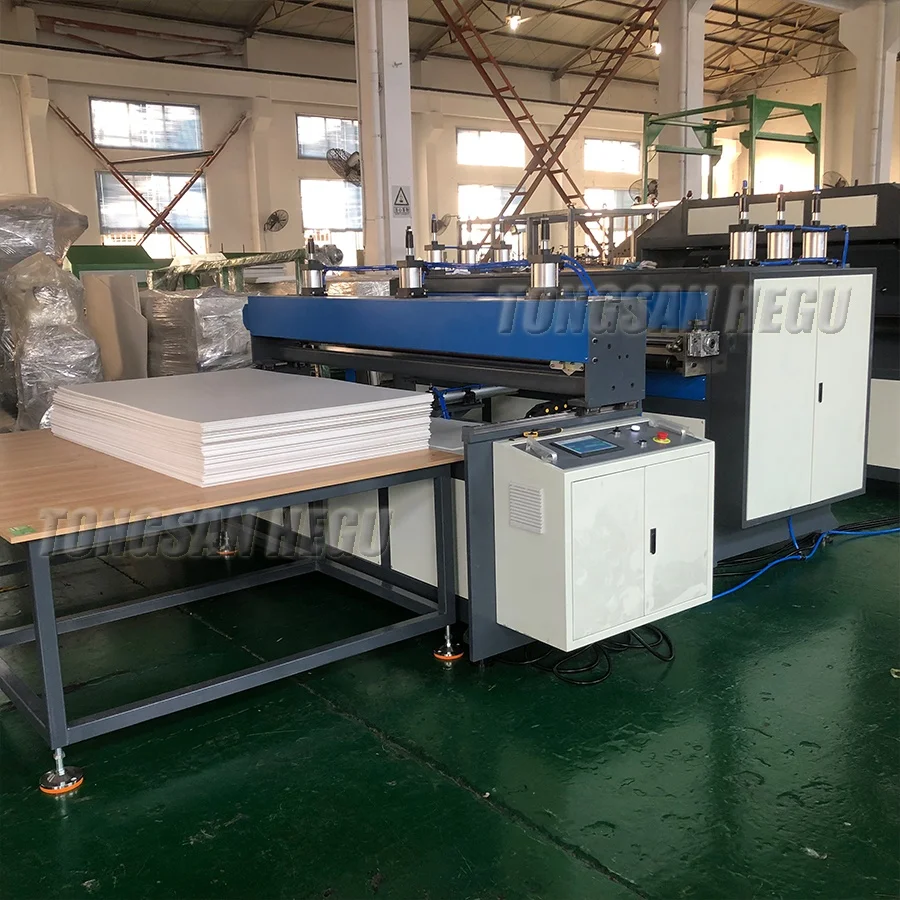

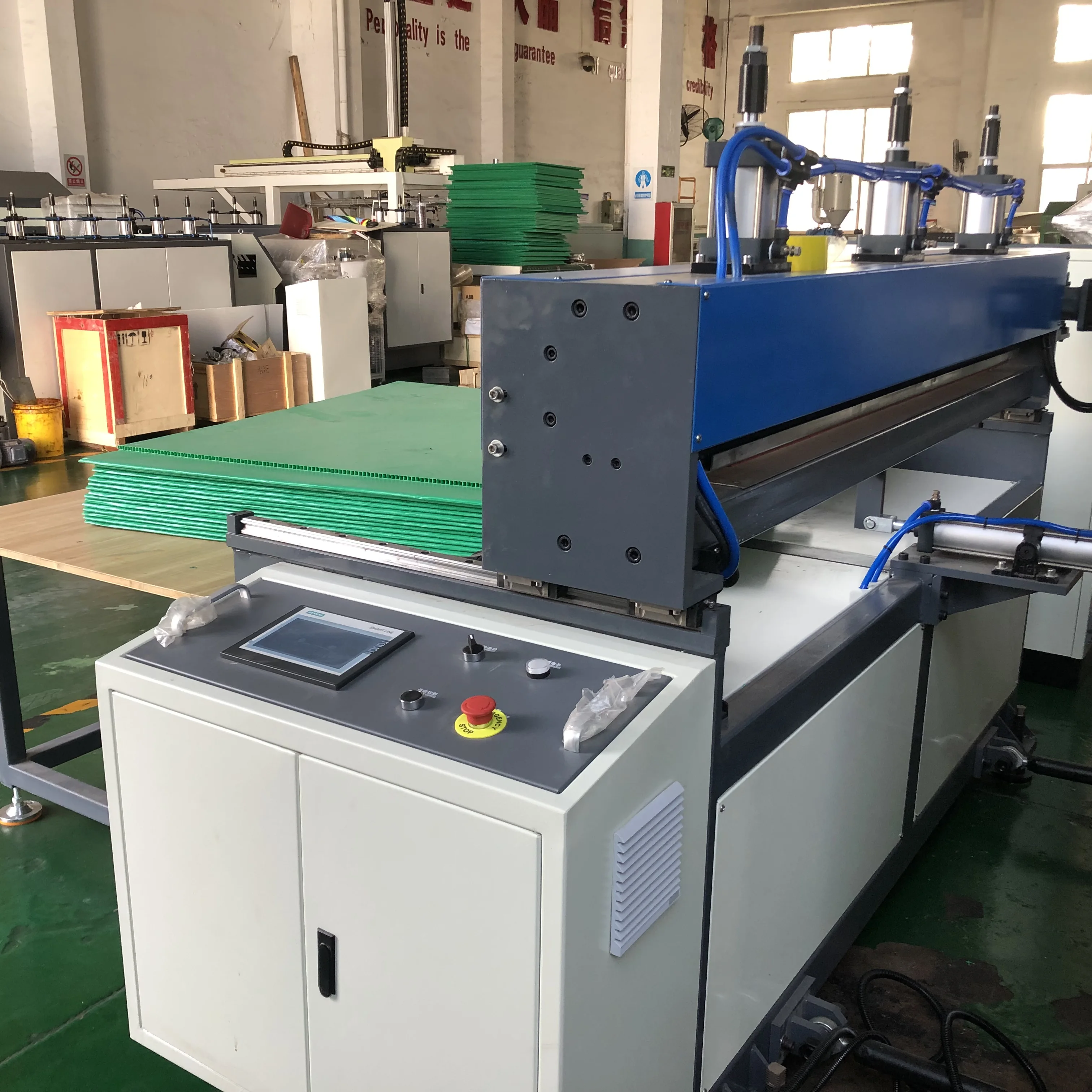

Automatic cutter
For side cutting and length cutting
The waste scrap can be recycled.

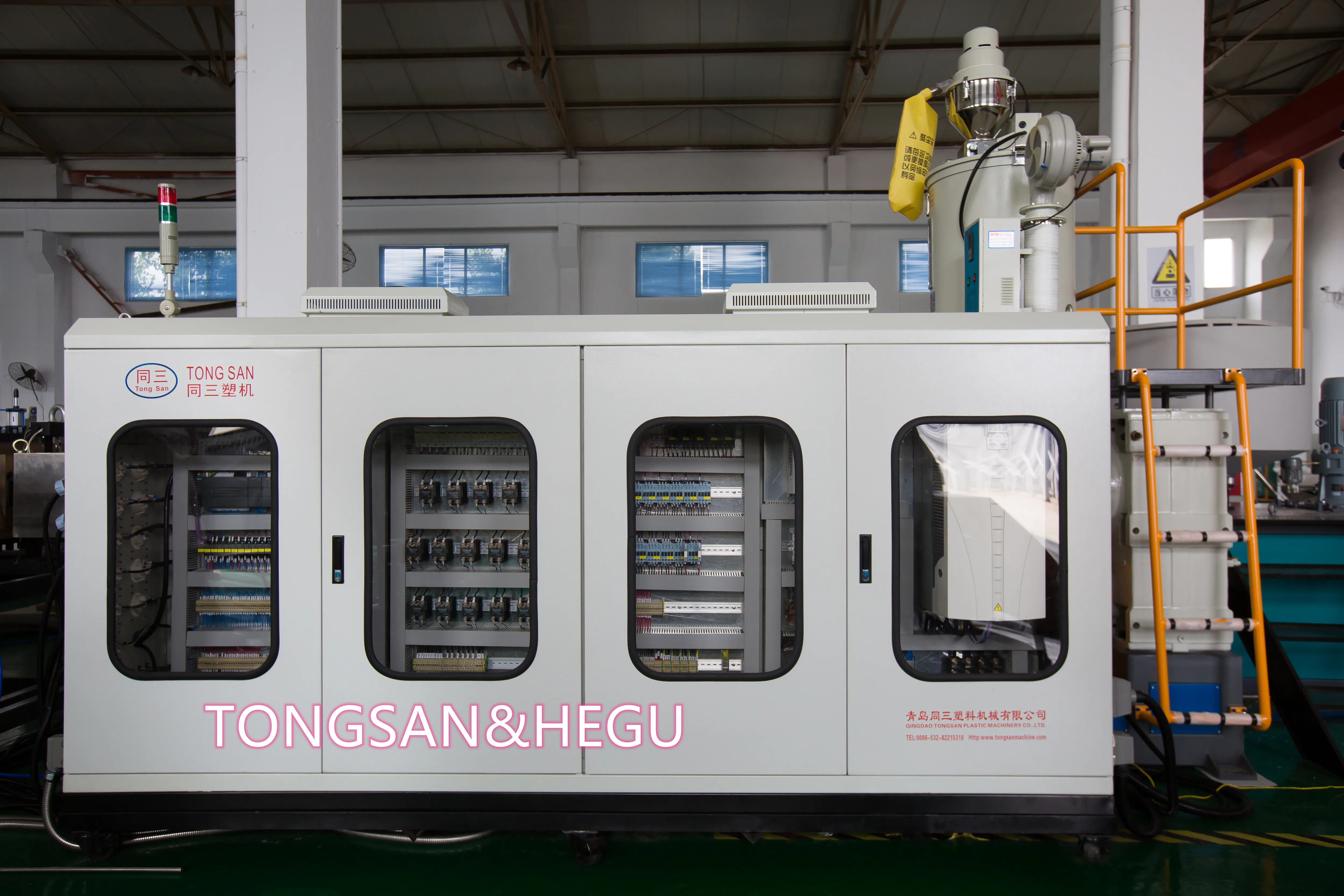

PLC&HMI control
Corona treatment device
Remove the stress of plate and further improve planeness of the plate.
(Option part)
We have exported the machines to many countries,including Mexico(2 sets),India(3 sets),Vietnam(2 sets),Ecuador(2 sets), Sri Lanka,Pakistan（3 sets）,Qatar,Czech Republic,Uzbekistan,Dominica,Malaysia,Nigeria etc.

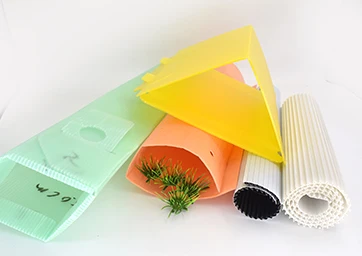

Polypropylene Hollow Sheet is an extruded twin wall plastic sheet consisting of two flat walls connected by vertical ribs. Eco-friendly PP Plastic Hollow Sheet is mainly manufactured from a high impact co-polymer polypropylene (PP) or polyethylene (PE) resin, which can be recycling,washable,durable and reuseable etc. PP corrugated sheet, Plastic Hollow Sheets / Board / Signs has proved that it is suitable in the uses of packaging, advertising, construction, agriculture, industry and Pharmaceutical etc.
KEY POINT

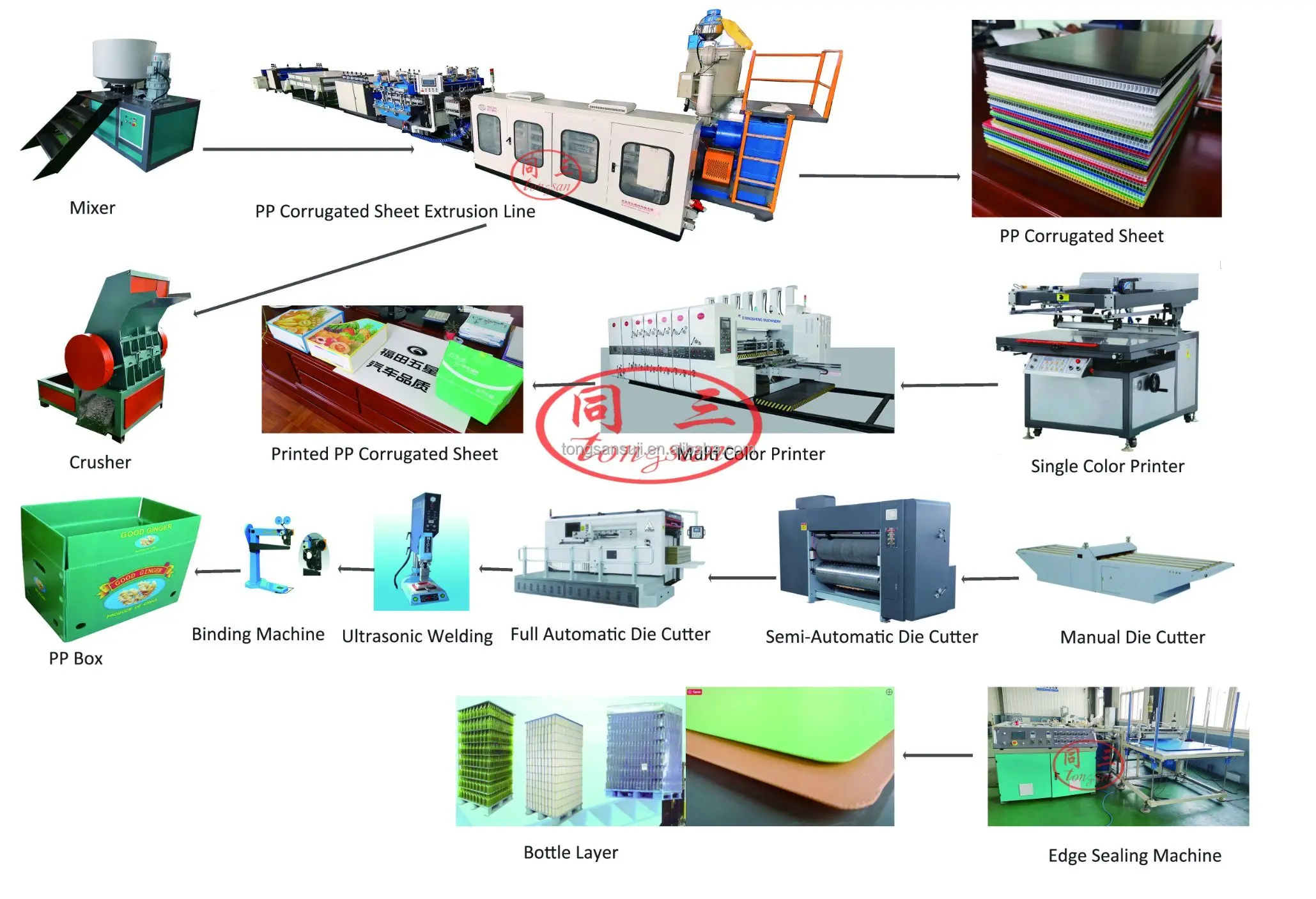

We can provide the turn-key project. From PP hollow sheet making to packaging box(pass box) making.
1,Raw material prepare
The PP filler master batch granulating machine for the raw material production.The waste PP plastic sheet can be cutting into small chip to use directly,or the waste chip after granulating then for extrusion .The PP granules and filler master batch and color pigment can be mixing for the extrusion.
2,PP hollow corrugated sheet production line
Tongsan professional for plastic PP hollow corrugated sheet making machine ,we can provide all series production line for the sheet width range from 1220 mm to 2800 mm ,the corrugated sheet thickness range from 2-6 mm or 7-12 mm.
3,Plastic corrugated box making machine

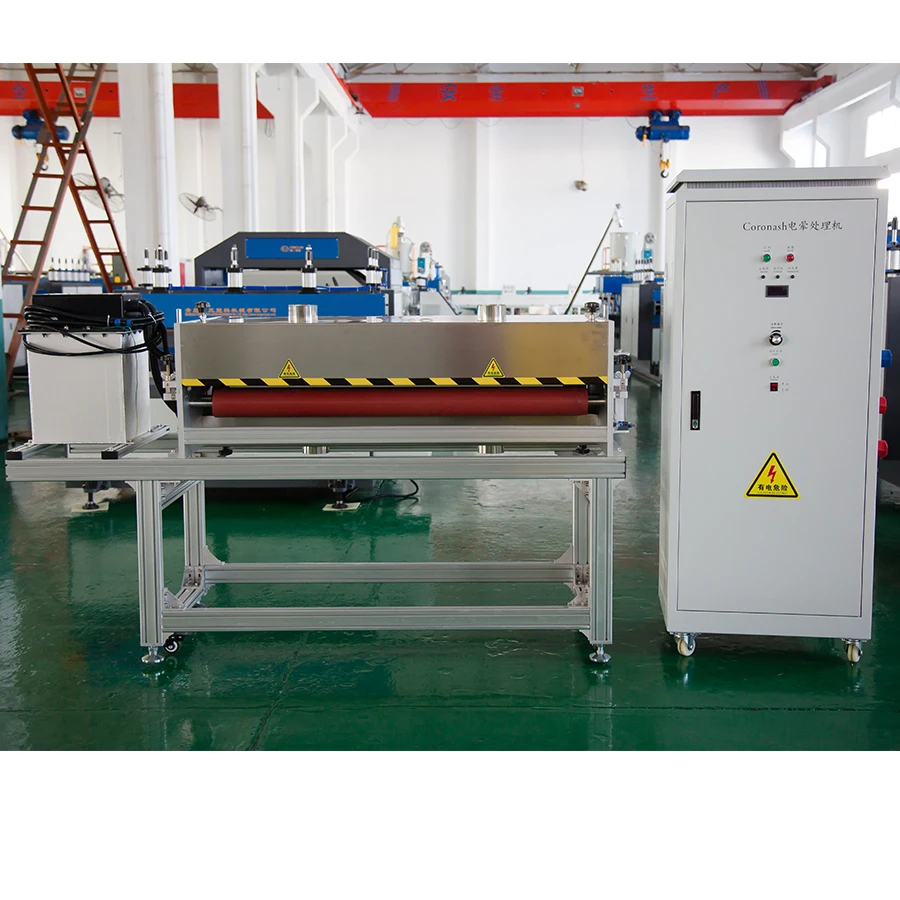

3.1 Corona treatment machine for the surface treatment
In order to improve the surface tension of the hollow sheet surface, and thereby improve the printing ink fastness, the hollow corrugated sheet surface will under corona treatment, so that the surface produces micro-concave dense holes, plastic surface roughening, increase the surface activity.

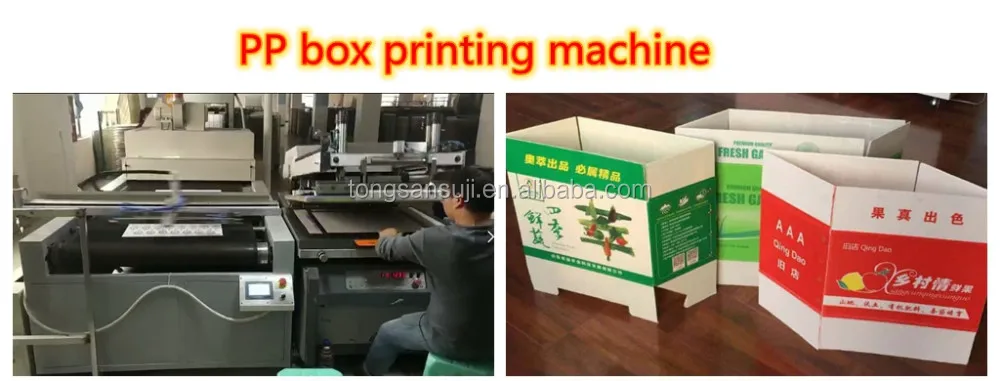

3.2 Box sheet printer machine
The printing machine generally consists of a mechanism such as plate loading, ink coating, embossing, and paper feeding (including folding). It works by first making a plate and image to be printed on a printing press, then applying the ink to the place where the text and image are printed on the printing plate by hand or by a printing machine, and then directly or indirectly Printed on paper or other substrates (such as textiles, metal sheets, plastics, leather, wood, glass, and ceramics) to replicate the same print as the plate.

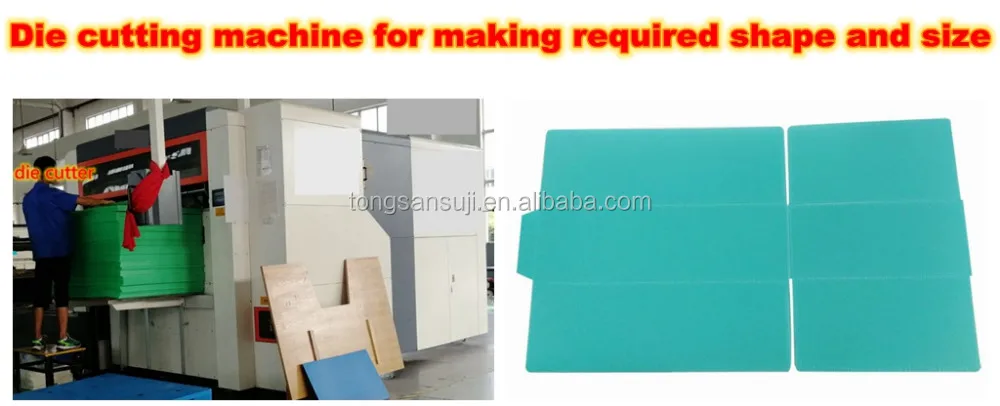

3.3 Die cutting machine for the shape of corrugated box,
The working principle of the die-cutting machine is to use a die-cutting knife, a steel knife, a metal mold, a steel wire (or a template carved from a steel plate), and apply a certain pressure through the plate to cut the printed product or the cardboard into a certain shape. If the entire print is pressed into a single graphic product, it is called die cutting; if the steel wire is used to press a mark on the printed product or leave a bent groove, it is called an indentation.
3.4 Welding machine or bookbind edge sealing machine
Plastic welding machines are used to weld thermoplastic engineering plastic sheets or products such as polyethylene, polypropylene, polypropylene, and nylon. During operation, the plastic electrode is melted and melted, and the workpiece to be welded is fused and bonded. It is widely used in the welding and maintenance of plastic equipment, plastic floor laying, plastic pipe connection, plastic bottle sealing and so on.
The PP filler master batch granulating machine for the raw material production.The waste PP plastic sheet can be cutting into small chip to use directly,or the waste chip after granulating then for extrusion .The PP granules and filler master batch and color pigment can be mixing for the extrusion.
2,PP hollow corrugated sheet production line
Tongsan professional for plastic PP hollow corrugated sheet making machine ,we can provide all series production line for the sheet width range from 1220 mm to 2800 mm ,the corrugated sheet thickness range from 2-6 mm or 7-12 mm.
3,Plastic corrugated box making machine
3.1 Corona treatment machine for the surface treatment
In order to improve the surface tension of the hollow sheet surface, and thereby improve the printing ink fastness, the hollow corrugated sheet surface will under corona treatment, so that the surface produces micro-concave dense holes, plastic surface roughening, increase the surface activity.
3.2 Box sheet printer machine
The printing machine generally consists of a mechanism such as plate loading, ink coating, embossing, and paper feeding (including folding). It works by first making a plate and image to be printed on a printing press, then applying the ink to the place where the text and image are printed on the printing plate by hand or by a printing machine, and then directly or indirectly Printed on paper or other substrates (such as textiles, metal sheets, plastics, leather, wood, glass, and ceramics) to replicate the same print as the plate.
3.3 Die cutting machine for the shape of corrugated box,
The working principle of the die-cutting machine is to use a die-cutting knife, a steel knife, a metal mold, a steel wire (or a template carved from a steel plate), and apply a certain pressure through the plate to cut the printed product or the cardboard into a certain shape. If the entire print is pressed into a single graphic product, it is called die cutting; if the steel wire is used to press a mark on the printed product or leave a bent groove, it is called an indentation.
3.4 Welding machine or bookbind edge sealing machine
Plastic welding machines are used to weld thermoplastic engineering plastic sheets or products such as polyethylene, polypropylene, polypropylene, and nylon. During operation, the plastic electrode is melted and melted, and the workpiece to be welded is fused and bonded. It is widely used in the welding and maintenance of plastic equipment, plastic floor laying, plastic pipe connection, plastic bottle sealing and so on.
1, Application of PP Plastic Hollow Corrugated sheet/Plate in Fruit,Vegetable and Food Packaging
PP plastic hollow packing box has excellent moisture resistance, water resistance, low temperature resistance, light and high strength, non-toxic, environmentally friendly, recyclable and reusable features, etc.Products: Apple Store Packing Box, Ginger Packing Box, Asparagus Packing Box, Grape Packing Box, Milk Packing Box, Variety Packing Box, Dairy Packing Box, etc.
2, Application of PP Plastic Hollow Corrugated sheet/Plate in Industrial Packaging
PP plastic hollow plate is widely used in the field of industrial packaging, because of its light and high strength, good buffer performance, good weather resistance, environmental recyclable reusable.PP plastic hollow plate industrial logistics turnover box product line is very rich, there are double-layer fixed turnover box, single-layer fixed turnover box, single-layer folding turnover box, matching knife card pad, storage cage enclosure, etc. According to the function can be divided into electronic turnover box, auto parts turnover box, logistics turnover box and so on; can meet the logistics turnover needs of all kinds of enterprises.
3, Application of PP Plastic Hollow Corrugated sheet/Plate in Packaging of Glass Bottles
With the continuous improvement of the quality requirements of glass bottles, the traditional packaging of sacks cannot meet the needs of production and market. Tray packaging can overcome the drawbacks of sack packaging, can reduce the packaging and transportation of glass bottles broken, but also to avoid the sack after a long time on the bottle ash and even adhered to the bag of decay.PP plastic hollow plate according to the customer's requirements, sealing edge, sealing angle to produce a variety of high strength and size of glass tray packaging plate.
4, Application of PP Plastic Hollow Corrugated sheet/Plate in Advertising Decoration and Advertising Printing
PP Plastic is dedicated to improving the quality of hollow plate, research and development of plastic hollow plate deep
processing. develop different processes according to different products. Made of indoor and outdoor advertising exhibition display board, publicity posters, dairy drinks and wine display box and other products, this product has waterproof and moisture-proof, anti-aging, exquisite printing, long use time, beautiful and generous, overall vision and other characteristics.
5, Application of PP Plastic Hollow Corrugated sheet/Plate in Refrigerator and Washing Machine
PP plastic hollow plate is a new type of environmental protection products, no pollution, no harm, meet the requirements of green environmental protection. The product has large internal quality, flat surface, high breaking strength, flame retardant, good moisture-proof performance, zero surface water and steam penetration, heat insulation, good energy saving effect. Especially the refrigerator with external condenser has excellent adiabatic effect. The company can make all kinds of refrigerator, freezer, washing machine back and base according to customer's request
PP plastic hollow packing box has excellent moisture resistance, water resistance, low temperature resistance, light and high strength, non-toxic, environmentally friendly, recyclable and reusable features, etc.Products: Apple Store Packing Box, Ginger Packing Box, Asparagus Packing Box, Grape Packing Box, Milk Packing Box, Variety Packing Box, Dairy Packing Box, etc.
2, Application of PP Plastic Hollow Corrugated sheet/Plate in Industrial Packaging
PP plastic hollow plate is widely used in the field of industrial packaging, because of its light and high strength, good buffer performance, good weather resistance, environmental recyclable reusable.PP plastic hollow plate industrial logistics turnover box product line is very rich, there are double-layer fixed turnover box, single-layer fixed turnover box, single-layer folding turnover box, matching knife card pad, storage cage enclosure, etc. According to the function can be divided into electronic turnover box, auto parts turnover box, logistics turnover box and so on; can meet the logistics turnover needs of all kinds of enterprises.
3, Application of PP Plastic Hollow Corrugated sheet/Plate in Packaging of Glass Bottles
With the continuous improvement of the quality requirements of glass bottles, the traditional packaging of sacks cannot meet the needs of production and market. Tray packaging can overcome the drawbacks of sack packaging, can reduce the packaging and transportation of glass bottles broken, but also to avoid the sack after a long time on the bottle ash and even adhered to the bag of decay.PP plastic hollow plate according to the customer's requirements, sealing edge, sealing angle to produce a variety of high strength and size of glass tray packaging plate.
4, Application of PP Plastic Hollow Corrugated sheet/Plate in Advertising Decoration and Advertising Printing
PP Plastic is dedicated to improving the quality of hollow plate, research and development of plastic hollow plate deep
processing. develop different processes according to different products. Made of indoor and outdoor advertising exhibition display board, publicity posters, dairy drinks and wine display box and other products, this product has waterproof and moisture-proof, anti-aging, exquisite printing, long use time, beautiful and generous, overall vision and other characteristics.
5, Application of PP Plastic Hollow Corrugated sheet/Plate in Refrigerator and Washing Machine
PP plastic hollow plate is a new type of environmental protection products, no pollution, no harm, meet the requirements of green environmental protection. The product has large internal quality, flat surface, high breaking strength, flame retardant, good moisture-proof performance, zero surface water and steam penetration, heat insulation, good energy saving effect. Especially the refrigerator with external condenser has excellent adiabatic effect. The company can make all kinds of refrigerator, freezer, washing machine back and base according to customer's request
Our Service: One year warranty, Lifelong Free Follow-up Services
1, we will provide all the machines for the complete production according to customer's requirements.
2, we will provide complete service for factory layout and other informations to help customer to build the factory.
3, we can also provide the raw material to the customer if you need.
4, we will provide good service for machine installation and trainning, until the customers can run the machines and make stably production.
5, Except one year quality guarantee,we will provide after-sell service for all the life.
6, for long-term cooperation, we always provide good quality, good price and good service to customer. we are the professional and trustable supplier for turnkey projects. let us do win-win business together.

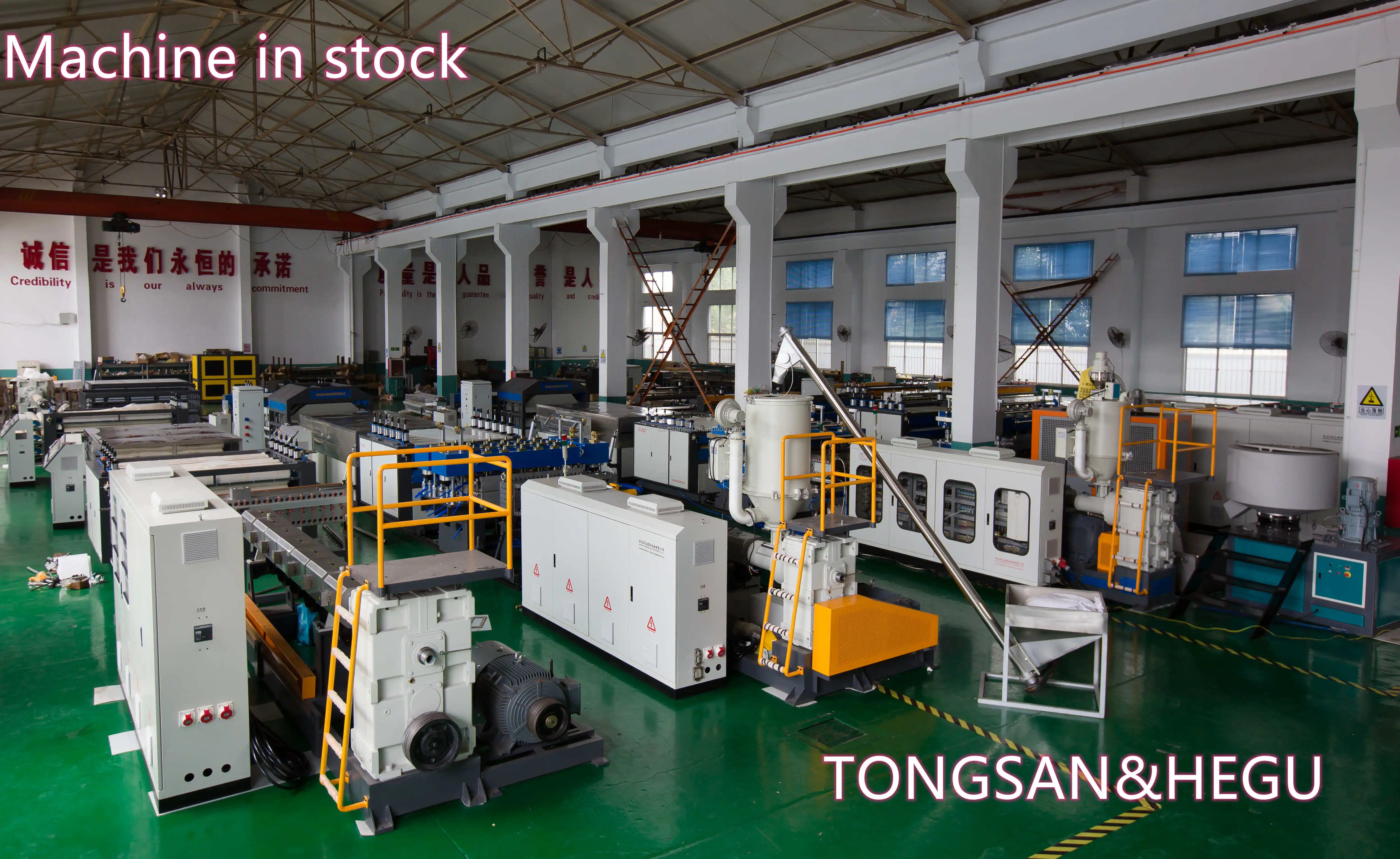

Now we have ready made machine in the factory,we sincerely invite you visit our factory.
We can run the machine for your checking.
If you are interested in PP hollow sheet make machine/Plastic corrugated hollow sheet corrugated box making machine,please contact me at any time.
