Lighthouse machine automatic vertical balancing machine Schenck balancing machine
- Category: >>>
- Supplier: Dongguan Lixian Instrument Scientific Co. Ltd.
Share on (1601076441600):
Product Overview
Description

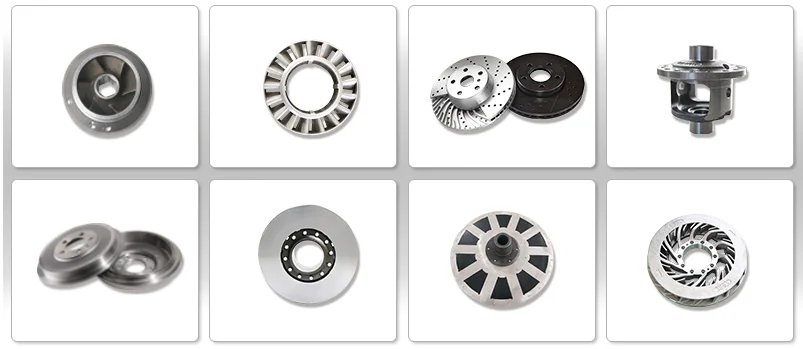

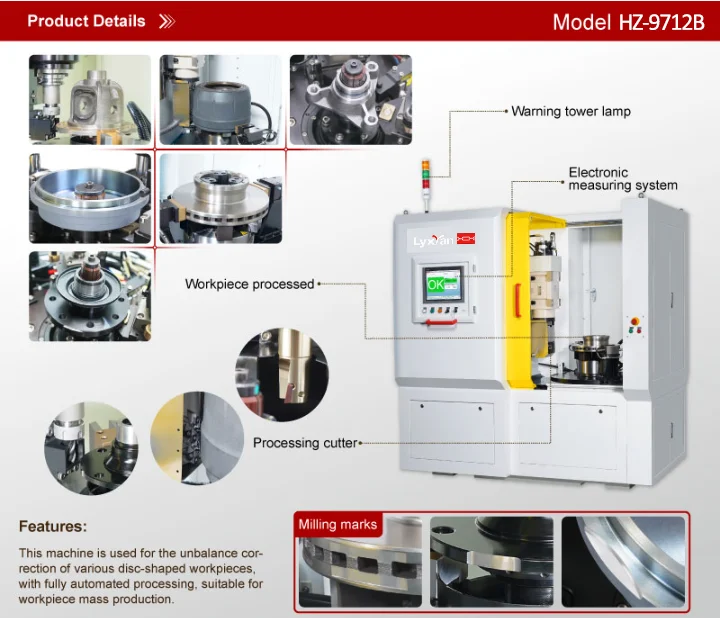

The workpiece is fully automated from unbalance measurement, angle positioning, milling weight removal to retest; it has features of high speed and high precision, suitable for mass production of disc-shaped workpieces.
Vertical Milling Automatic Balancer Features
1.Manual loading & unloading
2.15 inch touch screen
3.Advanced balancing measurement software technology
4.Automatic measurement, automatic drilling & correction, automatic retest
5.Ergonomic structure design, high machine use efficiency
Vertical Milling Automatic Balancer Technical Parameters
| Technical data at a glance | HZ-9712B | HZ-9712B | HZ-9712B |
| Max Mass of Workpiece(kg) | 5 | 35 | 150 |
| Max Diameter of Workpiece (mm) | 200 | 400 | 600-750 |
| Spindle Speed (r/min) | 800 | 800 | 800 |
| Motor Power(kw) | 1 | 3 | 11-15 |
| Min Achievable Residual Unbalance Amount (emar) | 3g· mm/kg | 3g· mm/kg | 3g· mm/kg |
| Working Pressure | 0.4-0.6MPa | 0.4-0.6MPa | 0.4-0.6MPa |
| Operating Voltage | AC:380V External | AC:380V External | AC:380V External |
| Thickness of Workpiece Weight Removal | 8-110mm | 8-110mm | 8-110mm |
| Milling Angle(degree) | 90-75 | 90-75 | 90-75 |
| Power(kw) | 5 | 8.5 | 20 |
| Milling Motor Power(kw) | 1.5 | 3 | 7.5 |
| Unbalance Reduction Rate | ≥90% | ≥90% | ≥90% |
| Processing Period(s) | 6-10 | 8-12 | 15-20 |
| Weight(ton) | 1.8 | 1.8 | 2 |
| Dimensions(mm) | 900*2300*2030 | 900*2300*2030 | 900*2300*2030 |
| Protection | Phase sequence protection. Overload protection. Pressure detection | ||
Company Information
Dongguan Lixian Instrument Scientific Co. is one of the leading manufacturers of advanced testing instruments, founded on 2000, located in Dongguan, Guangdong province in China. Lixian Instrument located in Dongguan city, covers an area of 6000 square meters, take the lead in introducing the CNC processing center and NC lathe and other advanced equipment in 2010. Carried on several listed company lab, quality institutions, Tsinghua University, Aeronautics University's project. We have 30000+ buyers in domestic market, succeed in establishing the branch companies and maintenance department in Dongguan, Shanghai, Beijing, Jinjiang, Wuhan, Chongqing, Shenyang, Changsha. Our products owned CE/ISO/ASTM/ ROSH/UL certification, and have exported to more than 70 countries like the USA, Germany, South Korea, Greece, India, Singapore, Brazil, Iraq, Saudi Arabia and so on.
Lixian Instrument owned CE/ISO/ASTM/ROSH/UL certification, and have exported to more than 70 countries like the USA, Germany, South Korea, Greece, India, Singapore, Brazil, Iraq, Saudi Arabia and so on. Lixian Instrument have a professional R & D team and a reliable quality management system, which introduced the CNC processing center and CNC lathe and other advanced equipment in 2010, successfully obtained the CMC measurement certificate and passed ISO 9001 system authentication.
Our Services
Our Services
We are here to help you. Services available:
- Implementation Assistance
- Installation
- Training
- Calibration
- Preventive Maintencance
- Technical Support
- Relocation Assistance
- Upgrade
- Repair & Parts
Packaging & Shipping
FAQ
Q1: What is your warranty ?
A: 12 months product warranty, but lifetime for services. Free Non-consumable components will be provided if any performance failure occurs within 12 months, caused by non-human damage.
Q2: How-to video provided ?
A: Yes. If required, our engineers will record a specialized how-to video for you.
Q3: Are your company a trading one or a factory?
A: Yes, we are a manufactured factory & trade (integration).23 years focusing on test instruments field. 14 years exporting experience, warmly welcome to visit our plant (factory), we also support OEM and ODM.
Q4: After an order is placed, when to deliver?
A: If we have inventory, we can arrange shipment within 7 days. Please be aware that our production lead times depend on specific items and item quantities.
Q5: What about the after-sales service and product’s quality?
A: 12 months warranty. After the warranty, the professional after-sale service team will provide perfect technical support. And help the customer solve problems encountered while using our product, handles problems and complaints professionally and timely. Each of the instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. Engineers would be to go abroad for training and repairing.
Q6: What about the packing of equipment?
A: Covered with air bubble film before put the machine into the standard exporting wooden case, which not only has good shock absorption, impact resistance, heat SSO has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
