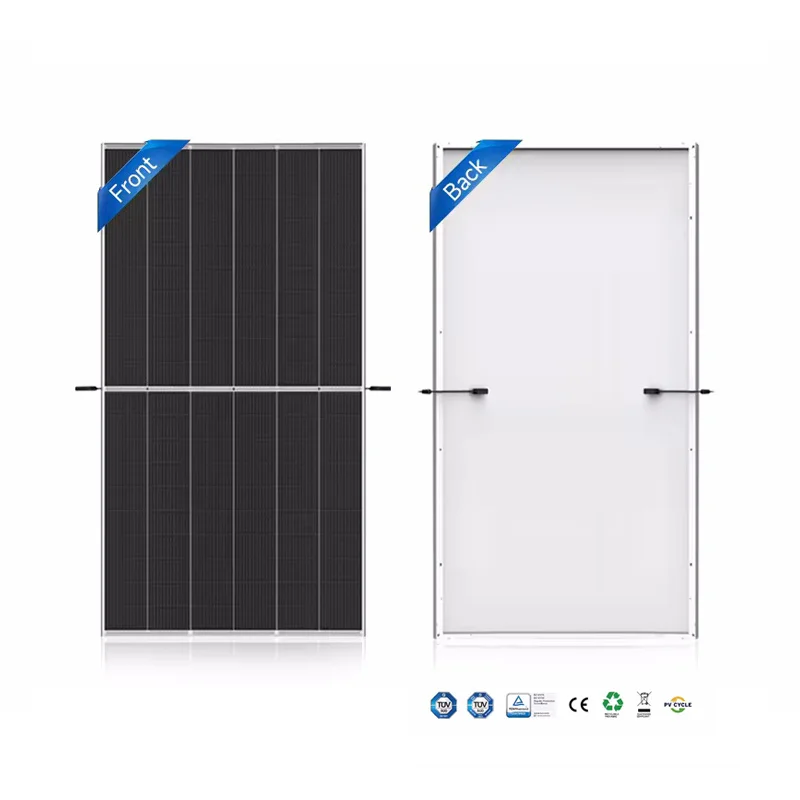

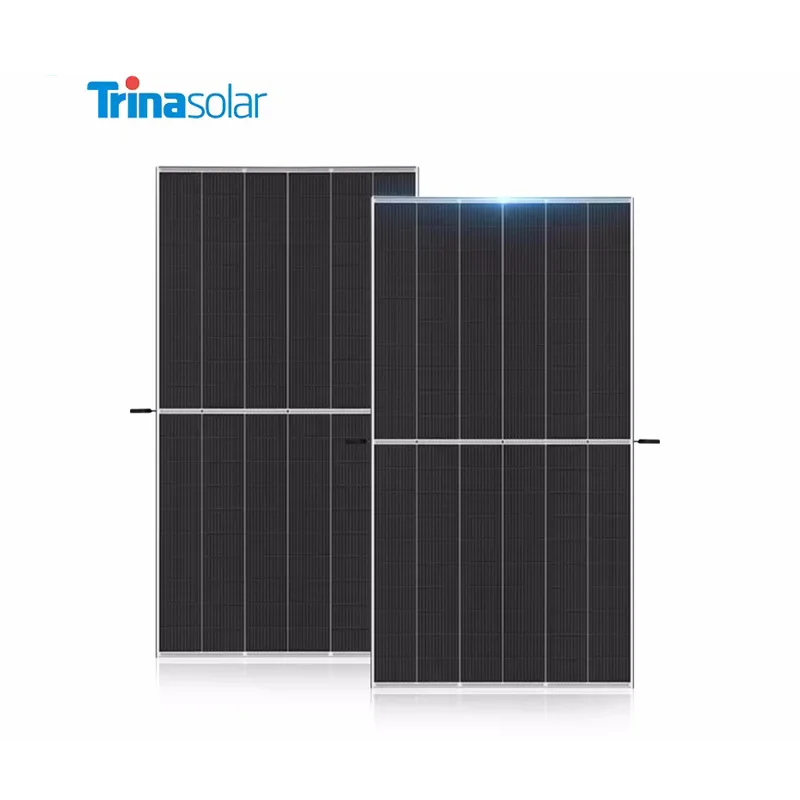

Trina Solar Vertex S TSM DE21670W Mono Solar Panels
- Category: >>>
- Supplier: Ningbo Essolx Solar Co. Ltd
Share on (1601076446308):
Product Overview
Description
Product Description
Specification
ELECTRICAL DATA (STC) | ||||||||||||
Peak Power Watt-Pmax(Wp) | 645W | 650W | 655W | 660W | 665W | 670W | ||||||
Power Tolerance-Pmax(W) | 0~+5 | |||||||||||
Maximum Power Voltage-Vmpp(V) | 37.2 | 37.4 | 37.6 | 37.8 | 38 | 38.2 | ||||||
Maximum Power Current-Impp(A) | 17.35 | 17.39 | 17.43 | 17.47 | 17.51 | 17.55 | ||||||
Open Circuit Voltage-Voc(V) | 45.1 | 45.3 | 45.5 | 45.7 | 45.9 | 46.1 | ||||||
Short Circuit Current-Isc(A) | 18.39 | 18.44 | 18.48 | 18.53 | 18.57 | 18.62 | ||||||
Module Efficiency(%) | 20.8 | 20.9 | 21.1 | 21.2 | 21.4 | 21.6 | ||||||

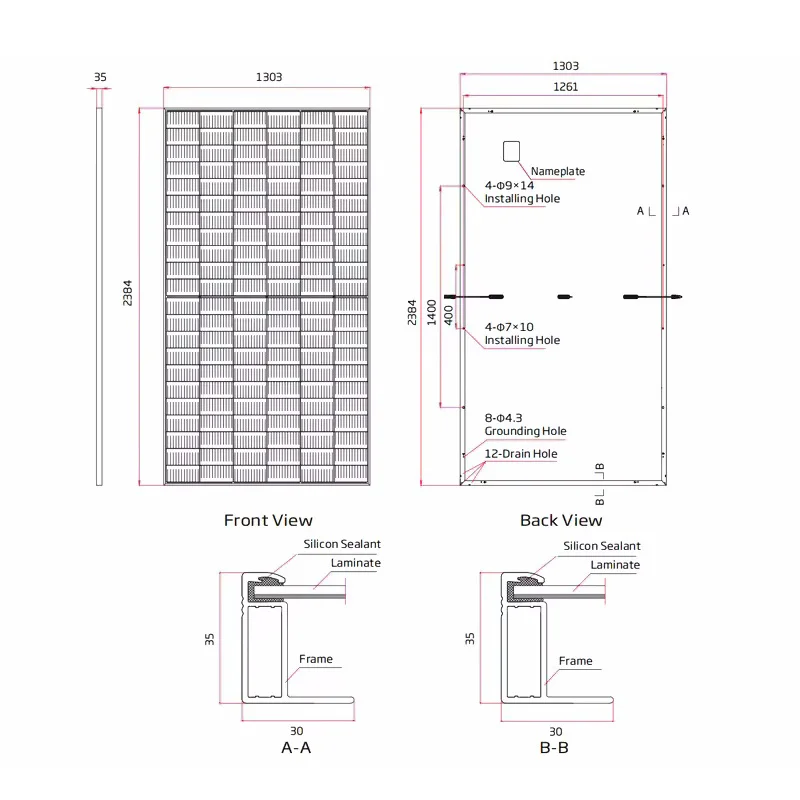

MECHANICAL DATA | ||
Solar Cells | Monocrystalline | |
No.of cells | 132 cells | |
Module Dimensions | 2384x1303x35mm | |
Weight | 33.6kg | |
Glass | 3.2mm (0.13 inches), High Transmission, AR Coated Heat Strengthened Glass | |
Encapsulant material | EVA/POE | |
Backsheet | White | |
Frame | 35mm (1.38 inches) Anodized Aluminium Alloy | |
J-Box | IP68 rated | |
Cables | Photovoltaic Technology Cable 4.0mm2 (0.006 inches2), | |
Portrait: 280/280 mm(11.02/11.02 inches) | ||
Length can be customized | ||
Connector | MC4 EVO2 / TS4* | |
If you have special needs, please feel free to contact us. | ||
Solar PV Back Sheet
*High Weather Resistance *High Security *High insulation *High Water Vapor Resistance *High Adhesion *High Compatibility
*High Weather Resistance *High Security *High insulation *High Water Vapor Resistance *High Adhesion *High Compatibility
Solar Module Frame
* Aluminium extrusion profile with prompt delivery
* Available in customized surface finish
* Excellent material for smooth and subtle edges
* Extrusion for construction and other industrial purposes
* Thickness variable according special request
Ensure high yields,consistent performance and durability,
First of 52 steps strict quality control and inspection process.

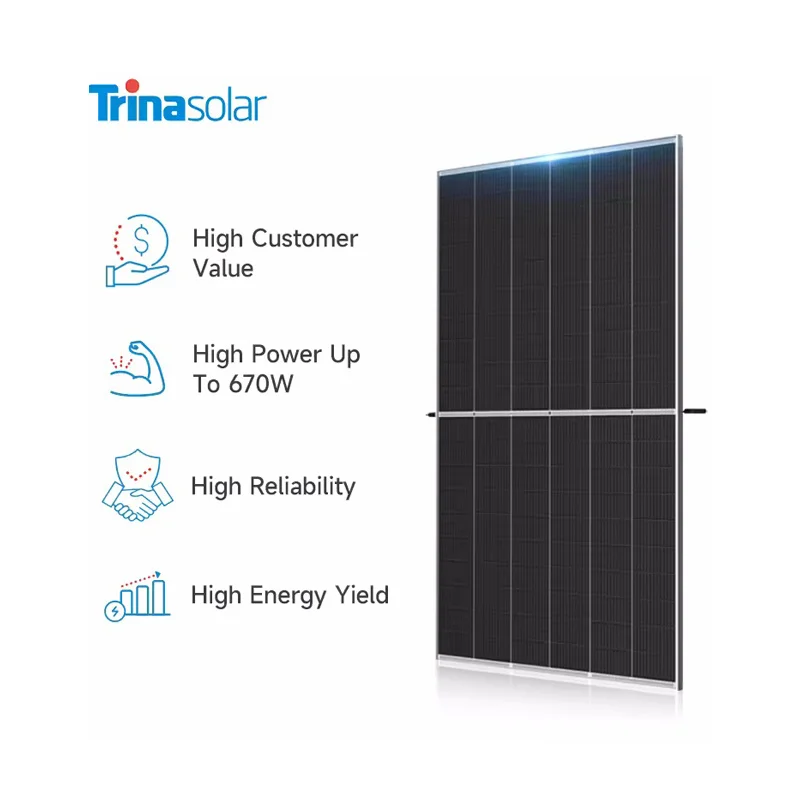

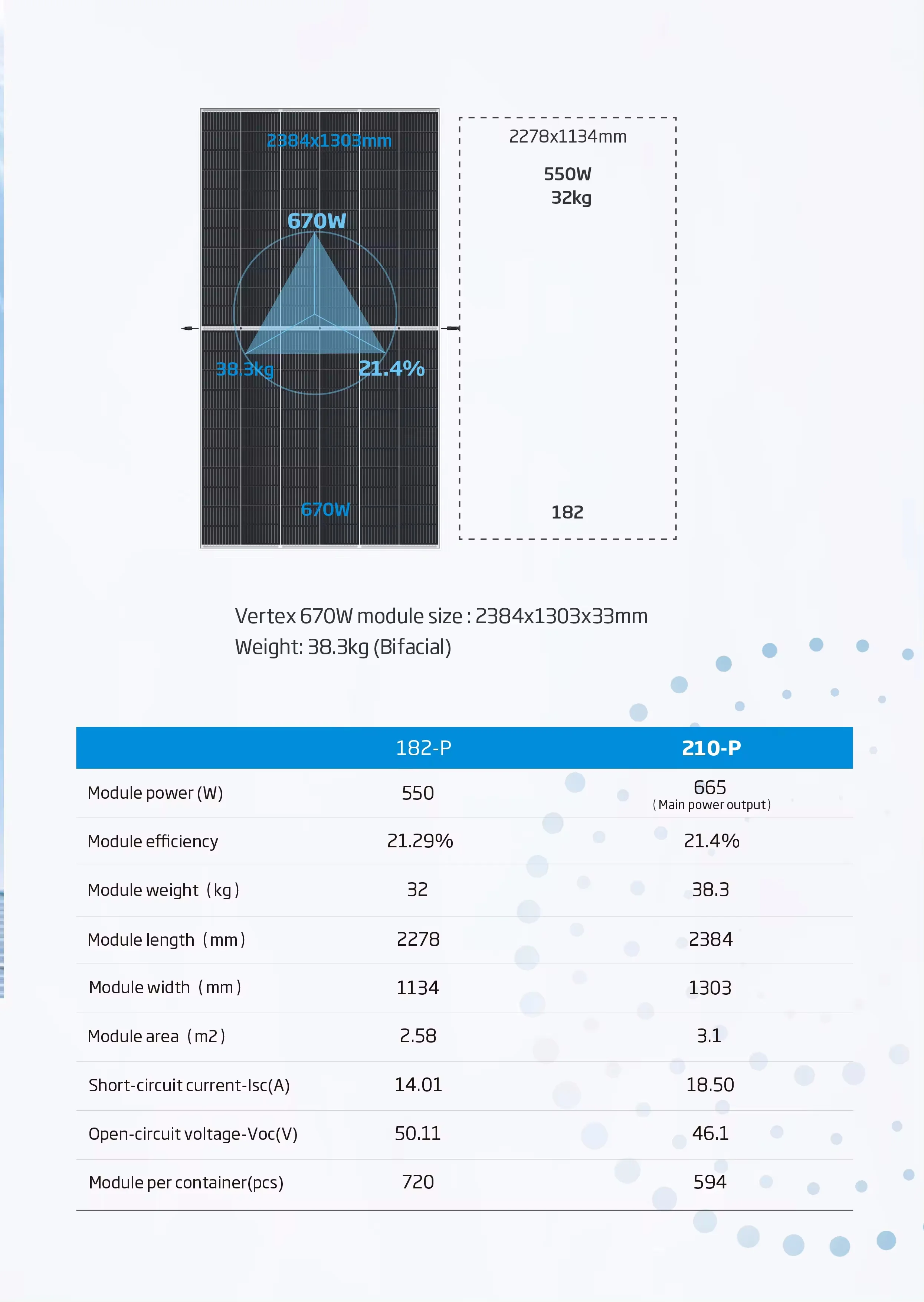

670W Solar Module Features：
670W Ultra-high Power with 21.6% High Efficiency

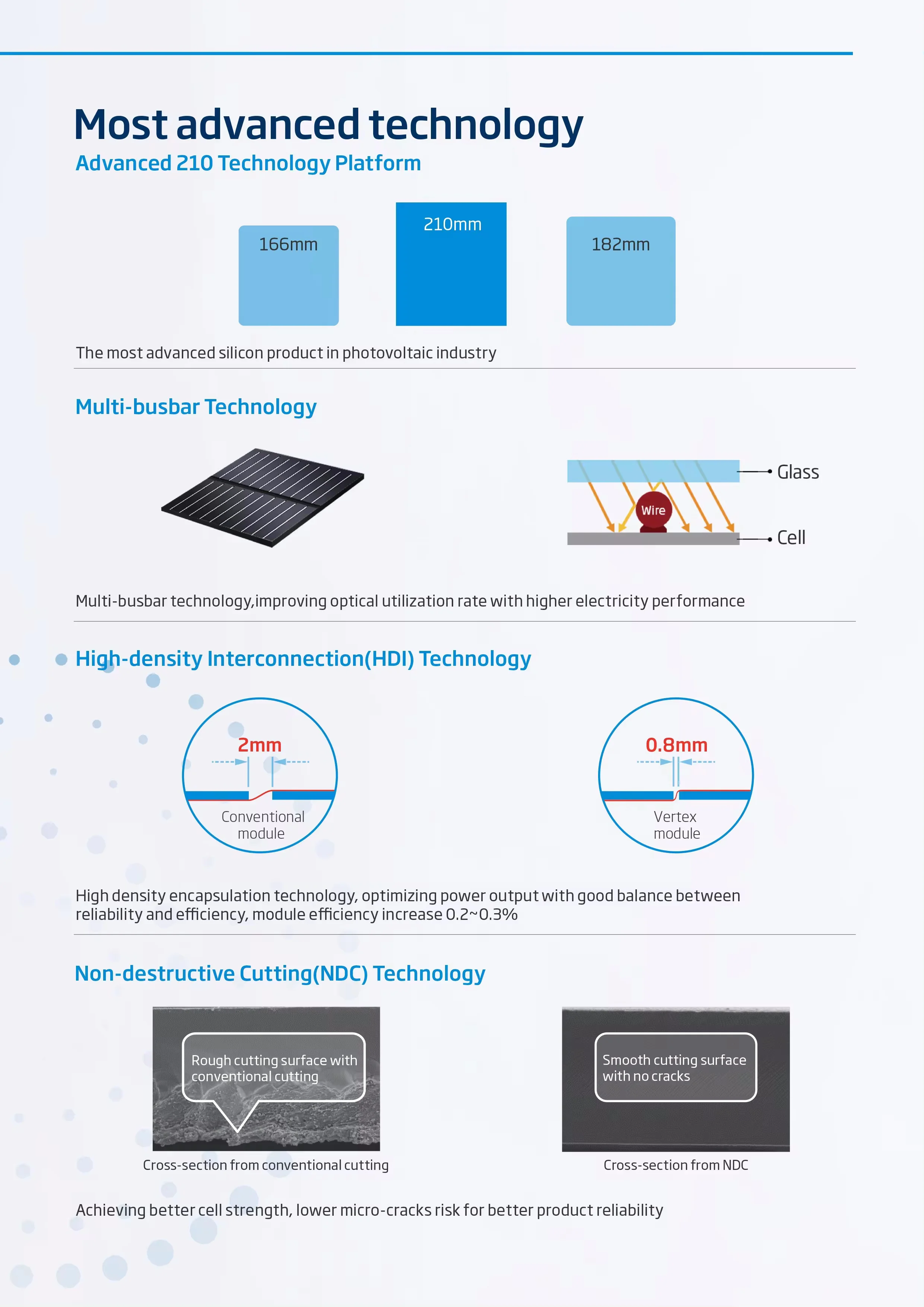

Based on the 210mm large-size silicon wafer and monocrystalline PERC cell, the Vertex comes with several innovative design features allowing high power output up to 670W. Excellent temperature coefficient and low irradiation performance brings thegreater power. Furthermore, benefit from square mono cells and high-density encapsulation technology, the efficiency of Vertex can reach up to 21.6%.

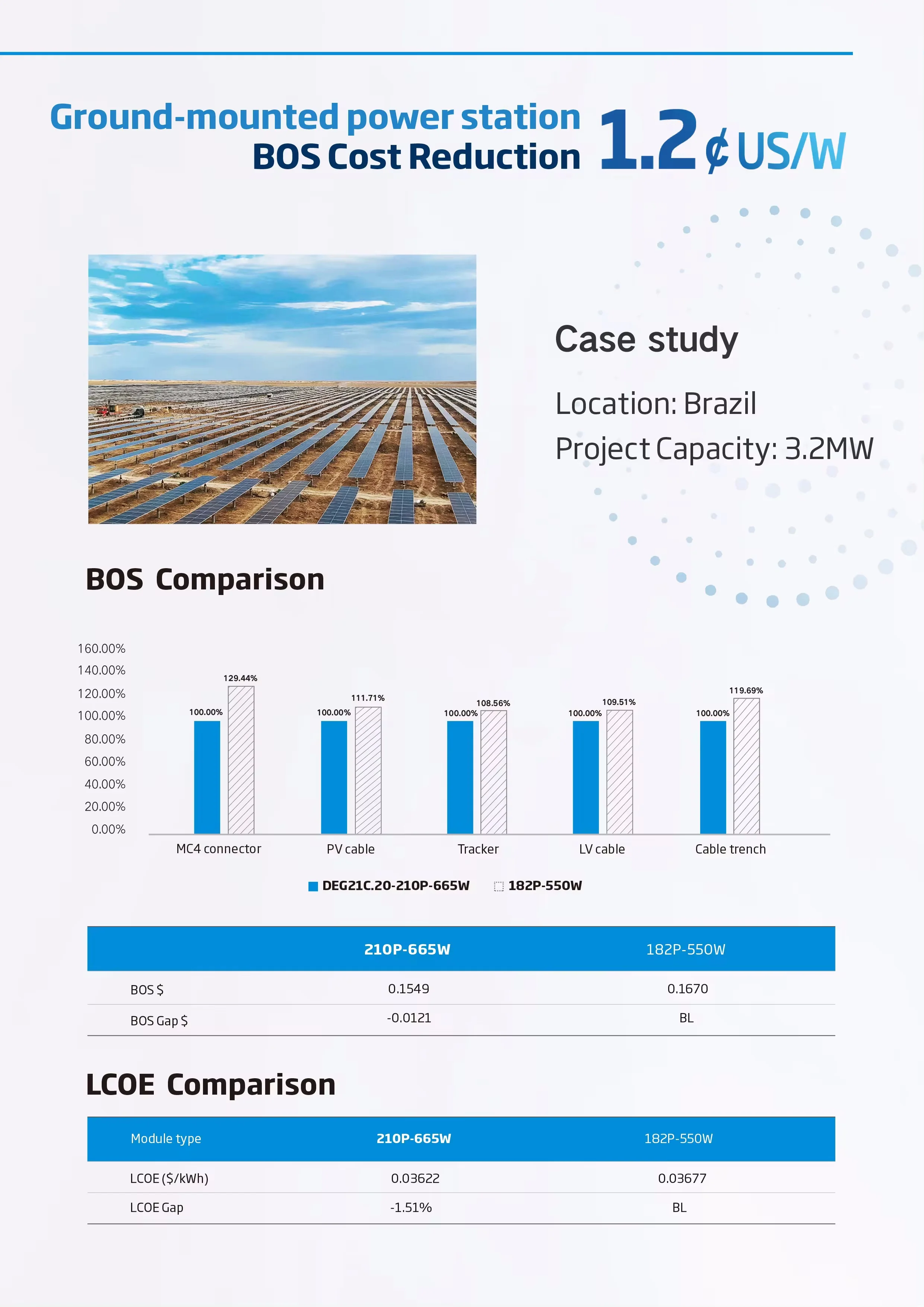

Low-voltage, Higher Module String Power Output, Improvement in Power Output of a Single Module String by More Than 34% Based on the aim of improving the system efficiency and reducing the balance-of-system costs, Trina Solar's research and development team has introduced an innovative design of low-voltage and higher module string power output. Typicallly, Trina can interconnect 28 Vertex modules into a string. Compared with other reference module, a single module string can achieve up to a 34% power increase, 0.012-0.014 BOS reduction, 1.2%-1.5% LCOE reduction, indicating an innovative technological breakthrough and ushering in a new era of 600W+.
Low-voltage, Higher Module String Power Output, Improvement in Power Output of a Single Module String by More Than 34% Based on the aim of improving the system efficiency and reducing the balance-of-system costs, Trina Solar's research and development team has introduced an innovative design of low-voltage and higher module string power output. Typicallly, Trina can interconnect 28 Vertex modules into a string. Compared with other reference module, a single module string can achieve up to a 34% power increase, 0.012-0.014 BOS reduction, 1.2%-1.5% LCOE reduction, indicating an innovative technological breakthrough and ushering in a new era of 600W+.

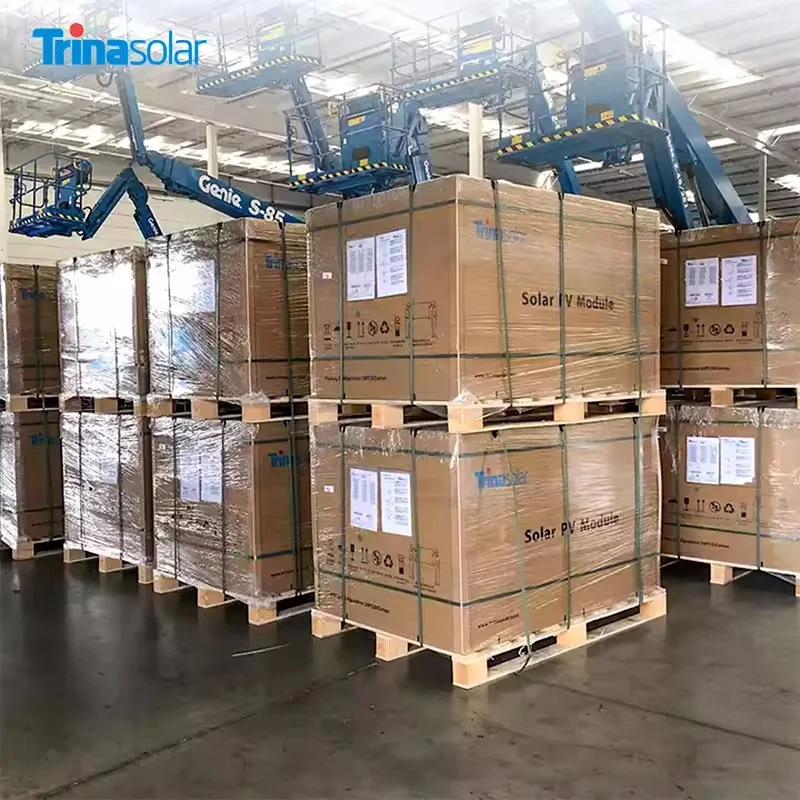

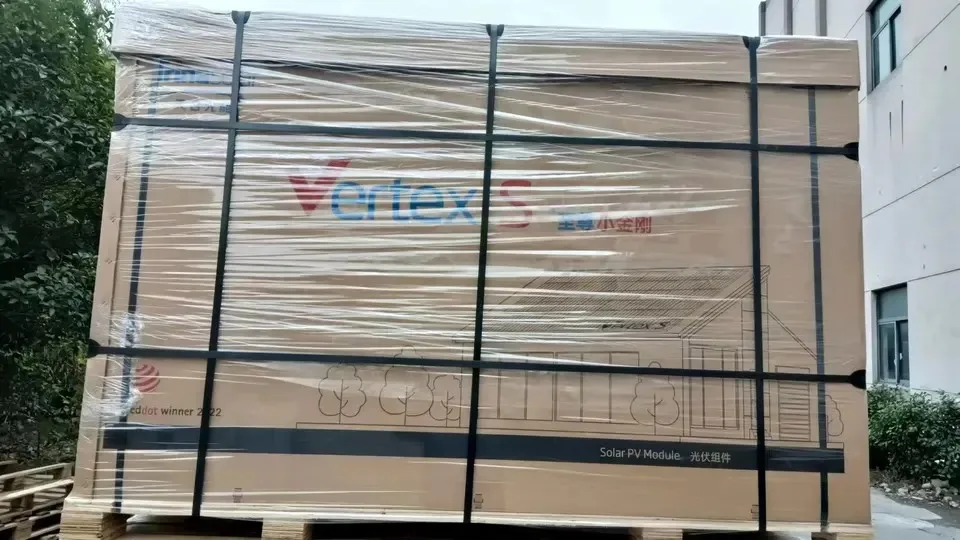

Packing & Delivery
About Packing:
1.all on pallets ;
2. 2pcs/ carton and all cartons on pallets;
3. wooden carton;
Outside the carton, we will use the thin film to protect the product
Full protect carton packing with foam inside
Corner protection and fragile tag
Or according to customer's specifications/suitable for shipping
2. 2pcs/ carton and all cartons on pallets;
3. wooden carton;
Outside the carton, we will use the thin film to protect the product
Full protect carton packing with foam inside
Corner protection and fragile tag
Or according to customer's specifications/suitable for shipping
Company Profile

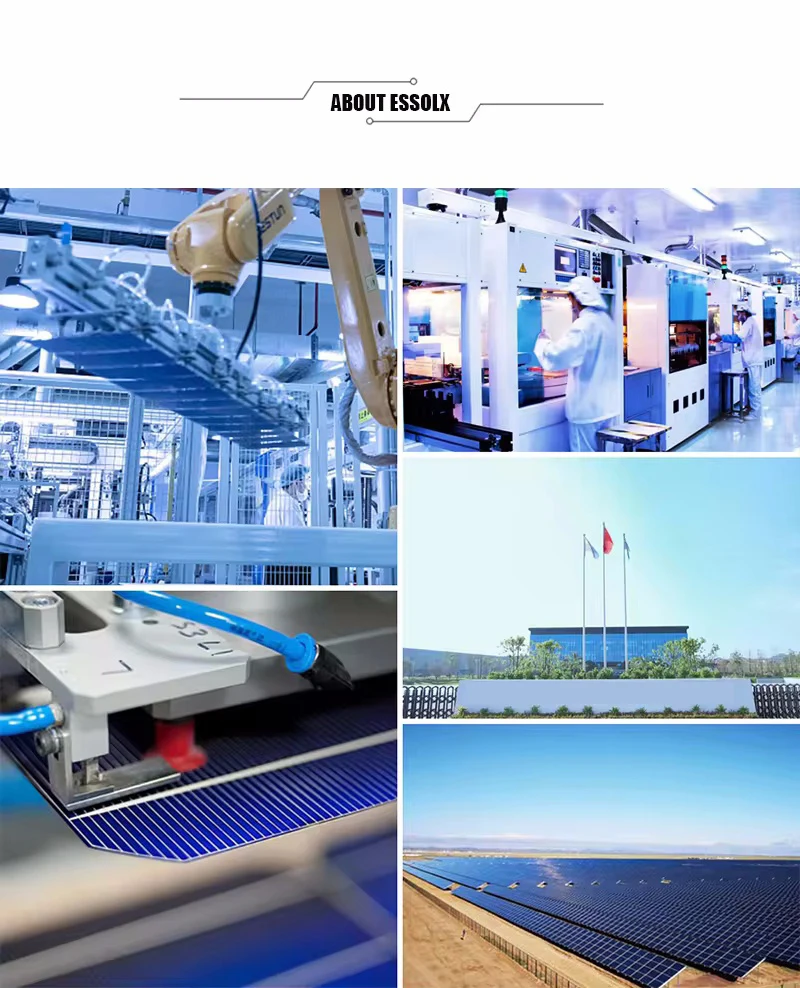

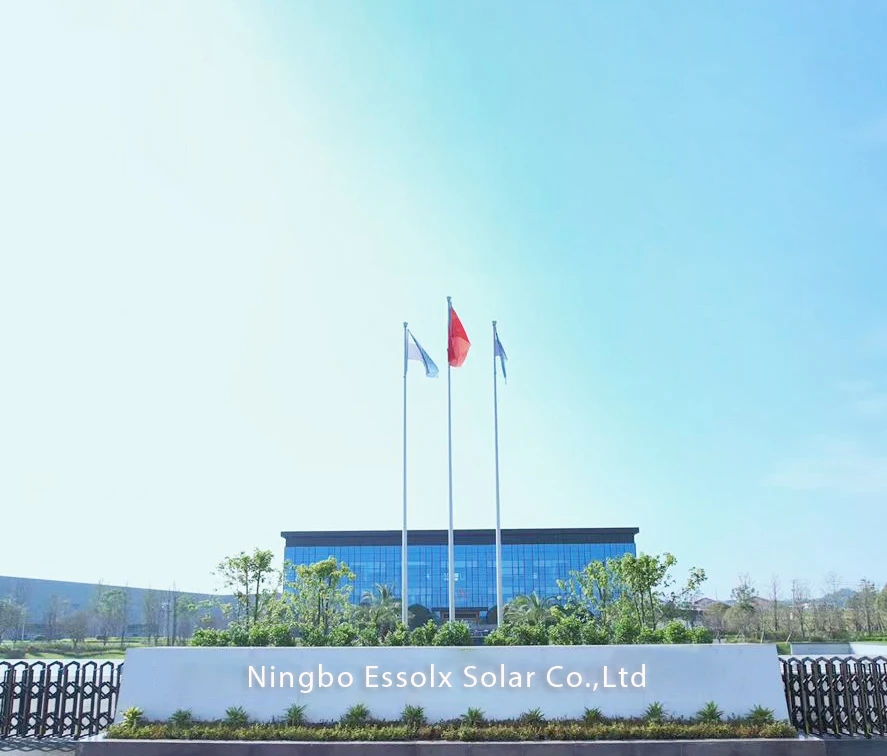

ABOUT ESSOLX
Essolx is an international,comprehensive growing company committed to provide Energy Storage Solar System,Solar Panels,Lithium Ion Batteries and solar parts globally.
Essolx was founded in 2015,aiming at becoming Pioneer Energy Sustainable Solution Supplier,
Essolx Solar has adopted international advanced production equipments and dedicated to provide high performance solar panel system with competitive cost.
Essolx, your energy storage specialist, looking forward to work with your company!
ESS: ENERGY STORAGE SYSTEM
SOL: SOLAR/SUN
X: EXPERT/SPECIALIST
Essolx: Energy Storage Specialist!
Essolx is an international,comprehensive growing company committed to provide Energy Storage Solar System,Solar Panels,Lithium Ion Batteries and solar parts globally.
Essolx was founded in 2015,aiming at becoming Pioneer Energy Sustainable Solution Supplier,
Essolx Solar has adopted international advanced production equipments and dedicated to provide high performance solar panel system with competitive cost.
Essolx, your energy storage specialist, looking forward to work with your company!
