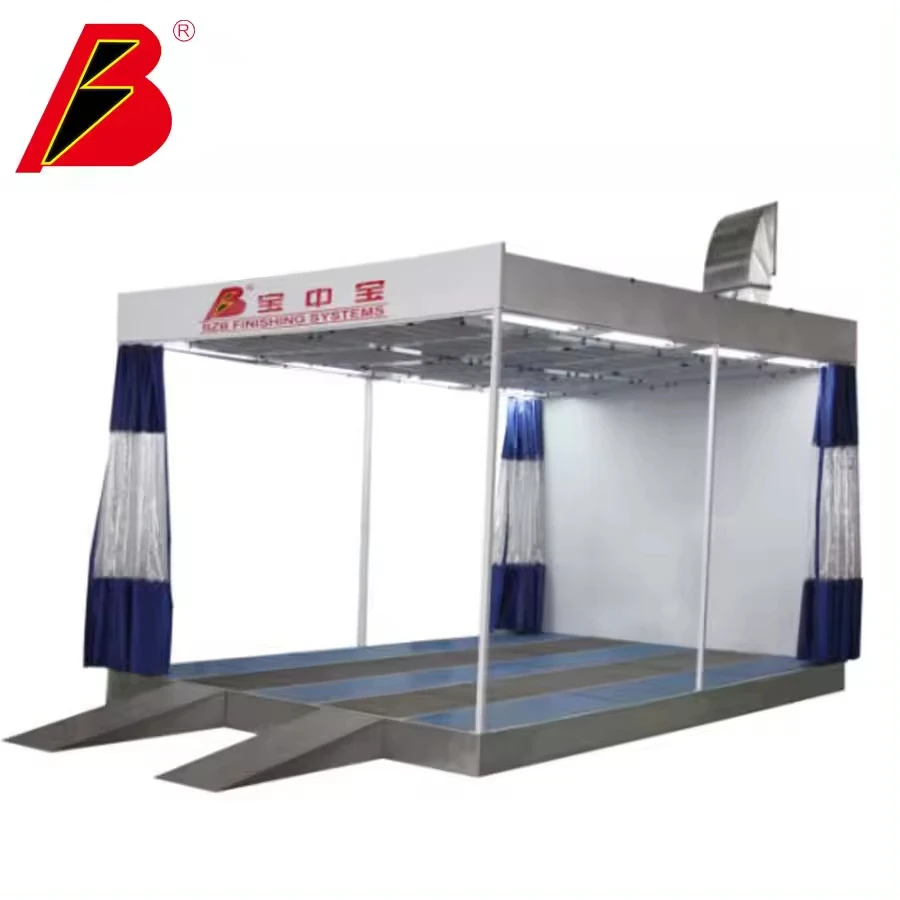

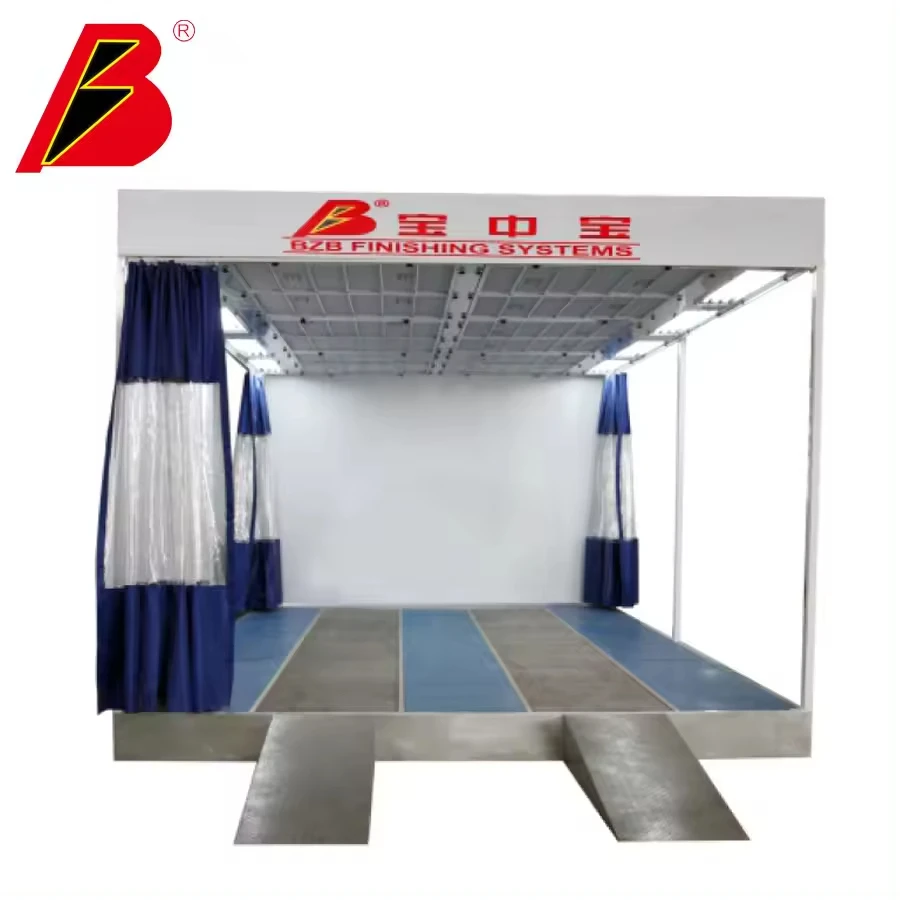

Factory Direct Sale Prep Station Car Painting Booth Preparation Room

Outside Size (mm):7000*4000*3430

Inside Size (mm):6000*4000*2650

Total Power (Kw): 6.5

Cabin System

1         Top HIP Room: cold rolling plate; Roof Panel: Galvanized steel

2         Front and Side: PVC Even soft slipping on Aluminum guide

3         Back wallboard: EPS Steel Skin Board,50mm Thick

4         Basement: Anti-embroidered   ,Grid and embossed plates for walking platform; novel and beautiful frame; Good strengthstiffnessstability and impact

Air Intake and Exhaust System

1 Model: YD-5.6s; Capacity:15003/h; Pressure:800Pa; Speed: 900rpm

2 Fan Cabin: Profile framework ,Assembly of steel plate cabin ; Construction: Solidbeautiful and easy for Maintenance

Air Purification system

Filtering structure: multi-storey fixed under the top network, no corrosion, and can capture granules bigger than 5um.

Environmental System

The first road of floor filter fixed under the grids can capture big granules.

The second fixed into Outlet fan cabin can capture the rest granules.

Lighting System

Ceiling Light: 24pcs 36W Philips Lamp; light can make the room bright and uniform.

Ballast is professional and durable.

Electric Controlling System

It is assembled by good electronic components. Main circuit has multi- protection.

Prep-station Switch, Light Switch, Emergency Stop, Breakdown Alarm.
