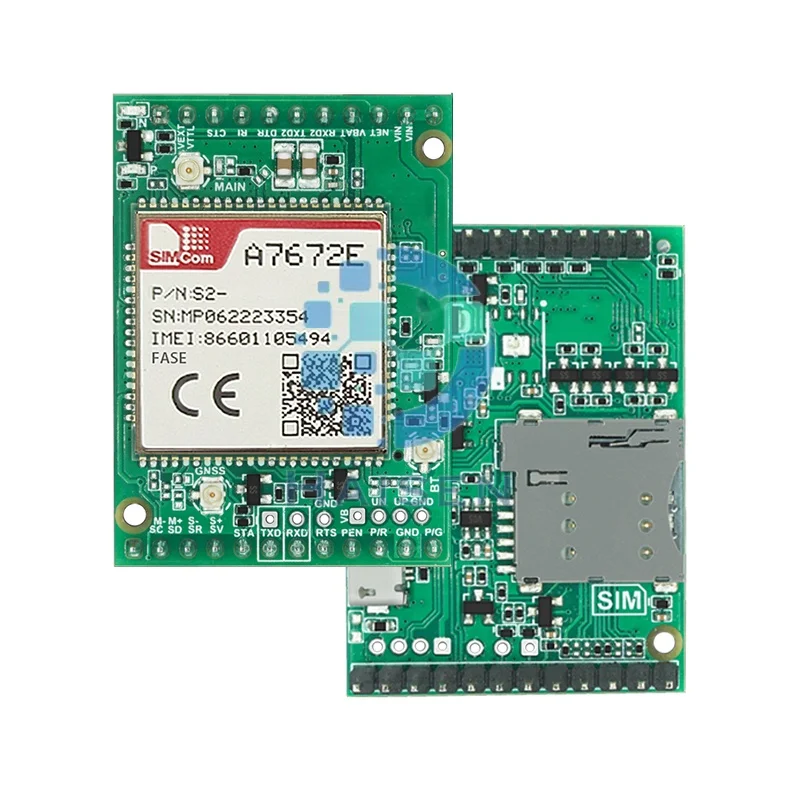

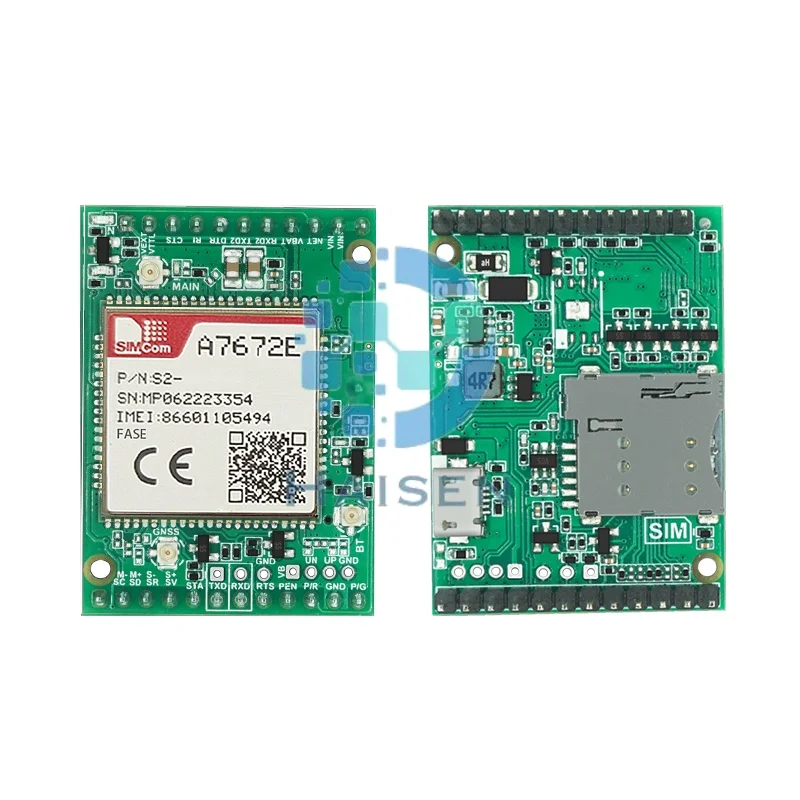

HAISEN SIMCOM A7672E FASE Core Board A7672E FASE Development Board LTE CAT1 4G 2G BT GNSS Voice A7672
- Category: >>>
- Supplier: Shenzhen hapchuang Technology Co. Ltd
Share on (1601076463182):
Product Overview
Description
Products Description
Project | Description |
Product Name | 4G CAT1 Core Board |
Model | HAISEN-DCore-A7672E-FASE |
Package | 23PIN(2.54mm) |
Power | USB 5-16V DC |
UART | 3.3-4.3V TTL (Default) |

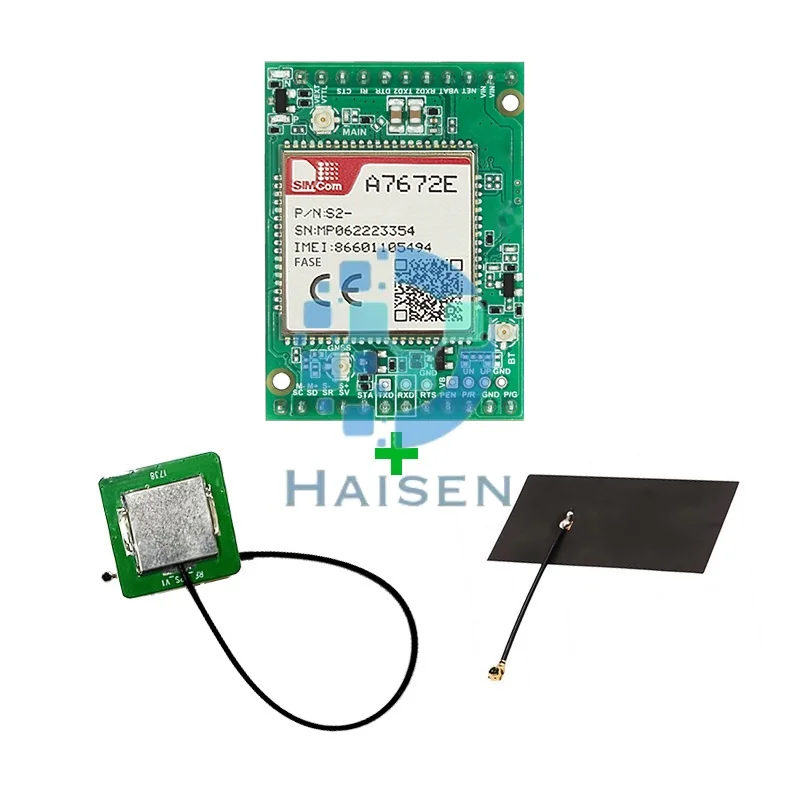

Antenna interface | IPEX 1 |
SIM Card | MIRCO SIM |
LED | Power/Network light |
USB | Y |

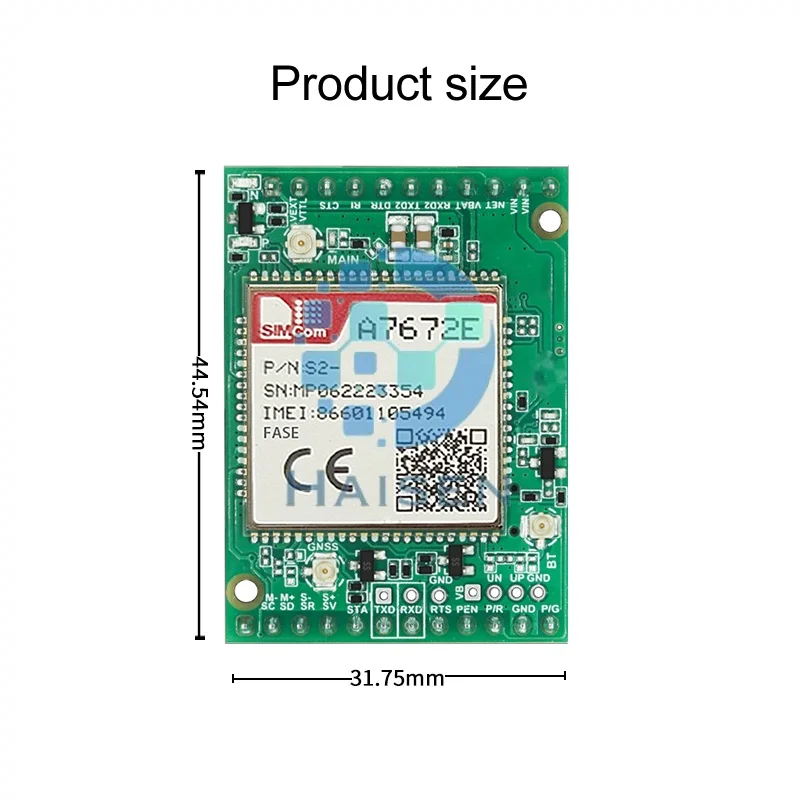

SIZE | 44.45*31.75*12.44(Including pin height) |
Operating temperature | -40℃-85℃ |
Network Band | LTE-FDD：B1/B3/B5/B7/B8/B20/B28 GSM/GPRS/EDGE ：900/1800 MHz |
Network speed | LTE:10Mbps(DL) 5Mbps(UL) GPRS: 85.6Kbps |
Network protocol | TCP/IP/IPV4/IPV6/MultiPDP/FTP/FTPS/HTTP/HTTPS/DNS/RNDIS/ECM/PPP |
Function | LTE CAT1+4G+2G+BT+GNSS+Voice |
Our Advantages
We have a professional technical team that can provide all product specifications, hardware, software, development boards and
other documentation and technical guidance.
If you need any moduels and technical files, please contact us! (click here)
