Best price growatt spf 12000t dvm 10000t 8000t solar inverter off grid growatt inverter
- Category: >>>
- Supplier: Anhui GP New Energy Co. Ltd.
Share on (1601076478440):
Product Overview
Description
Products Description
Details Images
Product Parameters
Datasheet | SPF4KT HVM | SPF5KT HVM | SPF6KT HVM | SPF8KT HVM | SPF10KT HVM | SPF12KT HVM | ||||||
Battery Voltage | 48VDC | |||||||||||
Battery Type | Lithium/Lead-acid | |||||||||||
INVERTER OUTPUT | ||||||||||||
Rated Power | 4KW | 5KW | 6KW | 8KW | 10KW | 12KW | ||||||
Surge Rating | 12KW | 15KW | 18KW | 24KW | 30KW | 36KW | ||||||
Waveform | Pure sine wave/ same as input(bypass mode) | |||||||||||
Nominal Output Voltage RMS | 220V/230V/240VAC(+/-10% RMS) | |||||||||||
Output Frequency | 50Hz/60Hz +/-0.3 Hz | |||||||||||
Inverter Efficiency(Peak) | >85% | >88% | ||||||||||
Line Mode Efficiency | >95% | |||||||||||
Power Factor | 1.0 | |||||||||||
Transfer Time | 10ms typical，20ms Max | |||||||||||
SOLAR CHARGER | ||||||||||||
Maximum PV Charge Current | 80A | 120A | ||||||||||
Maximum PV Array Power | 5000W | 7000W | ||||||||||
Number of independent MPP trackers/ strings per MPP tracker | 1/1 | 2/1 | ||||||||||
MPPT Range @ Operating Voltage(VDC) | 60~145VDC | 60~145VDC | ||||||||||
Maximum PV Array Open Circuit Voltage | 150VDC | 150VDC | ||||||||||
Maximum Efficiency | >98% | >98% | ||||||||||
AC INPUT | ||||||||||||
Voltage | 230VAC | |||||||||||
Selectable Voltage Range | 154~272VAC(for appliances);184~272VAC(for UPS) | |||||||||||
Frequency Range | 50Hz/60Hz (Auto sensing) | |||||||||||
Max. Charging Current | 40A | 50A | 60A | 70A | 80A | 100A | ||||||
MECHANICAL SPECIFICATIONS | ||||||||||||
Protection Degree | IP20 | |||||||||||

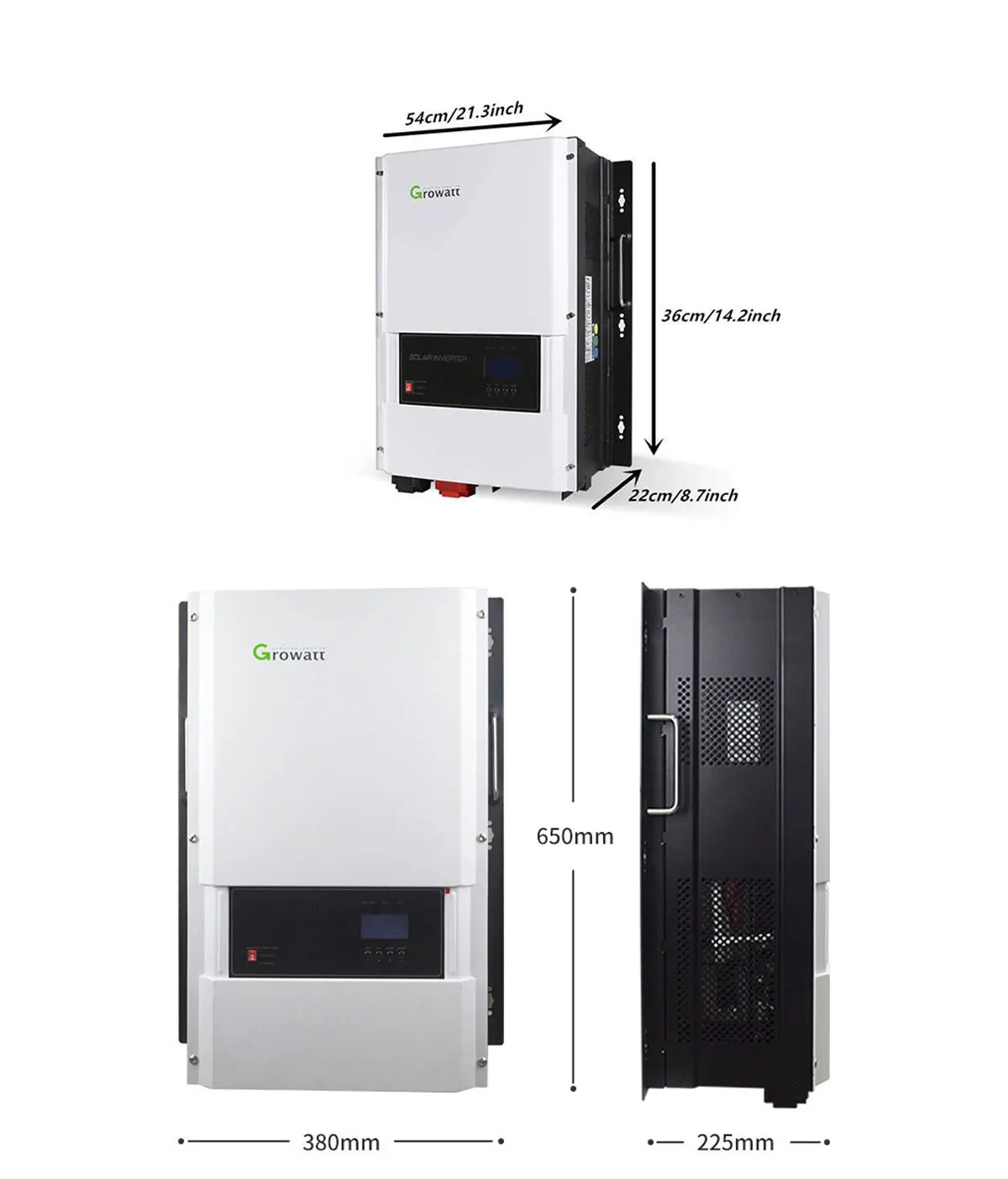

Dimensions (W/H/D) | 360/540/218mm | 360/540/218mm | 360/540/218mm | 380/650/225mm | 380/650/225mm | 380/650/225mm | ||||||
Weight | 38KG | 41KG | 45KG | 64KG | 66KG | 75KG | ||||||
OPERATING ENVIRONMENT | ||||||||||||
Operation Temperature Range | 0°C to 45°C | |||||||||||
Packing & Delivery
Company Profile
ANHUI GP NEW ENERGY CO., LTD
We, Anhui GP New Energy Co., Ltd (Great Pack) focus on LiFePO4, Li-polymer, Li-ion rechargeable batteries, solar energy batteries, are the leading Lifepo4 battery supplier in China, who committed to the R&D, design, and innovation of lithium batteries to supply Green & Clean energy to our daily modern lives!
Our team has over 8 years of experience in the lithium battery field, and supplies One Step Power Solution suggestions to help you to save time & capital and achieve advanced technologies and excellent OEM/ODM service.
Quality is life, Great Pack is committed to supplying high-quality batteries and the best service to our clients all over the
world. Our battery has passed CE, UN38.3, RoHS, and MSDS certificates. We are committed to becoming a leading solution provider to go global in the Solar lithium battery industry.
Our team has over 8 years of experience in the lithium battery field, and supplies One Step Power Solution suggestions to help you to save time & capital and achieve advanced technologies and excellent OEM/ODM service.
Quality is life, Great Pack is committed to supplying high-quality batteries and the best service to our clients all over the
world. Our battery has passed CE, UN38.3, RoHS, and MSDS certificates. We are committed to becoming a leading solution provider to go global in the Solar lithium battery industry.
Exhibition
Certifications
FAQ
What does a solar inverter do?
It's a device that converts direct current (DC) electricity, which is what a solar panel generates, to alternating current (AC)
electricity, which the electrical grid uses.
electricity, which the electrical grid uses.
What is the difference between a string solar inverter and a hybrid inverter?
Hybrid inverters generate power exactly the same way as common string solar inverters. The difference is that it has built-in battery connections to enable energy storage for later use. This battery backup ability enables most hybrid systems to also operate as a backup power supply during a blackout.
Can you go off-grid with hybrid inverter?
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
What are the basic parameters of inverter?
There are 3 parameters that will define the output of power inverter, and they are the frequency, the voltage, and power capacity.
