Solax X1 Hybrid LV 3 6kw 3.7kw 4kw 4.6kw 5kw 6kw Low Voltage 48v 51.2v Single Phase Solar Energy Storage Invertor Price Inverter
- Category: >>>
- Supplier: Nanning Shuxin Trading Co. Ltd.
Share on (1601076524359):
Product Overview
Description
Product Description

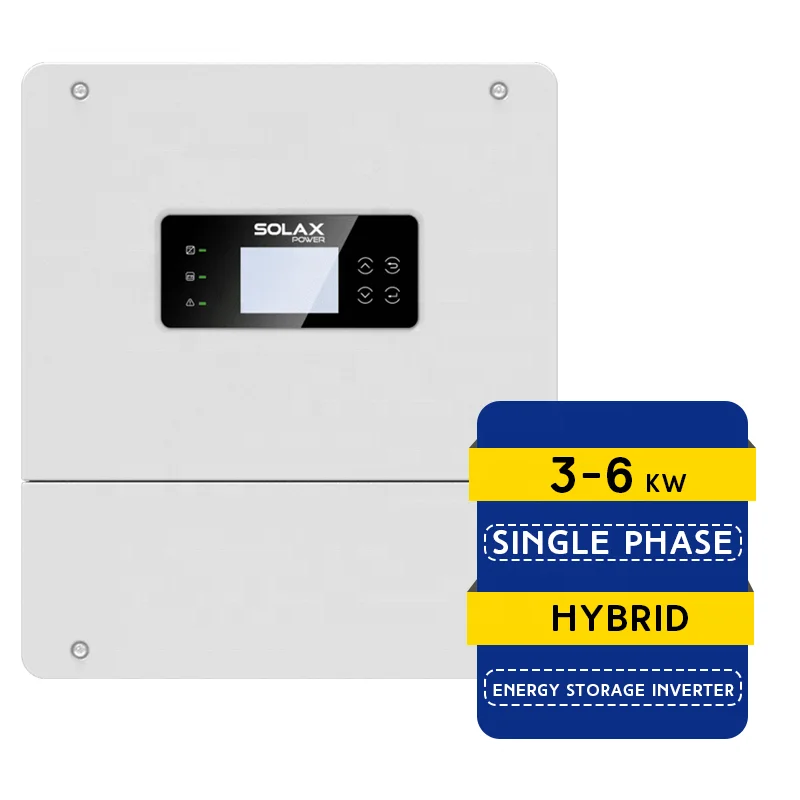

Solax Low Voltage Hybrid Inverter X1 HYBRID LV
3kw/3.7kw/4.6kw/5kw/6kw
3kw/3.7kw/4.6kw/5kw/6kw
Efficiency
* 200% PV oversized and up to 150% PV input
* Max. DC input current 16A for high power panel
* Max. charging/discharging current of 120A
* Low start-up voltage, longer working time
Flexible
* UPS-level switching time < 10ms
* Up to 200% EPS output for 10s
* Generator compatible*
* Adaptable to multiple battery types: LFP, lead acid and etc.
* Generator compatibility available in future release
* Batteries excluding lead acid available in future release
Intelligent
* Shadow tracking integrated
* User friendly with LCD color screen
* Smart loads management
* Max. 10pcs parallel for on-grid and off-grid operation
*Parallel available in future release
Safe
* Battery terminal temperature detection
* IP65 protection degree
* SPD integrated
* AFCI protection (optional)

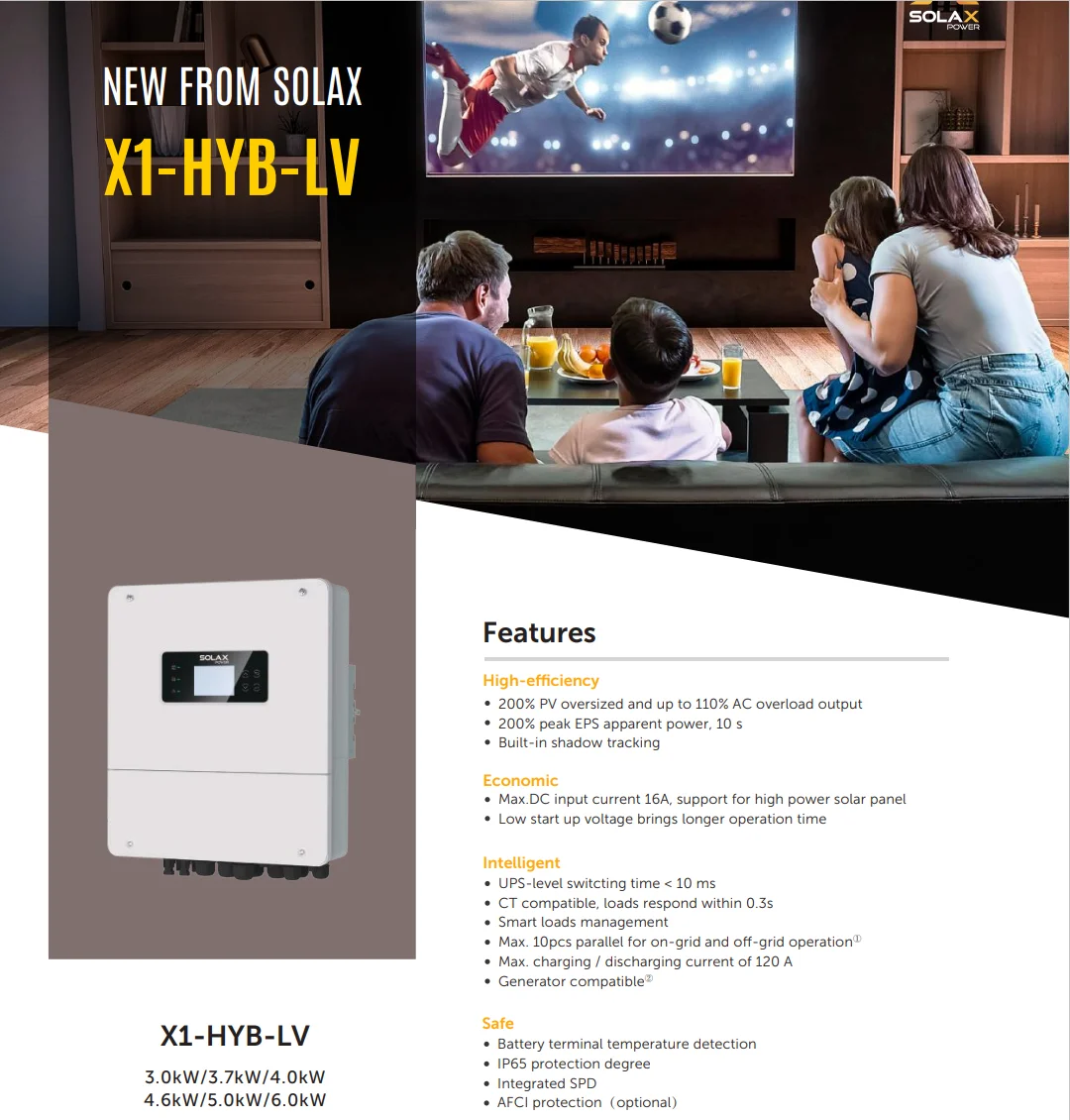

Why X1 HYBRID LV
Unleash the full potential of our advanced hybrid inverter with 200% PV oversizing, high power input, and flexible compatibility with multiple battery types. Experience UPS-level switching time, EPS output of up to 200% for 10s, and future-ready generator compatibility.
The inverter features a 16A DC single string input current supporting high-power solar panels. Enjoy intelligent features like built-in shadow tracking, a user-friendly LCD color screen, and smart loads management. Rest easy with safety
features, including battery terminal temperature detection, IP65 protection, integrated SPD, and optional AFCI protection. Elevate your energy system with our reliable and adaptable solar inverter.
Specification
Model | X1-HYB-3.0-LV | X1-HYB-5.0-LV | X1-HYB-6.0-LV | ||
DC Input Data | |||||
Recommended max.Pv power(kw) | 6 | 10 | 12 | ||
Max.input voltage(v) | 550 | ||||
MPPT voltage range(v) | 80 ~ 520 | ||||
Nominal input voltage [V] | 360 | ||||
INPUT AC | |||||
Max. apparent AC power[VA] | 3000 | 5000 | 6000 | ||
Max. AC current[A] | 15 | 22.7 | 27.3 | ||
Nominal grid voltage(AC voltage range)[V] | 220 / 230 /240, 50 / 60 | ||||
Nominal grid Frequency/range[Hz] | 50/60 | ||||
AC Output Data | |||||
Nominal AC output power(kw) | 3 | 3.6 | 4.9 | ||
Nominal AC output current [A] | 13 | 16 | 21 | ||
Rated grid voltage/range(v) | 220/230/240(180-270) | ||||
Rated grid frequency(Hz) | 50/60; ±5 | ||||
Power Factor | 0.8 leading ~ 0.8 lagging | ||||
THDi | <2% | ||||
OUTPUT DC (BATTERY) | |||||
Battery voltage range [V] | 40-60 | ||||
Max.continuous charge/discharge current [A] | 75 | ||||
Efficiency | |||||
Max.efficieny | 97% | ||||
Euro. eciency | 97.7% | ||||
Protection | |||||
Over/under voltage protection | Yes | Yes | Yes | ||
DC isolation protection | Yes | Yes | Yes | ||
Monitoring ground fault protection | Yes | Yes | Yes | ||
Grid monitoring | Yes | Yes | Yes | ||
DC injection monitoring | Yes | Yes | Yes | ||
Back feed current monitoring | Yes | Yes | Yes | ||
Residual current detection | Yes | Yes | Yes | ||
Anti-islanding protection | Yes | Yes | Yes | ||
Over temperature protection | Yes | Yes | Yes | ||
SPD | Yes | Yes | Yes | ||
General Data | |||||
Dimension(mm）（W*H*D) | 397 x 490 x 201 | ||||
Net weight [kg] | 15.7 | ||||
Operating ambient temperature range | -30~+60 (Derating above 45) | ||||
Ingress protection | IP65 | ||||
Cooling concept | Natural cooling | ||||
Max.operation altitude(m) | 3000 | ||||
Safety/EMC standard | IEC/EN 62109-1/-2 EN61000-6-1/2/3/4, EN61000-3-2/3/11/12 | ||||
Communications | Ethernet/Meter/Pocket WiFi(optional)/Pocket LAN(optional)/Pocket GPRS(optional)/DRM/USB/ISO alarm/CT | ||||
Packing & Delivery

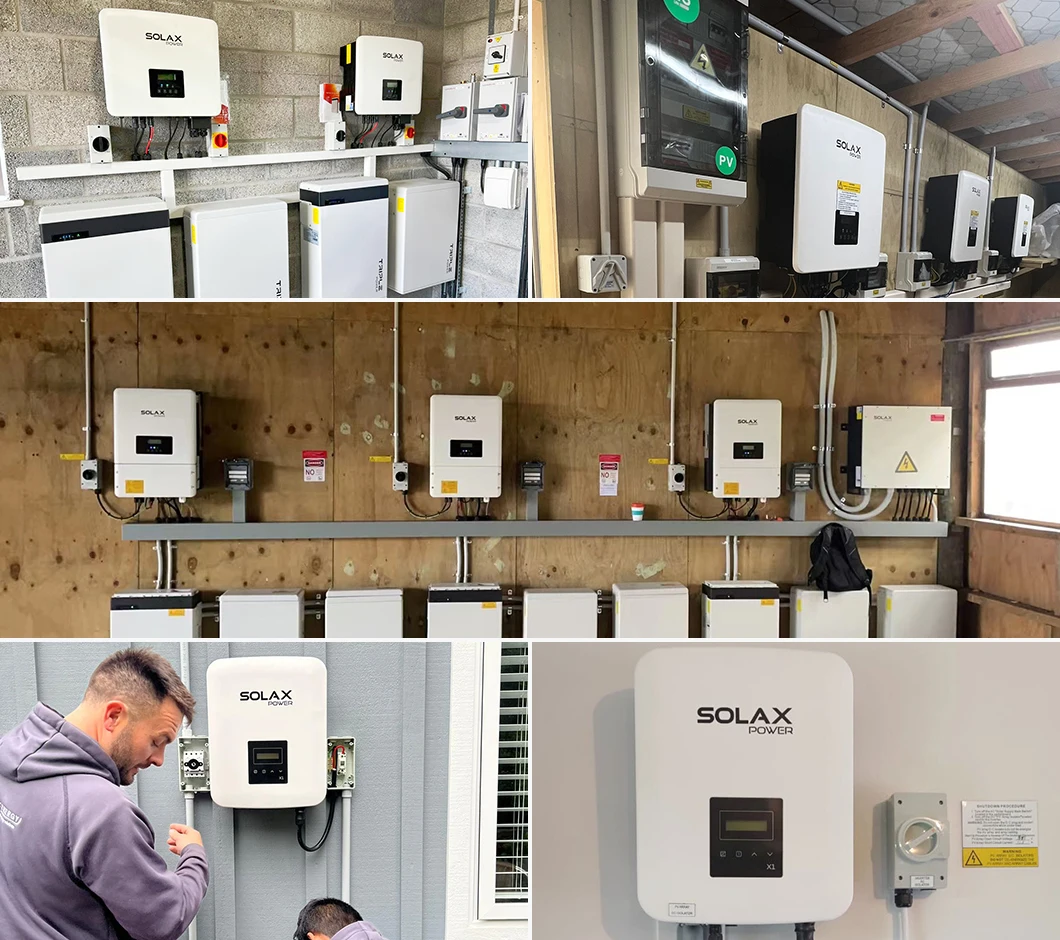

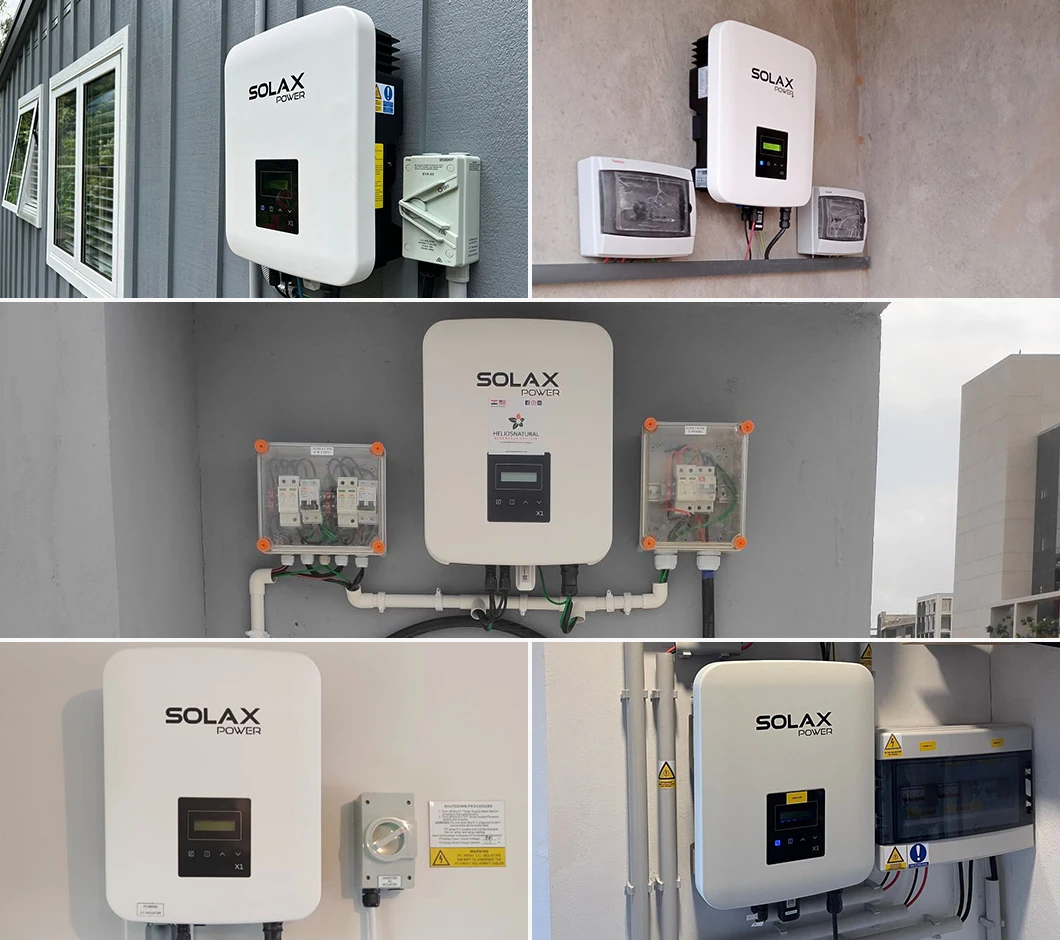

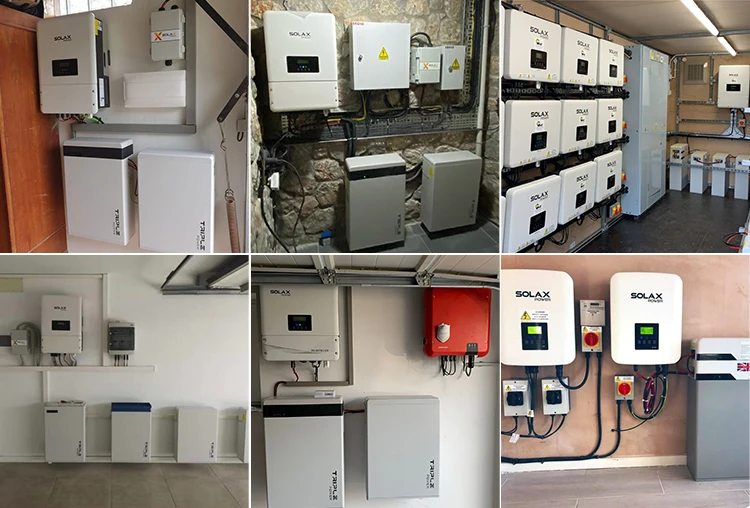

Project Case

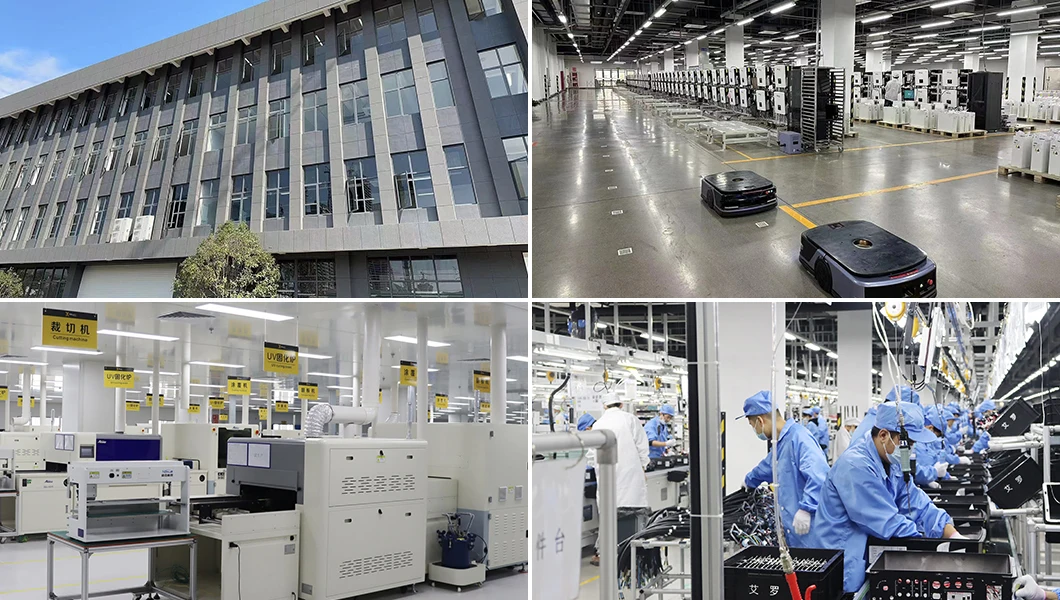

Our Factory
FAQ
Q1: How to install and use the solar inverter?
A1: We have the English teaching manual and videos; All the videos about every step of machine Disassembly, assembly, operation will be sent to you.
Q2: What if I don't have import experience ?
A2: We have reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep. Any way, we will help you choose the most suitable shipping service.
Q3: How is your technical support?
A3: We provide online service through Whatsapp / Wechat / Email. Any problem after delivery, we will offer you video call
anytime, our engineer will also go to oversea help our customers if necessary.
Q4: How can I make sure it's a secure transaction ?
A4: Alibaba can protect buyers' interest, all of our transactions will go through alibaba platform.
Q5: Can you get the the solar inverter customized for us ?
A5: Of course, brand name, machine color, designed unique patterns available for customization.
Q6: How to become your agent?
A6:Contact us through Alibaba, we will give you the best price and look forward to your greetings.
Q7: What can you provide?
A7:Residential/Home solar system, Rooftop solar power station, Large-scale ground-mounted solar power station,
Agriculture-complementary Solar Power Station, Aquaculture-complementary Solar Power Station.
