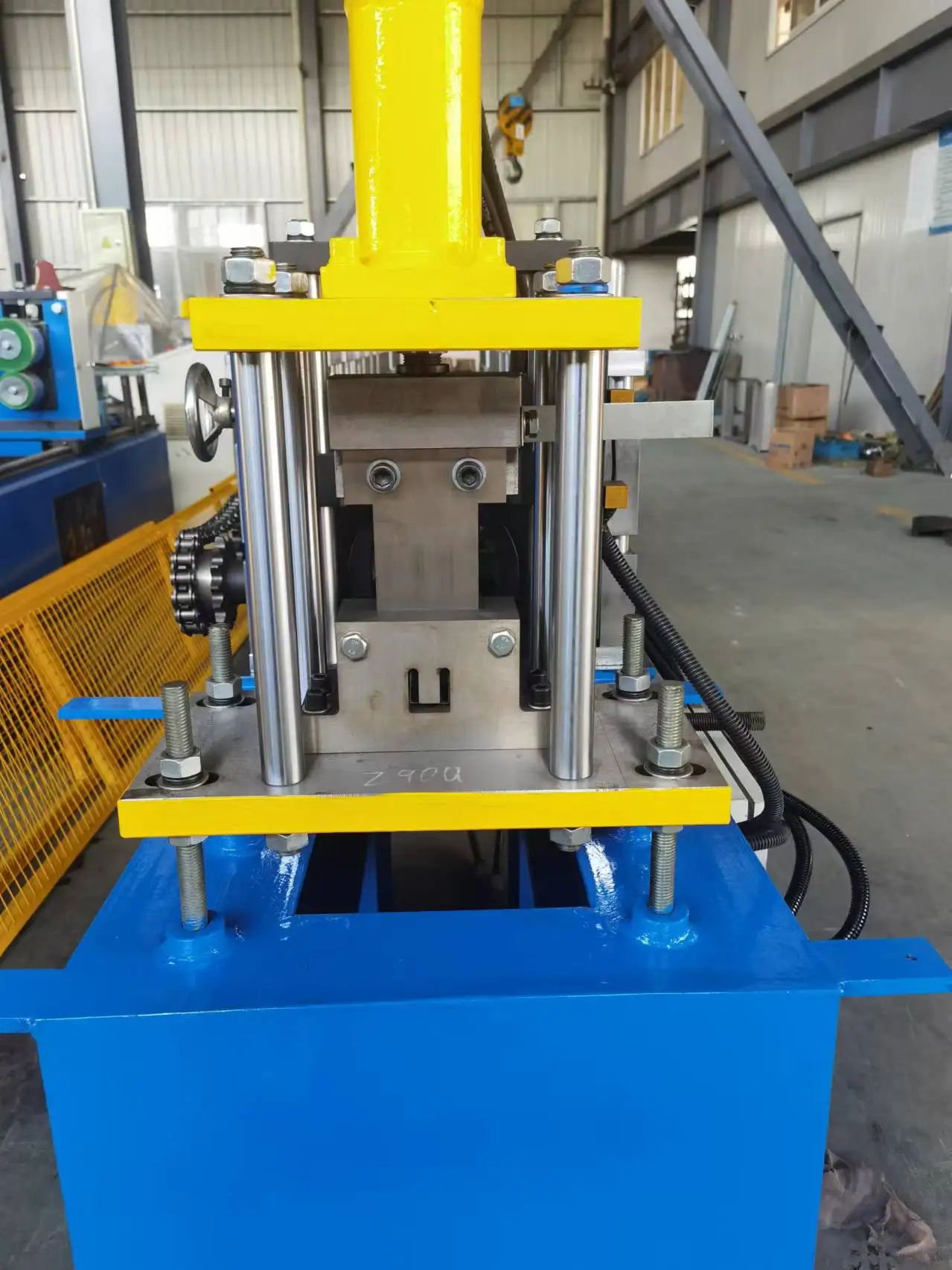

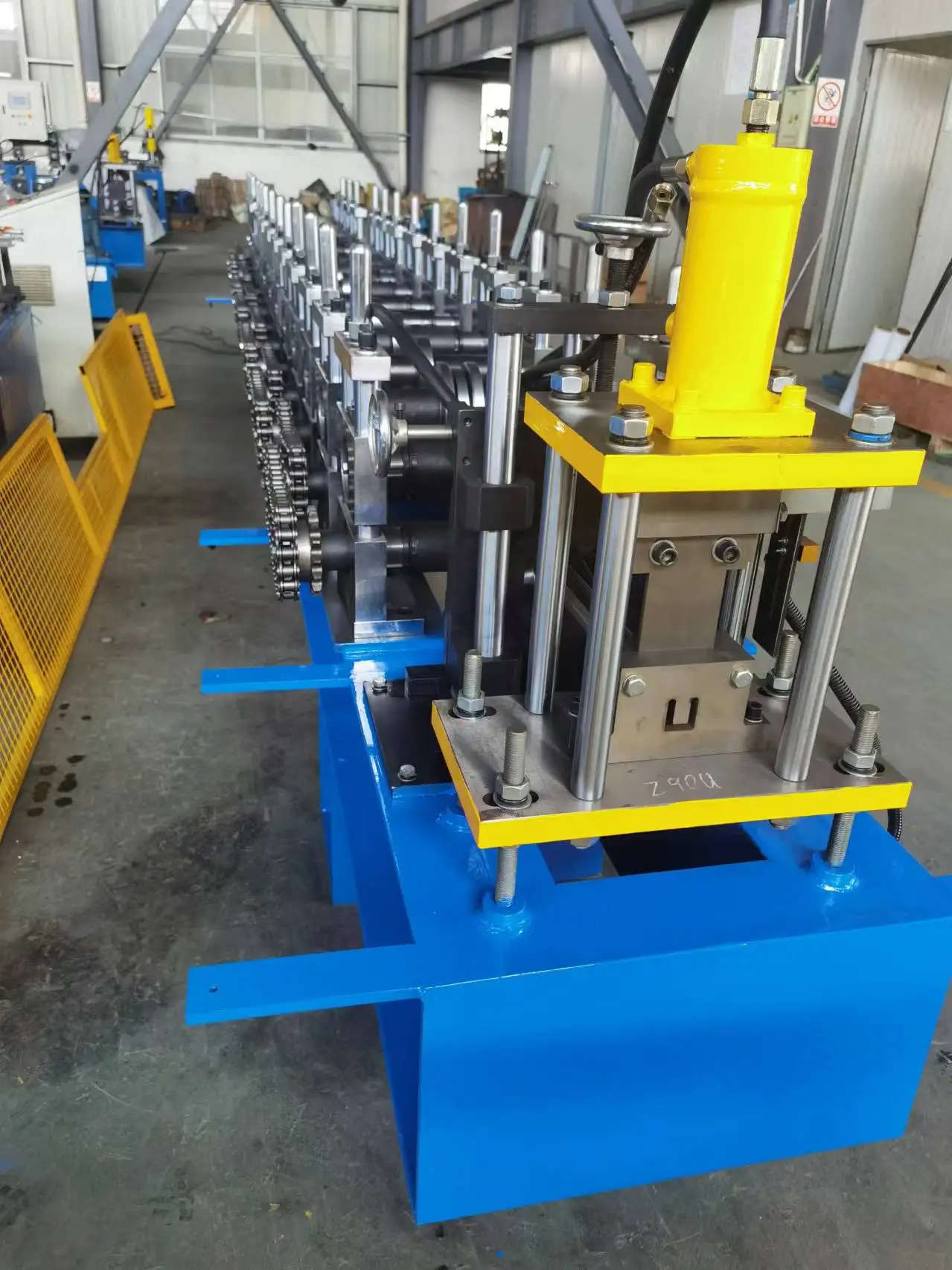

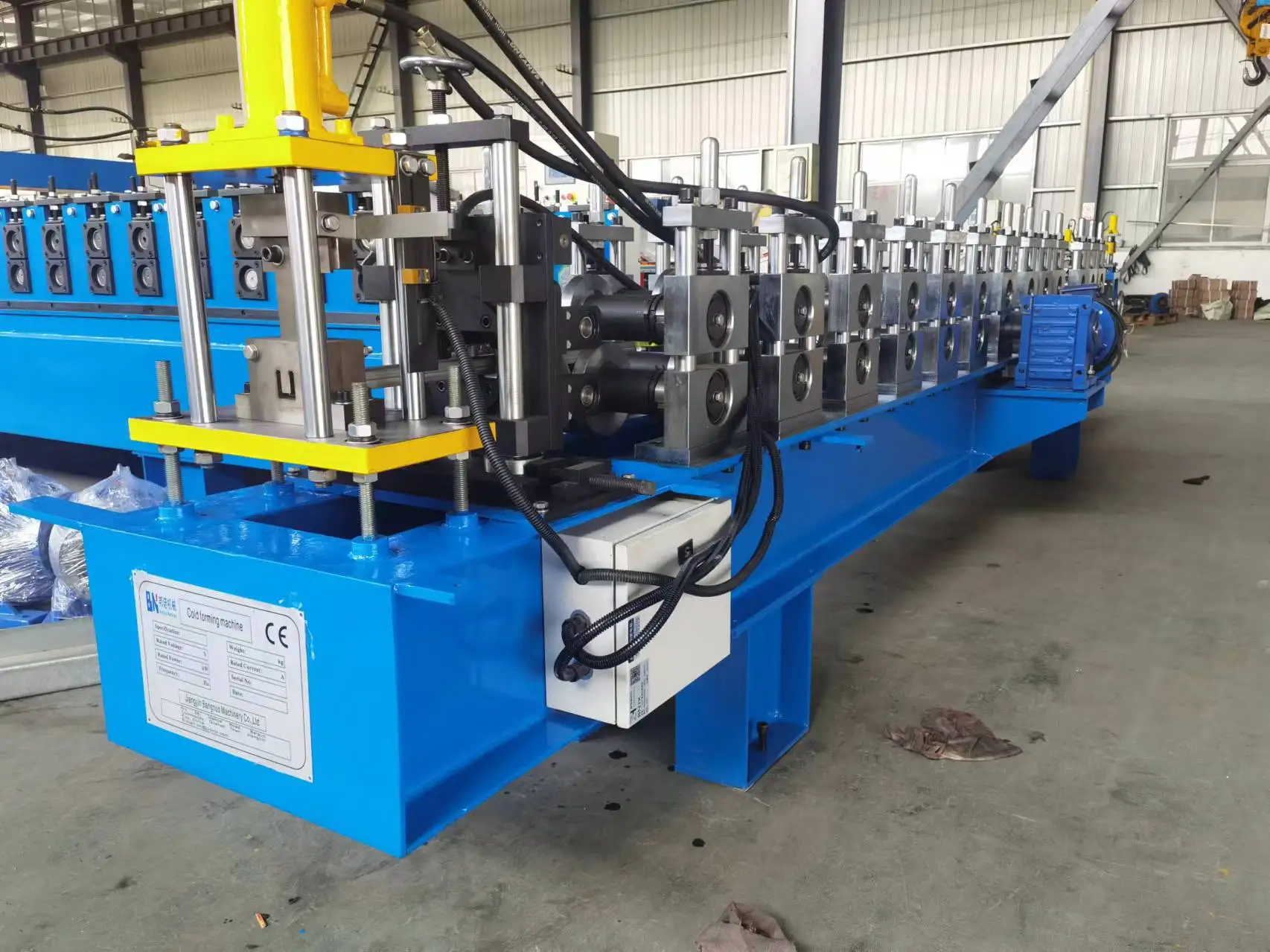

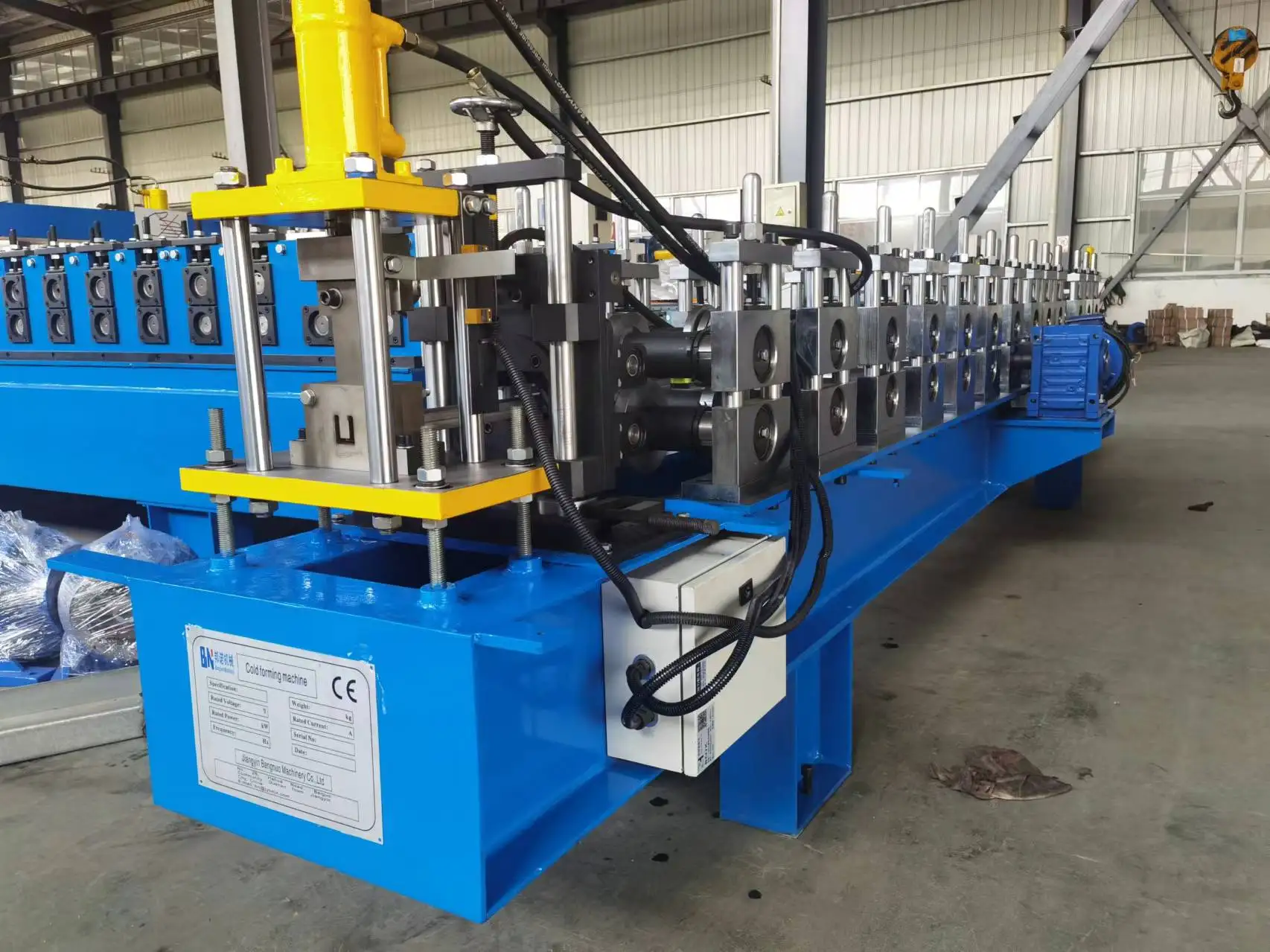

Stud And Track Rolling Forming Machine Light Gauge Steel C U Track Framing Machine Hat Omega Making Equipment Material
- Category: >>>
- Supplier: Jiangyin Bangnuo Machinery Co. Ltd.
Share on (1601076525041):
Product Overview
Description
Products Description
Working speed | 10-15 m/min（Shear time is not included） |
Pressed plate thickness | 0.3-1mm |
Control mode | Panasonic PLC |
Discharging rack | 3T manual decoiler |
Number of molding passes | 12 lanes |
Roll material | After finishing, the surface of 45# steel is chrome plated. |
Shaft material and diameter | 45# Steel finishing，Shaft diameter is￠85mm |
Main engine power | 5.5kw |
Power of hydraulic station | 4kw |
Hydraulic pressure | 12Mpa |

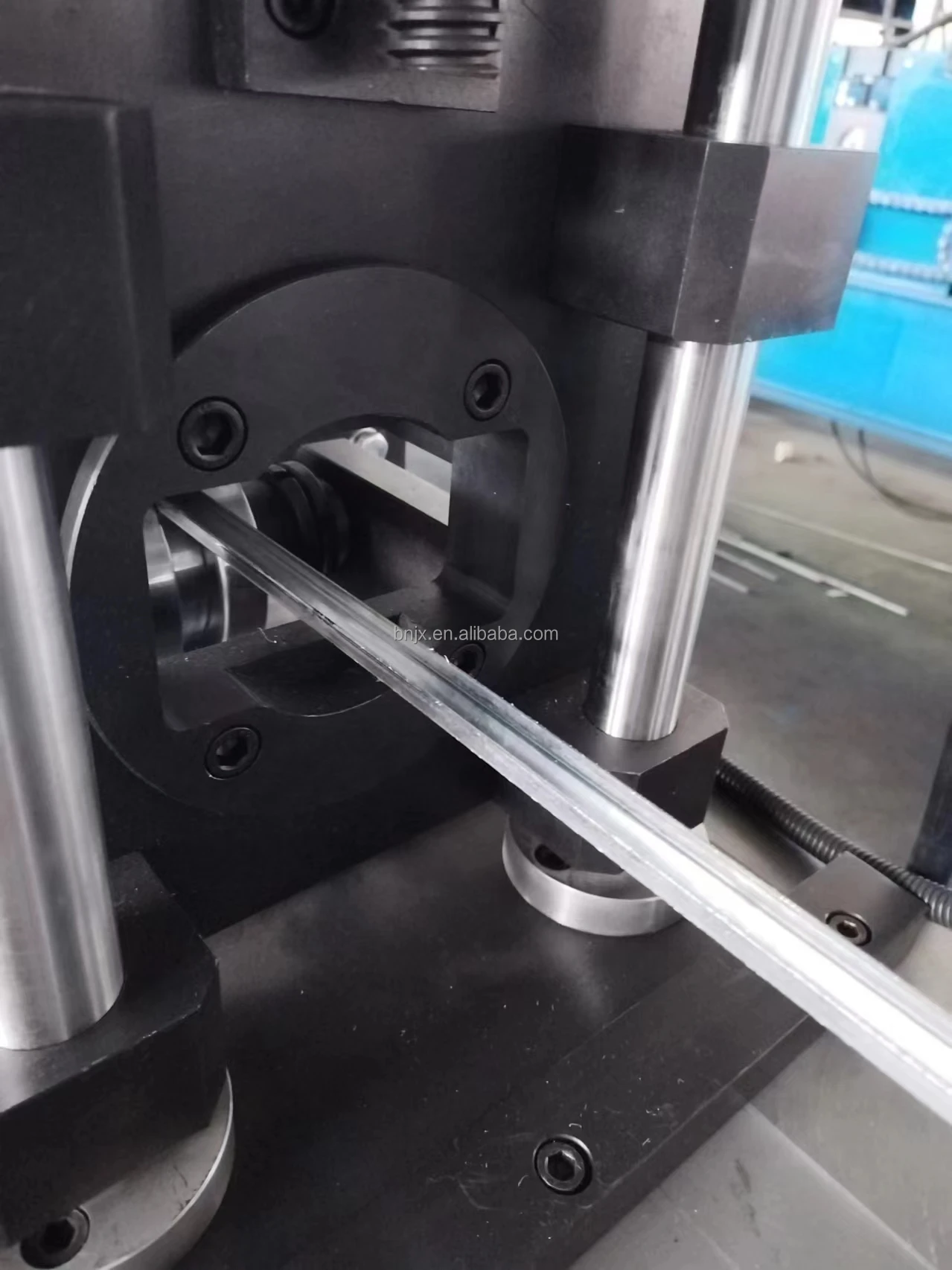

Cutting mode | Shear after forming |
Scissors material | Cr12Mov， quench HRC 58-62℃ |
Length tolerance | 3m±1.5mm |
Voltage | 380V, 50HZ,3 phase（According to customer requirements can be adjusted） |
Transmission mode | 1.0 inch single row chain |
Equipment form | slab-wall structure |
Equipment color | Company color |
Equipment size | L*W*H— 8m*1.5m*1.2m |
Date of delivery | 80 days |
Payment method | 30% advance charge，70% pay off on delivery |
Equipment composition
3T manual decoiler | 1 set |

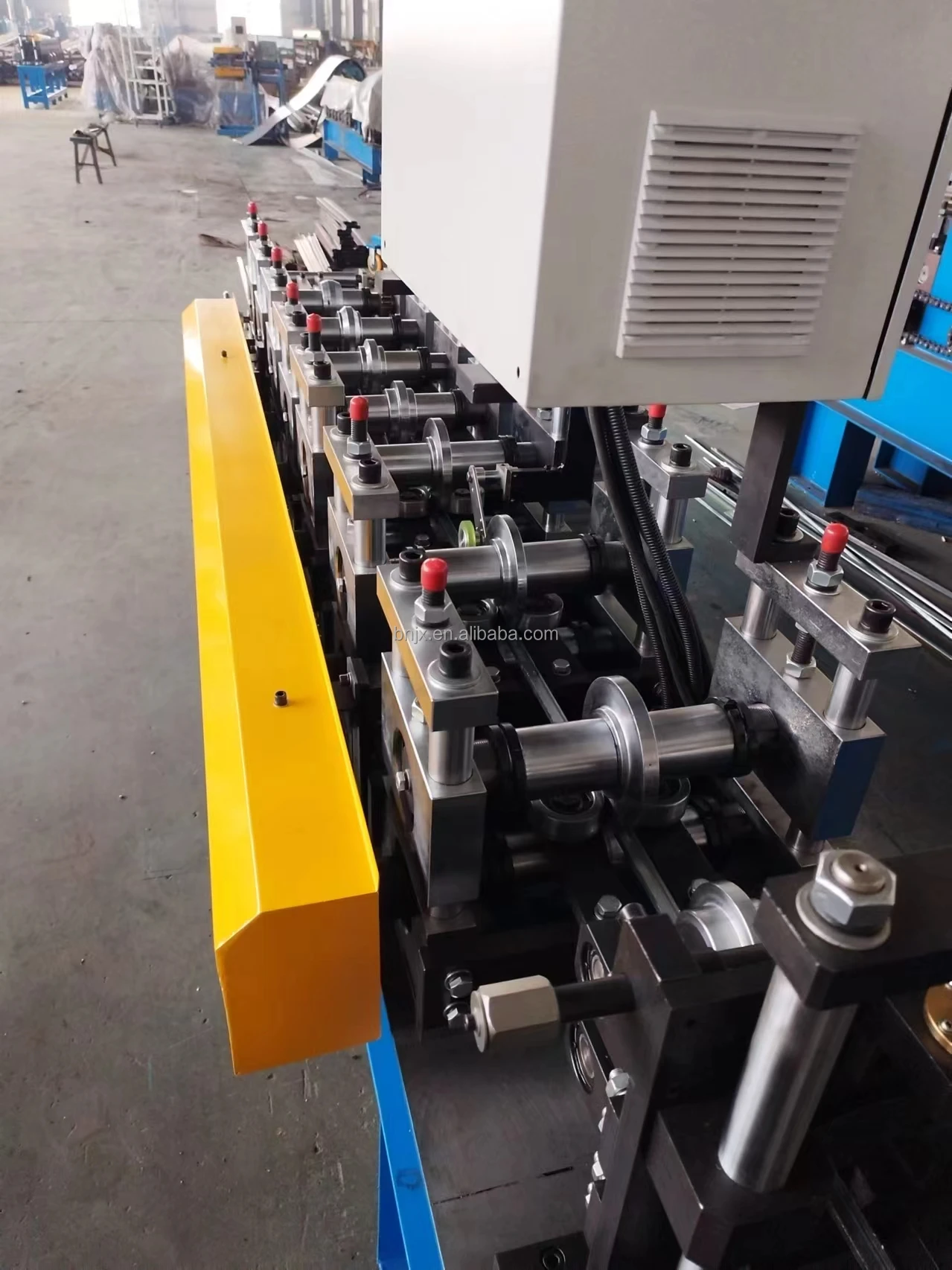

Molding machine | 1 set |

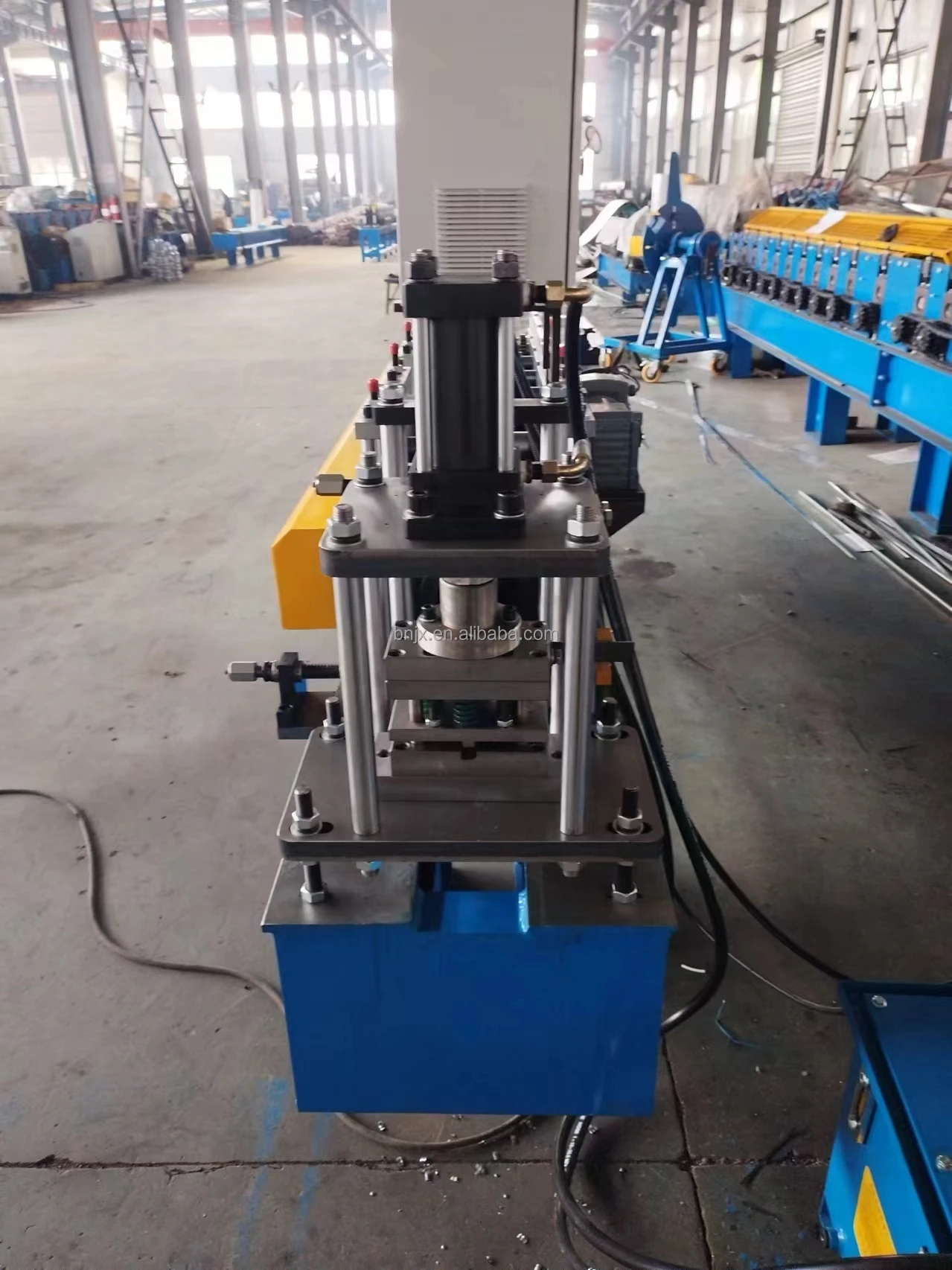

Shear structure | 1 set |
Control cabinet | 1 set |
Hydraulic station | 1 set |
Discharge table | 2 sets |
Control cabinet | ||
Programmable setting of profile length and quantity | ||
Automatic stopping of the equipment after completion of the cutting program will be provided | ||
Control mode | Panasonic PLC | |
Voltage | 380V, 50HZ,3 phase（According to customer requirements can be adjusted） | |
Control panel | Button-type switch and touch screen | |
Language | English and Chinese | |
Hydraulic station | ||
Power of hydraulic station | 4kw | |
Hydraulic pressure | 12Mpa | |
Solenoid valve | 1 group | |
Hydraulic oil | 46# hydraulic oil | |
Way of feeding | manual | |
Outlet table | ||
Two out tables with support roll | ||
Frame | welding by square tube | |
Size | 1.5m long*1m wide*1m high | |

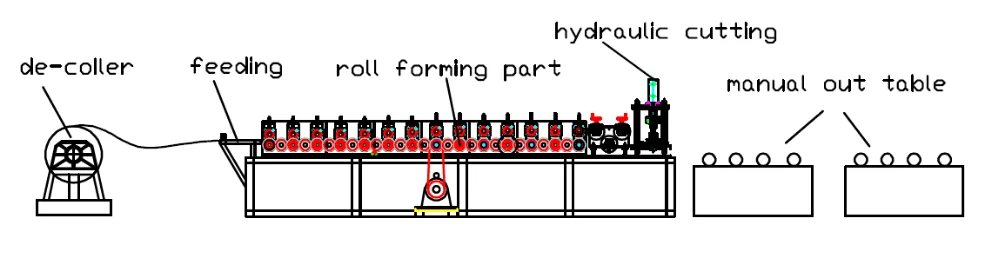

Flow Chart

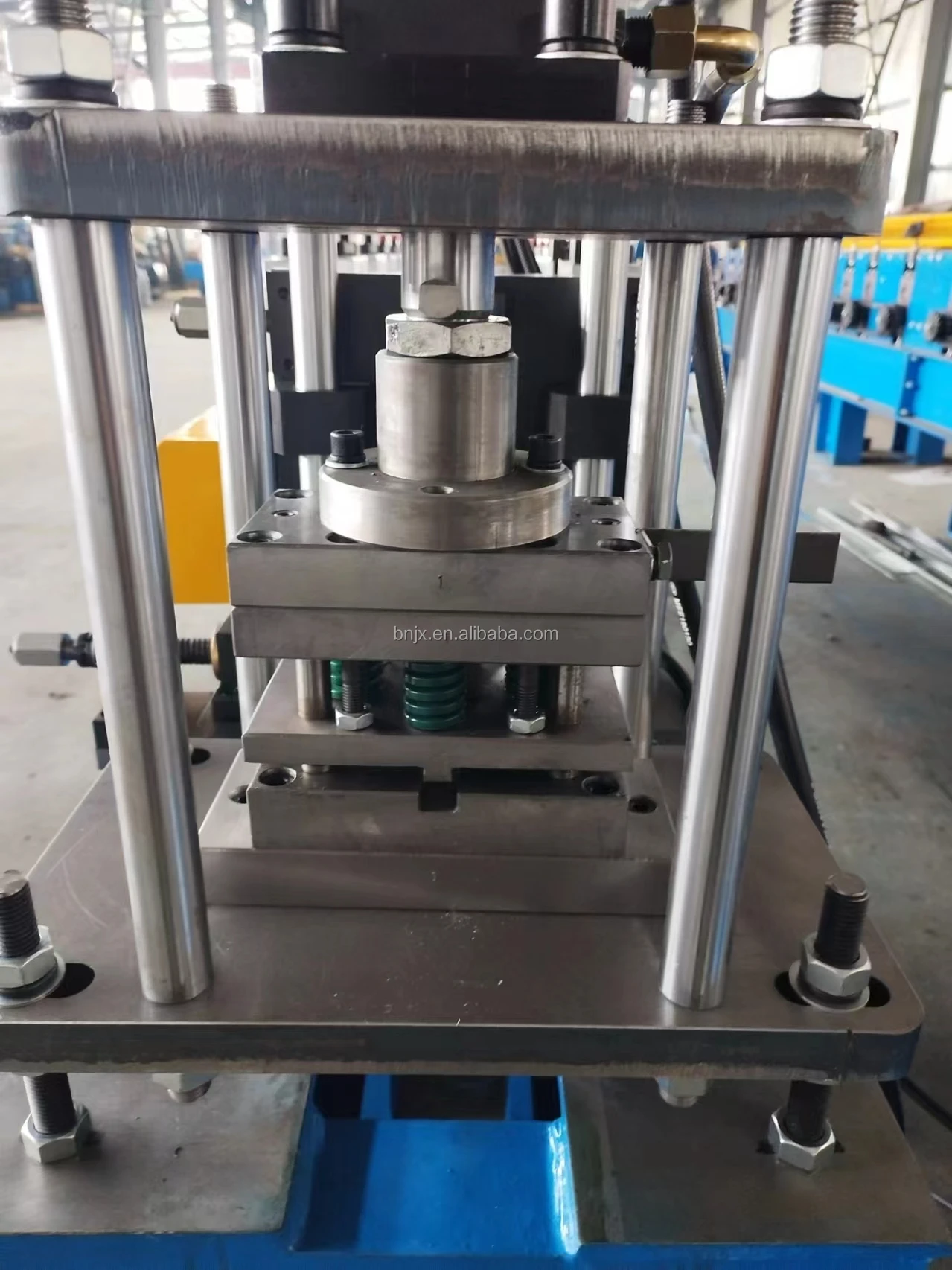

Details Images
Certifications

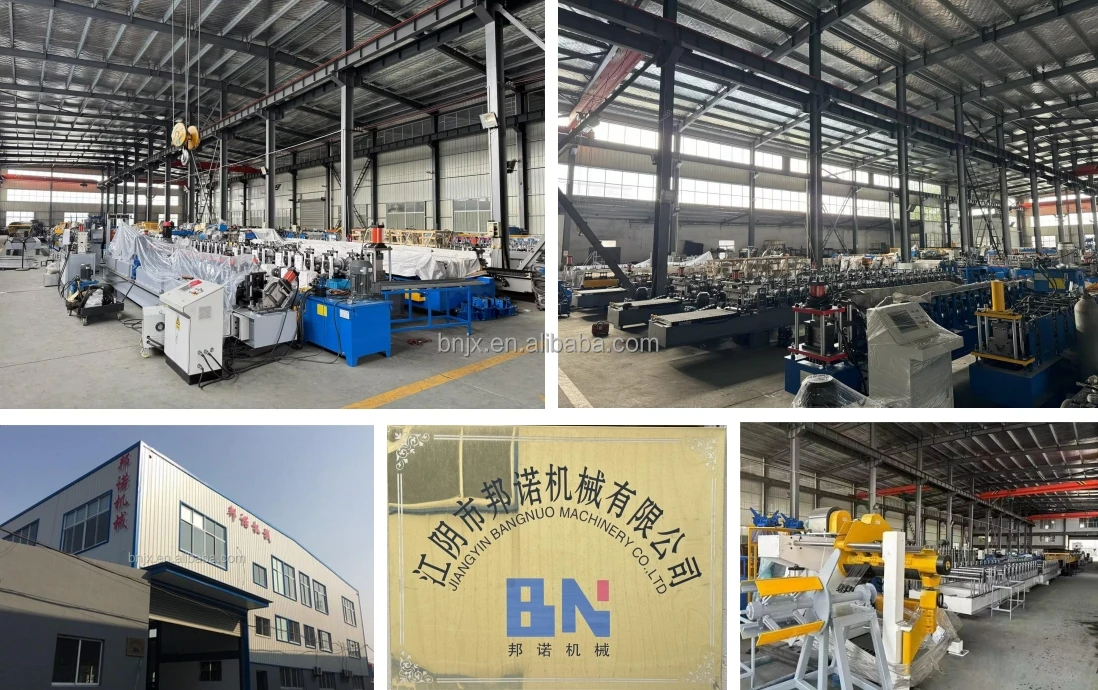

Company Profile
Jiangyin Bangnuo Machinery Co.. Ltd. is a professional manufacturer dedicated Color light steel construction,C,Z steel equipment and rolling, bending molding equipment enterprises. with the design and manufacture of various types of steel sheet thickness roll forming production line strength.
Company specializing in the production of Dagong machines, floor plate machine, guardrail plate machine, corrugated tie machine , shearing machine, sub-board machine , highway guardrail , tile machine equipment , automatic tile press , iron Piva machine, iron tile machine, all automatic C-shaped steel machine,glazed tile machine.
Customer Photo
FAQ
1.Q: Are you a manufacturer or trading company?
A: We are a production and trading company.
2. Q: What information do you need before you make a suggestion?
A: You need to provide the thickness of the material, the size range of the material or profile drawing, your special requirements.
3.Q: What is the minimum order quantity?
A:One
4.Q: Do you provide overseas installation and debugging?
A: Overseas machine installation and worker training services are optional.
5.Q: Can you manufacture this machine according to my design or prototype?
A: Yes, we have an experienced team who can make the most suitable design and production plan for the machine you want to order.
6. Q: How does your factory do in terms of quality control?
A: It is strict in terms of quality control. Quality control complies with international CE certification & SGS certification. Each machine must undergo operational testing before being packaged for shipment.
7. Q: How can I trust your machine to paste test run before shipping?
A: We have recorded a test video for your reference.We welcome you to visit our factory and test the machine yourself.
8. Q: How is our after-sales service?
A: We provide online technical support and provide overseas services by skilled technicians.
9. Q: What should I do if I just start a business?
A: Contact us immediately, we provide free pre-sales consulting services. We can also help you solve material (steel coil) procurement, worker training, and international market prices.
10. Q: Can I come to your factory to inspect the machine on site? What should I bring when visiting your factory?
A: We are a manufacturer and we welcome customers to visit our factory. For the design and development of special products, we ask that you bring a piece of test material that you can perform on-site testing on our machines.
A: We are a production and trading company.
2. Q: What information do you need before you make a suggestion?
A: You need to provide the thickness of the material, the size range of the material or profile drawing, your special requirements.
3.Q: What is the minimum order quantity?
A:One
4.Q: Do you provide overseas installation and debugging?
A: Overseas machine installation and worker training services are optional.
5.Q: Can you manufacture this machine according to my design or prototype?
A: Yes, we have an experienced team who can make the most suitable design and production plan for the machine you want to order.
6. Q: How does your factory do in terms of quality control?
A: It is strict in terms of quality control. Quality control complies with international CE certification & SGS certification. Each machine must undergo operational testing before being packaged for shipment.
7. Q: How can I trust your machine to paste test run before shipping?
A: We have recorded a test video for your reference.We welcome you to visit our factory and test the machine yourself.
8. Q: How is our after-sales service?
A: We provide online technical support and provide overseas services by skilled technicians.
9. Q: What should I do if I just start a business?
A: Contact us immediately, we provide free pre-sales consulting services. We can also help you solve material (steel coil) procurement, worker training, and international market prices.
10. Q: Can I come to your factory to inspect the machine on site? What should I bring when visiting your factory?
A: We are a manufacturer and we welcome customers to visit our factory. For the design and development of special products, we ask that you bring a piece of test material that you can perform on-site testing on our machines.
Warmly welcome customers to visit our factory
