carbon black grinding mill used for Rubber industry
- Category: >>>
- Supplier: Henan Liming Heavy Industry Science & Technology Co. Ltd.
Share on (1601076551044):
Product Overview
Description
800 mesh barite micro talc powder grinding mill machine
Product Description

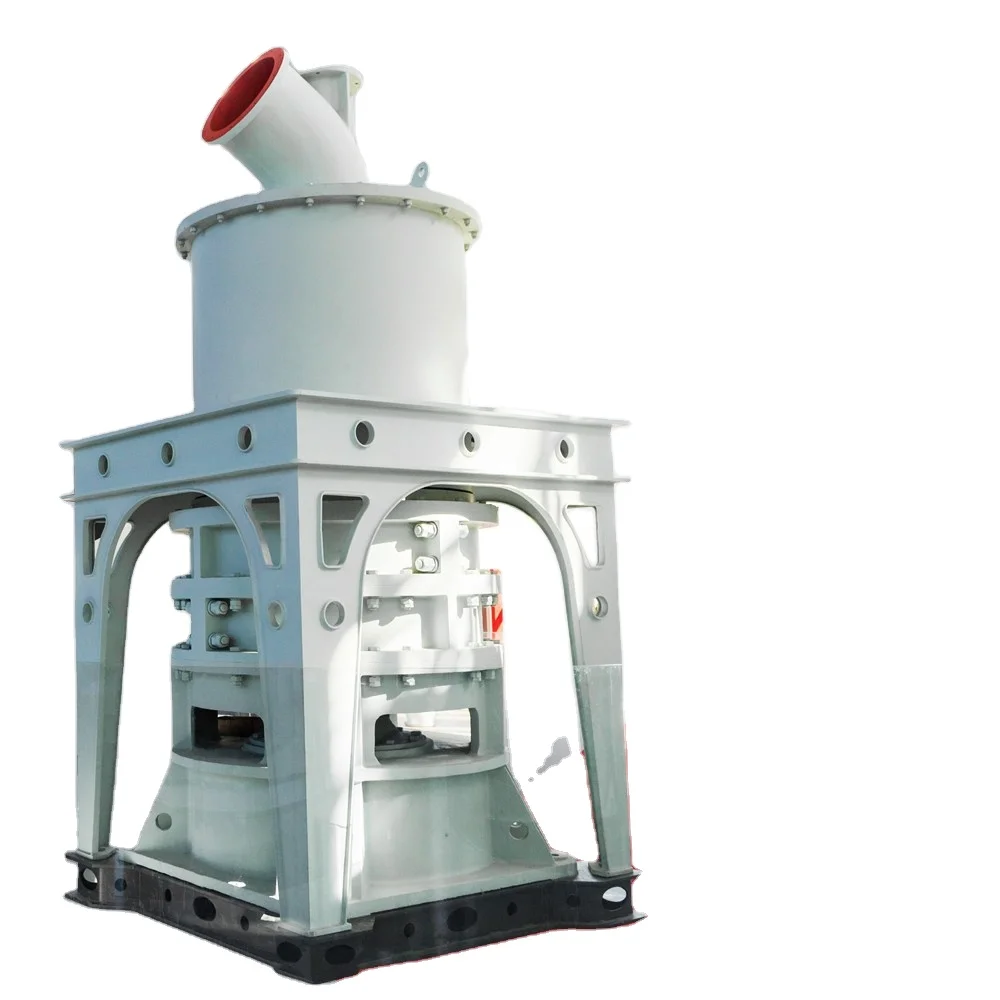

MW Series Micro Powder Mill
MW Series Micro Powder Mill is equipment designed for customers who need to make ultra-fine powder. This machine is equipped with efficient pulse dust collector and muffler, which can reduce dust and noise. And the whole production won’t take effect on environment.
|
|

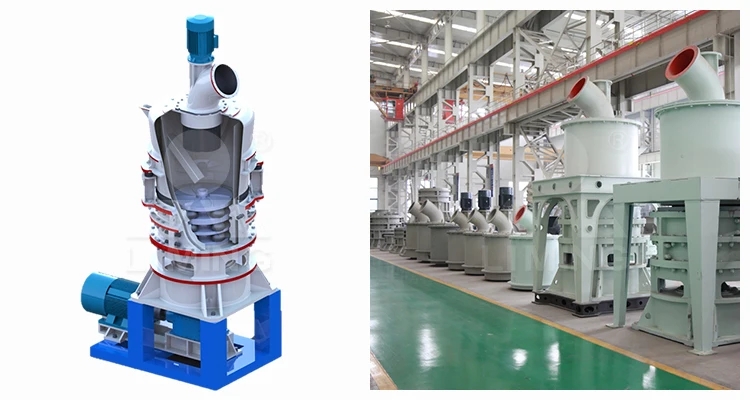

MW SERIES MICRO POWDER MILL STRUCTURE
Technical Parameters
800 mesh barite micro talc powder grinding mill machine
| Model | Main diameter(mm) | Quantity of grinding ring(layer) | Quantity of roller (piece) | Main shaft speed(rpm) | Maximum feed size(mm) | Output fineness (μm/mesh) | Capacity (t/h) | Dimension (m) | Power (kw) |
| MW880 | 800 | 3 | 21 | 230-240 | ≤20 | 5-47 | 0.4-4.5 | 13.9*4*6.2 | 145-165 |
| MW980 | 930 | 3-4 | 24-32 | 200-220 | ≤20 | 5-47 | 0.6-6.5 | 14.7*4.8*7.2 | 185-204 |
| MW1080 | 1035 | 3 | 27 | 180-200 | ≤20 | 5-47 | 0.7-7 | 18*4.6*8.6 | 263 |
| MW1080L | 1035 | 4 | 34 | 180-200 | ≤20 | 5-47 | 1-8.5 | 18*4.6*8.6 | 263-290 |
| MW1285 | 1300 | 4 | 40-44 | 135-155 | ≤20 | 5-47 | 1.5-12 | 14*9*10.25 | 380-430 |
| MW1688 | 1680 | 4 | 30-40 | 120-130 | ≤20 | 100-9 | 3.8-30 | 26.3*7.5*11.9 | 600-700 |
800 mesh barite micro talc powder grinding mill machine
Hot Related Products
FAQ
| Q: 1. To which country your products have been exported before? |
A: Our products have been sold to Ecuador, Brazil, Chile, Sudan, Zambia, Kenya,Turkey, Indonesia, Malaysia, Philipines, Australia, , India and so on.
|
| Q: 2. How will you help the customer install the equipment? |
A: Our senior engineer will guide the installation and commissioning as well as the initial production at site.
|
| Q: 3. How about the wear parts supply? |
A: We offer wear parts to our customer with our most favorable price. If there are problems you could not handle, we will send our technicians to your place. but you are responsible for all the cost involved.
|
| Q: 4. I want to know how much is it? |
A: Yes. but I need to ask you some details for sending you the more suitable quotation, 3>. what is your tel and email? My friend, feel free to contact me if you need any of our help. : 800 mesh barite micro talc powder grinding mill machine Click for More Information: |
