Good Price Shrink Film Rotation Die Nylon Film Blown extruder machinery
- Category: >>>
- Supplier: Wenzhou Ruixin Plastic Machinery Trading Co. Ltd.
Share on (1601076571647):
Product Overview
Description
Product Description

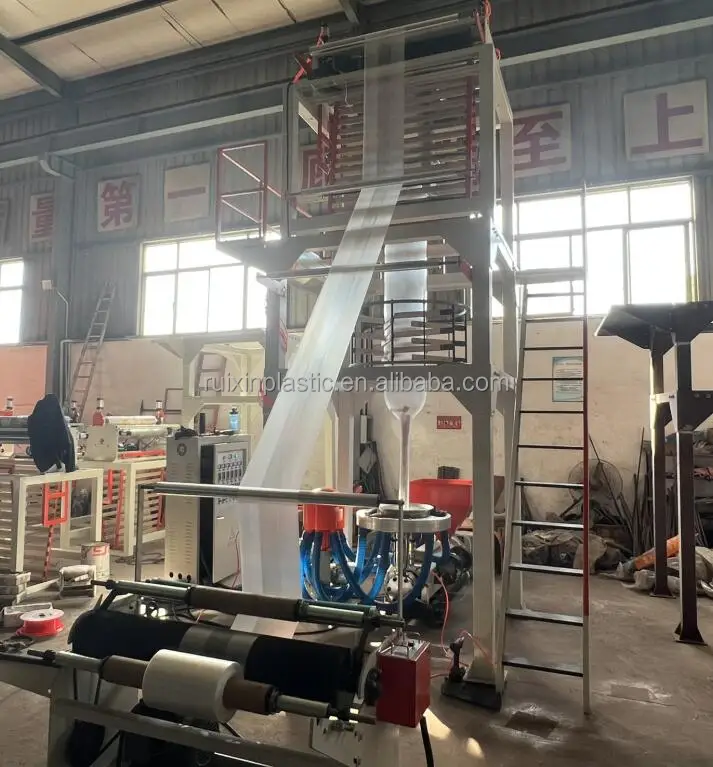

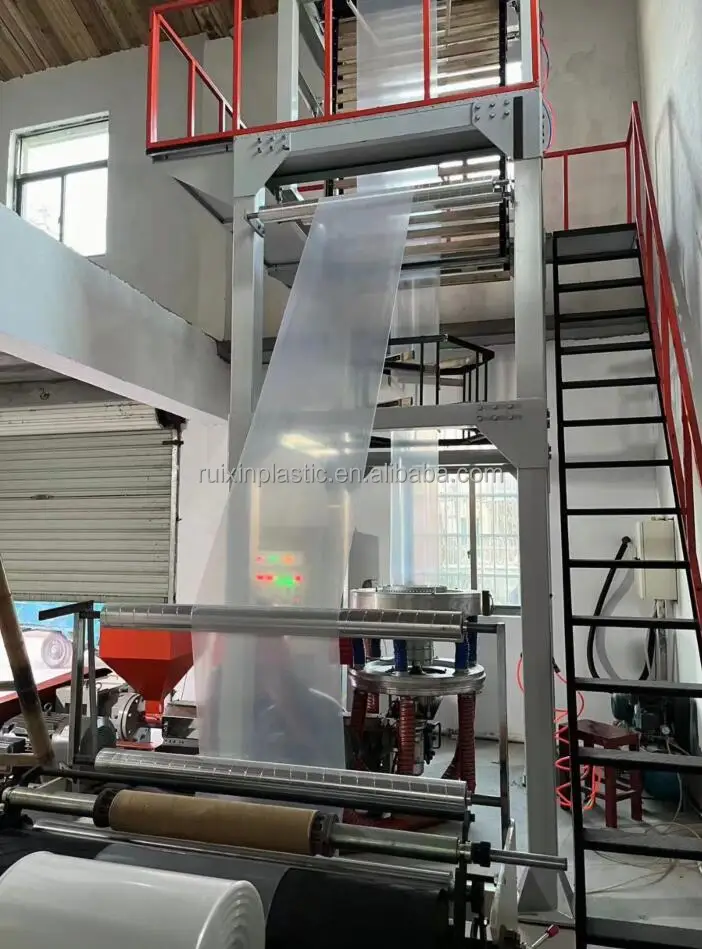

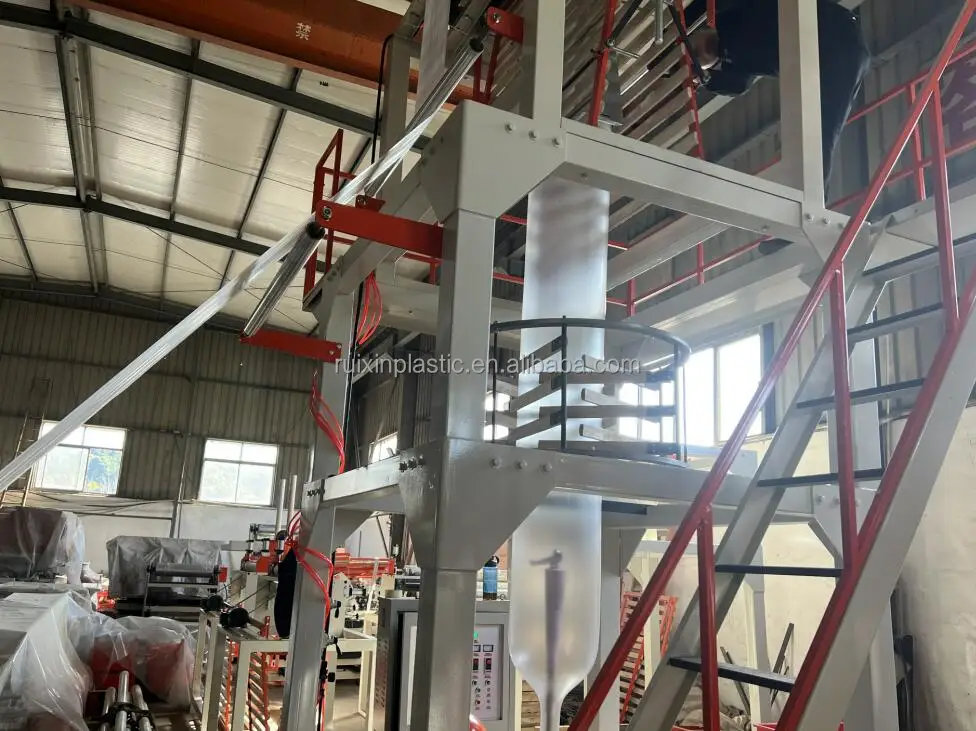

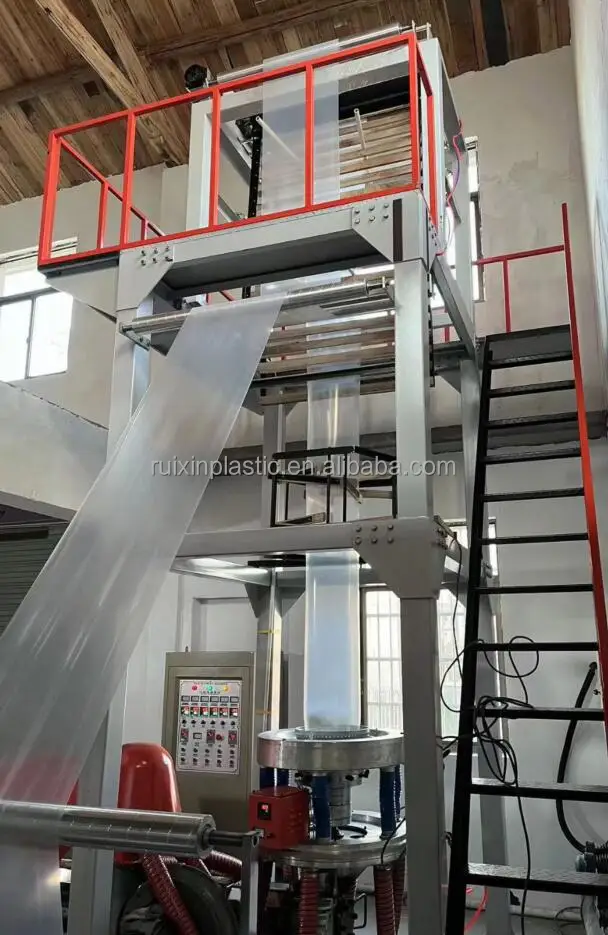

The Film Blowing Machine is used for blowing high-low pressure polyethylene, which has been widely used for producing laminating film, packing film,agricultural covering film, bag or film for textile and clothing and other packing material.
The main motor adopts frequency control of motor speed to improve the speed regulating stability of main motor and save electricity by 30%.
The screw and material barrel adopt 38 CrMoAl, which has been nitrogen treated and the traction frame adopt
thick iron plate with more stable and good quality
The die head adopt 40cr steel with plating chrome ,with advantage -abrasive resistance ,high hardness and perfect plasticizing !
The main motor adopts frequency control of motor speed to improve the speed regulating stability of main motor and save electricity by 30%.
The screw and material barrel adopt 38 CrMoAl, which has been nitrogen treated and the traction frame adopt
thick iron plate with more stable and good quality
The die head adopt 40cr steel with plating chrome ,with advantage -abrasive resistance ,high hardness and perfect plasticizing !

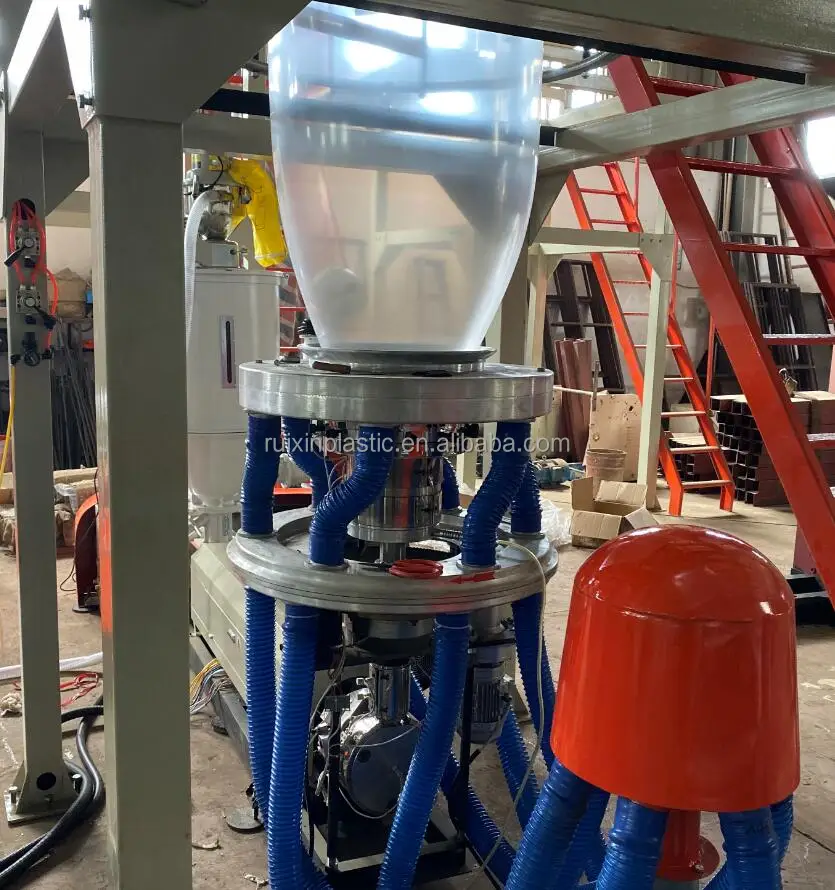

The Die head

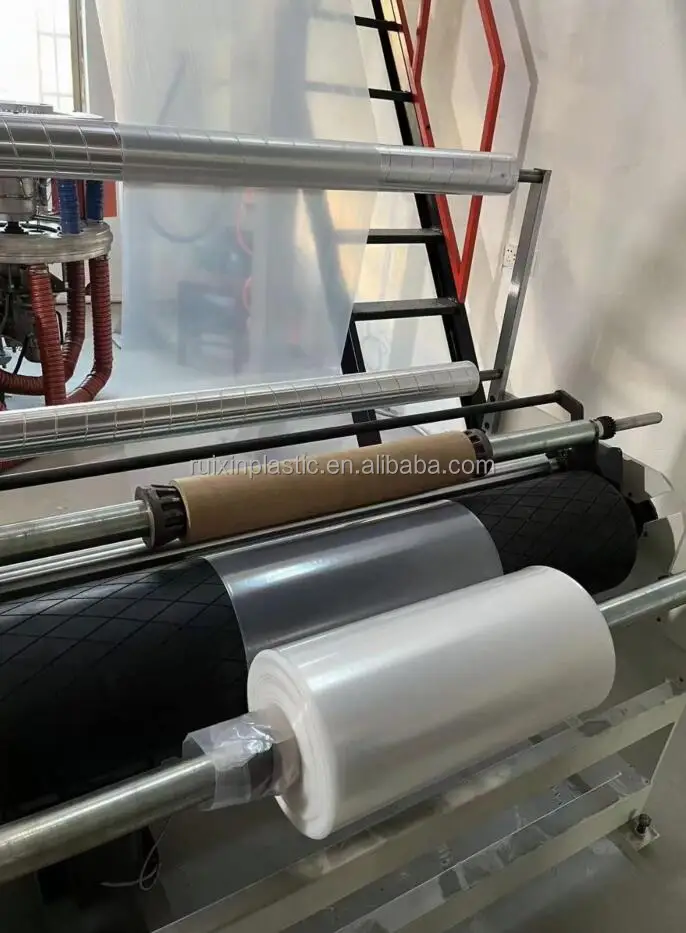

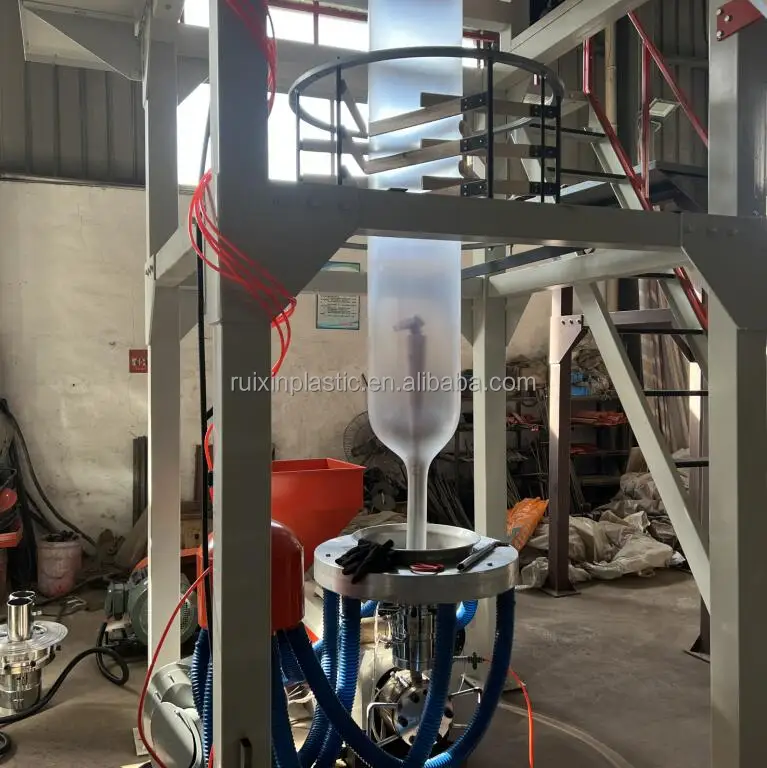

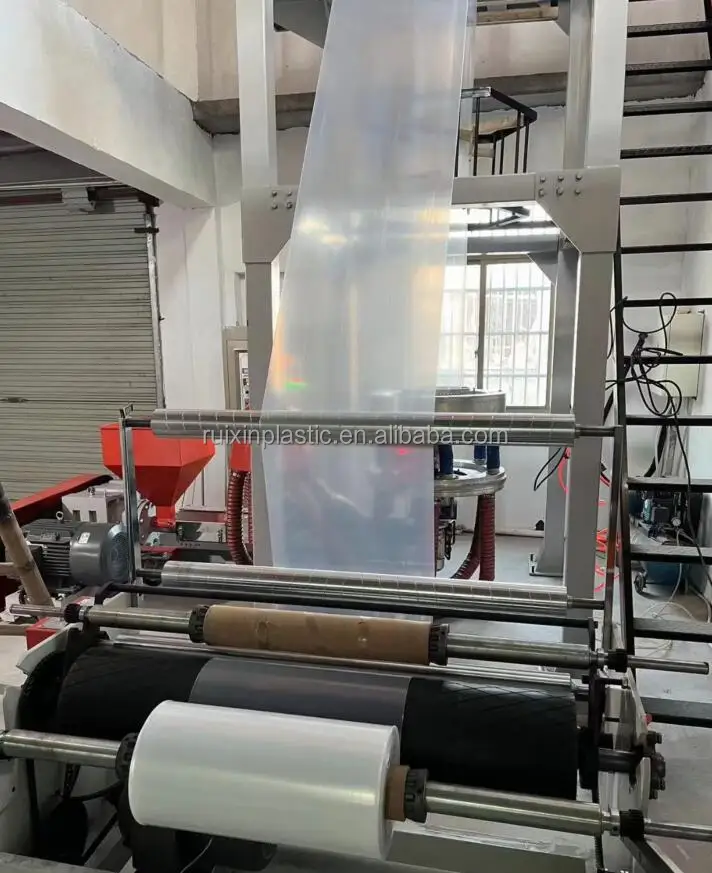

The Film bowing Machine is blowing film effect ,stable and with good film

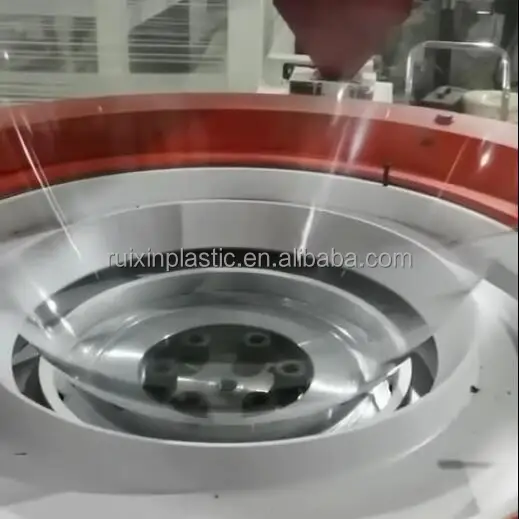

Die head inside
Die head inside plating thick chrome,it will have good plastify with high quality film
The Extruder screw
The screw adopt high quality with bimetallic quality ,more hardness and good mixer
Screw Surface
Screw material adopt 38CrmoAl with bimetallic ,long life,good resistance,good corrosion

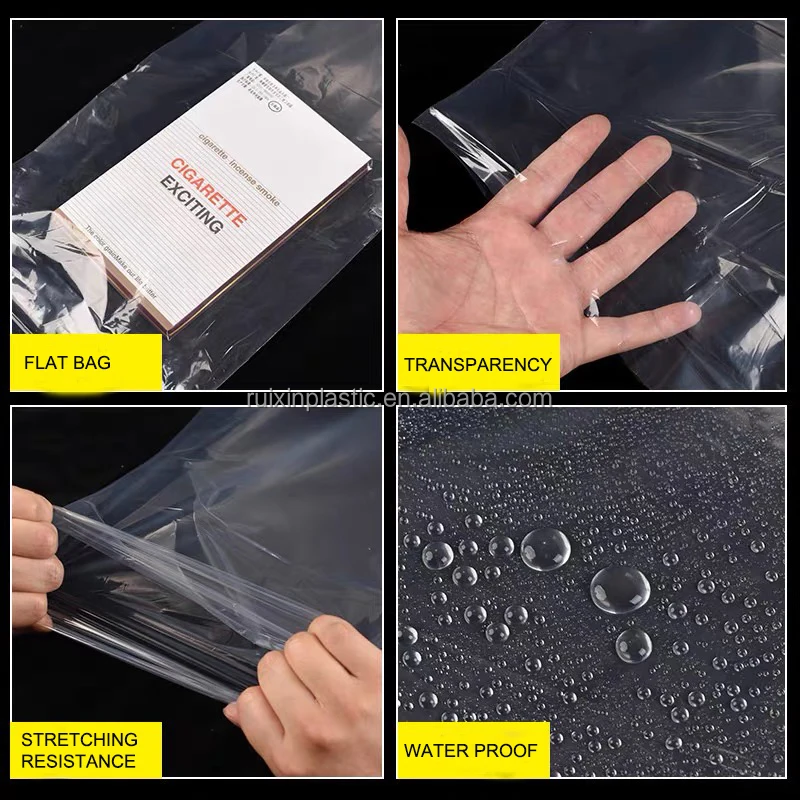

HDPE bag
LDPE Bag
LDPE Flat bag
Specification
Type | RSJ50-700 | RSJ-55-900 | RSJ60-1100 | RSJ65-1350 | |||
Max Layflat Width(mm) | 600 | 800 | 1000 | 1200 | |||
Film Thickness (mm) | 0.008-0.1 | 0.008-0.1 | 0.008-0.1 | 0.008-0.1 | |||
Max Output(KG/H ) | 30 | 50 | 70 | 80 | |||
Raw material | HDPE / LDPE /LLDPE | ||||||
Screw diameter (mm) | 50 | 55 | 60 | 65 | |||
Screw L/D ratio | 28:1 | 28:1 | 28:1 | 28:1 | |||
Screw max ration speed | 10-80r/min | 10-80r/min | 10-80r/min | 10-80r/min | |||
Main motor Power (Kw) | 11 | 15/18.5 | 18.5/22 | 22/30 | |||
Gear Box model | 133# | 146# /173# | 173#/180# | 180#/200# | |||
Die structure | Spiral Approach | ||||||
Air ring structure | Single lips or Dual lips | ||||||
Take-up Speed | 10-60m/min | 10-60m/min | 10-60m/min | 10-60m/min | |||
Total Capacity | 18Kw | 25Kw | 35Kw | 45Kw | |||
Blower | 2.2Kw | 2.2Kw | 3Kw | 3.7Kw | |||
Voltage | 380/220/440/415v | ||||||
Dimension (L xWxH)m | 3.2x1.7x4.5 | 4.2x1.7x5 | 4.8x2.1x6 | 5.8x2.4x6 | |||
Weight (Ton) | 1.7 | 2.2 | 2.5 | 3.6 | |||

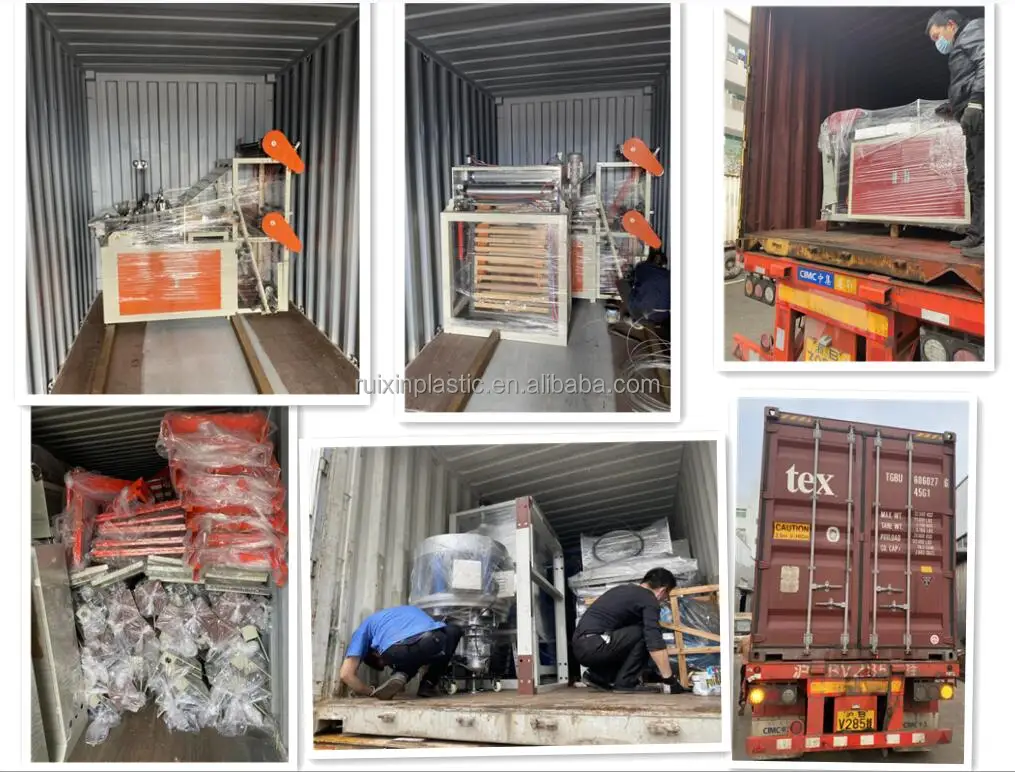

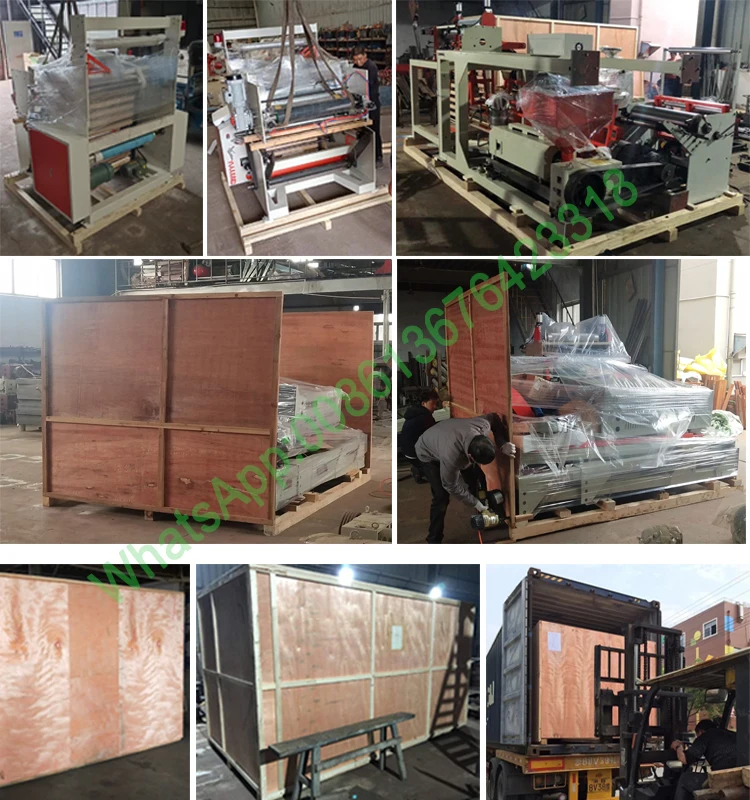

Packing & Delivery

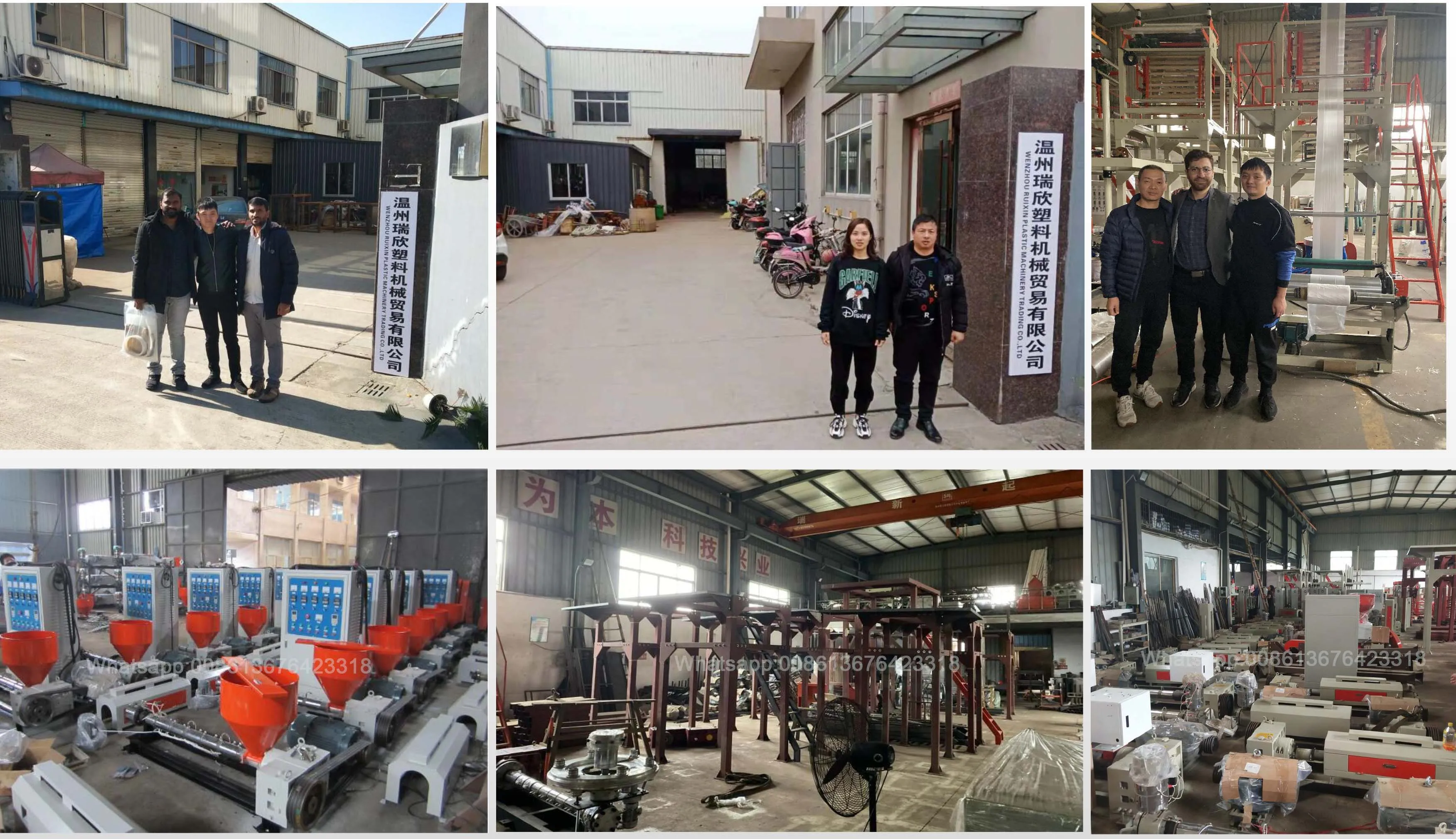

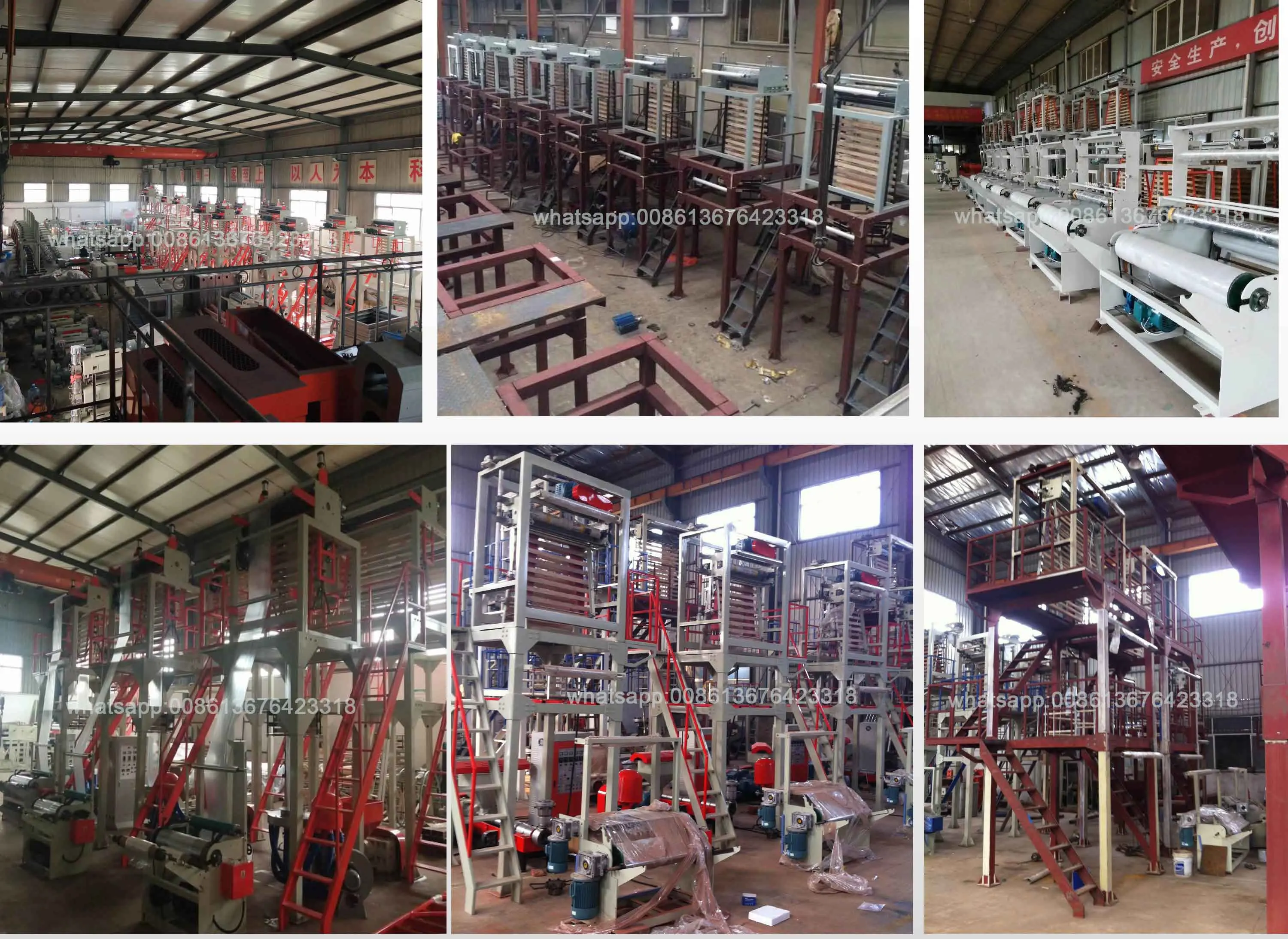

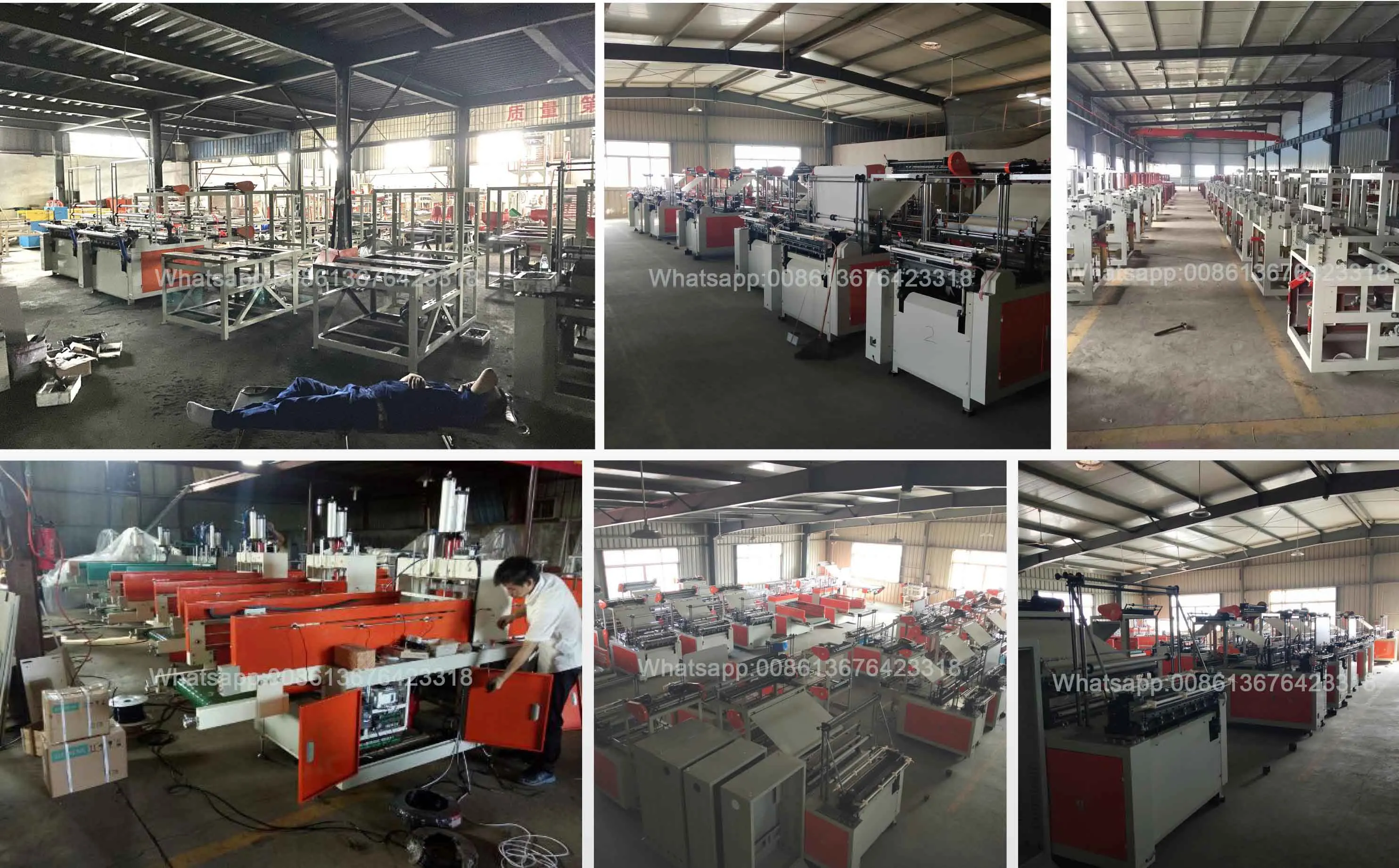

Company Profile
Our Factory has manufactured the machine since 2000 Years , We have professional and rich experience engineer and designer , We have Special and professional exporting team who can supply good service ! We sold the machine to help each customer to open his market and develop him to be a good leader in his local city
