hot sale technical galvanized steel access floor for office building
US $19.00-$21.00

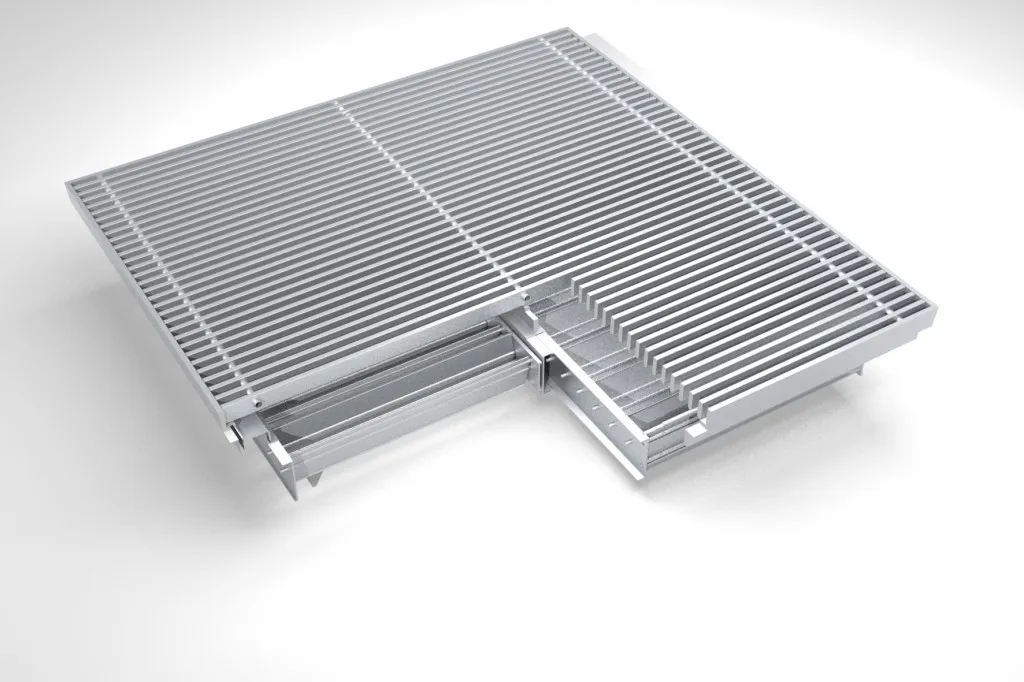

Data Center Raised access floor ESD false floor modular decking system Aluminum Access Flooring from Direct Supplier
- Category: >>>
- Supplier: Guangzhou Hedsom Building Material Co. Ltd.
Share on (1601076604166):
Product Overview
Description
Recommend Products
Product Description
Anti-Static 600mm*600mm
Raised Access Floor False Floor
Adjustable Modular Decking System

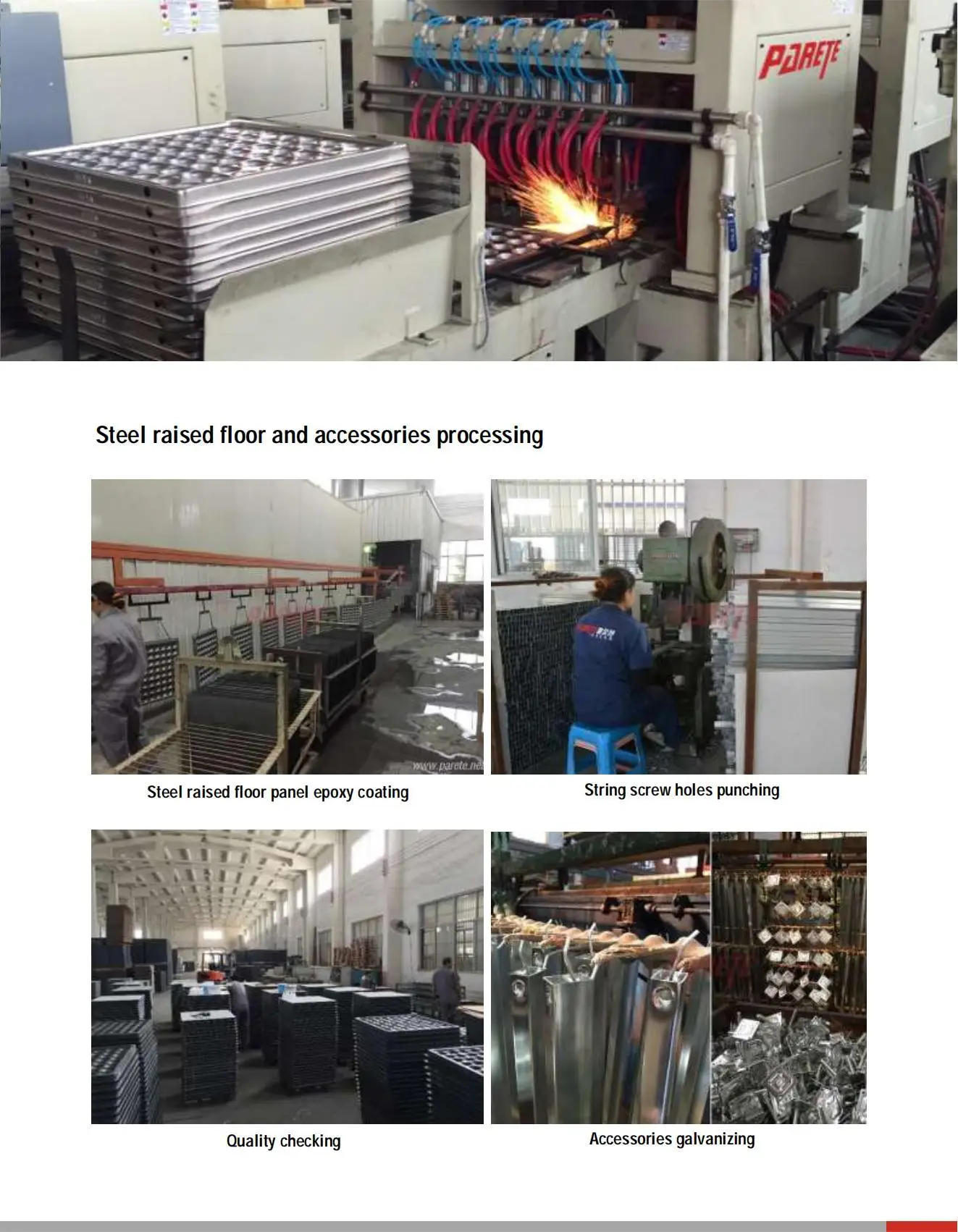

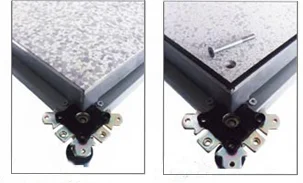

Antistatic Access Floor is made of good quality cold-rolled steel sheet with foaming cement fully filled. The bottom is high quality deep stretch coil steel plate. The top is cold rolled hard plate. The top steel plate and bottom steel plate are spot-welded to form a high quality shell. The shell is treated by phosphate and painted with epoxy powder coating. Then foaming cement will be filled into the shell. After curing, the structure will be stable and strong to support the designed loading capacity . The access floor panel has high strength and high durability.
Product advantages:
1. Made of steel plate, high mechanical strength, high loading capacity, good fire resistance.
2. Epoxy power painting on surface, matt and soft, wear resistant and anti-corrosion.

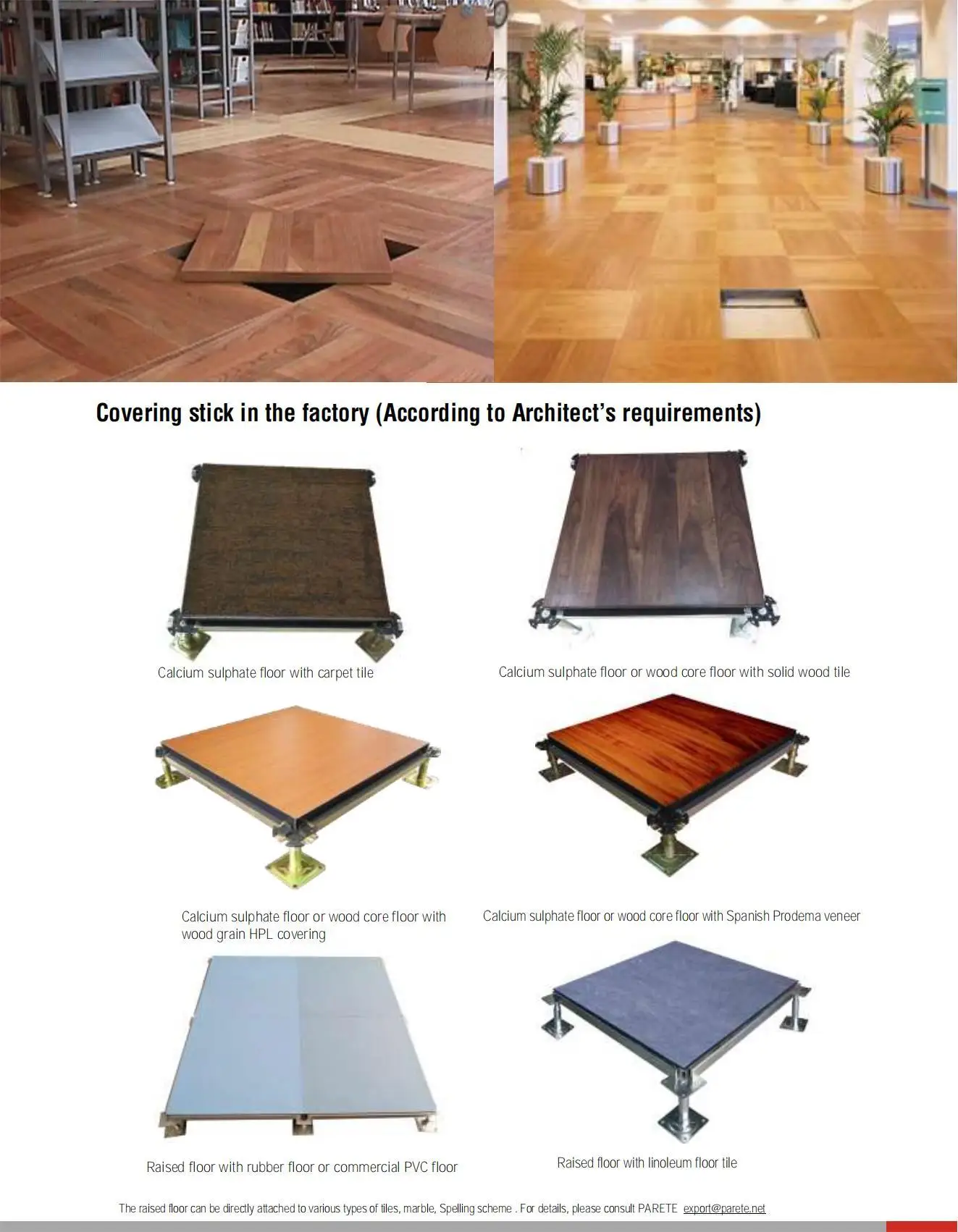

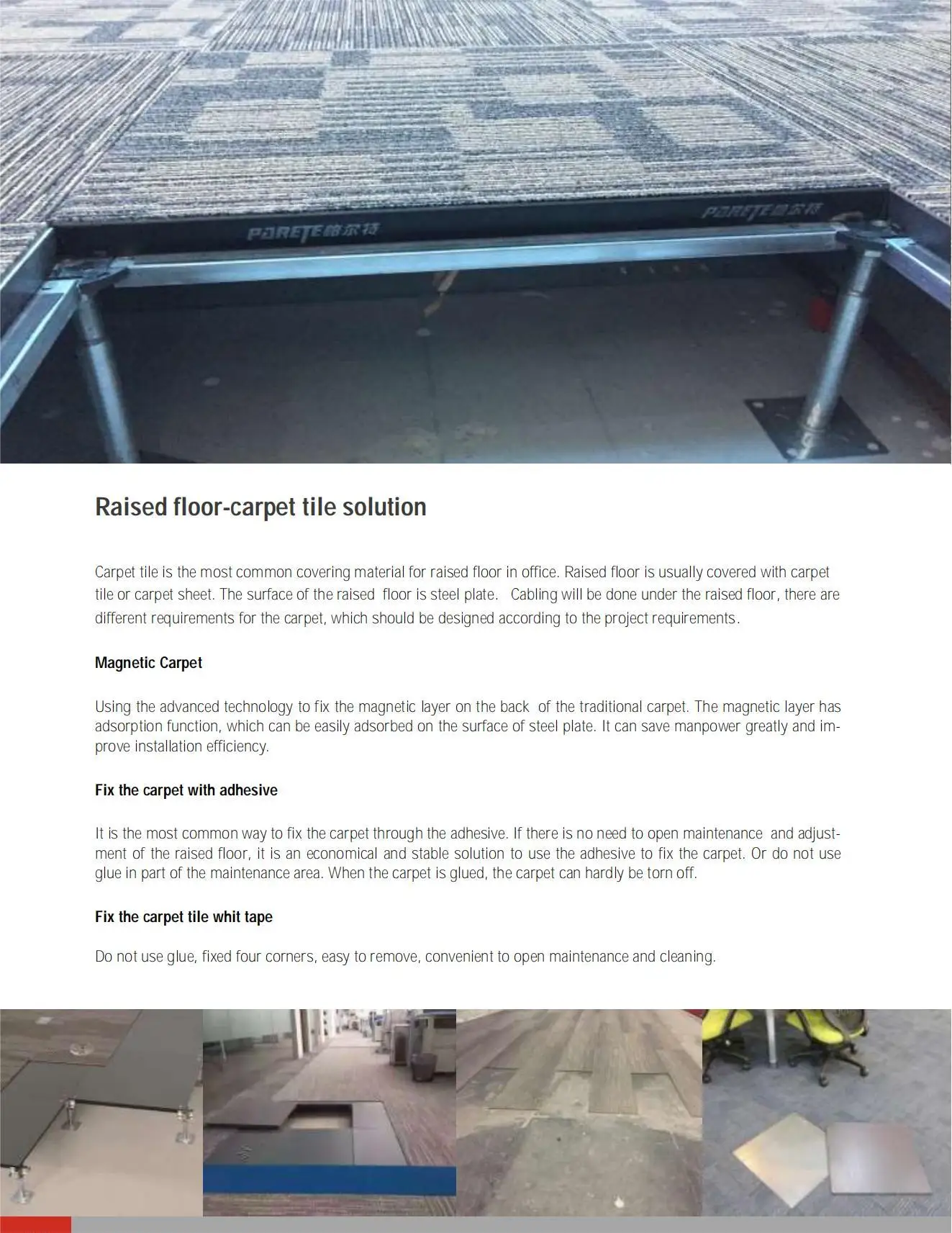

3. Covering is glued under high pressure. Multiple choices and good decorated surface. Wear resistant and anti scratch, excellent electrical conductivity, anti pollution and easy cleaning.
4. High dimensional accuracy, interchangeable, flexible assembly, easy maintenance.
5. Products can be upgraded or adjusted according to the loading requirements.
2. Epoxy power painting on surface, matt and soft, wear resistant and anti-corrosion.
3. Covering is glued under high pressure. Multiple choices and good decorated surface. Wear resistant and anti scratch, excellent electrical conductivity, anti pollution and easy cleaning.
4. High dimensional accuracy, interchangeable, flexible assembly, easy maintenance.
5. Products can be upgraded or adjusted according to the loading requirements.
High Quality
After using a variety of special paper phenolic, melamine, resin processing, high temperature and pressure made of thermosetting resin decorative laminates. It is not only bright color, bright and smooth, and has a wear-resistant, heat resistance, pollution, washable and permanent decorative features, the standard thickness of 0.8mm, 1.0mm, 1.2mm, 1.5mm, the thickness can development of user requirements.
High pressure melamine laminate is widely used in varies computer rooms and data centers. It is anti-static, anti-wear and free of pollution. It is anti scratch and wear resistance. It is economical and easy glued on the surface of metal, calcium sulphate panel and wood core surface. So it is the most welcome floor covering.
High pressure melamine laminate is widely used in varies computer rooms and data centers. It is anti-static, anti-wear and free of pollution. It is anti scratch and wear resistance. It is economical and easy glued on the surface of metal, calcium sulphate panel and wood core surface. So it is the most welcome floor covering.
Computer room and data center
Supply the cooling air from the underfloor and return the air from top is the most common way of air conditioning system in large or medium scale data center or computer room. The cooling air from the air handling unit (AHU) will fast reach to the cabinet and equipment. The density of cooling air is larger than the hot air, so the cooling air will go down and the hot air will go up. When the hot air goes up, the cooling air will fill the space left by the hot air gone. Then it will be a circulation. This is a thermodynamic circulation. This circulation don’t like the horizontal flowing wind. It is a convective motion. It is helpful for the cooling of the equipment.

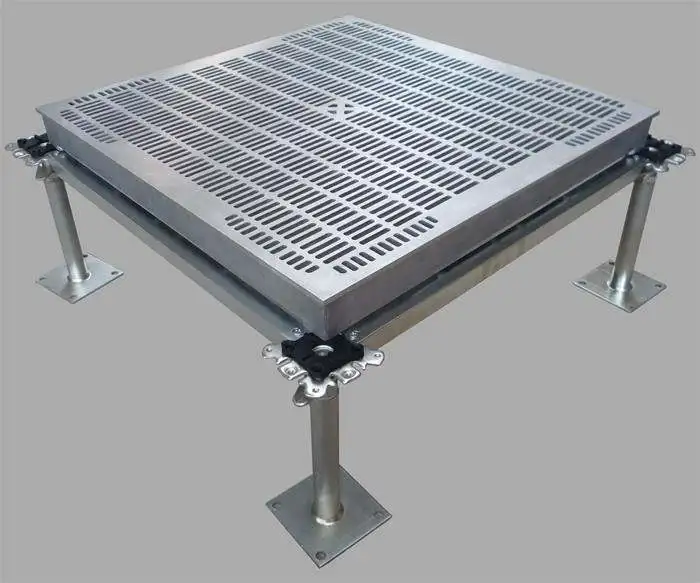

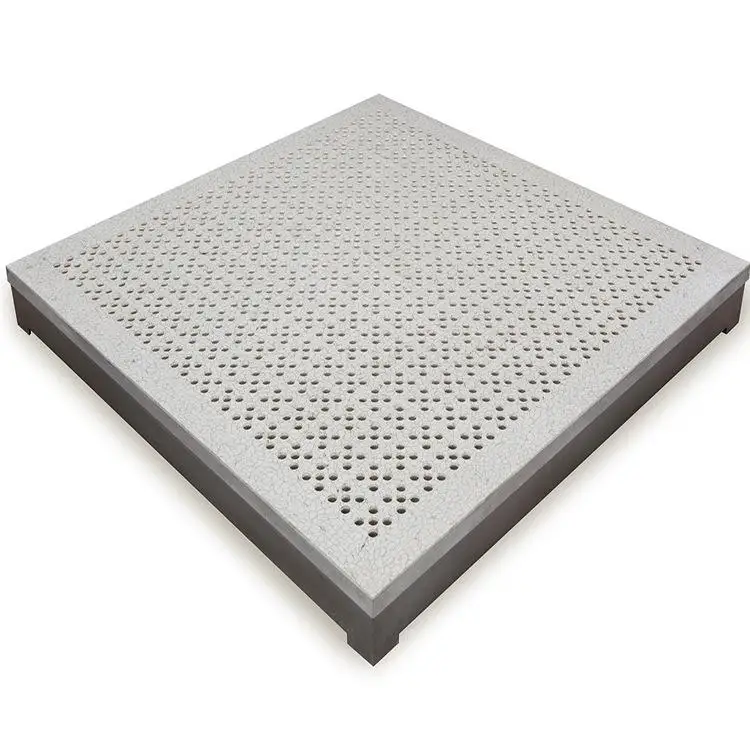

The anti-static perforated access floor provide a perfect solution to achieve this kind of air conditioning system. The perforated access floor will be raised to a designed height. The cooling air will be supplied under the access floor. There are steel and aluminum perforated access floor. The steel anti-static perforated access floor system will be in the page 8-9 and the aluminum will be in page 12-13 of this brochure.
The anti-static perforated access floor provide a perfect solution to achieve this kind of air conditioning system. The perforated access floor will be raised to a designed height. The cooling air will be supplied under the access floor. There are steel and aluminum perforated access floor. The steel anti-static perforated access floor system will be in the page 8-9 and the aluminum will be in page 12-13 of this brochure.
Cleaning Room
Cleaning room is a super clean environment. It not only need to control the ventilation, filtration, temperature, humidity, pressure and ionization etc., but also need to control the materials and other parameters. The cleanliness of the cleaning room is decided by the aerosols’ quantities in the air. The unit of the aerosols is micrometer ( 10-6 meter, 0.000039 inch ).
It is very necessary to control the static charge generated in the cleaning room. Static may influence on the production.The automatic equipment may be failure for the electromagnetic interference of static charge. Electro static attraction (ESA) generated by static charge will reduce the particles attached on the surface. Static charge have close relation with the pollution on the surface of products and tools. So people pay more and more attention to ESA. For example, a 4 inch chip takes 1000v static charge. It will cause 830000 lbf/Sq. in ESA intensity to a particle of 1 micrometer diameter. So the ESA on the static charge item is much higher than the gravity, air force and adhesive force. So conduct the static charge is very important for cleaning room. The anti-static access floor is one of the most important anti-static material in the cleaning room.
It is very necessary to control the static charge generated in the cleaning room. Static may influence on the production.The automatic equipment may be failure for the electromagnetic interference of static charge. Electro static attraction (ESA) generated by static charge will reduce the particles attached on the surface. Static charge have close relation with the pollution on the surface of products and tools. So people pay more and more attention to ESA. For example, a 4 inch chip takes 1000v static charge. It will cause 830000 lbf/Sq. in ESA intensity to a particle of 1 micrometer diameter. So the ESA on the static charge item is much higher than the gravity, air force and adhesive force. So conduct the static charge is very important for cleaning room. The anti-static access floor is one of the most important anti-static material in the cleaning room.
Specification
item | value |
Warranty | 1 Year |
After-sale Service | Online technical support |
Project Solution Capability | graphic design |
Application | Data Center |
Design Style | Modern |
Place of Origin | China |
Brand Name | Hedsom |
Model Number | AL |
Material | Steel with cement |
Product Name | raised access floor false floor modular decking system |
Type | Anti-Static Raised Access Flooring System |
Electrical resisntance | 10^6~10^9 Ohm |
Product No | PRT-FS662, PRT-FS800, PRT-FS1000 |

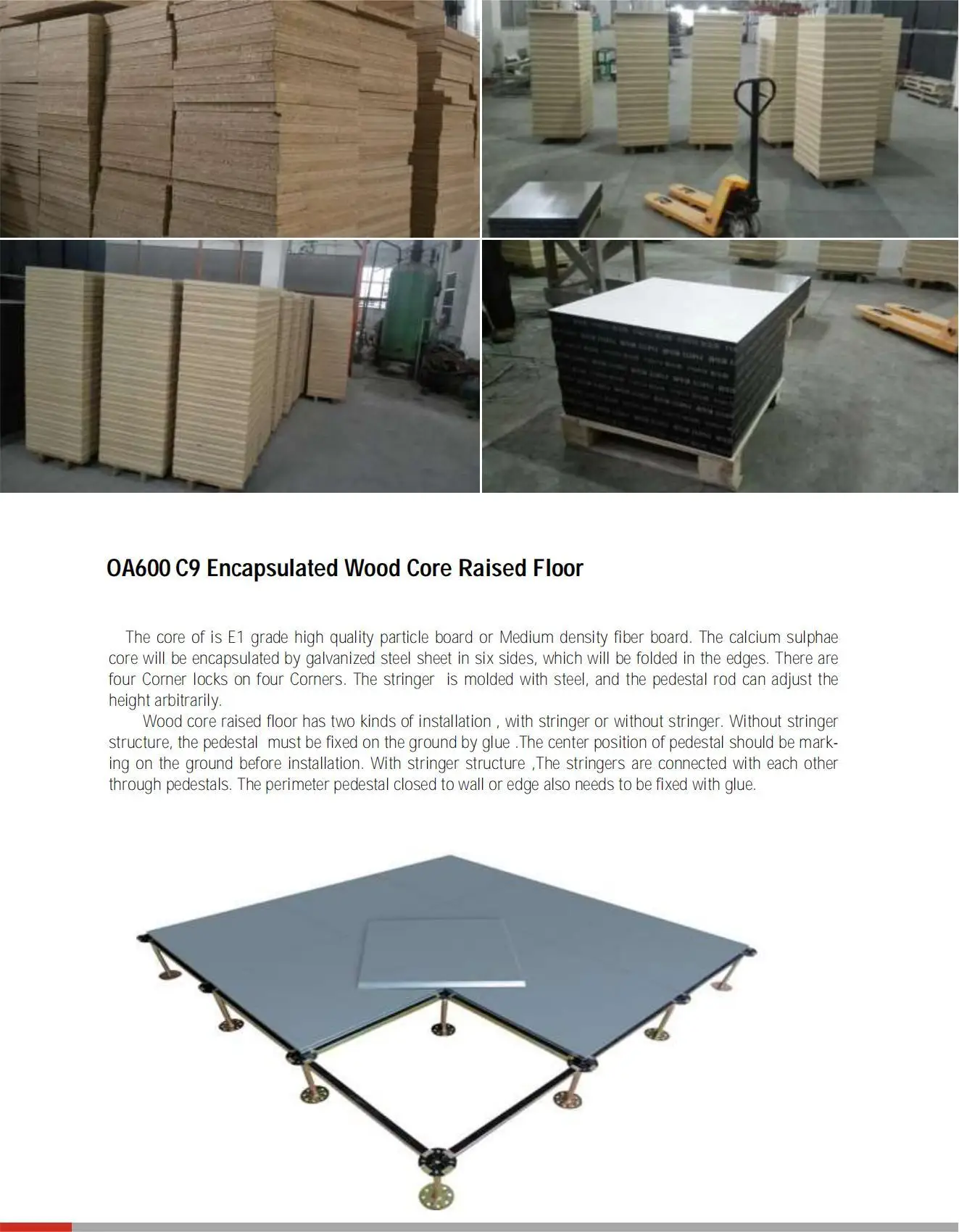

Material | Aluminum Alloy, Steel, HPL, Ceramic Tile, Wood Core, Calcium Sulphate, |
Application | Date Center, Computer Room, Clean Room |
Function | Anti-static.waterproof.fireproof |
Size | 600x600x35mm |
Certificate | CE / ISO9001/ISO14001 |
MOQ | 200 Sqm |

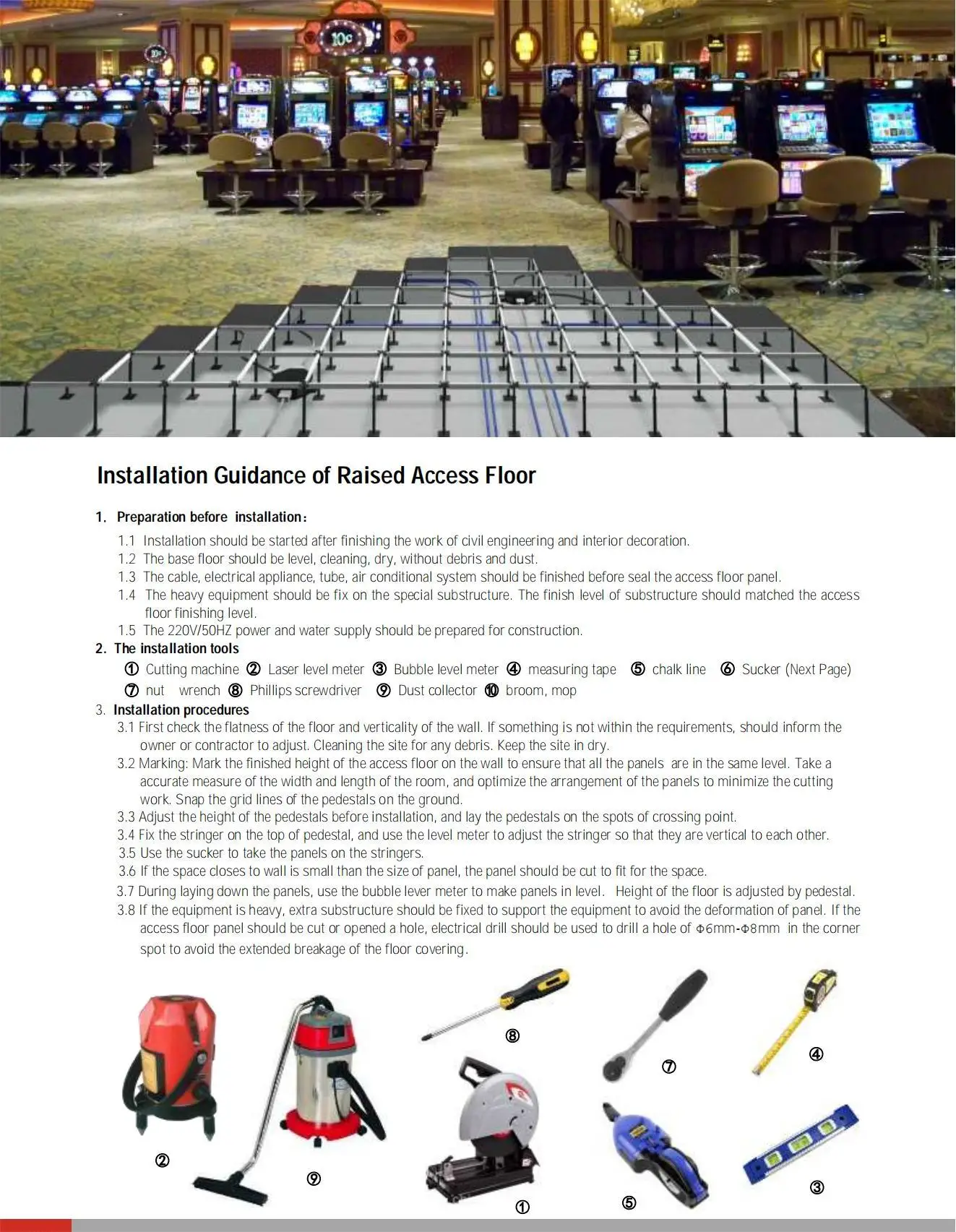

Installation Instructions

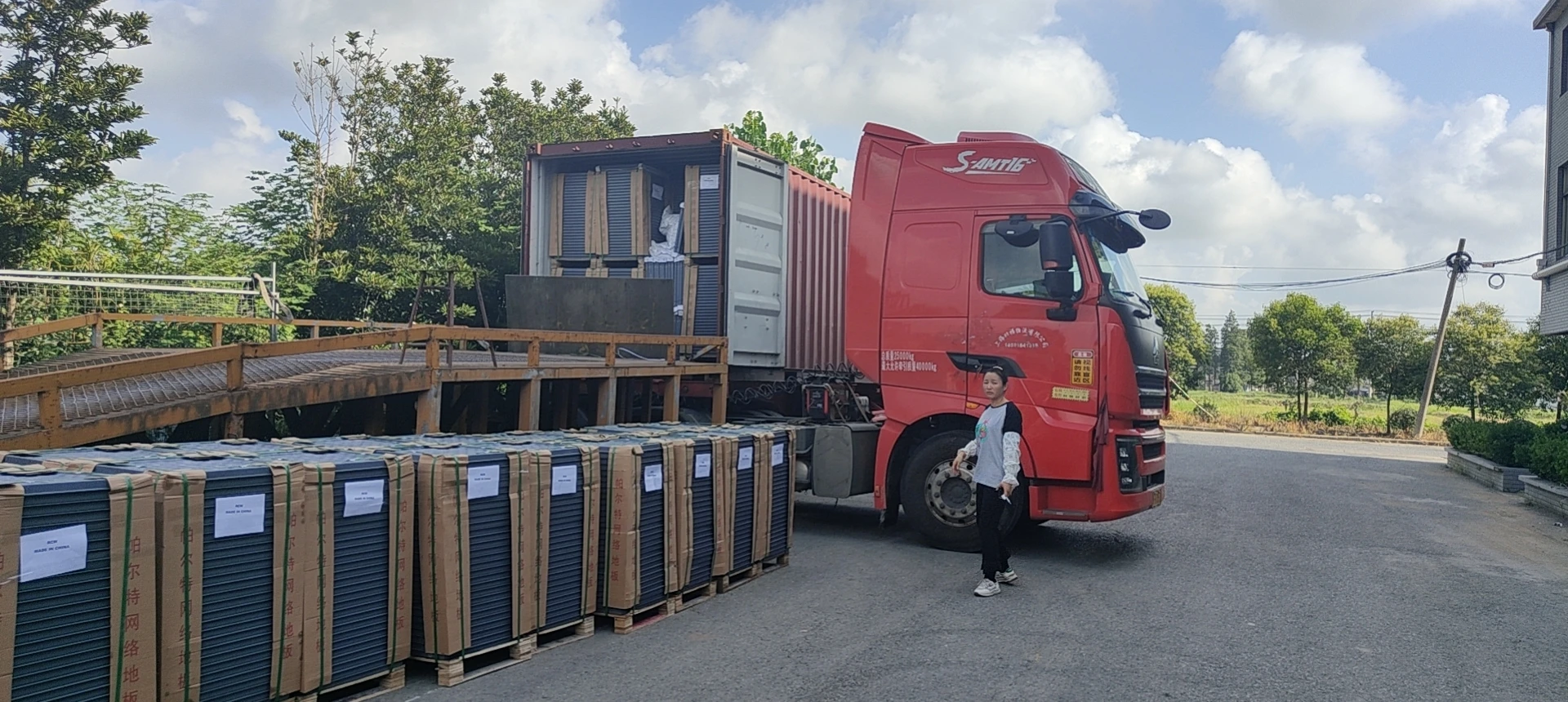

Packing & Delivery
The use of pallets to load products is more stable and protects the stability of products in the transportation process; To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Hedsom concentrated on the new flooring material research, design and production. Hedsom provide customer with system solution in Raised Access flooring.
Hedsom flooring products are easy installation and widely used in data center and control center, factory cleaning room, etc. The products have been exported to more than 80 countries.
Hedsom is a professional supplier of anti-static raised floors, offering high-quality products. With a scientific manufacturing
process and an innovative spirit, we have been serving customers for 15 years. Our excellent products have been provided to over
80 countries and regions worldwide.
process and an innovative spirit, we have been serving customers for 15 years. Our excellent products have been provided to over
80 countries and regions worldwide.
