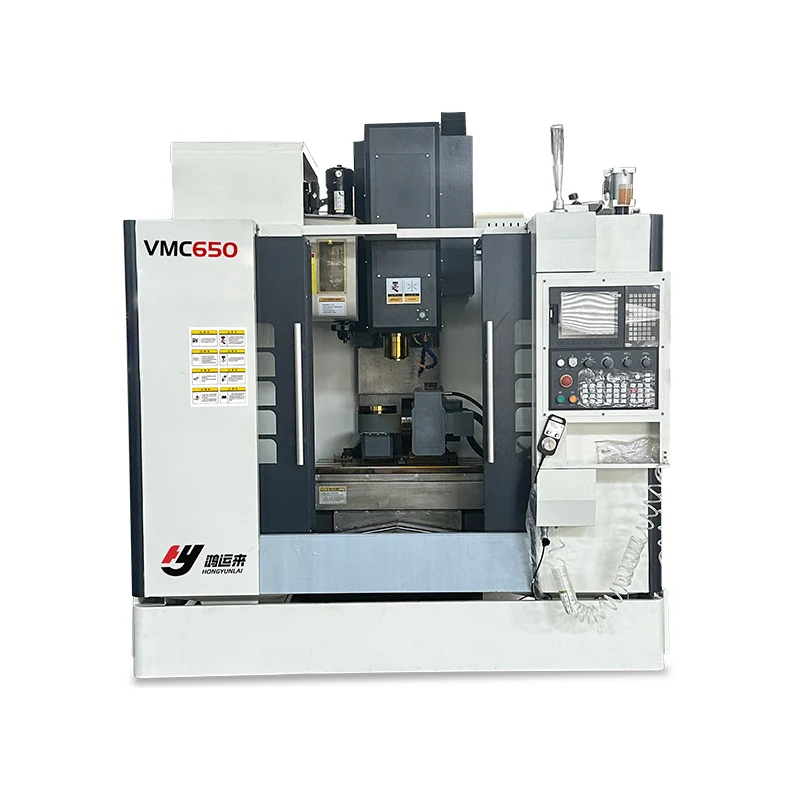

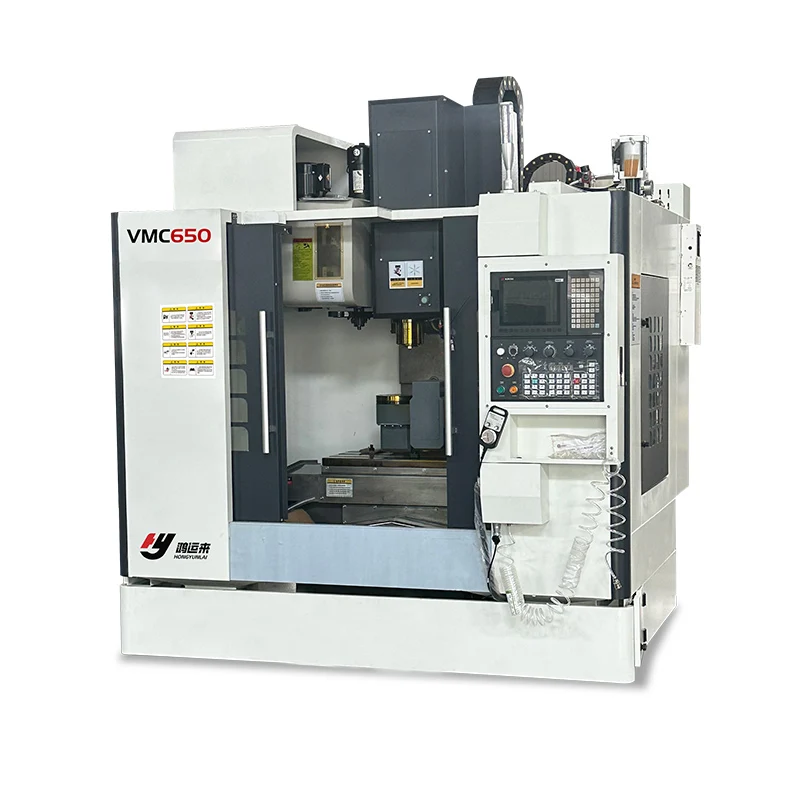

Vertical Machining Center VMC650 CNC vertical milling machine fanuc
- Category: >>>
- Supplier: Shandong Hongyunlai Industrial Technology Co. Ltd.
Share on (1601076701977):
Product Overview
Description

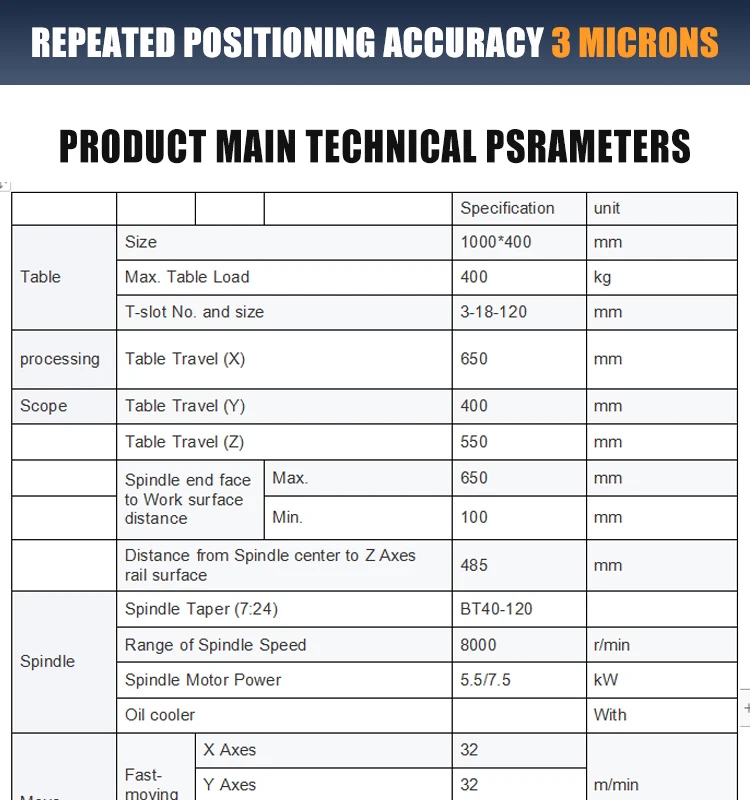

specification | unit | ||
VMC650 |
| ||
Work table | Worktable size | 1000×400 | mm |
| Worktable max.load | 400 | kg |
| T-slot (number*width*distance) | 3-18-120 | mm |
Travel | X-axis travel | 650 | mm |
| Y-axis travel | 400 | mm |
| Z-axis travel | 550 | mm |
| Distance from spindle nose to table surface | 100-650 | mm |
| Distance from spindle center to column guideway | 485 | mm |
Spindle | Spindle taper | BT40-120 |
|
| Spindle speed | 8000 | r/min |
| Spindle motor | 5.5 | kW |
Feed Speed | X/Y/Z-axis rapid feed | 32/32/32 | m/min |
| Cutting feed speed | 1-10000 | mm/min |

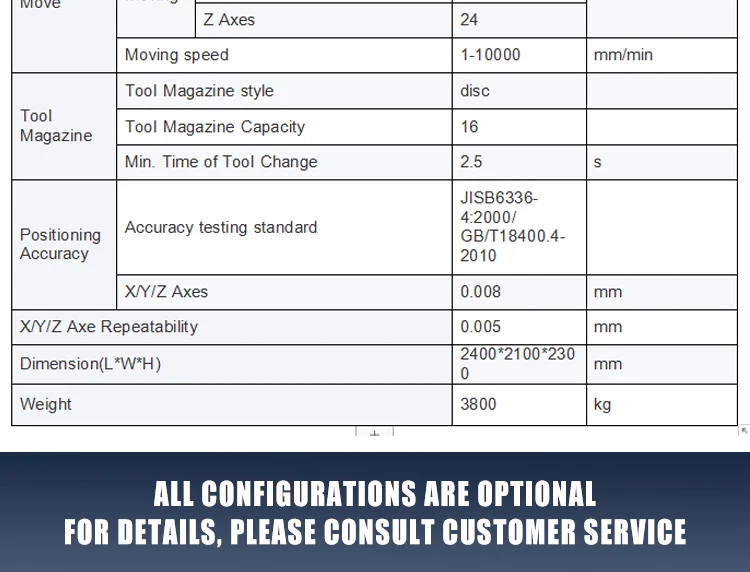

Tool magazine | Tools change way | Arm type ATC |
|
| Tool number | 16 | pcs |
| Tool change time | 2.5 | s |
Precision | test standard | JISB6336-4:2000/ GB/T18400.4-2010 |
|
| Positioning precision | 0.008 | mm |
| Reported positioning precision | 0.005 | mm |
other | size | 2400×2100×2300 | mm |
| weight | 3800 | kg |
