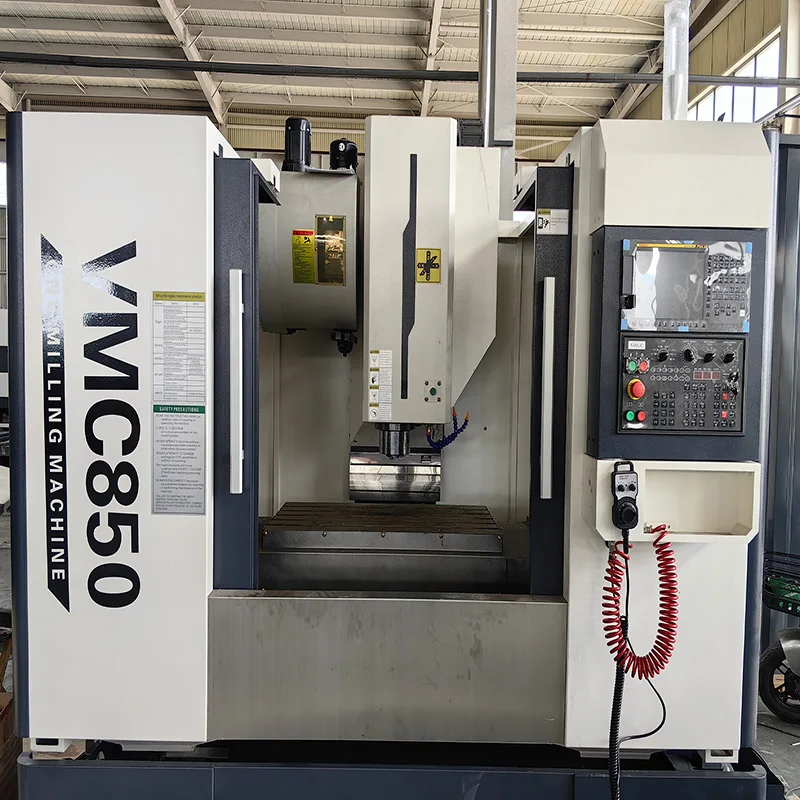

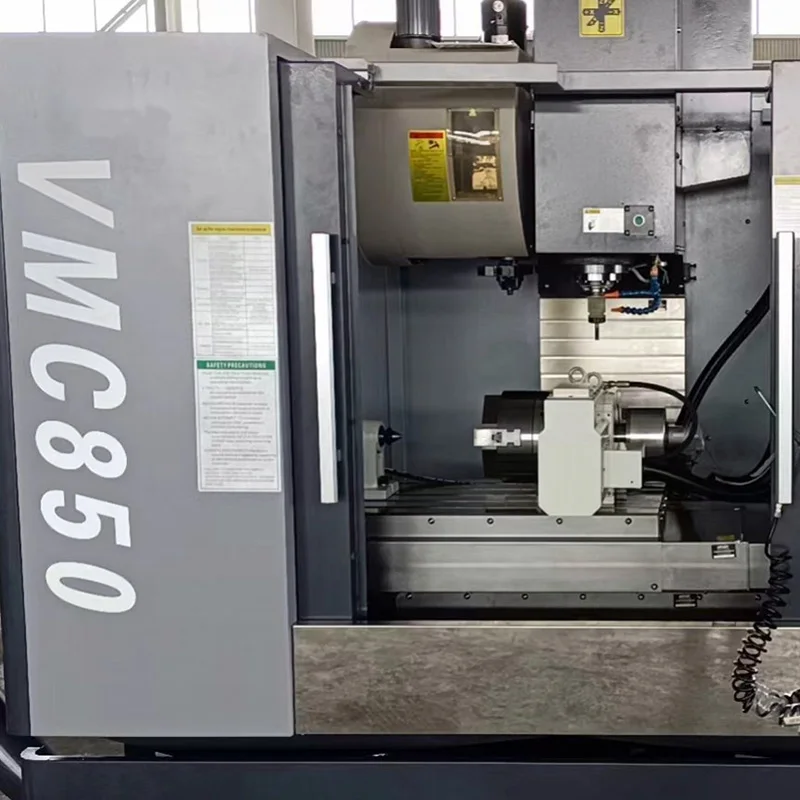

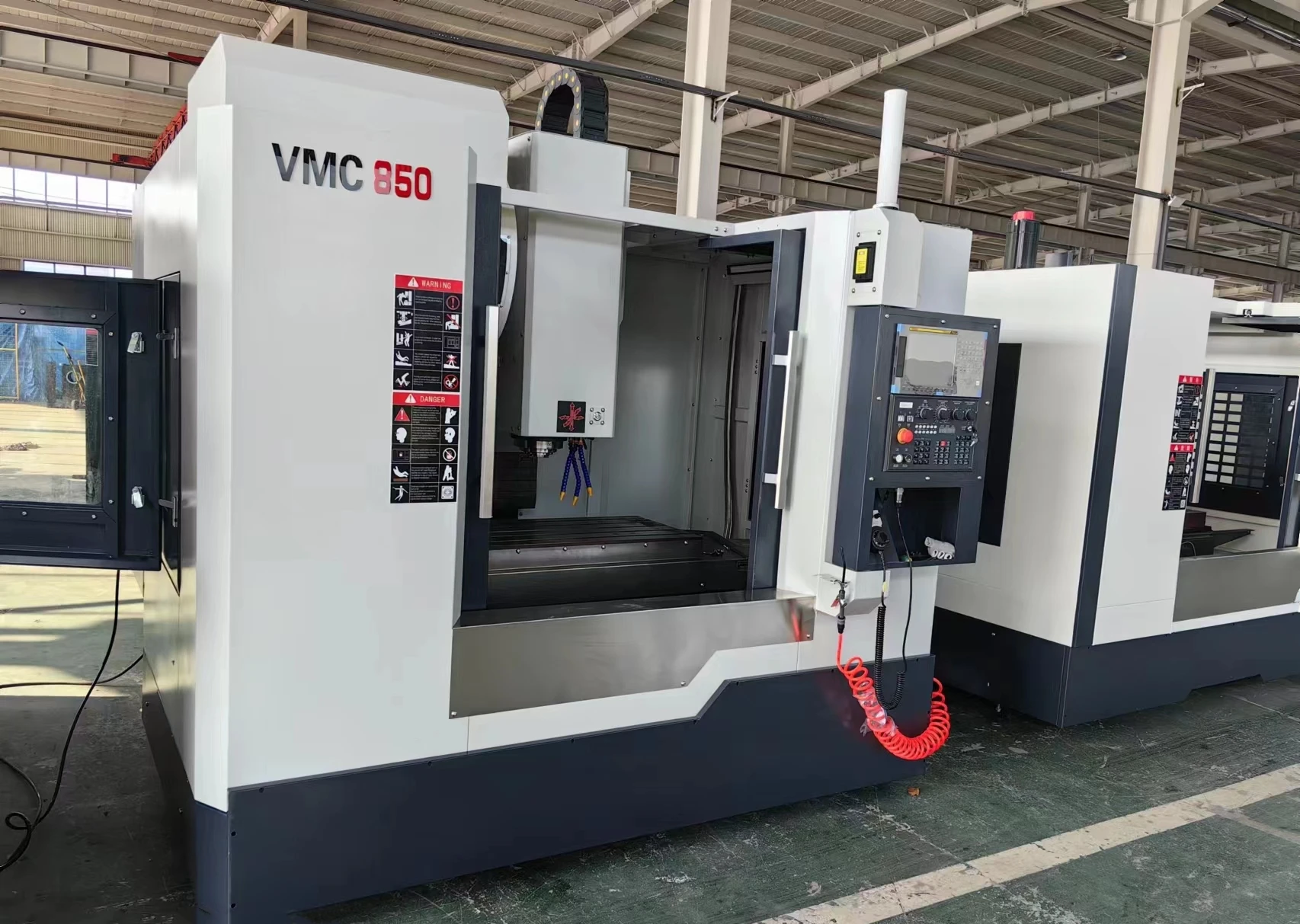

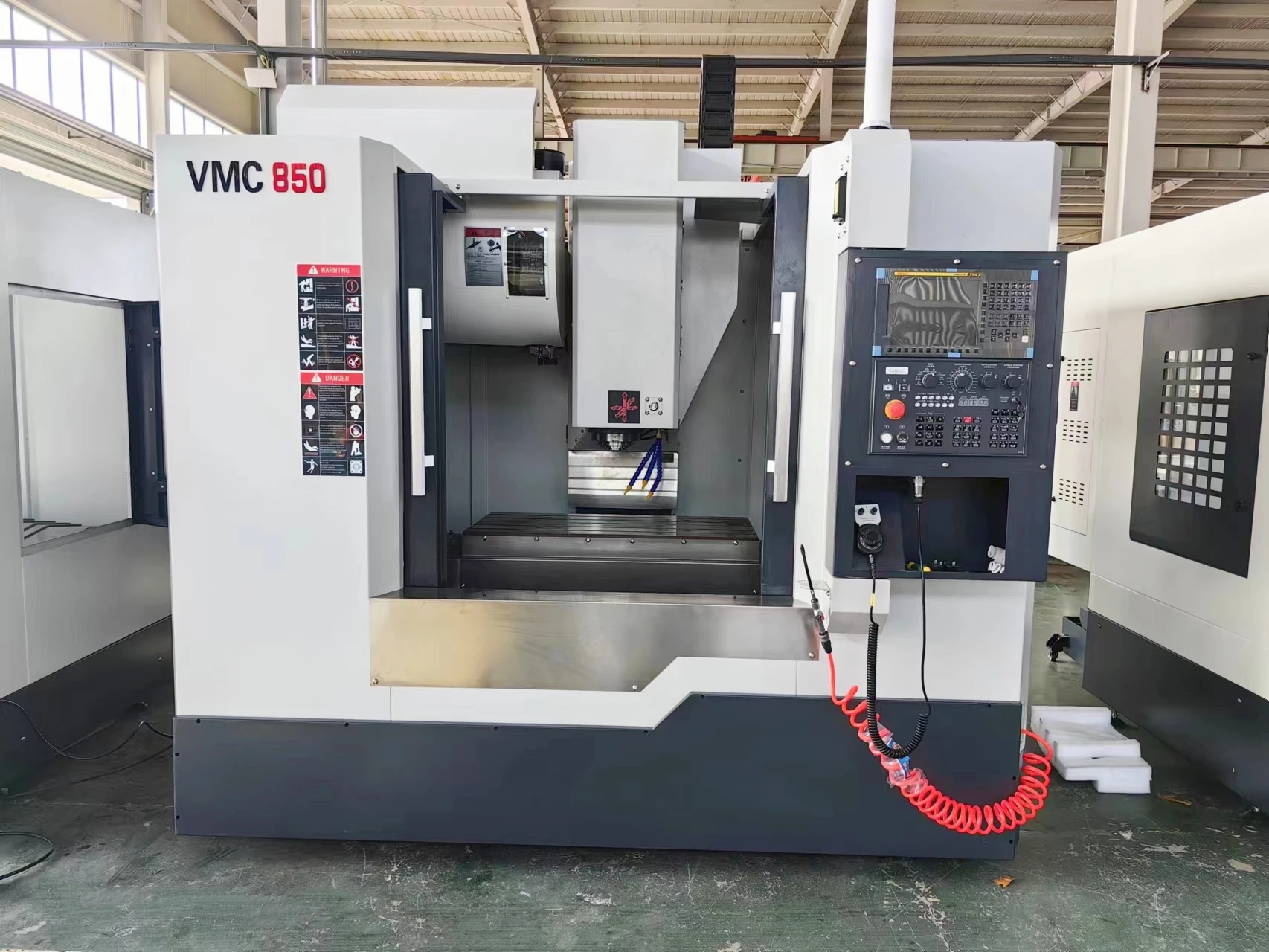

Best price milling machining tools vmc850 with 4 5axis 10000rpm cnc vertical milling machine center
- Category: >>>
- Supplier: Shandong Yijin Cnc Machine Tool Co. Ltd.
Share on (1601076728744):
Product Overview
Description
Technical Parameters | Unit | Specifications |
Table size | mm | 1000*500 |
Table maximum load | kg | 600 |
X/Y/Z axis travel | mm | 800*500*500 |
Distance between spindle center and column guide surface | mm | 550 |
Distance between spindle end face and worktable surface | mm | 140-740 |
X/Y/Z Max.feed speed | mm/min | 8000 |
X/Y/Z Max.rapid traverse | m/min | 48/48/36 |
The spindle maximum speed | R/min | 8000 |
The spindle taper hole | type | BT40 |
Spindle motor | kw | 7.5/11 |
X/Y/Z axis servo motor | kw | 2.0/2.0/2.0 |
X/Y/Z motor connection | Direct connection | |
The workbench T slot | mm | 5-18*90 |
Repeat positioning accuracy | mm | +0.004 |
Max.toll weight | kg | 8 |
Max.toll length | mm | 250/350 |
Electric capacity | kva | 11 |
Machine size(L/W/H) | mm | 2700*2250*2700 |
Net.weight(about) | kg | 5500 |
