Product Overview
Description
Handheld Laser Welding Machine Fiber Laser Welder Hand welding machine for welding metal sheet
LOOKE Handheld Laser Welding Machine System with Precise welding 1000w 1500w 2000w,compared with traditional welding equipment,more safer,more efficient, energy-saving and environmentally friendly.
Product Description
Specification
Model | LOOKE Handheld Laser Welding Machine 1000/1500/2000W High-Power Continuous Laser Welder |
Welding joint | SUP20T Welding joint |
Wire feeder | Wuxi Chaoqiang Weiye wire feeder |
Water Chiller | S&A |
Wavelength range | 1080± 10 nm |
Output core diameter | 20 μm |
Optical cable length | 10 m |
Output connector | QBH |
Indicator light | Red |
Working model | continuous or pulsed |
Type | 4 in 1 type( cutting/ welding/ cleaning /weld bead cleaning) |
Polarization direction | Random |
Output power stability | (100% continuous) <3% (24 hours) |
Power adjustment range | 10%-100 |
Maximum modulation frequency | 20 kHz |
Working voltage | AC220V, single phase, 50-60hz |
Machine details
Our Advantages
Performance feature
1.Excellent beam quality: Smaller focus diameter , high work efficiency, better processing quality.
2. High cutting speed: 2-3 times faster than YAG and CO2 laser .
3.High Stability: Adopt superior quality fiber laser, stable performance, key parts can reach .
4. High efficiency for photoelectric conversion : Compared with CO2 laser cutting machine, Fiber laser cutting machine has 3 times photoelectric conversion and with energy saving & friendly environment
Advantages:
1. Low cost: The whole power consumption is only 20-30% of traditional CO2 laser cutting machine.
2.Low maintenance cost: It is with Optical fiber line transmission, no need reflector lens, can save a lot of maintenance cost.
3.Easy Operation : Fiber Line transmission, no adjustment of optical path.
4.Super-flexible optical effect : small volume, compact structure, easy to flexible manufacturing requirements.
1.Excellent beam quality: Smaller focus diameter , high work efficiency, better processing quality.
2. High cutting speed: 2-3 times faster than YAG and CO2 laser .
3.High Stability: Adopt superior quality fiber laser, stable performance, key parts can reach .
4. High efficiency for photoelectric conversion : Compared with CO2 laser cutting machine, Fiber laser cutting machine has 3 times photoelectric conversion and with energy saving & friendly environment
Advantages:
1. Low cost: The whole power consumption is only 20-30% of traditional CO2 laser cutting machine.
2.Low maintenance cost: It is with Optical fiber line transmission, no need reflector lens, can save a lot of maintenance cost.
3.Easy Operation : Fiber Line transmission, no adjustment of optical path.
4.Super-flexible optical effect : small volume, compact structure, easy to flexible manufacturing requirements.

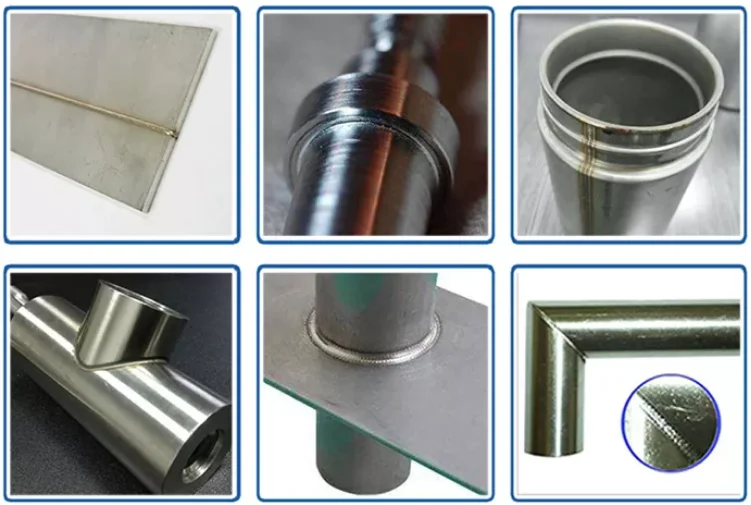

Sample exbition
Packing & Delivery
We will strictly inspection the goods before packing by professional team. Before shipping, they will commission cnc router firstly, then brush oil to linear guide, ball screw, and all the metal sheet,and then lubricate all the hinged parts like pin and bearings. All those wood carving machine will be kept clean,covered of plastic film and then put into the plywood case. Then the cnc router will be in its good conditions on the whole inland and sea transportation. When the machine arrives, a nice,safe,strong and beautiful packaging will catch the client's eyes unexpectedly.

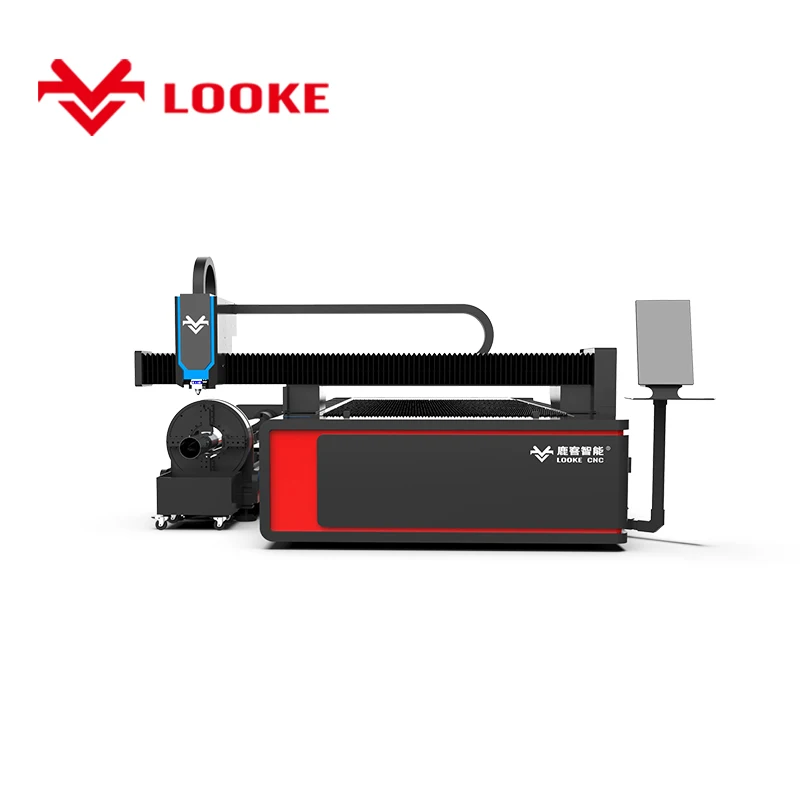

Related machine
Company Profile
Jinan LOOKE Intelligent Equipment Co., Ltd. is famous in fiber laser cutting machine, located in Jinan, Shandong. Our company integrates the R&D, production, sale and maintenance services. We depend on high-tech and high-quality products to build the world brand.
FAQ
Q1: I know nothing about this machine, what type of machine should I choose?
We will help you choose the suitable machine and share you the solution; you can share us what material will you cut, the material thickness and working size.
We will help you choose the suitable machine and share you the solution; you can share us what material will you cut, the material thickness and working size.
Q2: When I got this machine, but I don’t know how to use it. What should I do?
We will send English manual and Operation Video and for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.
Q3: May we know the speed of your Fiber Laser Cutting Machine as per on our demand basis?
We use Japan Servo motor and driver with big strength, so the max moving speed can reach 120m/min, max cutting speed can reach 40m/min. And the speed can reach 1.5-2m/min if you cut 4.5-5mm stainless steel.
Q4: If some problems happen to this machine, what should I do?
We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.
We will send English manual and Operation Video and for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.
Q3: May we know the speed of your Fiber Laser Cutting Machine as per on our demand basis?
We use Japan Servo motor and driver with big strength, so the max moving speed can reach 120m/min, max cutting speed can reach 40m/min. And the speed can reach 1.5-2m/min if you cut 4.5-5mm stainless steel.
Q4: If some problems happen to this machine, what should I do?
We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.
