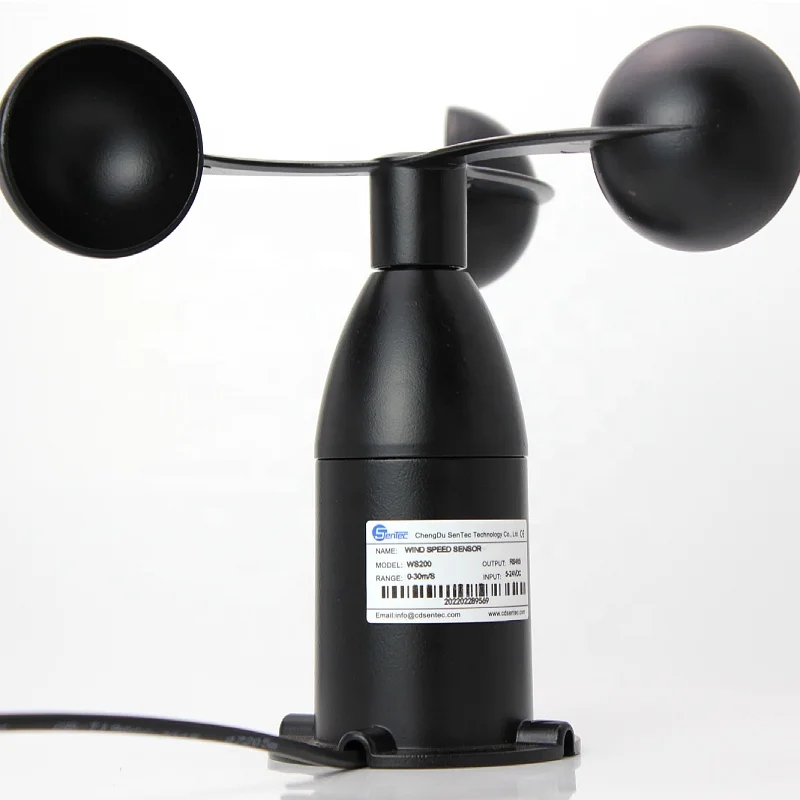

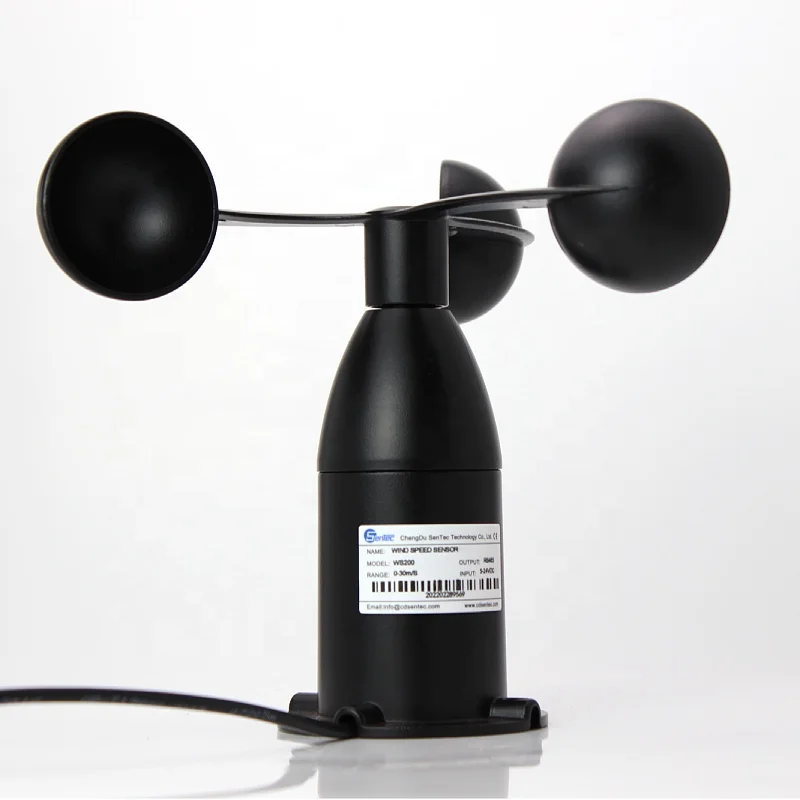

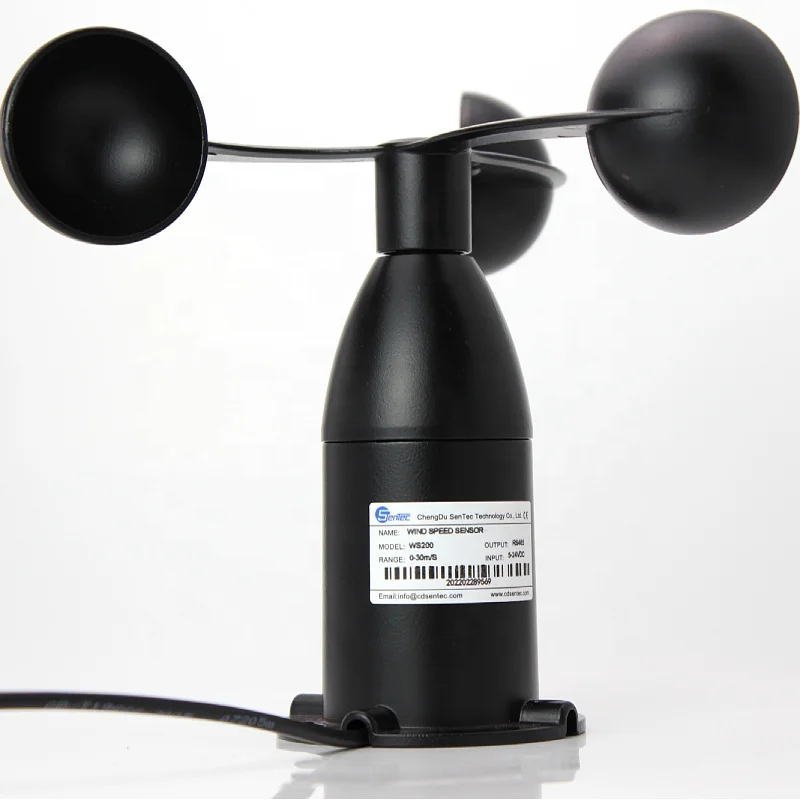

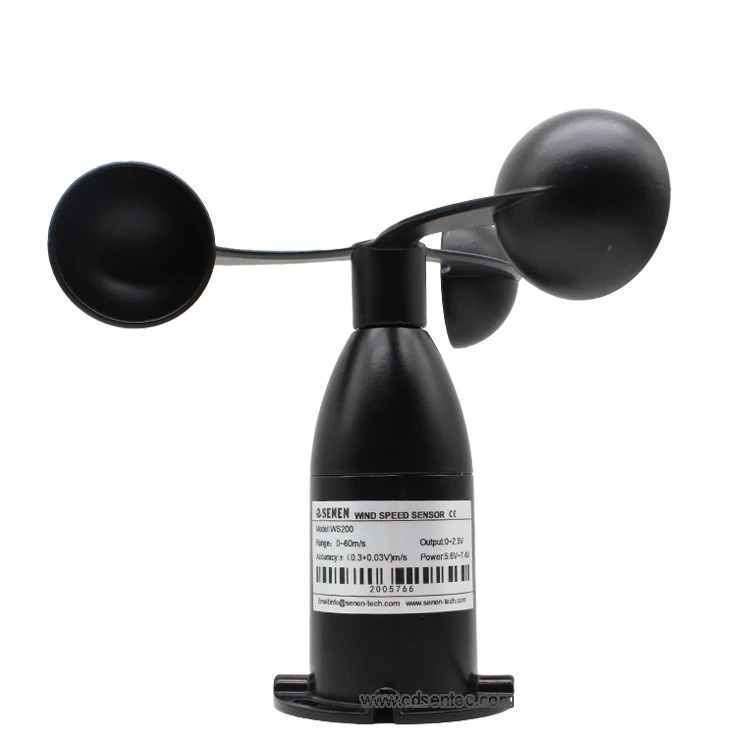

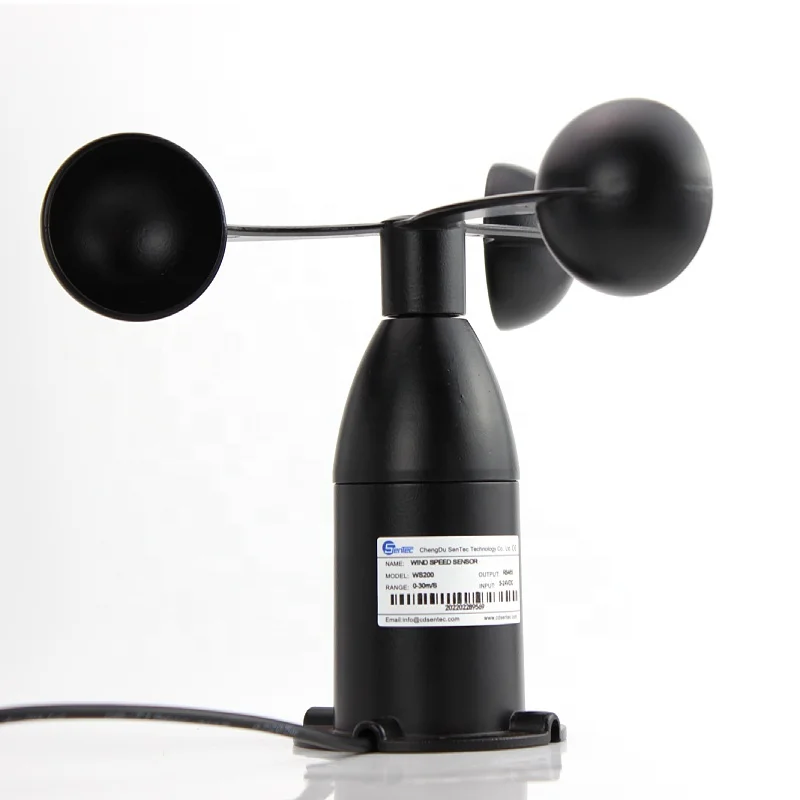

SENTEC WS200 3 cup anemometer tower crane 0 10v wind speed sensor price for agriculture
SENTEC WS200 3 cup anemometer tower crane 0-10v wind speed sensor price for agriculture
SENTEC WS200 3 cup anemometer tower crane 0-10v wind speed sensor price for agriculture
SENTEC WS200 3 cup anemometer tower crane 0-10v wind speed sensor price for agriculture
SENTEC WS200 3 cup anemometer tower crane 0-10v wind speed sensor price for agriculture
SENTEC WS200 3 cup anemometer tower crane 0-10v wind speed sensor price for agriculture
SENTEC WS200 3 cup anemometer tower crane 0-10v wind speed sensor price for agriculture

SENTEC WS200 3 cup anemometer tower crane 0 10v wind speed sensor price for agriculture

Share on (1601076845839):


Price:

Quantity:


Product Overview

Description







OVERVIEW

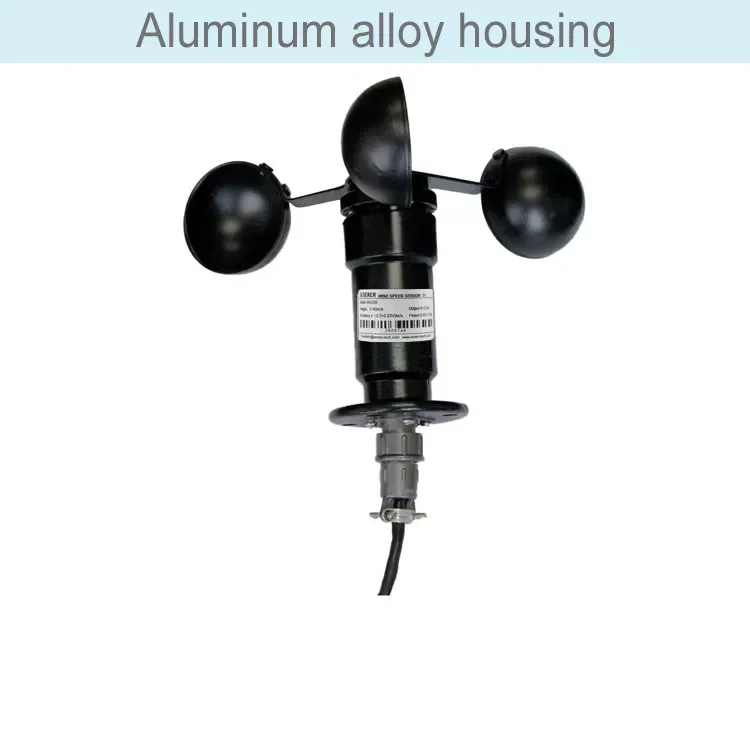

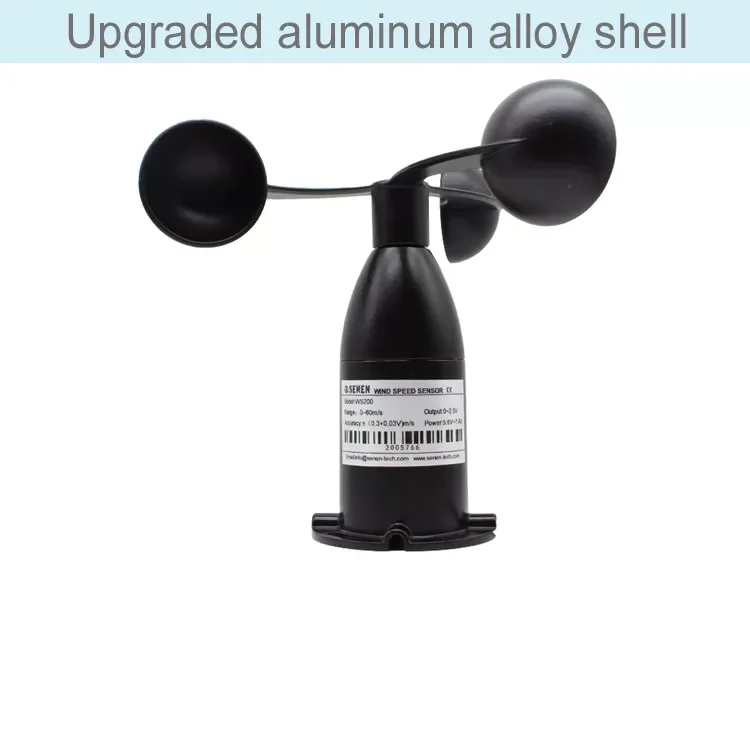

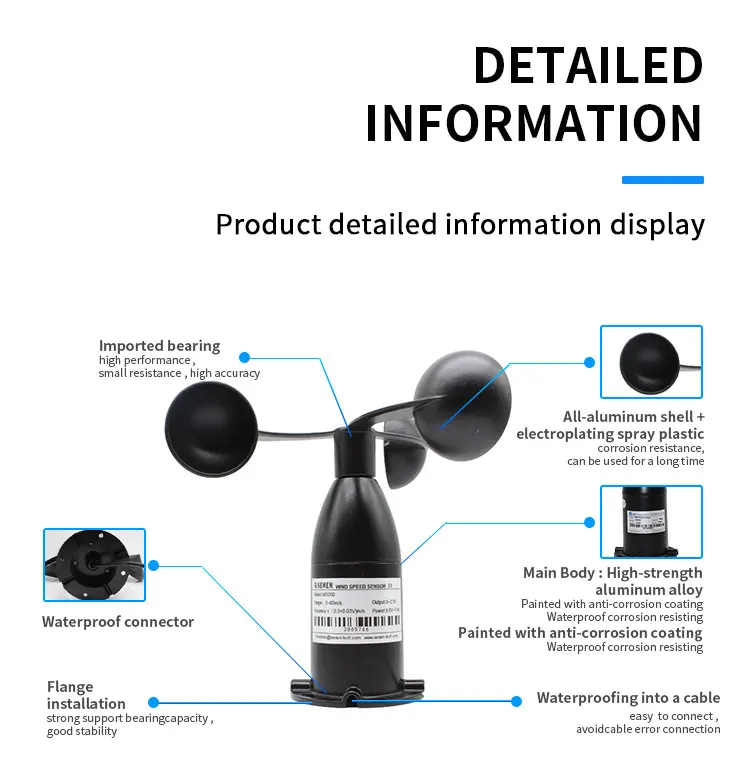

WS200 three-cup wind speed sensor is an wind speed measuring instrument independently developed and produced by our company. It supports customized heating wind speed measuring instruments. Heating products have built-in sensitive temperature sensors and high-performance heating plates. The sensor housing is made of aluminum material, with very small dimensional tolerances, with high weather resistance, high strength, corrosion resistance and water resistance. Internal integration of photoelectric conversion mechanism, industrial microcomputer processor, standard current generator, current driver, etc.
WS200 circuit PCB adopts military-grade A-grade materials to ensure the stability of measurement parameters and
electrical performance; electronic components are imported industrial-grade chips, which makes the overall anti
electromagnetic interference ability extremely reliable, and can ensure that the host is at -30 ℃ ~ 75 ℃ , humidity
5% ~ 95%RH (non-condensing) range can work normally.

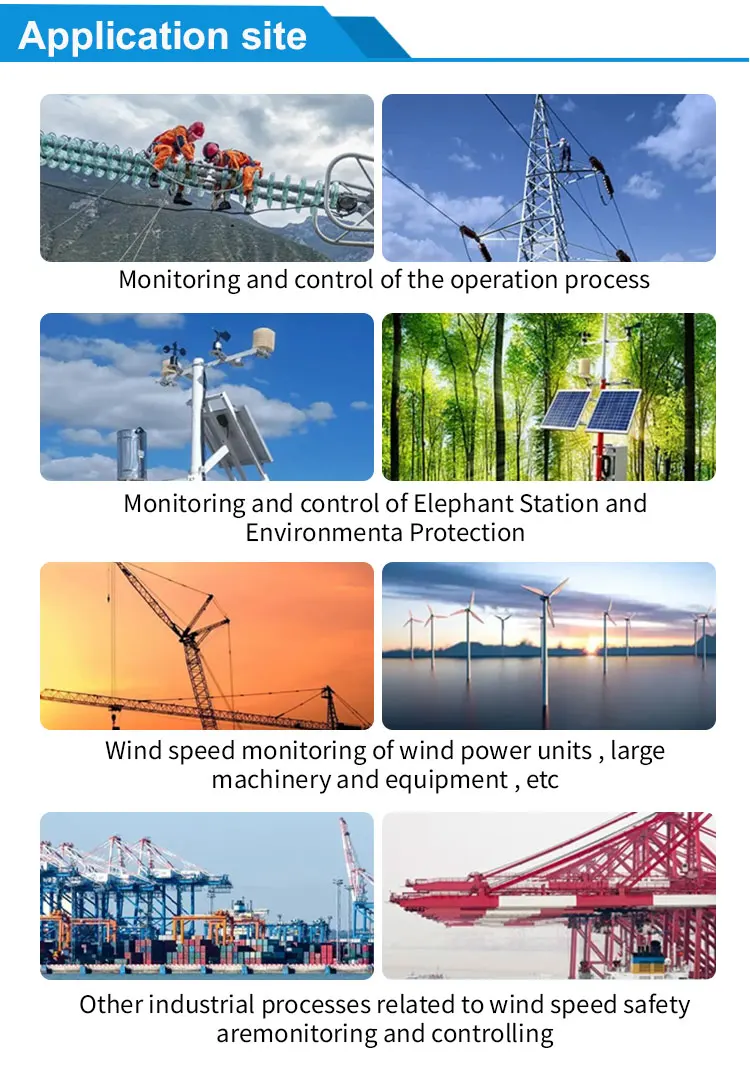

This product is widely used in greenhouse, environmental protection, meteorological station, engineering
machinery, ships, docks, aquaculture and other environmental wind speed measurement.


SENTEC Cheap 3 Cup Pulse output Wind Speed Sensor Anemometer for Agriculture

MAIN FEATURES
*The sensor has the advantages of compact design, high measurement accuracy, fast response speed and good interchangeability.
* Realize low cost, low price and high performance.

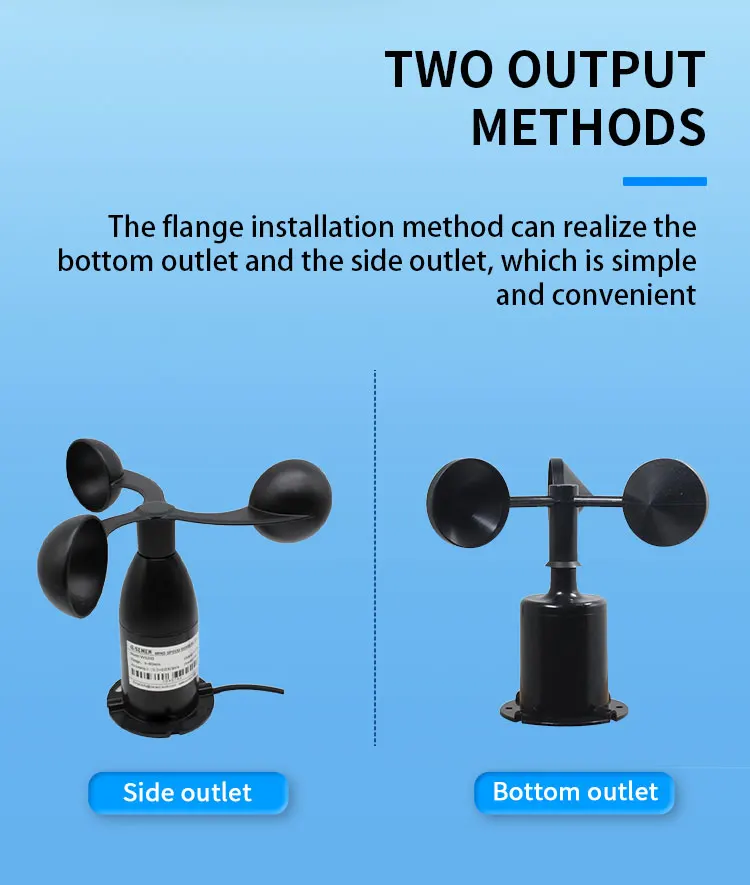

* Flange installation mode can realize lower outgoing line and side outgoing line, which is simple and convenient.
* Reliable performance, ensure normal operation and high data transmission efficiency.

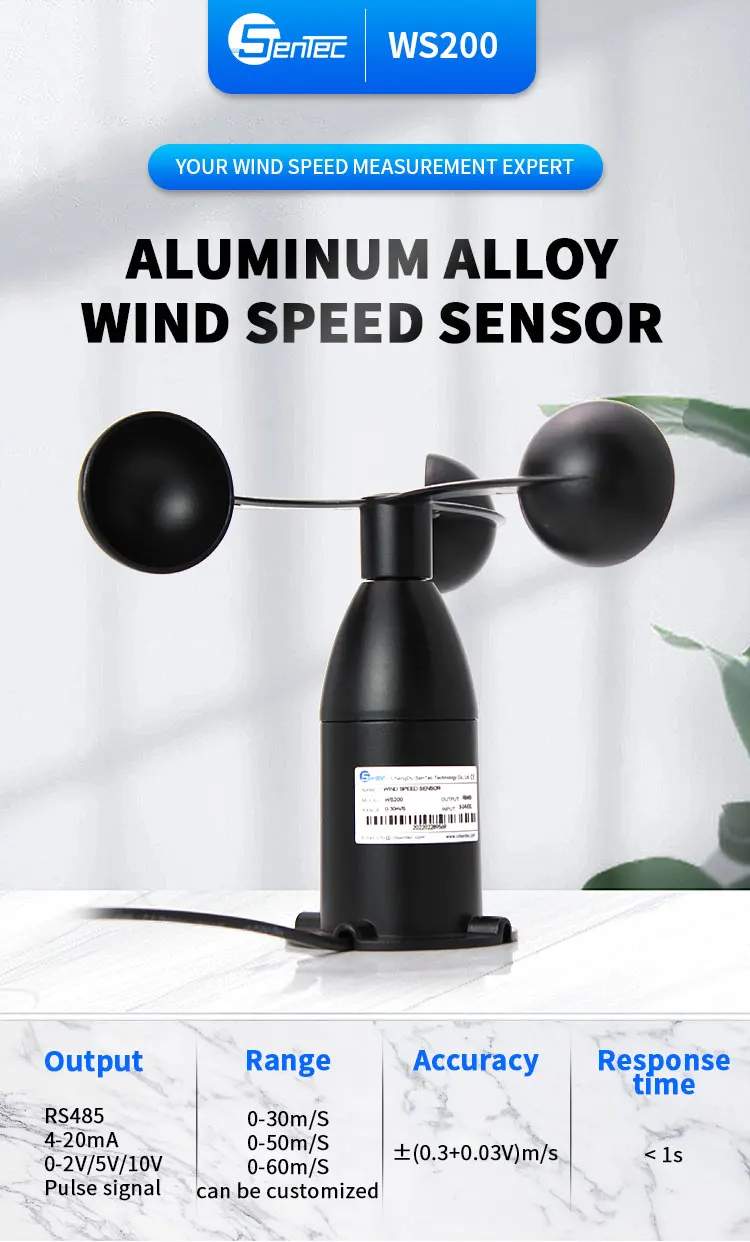

Measurement range
0-30m/S;0-50m/S;0-60m/S;(other ranges can also be customized)
Starting wind speed
≤ 0.3m/s
Accuracy
±(0.3+0.03V)m/s,Vis wind speed
Output signal
A:Voltage signal(0-2v,0-5V,0-10V)B:4-20mA(current loop)C: RS485(standard Modbus RTU protocol, device default address:01)D: Pulse
signal (pulse amplitude 3.3V,5V choose one)
Power supply voltage
5-24vdc(when the output signal is 0-2v,RS485)12-24vdc(when the output signal is 0-5V,0-10V,4-20mA)
Power consumption
24V/8mA(Heater off),24V/0.8A(Heater on)
Stable time
<1s
Response time
<1s
Working environment
-30℃~75 ℃(Not heated type),-40 ℃～75 "C(Heated type)
Cable specification
2m 3-wire system (analog signal);2m 4-wire system(RS485)(optional cable length)
Material
Aluminum alloy
Heating mothod
PTC automatic heating (only for heating model)
Automatic heating
Bellow-1 C, reach 25℃ automatically stop heating
Protection level
IP65
















Certifications




Packaging&Shipping




Q:What kind of products do you offer ?
A:SenTec supply pressure sensors, level sensors, temperature sensors , fiow sensors and environment sensors. Export more than 70+countries.
SENTEC Cheap 3 Cup Pulse output Wind Speed Sensor Anemometer for Agriculture
Q:Could I get samples?
A:Yes,we have half-stock ready products for customized sample.
SENTEC Cheap 3 Cup Pulse output Wind Speed Sensor Anemometer for Agriculture
Q:How about the quality of the magnets?
A:We have the certification of ISO, Europe standard ATEX, CE and ROSH ect.
SENTEC Cheap 3 Cup Pulse output Wind Speed Sensor Anemometer for Agriculture
Q:What is the delivery time?
A:For standard specification,delivery time 5-7days; For customized specification 10-20days.
SENTEC Cheap 3 Cup Pulse output Wind Speed Sensor Anemometer for Agriculture
Q: What is your terms of payment ?
A: We could accept T/T, Paypal, WU ,Trade Assurance.
SENTEC Cheap 3 Cup Pulse output Wind Speed Sensor Anemometer for Agriculture
Q: What is the warranty for your product ?
A: Warranty: 12-24Month, Lifetime maintenance
SENTEC Cheap 3 Cup Pulse output Wind Speed Sensor Anemometer for Agriculture
Q. How can l get the quotation or send my inquiry to?
A. Send your inquiry to us by the inquiry from on the right-side or the bottom of this page.
1. What is the Measuring medium? Water, oil or others.
2. How about Measuring range: 0-5m or..?
3.What would be the processing pressure and temperature？
4. Which signal output:4-20mA, RS485 or..?
5. Require quantity?


The specific price is subject to the parameters, please contact us for the quotation
