low temperature LM-80 SMD2835 160LEDs low-temperature light strip

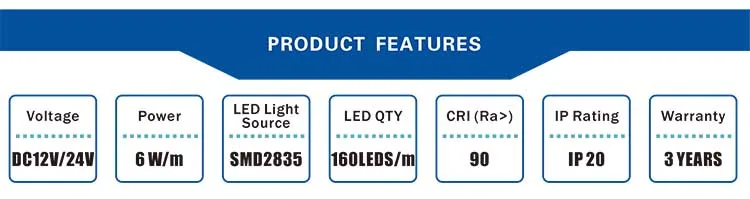

Model | RZ008160B-A | RZ008160B-B |
voltage | DC12V | DC24V |
power | 6W/m | |
Luminous flux | 963.4lm/m(white light) | |
Luminous Efficiency | 156.77lm/W | |

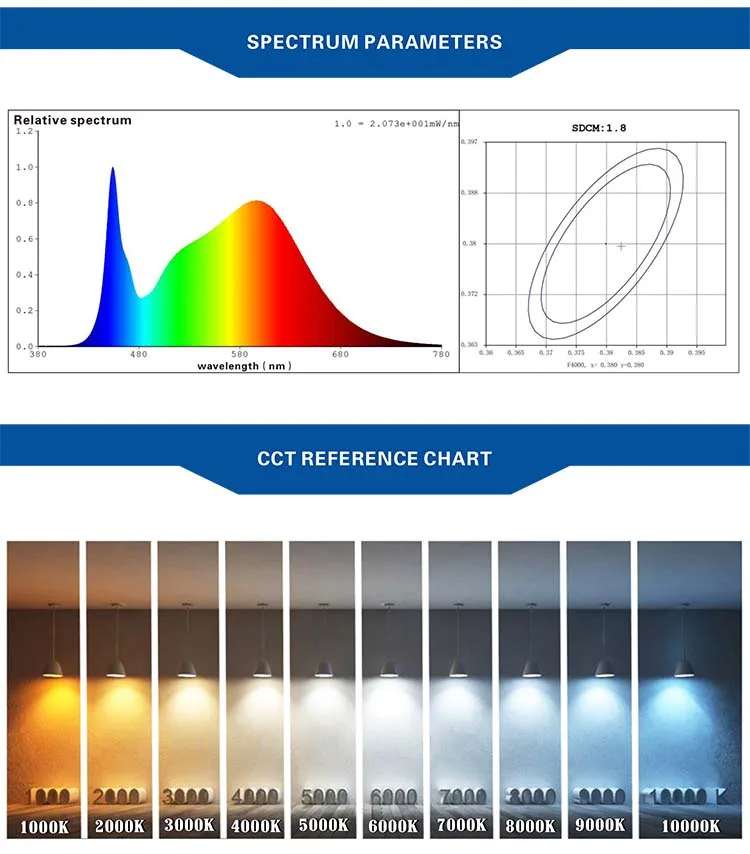

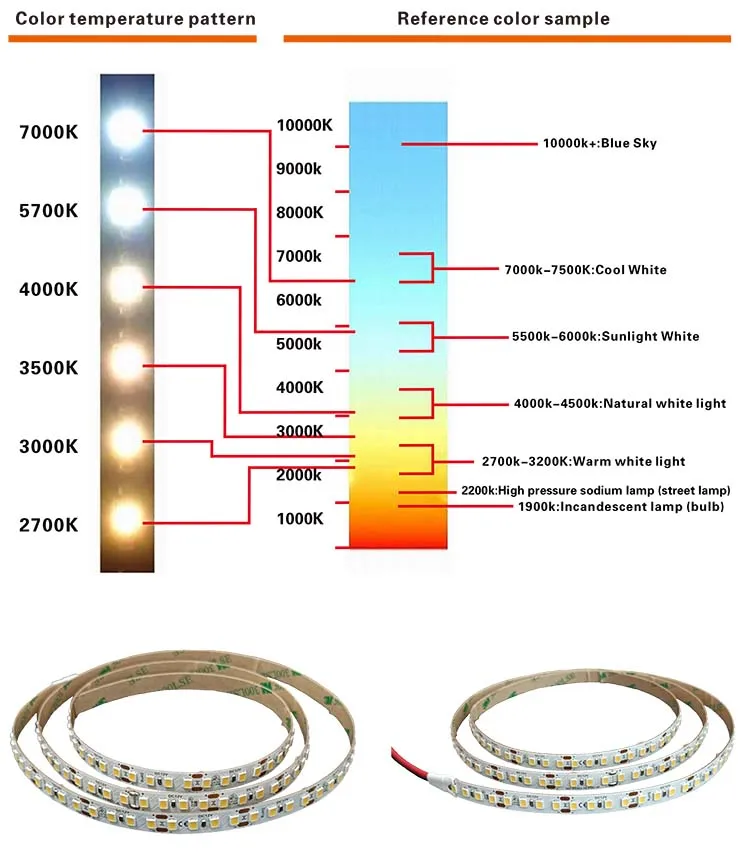

Color temperature | 3000K/3500K/4200K/5000K/5800K | |
CRI | Ra≥90 | |
Emitting Color | W | |

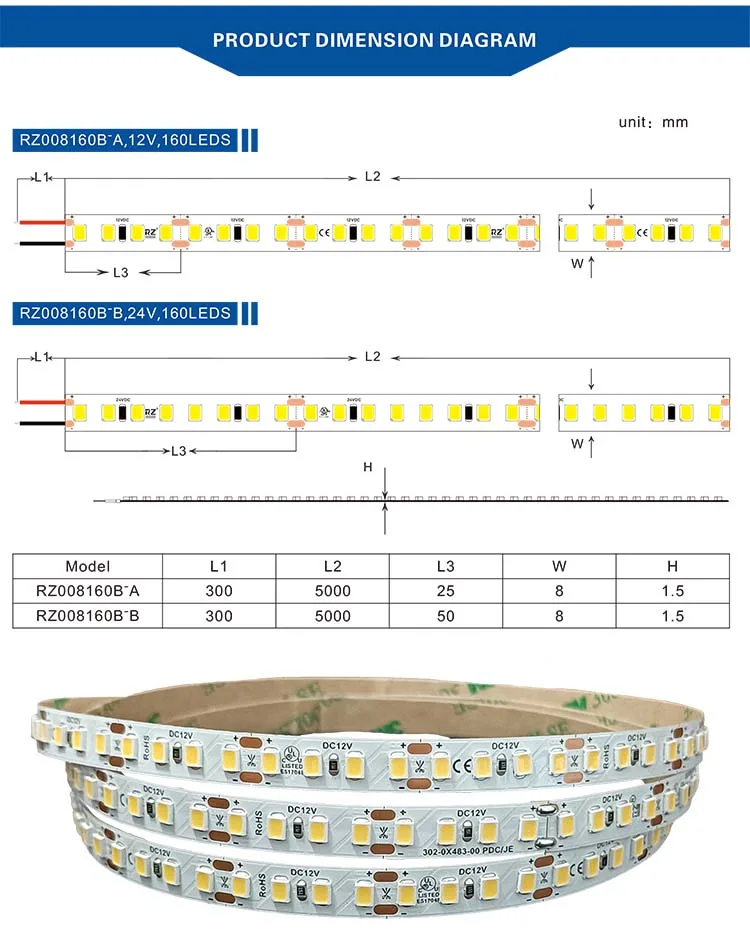

LED spacing | 6.25mm | |
Shearable length | 25mm | 50mm |
PCB Width | 8mm | |
IP Rating | IP20 | |
Length | 5m | |
Fixed method | 3M tape |

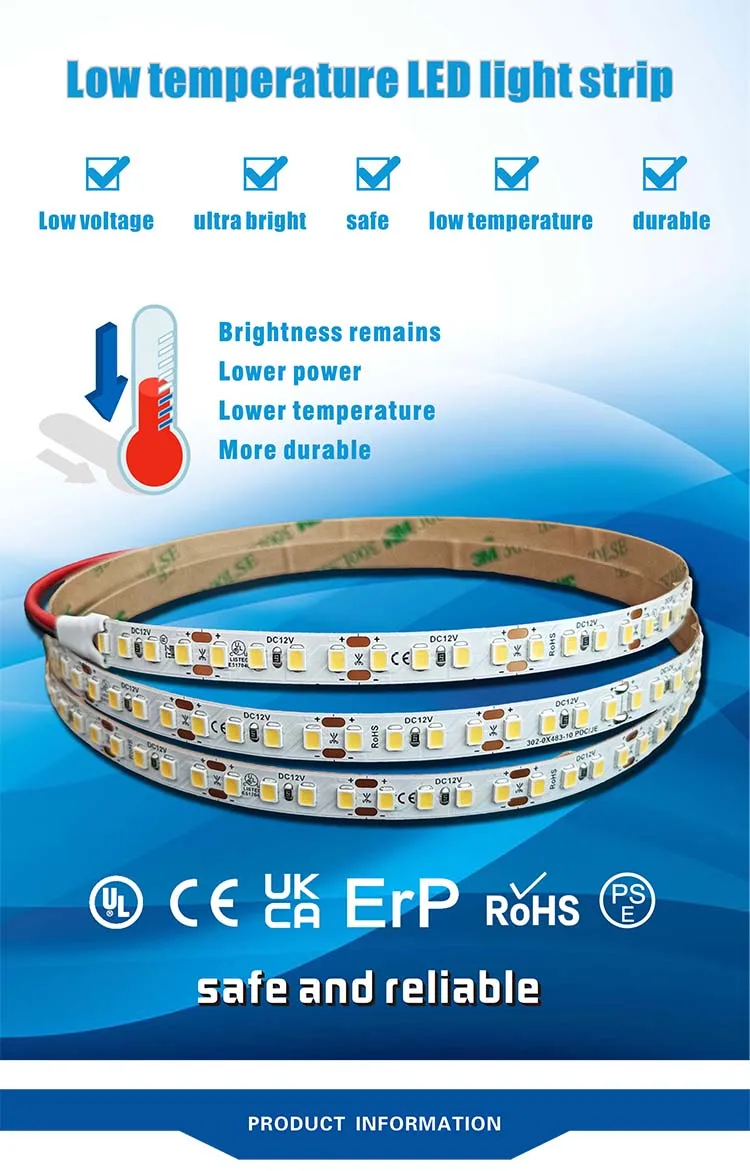

Low temperature LED light strip
1. Adopting DC12V/24V constant voltage driving mode, ERP standard splitting, good color consistency, 1 cut every 4 LEDs or1 cut every 8 LEDs, flexible use;
2. Adopting LM-80 certified 2835 lamp beads, it has advantages such as high brightness, high light efficiency, low light attenuation, and low temperature;

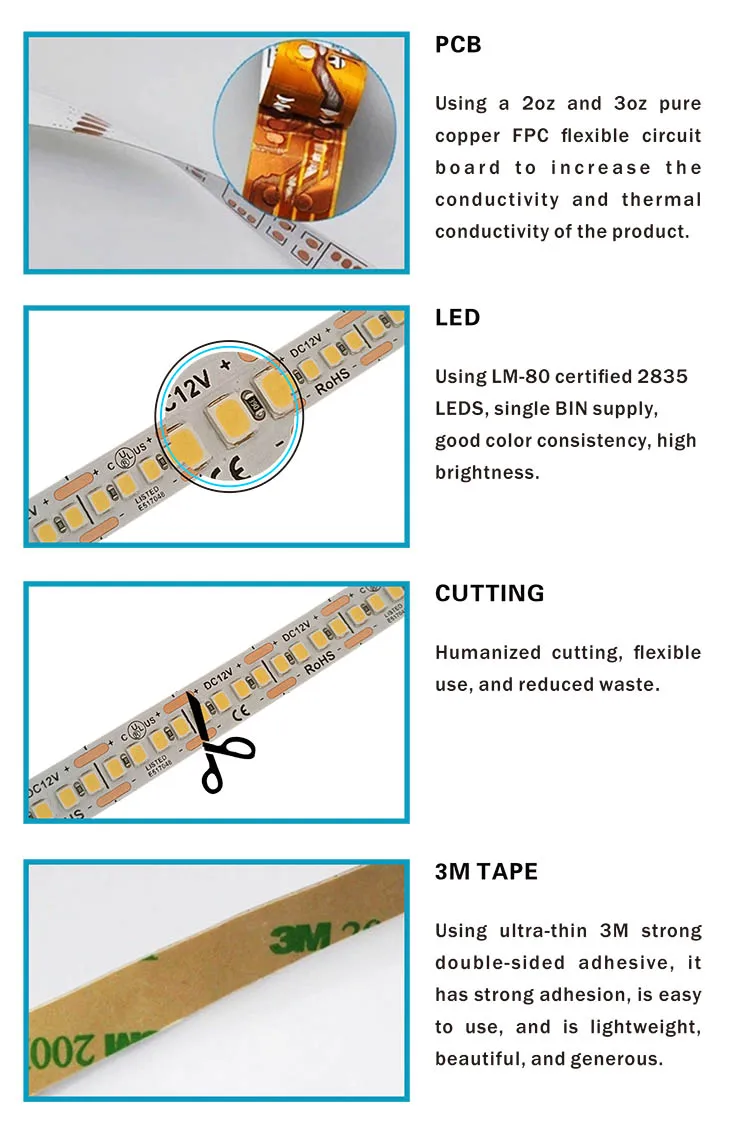

3. Adopting double-sided FPC flexible circuit board and two copper foils in front and back to increase the conductivity and thermal conductivity of the product;

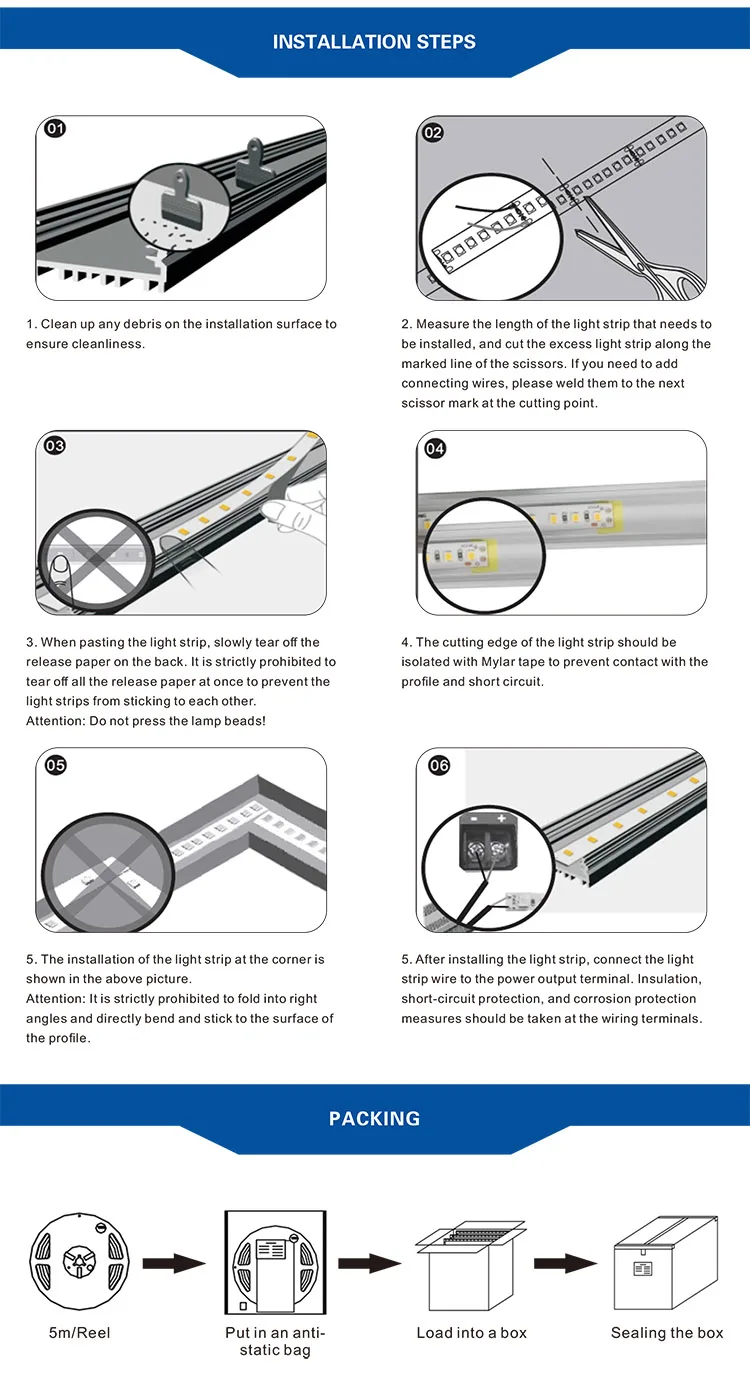

4. Adopting self-designed straight circuit boards, fast and convenient, improving manual efficiency, and capable of cutting and extending;
5.This product has passed CE, RoHS,PSE,UKCA,ErPand UL certifications;

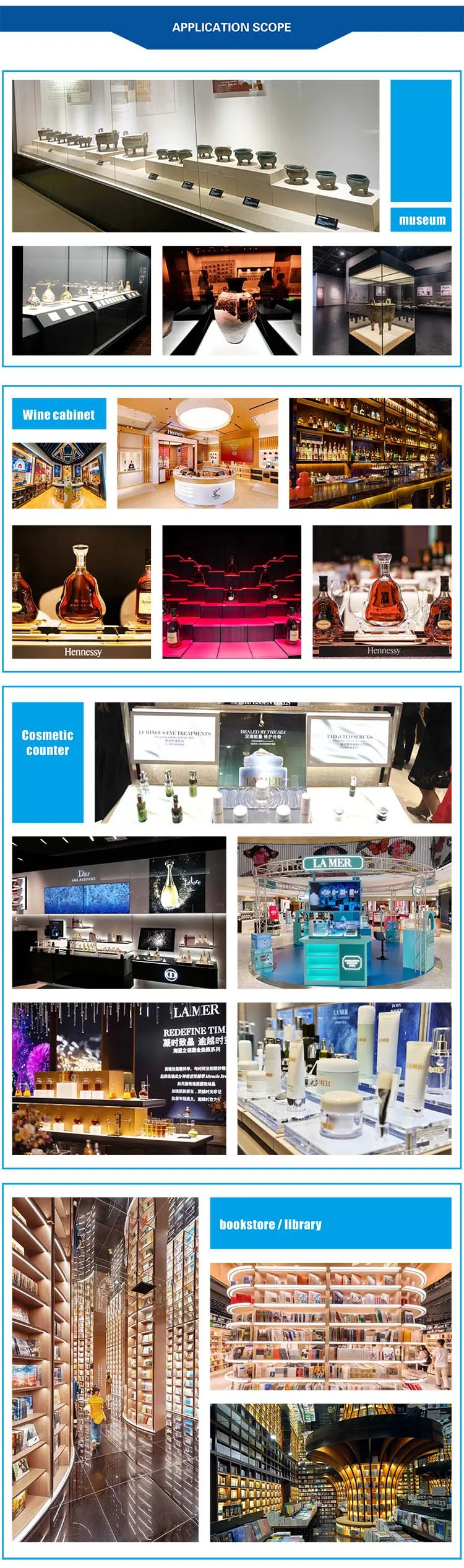

6.Suitable for places with special temperature requirements such as museums, wine cabinets, cosmetics counters, bookstores, libraries, etc.
1.who are we?
We are based in Guangdong, China, start from 2015,sell to Domestic Market(80.00%),North America(10.00%),Northern Europe(3.00%),Mid East(3.00%),Western Europe(2.00%),South Asia(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?

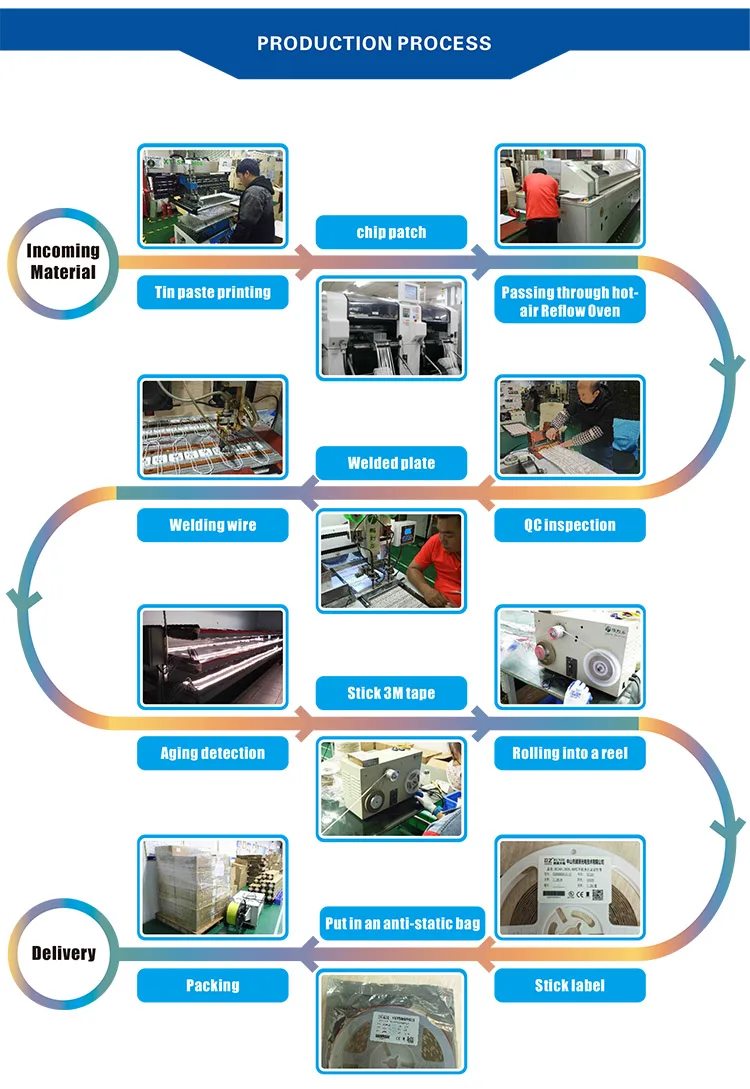

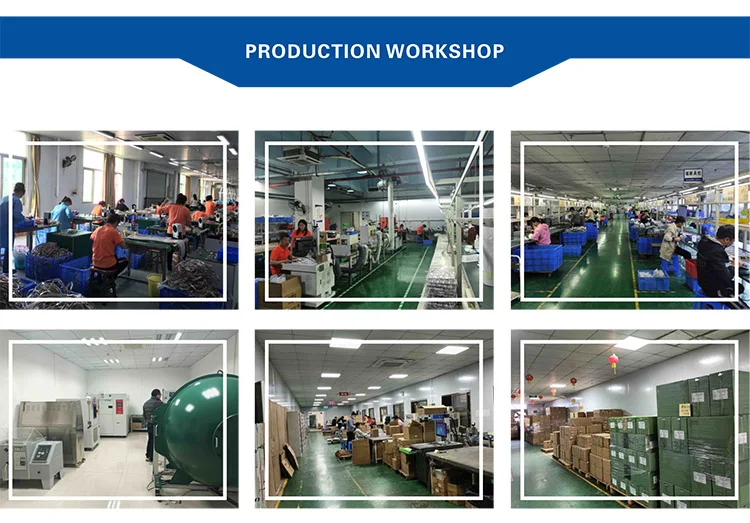

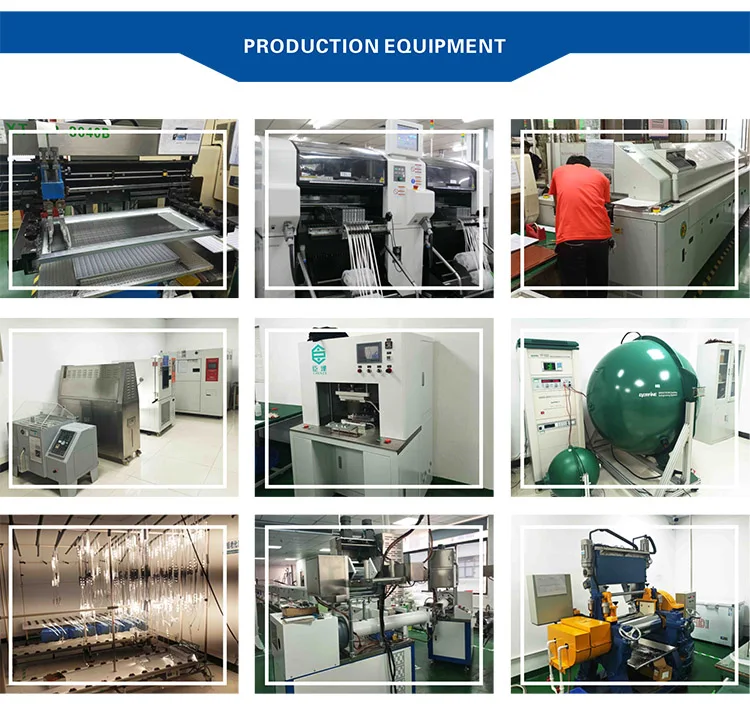

We have advanced production equipment and use high-quality new electronic raw materials to ensure the quality of our products. Each product must undergo full load aging testing, and random inspections must also be conducted upon shipment. Ensure the best quality for customers.
3.what can you buy from us?
LED light strip,LED linear lighting,LED module,LED driver power supply,COB light strip
4. why should you buy from us not from other suppliers?
Our product line includes a full range of LED strips, 5050,3528, 2835,2216 5630,3014, with CCT, RGB, RGBW, RGBCCT and all color temperatures.
At the same time, we also provide LED power supplies, controllers.
We can also provide lighting design solutions based on the client's project requirements.
We have many successful cases.
New products from manufacturers at wholesale prices
