Product Overview
Description
Product Description

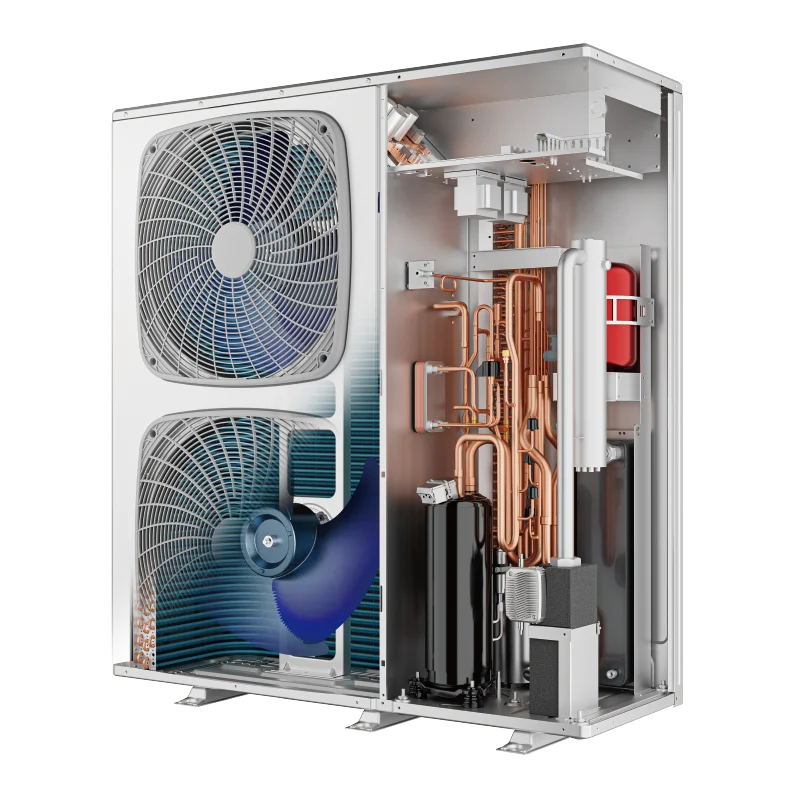

Haier R290/R32 CE A+++ DC Inverter Heat Pump For Heating Cooling Hot Water
We have 4kw-20kw heating capacity and will provide you the solution within 30 mins.
Please feel free to send us your inquiry,and contact Manager: Summer ASAP.
1.Adopting R290 /R32 refrigerant and circulating heating method,is able to keep its energy efficiency high.
2. Heating Capacity: DC Inverter 4KW 6KW 8KW 10kw 15kw 16KW 20kw heat pump.
3.Best Selling Market: Global, especially in North & East Europe, North America,ect.
4.Ambient Temp of Using: Minus -30℃-75℃
5.Max water temperature: 75 degrees
6.Certification: ISO9001, CE, CB. ERP A+++,ect.
7.Use *Mitsubishi* Inverter Compressor for DC Inverter Air Source Heat Pump
8.Wilo water pump,AOL expansion tank inside. SWEP heat exchanger, 3KW backup heater
Specification
Model | HPM08-Nd2 | HPM10-Nd2 | HPM12-Nd2 | HPM14-Nd2 | HPM16-Nd2 | ||||||||
Serial No. | GK0HC2Q00 | GK0HC0Q00 | GK0HC1Q00 | GK0H25E00 | GK0H26E00 | ||||||||
Intended use of the units | Low and medium temperature application | Low and medium temperature application | |||||||||||
Power supply | V / Ph / Hz | V / Ph / Hz | 220-240/1/50 | 220-240/1/50 | |||||||||
Heating (AT7/6, WT30/35) | Capacity | kW | 8 | 10 | 12 | 14 | 16 | ||||||
Rated power input | kW | 1.62 | 2.08 | 2.45 | 2.74 | 3.25 | |||||||
COP | kW/kW | 4.95 | 4.8 | 4.9 | 5.11 | 4.92 | |||||||
Heating (AT7/6, WT30/35) | Capacity | kW | 8 | 10 | 12 | 14 | 16 | ||||||
Rated power input | kW | 2.42 | 3.03 | 3.43 | 4.24 | 5 | |||||||
COP | kW/kW | 3.3 | 3.3 | 3.5 | 3.3 | 3.2 | |||||||
Cooling (AT35, WT23/18) | Capacity | kW | 8 | 10 | 11.4 | 14 | 16 | ||||||
Rated power input | kW | 1.63 | 2.15 | 2.78 | 2.74 | 3.33 | |||||||
COP | kW/kW | 4.9 | 4.65 | 4.1 | 5.11 | 4.8 | |||||||
Cooling (AT35, WT12/7) | Capacity | kW | 8 | 10 | 11.4 | 14 | 16 | ||||||
Rated power input | kW | 2.5 | 3.33 | 4.07 | 4.52 | 5.51 | |||||||
COP | kW/kW | 3.2 | 3 | 2.8 | 3.1 | 2.9 | |||||||
SCOP | Average climate | 35°C | 4.9 | 4.9 | 4.9 | 5.2 | 4.9 | ||||||
Average climate | 55°C | 3.85 | 3.85 | 3.85 | 3.9 | 3.9 | |||||||
Season space heating energy efficiency class | Average climate | 35°C | A+++ | A+++ | A+++ | A+++ | A+++ | ||||||
Average climate | 55°C | A+++ | A+++ | A+++ | A+++ | A+++ | |||||||
SEER | Fan coil application | 7°C | 4.5 | 4.5 | 4.5 | 5.1 | 5.1 | ||||||
Cooling floor application | 18°C | 6.3 | 6.5 | 6.2 | 7 | 7 | |||||||
Refrigerant | Type | - | R290 | R290 | R290 | R290 | R290 | ||||||
Charge | kg | 1.3 | 1.3 | 1.35 | 1.95 | 1.95 | |||||||
E-Heater backup | kW | 3 | 3 | 3 | 6 | 6 | |||||||
Sound pressure(1m) | dB | 45 | 49 | 51 | 51 | 51 | |||||||
Water pump | Rated water flow | m /h | 1.38 | 1.72 | 2.06 | 2.41 | 2.75 | ||||||
Total water head | m | 12.5 | 12.3 | 12 | 11.5 | 11.1 | |||||||
Available water head | m | 9 | 8.8 | 8.5 | 8 | 7.6 | |||||||
Maximum working pressure of refrigerant | MPa | 0.85/3.2 | 0.85/3.2 | ||||||||||
Water side safety valve | MPa | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | |||||||
Water proof grade | / | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | |||||||
Water side connection | in | 1 | 1 | 1 | 1 | 1 | |||||||
Net dimension | W*D*H | mm | 1312*470*990 | 1312*470*990 | 1312*470*990 | 1312*470*1370 | 1312*470*1370 | ||||||
Package dimension | W*D*H | mm | 1362*567*1167 | 1362*567*1167 | 1362*567*1167 | 1362*567*1560 | 1362*567*1560 | ||||||
Package pallet | W*D*H | mm | 1362x567x1287 | 1362x567x1287 | 1362x567x1287 | 1362x567x1680 | 1362x567x1680 | ||||||
Net Weight | 163 | 163 | 169 | 194 | 194 | ||||||||
Gross Weight | 171 | 171 | 177 | 205 | 205 | ||||||||
Load qty. 40HQ(pcs) | 66 | 66 | 66 | 33 | 33 | ||||||||
Ambient temperature range | Cooling | °C | 10-48 | 10-48 | |||||||||
Heating | °C | -65 | -65 | ||||||||||
DHW | °C | -73 | -73 | ||||||||||
Leaving water temperature range | Cooling | °C | 5-25 | 5-25 | |||||||||
Heating | °C | 24-75 | 24-75 | ||||||||||
DHW | °C | 30-60 | 30-60 | ||||||||||
Certificate | CE-EMC/CE-LVD/KeyMark/NF/ROHS/POPS | CE-EMC/CE-LVD/KeyMark/NF/ROHS/POPS | |||||||||||
Features&Advantages

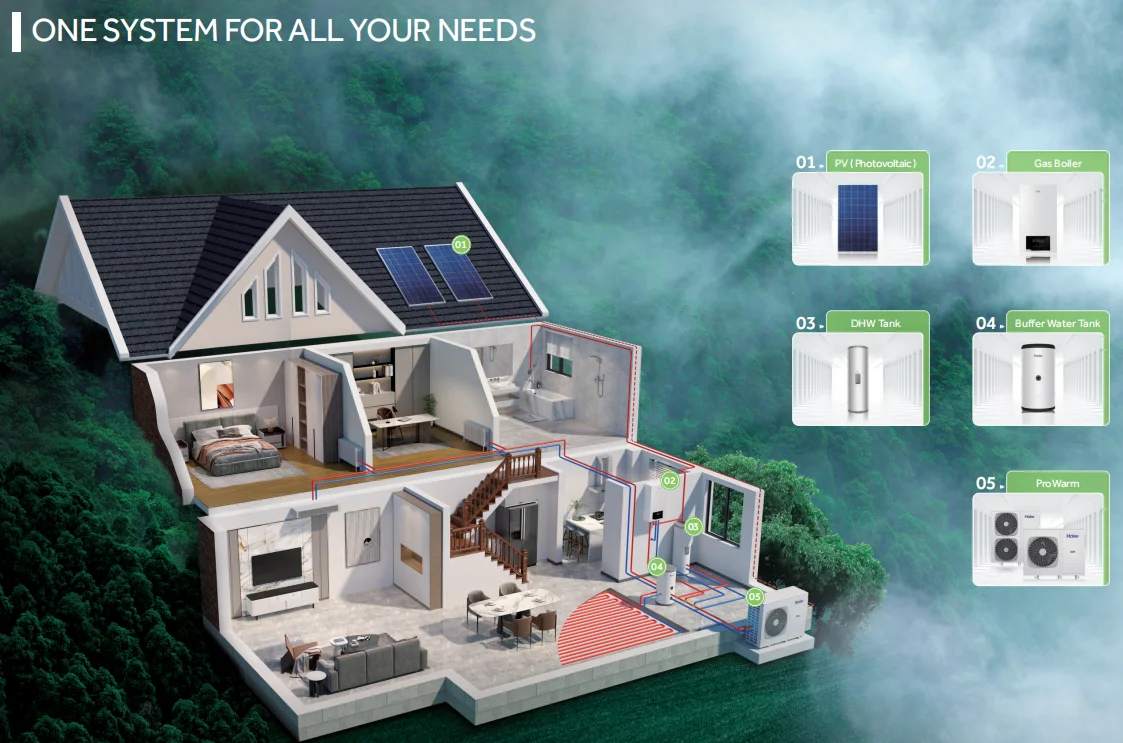

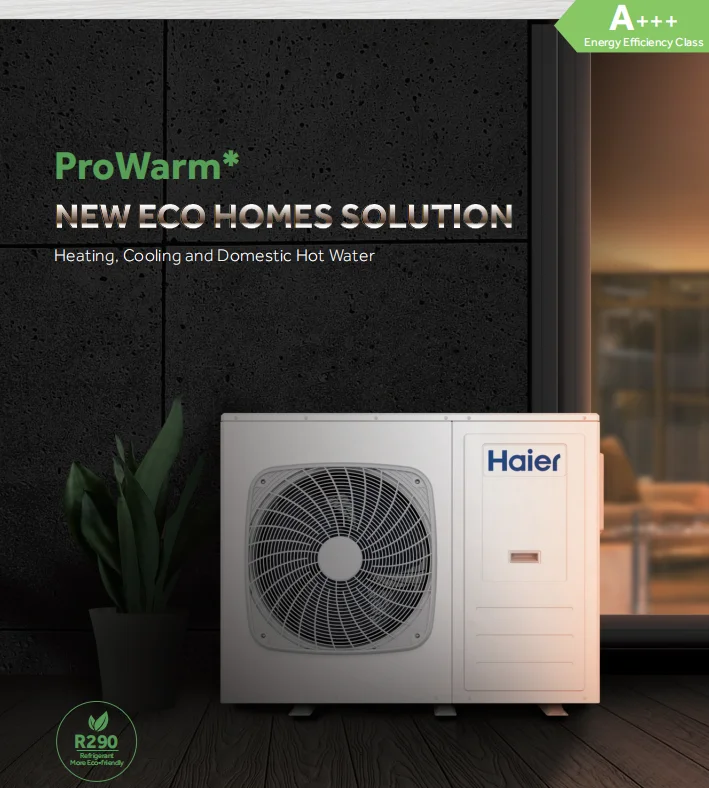

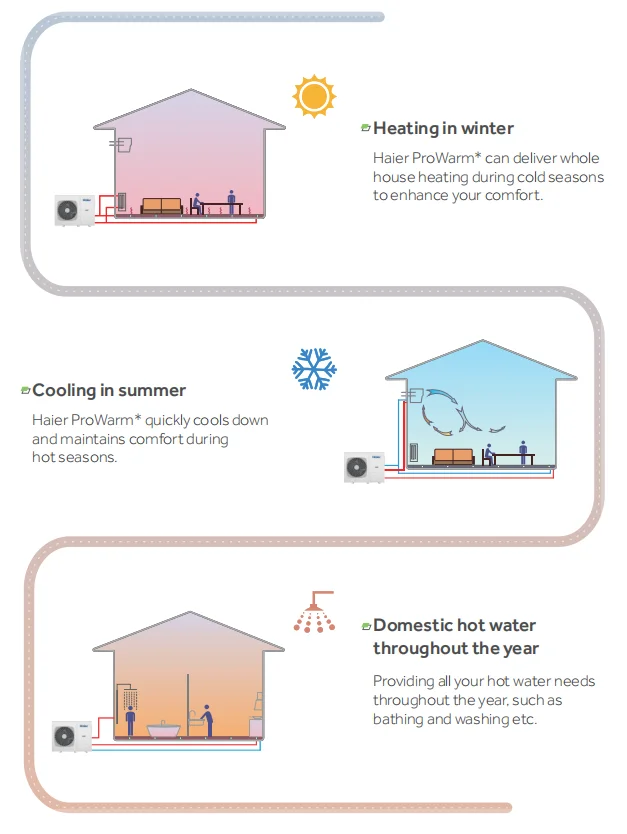

ProWarm* Heating, Cooling and Domestic Hot Water in One System
Haier ProWarm* is an integrated system that provides everything your home needs: heating, cooling, and domestic hot water. It is also the ideal alternative for traditional gas or fuel oil heating, allowing you to enjoy delightfully warm and perfectly hot water throughout the year.
R290 REFRIGERANT MORE ECO-FRIENDLY
In order to achieve carbon neutrality and mitigate global warming, Haier ProWarm* uses the R290 natural refrigerant, which has a lesser impact on global warming and is harmless to the ozone layer compared to other synthetic alternatives. This enables Haier ProWarm* to offer sustainable, green, and comfortable hot water solutions.
HIGH WATER TEMPERATURE
(Maximum Water Temperature 75°C, Meets a Variety of Terminal Usage Needs)

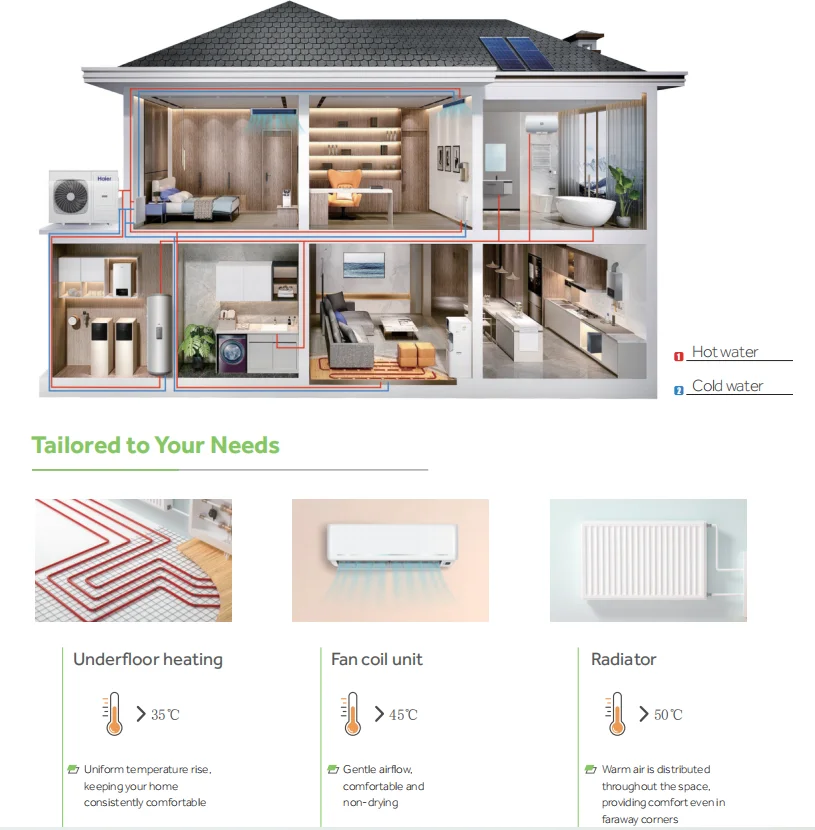

Haier ProWarm* can be combined with underfloor heating, fan coil units, radiators, and water tanks. With a high temperature of 75℃, it is capable of providing optimal temperature and an endless stream of hot water throughout the year, even when using old cast iron radiators.
HIGH EFFICIENCY(ERP Directive double A+++)

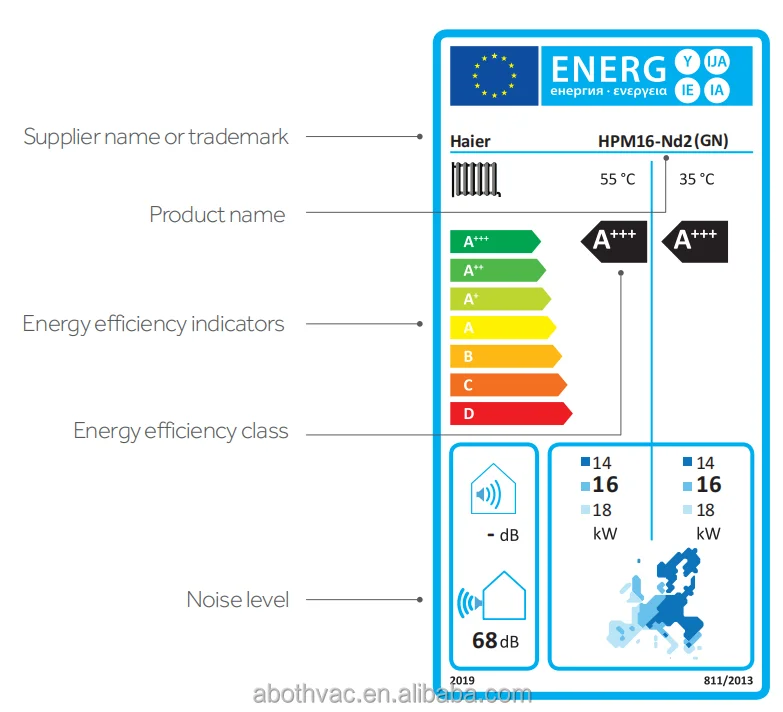

Haier ProWarm* achieves the best performance up to A+++ energy rating, as illustrated in the product label.
*Under the condition of A7W35 and A7W55, the energy efficiency class achieves A+++
*Under the condition of A7W35 and A7W55, the energy efficiency class achieves A+++
Energy Saving & Comfort
INTEGRATED EASY INSTALLATION
( All-in-one Design and Easy Installation)

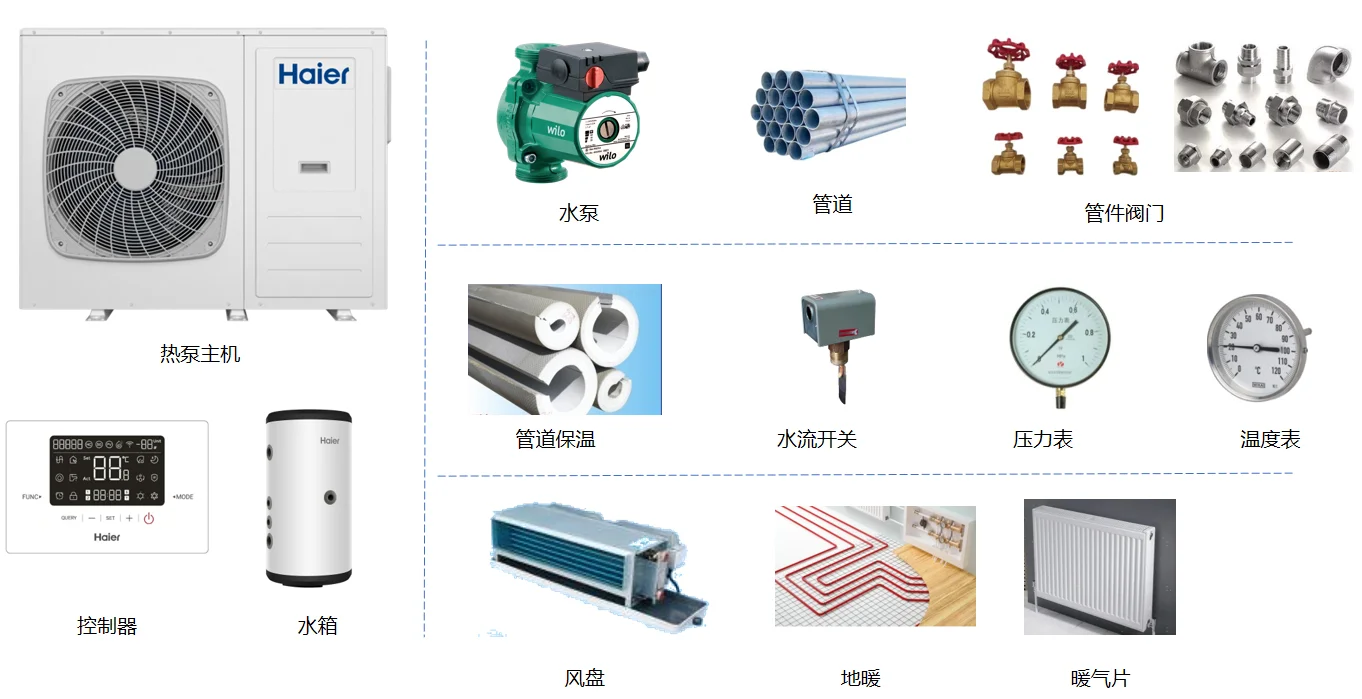

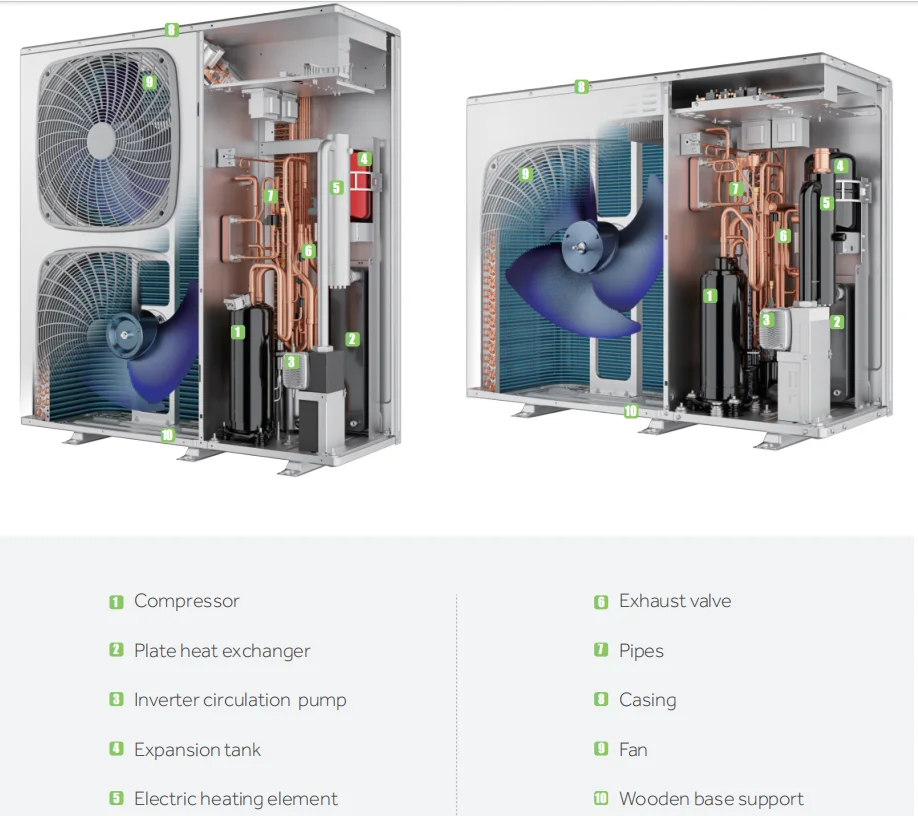

Haier ProWarm* includes water pump, electric heating element, expansion tank, and exhaust valve etc., and does not require third party components. This allows for faster and easier installation compared to traditional systems.
Thanks to the integrated design, the installation space is minimized both in terms of footprint and height.
Thanks to the integrated design, the installation space is minimized both in terms of footprint and height.

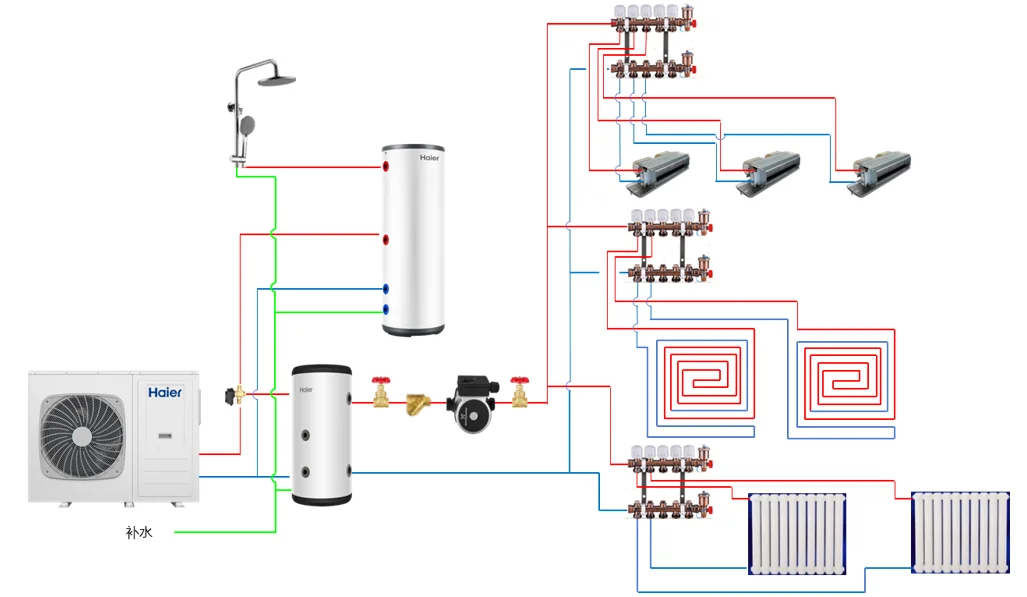

Installation & Application
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
