Gelgoog Industrial Sugar Cone Production Line Waffle Cone Maker Ice Cream Cone Making Machine
Products Description

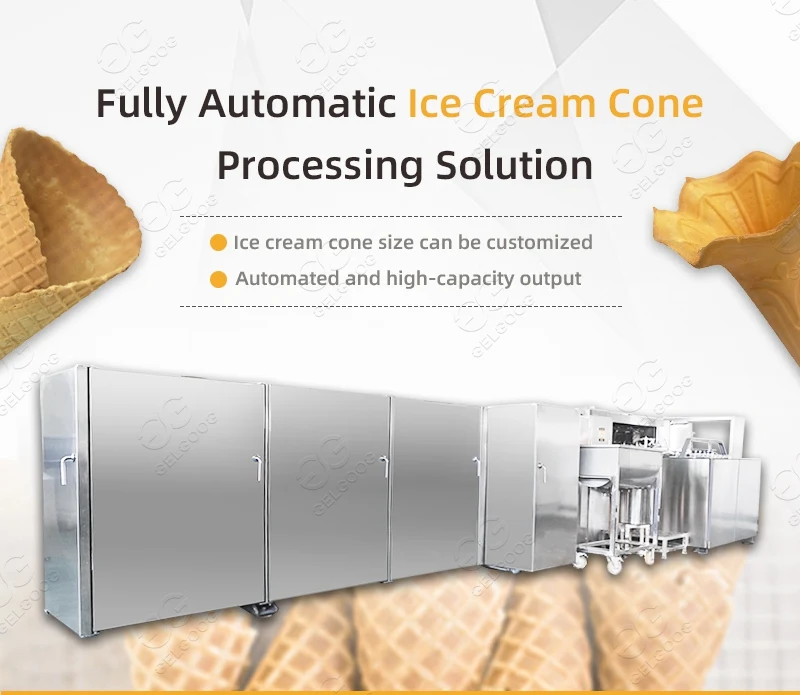

Ice Cream Cone Production Line Introduction
Full automatic ice cream cone production line to make ice cream sugar cone with high quality. This sugar cone production line can make sugar rolled cone, waffle cone and bowl-shaped waffle cup. We can design the different model of ice cream processing solution to make different types of sugar-rolled cones as required by clients.
Model | Power | Capacity | Air consumption | Power consumption | Baking Pan Size | Size |
GG-DCL35 | 3kw | 1500-2000pcs/h | 6-8m³/h | 3kw/h | 260mm | 6*0.8*1.85m |
GG-DCL37 | 3kw | 3500-4000pcs/h | 6-8m³/h | 3kw/h | 260mm | 7*0.8*1.85m |
GG-DCL45 | 3kw | 4000-5000pcs/h | 6-8m³/h | 3kw/h | 260mm | 8*0.8*1.85m |
GG-DCL55 | 3kw | 6000-7000pcs/h | 6-8m³/h | 3kw/h | 260mm | 9*0.8*1.85m |
GG-DCL65 | 3kw | 7000-8000pcs/h | 6-8m³/h | 3kw/h | 260mm | 12*0.8*1.85m |
GG-DCL75 | 3kw | 12000-15000pcs/h | 8-10m³/h | 3kw/h | 260mm | 11*1.9*1.85m |

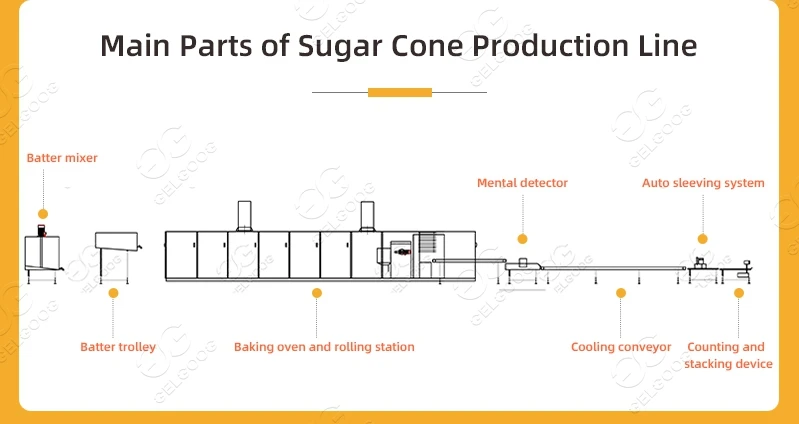

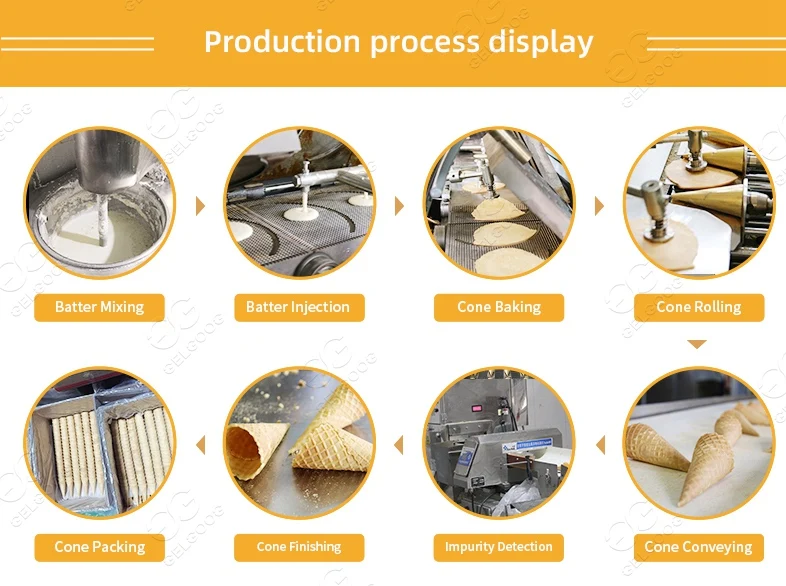

Working Principle of Sugar Cone Making Machine
The mixed flour paste is fed to the baking plant by feeding pump and close the plate,adjust the temperature, put it into the
oven.After baking, it is transported to the mould of rolling. Finally, the finished product falls from the discharge hole.
oven.After baking, it is transported to the mould of rolling. Finally, the finished product falls from the discharge hole.
Machine Details

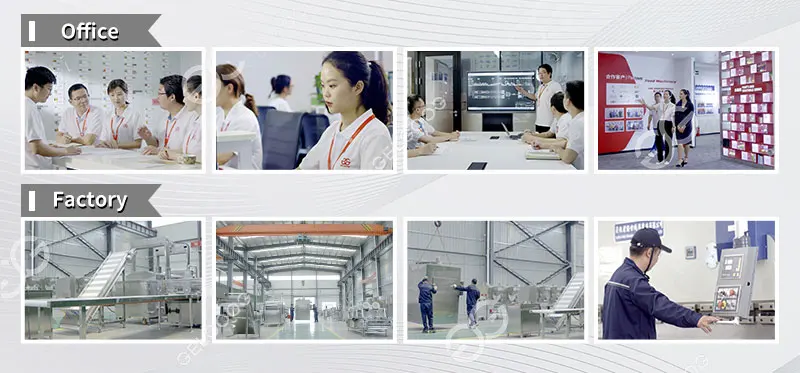

Company Profile
