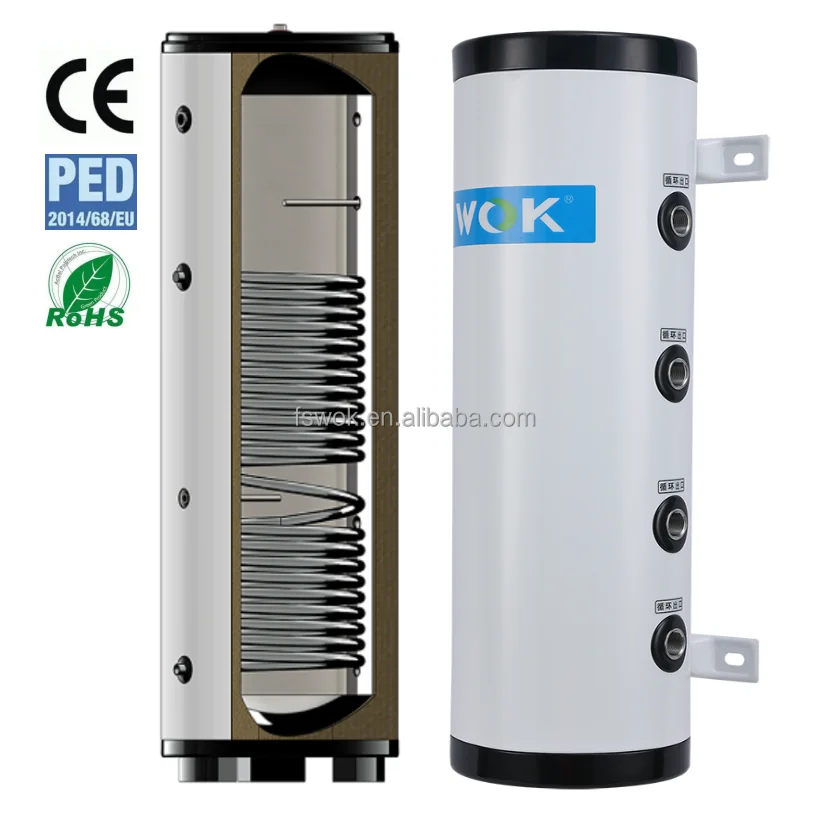

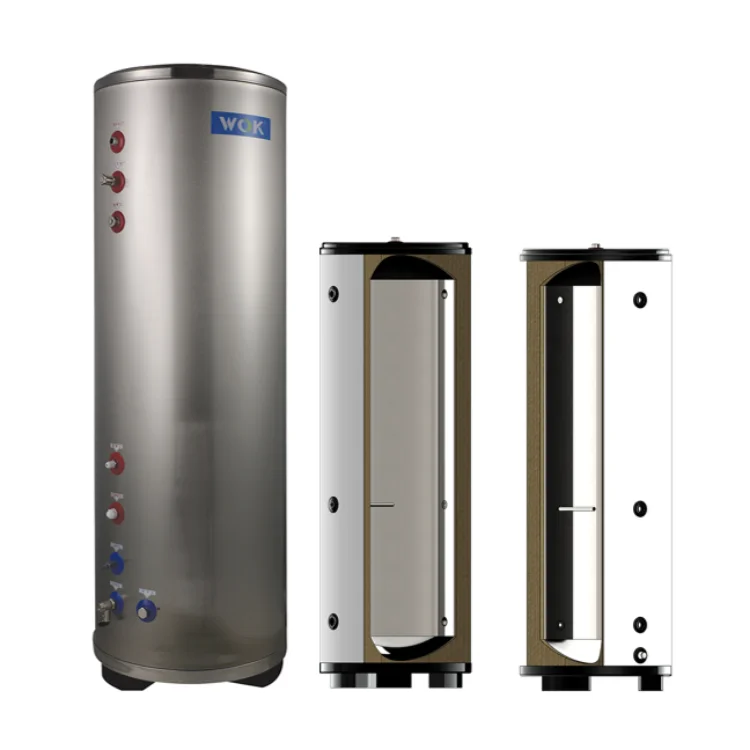

WOK Heat pump tanks Domestic hot water storage with coil heaters Buffer tanks 800L 1000L volume Heat pump tanks
- Category: >>>
- Supplier: Foshan Wok Energy Saving Equipment Co. Ltd.
Share on (1601077905024):
Product Overview
Description
Product Description

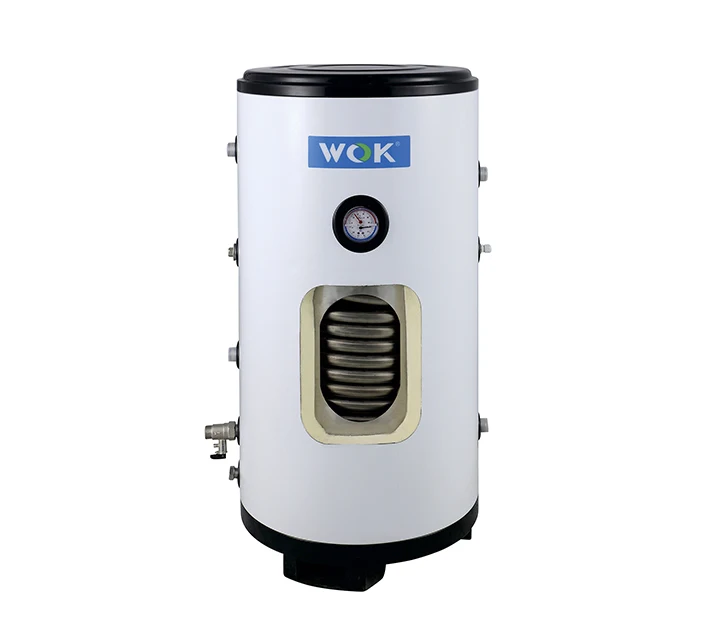

Buffer water tank with coiled heater for floor heating by heat pump or gas boiler or solar 100L 150L 200L 300L 500L

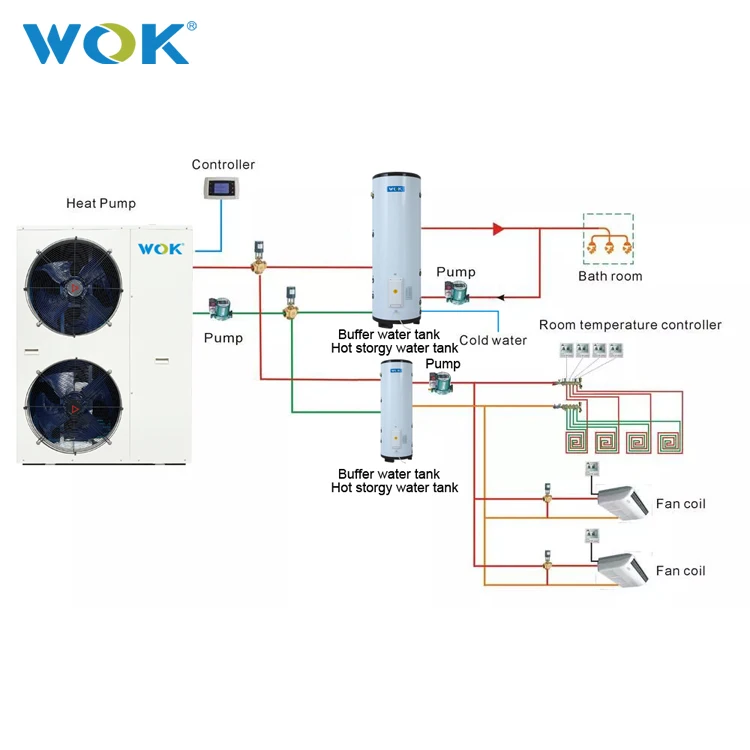

System Diagram
Product Parameters
| Product name | Buffer water tank | |||||
| Model | 30L | 40L | 60L | 80L | 100L | 120L |
| Electric heating | None(Can be customized) | |||||
| Coil Pipe | None(Can be customized) | |||||
| Circulation port | Rp1(Can be customized) | |||||
| Circulation port | Rp1-1/4(Can be customized) | |||||
| Drain | 1/2M(Can be customized) | |||||
| PT valve | Rp 3/4 | |||||
| Rated pressure | 0.7Mpa | |||||
| inner material | SUS304 | |||||
| External material | White Paint steel(Can be customized) | |||||
| Insulation | polyurethane foam | |||||
| Insulation thickness | 50mm | |||||
| Net weight | 11Kg | 12Kg | 16Kg | 21Kg | 26Kg | 29Kg |
| Net size | Φ380*525mm | Φ420*615mm | Φ470*700mm | Φ470*905mm | Φ470*1085mm | Φ470*1295mm |
| Package weight | 13Kg | 14Kg | 18Kg | 23Kg | 29Kg | 32Kg |
| Package size | 470*470*610mm | 470*470*700mm | 540*540*780mm | 540*540*980mm | 540*540*1160mm | 540*540*1370mm |
| Product name | Buffer water tank | |||||
| Model | 150L | 200L | 260L | 300L | 400L | 500L |
| Electric heating | None(Can be customized) | |||||
| Coil Pipe | None(Can be customized) | |||||
| Circulation port | Rp1(Can be customized) | |||||
| Circulation port | Rp1-1/4(Can be customized) | |||||
| Drain | 1/2M(Can be customized) | |||||
| PT valve | Rp 3/4 | |||||
| Rated pressure | 0.7Mpa | |||||
| inner material | SUS304 | |||||
| External material | White Paint steel(Can be customized) | |||||
| Insulation | polyurethane foam | |||||
| Insulation thickness | 50mm | |||||
| Net weight | 31Kg | 38Kg | 45Kg | 54Kg | 62Kg | 77Kg |
| Net size | Φ470*1520mm | Φ520*1520mm | Φ560*1610mm | Φ560*1900mm | Φ700*1610mm | Φ700*1900mm |
| Package weight | 34Kg | 42Kg | 49Kg | 59Kg | 69Kg | 83Kg |
| Package size | 540*540*1590mm | 590*590*1610mm | 625*625*1650mm | 625*625*1940mm | 780*780*1690mm | 780*780*1980mm |

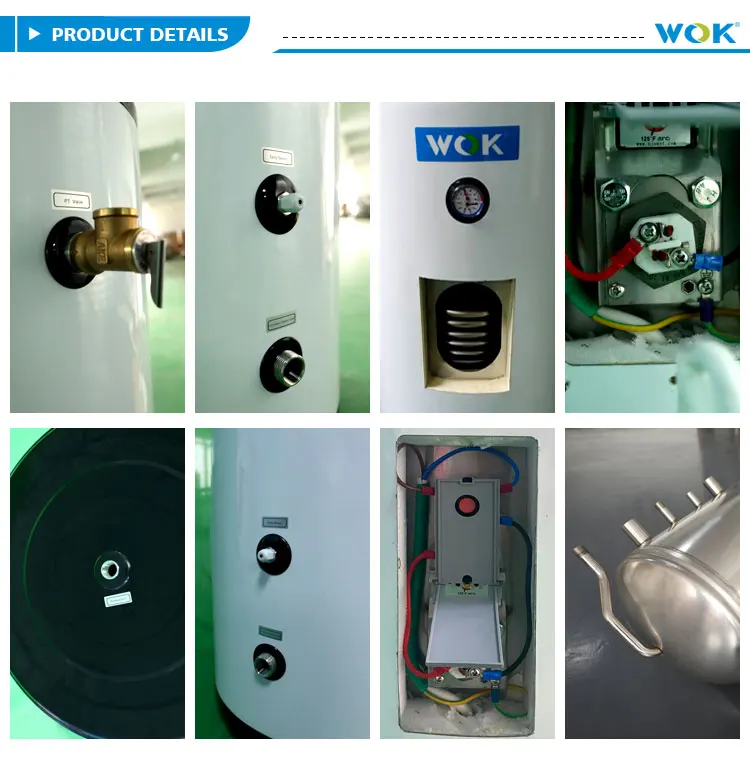

Product Details
Company Profile
Certificate
Our Case
FAQ
Q1. Material?
For inner tank this tankcan be used SUS304 SUS316L SUS2205. For the outer shell is galvanize with painting SUS201 SUS304.
Q2.Volume?
We can product 30L 40L 60L 80L 100L 120L 150L 200L 260L 300L 400L 500L 600L 800L 1000L and so on.
Q3. Lead time?
For the LCL order is 20 days after received the payment . for the container order is 30 days after received the advance payment.
