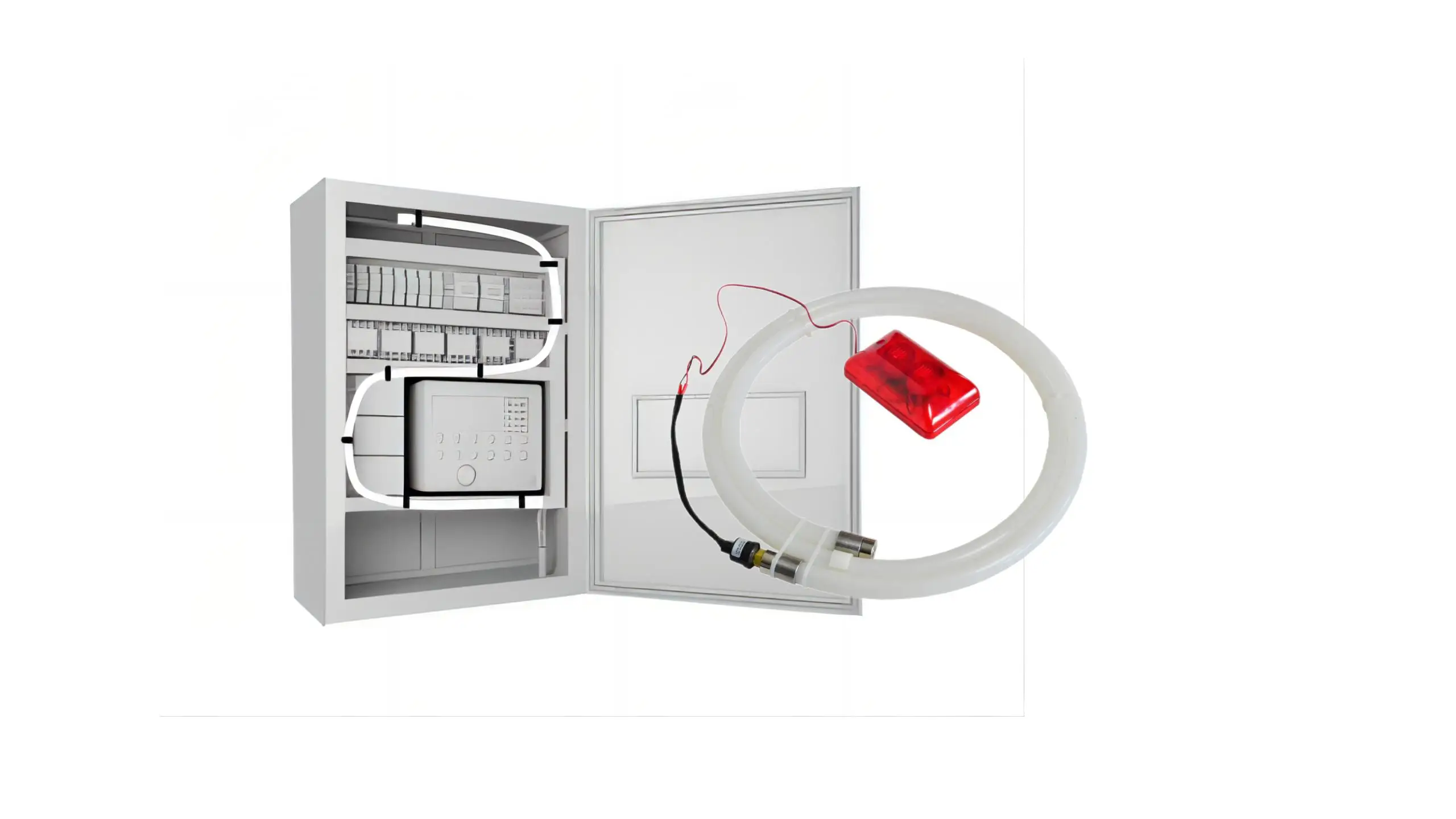

Tube Type Automatic Fire Suppression Systems

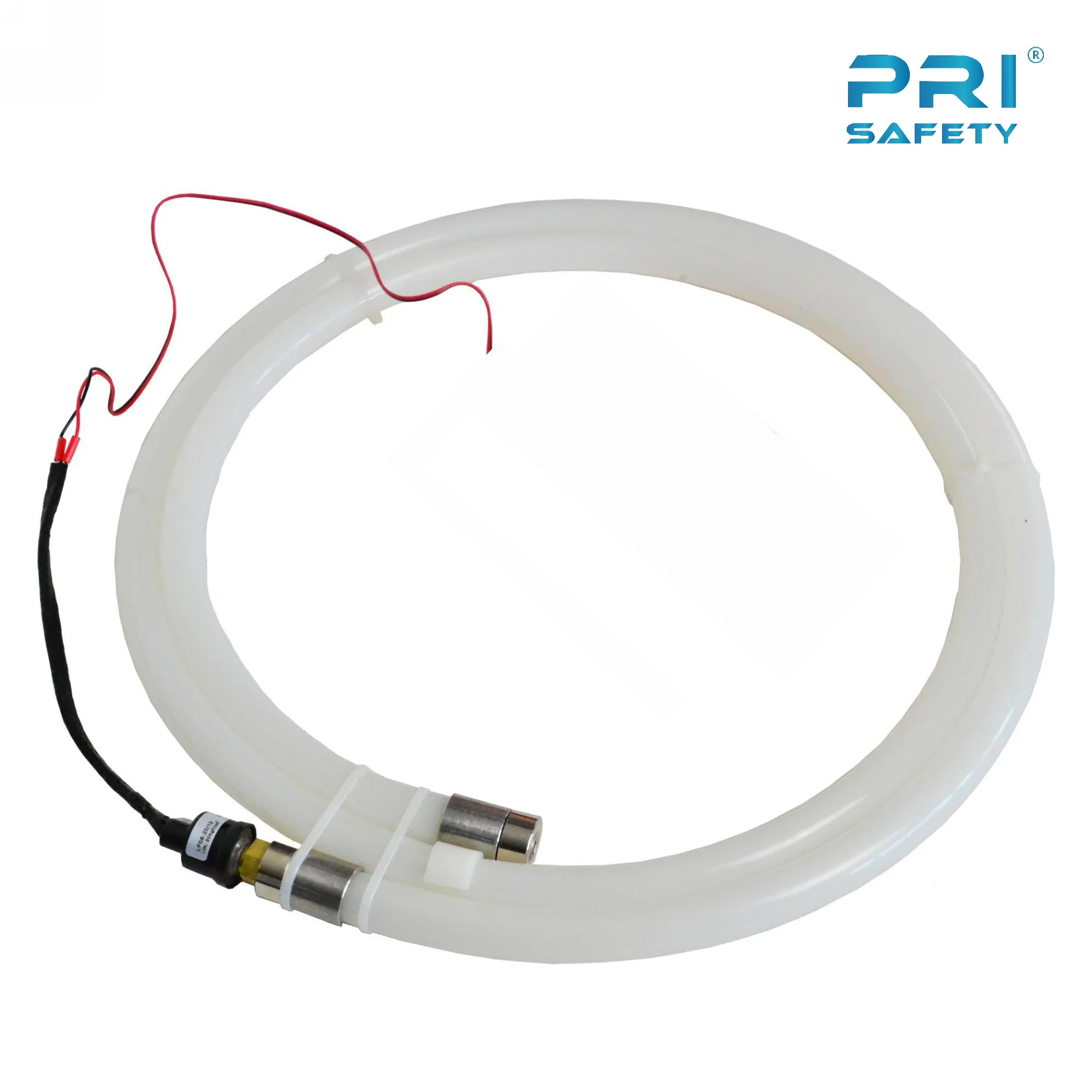

Automatic Fire Suppression System -Automotive Tube Extinguisher is both fire extinguisher and storage container, designed to automatically eliminate fires in confined enclosed space. The system consists in special plastic tube as detection tube, stainless fitting on either end,pressure gauge. There are also other options of temperature monitor,fire alarm,GPS and pressure switch with alarm system.
When a fire breaks out, the heat degrades and melts the storage tube which contains the extinguishing agent under pressure. The melted tube bursts a hole as nozzle, which releases extinguishing agent to suppress the fire. At the same time ,the alarm goes off and the GPS sends the fire location to you.
The system is powerful and effective in its fire suppression ,and no maintenance is required during its entire 5-year working life. It also does not require any power supply for activation and can be easily installed by anyone.It is suitable for class A,B, C and E fires,and ideal for Trucks, Vans, Sports Cars, Luxury Cars, Boats, Yachts and switchboards etc.
When a fire breaks out, the heat degrades and melts the storage tube which contains the extinguishing agent under pressure. The melted tube bursts a hole as nozzle, which releases extinguishing agent to suppress the fire. At the same time ,the alarm goes off and the GPS sends the fire location to you.
The system is powerful and effective in its fire suppression ,and no maintenance is required during its entire 5-year working life. It also does not require any power supply for activation and can be easily installed by anyone.It is suitable for class A,B, C and E fires,and ideal for Trucks, Vans, Sports Cars, Luxury Cars, Boats, Yachts and switchboards etc.
Product Features
• No service or maintenance required for 5 years
• Automatic activation without power support
• Non-toxic and environmentally friendly
• Suitable class A B C D E fires
• Portable and lightweight
• No residue after extinguishing-no clean-up costs
• Ideal for cars, trucks,boats,vans, switchboards and yachts etc
• More cost-effective option
• Easy Installation
• Automatic activation without power support
• Non-toxic and environmentally friendly
• Suitable class A B C D E fires
• Portable and lightweight
• No residue after extinguishing-no clean-up costs
• Ideal for cars, trucks,boats,vans, switchboards and yachts etc
• More cost-effective option
• Easy Installation

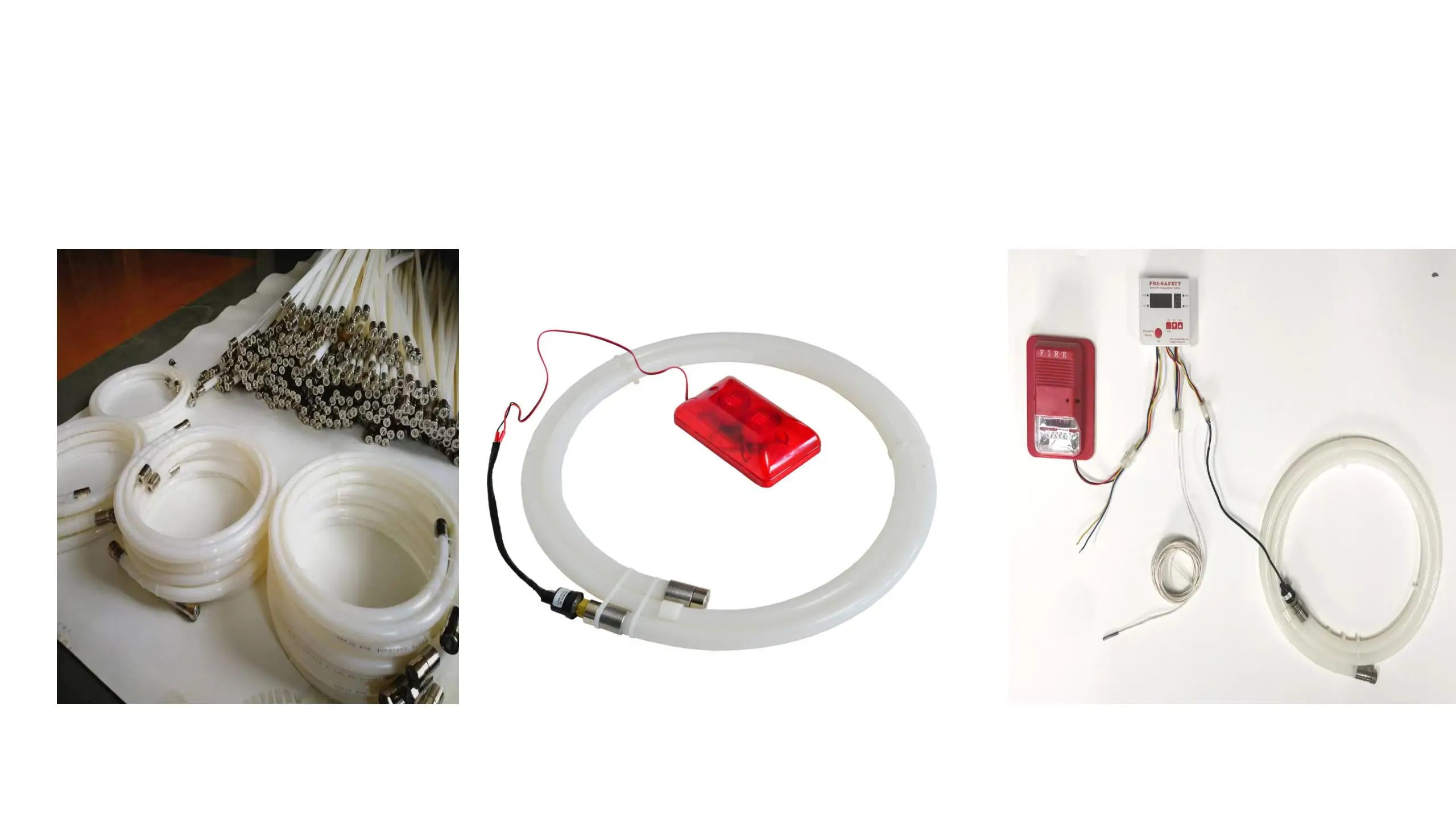

Detailed Images
Installation

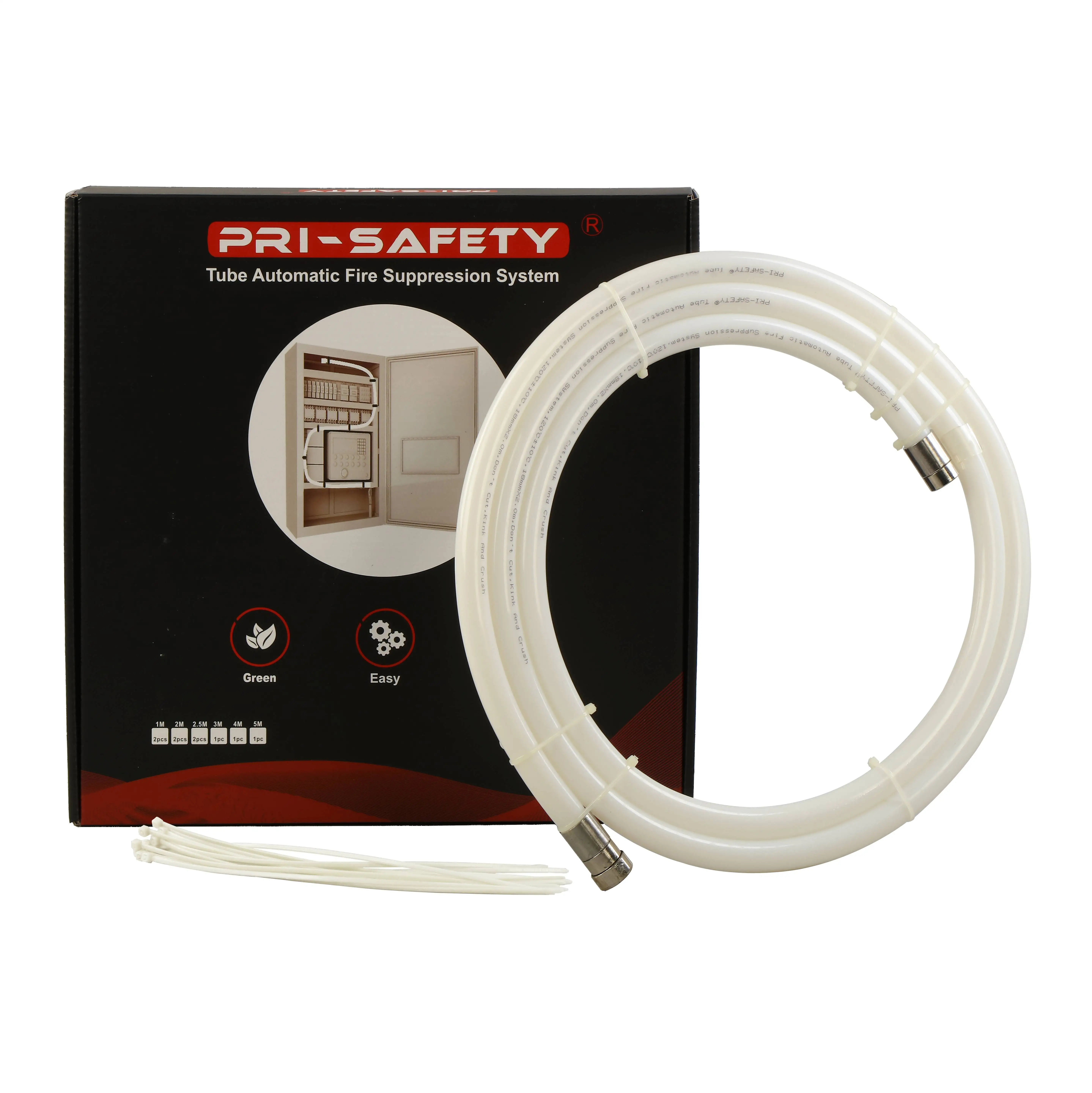

• Open the box, and cut the cable ties carefully, don’t hurt the tube.
• The packing kits include the cable ties and tube clamps(with rubber lining), please choose both or anyone for fixing the tube in the protected enclosed place.
• Don’t use a metal fastening material for installation( Steel clamp, Metal Wire, etc.). The installation shape of the tube no
rules, according to the protected space, ensure can protect all the space.

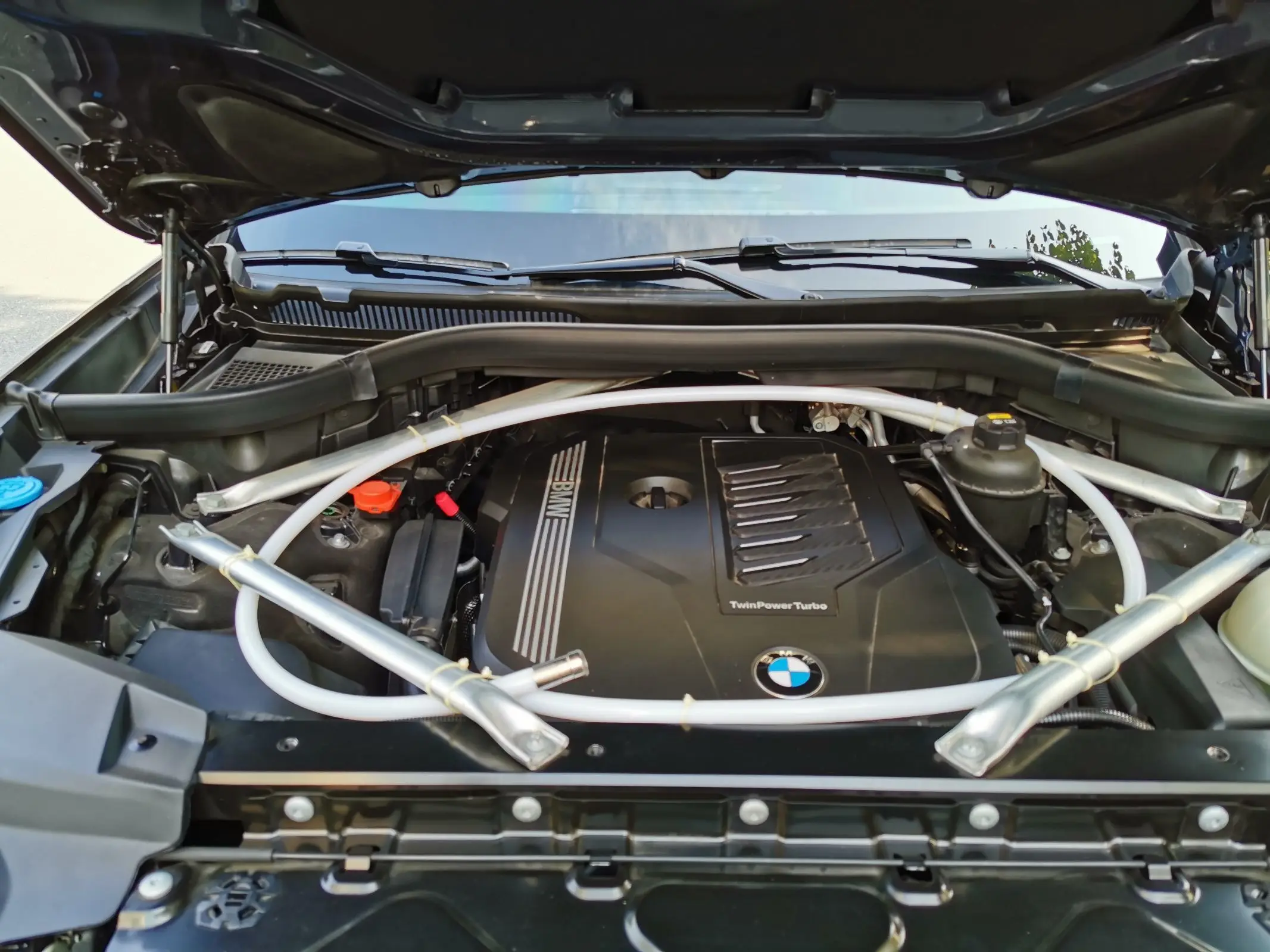

• Don’t close to the high temperature part in the engine compartments.
• The minimum bending radius 250mm.

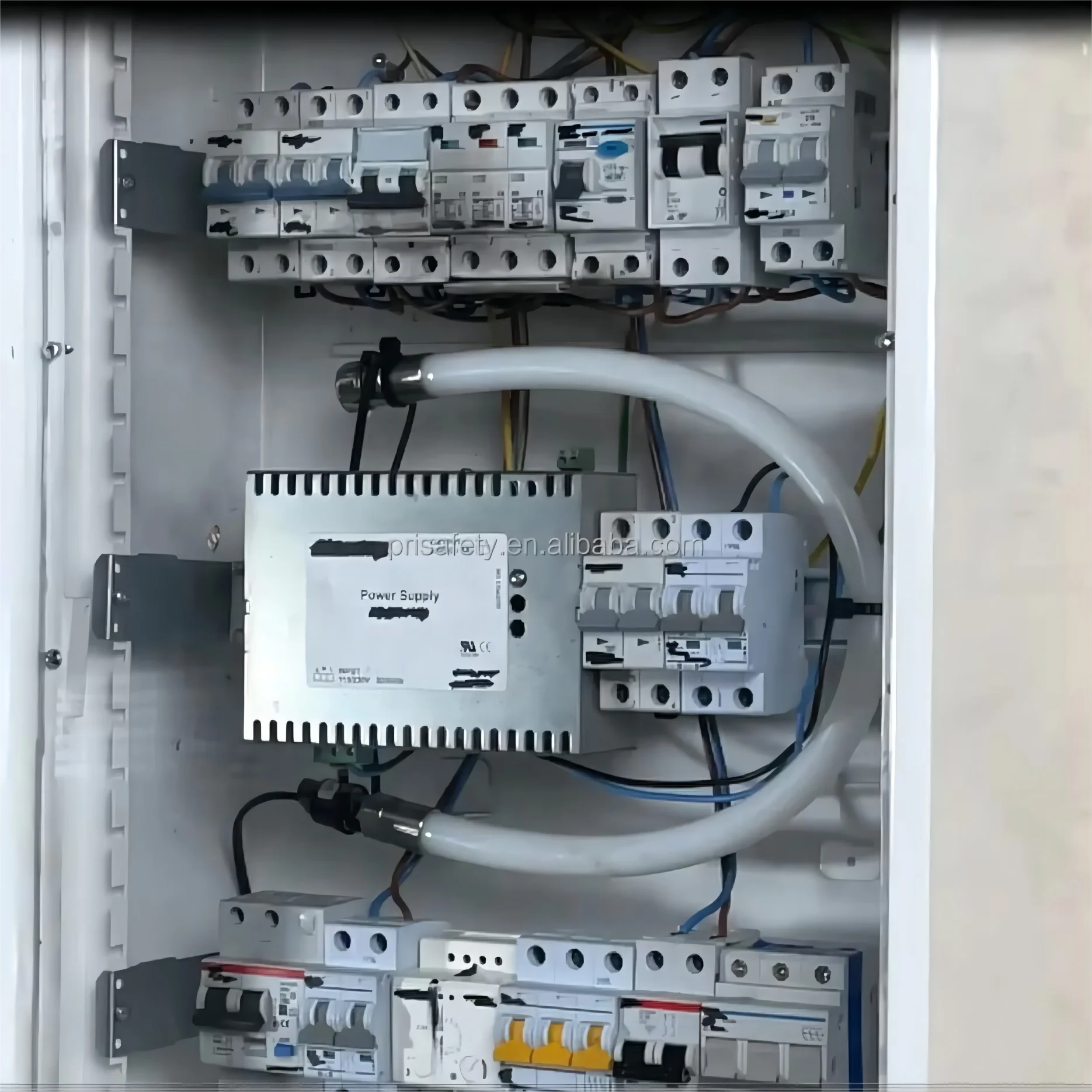

• It can be installed in the electrical board.
Specification
Code | TFS-0.5 | TFS-01 | TFS-02 | TFS-03 | TFS-04 | TFS-05 | |||||
Length x Dia | 0.5mx18mm | 1mx18mm | 2mx18mm | 3mx18mm | 4mx18mm | 2mx18mm | |||||
Agent Capacity | 100g | 200g | 400g | 600g | 800g | 1000g | |||||
Protection Space | 0.1 ~0.125m3 | 0.2~0.25m3 | 0.40~0.50m3 | 0.60~0.75m3 | 0.8~1.0m3 | 1.0~1.25m3 | |||||
Agent Type | FM200 (HFC-227ea) / FE-36(HFC-236fa) | ||||||||||
Material | Polyamide Tube | ||||||||||
Pressure at 20 ° C | 2~6 Bar / 1~4 Bar | ||||||||||
Pressure at 100° C | 19Bar / 15Bar | ||||||||||
Burst Temperature | 100° C± 10 ° C / 120° C± 10 ° C | ||||||||||
Working Temperature | -40° C~+90° C | ||||||||||
Shelf Life of Systems | 5 Years | ||||||||||

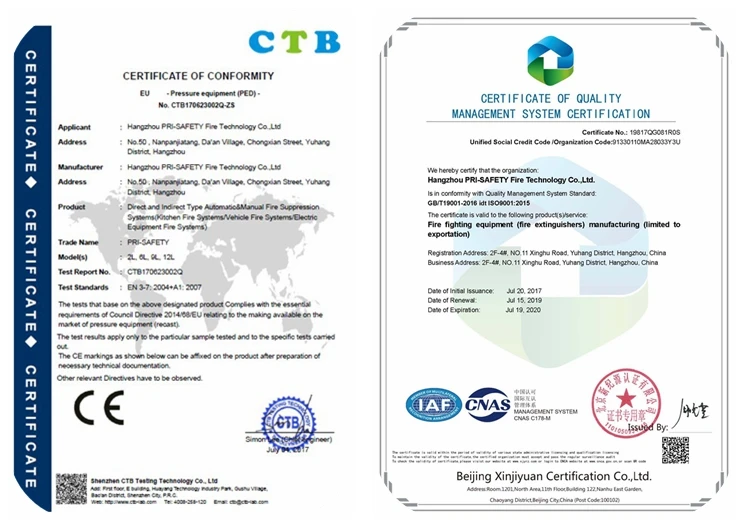

Certifications

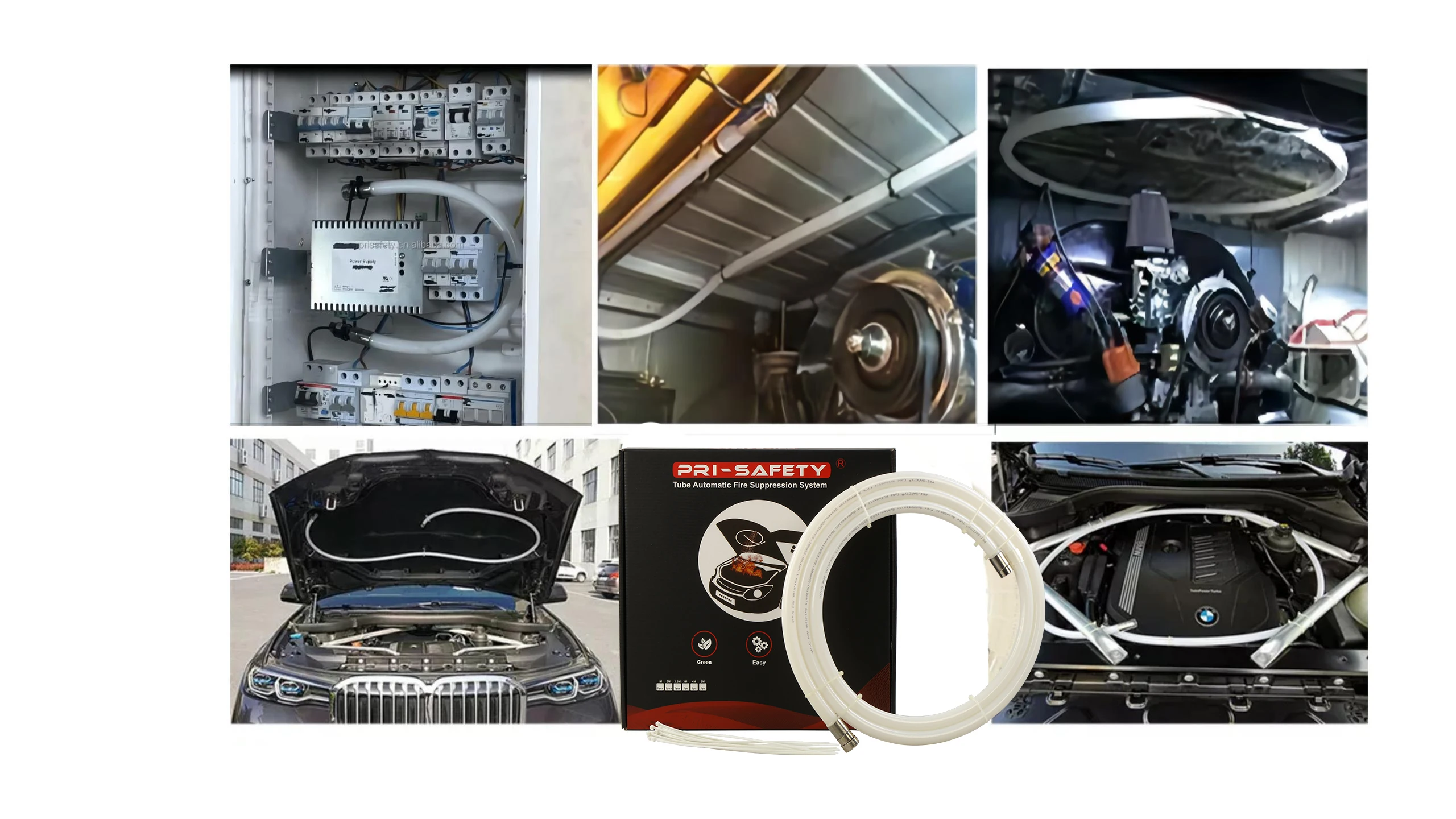

Application
• Ideal for Trucks
• Vans, Sports Cars
• Cars, , Yachts
• Boats, outboard motors
• Switchboards
• Tractors, mowers,etc.
• Cars, , Yachts
• Boats, outboard motors
• Switchboards
• Tractors, mowers,etc.
Company Profile
HANGZHOU PRI-SAFETY FIRE TECHNOLOGY.CO.,LTD., established in 1997,is a tech enterprise, specializing in the manufacturing ,R&D of fire fighting products and automatic fire suppression systems with over 20 years experience.
Our main products are automatic fire suppression systems,including kitchen fire suppression systems, vehicle suppression fire systems, electric equipment fire suppression systems, mining machine suppression fire systems, boat and yacht fire suppression systems, oil truck fire suppression systems, compressed foam fire systems (CAFS), tube type automatic fire suppression systems.
What's more,we also provide cooking oil pan stick type fire extinguisher, throwing fire extinguishers, conventional fire
extinguishers and customized fire fighting products etc. Our products have been widely sold to overseas market-Europe, Middle East, America, south America, Africa, and Asia, etc. Most of our products have achieved key certifications including
CE, EN3, EN671, MED,etc. Each product will be tested and inspected before packing.
PRI-SAFETY aims to provide high performing fire protection systems and excellent services to our customers.Our technical team has been working on the innovation of fire fighting products to ensure your property and valuables are protected from fire hazards. PRI-SAFETY is the fire protection company you can trust.
Our main products are automatic fire suppression systems,including kitchen fire suppression systems, vehicle suppression fire systems, electric equipment fire suppression systems, mining machine suppression fire systems, boat and yacht fire suppression systems, oil truck fire suppression systems, compressed foam fire systems (CAFS), tube type automatic fire suppression systems.
What's more,we also provide cooking oil pan stick type fire extinguisher, throwing fire extinguishers, conventional fire
extinguishers and customized fire fighting products etc. Our products have been widely sold to overseas market-Europe, Middle East, America, south America, Africa, and Asia, etc. Most of our products have achieved key certifications including
CE, EN3, EN671, MED,etc. Each product will be tested and inspected before packing.
PRI-SAFETY aims to provide high performing fire protection systems and excellent services to our customers.Our technical team has been working on the innovation of fire fighting products to ensure your property and valuables are protected from fire hazards. PRI-SAFETY is the fire protection company you can trust.

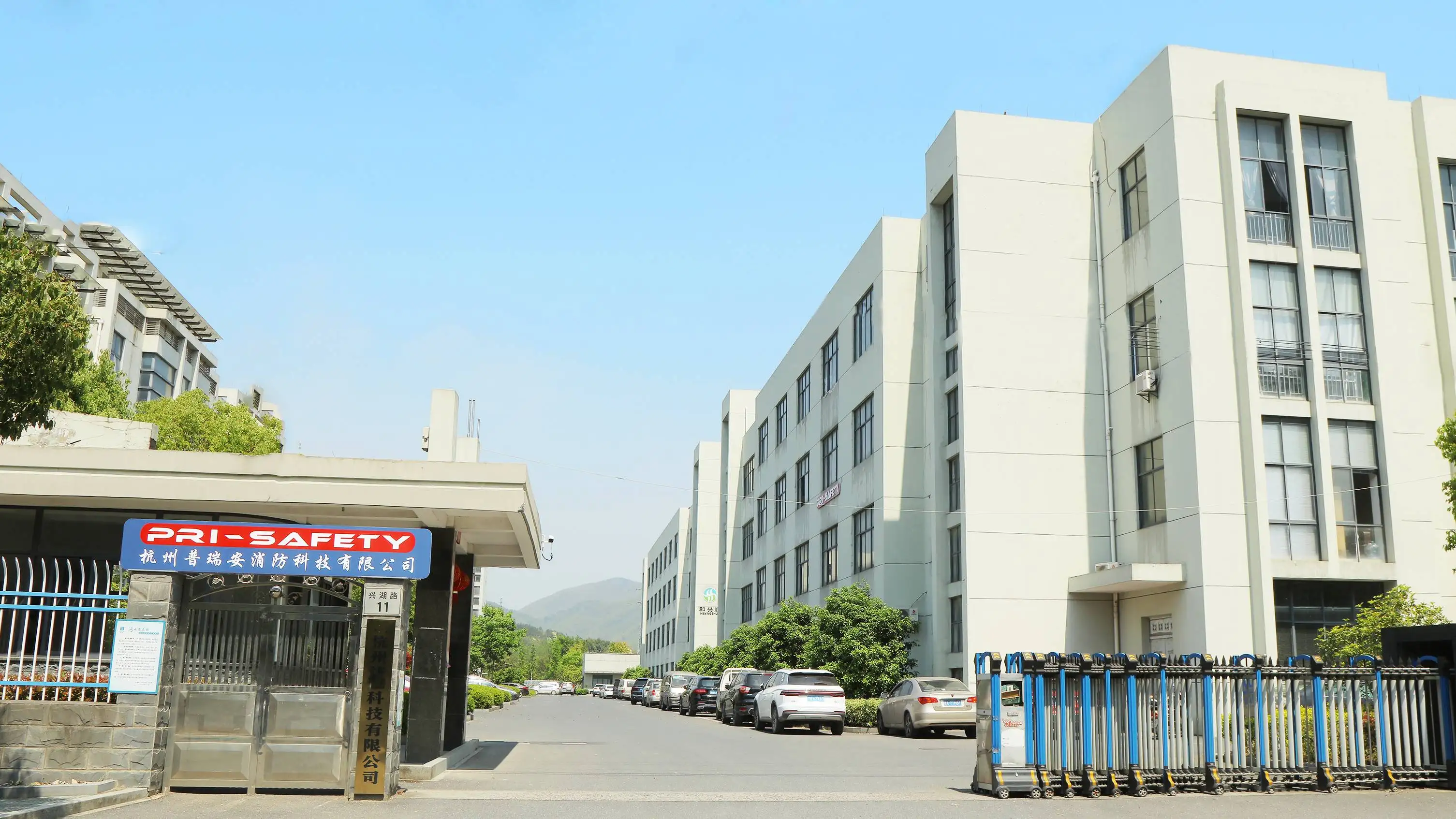

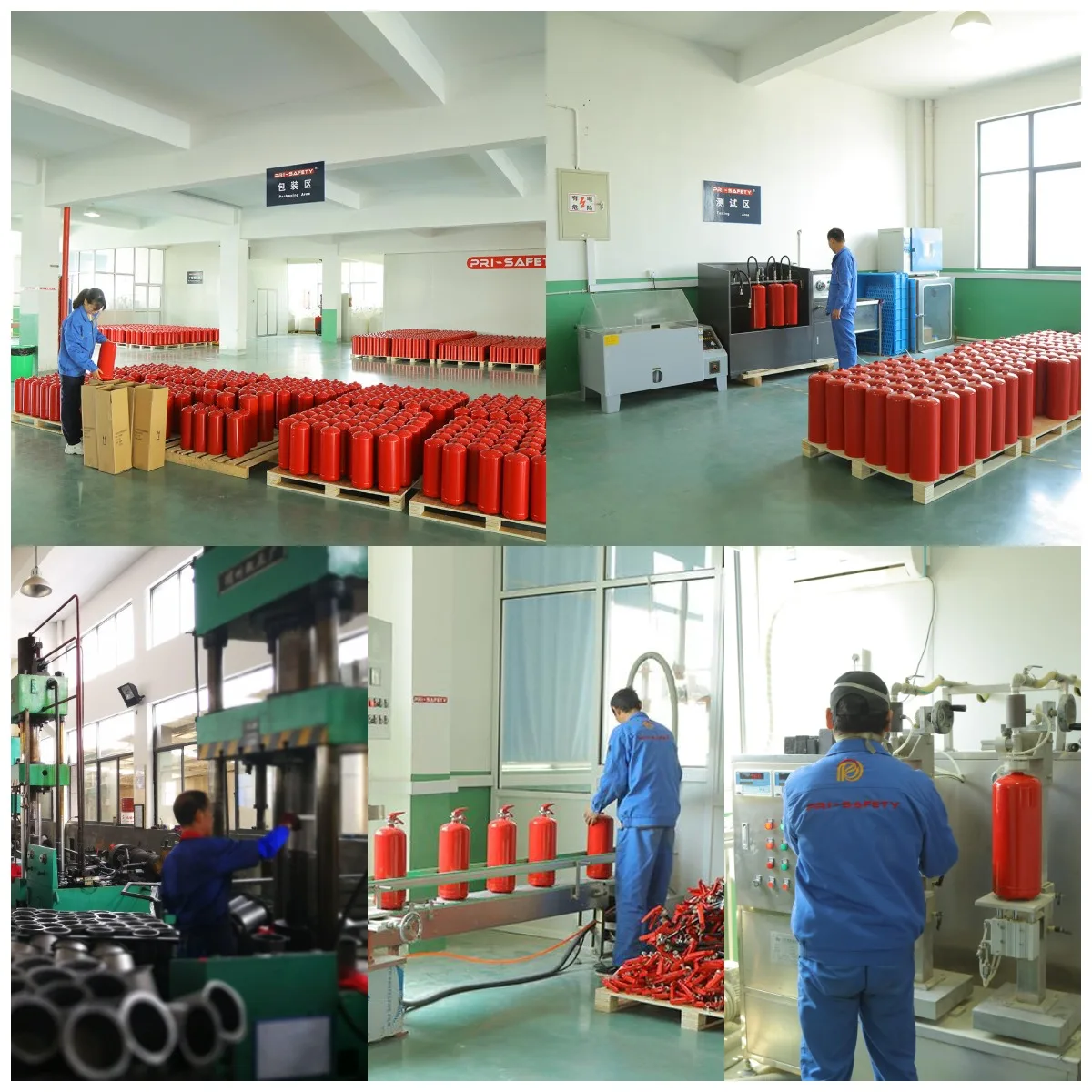

Workshop

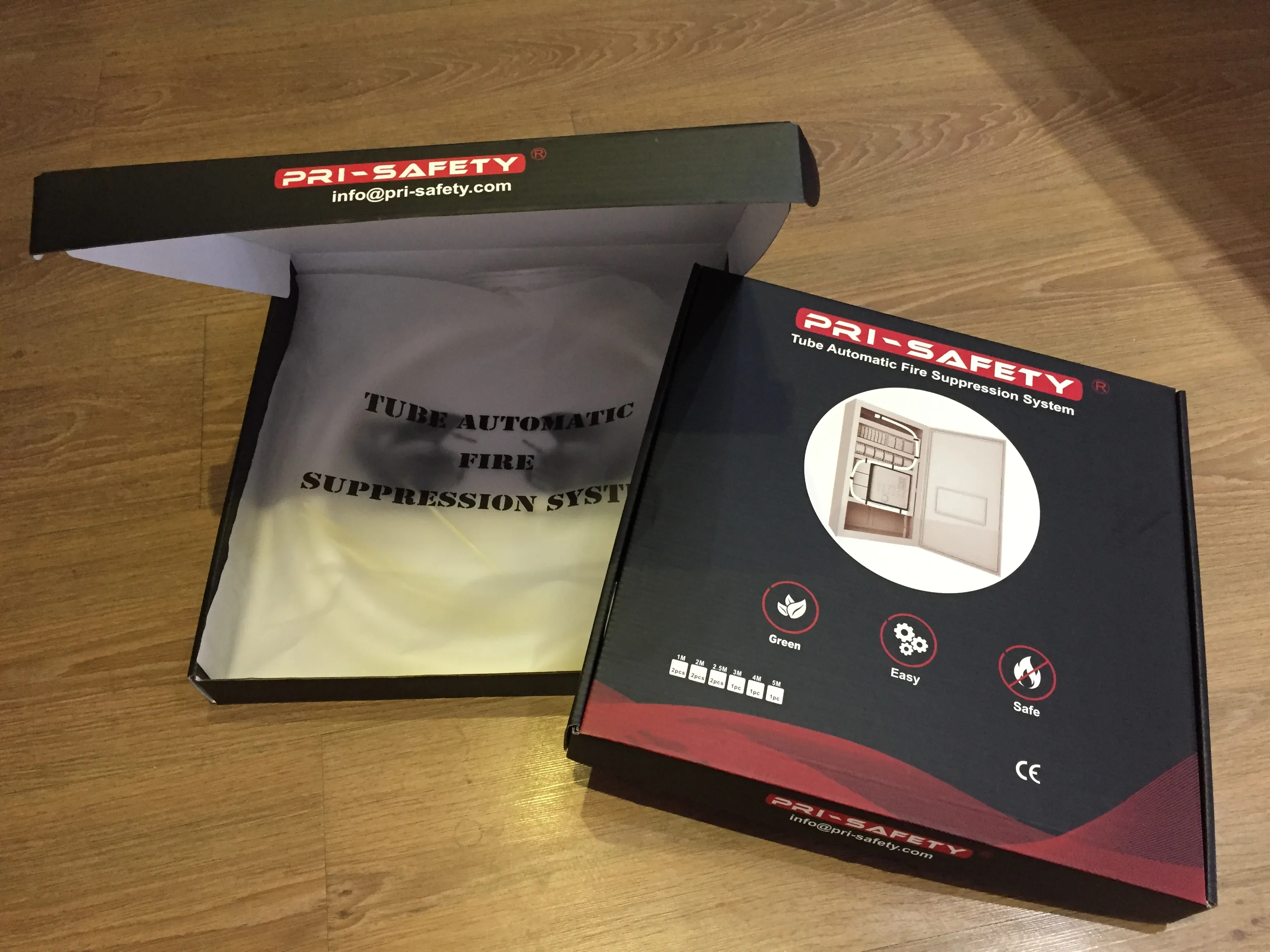

Packing & Delivery
