Mobile crushers are often referred to as ‘mobile crushing plants’. They are track-mounted or wheel-mounted crushing machines which, thanks to their mobility, can maximize productivity and reduce operating costs – while increasing safety and reducing environmental impact.
The concept of mobile and semi-mobile crushers has been around for a long time, but for years many machines were very heavy and moving them required thoughtful planning. As result, the crushers that were supposed to be mobile were seldom relocated and tended stay put in permanent facilities.
Nowadays, the weight of mobile crushers has decreased considerably, and crushing as well as mobility properties improved notably.Mobility is not substitute for effective crushing anymore, and tracked/wheeled mobile crushers meet the same basic criteria as stationary plants.
The ability to crush also the largest lumps to the desired cubicity at the desired rate are all ‘must-have’ rather than ‘nice-to-have’ attributes. The basic components of mobile crushers are almost the same as for stationary ones, but with the added advantage of complete mobility – even up slopes as steep as 1:10 incline.

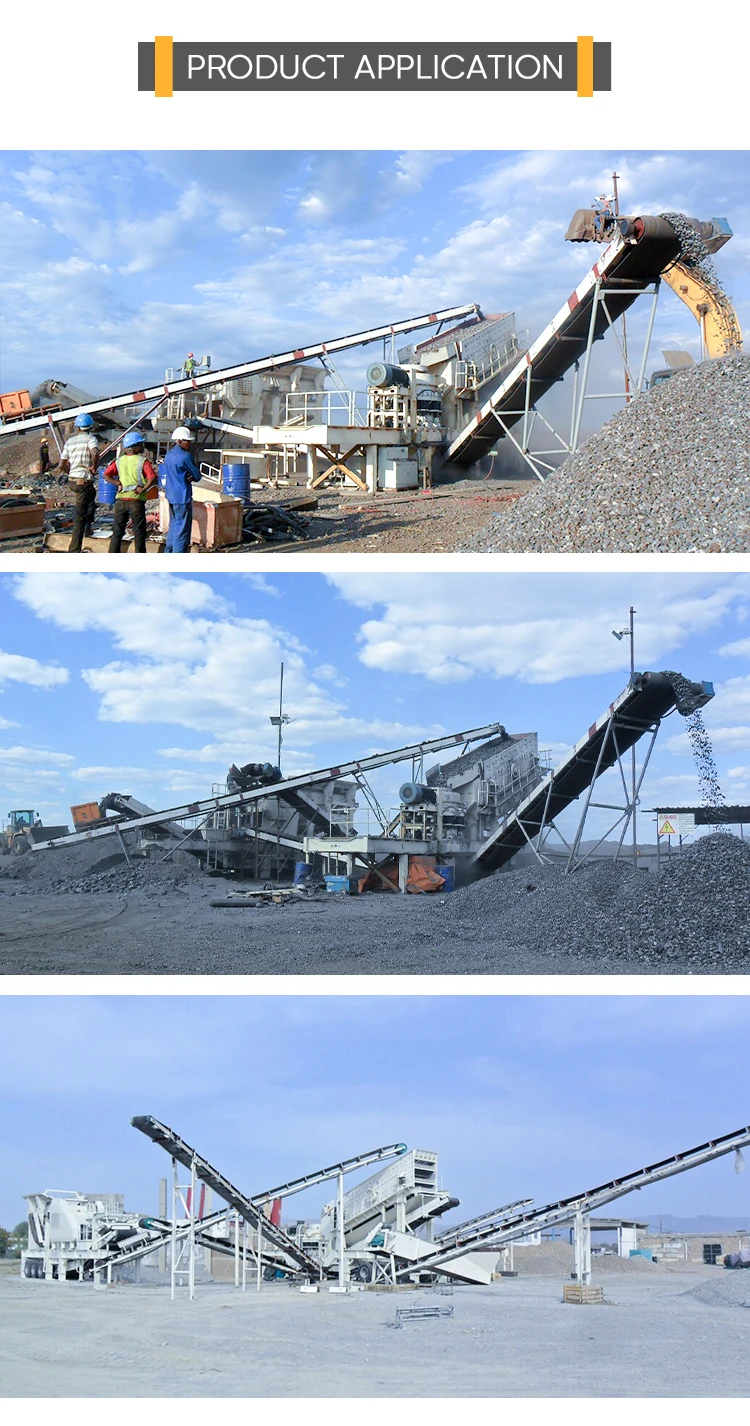

Application of Mobile Crusher:
The Mobile Crusher is applied to multistage crush large materials, and then screen the discharges according to their different specifications. The whole set plants is widely used to mine, building material, highway, rail way and hydropower industries, etc.,finish crushing and screening operations at one time, produce required size and output for consumers.
Technical data:

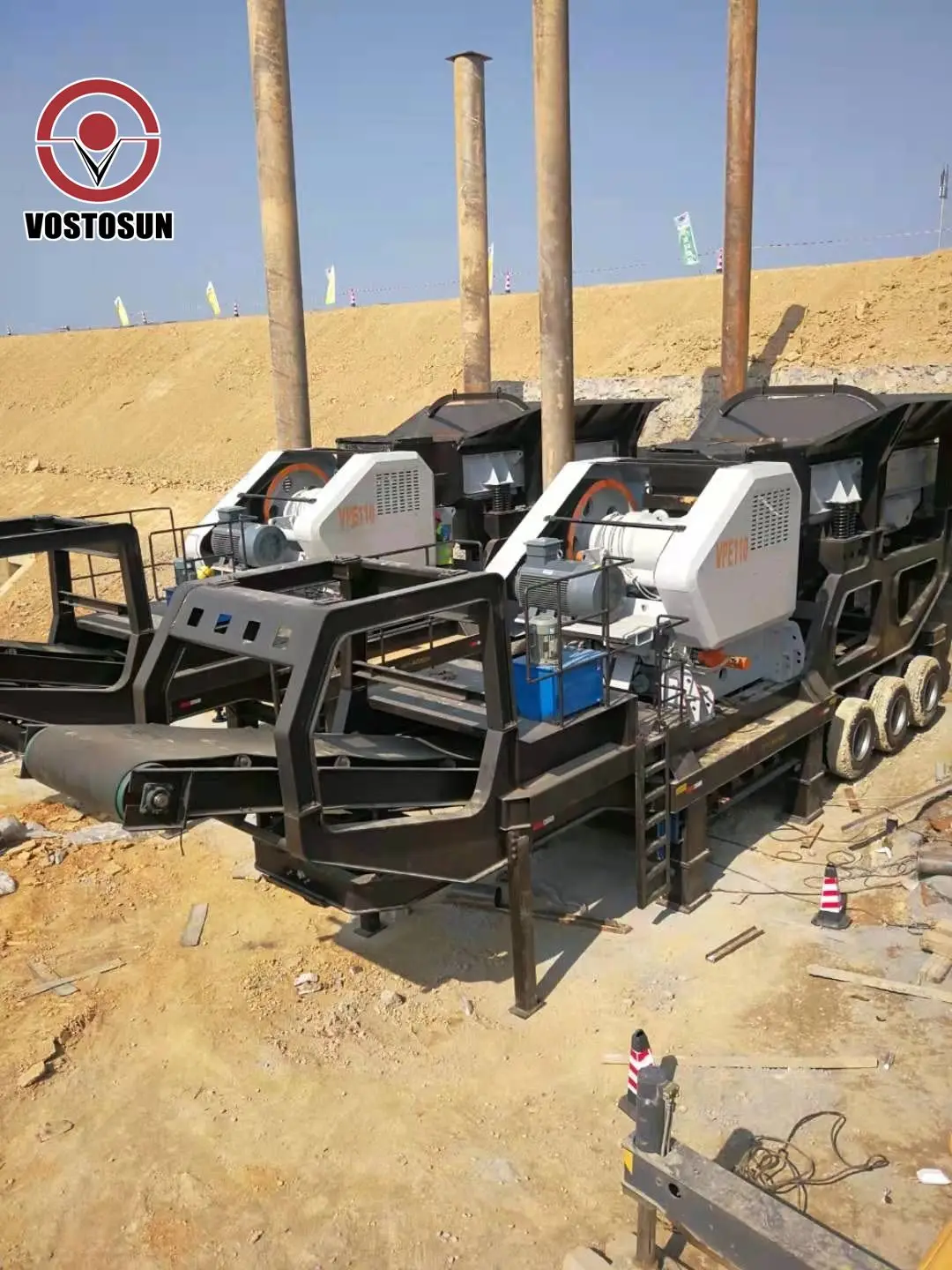

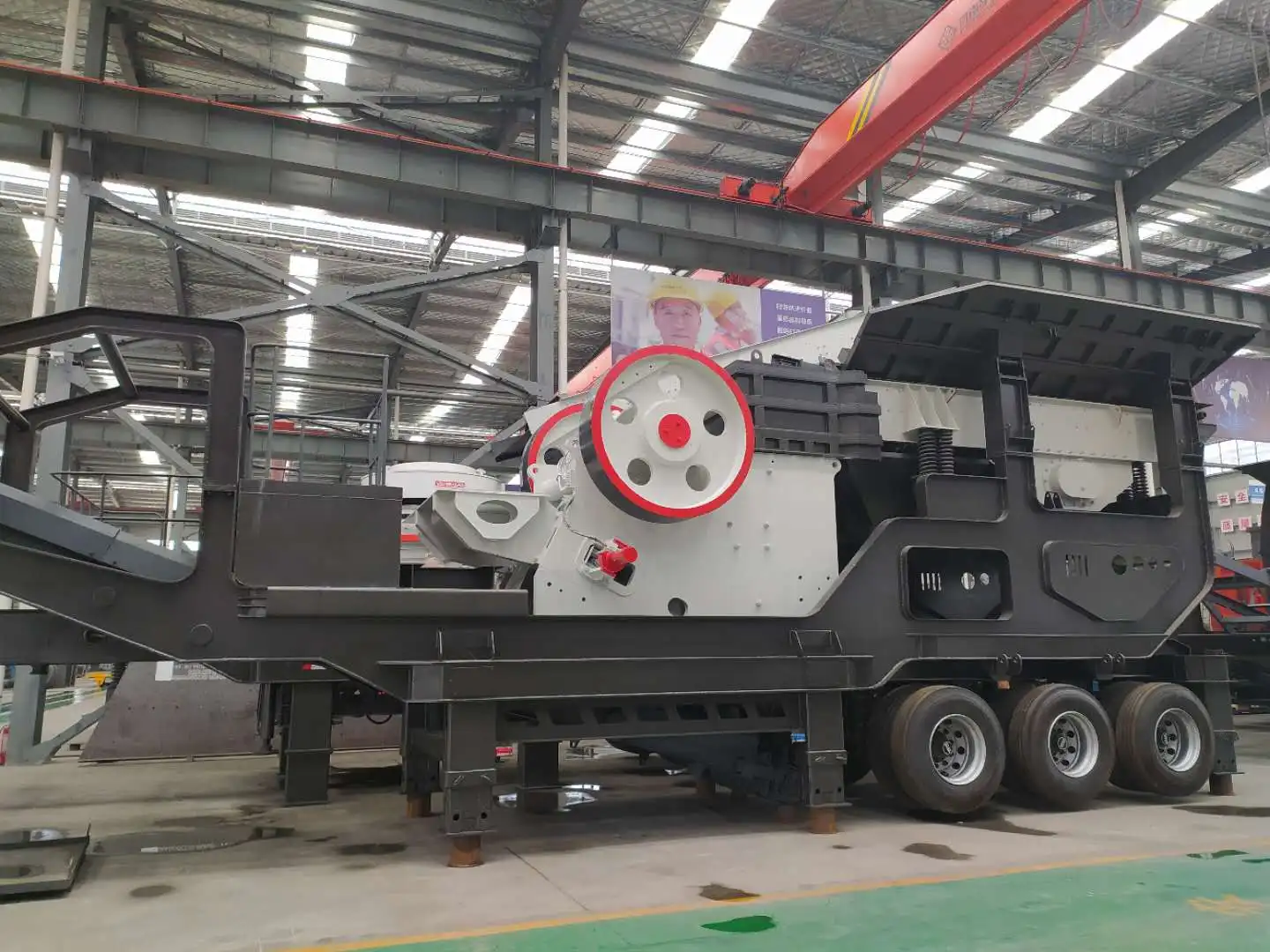

1.Mobile Jaw Crusher Plant Popular mobile jaw crushers are generally utilized as primary crushers that reduce the material to smaller sized for further
processing.
Model
Length
L1(mm)
Width B1(mm)
Height H1(mm)
Height of Belt
conveyor (mm)
Wheel
Weight
VS938E69
12500
2450
4000
2700
Paratactic
double axles
42
VS1142E710
14000
2450
4800
2700
Paratactic
tri- axle
55
VS1349E912
15500
3000
4800
3000
Paratactic
quarter- axle
72
Model
Feeder Model
Jaw crusher Model
Belt Conveyor Model
Capacity(t/h)
Power
Extended conveyor
VS938E69
GZD380X960
PE600X900
B650X7000mm
70-150t/h
91.5KW
VS938E69
VS1142E710
GZD4200X1100
PE750X1060
B800X9000mm
80-200t/h
134KW
PE750X1060
VS1349E912
GZD4900X1300
PE900X1200
B1000X11000mm
150-300t/h
146KW
VS1349E912

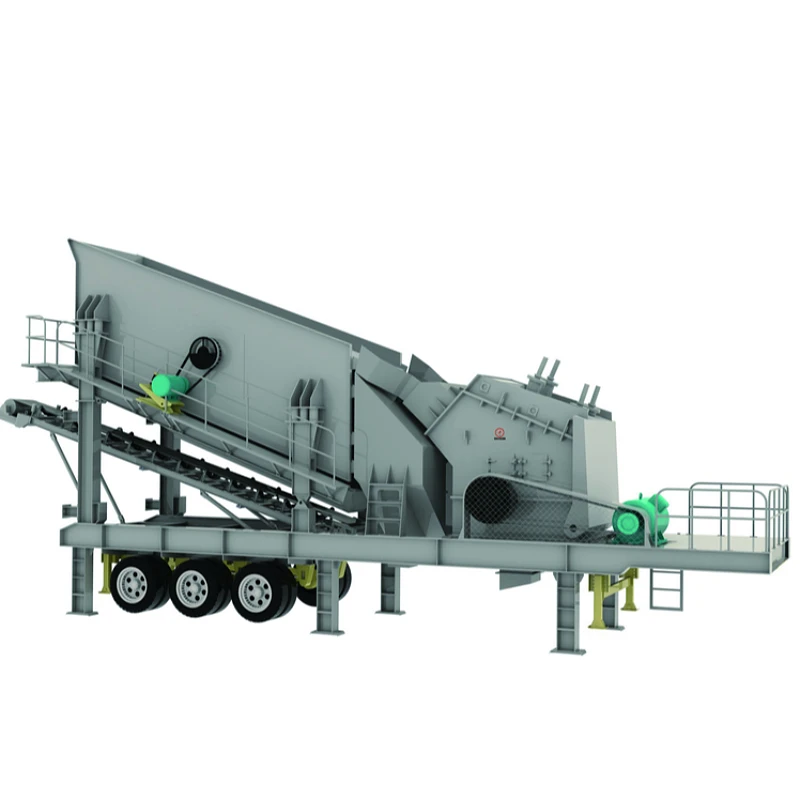

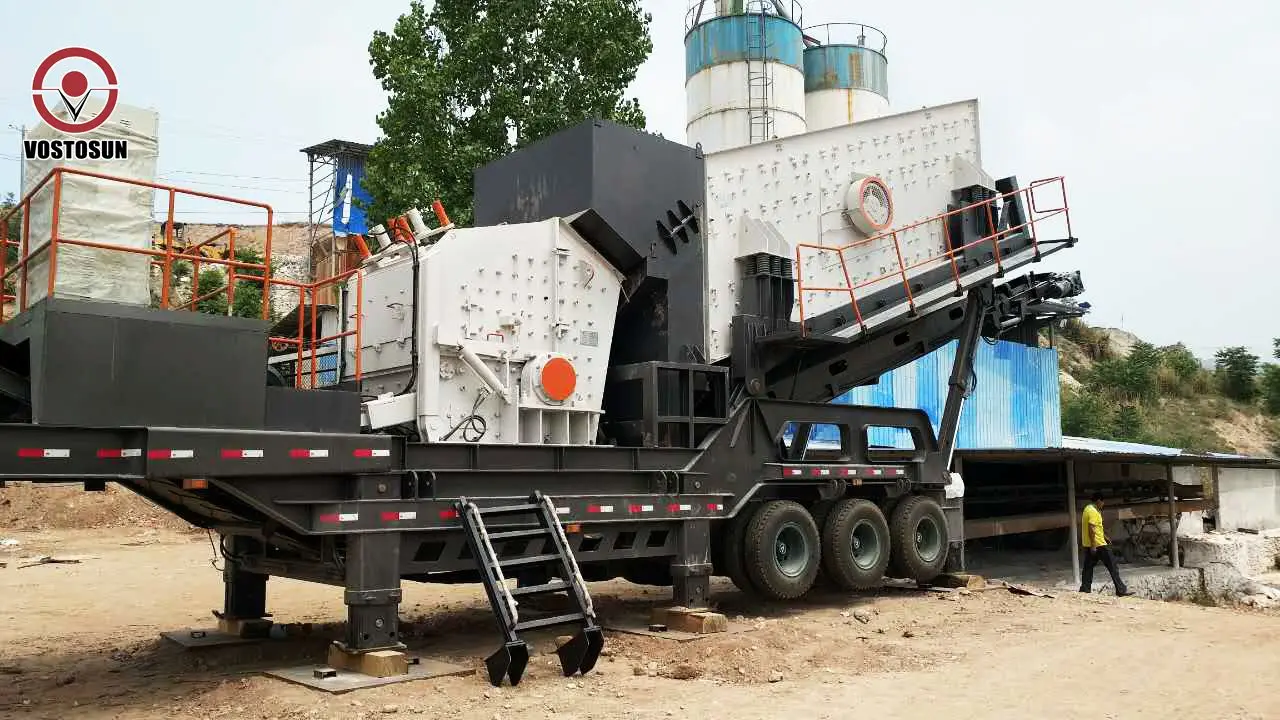

2. Mobile Impact Crusher Plant
Mobile impact crushers are wide-ranging crushing machines that fall into two distinctive categories according to the crushing technology they use. Mobile HSI crushers have a horizontal impact crushing unit and they are used as primary, secondary, or tertiary crushers. Mobile VSI crushers, in turn, are equipped with vertical shaft impact crushing unit, and they are extremely efficient in the last stage of the crushing process, producing precisely shaped cubical end products.
Model
Vibrating Feeder
Crusher Model
Frame Chassis
Capacity(t/h)
Dimension
(L*W*H)
(mm)
Hydraulic System
VSF1214
ZSW380×96
6VX1214
double axle
80-200
12650×4400×4100
Hydraulic lifter
VSF1315
ZSW110×420
6VX1315
triaxial
150-350
13500×4500×4800
Hydraulic lifter

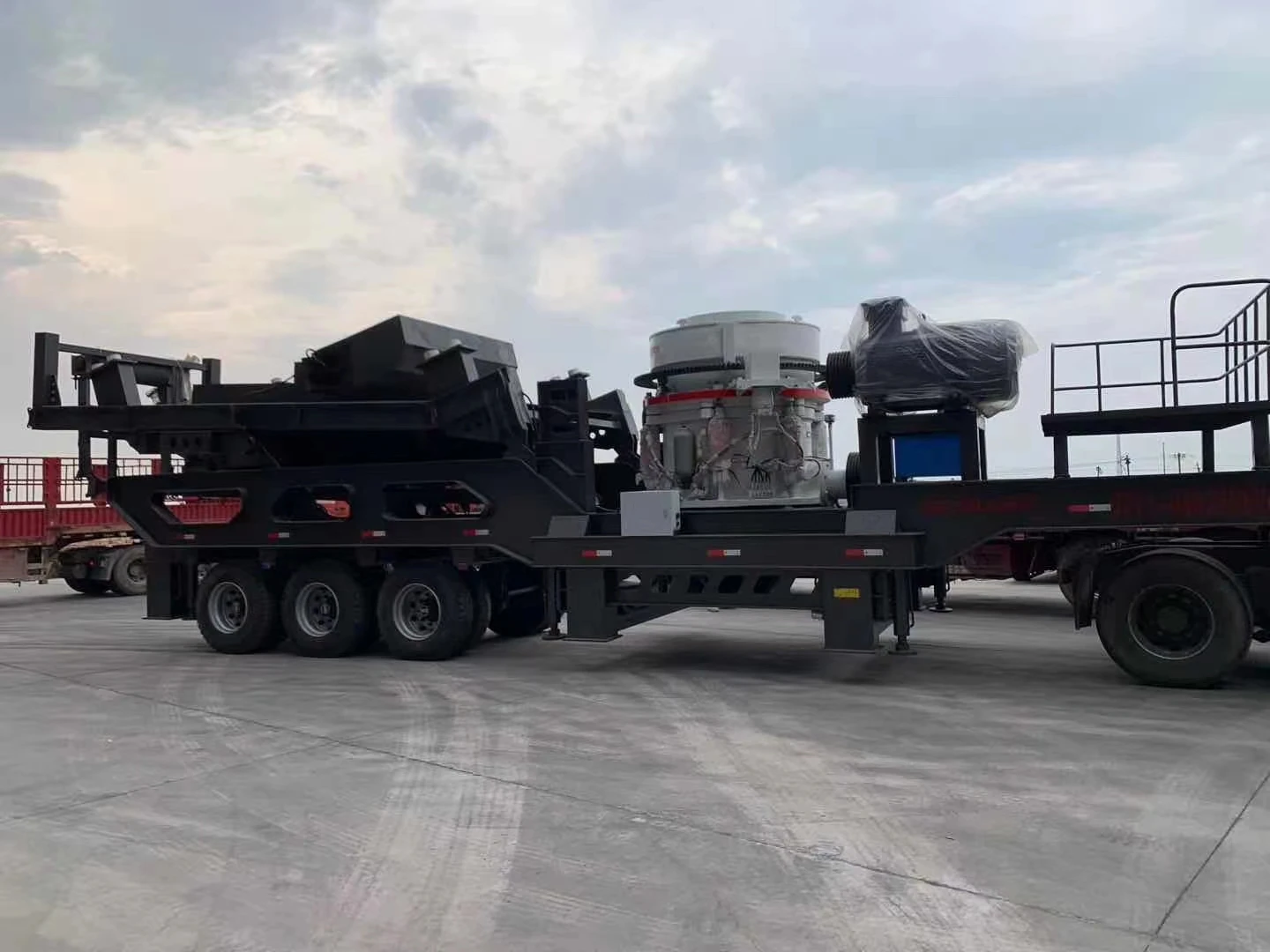

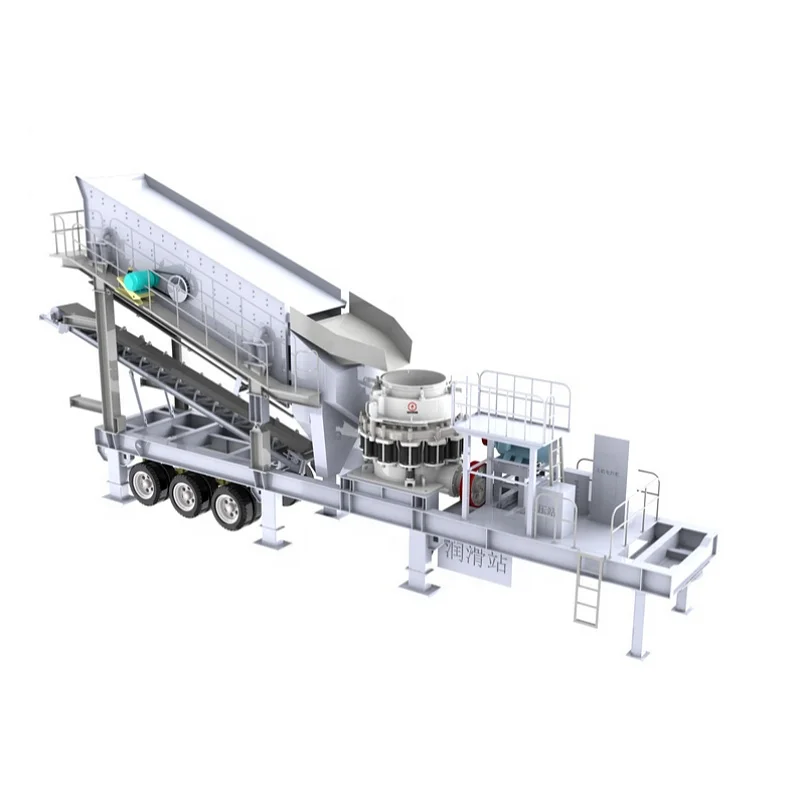

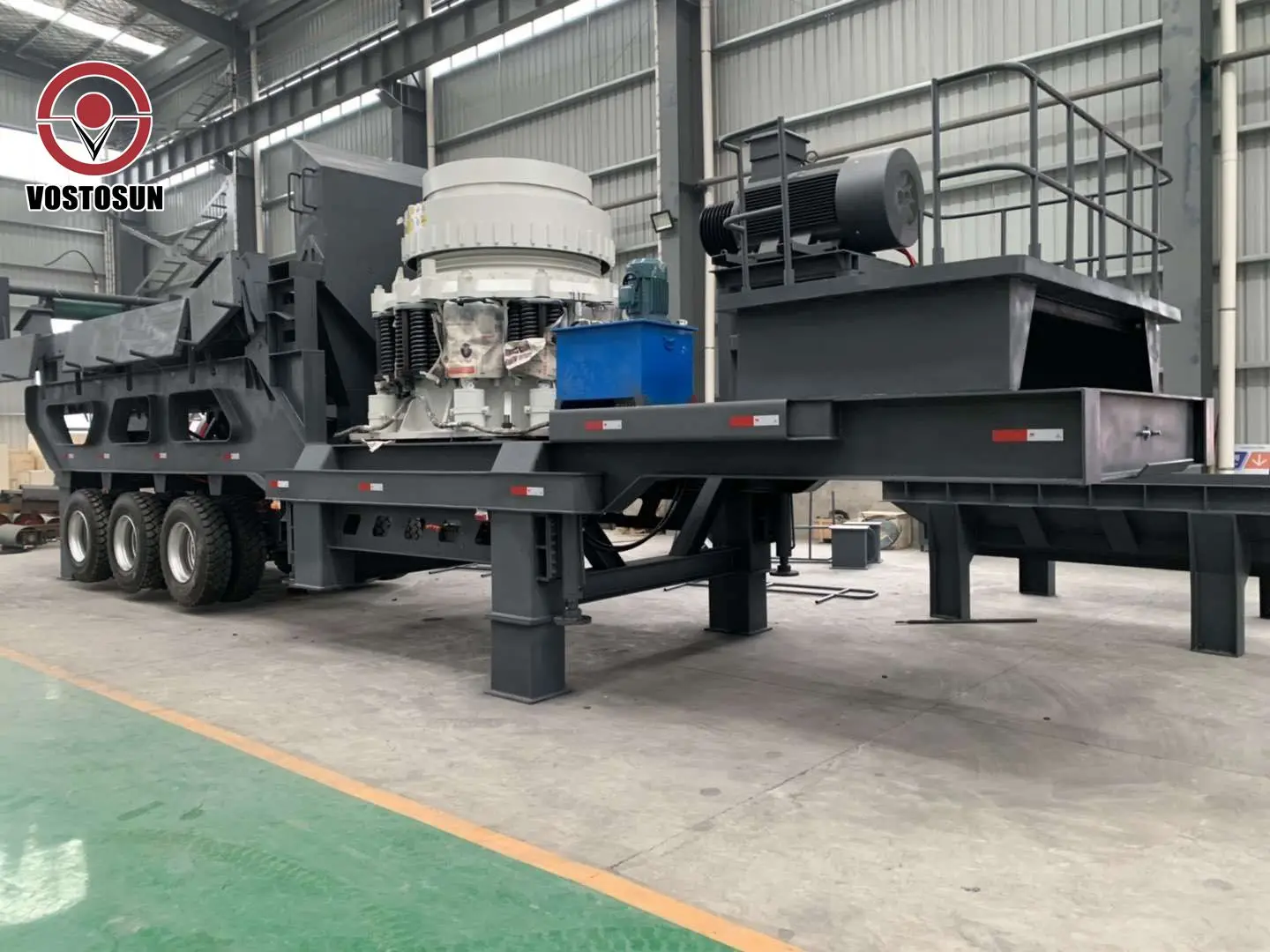

3.Mobile Cone Crusher Plant
Mobile cone crushers are traditionally used as secondary, tertiary, and quaternary crushers. However, if the grain size of the processed material is small enough by nature, then they can also operate at the first stage of the crushing process.
Model
Vibrating Feeder
Primary Crusher
Secondary
Vibrating Screen
Iron remover
Qty. of belt
VSM-4 C46
ZSW3090
PE400*600
PY-900
3YA1237
RCYD(C)-6.5
5
VSM-4 C80
ZSW3090
6CX80
CSV110
3YA1548
RCYD(C)-6.5
5

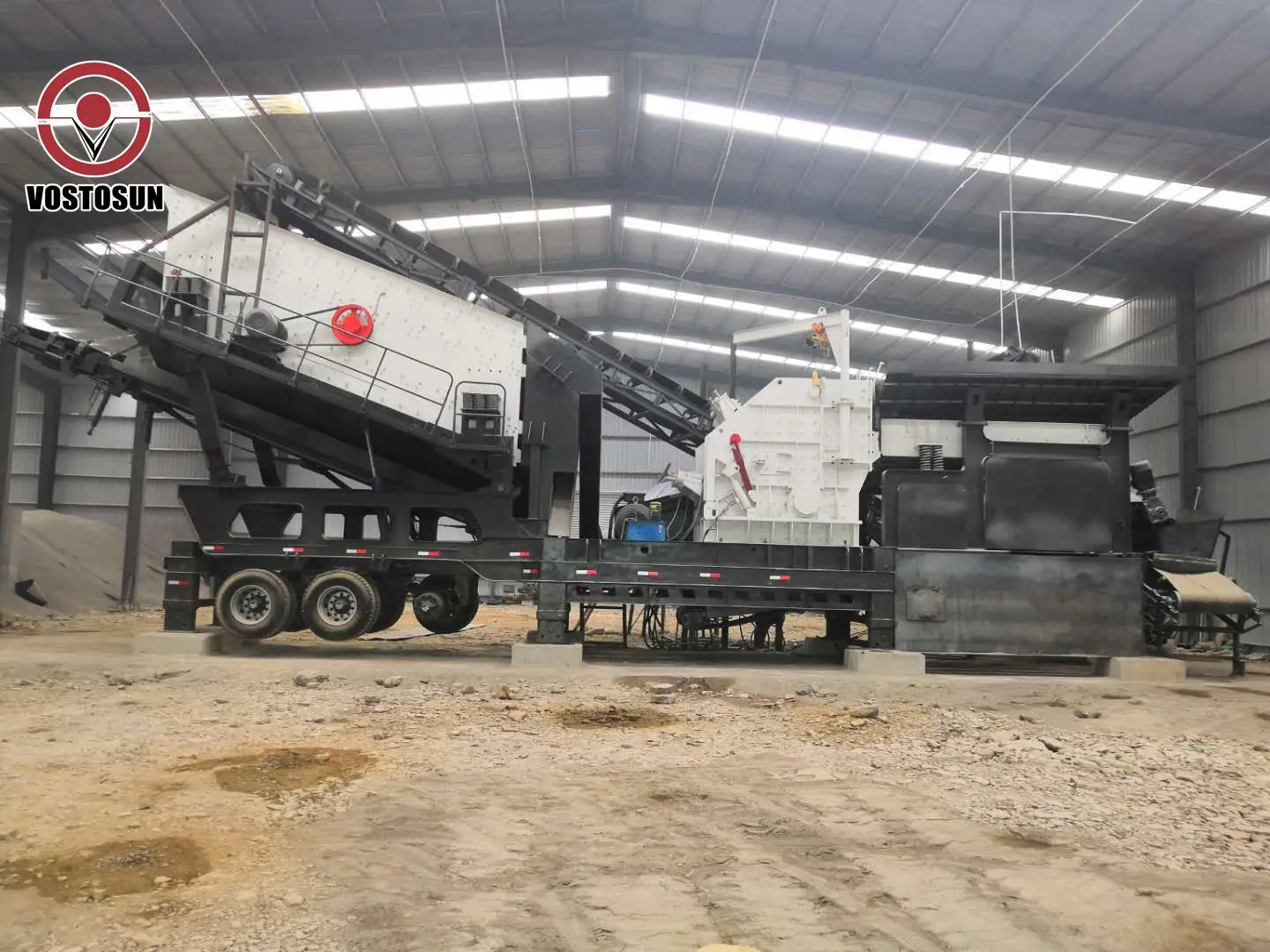

4.Combined Mobile Crushing Plant
The combined mobile crusher plant is equipped with an vibrating feeder, primary or secondary crusher and an effective vibrating screen and related belt conveyors. In addition to the space-saving installation, the manufacturer offers a clearly increased productivity to the operator. Furthermore, the power consumption will be largely decreased by using the combined mobile crusher plant.
