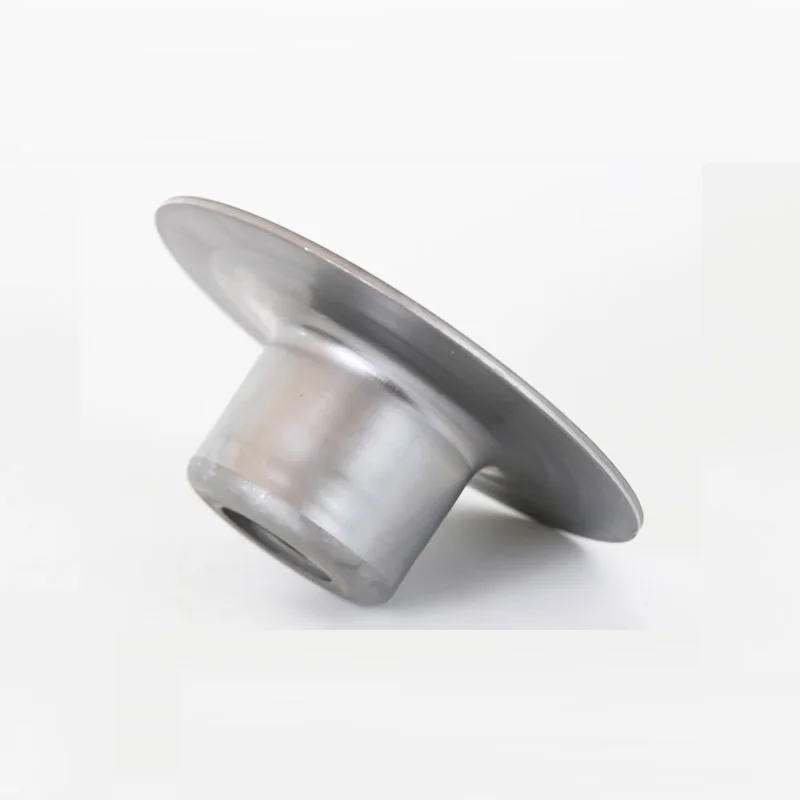

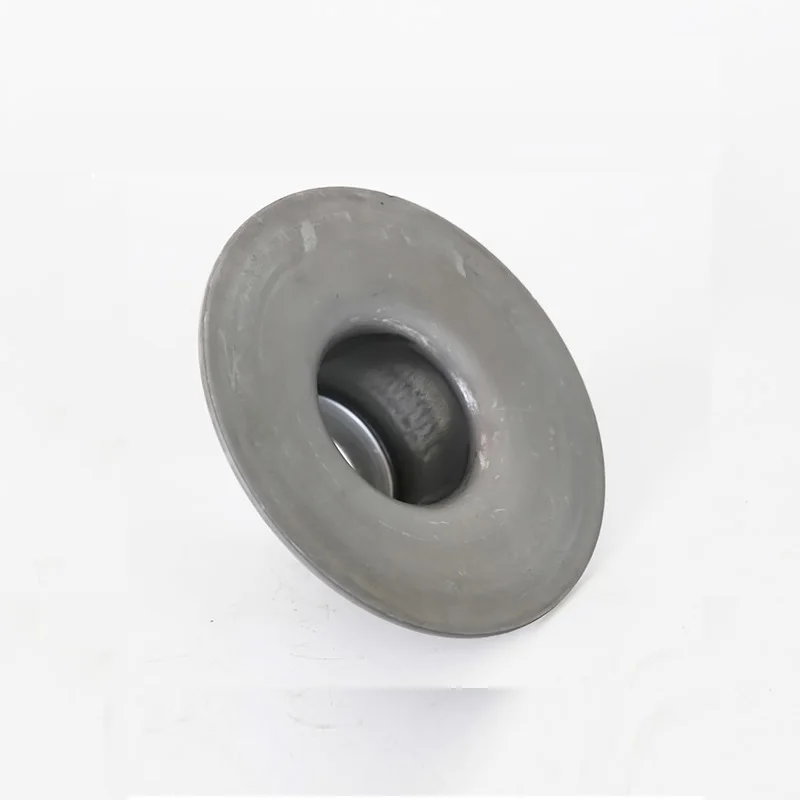

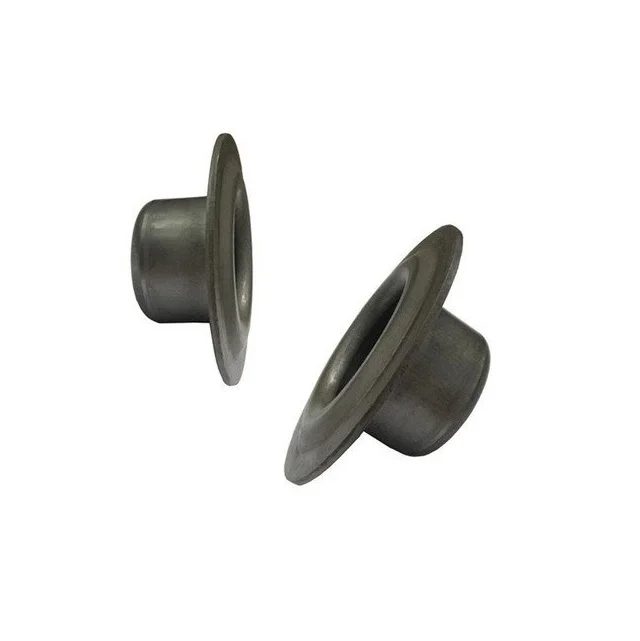

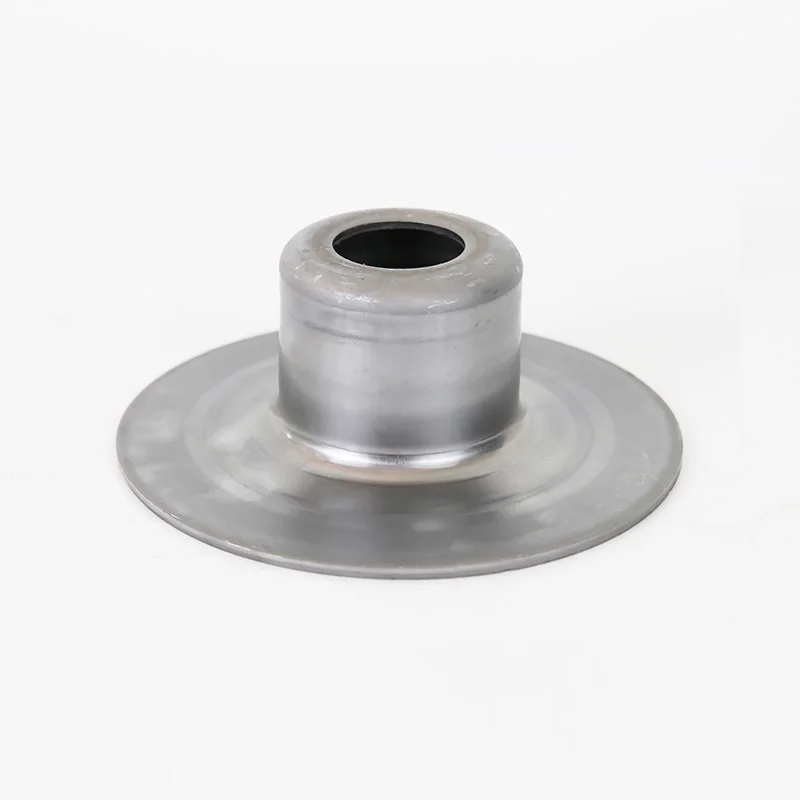

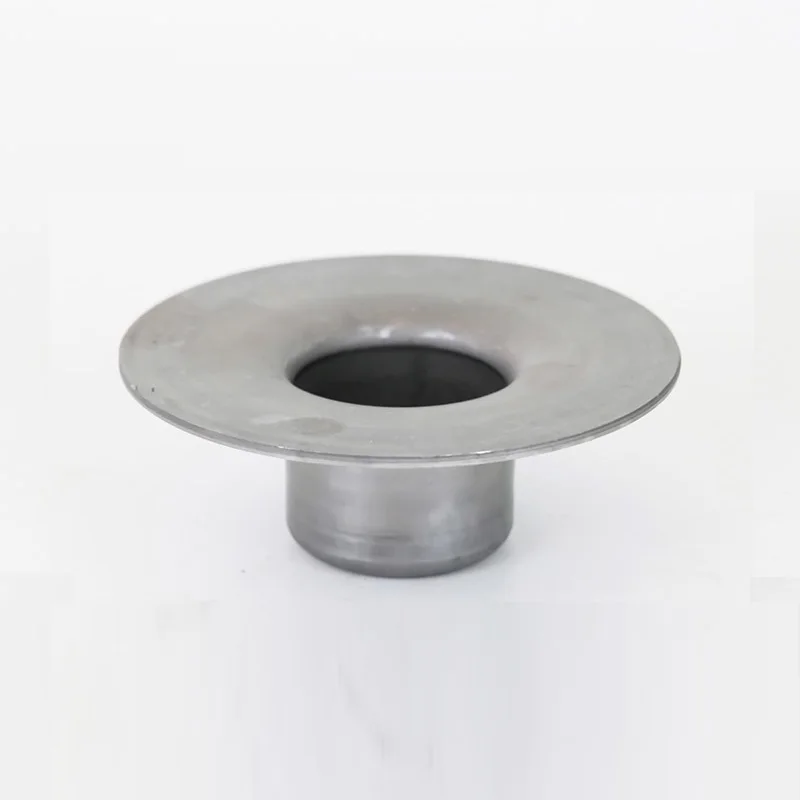

High Strength Quality TK6205 133 Stamped Bearing Housing With Labyrinth Seal Heavy Duty Idler Conveyor Roller In Mining
- Category: >>>
- Supplier: Hefei Hengan Conveyor Machinery Co. Ltd.
Share on (1601079214044):
Product Overview
Description
FEATURES AT A GLANCE
PRODUCT DESCRIPTION
product name | bearing housing with labyrinth seals | ||||||
bearing housing material | SPCC/SPHC/SPHE steel | ||||||
seal material | Nylon6 / POM/ABS | ||||||
standard | DIN, GB, ISO, JIS ,CEMA | ||||||
outside dia of bearing housing | 50mm,60mm,63.5mm,76mm,89mm,108mm,114mm,127mm,133mm,140mm,152mm,165mm,178mm,194mm,219mm | ||||||
bearing size | 6203,6204,6205,6305,6306,6307,6308,6309,6310,6312 | ||||||
bearing housing thickness | 1.7mm,2.0mm,2.5mm,3.0mm,3.5mm,4.0mm,5.0mm,6.0mm | ||||||
application | Conveyor Roller /Idler | ||||||
Product Overview
Mining Conveyor Roller Steel Bearing Cover With Labyrinth Seals
The role of bearing end cap: The majority of small and medium-sized reducers use rolling bearings, and the bearing end cap of the rolling bearing is the most common part. The bearing end cover is used to fix the bearing, adjust the bearing gap and withstand the axial force.
Lubrication is another critical factor that affects bearing housing tolerance. Proper lubrication can reduce friction and wear, preventing premature failure of the bearing.Lubrication also helps maintain the correct radial and axial tolerances by minimizing heat generation and maintaining the proper clearance between the bearing and the housing.However, insufficient or improper lubrication can lead to increased friction, overheating, and premature wear, causing the bearing to fail.Therefore, it is essential to select the appropriate lubricant and maintain the recommended lubrication schedule based on the bearing size, speed, load, and operating temperature.
DRAWING
PRODUCT SPECIFICATIONS
bearing size | pipe outside dia/mm | shaft dia/mm | D1 | D2 | D3 | D4 | H | H1 |
63 | 59.5 | 2.0/2.5 | ||||||
76 | 72 | 2.0/2.5 | ||||||
89 | 83/84/85 | 2.0/2.5 | ||||||
102 | 97 | 2.5/3.0 | ||||||
108 | 103 | 2.5/3.0 | ||||||
114 | 109/110 | 2.5/3.0 | ||||||
127 | 121/122 | 2.5/3.0 | ||||||
133 | 127/128 | 2.5/3.0 | ||||||
140 | 134/135/136 | 2.5/3.0 | ||||||
152 | 146/147 | 2.5/3.0 | ||||||
159 | 152/153 | 2.5/3.0 | ||||||
89 | 83/84/85 | 2.0/2.5 | ||||||
102 | 97 | 2.5/3.0 | ||||||
127 | 121/122 | 2.5/3.0 | ||||||
133 | 127/128 | 2.5/3.0 | ||||||
140 | 134/135/136 | 2.5/3.0 | ||||||
152 | 146/147 | 2.5/3.0 | ||||||
159 | 152/153 | 2.5/3.0 | ||||||
127 | 121/122 | 3.0/4.0 | ||||||
133 | 127/128 | 3.0/4.0 | ||||||
159 | 152/153 | 3.0/4.0 | ||||||
178 | 172 | 3.0/4.0 | ||||||
197 | 188 | 3.0/4.0 | ||||||
89 | 25 | 83/84/85 | 2.5/3.0 | |||||
102 | 97 | 2.5/3.0 | ||||||
108 | 103 | 2.5/3.0 | ||||||
127 | 121/122 | 3.0/4.0 | ||||||
133 | 127/128 | 3.0/4.0 | ||||||
159 | 152/153 | 3.0/4.0/5.0 | ||||||
178 | 172 | 3.0/4.0/5.0 | ||||||
194 | 188 | 3.0/4.0/5.0 | ||||||
89 | 30 | 83/84/85 | 3.0/4.0 | |||||
102 | 97 | 3.0/4.0 | ||||||
108 | 103 | 3.0/4.0 | ||||||
127 | 121/122 | 3.0/4.0 | ||||||
133 | 127/128 | 3.0/4.0 | ||||||
159 | 152/153 | 3.0/4.0/5.0 | ||||||
178 | 172 | 3.0/4.0/5.0 | ||||||
194 | 188 | 3.0/4.0/5.0 | ||||||
127 | 35 | 121/122 | 3.0/4.0/5.0 | |||||
133 | 127/128 | 3.0/4.0/5.0 | ||||||
159 | 152/153 | 3.0/4.0/5.0 | ||||||
178 | 172 | 3.0/4.0/5.0 | ||||||
194 | 188 | 3.0/4.0/5.0 | ||||||
219 | 213 | 3.0/4.0/5.0 | ||||||
127 | 121/122 | 3.0/4.0/5.0 | ||||||
133 | 127/128 | 3.0/4.0/5.0 | ||||||
159 | 152/153 | 3.0/4.0/5.0 | ||||||
178 | 172 | 3.0/4.0/5.0 | ||||||
194 | 188 | 3.0/4.0/5.0 | ||||||
219 | 213 | 3.0/4.0/5.0 | ||||||
133 | 127/128 | 3.0/4.0/5.0 | ||||||
159 | 152/153 | 3.0/4.0/5.0 | ||||||
194 | 188 | 3.0/4.0/5.0 | ||||||
219 | 213 | 3.0/4.0/5.0 | ||||||
178 | 50 | 172 | 3.0/4.0/5.0 | |||||
194 | 188 | 3.0/4.0/5.0 | ||||||
219 | 213 | 3.0/4.0/5.0 |
INSTALL DRAWING
APPLICATION
FACTORY STRENGTH
Hefei Hengan has 10 years rich experience in conveying industry. Our quality is endorsed by International CE,ISO certificate institution.We have professional designing team, quality control team and service team to guarantee our good quality and after-sales service. Our products are popular in the Southeast Asia,Europe, USA, Australia, New Zealand, Mexico,the Middle East Africa and other regions in the world.
CERTIFICATES
SALES AND SERVICE NETWORK
FAQ
Q1：How can I know conveyor roller bearing end cap type and size is that I need?
A1：Contact our sales, add whatsapp 008618095661050 or email haconveyor@gmail.com for roller detail and your requirement.
Q2 : Can you send samples for checking quality firstly?
A2 : Yes, we can send free samples to you.
Q3 : What trade terms do you support?
A3 : We accept FOB China port, CIF, EXW.
Q4 : What payment terms do you accept?
A4 : We accept transfer by T/T, L/C at sight.
Q5 : What about your delivery time?
A5 : 500 pcs is 3 nature days, more quantity needs discuss in detail.
