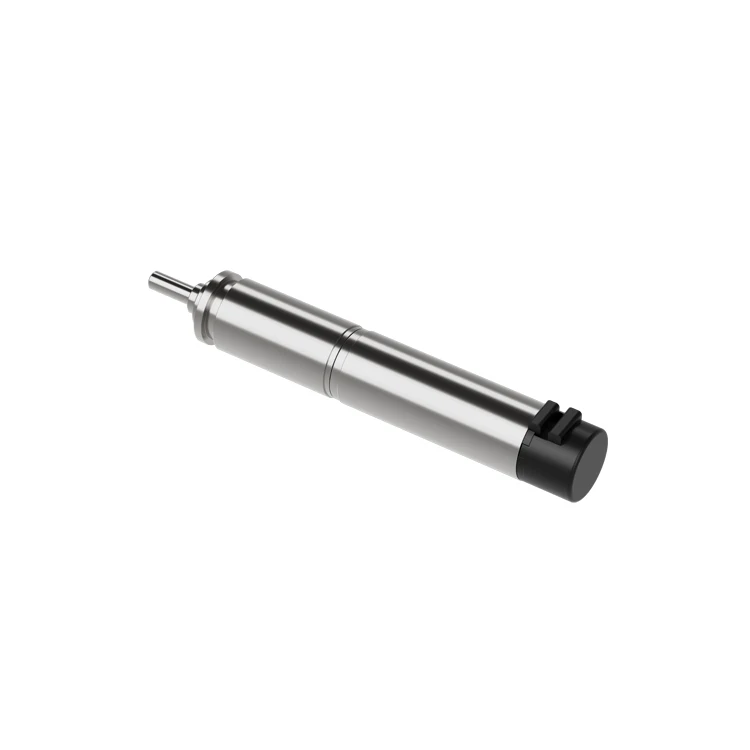

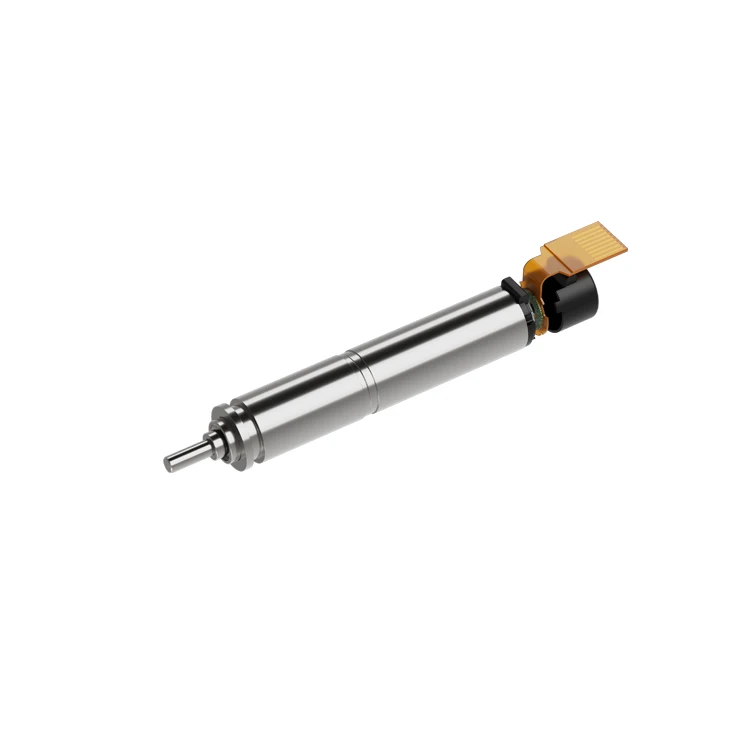

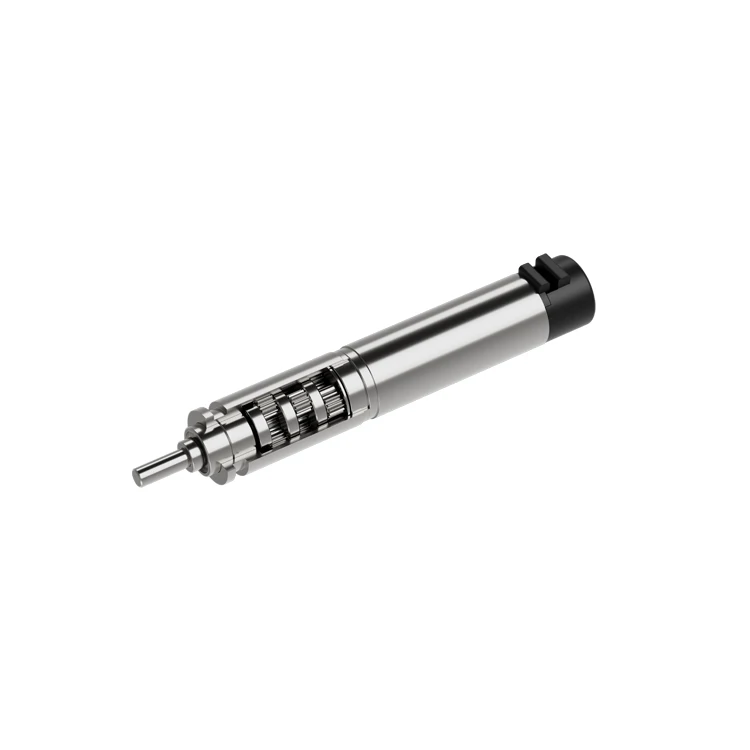

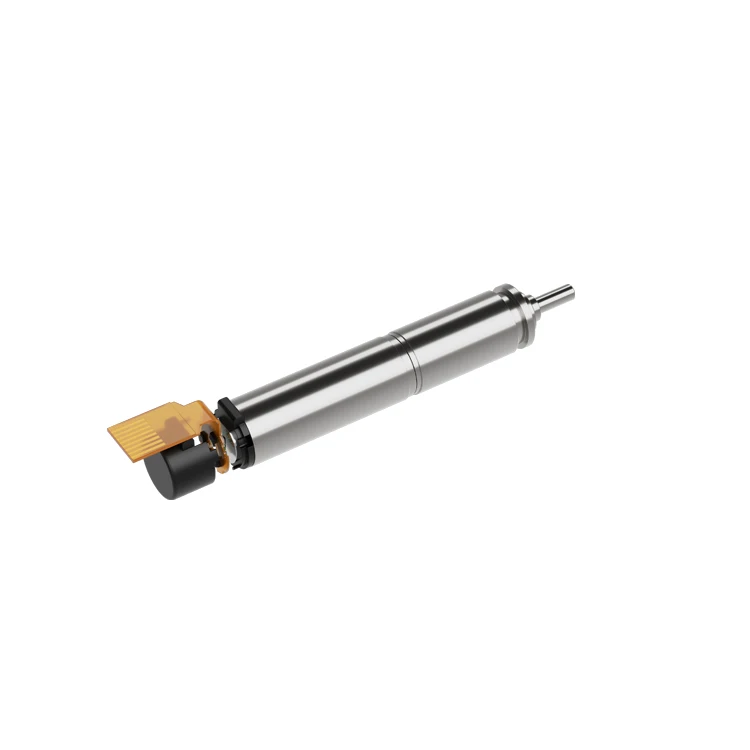

zhaowei 6mm planetary gearbox reducer stepper gear motor dc 12v substitute maxon faulhaber motor for medical Joint endoscopy
- Category: >>>
- Supplier: Shenzhen Zhaowei Machinery & Electronics Co. Ltd.
Share on (1601079830728):
Product Overview
Description

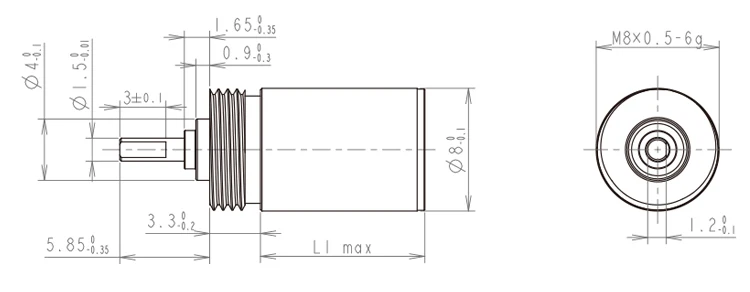

| ZWSMD008008 8mm gearbox data | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

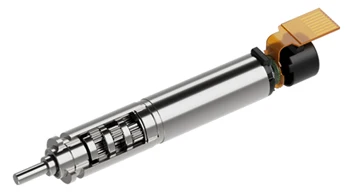

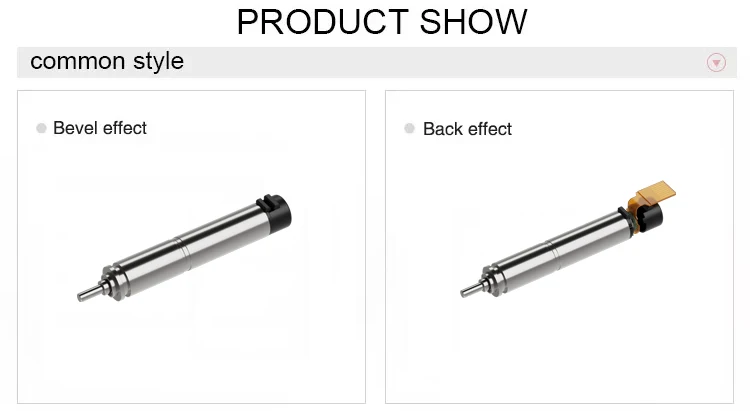

ZWSMD008008 8mm High-performance gearbox motor
Product advantages:
1-Version that can provide machine processing
2-Use high-performance material
3- Provide an improved version that can work in the temperature change range and special environmental conditions
4-can be improved according to customer requirements
| ZWSMD008008 Motor Data |  | |
| Product model | ZWSMD008008 | |
| Environmental temperature | -15…+80℃ | |
| Maximum transmission power | 0.84W | |
| Maximum continuous torque | 0.1nm | |
| Maximum continuous input speed | 12000RMPM | |
| Output terminal bearing | Rolling Pearl Bearing | |
| model | Rated voltage (V) | Air load data | Load data | Total length (mm) | Gearbox rated torque(NM) |
(NM) | Reduction ratio |
(mm) | |||
| Air -load speed(rpm) | No-load current (mA max) | Load speed (rpm) | Load current (A Max) | Torque (gf.cm) | |||||||
| ZWSMD008008-04 | 12 | 9625 | 120 | 6375 | 0.55 | 100 | 29.5 | 0.01 | 0.015 | 4 | 5.5 |
| ZWSMD008008-16 | 12 | 2406 | 130 | 1594 | 0.6 | 300 | 32.1 | 0.02 | 0.03 | 16 | 8.1 |
| ZWSMD008008-36 | 12 | 1069 | 130 | 708 | 0.6 | 80 | 32.1 | 0.008 | 0.012 | 36 | 8.1 |
| ZWSMD008008-64 | 12 | 602 | 140 | 398 | 0.6 | 600 | 34.7 | 0.06 | 0.09 | 64 | 10.7 |
| ZWSMD008008-216 | 12 | 178 | 140 | 118 | 0.6 | 200 | 34.7 | 0.02 | 0.03 | 216 | 10.7 |
| ZWSMD008008-256 | 12 | 150 | 150 | 100 | 0.65 | 800 | 37.3 | 0.08 | 0.12 | 256 | 13.3 |
| ZWSMD008008-1296 | 12 | 30 | 150 | 20 | 0.65 | 400 | 37.3 | 0.04 | 0.06 | 1296 | 13.3 |
| ZWSMD008008-1024 | 12 | 38 | 160 | 25 | 0.7 | 1000 | 39.9 | 0.1 | 0.15 | 1024 | 15.9 |

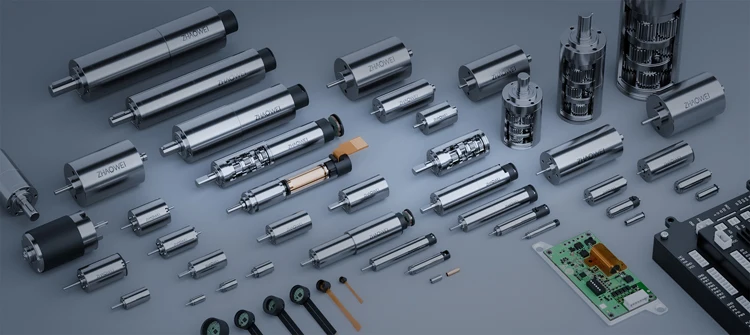

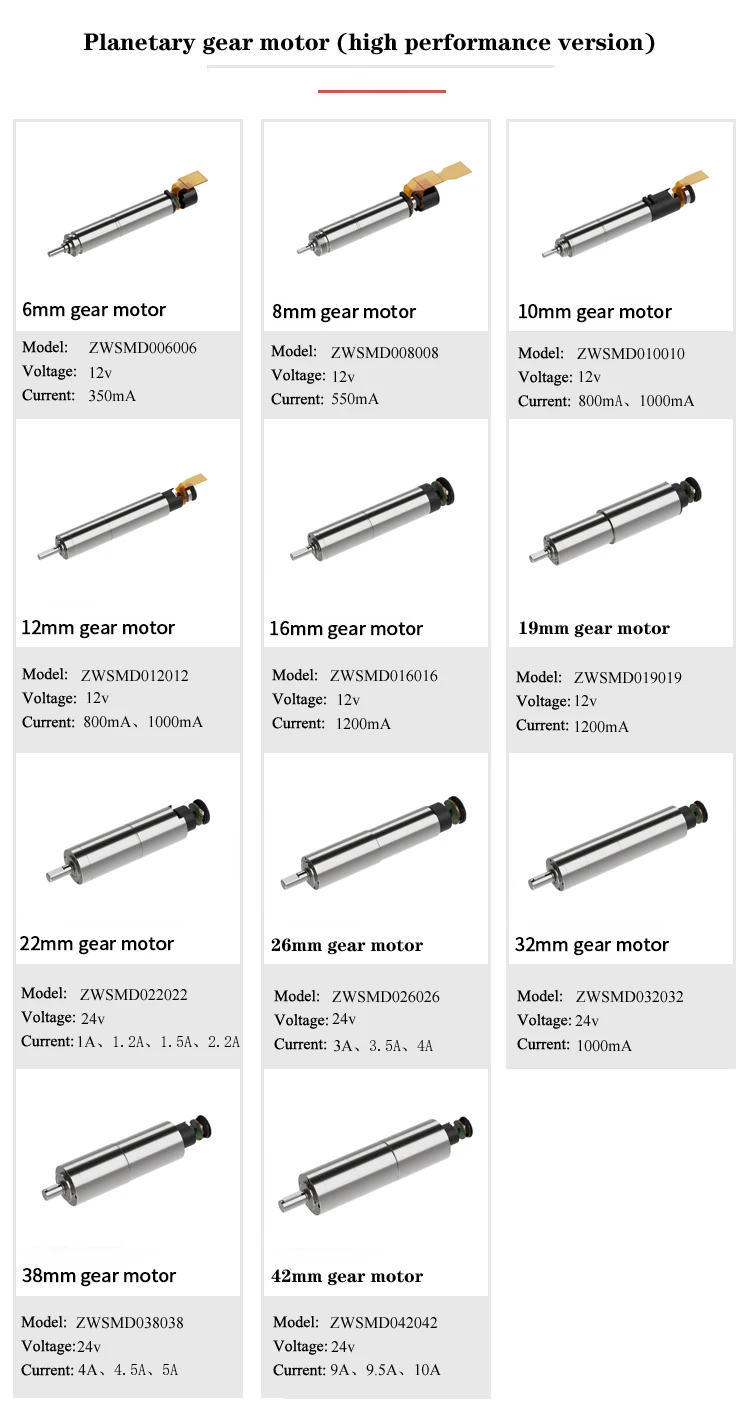

#ZHAOWEI drives system to serve the innovation market We can provide High-performance gearbox motor 6mm ,8mm,10mm,12mm,16mm,19mm,22mm,26mm,32mm,38mm,42mm |
