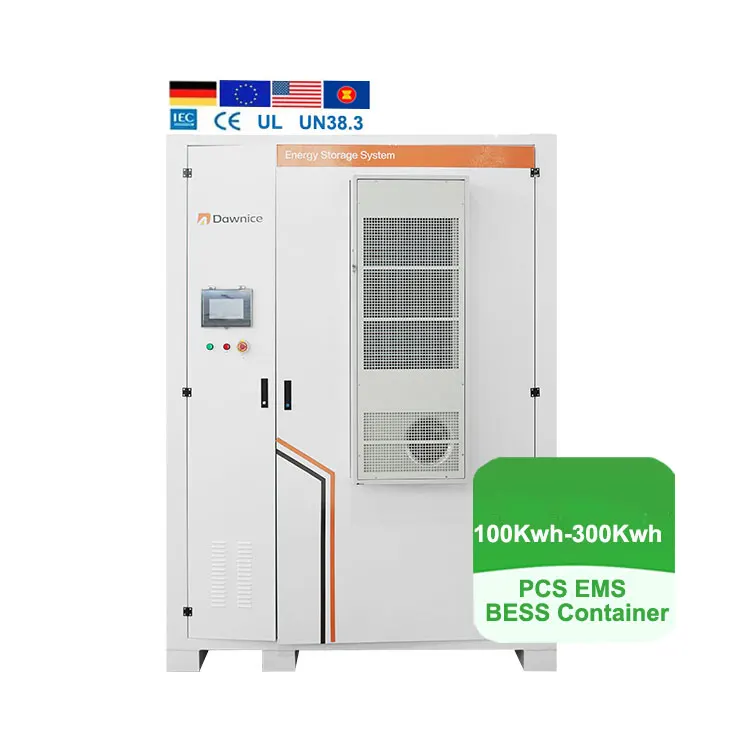

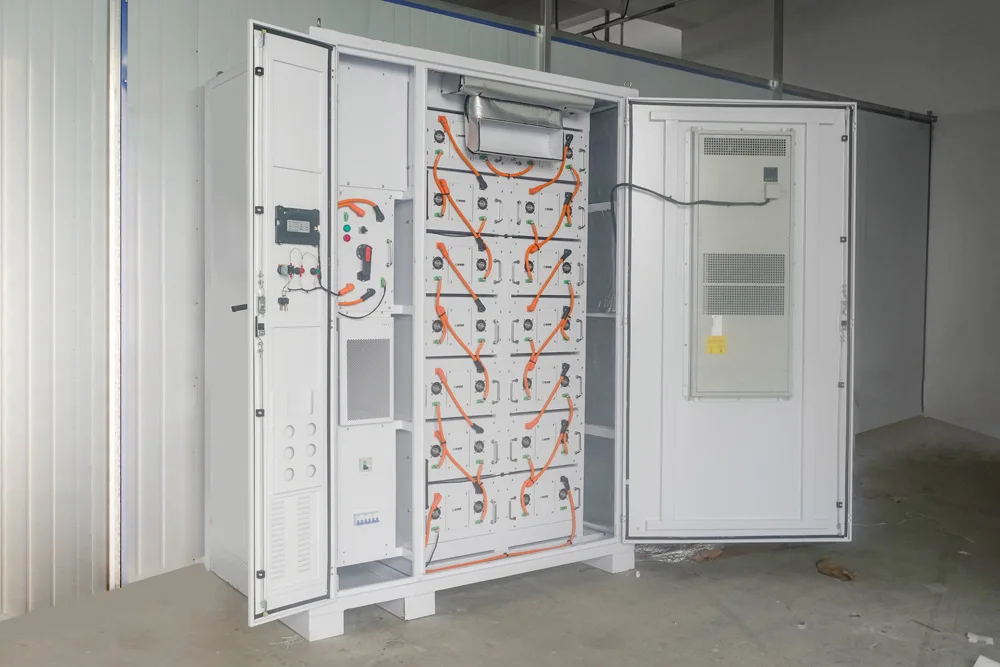

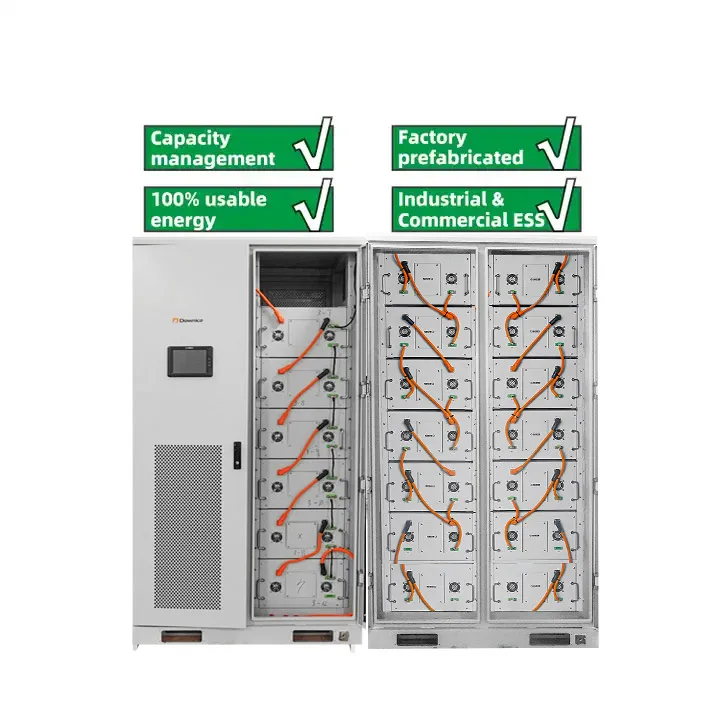

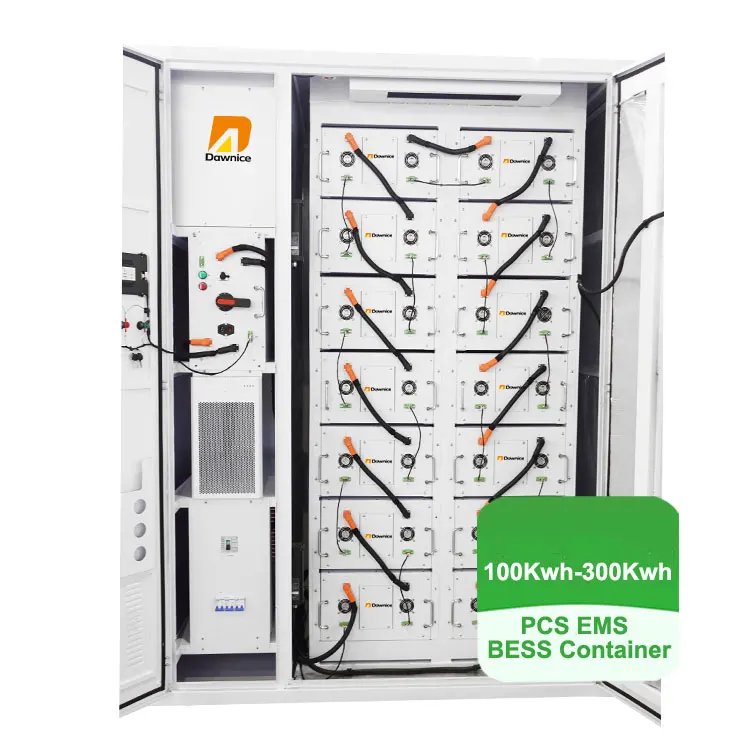

Lithium Ion Battery Lifepo4 Industrial and Commercial Energy Storage Al In One Battery 200KWh With 50KW PCS
- Category: >>>
- Supplier: ENTEN INTERNATIONAL GROUP COMPANY LIMITEDENTEN LIMITED
Share on (1601079880557):
Product Overview
Description
Specification
Products Description
Model DW-ESS-100 DW-ESS-200 | ||
Parameter-BATTERY(DC) | ||
Combination method | 1P112S 1P224S | |
Rated Voltage 358.4V 716.8V | ||
Voltage range(V) | 313.6-403.2 627.2-806.4 | |
Rated Capacity(Ah) 280Ah | ||
Rated Energy[kWh] | 100.3kWh 200.7kWh | |
Cycle Life | ≥6000 | |
AC(on -grid) | ||
Recommend input power 30kW 100kW | ||
Rated Voltage | 400V | |
Output 3W+N+PE | ||
Voltage range | -15%-+10% | |
Rated frequency 50/60Hz | ||
AC(off -grid) | ||
Rated power 20 kW 100kW | ||
Rated Current | 43A 144A | |
Rated Voltage | 380V / 400V/ 440V | |
Rated frequency | 50/60Hz | |
SIZE&INSTALLMENT | ||
Dimension(WXDXH) mm | 1680*1500*1700 1680*2270*1700 | |
Weight 1100kg 2300kg | ||
Environmental temperature | -20℃~+55℃(> 45°C power reduction) | |
Relative humidity 0-95%non-condensing | ||
Protection degree | IP54 | |
Noise emission 60dB(A)@1m | ||
Max. conversionefficiency | 95% | |
Max.imum altitude | 4000m(derate over 2000m) | |
Cooling Forced-air,Intelligent fan adjustment | ||
Commun i ca t ion | Modbus-RTUCAN2.0B | |
Display Touch screen LCD(Optional) | ||
Communication interface | RS485/CAN | |
Our advantages :
1. Cells : A grade full new quality prismatic cells. with original QR codes ,never use second hand cells. (Cells brand: REPT,GANFENG ,LISHEN ,GOTION). With 10-15 years typical lifespan.
1. Cells : A grade full new quality prismatic cells. with original QR codes ,never use second hand cells. (Cells brand: REPT,GANFENG ,LISHEN ,GOTION). With 10-15 years typical lifespan.
2. Protection : Each battery built-in BMS -- Battery Management System.
3. Communication port : RS485/RS232/CAN,
4. Compatible : All hybrid and off grid inverter (Except Huawei, all inverters on the market can be make compatible by our engineer. only need to provide the inverter communication protocol)
5. Warranty : 5years. For long term cooperation customer, we can up to 10 years.
6. Maintenance free & Low self discharge & Fast & efficient charging.
7. Free cables + paper version user manual.

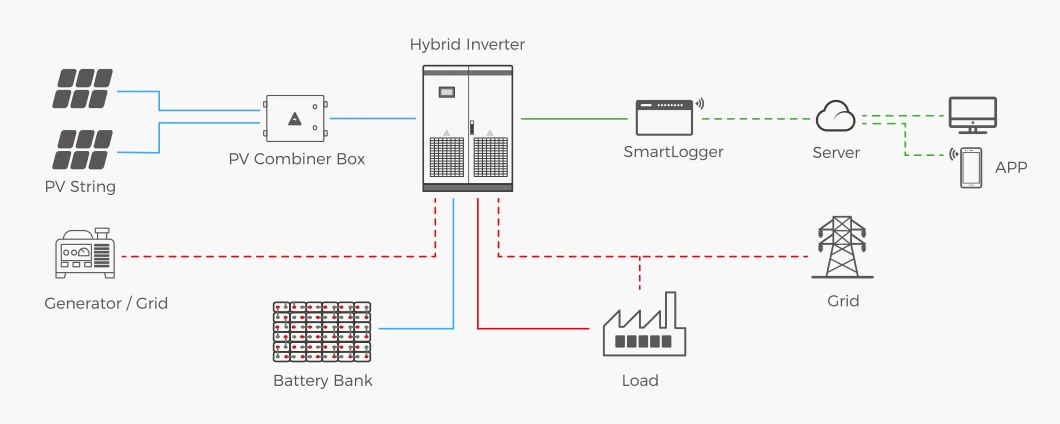

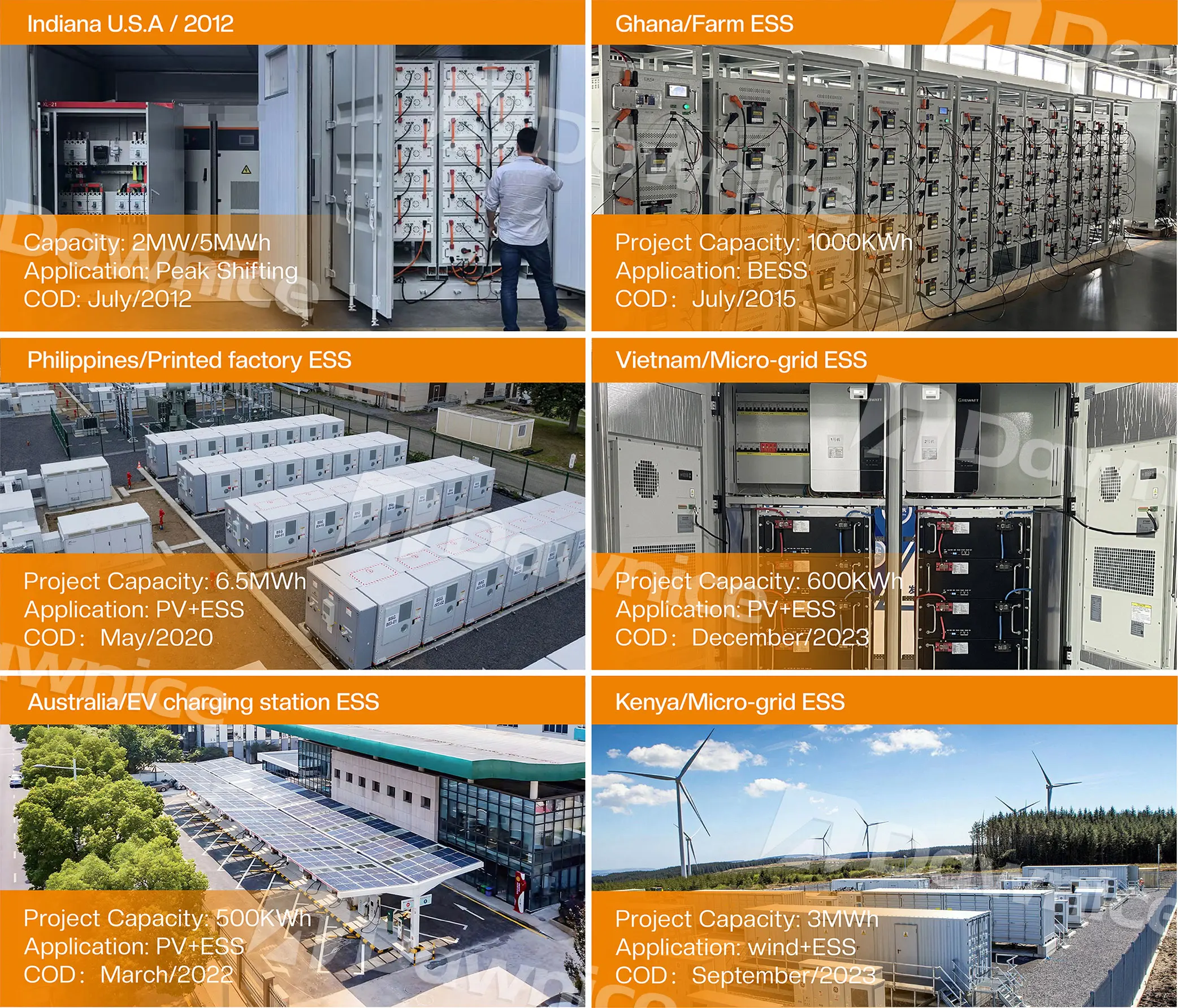

Application project
Company Profile

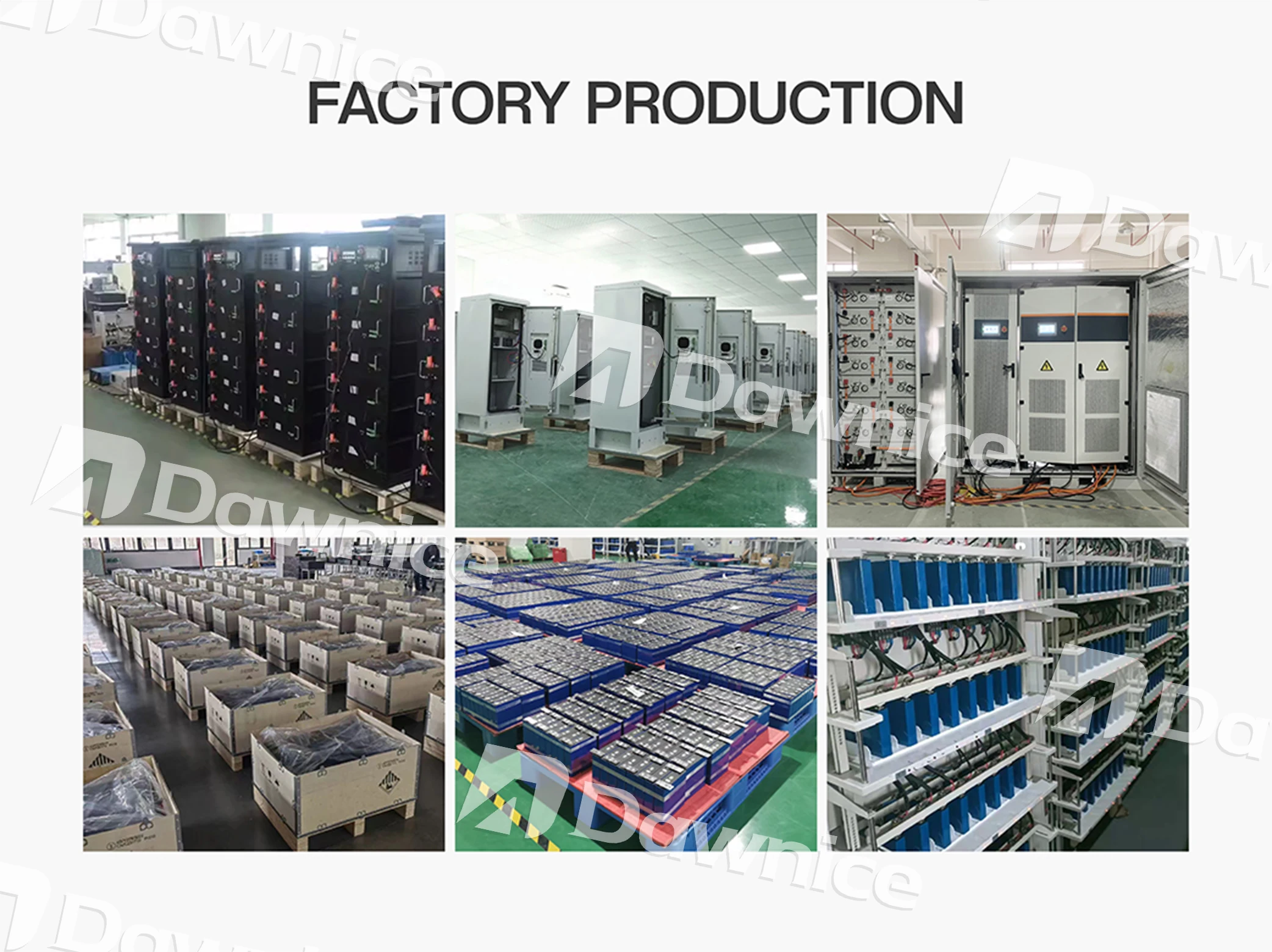

Dawnice factory was established in 2009, with 30 product patent certificates, specializing in BESS, ENERGY STORAGE BATTERY , Solar Energy Systems. We are committed to providing one-stop energy solutions including energy supply, energy management and energy storage to global customers. Supply to more than 50 traders, and export to the United States, Canada,Germany, Australia, Lebanon, the Philippines and other countries.
