SUN 200Y clear images Colposcope handheld small famous brand camera medical gynecology

Share on (1601079923636):


Price:

Quantity:


Product Overview

Description





Product Description


SUN-200Y clear images Colposcope handheld small famous brand camera medical gynecology


Fast Description



* • The direct-to-screen colposcope gives you full-screen, high-resolution images with no couplers or beam splitters to degrade image quality or field of view.


* •
No need to be connected with laptop and desk computer , no need software.


* •

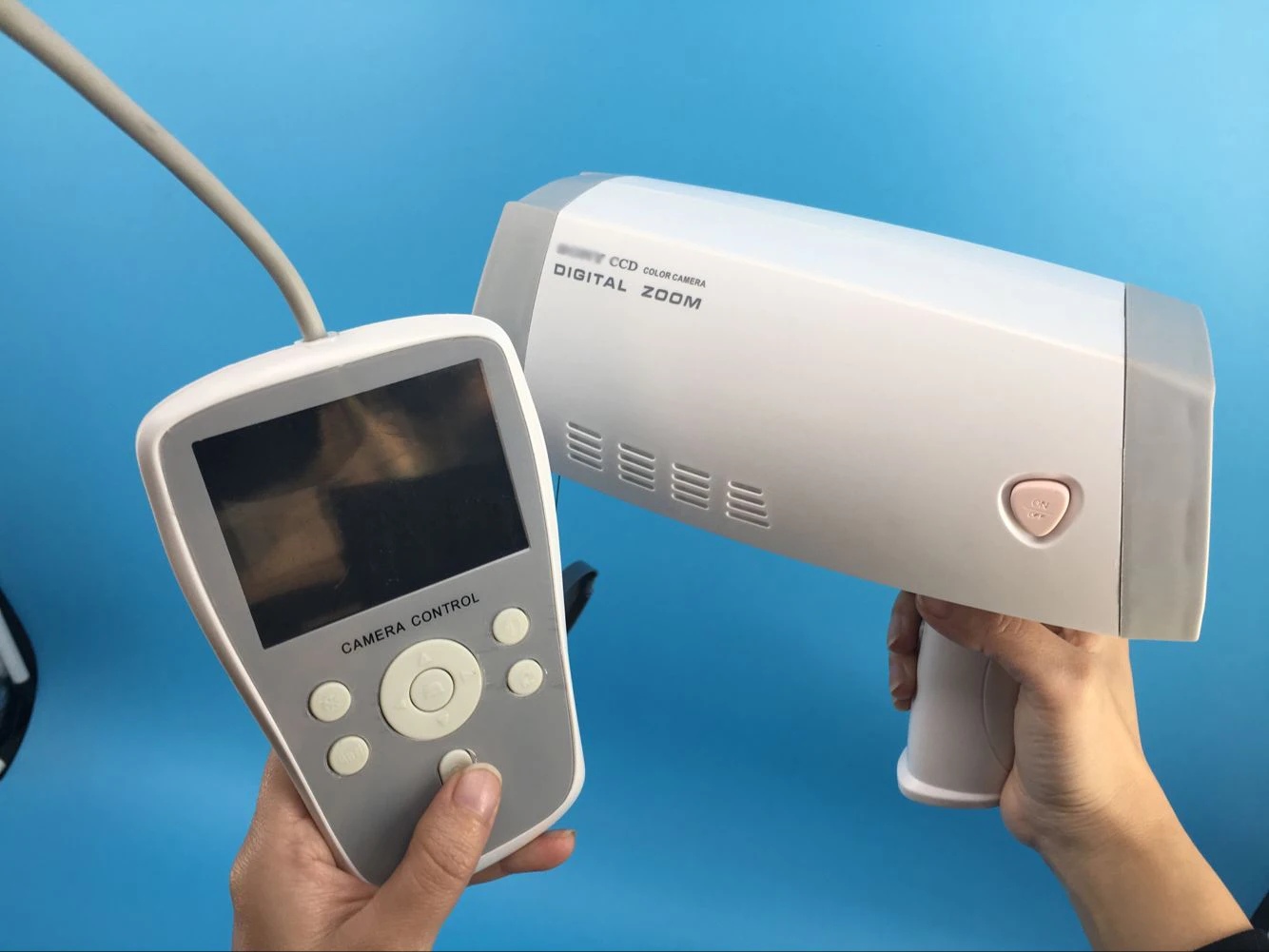

Control camera easy to capture image.


* • Lighting generates 50% whiter,
brighter light for true tissue color.


* • Push button on-screen
magnification index.


* •
Unique polarization filter removes glare for accurate tissue assessment.


* •
Electronic green filter removes red from image with no light loss.







Application


1.*Offer more complete care with true video colposcope combining light, power and video for high-resolution imaging, superior diagnostics and information management.


2.Capture and store high quality images of the cervix, vagina and vulva for all women health applications and cervical cancer screening.






Specifications


Lens resolution
1/4"super HAD color CCD,80,0000 pixel;
Lens axial resolution
480 lines
Lens S/N
50dB
Lens focus distance
standard 100~400mm; support: 10~1000mm
 Field of View
 2.5mm-20mm-320mm
 Depth of Field
15mm-40mm 15mm-480mm
Lens min illumination
0.15Lux
Lens zoom
1~128
Lens image output interface
Video, S-video, PAL
Lens fouse
AF/MF
Lens white balance
AWB

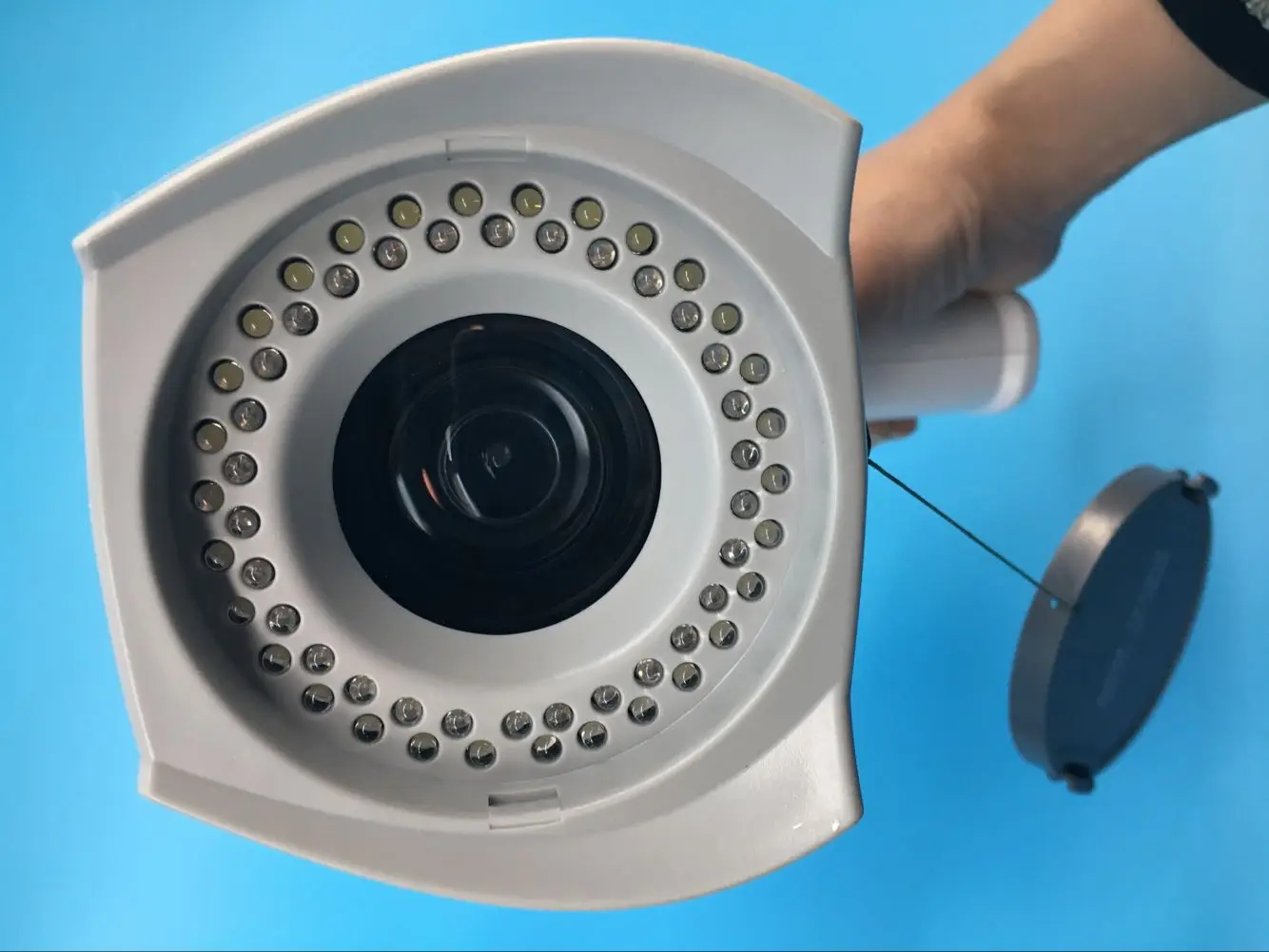

Lens lighter type
LED ring , phosphorus gallium arsenide high brightness , longevity light source group (average life 100,000 hours)
Lens video-output
PAL, VBS-standard 1.0Vp-p
Power Requirements
AC220V ±10%
Power Rating
500W
Brightness adjustment
Automatic electronic shutter
Ambient temperature
-40°C to +50°C
Storage temperature
-20°C to +60°C
Relative Humidity
30~80%RH




Scanning images
