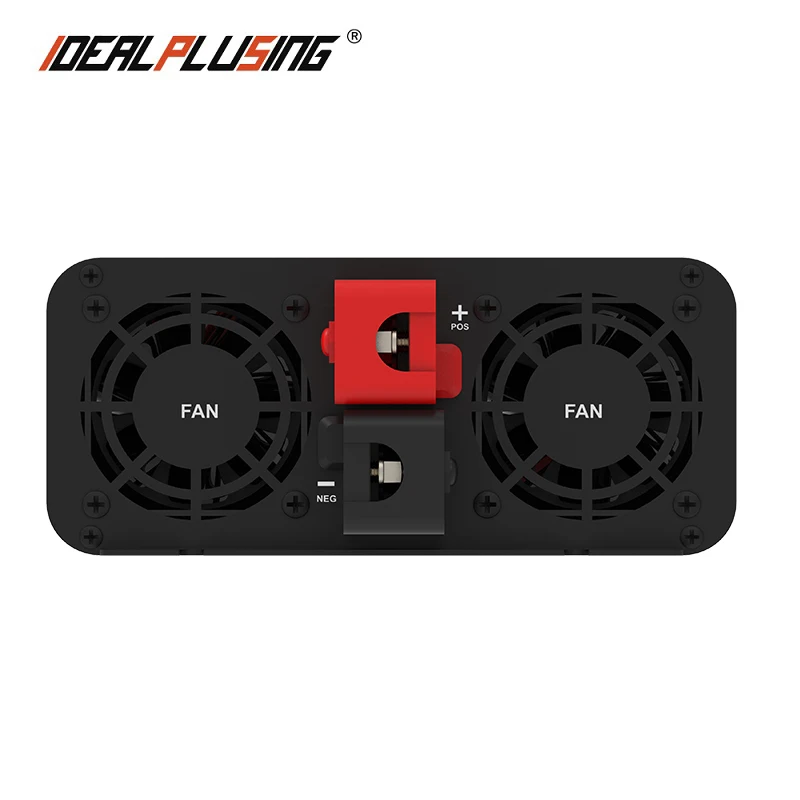

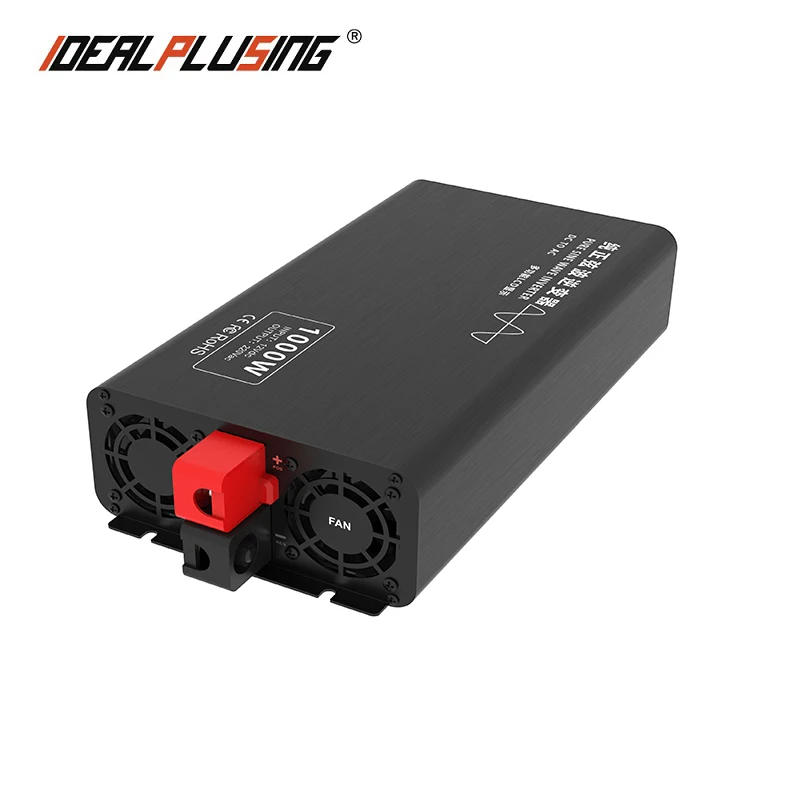

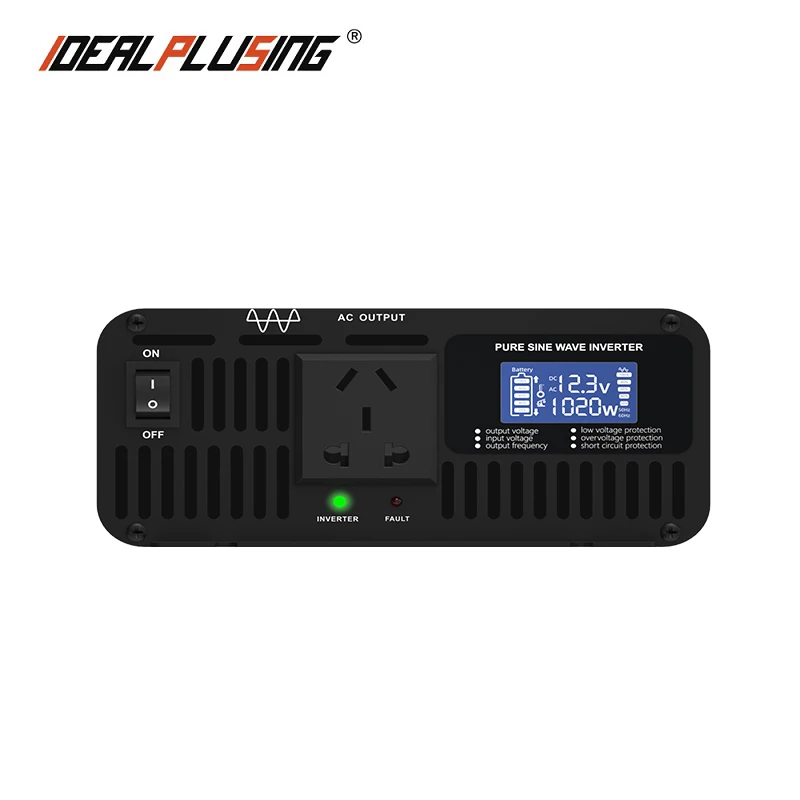

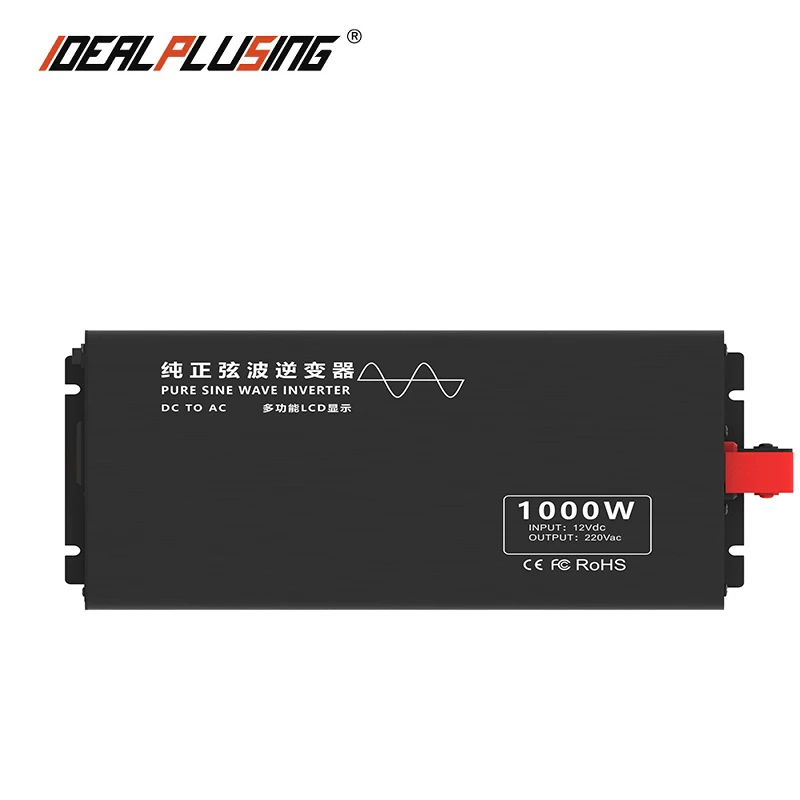

Inverter with CE certification 72vdc 1000w pure sine wave inverter circuit Adapt to multiple loads Factory manufacturing
- Category: >>>
- Supplier: Guangzhou Idealplusing Information Technology Co. Ltd.
Share on (1601079937869):
Product Overview
Description
Feature:
1. The inverter power supply adopts SPWM technology controlled by MCU micro-processing, pure sine wave output, and the waveform is pure.
2. The unique dynamic current loop control technology ensures reliable operation of the inverter.
3. Load adaptability, including inductive load, capacitive load, resistive load, mixed load.
4. Heavy load capacity and impact resistance.
5. It has perfect protection functions such as input overvoltage, undervoltage, overload, overheat, and output short circuit.

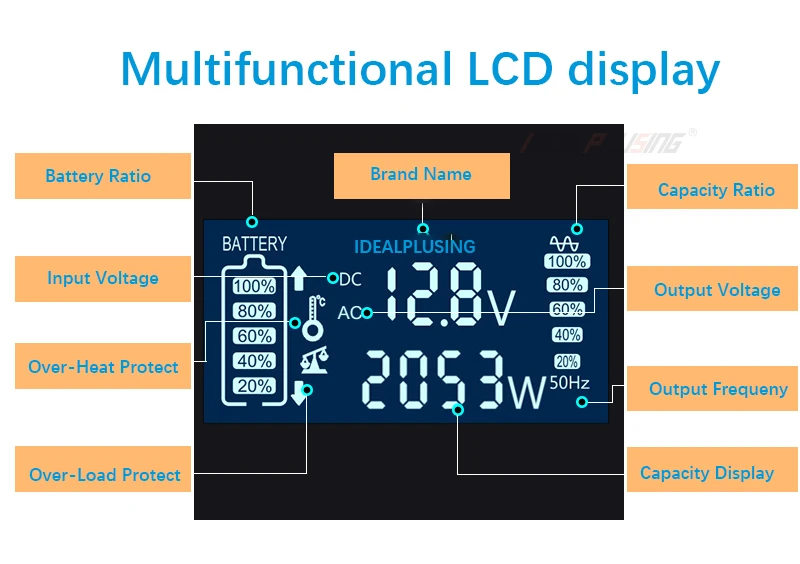

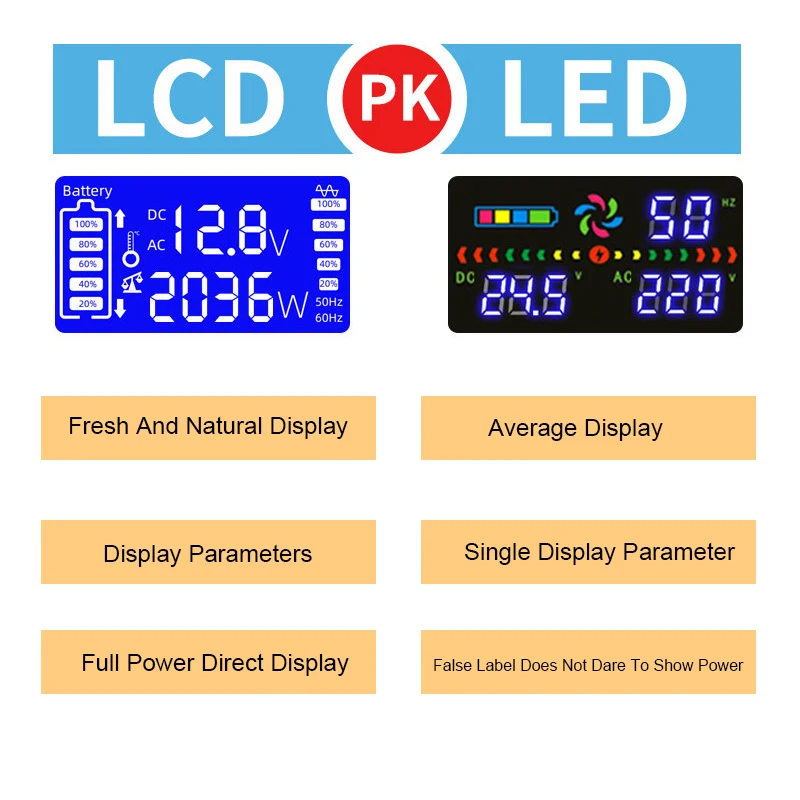

6. The sine wave inverter adopts LCD liquid crystal display mode,and the state is clear at a glance.
7. Stable performance, safe and reliable, long service life.
Technical specifications:

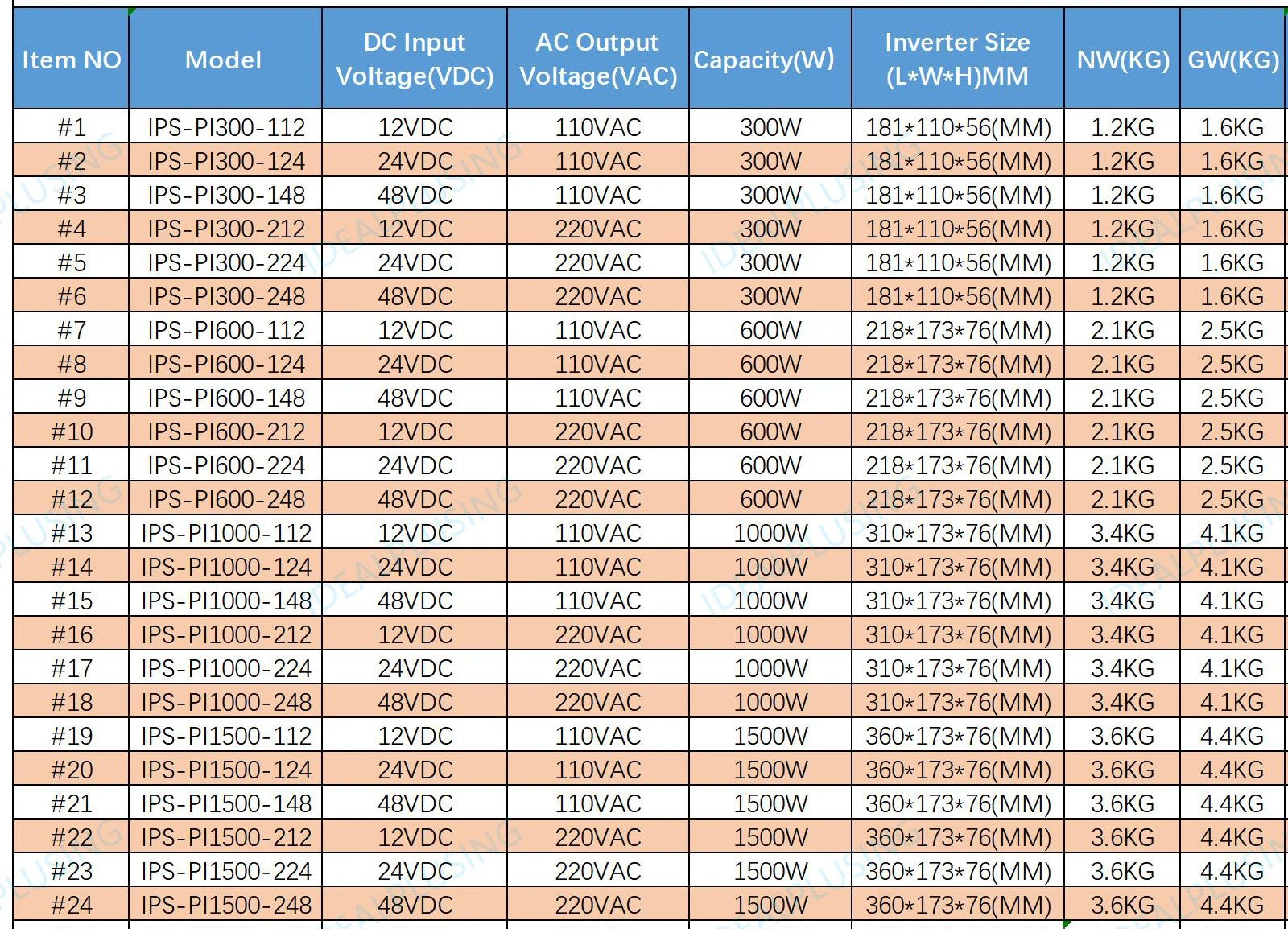

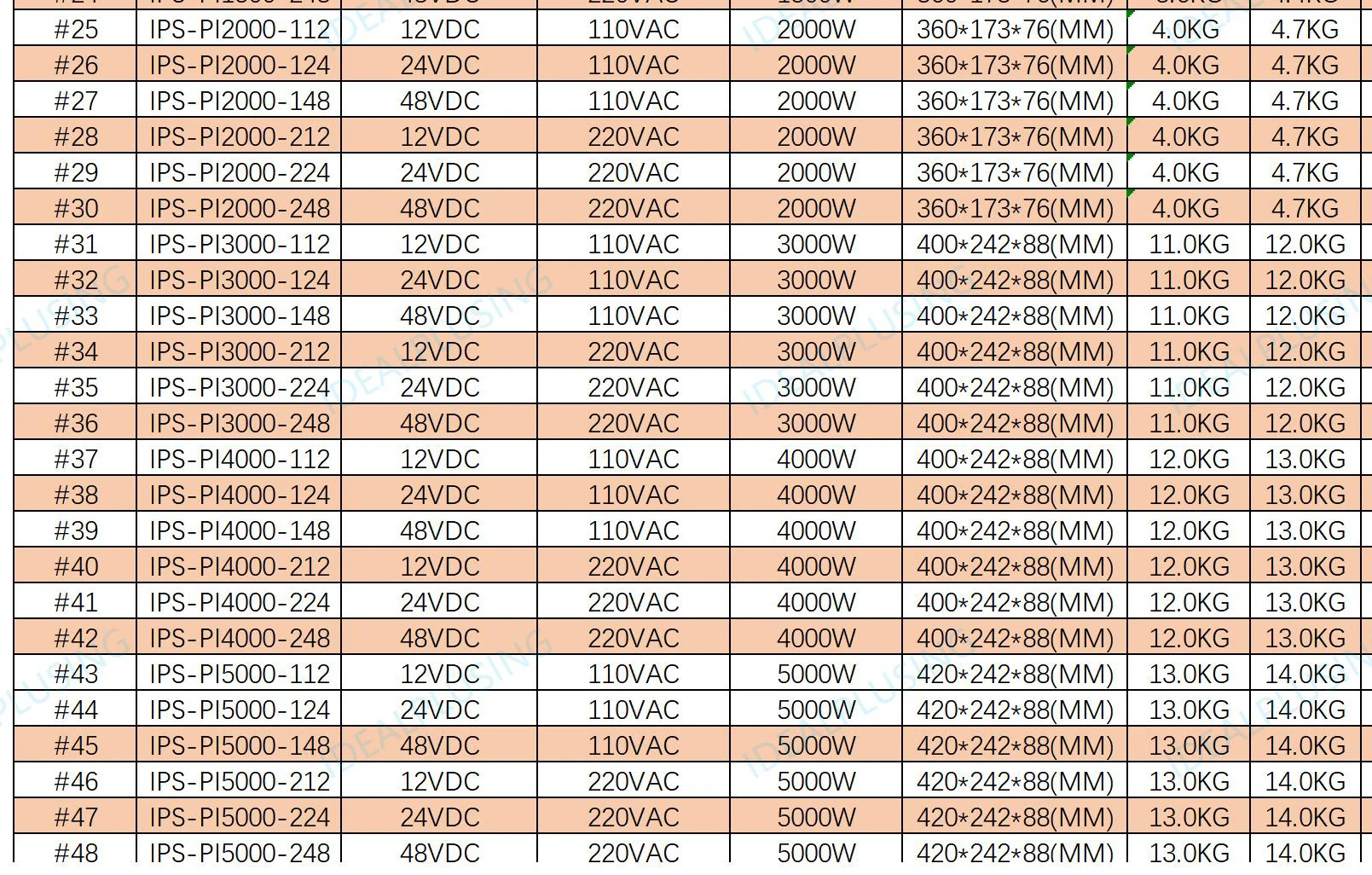

Model | IPS-PI1000 series |
Output Power | 1000W |
Display method | LCD |
Input voltage | 12V/24V/48V/60V/72Vdc |
Input range | 12Vdc(10-15),24Vdc(20-30),48Vdc(40-60),60Vdc(50-75),72Vdc(60-90) |
Low voltage protection | 12V(10.0V±0.3),24V(20.0V±0.3),48V(40.0V±0.3),60V(50.0V±0.3),72V(60.0V±0.3) |
High voltage protection | 12V(15.0V±0.3),24V(30.0V±0.3),48V(60.0V±0.3),60V(75.0V±0.3),72V(90.0V±0.3) |
Recovery voltage | 12V(12.8V±0.3),24V(25.6V±0.3),48V(51.0V±0.3),60V(65.0V±0.3),72V(78.0V±0.3) |
No-load current | 0.60A |
Overload protection | ≤130% |
Output voltage | 110Vac±10% or 220Vac±10% |
Output frequency | 50Hz±1Hz or 60Hz±1Hz |
Output waveform | Pure sine wave |
Overheating protection | 80℃±5℃ |
Waveform THD | ≤3%THD |
Conversion efficiency | 90% |

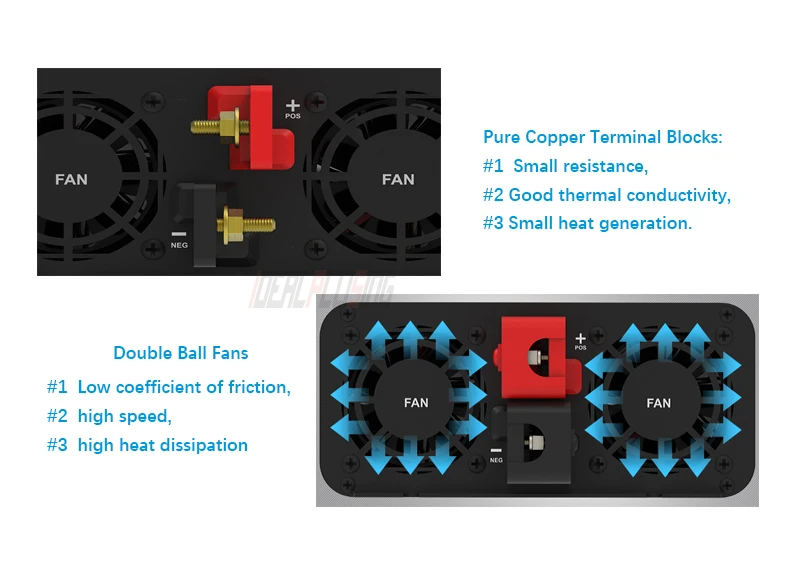

cooling method | Fan cooling |
Dimensions | 310*173*76MM |
Product weight | 3.0KG |

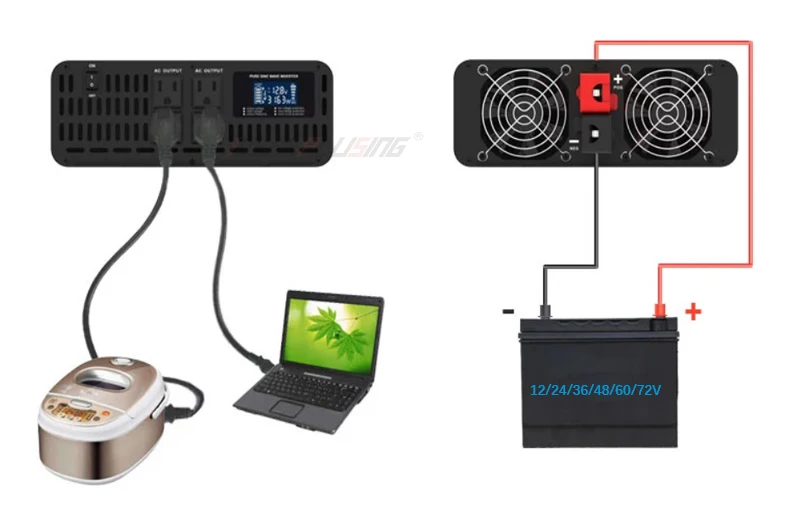

USE ENVIRONMENT | Install the inverter according to local power requirements. The installation location must be dry, clean and well ventilated. Working temperature : -20°C to 40°C Storage temperature : -10 to 40°C Relative humidity : 0%-90%, no condensation Cooling: forced ventilation
|
Note: All specifications are subject to charge or change without prior notice. | |
Factory Display
FAQ
Q1. Can I have a sample order?
A: Yes, sample order is acceptable to test and check quality for the first cooperation
Q2. What about the lead time?
A: Most of the model in the stock, sample lead time after receive payment 1-3 working days
Q3. Do you have any MOQ limit?
A: Low MOQ, 5 pieces for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We often ship by DHL, UPS, FedEx, or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.
Q5. How to proceed with an order?
A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions. Thirdly, customers confirm the samples and places deposit for formal order. Finally, We arrange production.
Q6. Is it acceptable to print the buyer logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: How to deal with the flaw?
A: Our products are produced in a strict quality control system and the percent of pass is often maintained over 99.8%.
Q8: Do you offer a guarantee for the products?
A: Yes, we offer a 1-year warranty for all power supply.
