Industrial Roller Shutter Door Chain Wheel With Bearing
- Category: >>>
- Supplier: Shanxi Century Metal Industries Inc.
Share on (1601080045366):
Product Overview
Description
Product Description

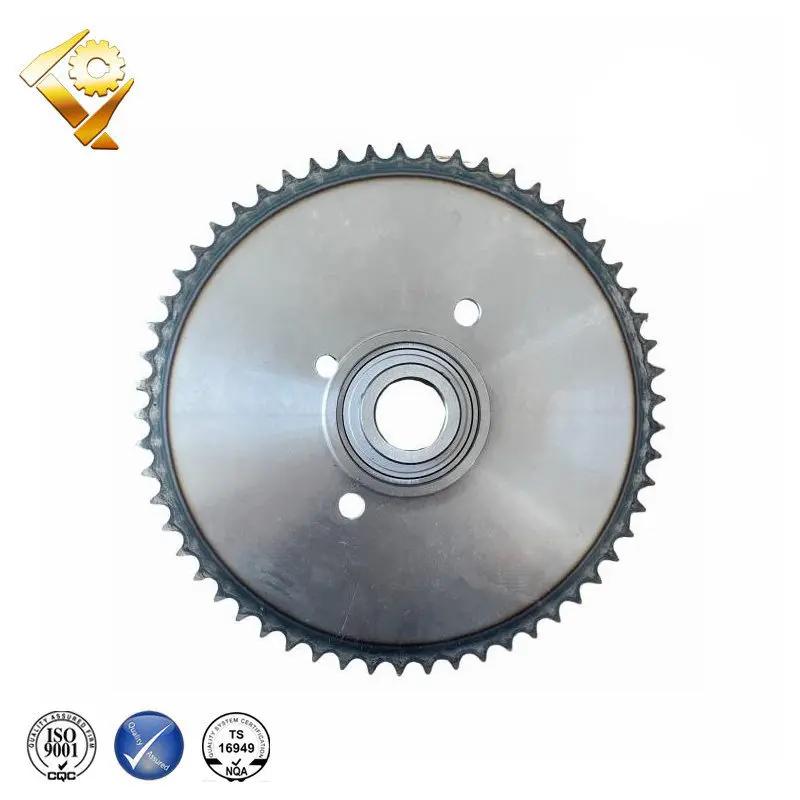

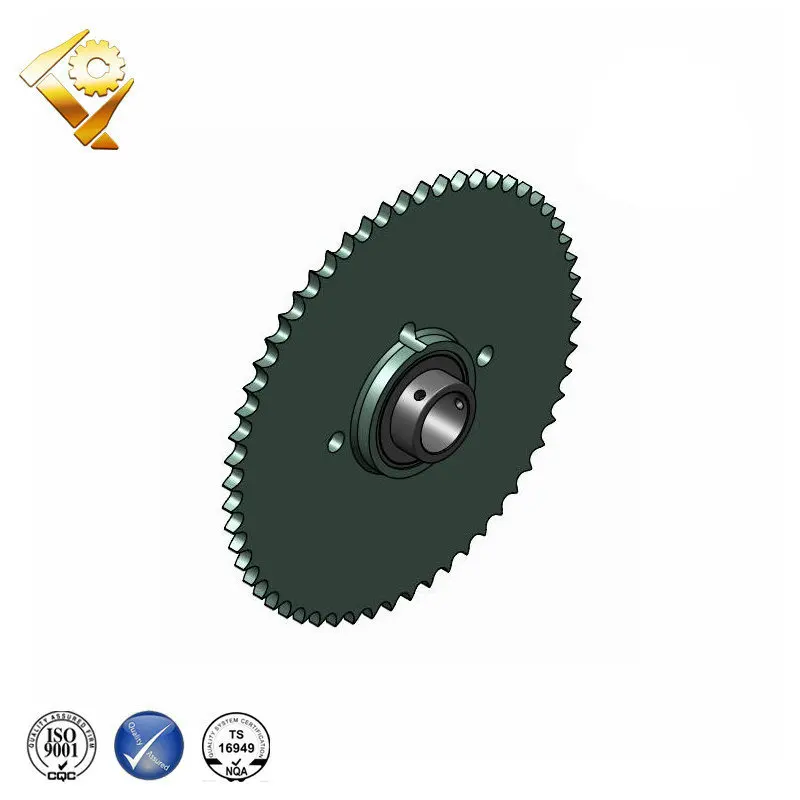

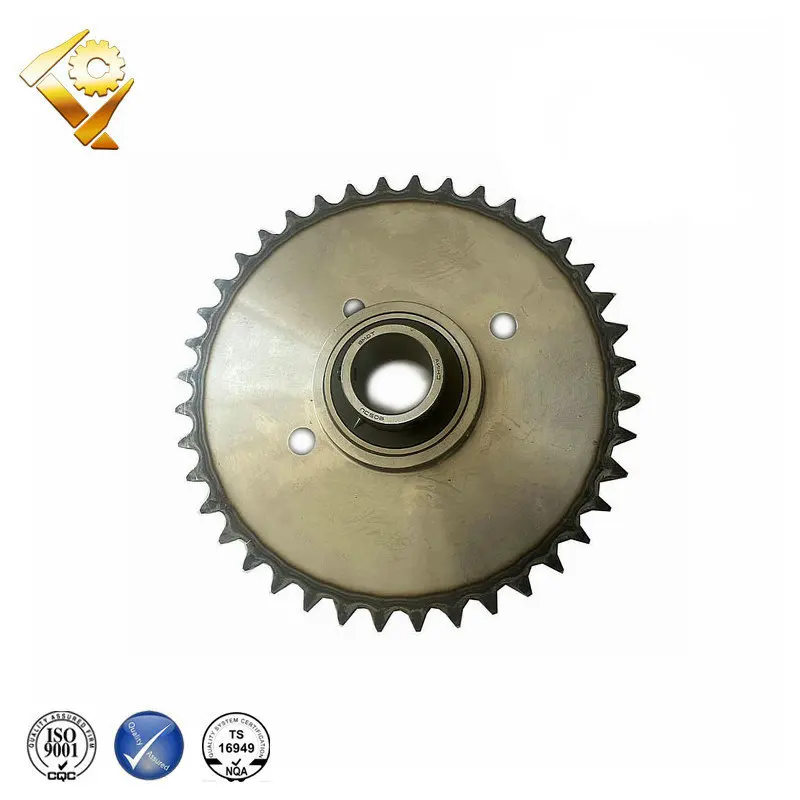

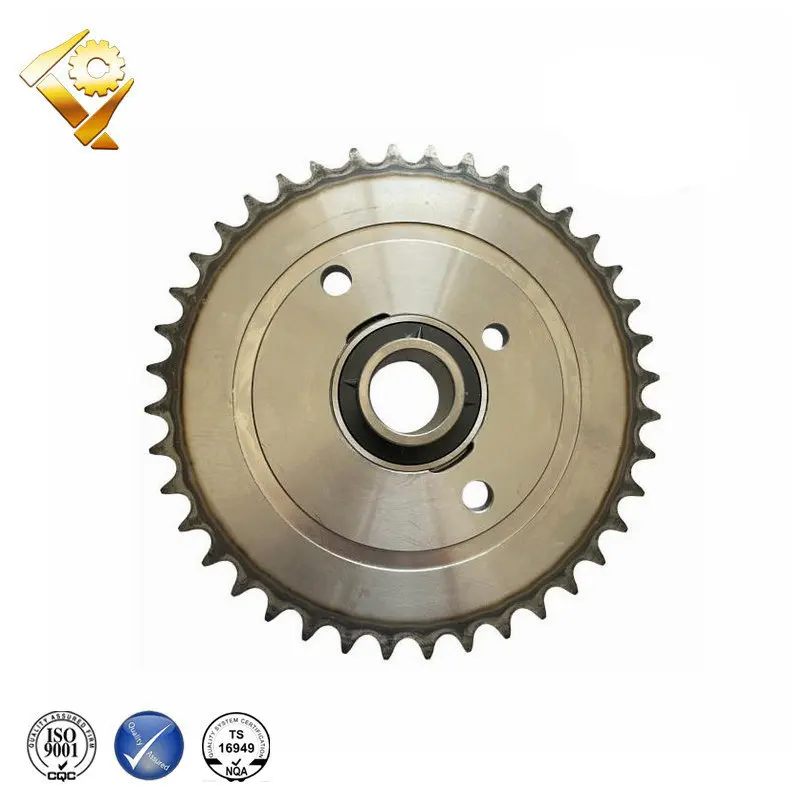

Industrial Roller Shutter Door Chain Wheel With Bearing
mainly connected two shafts by bearing.
Material: carbon steel
Surface: original, zinc plated, galvanized, black, etc.

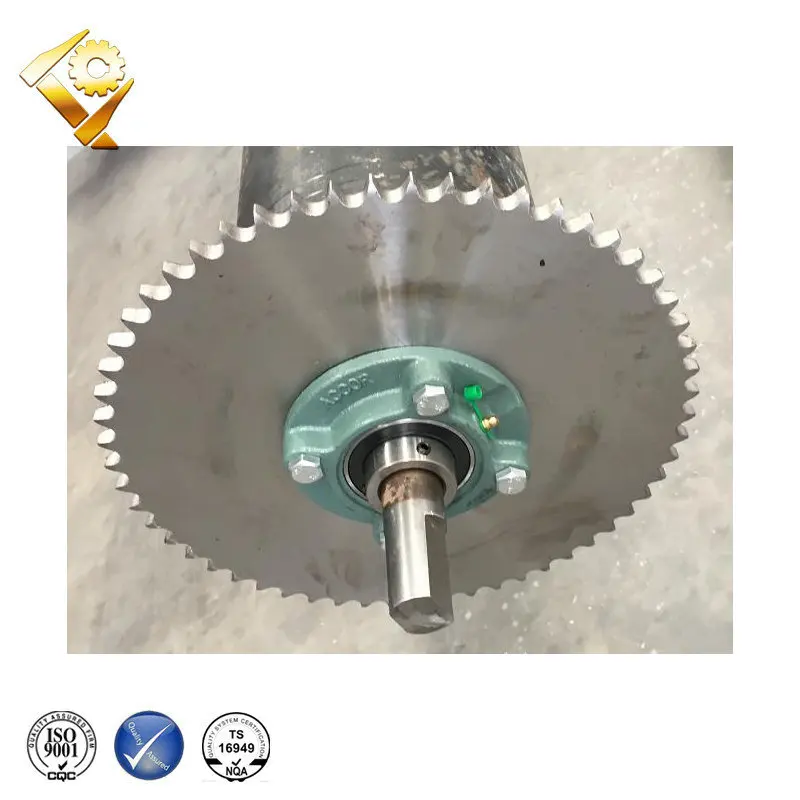

For this roller shutter door Chain Wheel/roller shutter door Sprocket, there are often many shapes according to different using habits. We can make most of them. But Our chain wheels/sprockets are new design, much less labor is needed for installation, no bearing house, no bolts and no welding, perfect concentricity between teeth and bearing.
Besides, Self aligning bearings can easily make chain wheels/sprockets are installed appropriately.
A sprocket is a wheel with teeth or cogs that mesh with a chain or other type of flexible cable. In the case of roller shutter doors, the sprockets are connected to a chain that turns the shutter mechanism. When the chain is turned, the shutters move up or down along tracks on the sides of the door opening. This simple but effective system allows the shutters to be easily raised or lowered, allowing access to the building.
Industrial roller shutter door sprockets work by providing a means for the chain to turn in a controlled manner. The sprockets are connected to a motor or other powered device which provides the force to turn the chain. As the chain turns the sprockets, the shutters are raised or lowered, depending upon the desired direction.
It is important for the sprocket system to be properly aligned and well lubricated so that it operates smoothly and reliably. Many problems with roller shutter doors can be traced back to misaligned or sticky sprocket systems. Regular maintenance and lubrication can keep the system functioning properly and extend the life of the door.
Industrial roller shutter door sprockets are an essential part of the roller shutter door system. They provide a simple and reliable means for raising and lowering the shutters, allowing for easy access and enhanced security. With proper maintenance and care, these doors can provide years of trouble-free service.
Industrial roller shutter door sprockets work by providing a means for the chain to turn in a controlled manner. The sprockets are connected to a motor or other powered device which provides the force to turn the chain. As the chain turns the sprockets, the shutters are raised or lowered, depending upon the desired direction.
It is important for the sprocket system to be properly aligned and well lubricated so that it operates smoothly and reliably. Many problems with roller shutter doors can be traced back to misaligned or sticky sprocket systems. Regular maintenance and lubrication can keep the system functioning properly and extend the life of the door.
Industrial roller shutter door sprockets are an essential part of the roller shutter door system. They provide a simple and reliable means for raising and lowering the shutters, allowing for easy access and enhanced security. With proper maintenance and care, these doors can provide years of trouble-free service.
Application: Our chain wheel/ sprockets can be used for most residential and commercial/ industrial overhead doors, high speed doors, garage doors, sectional doors( storage facilities, manufacturing, fire station), rolling service doors, impact-able sectional doors, rolling sheet doors, hangar doors, blast doors, stadium doors, counter doors, insulated doors, security grilles, Acoustic shutters, low headroom doors, Steel Roll-up Truck & Garage Doors, folding sliding doors, etc.
Specification
Model no | Name | Material | Dimensions | Shaft | Bearing |
DP-42 | 6" Sprocket with bearing | Steel | 10B-42T | 31.6 /35 /36.40/ 38 | UC207-20 UC207 UC207-23 UC208-24 |
DP-43 | 6" Sprocket with bearing | Steel | 10B-57T | 35 /36.40 | UC207 UC207-23 |
DP-44 | 6" Sprocket with bearing | Steel | 12B-40T | 38 /40 | UC208-24 UC208 |
DP-45 | 6" Sprocket with bearing | Steel | 12B-48T | 38 | UC208-24 |
DP-46 | 8" Sprocket with bearing | Steel | 10B-57T | 35 /38 | UCX-07 UC208-24 |
DP-47 | 8" Sprocket with bearing | Steel | 12B-45T | 38 /40 | UC208-24 UC208 |
DP-48 | 8" Sprocket with bearing | Steel | 12B-48T | 38 /40 | UC208-24 UC208 |
DP-49 | 8" Sprocket with bearing | Steel | 12B-57T | 40 | UC208 |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Century Metal Industries (Dopas) was founded in 2004. Who is a market leader manufacturer and designer of roller shutter door parts, garage door parts, overhead door parts, etc.. The service supplied includes designing,developing, testing, manufacturing, QC and service after sale to all over the world market.
We have a fully equipped laboratory with chemical composition tester, tensile tester, impact tester and hardness tester, our
inspection engineer conducts mechanical property testing on each batch prior to delivery.
inspection engineer conducts mechanical property testing on each batch prior to delivery.
