Curtain wallAcoustic Insulation Materials Rock Wool Board Rock Wool Insulation Board 100 Kg M3
- Category: >>>
- Supplier: Shandong Huanli Xinda New Materials Co. Ltd.
Share on (1601080092055):
Product Overview
Description
Product Description

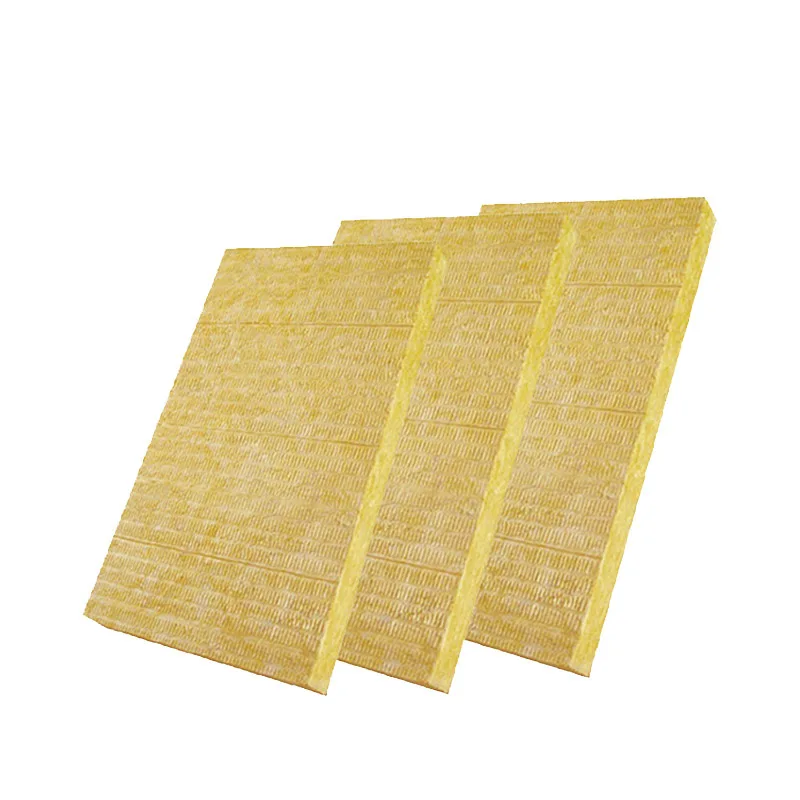

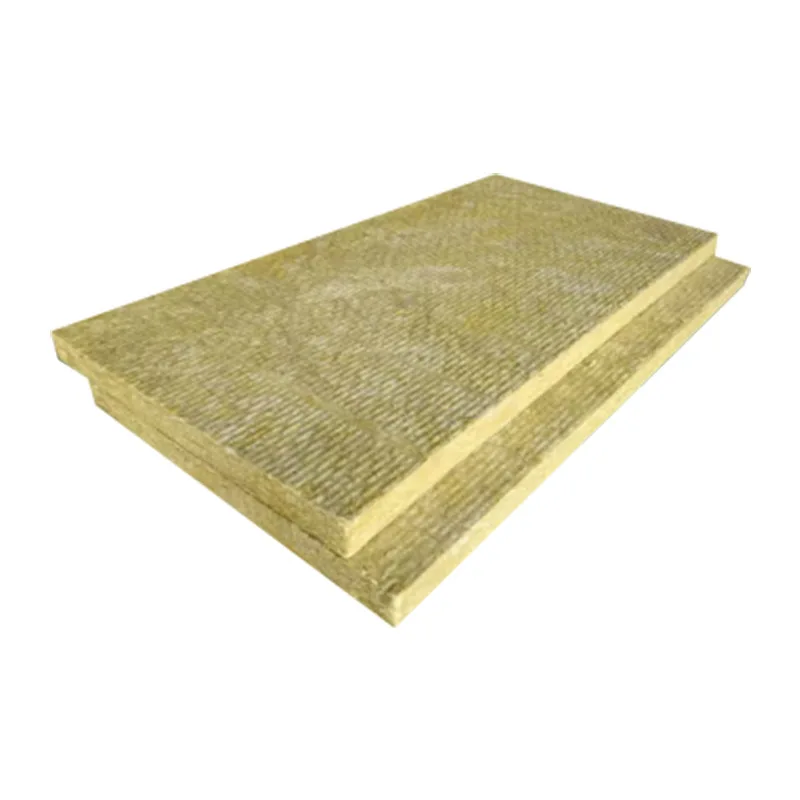

EcoXinDa Rockwool Insulation Boards
EcoXinDa rock wool insulation board is a high-strength board, using high-quality basalt ore as the main raw material, through
high-temperature melting and high-speed centrifugal filaments made of fibers, the use of three-dimensional method of advanced
production technology, adding a small amount of binding agent, molded by heat curing. The products are widely used in building
exterior wall insulation, curtain wall roof insulation, industrial and civil buildings, composite core boards, marine bulkhead
equipment and pipe insulation, fire door core boards and various industrial or shipbuilding equipment.
EcoXinDa rock wool insulation board is a high-strength board, using high-quality basalt ore as the main raw material, through
high-temperature melting and high-speed centrifugal filaments made of fibers, the use of three-dimensional method of advanced
production technology, adding a small amount of binding agent, molded by heat curing. The products are widely used in building
exterior wall insulation, curtain wall roof insulation, industrial and civil buildings, composite core boards, marine bulkhead
equipment and pipe insulation, fire door core boards and various industrial or shipbuilding equipment.
Products Technical Data
Item | Technical Data |
Density (kg/m3) | 45-150(±10%) |
Thermal conductivity(W/m.k) | ≤0.035 |
Organic content (%) | ≤3 |
Regular Size(mm) | 1200*600*(30-150) |
Thermal insulation: With low shot content, long and thin porous fiber structure, low thermal conductivity, excellent thermal
insulation effect.
Fireproofing: High quality raw materials, high temperature process, ensure the fireproof performance of products; will not produce fuel dripping, no toxic fumes produced.
Noise Reduction: A large number of internal rock wool fiber forming porous structure is communicated, high porosity, so that the rock wool products with high sound absorption characteristics.
Hydrophobic & Breathable: The hydrophobic technology of the product ensures that the rock wool is not damp absorbed and used for along time on the ship, and the porous interconnection structure makes the product have good air permeability and moisture removal performance.
Good Strength: Three-dimensional production technologies is adopted to ensure the high pressure and high tensile strength of the product.
Healthy & Environment: No asbestos, non-carcinogenic, IARCY (International Agency for research on cancer) has been removed the rock wool from the list of "can cause cancer"; rock wool is chemically inert, neutral or alkaline water extract, no damage or corrosion and contact materials.
Applications: Products can be arbitrarily cut, convenient construction
insulation effect.
Fireproofing: High quality raw materials, high temperature process, ensure the fireproof performance of products; will not produce fuel dripping, no toxic fumes produced.
Noise Reduction: A large number of internal rock wool fiber forming porous structure is communicated, high porosity, so that the rock wool products with high sound absorption characteristics.
Hydrophobic & Breathable: The hydrophobic technology of the product ensures that the rock wool is not damp absorbed and used for along time on the ship, and the porous interconnection structure makes the product have good air permeability and moisture removal performance.
Good Strength: Three-dimensional production technologies is adopted to ensure the high pressure and high tensile strength of the product.
Healthy & Environment: No asbestos, non-carcinogenic, IARCY (International Agency for research on cancer) has been removed the rock wool from the list of "can cause cancer"; rock wool is chemically inert, neutral or alkaline water extract, no damage or corrosion and contact materials.
Applications: Products can be arbitrarily cut, convenient construction
Application
Application | Scope | Density (kg/m3) | Thickness (mm) | Weight/M2 (kg/m2) | Package information | |||||
Fire division insulation | A60 deck | 45 | 50(stiffener30) | 2.25 | Can be one side or two side Covered With Aluminum Foil /or FG Cloth (Sewing /Stickup) | |||||
A30 deck | 45 | 60(30+30) Stiffener30 | 2.70 | |||||||
A30 bulkhead | 45 | 40(Stiffener30) | 1.6 | |||||||
A15 deck | 45 | 30(Stiffener30) | 1.92 | |||||||
A15 bulkhead | 45 | 30* | 0.96 | |||||||
Thermal and sound insulation | For wall and deck | 45-150 | 30-150 | 0.8-6.4 | ||||||
(* The stiffener of without any cover) | ||||||||||
Company Profile
Eco Xinda New Material Co. After 10 years of development, it has become a world-renowned enterprise in the research, development,production and sales of energy-saving new materials such as ceramic fibers, soluble fibers, alumina fibers, rock wool fibers, heatpreservation refractory bricks, etc. The annual production capacity of all kinds of rock wool products is 200,000 tons

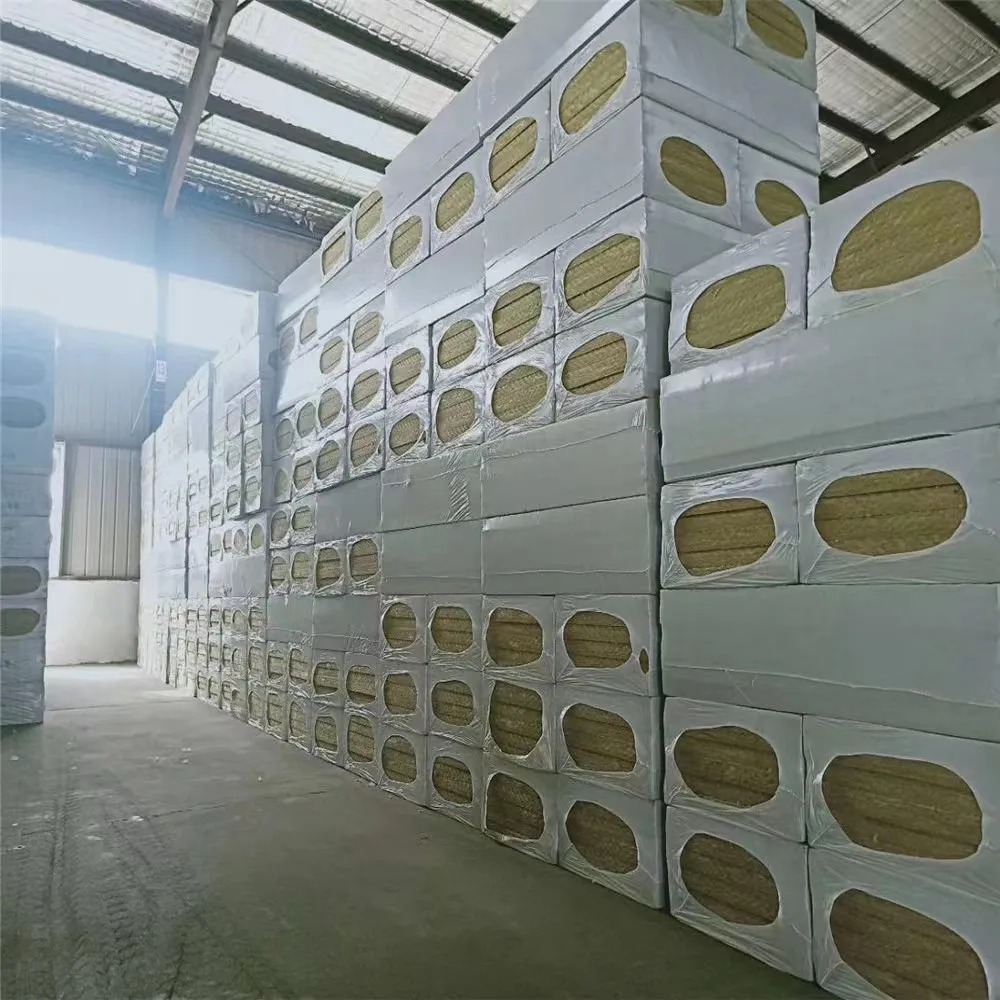

Packing & Delivery

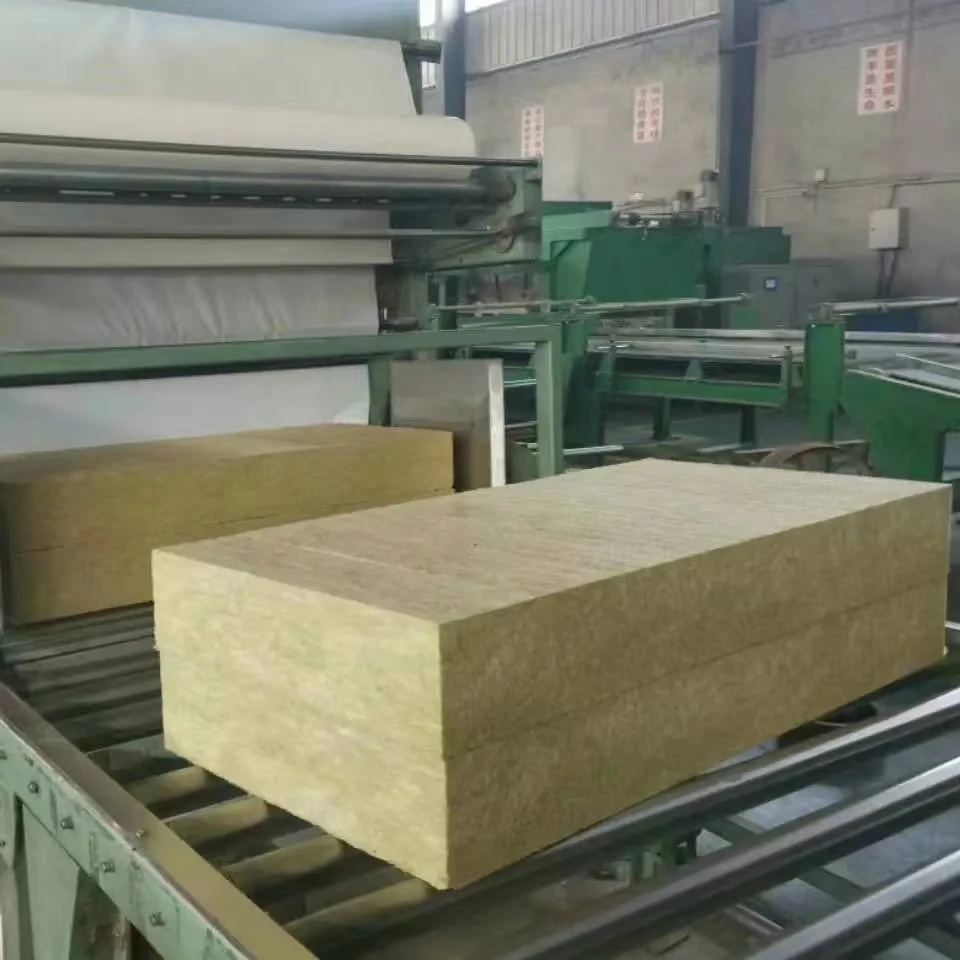

Production Line
LABORATORY
FAQ
1.Are you a manufacturer or a trading company?
We are a manufacturer, located in Shandong, China, we not only provide high quality products and the best price, but also the best pre-sale service and after-sale service.
2.What kind of products can you provide?
Our company can provide all kinds of refractory insulation materials. For example, ceramic fiber products, bio-soluble fiber products, alumina fiber products, microporous boards, thermal insulation refractory bricks, calcium silicate products, mineral wool, rock wool and so on.
3. Can you provide free samples?
We can provide free samples!
4.What is the MOQ?
We don't have a specific MOQ, we can accept any order for any different items.
5. Can we visit your factory?
Yes, we can! Of course you can, welcome to visit our factory on site or online anytime!
6.How long is the delivery time?
Usually 5-15 days, shorter if in stock, or 15-30 days depending on quantity.
We are a manufacturer, located in Shandong, China, we not only provide high quality products and the best price, but also the best pre-sale service and after-sale service.
2.What kind of products can you provide?
Our company can provide all kinds of refractory insulation materials. For example, ceramic fiber products, bio-soluble fiber products, alumina fiber products, microporous boards, thermal insulation refractory bricks, calcium silicate products, mineral wool, rock wool and so on.
3. Can you provide free samples?
We can provide free samples!
4.What is the MOQ?
We don't have a specific MOQ, we can accept any order for any different items.
5. Can we visit your factory?
Yes, we can! Of course you can, welcome to visit our factory on site or online anytime!
6.How long is the delivery time?
Usually 5-15 days, shorter if in stock, or 15-30 days depending on quantity.
