Product Overview
Description
Product Description
Specification
item | value |
Warranty | 1 year |
Customized support | OEM, ODM |
Place of Origin | United State |
Brand Name | Rosemount- |
Model Number | Rosemount-8750W |
Type | Variable Area Water Flowmeters |

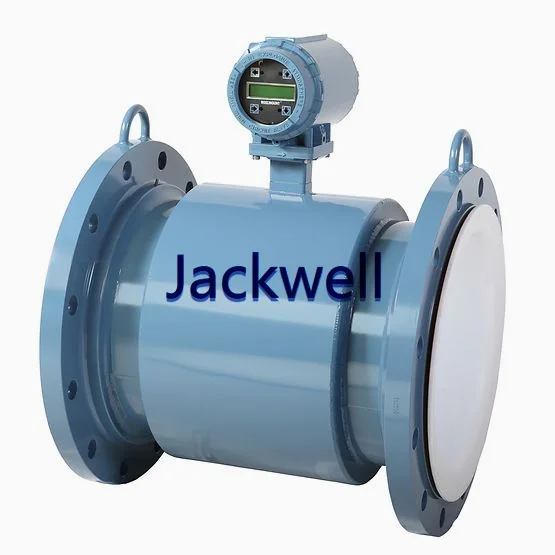

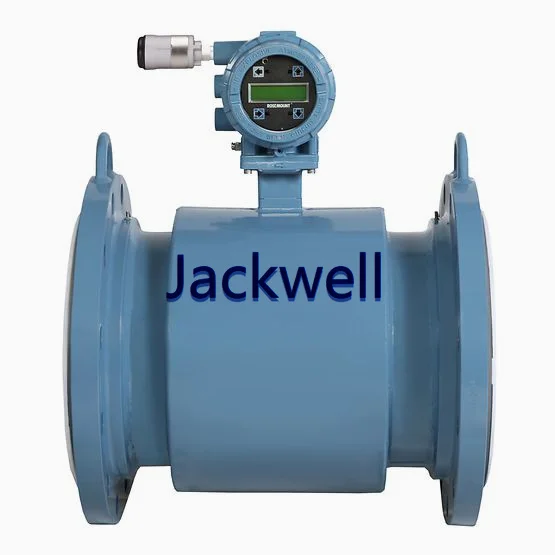

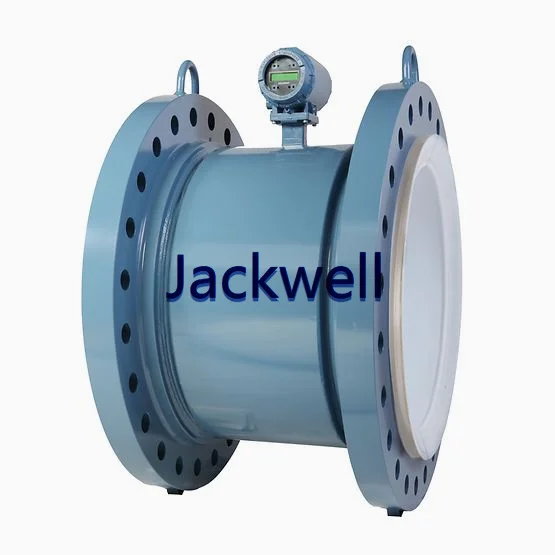

The Rosemount 8750W Magnetic Flow Meter reduces lifecycle costs and unplanned shutdowns by accurately measuring water and wastewater flows in a variety of utility applications. The 8750W is supported by intelligent diagnostics that help users take advantage of improved installation, maintenance and process-management practices. With fully welded sensor construction and an isolated, replaceable terminal block the 8750W is the most dependable meter available for utility and water applications.
Line Size0.5" – 48" (15 mm – 1200 mm)
Liner Material PTFE, Neoprene
Electrode Material Stainless Steel, Nickel Alloy
Flange Standard ANSI, EN, GB , AS4087, AS2129, JIS , AWWA
Flange Rating Up to 300# / PN40 / 4.0Mpa / PN35 / Table E / 10K / Class D
Accuracy Standard 0.5%; Optional High Accuracy 0.25%
Diagnostics Empty Pipe, Grounding/Wiring Detection, High Process Noise, Coated Electrode Detection, Smart Meter Verification
Transmitter Output 4-20 mA Digital Electronics (HART Protocol), Modbus RS485
Specifications
Line Size0.5" – 48" (15 mm – 1200 mm)
Liner Material PTFE, Neoprene
Electrode Material Stainless Steel, Nickel Alloy
Flange Standard ANSI, EN, GB , AS4087, AS2129, JIS , AWWA
Flange Rating Up to 300# / PN40 / 4.0Mpa / PN35 / Table E / 10K / Class D
Accuracy Standard 0.5%; Optional High Accuracy 0.25%
Diagnostics Empty Pipe, Grounding/Wiring Detection, High Process Noise, Coated Electrode Detection, Smart Meter Verification
Transmitter Output 4-20 mA Digital Electronics (HART Protocol), Modbus RS485
Features
* Maximize uptime with dual-compartment transmitter housing that isolates electronics from moisture and contamination
* Rely on robust, fully welded construction designed to withstand sustained vibration
* Confirm meter calibration without interrupting the process using continuous meter verification
* Perform easy repairs in the field without the need to replace the entire meter with a replaceable terminal block
* Advanced diagnostic capabilities and printed reports verify meter performance for compliance with regulatory agencies
* Simplify configuration and accessibility with an easy-to-use Local Operator Interface
* Maximize uptime with dual-compartment transmitter housing that isolates electronics from moisture and contamination
* Rely on robust, fully welded construction designed to withstand sustained vibration
* Confirm meter calibration without interrupting the process using continuous meter verification
* Perform easy repairs in the field without the need to replace the entire meter with a replaceable terminal block
* Advanced diagnostic capabilities and printed reports verify meter performance for compliance with regulatory agencies
* Simplify configuration and accessibility with an easy-to-use Local Operator Interface
