high quality HZS50 concrete batching plant concrete mixing plant for ready mix concrete with china factory price
- Category: >>>
- Supplier: Henan Shengmao Machinery Co. Ltd.
Share on (1601080249286):
Product Overview
Description

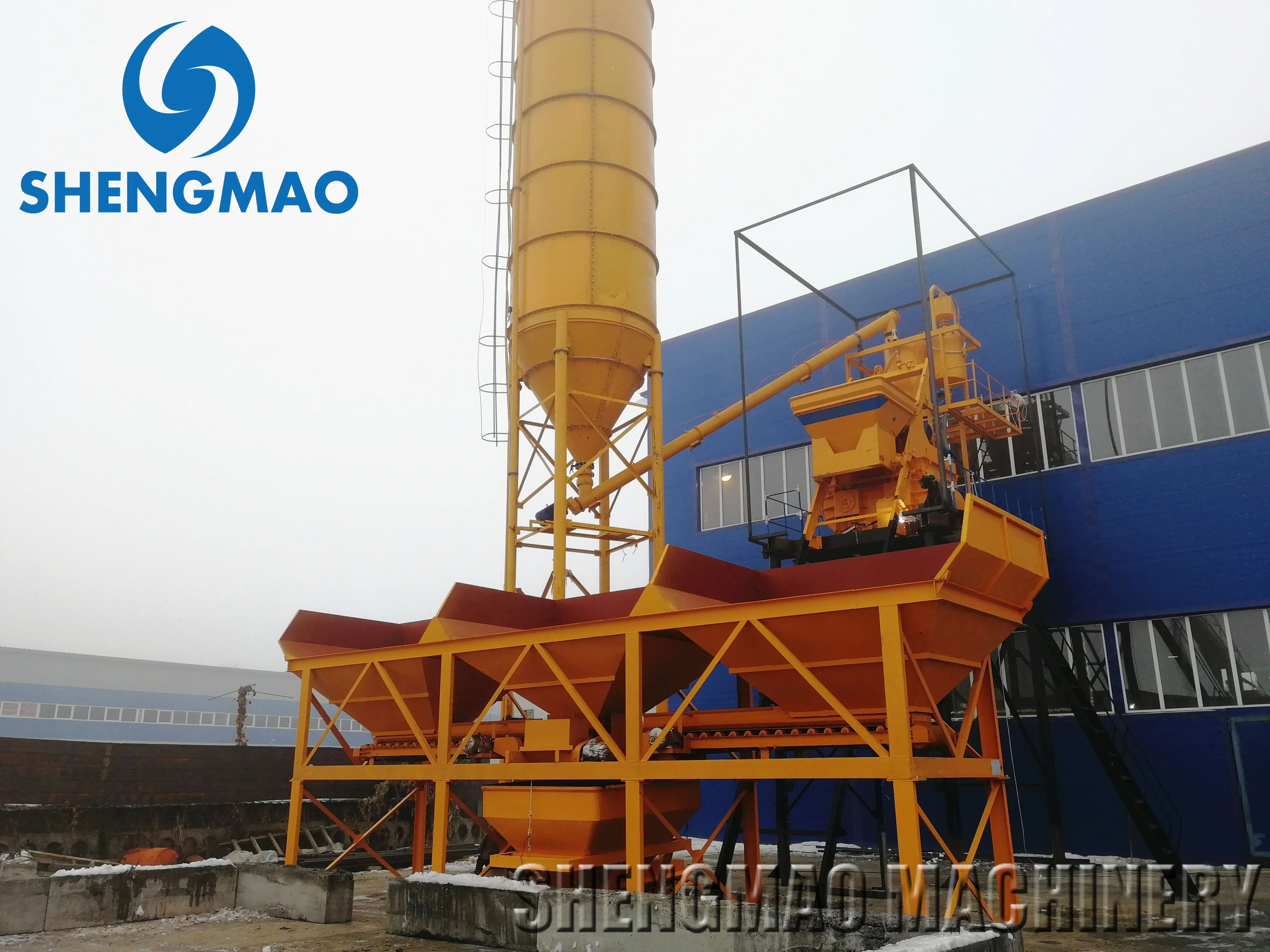

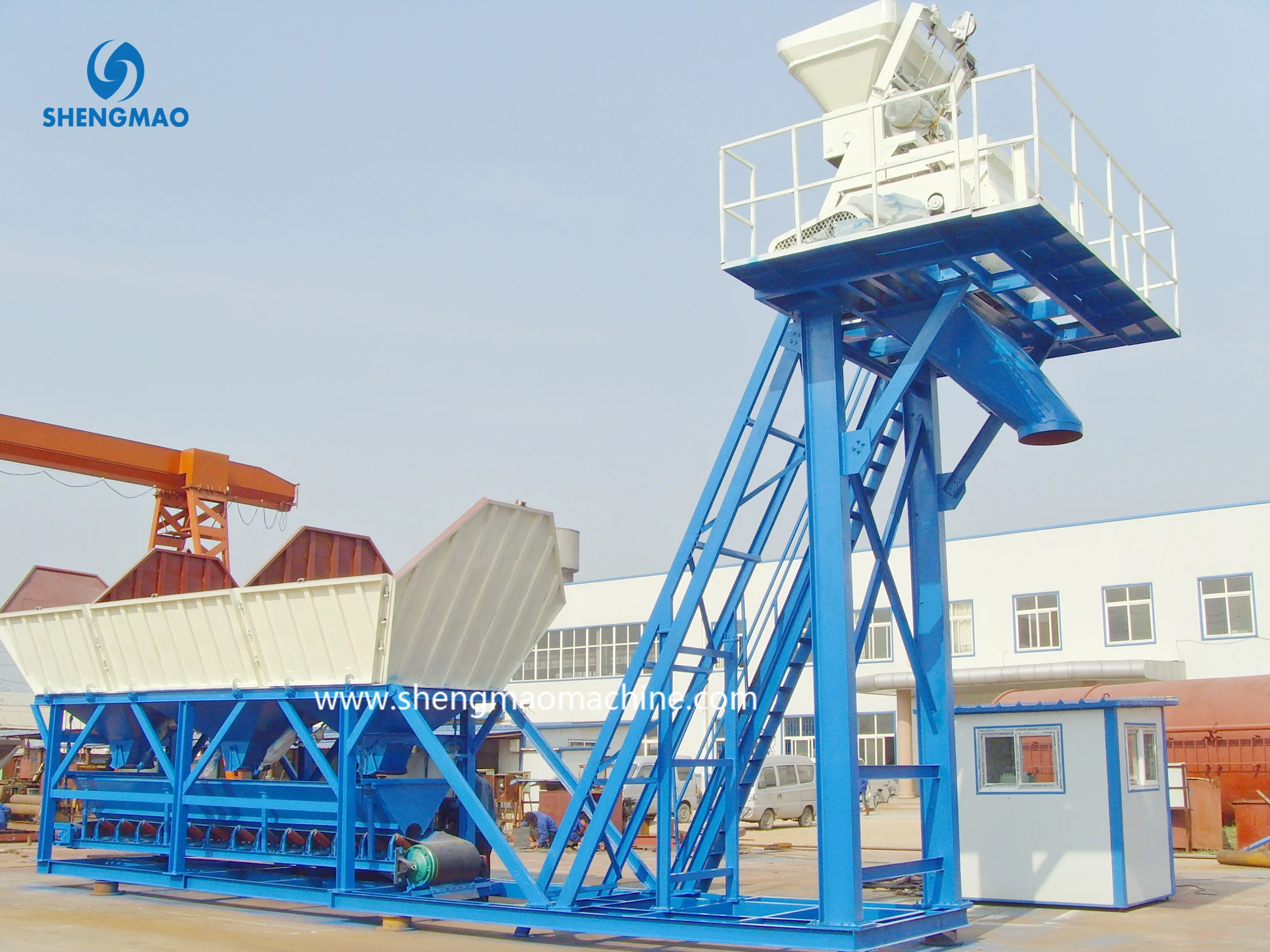

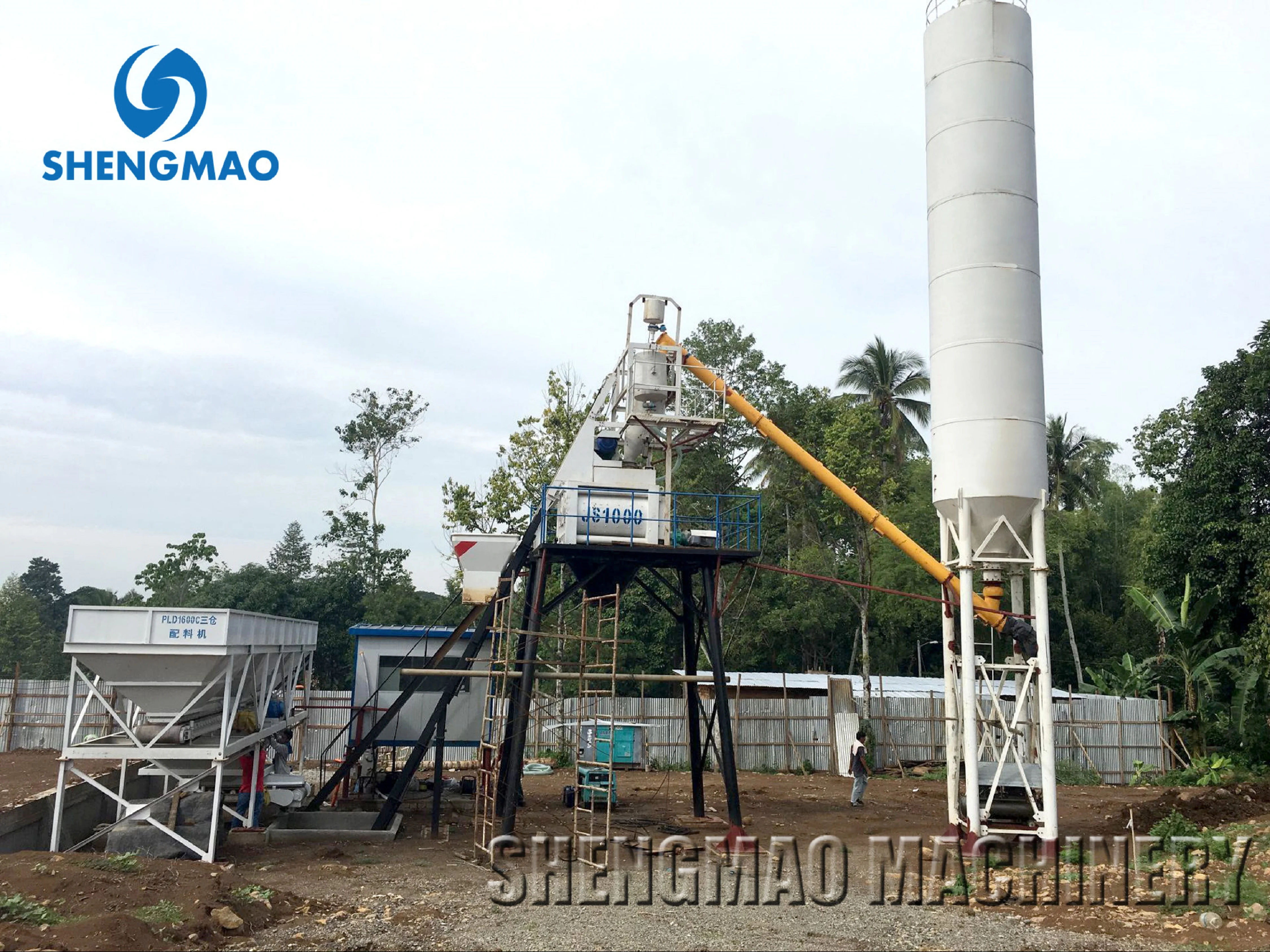

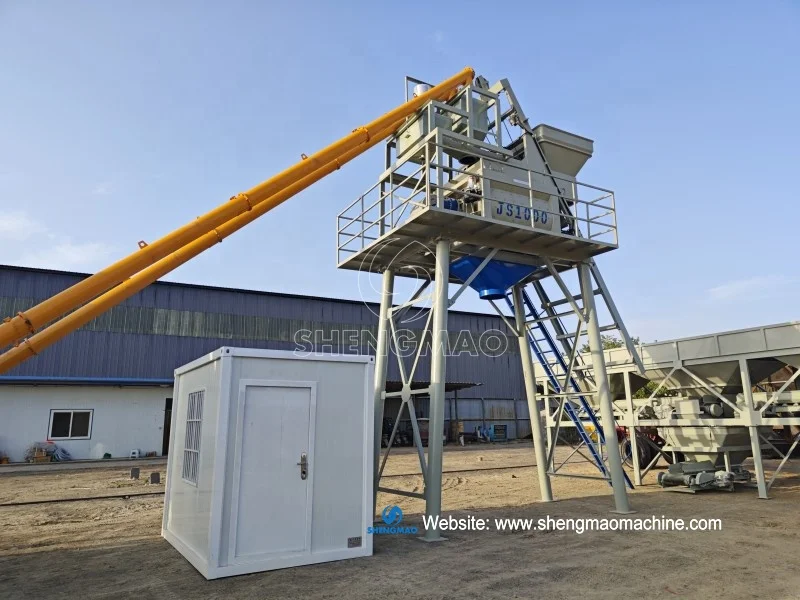

Our HZS50 (50m3/h) skip hoist type concrete batching plant to Britain.
Main parts of this HZS50 (50m3/h) concrete batching plant:
1. 3-bin aggregate batching machine;
2. JS1000 twin-shaft concrete mixer;
3. Water, cement and additive scales;
4. Two sets 70T
horizontal cement silo;
horizontal cement silo;
5. Two sets 273mm*10m screw conveyor;
6. One set air compressor;
7. Container type control room with air
conditioner;
conditioner;
8. Fully automatic computer control system in English.
Welcome to contact us for details.
Product Description

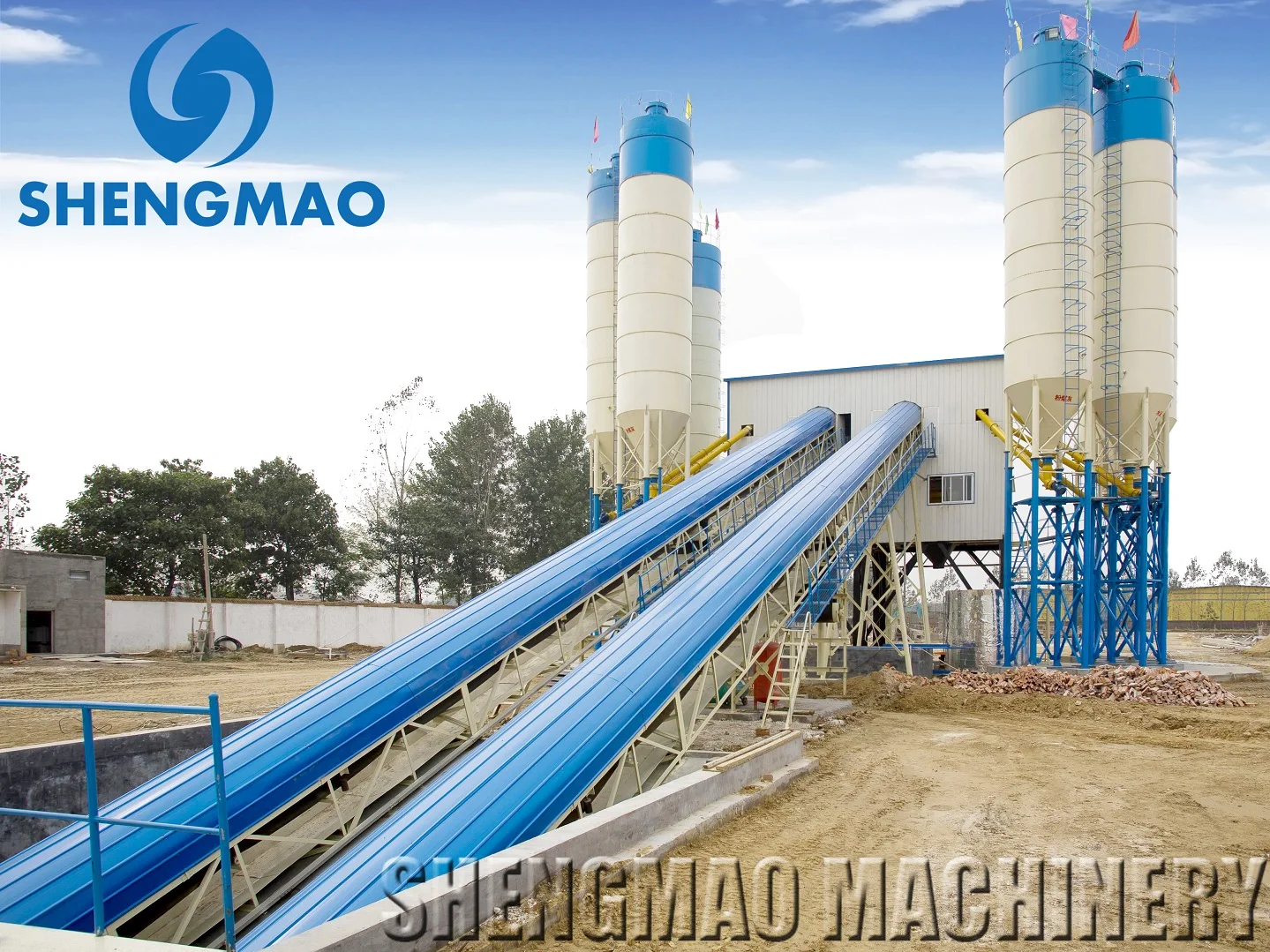

HZS Stationary Concrete Batching Plant
The HZS series stationary concrete batching plant is composed of aggregate batching system, aggregate convey system, batching system, mixing system, electrical control system, water supply system, air supply system, additive supply system, cement conveyor belt and cement silo. It suits to building site and merchandise concrete produce.According to the aggregate feeding method, stationary concrete batching plant can be categorized into two types: Skip hoist type and belt conveyor type. The capacity of Skip hoist type concrete batching plant can be 25/35/50/75m3/h, and the capacity of belt conveyor type concrete batching plan can be 60/90/120/180/240m3/h.
Skip hoist type concrete batching plant | ||||||||
Model | HZS25 | HZS35 | HZS50 | HZS75 | ||||
Production Capacity (m3/h) | 25 | 35 | 50 | 75 | ||||
Concrete Mxier | JS500 | JS750 | JS1000 | JS1500 | ||||
Aggregate Feeding Mode | Skip Hoist | Skip Hoist | Skip Hoist | Skip Hoist | ||||
Aggregate Batcher | PLD800 | PLD1200 | PLD1600 | PLD2400 | ||||
Max. Aggregate Size (mm) | 60/80 | 60/80 | 60/80 | 60/80 | ||||
Discharging Height (m) | 3.8 | 3.8 | 4.1 | 4.1 | ||||
Aggregate Weighing Accuracy(%) | ±2 | ±2 | ±2 | ±2 | ||||
Cement Weighing Accuracy(%) | ±1 | ±1 | ±1 | ±1 | ||||
Water&Additive Weighing Accuracy(%) | ±1 | ±1 | ±1 | ±1 | ||||
Total Weight(T) | 10 | 13.5 | 18.5 | 25 | ||||
Total Power (kw) | 65 | 75 | 100 | 110 | ||||
Control System | Panel | Computer | Computer | Computer | ||||

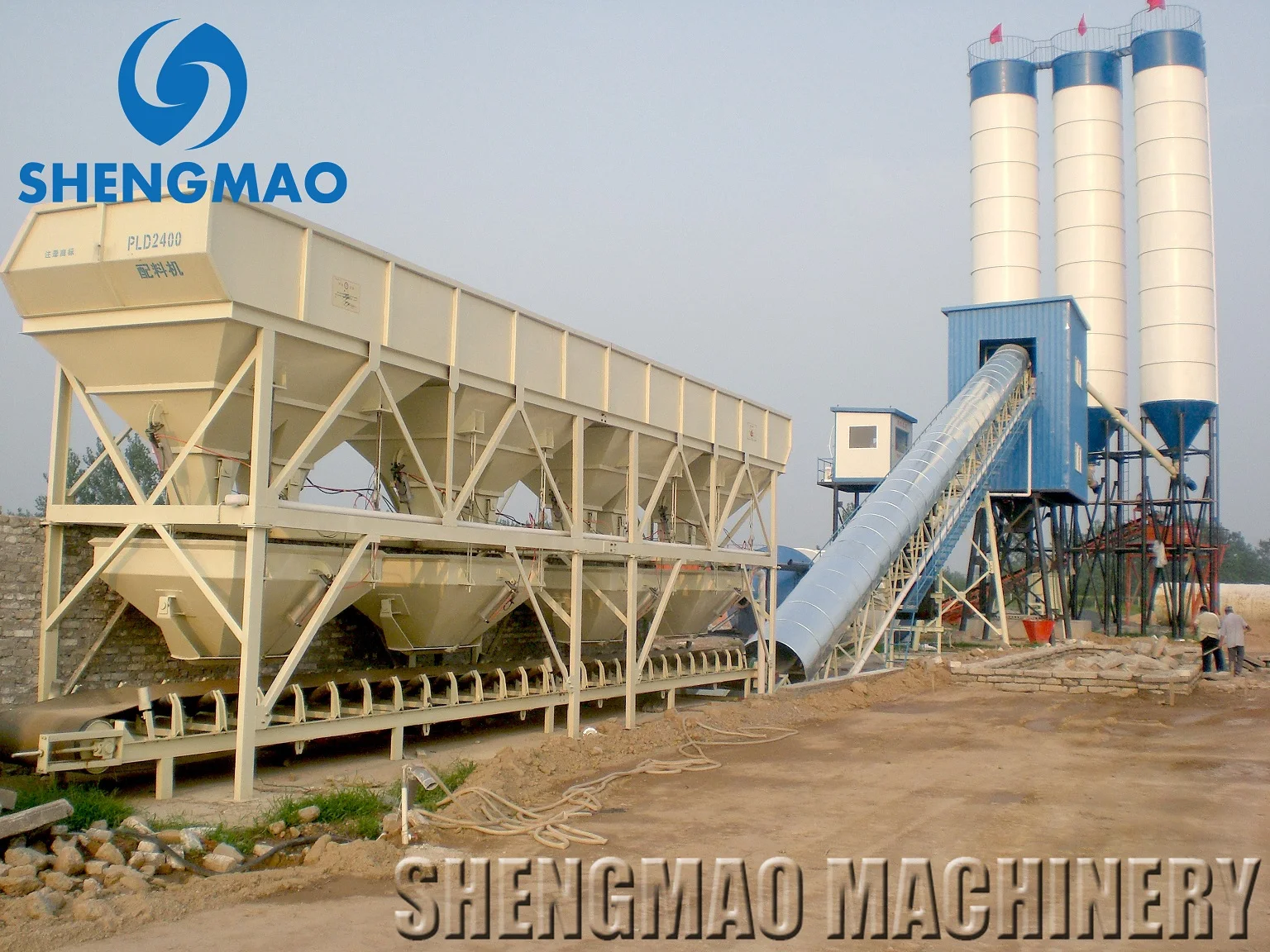

Belt conveyor type concrete batching plant | ||||||||
Model | HZS60 | HZS90 | HZS120 | HZS180 | ||||
Production Capacity (m3/h) | 60 | 90 | 120 | 180 | ||||
Concrete Mxier | JS1000 | JS1500 | MAO3000/2000 | MAO4500/3000 | ||||
Aggregate Feeding Mode | Belt Conveyor | Belt Conveyor | Belt Conveyor | Belt Conveyor | ||||
Aggregate Batcher | PLD1600 | PLD2400 | PLD3200 | PLD4800 | ||||
Max. Aggregate Size (mm) | 60/80 | 60/80 | 60/80 | 60/80 | ||||
Discharging Height (m) | 4.1 | 4.1 | 4.1 | 4.1 | ||||
Aggregate Weighing Accuracy(%) | ±2 | ±2 | ±2 | ±2 | ||||
Cement Weighing Accuracy(%) | ±1 | ±1 | ±1 | ±1 | ||||
Water&Additive Weighing Accuracy(%) | ±1 | ±1 | ±1 | ±1 | ||||
Total Weight(T) | 28 | 40 | 65 | 88 | ||||
Total Power (kw) | 110 | 156 | 200 | 260 | ||||
Control System | Computer | Computer | Computer | Computer | ||||
Foundation-free concrete batching plant | ||||||||
Model | FHZS25 | FHZS35 | FHZS50 | FHZS75 | ||||
Production Capacity (m3/h) | 25 | 35 | 50 | 75 | ||||
Concrete Mxier | JS500 | JS750 | JS1000 | JS1500 | ||||
Aggregate Feeding Mode | Skip Hoist | Skip Hoist | Skip Hoist | Skip Hoist | ||||
Aggregate Batcher | PLD800 | PLD1200 | PLD1600 | PLD2400 | ||||
Max. Aggregate Size (mm) | 60/80 | 60/80 | 60/80 | 60/80 | ||||
Discharging Height (m) | 3.8 | 3.8 | 4.1 | 4.1 | ||||
Aggregate Weighing Accuracy(%) | ±2 | ±2 | ±2 | ±2 | ||||
Cement Weighing Accuracy(%) | ±1 | ±1 | ±1 | ±1 | ||||
Water&Additive Weighing Accuracy(%) | ±1 | ±1 | ±1 | ±1 | ||||
Total Weight(T) | 10 | 13.5 | 18.5 | 25 | ||||
Total Power (kw) | 65 | 75 | 100 | 110 | ||||
Control System | Panel | Computer | Computer | Computer | ||||
Dry mix concrete batching plant | ||||||||||
Model | DHZS25 | DHZS35 | DHZS60 | DHZS90 | DHZS120 | |||||
Production capacity (m3/h) | 25 | 35 | 60 | 90 | 120 | |||||
Concrete mixer truck volume (m3) | 6 | 8 | 10 | 12 | 12 | |||||
Aggregate feeding mode | Belt conveyor | Belt conveyor | Belt conveyor | Belt conveyor | Belt conveyor | |||||
Aggregate batcher | PLD800 | PLD1200 | PLD1600 | PLD2400 | PLD3200 | |||||
Max. aggregate size (mm) | 60/80 | 60/80 | 60/80 | 60/80 | 60/80 | |||||
Discharging height (m) | 4.1 | 4.1 | 4.1 | 4.1 | 4.1 | |||||
Aggregate weighing accuracy (%) | ±2 | ±2 | ±2 | ±2 | ±2 | |||||
Cement weighing accuracy (%) | ±1 | ±1 | ±1 | ±1 | ±1 | |||||
Water weighing accuracy (%) | ±1 | ±1 | ±1 | ±1 | ±1 | |||||
Additive weighing accuracy (%) | ±1 | ±1 | ±1 | ±1 | ±1 | |||||
Total weight (T) | 7 | 12 | 18 | 25 | 30 | |||||
Control system | Computer | Computer | Computer | Computer | Computer | |||||
Detailed Picture and Specification
conveyor belt
concrete batcher
Cement, water , additive weighing
twin-shaft mixer
vertical cement silo
mobile horizontal cement silo

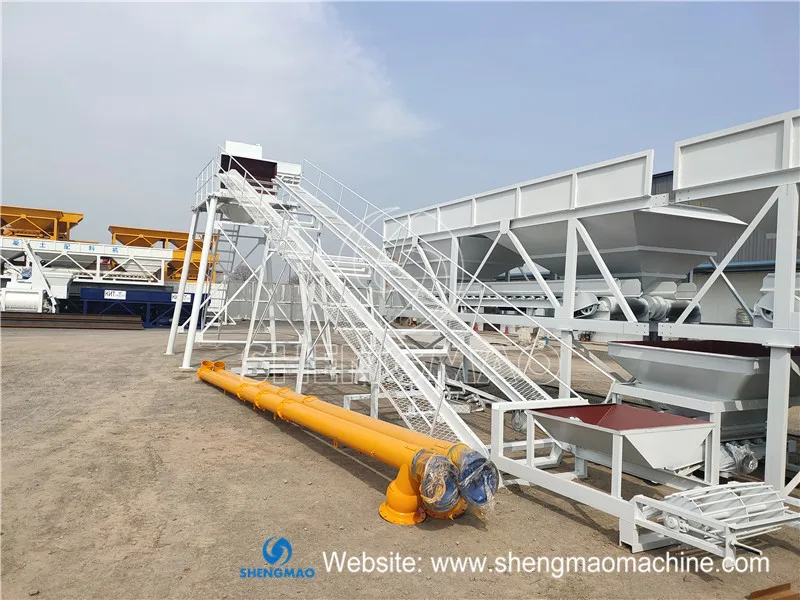

Screw conveyor
1. the screw conveyor length is usually 8m;
2. the screw conveyor with the diameter of 219mm and 273mm are commonly used.

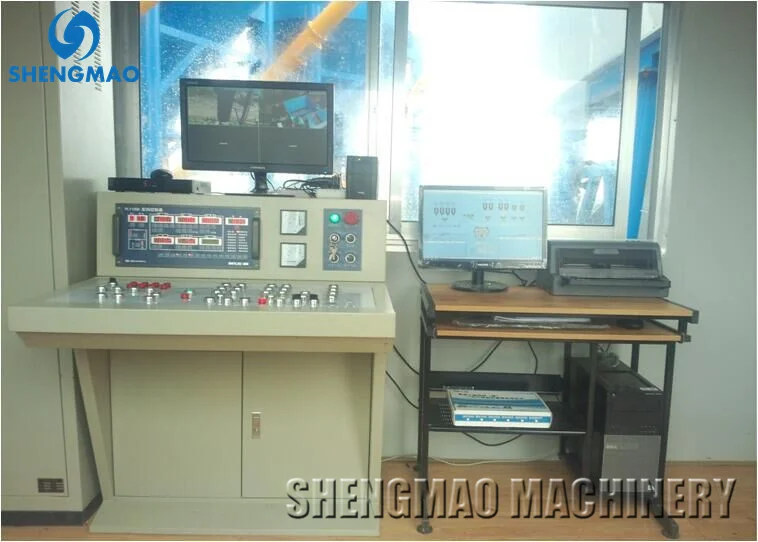

Fully automatic computer control system
1. Control system language can be: Chinese, English, Spanish, French and Russian;2. Schneider electrical elements are used to
ensure the stability of the control system;
3. Air conditioner is equipped;
4. CCTV is equipped;
5. Printer is equipped;
6. UPS is equipped.
ensure the stability of the control system;
3. Air conditioner is equipped;
4. CCTV is equipped;
5. Printer is equipped;
6. UPS is equipped.

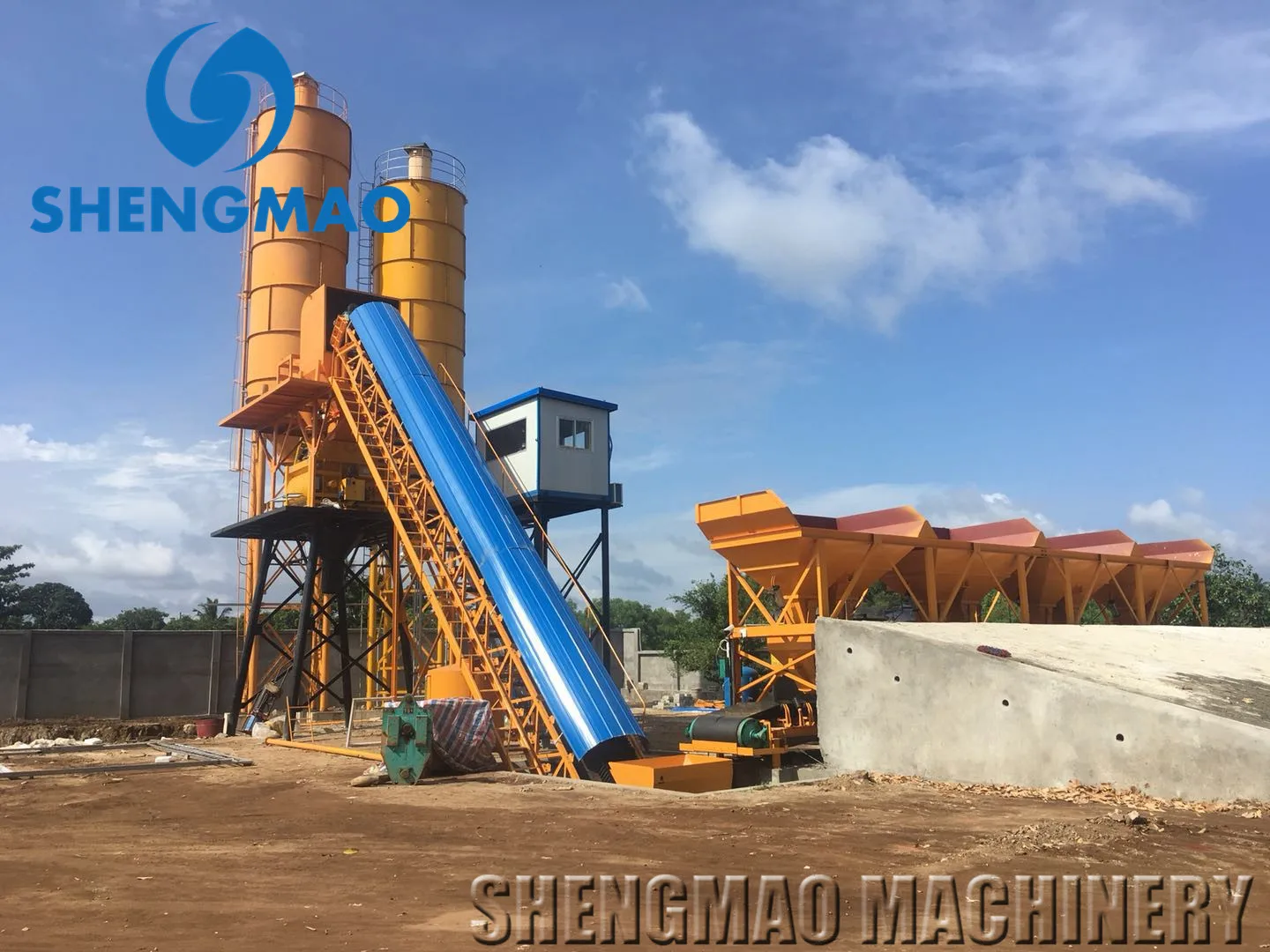

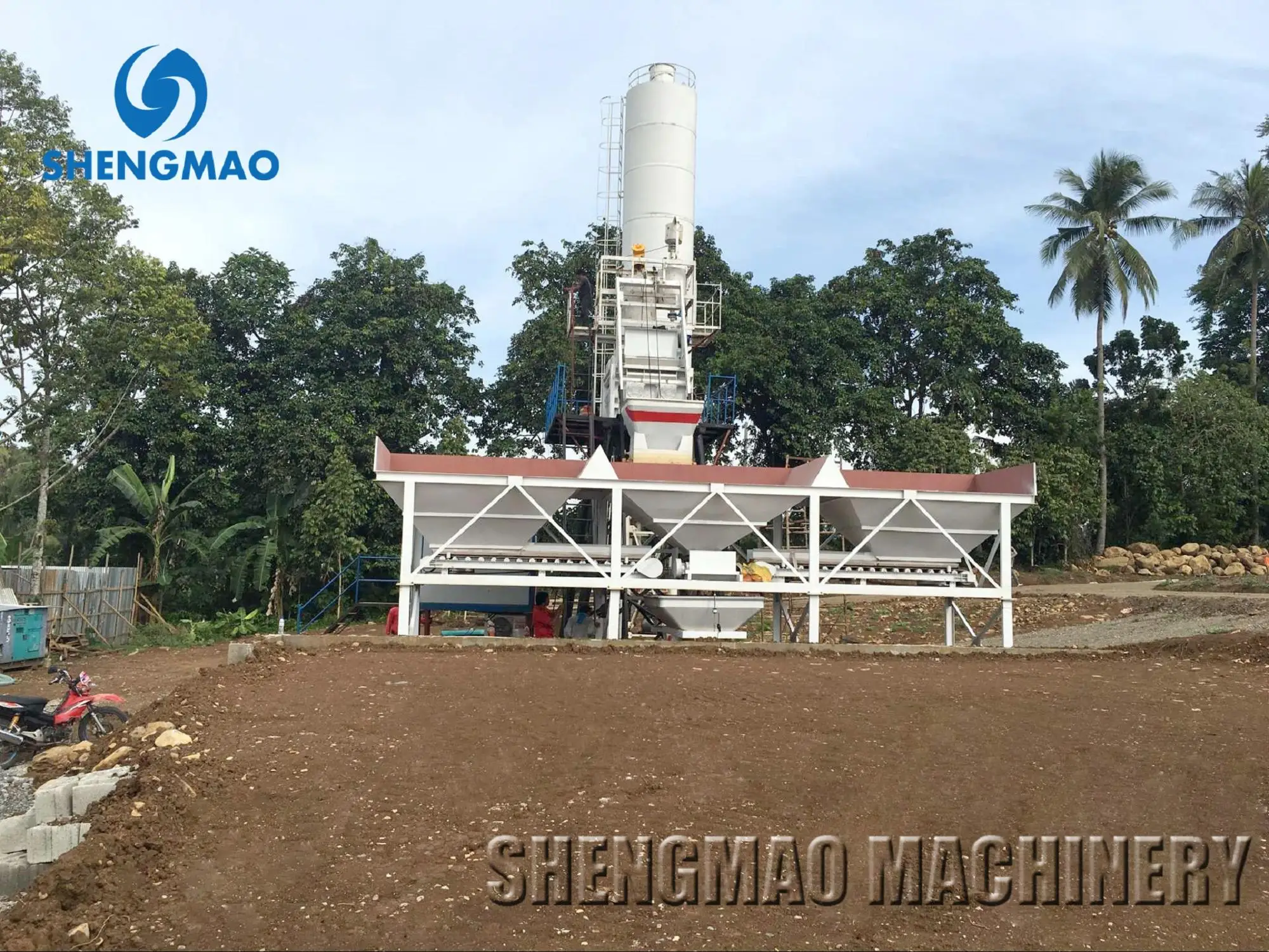

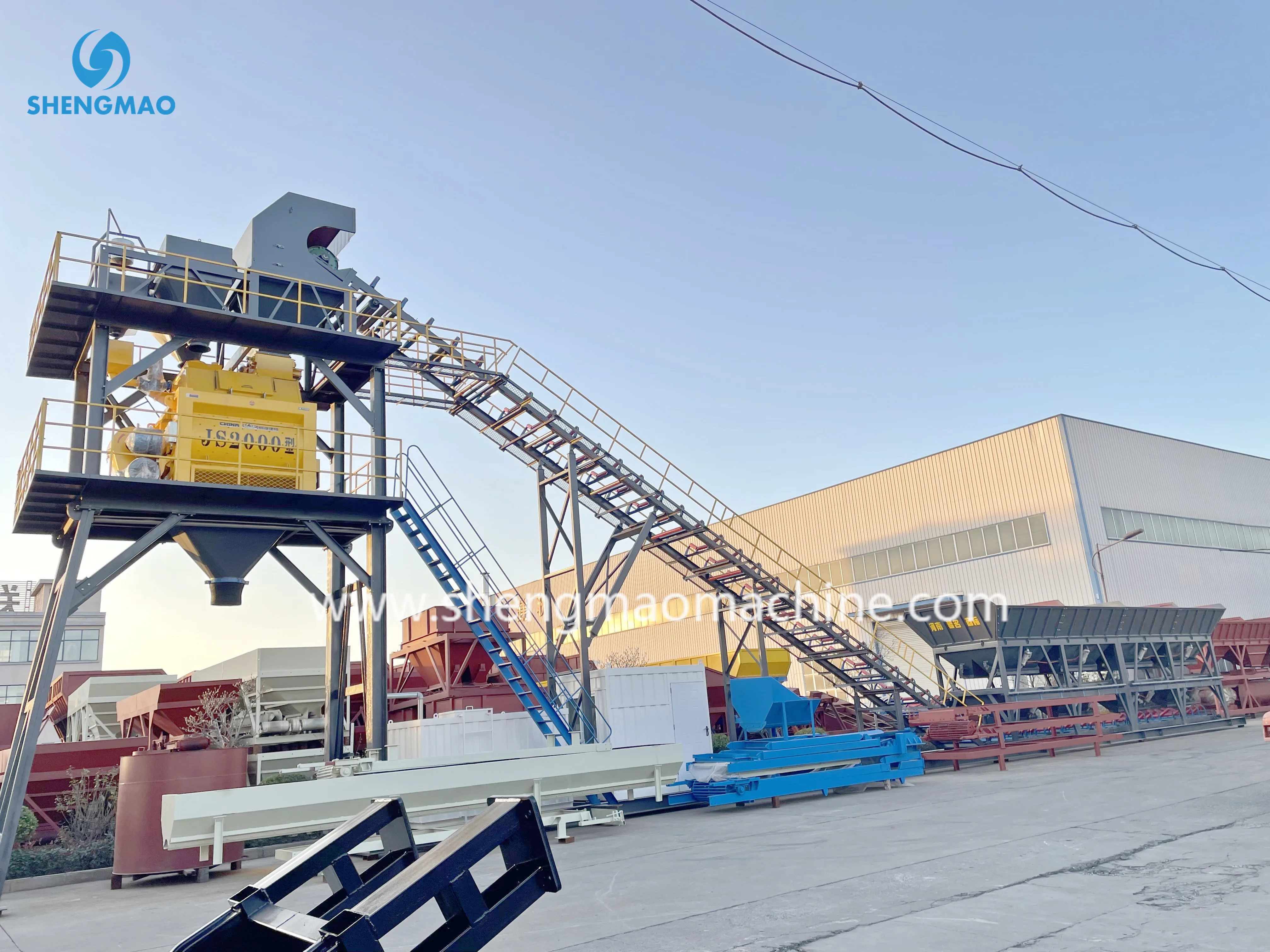

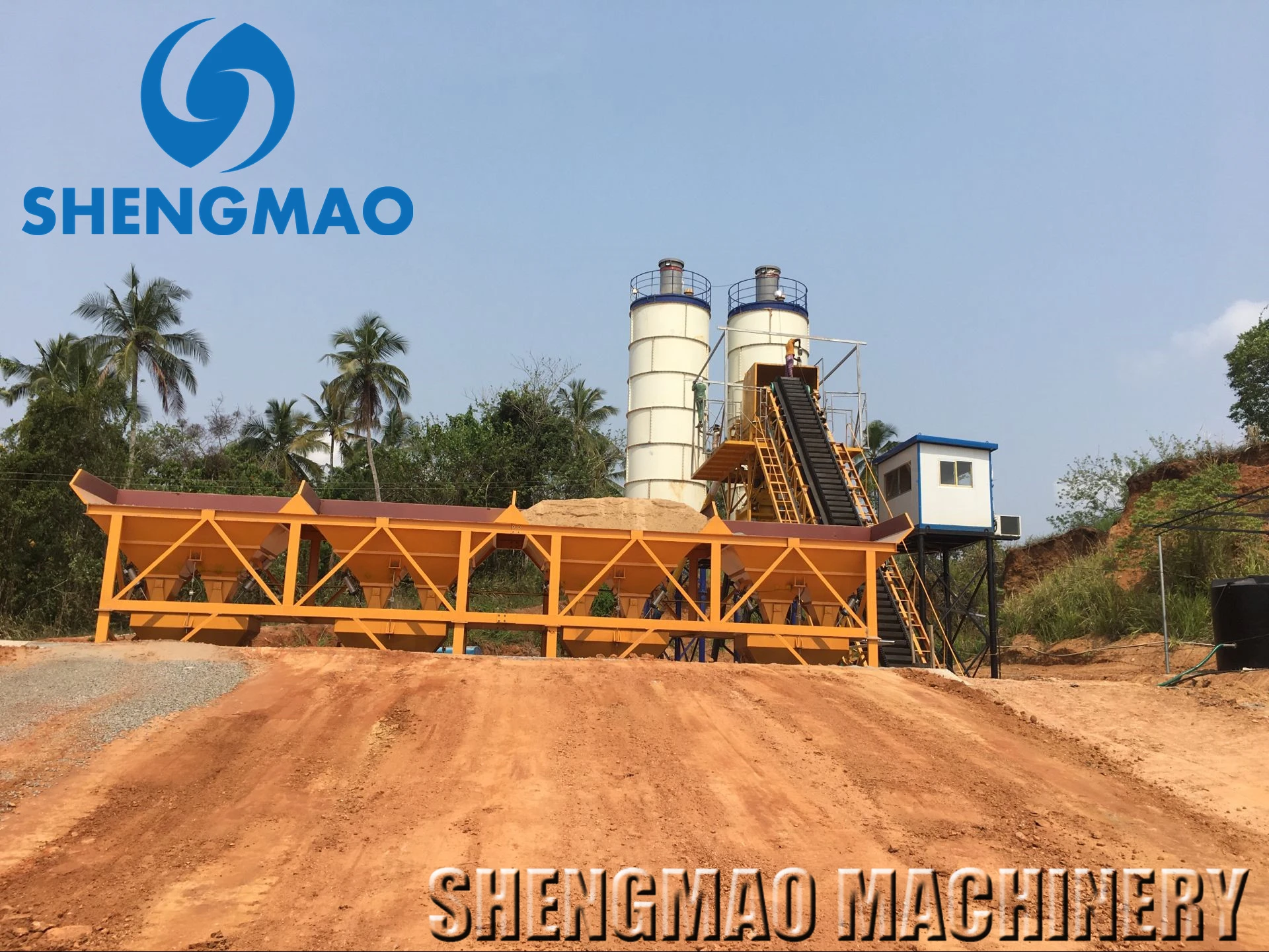

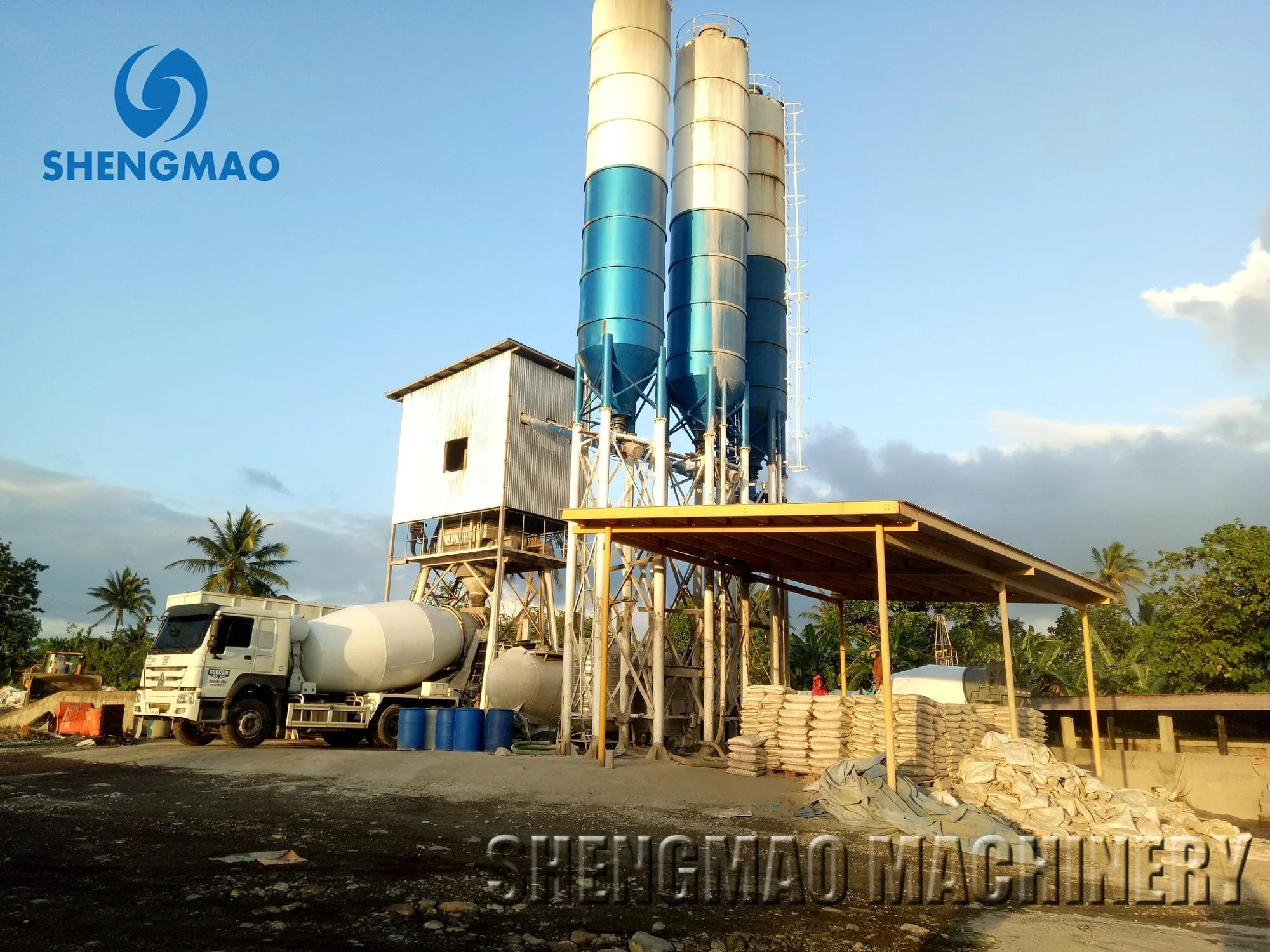

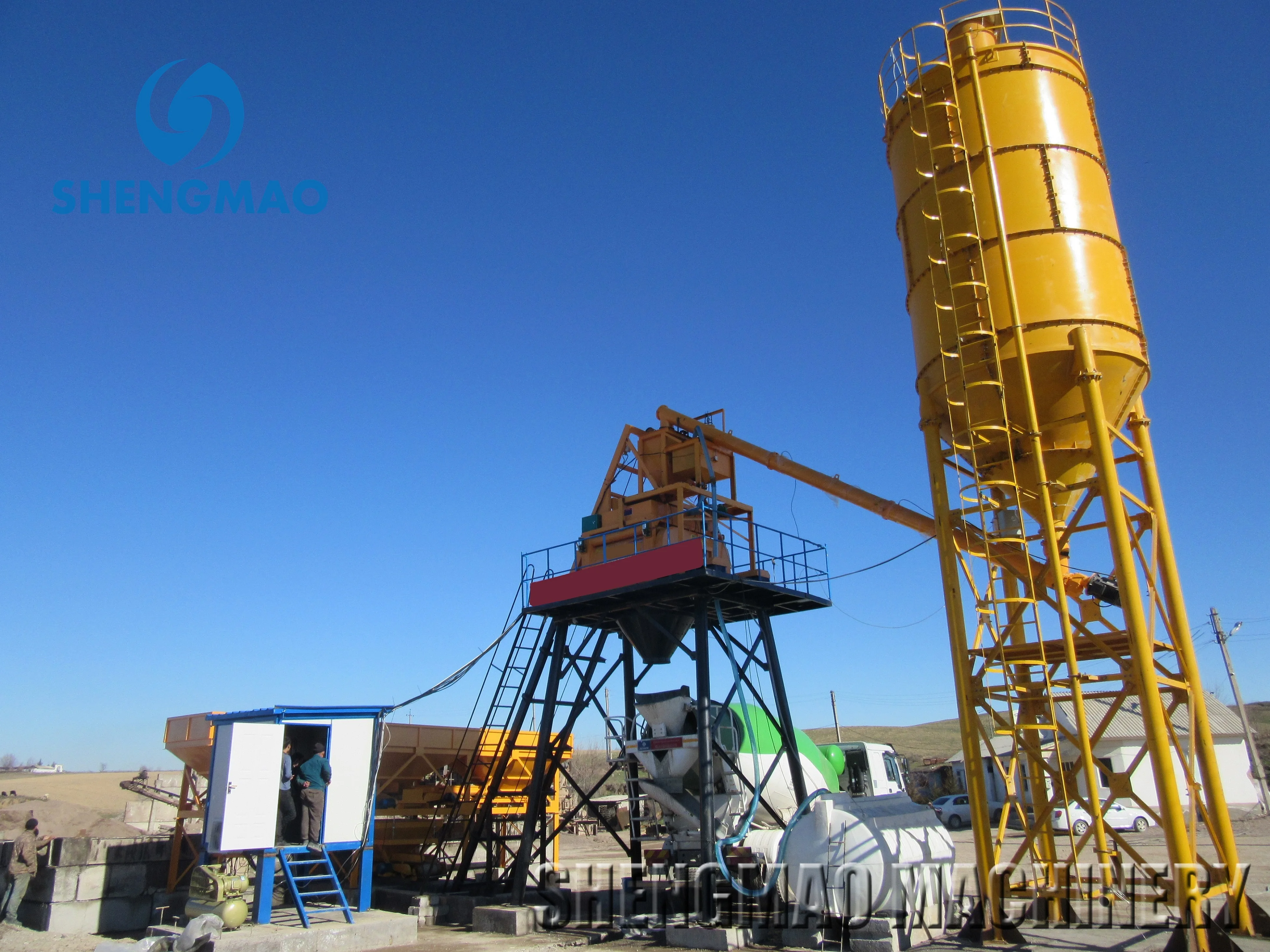

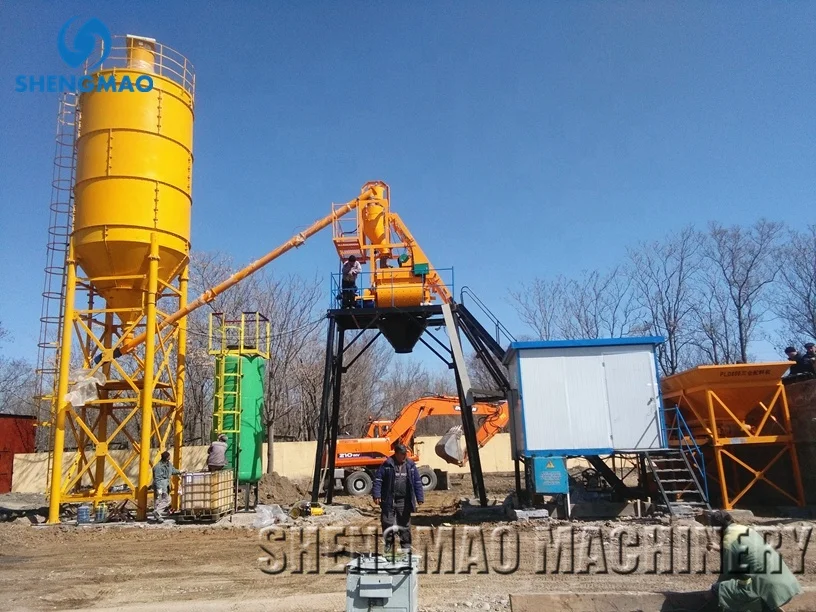

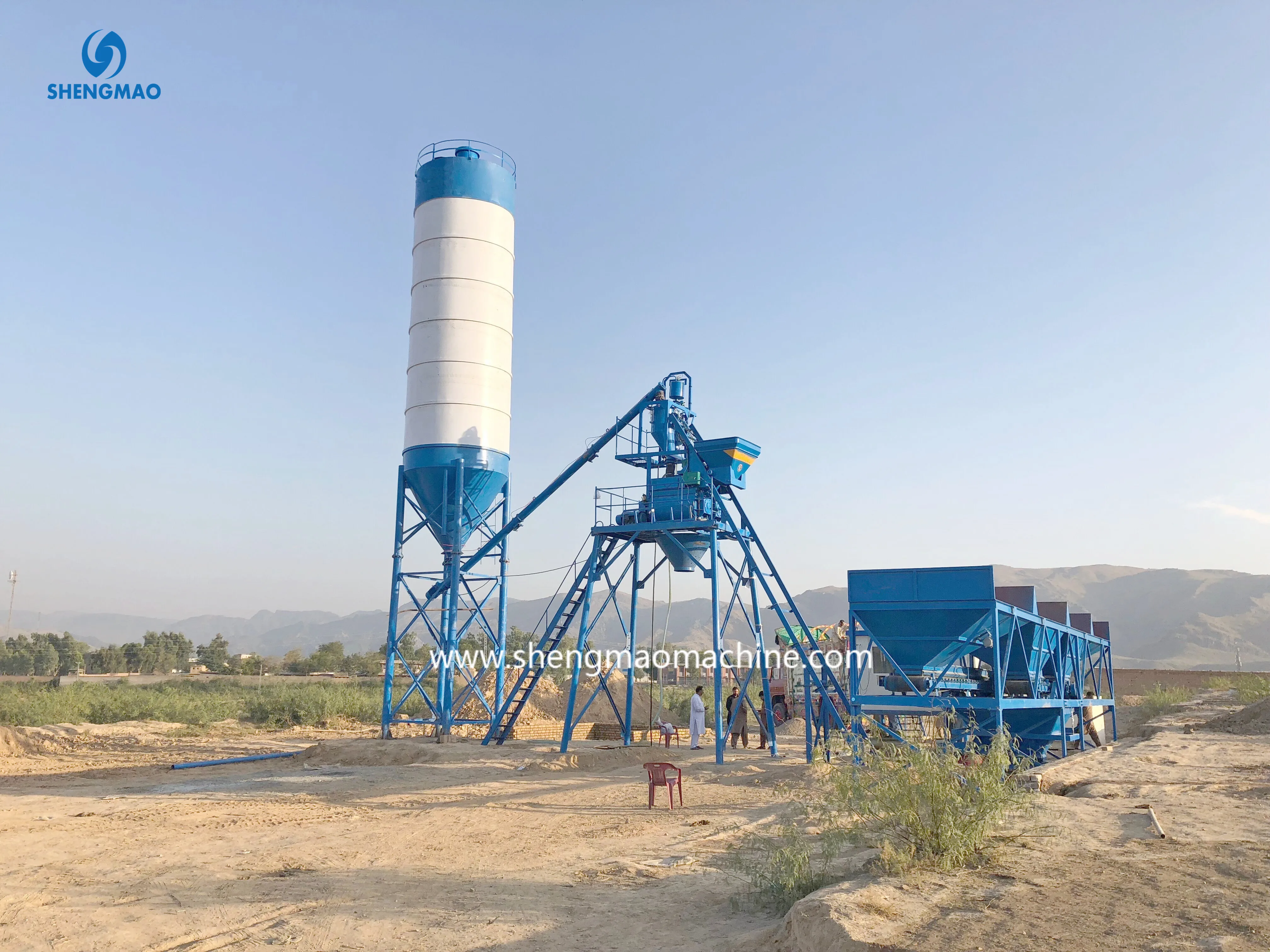

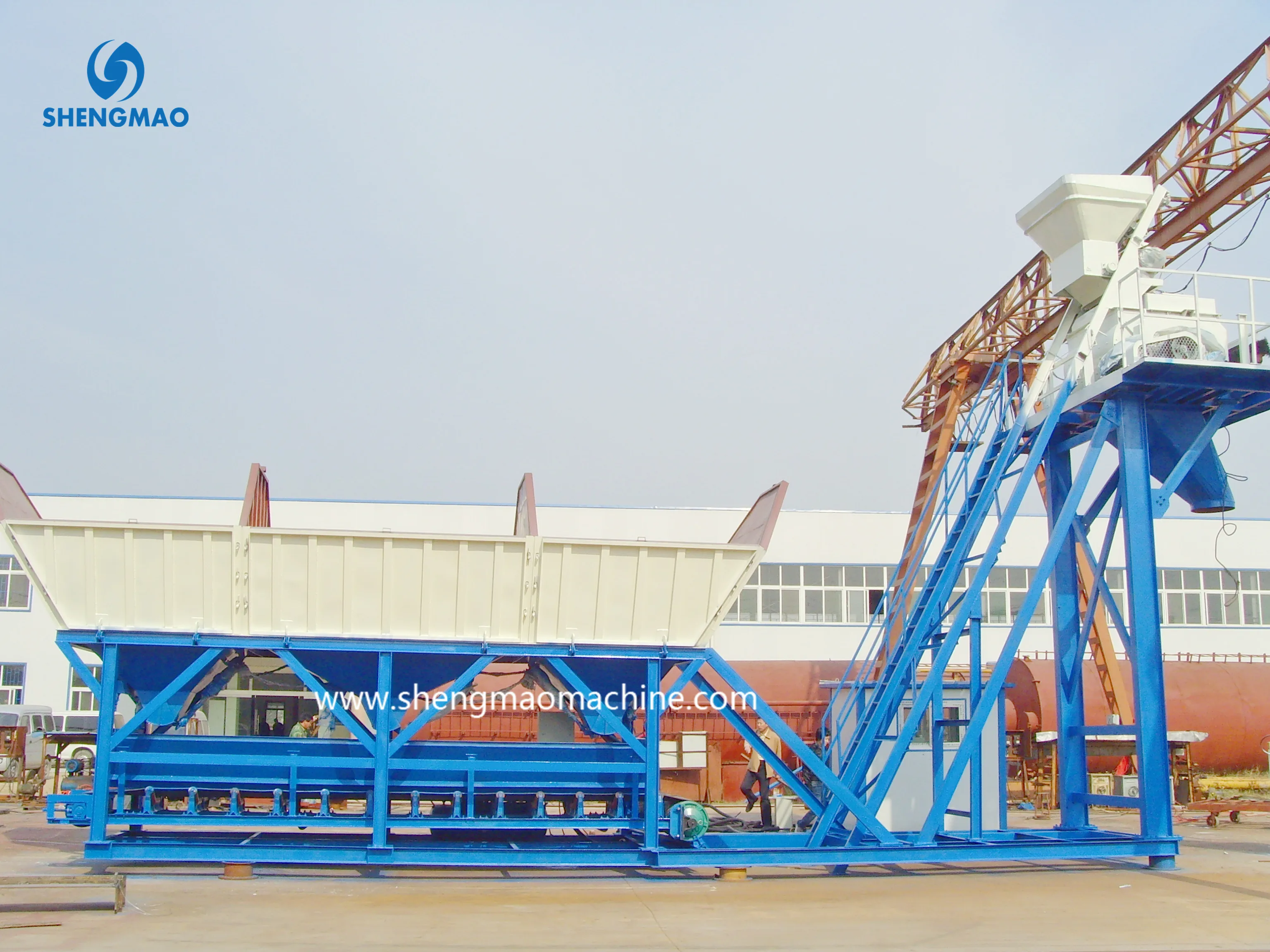

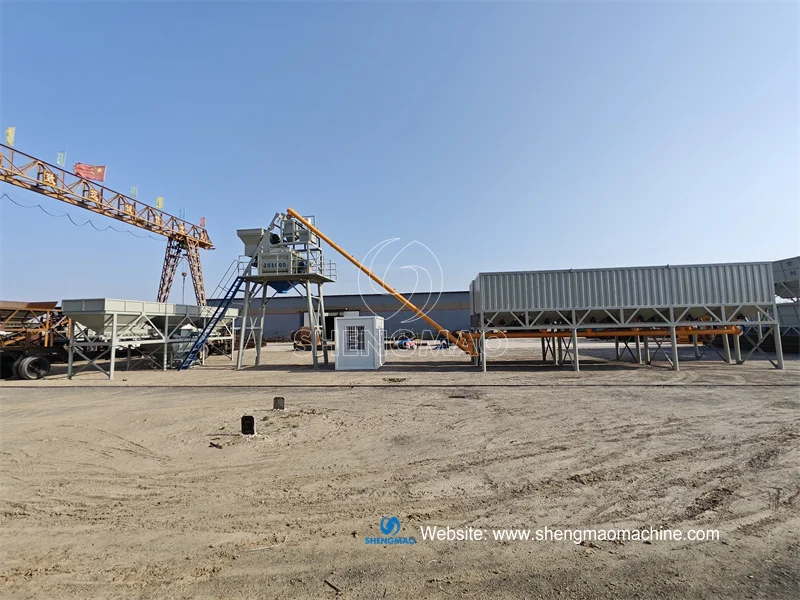

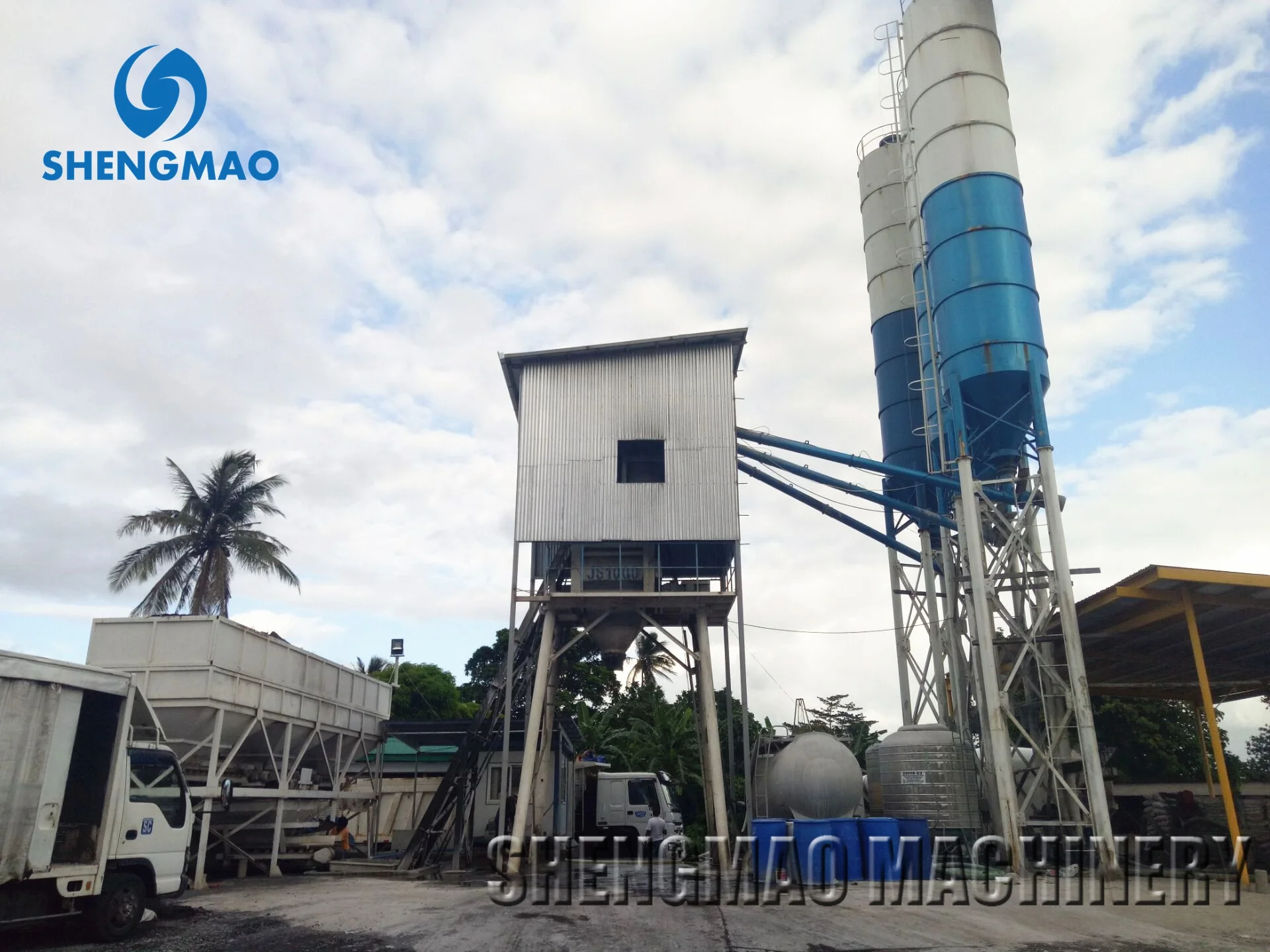

Our projects

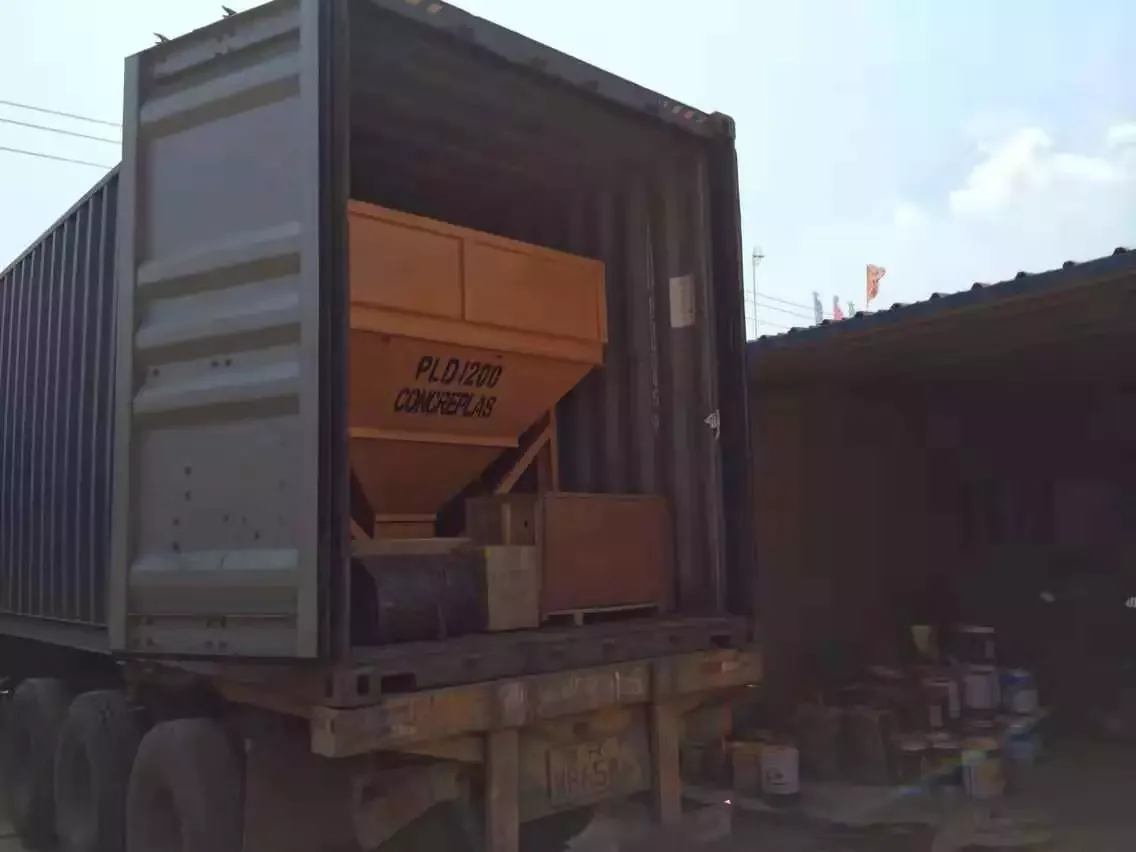

Packing&Shipping
The machine will be loaded into containers and fixed with steel wire. Small items will be packed with wooden box.
Our Services
Our services
Pre-sale Service
1 Answering customers' questions, helping customers choose the most suitable machines;
2.Making design drawings as per customers' requirements;
3. Providing quotations.
In-sale Service
1. Strictly control all procedures from raw materials sourcing to pre-assembly to ensure product quality;
2. Regularly updating production progress to clients;
3. After the production is completed, pre-assembly and test running will be carried out to make sure our machine works well;
4. Proper packing to minimize the risk that the machines are damaged during transportation;
5. Foundation drawing will be provided for clients to make the foundation in advance.
After-sale Service
1. Providing 7 * 24 hours online after-sales service every week
2. Providing related certificates, customs clearance documents, operation and maintenance instructions, installation videos, etc.
3. Arranging engineers to go to the client's job site. The engineers will help clients with the machine installation, machine test-running, and operators' training, etc.
4. Spare parts supply;
5. Job site visiting every year.
1 Answering customers' questions, helping customers choose the most suitable machines;
2.Making design drawings as per customers' requirements;
3. Providing quotations.
In-sale Service
1. Strictly control all procedures from raw materials sourcing to pre-assembly to ensure product quality;
2. Regularly updating production progress to clients;
3. After the production is completed, pre-assembly and test running will be carried out to make sure our machine works well;
4. Proper packing to minimize the risk that the machines are damaged during transportation;
5. Foundation drawing will be provided for clients to make the foundation in advance.
After-sale Service
1. Providing 7 * 24 hours online after-sales service every week
2. Providing related certificates, customs clearance documents, operation and maintenance instructions, installation videos, etc.
3. Arranging engineers to go to the client's job site. The engineers will help clients with the machine installation, machine test-running, and operators' training, etc.
4. Spare parts supply;
5. Job site visiting every year.
