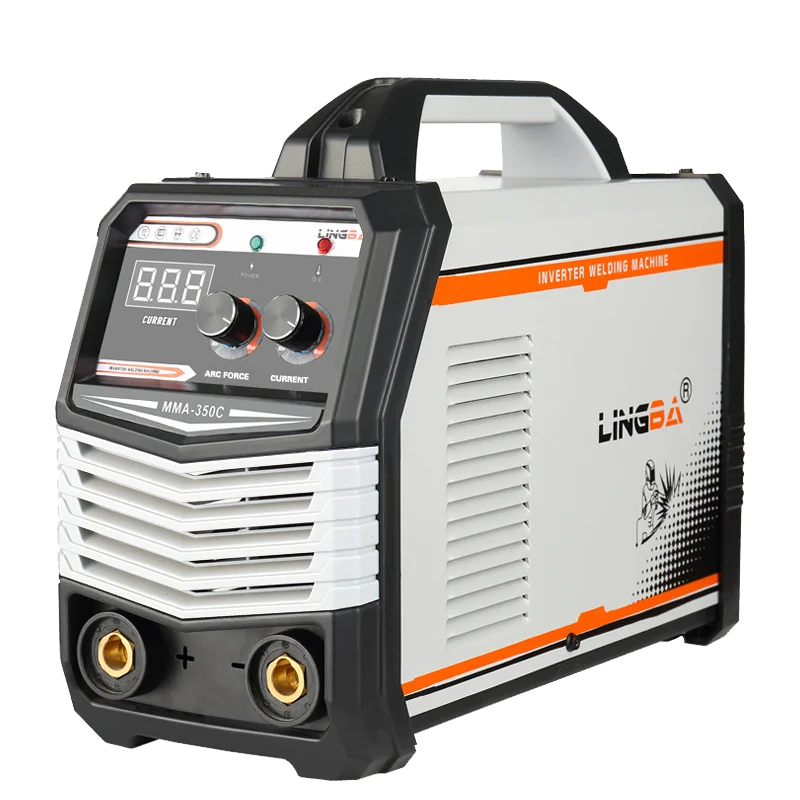

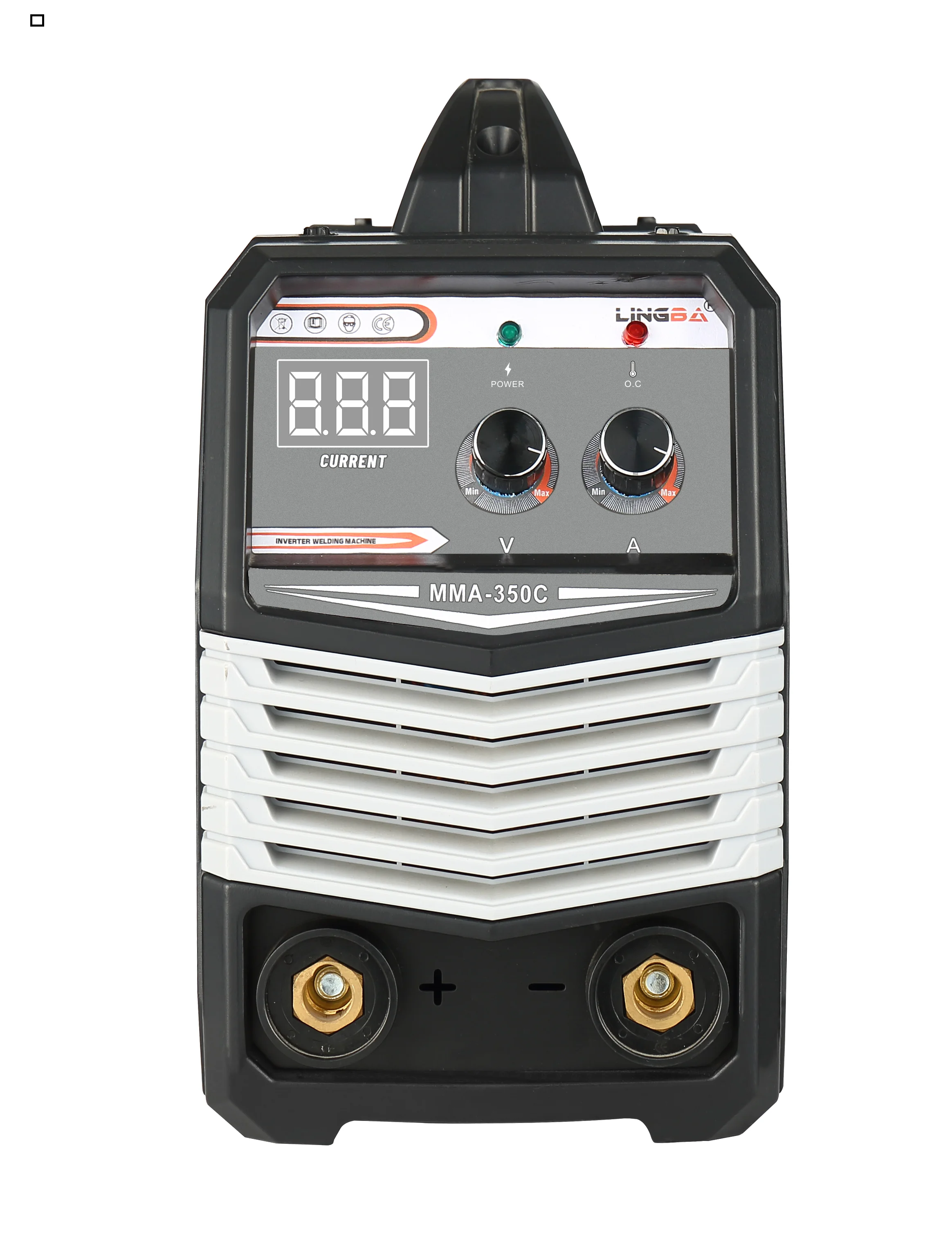

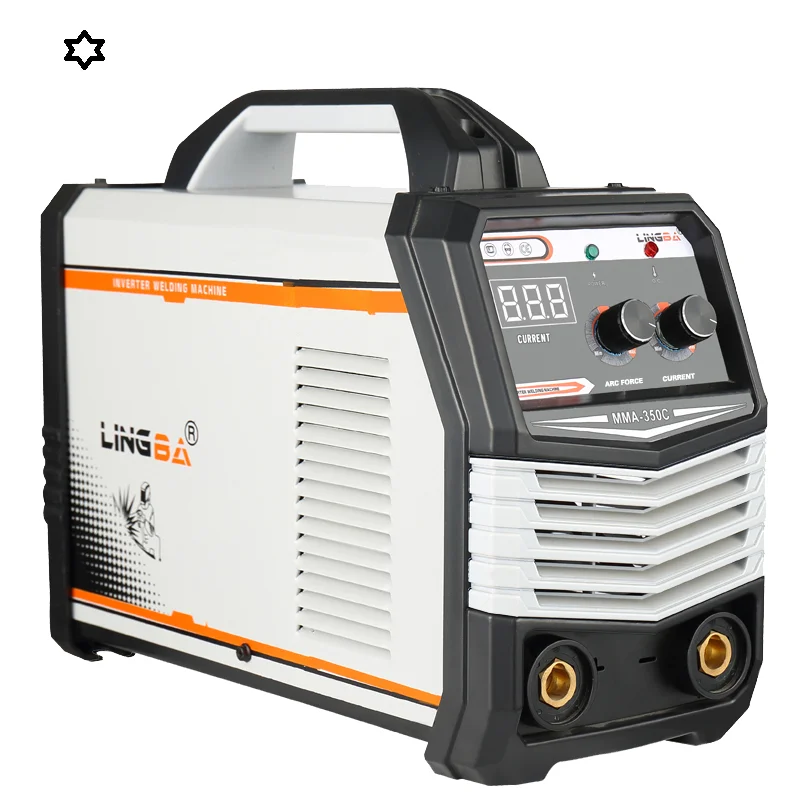

Lingba MMA Lift tig Welding Machine SMAW Other Arc Welders 300 315 350C 110v 220v
- Category: >>>
- Supplier: Zhejiang Lingba Welding Equipment Co LtdZhejiang Ltd
Share on (1601080262482):
Product Overview
Description
| Model | MMA-300C | MMA-315C | MMA-350C |
| Type | IGBT 1 PCB | IGBT 1 PCB | IGBT 1 PCB |
| Output current range(A) | 20-300A | 20-315A | 20-350A |
| AC Input Voltage(V) | 110V, 220V,110V/220V | 110V, 220V,110V/220V | 110V, 220V,110V/220V |
| Rated Input Power Capacity(KVA) | 7KW | 7.7KW | 9KW |
| Input Frequency(Hz) | 50/60HZ | 50/60HZ | 50/60HZ |
| Non-load Voltage(V) | 60V | 60V | 60V |
| Rated Duty Cycle(%) | 60% | 60% | 60% |
| Efficiency(%) | 85% | 85% | 85% |
| Class of Insulation | F | F | F |
| Protection class of case | IP21 | IP21 | IP21 |
| Electrode diameter(mm) | 1.6-4.0mm | 1.6-4.0mm | 1.6-5.0mm |
| Connector Size(mm) | 35-50mm | 35-50mm | 35-50mm |
| Input power cable(m) | 1.5m | 1.5m | 1.5m |
| N.w./G.w.(kg) | 4.5/5.6kg | 5/5.8kg | 5.5/7kg |

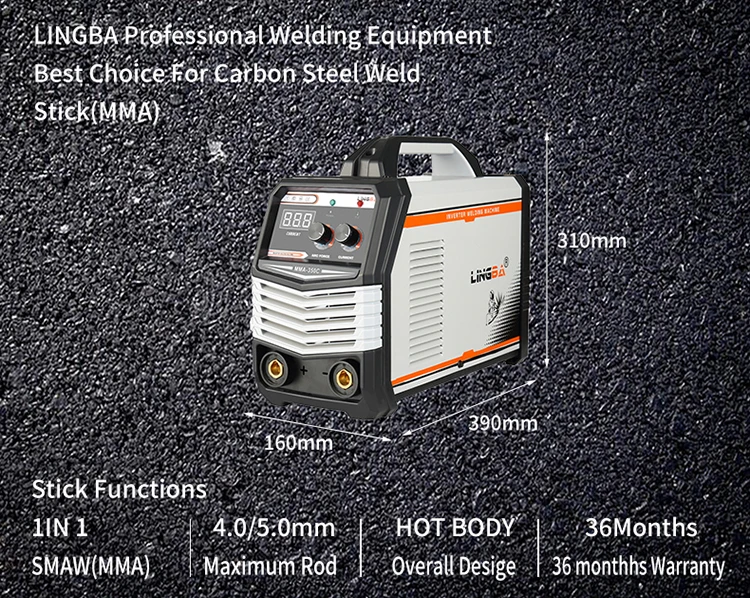

| Machine Size(LxWxH mm) | 390*160*310mm | 390*160*310 mm | 390*160*310mm |
| Package Size for machine: | 430*185*345mm | 430*185*345mm | 430*185*345mm |
| Package Size for 3pcs in 1 large | 590*450*370mm | 590*450*370mm | 590*450*370mm |

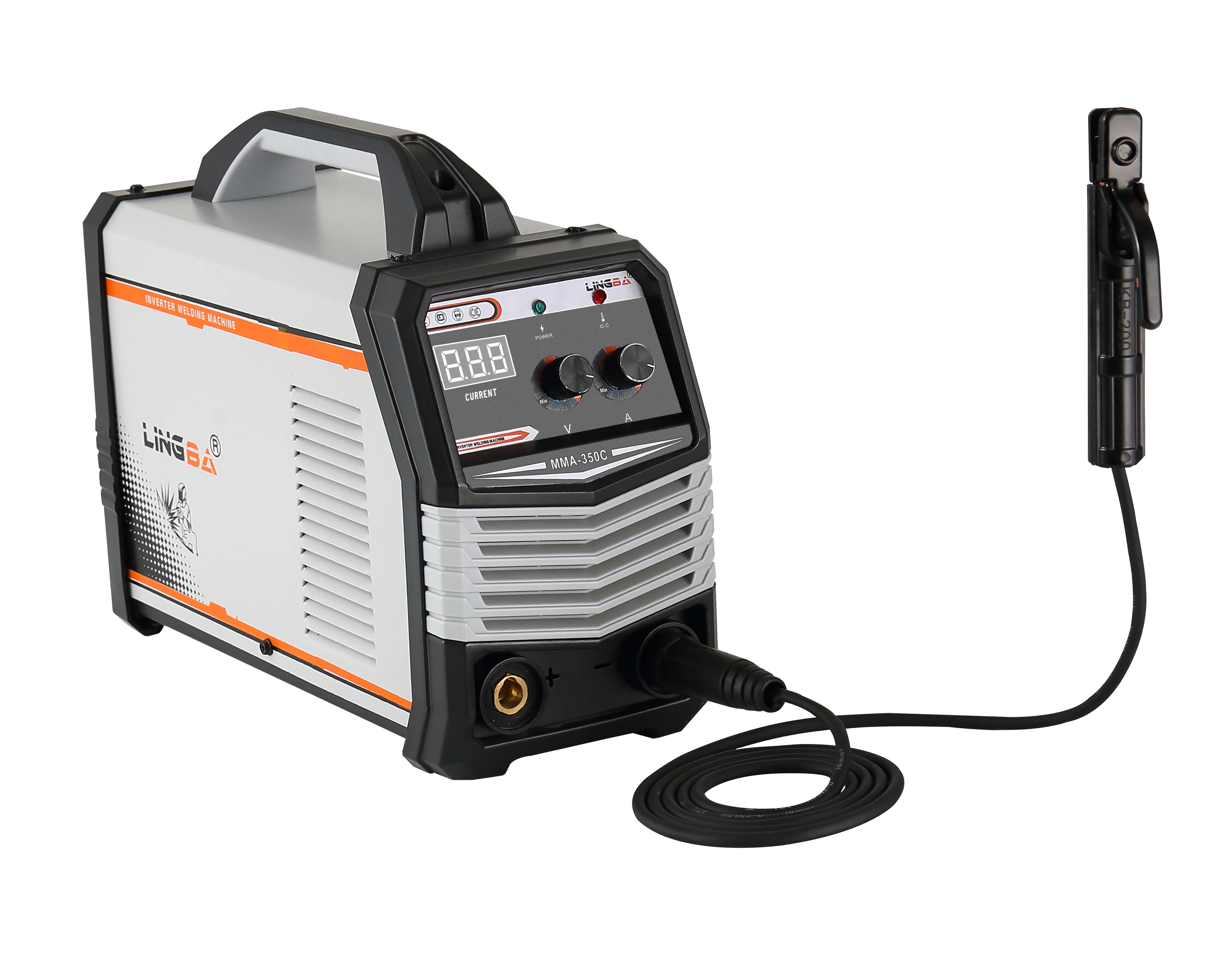

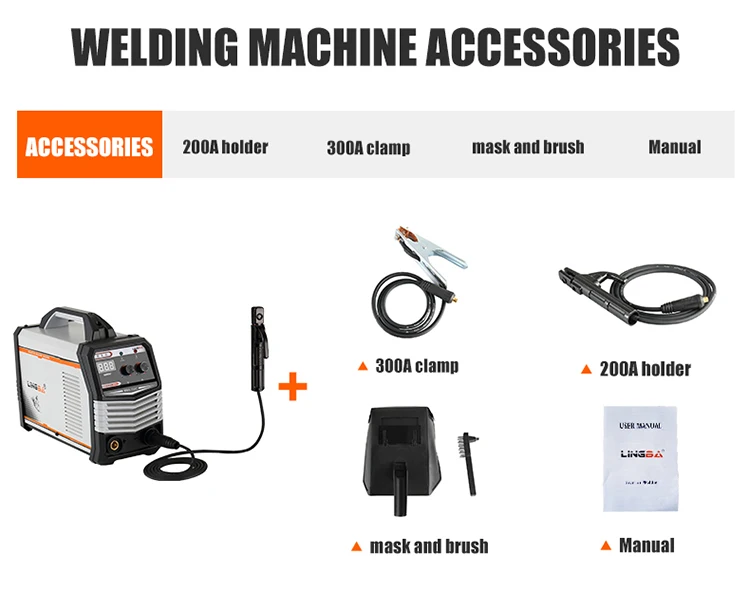

| Accessories | 1.8m 16mm² 200A holder | 1.8m 20mm² 200A holder | 1.8m 20mm² 200A holder |
| 1.2m 16mm² 200A clamp | 1.2m 20mm² 300A clamp | 1.2m 20mm² 300A clamp | |
| Mask, Brush, Manual | Mask, Brush, Manual | Mask, Brush, Manual | |
| 35-50mm big Connector | 35-50mm big Connector | 35-50mm big Connector | |
| Features | 1year Warranty | 1year Warranty | 1year Warranty |
| 4.0mm stopless work | 4.0mm stopless work | 5.0mm stopless work |
