Dawnice ESS Solution 1MW Off Grid Solar Power Station 1000KW With Jinko Solar Panel
Dawnice ESS Solution 1MW Off Grid Solar Power Station 1000KW With Jinko Solar Panel
Dawnice ESS Solution 1MW Off Grid Solar Power Station 1000KW With Jinko Solar Panel
Dawnice ESS Solution 1MW Off Grid Solar Power Station 1000KW With Jinko Solar Panel
Dawnice ESS Solution 1MW Off Grid Solar Power Station 1000KW With Jinko Solar Panel
Dawnice ESS Solution 1MW Off Grid Solar Power Station 1000KW With Jinko Solar Panel
Dawnice ESS Solution 1MW Off Grid Solar Power Station 1000KW With Jinko Solar Panel

Dawnice ESS Solution 1MW Off Grid Solar Power Station 1000KW With Jinko Solar Panel

Share on (1601080265524):


Price:$0.19-0.29

Quantity:


Product Overview

Description



Products Description








To be a World-Class Energy Services Provider
20+ years experience in Electric Power System industry. Different Brand and Type of battery Cells. 1300+ Patents. 10+ years experience in energy storage system development. We have our own independent R&D.

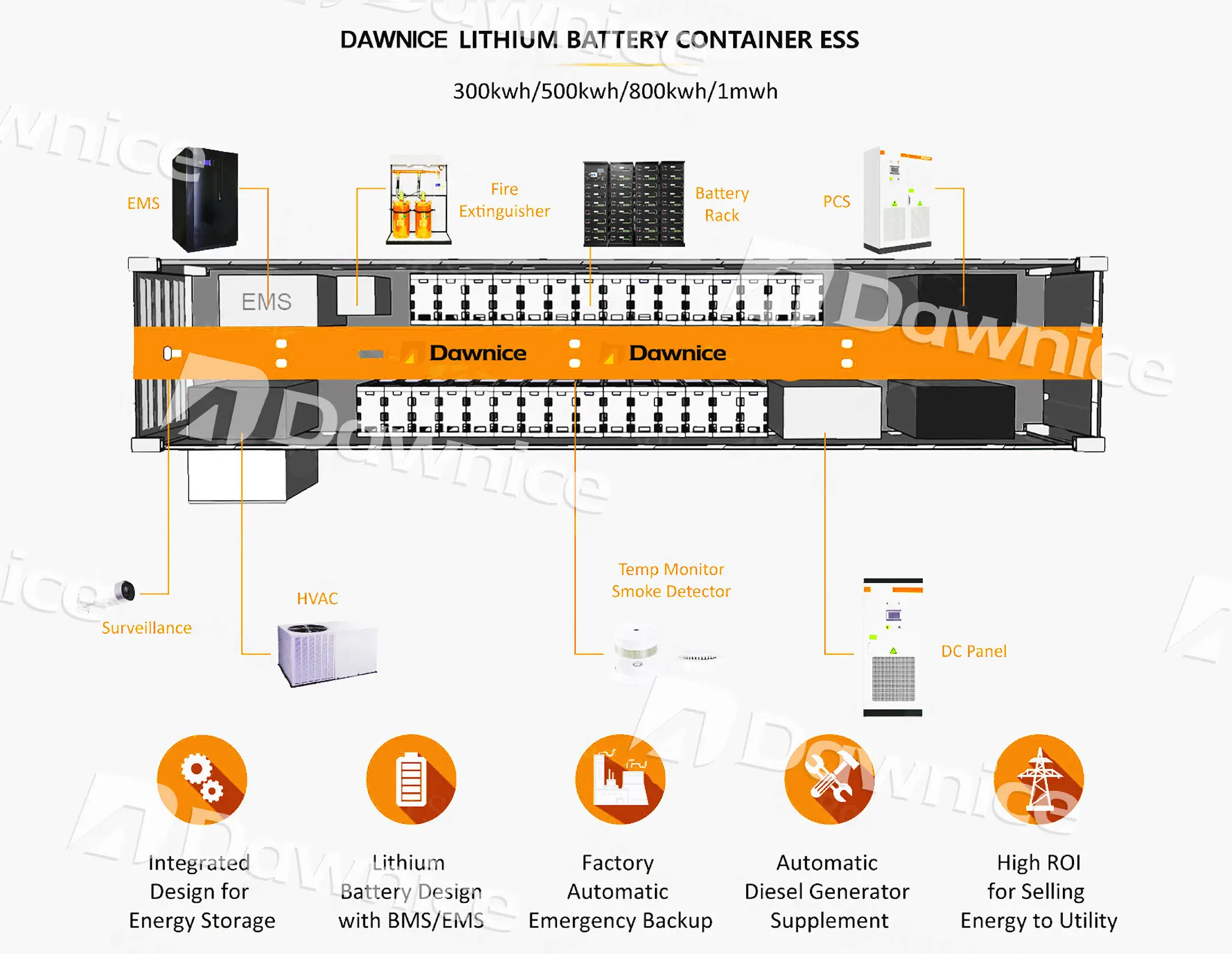

Energy Management System
EMS is a centralized energy management and data monitoring center for the whole energy storage power station system

Data acquisition
Control function
HMI
Battery Storage System
Battery Management System(BMS)
Battery Moulde&Pack

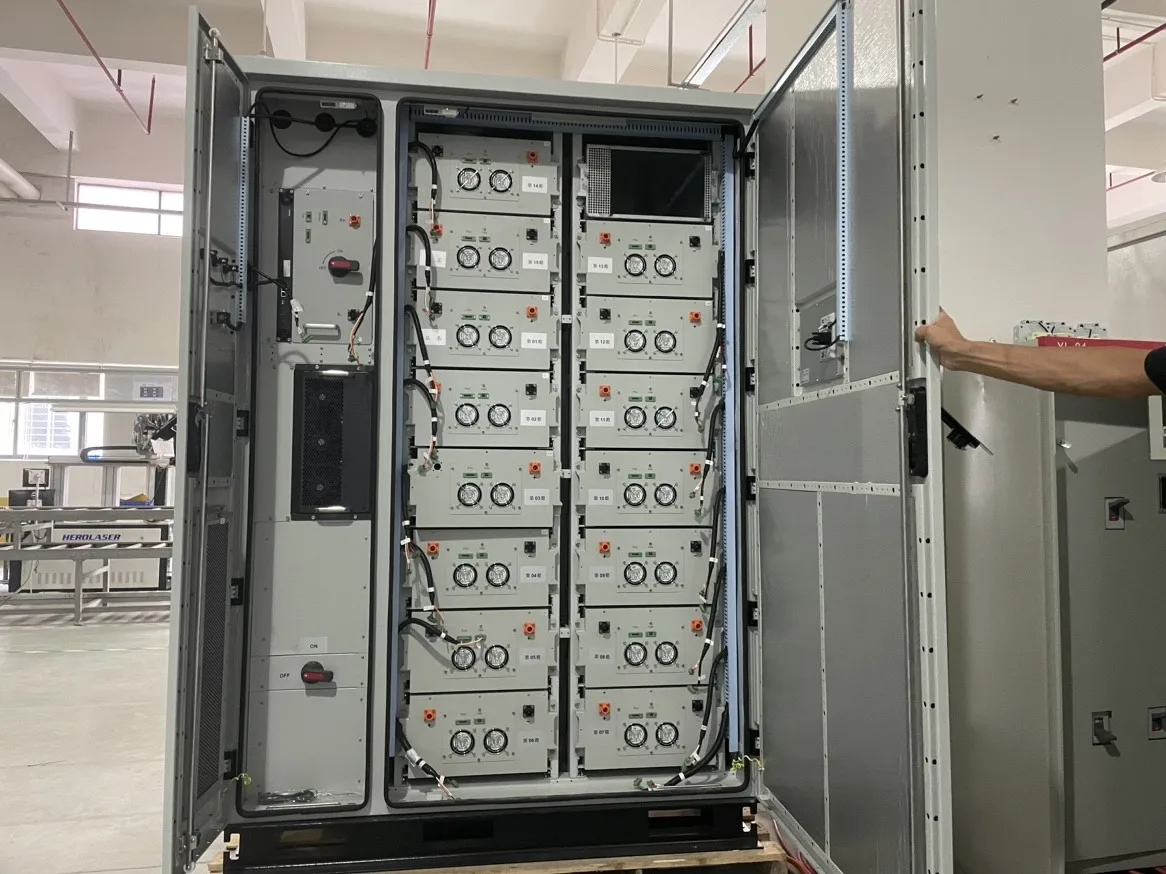

Battery Rack
Battery Cooling System
Battery Fire Suppression System
DC/AC Panel
IEC/UL/ CE/GB-T certified
Power Conversion System
Complete product range(30kW~4000kW) , compliant to IEEE standards and applicable to various applications.
Real-time active/reactive power scheduling & LVRT functions.
Advanced droop control method, up to 99% power sharing efficiency for parallel connection of voltage sources .
IEC/UL/ CE/GB-T certified








Main Features

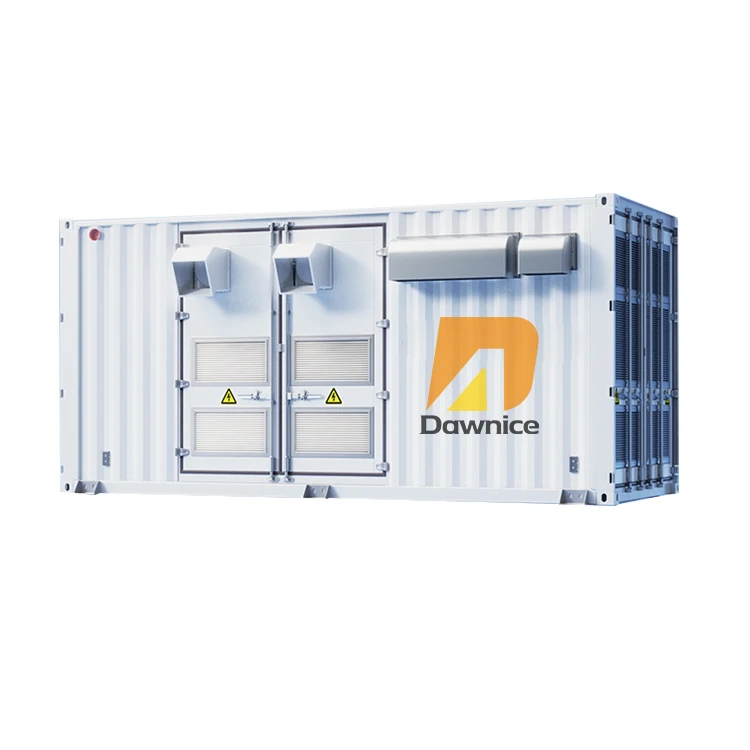

1MW/2.5MWH Energy Storage System
Rated output power
1000KW
Rated capacity
2500KWH
AC Phases
Three-phase Four-wire
Grid discharge mode
Rated voltage
380V
Voltage range
380±15%V
Rated frequency
50Hz
Frequency range
47.5～51.5Hz
Total current waveform
distortion rate(THD)
<5%
Output power factor
≥0.99
Isolated network operation mode
Rated voltage
380V
Voltage accuracy
<±3%
Output voltage distortion
<5%
Rated output frequency
50±2％Hz
Voltage transition range
<10％
Can withstand three - phase load imbalance
100%
Grid-connected charging operation mode
Rated voltage
400V
Voltage range is allowed
380±15%V
Frequency range
47.5~51.5HZ
Power factor
≥0.99（absolute value）
Noise
＜70dB
IP GRADE
IP54
External communication
Ethernet
Dimension
12192mm(L)*2438mm( W)*2591mm(H)
Weight
22 Ton


1.Free-installation
This product is designed from the perspective of reducing customer site work, and the overall weight of the container is designed below the maximum allowable transport weight, so it can be transported as a whole without removing the module
50% faster installation and Reduce 30% CapEx for on-site installation
15% energy density increase
2.Flexible-configuration
It can match the PCS with AC side voltage of 900~1300V, making the system integration solutions more flexible
3.Super long life cycle,8000+ cycles
4.1CP+ sustained high power output capacity
5.High energy density equal to 7MWh in a 40 feet container
6.Cycle life enhance 10%, temperature deviation: within 2 ℃
