Tobee Effluent Handling
$12,600
Bottom discharge pump for conveying medium and high viscosity media in reactors
- Category: >>>
- Supplier: Zhengzhou Gurnay Import And Export Co. Ltd.
Share on (1601080297907):
Product Overview
Description
Product Description

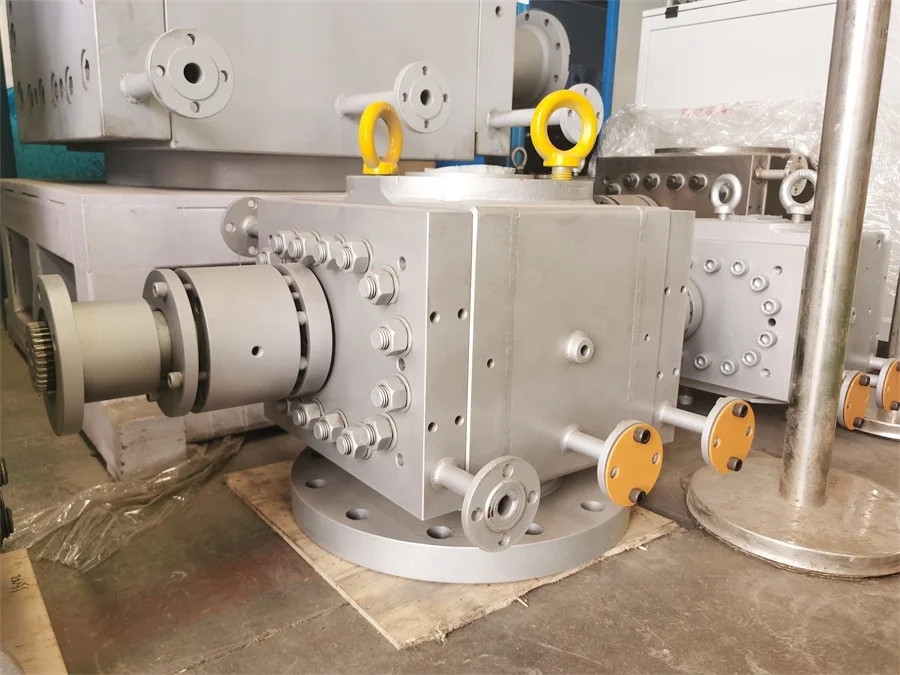

Bottom discharge pump for conveying medium and high viscosity media in reactors
The main materials that can be conveyed by the melt gear pump are:
Polymer melt
PET PBT PTT
PA6 PA66 PA12
PE LDPE LLDPE HDPE HMWPE
PP EVA PB
PB PS HIPS ABS SAN
PC PEK PMMA POM
TPU PLA PBS
Polymer melt
PET PBT PTT
PA6 PA66 PA12
PE LDPE LLDPE HDPE HMWPE
PP EVA PB
PB PS HIPS ABS SAN
PC PEK PMMA POM
TPU PLA PBS
Other stock solutions, solutions, glues, oligomers, prepolymers, etc. in the polymer material industry; It can also be used to transport hot melt adhesives, asphalt, paints, adhesives, pharmaceuticals, food, grease, fuels, oils, dyes, coatings, lubricants, polyols and other materials that do not contain particulate impurities.
Specification

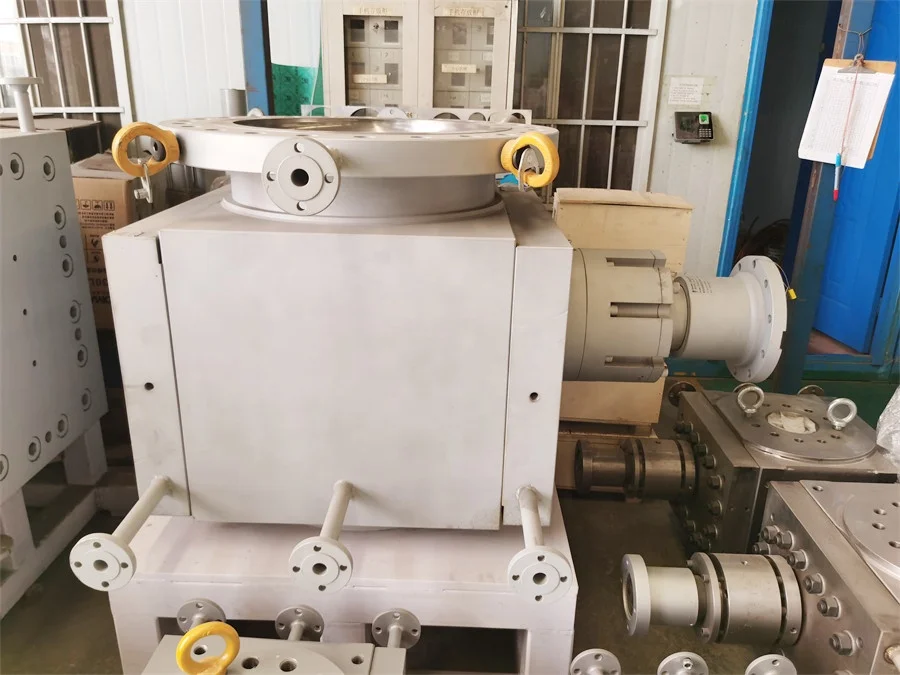

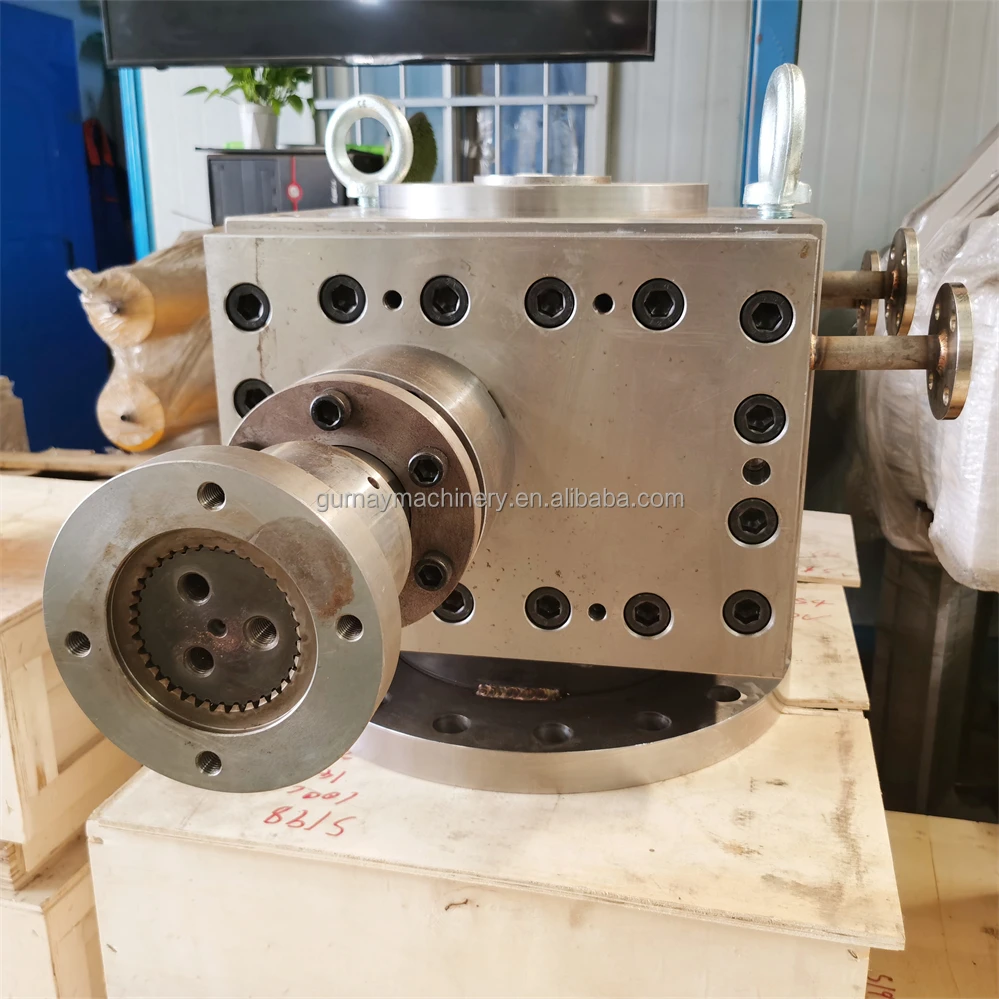

Vacuum Reactor Discharge Pump

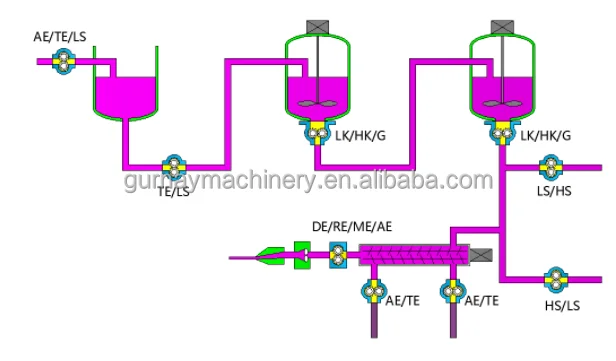

It is mainly used for high temperature and high viscosity polymer melt transportation, such as resin, chemical fiber and other industries, generally installed in the lower part of the reactor to make the material pump, or transport medium and high viscosity medium in vacuum reactor,. Its suction inlet large flange can complete high viscosity polymer material transportation and pressurization under vacuum condition.
Transport material:
Hot melt adhesives, bitumen, adhesives, pharmaceuticals, food, oils, fuels, oils, dyes, paints, lubricants, and other high viscosity materials.
Characteristic:
1.It can be applied to the working condition of high temperature, medium and high pressure and high viscosity.
2.The pressure flow pulsation is small, the near linear output of the flow can be realized and it is easy to control.
3.Good self-priming performance, which can be applied to the working condition with vacuum inlet
4. Precise structure, high precision and long service life.
Item | reactor material transport pump |
Application | Food and Beverage Industry, Industrial Boilers, Metal and Equipment Manufacturers, Pharmaceutical industry, temperature control, reactor, reaction still, oil and fuels transport |
Material viscosity | 1-20000Pa.s |
Input pressure | vacuum（-0.05～-0.09MPa）～5.0MPa |
Outlet pressure | 0-15 Mpa |
Working temperature | ≤350℃ |
Heating method | Electric heating/heat conducting oil heating |
Structure | Gear Pump |
Type | CC/Rev | Capacity (L/H) | Heating power (kw) | Driving power (kw) |
GY-20 | 20 | 10-50 | 2 | 2.2 |
GY-31.5 | 31.5 | 15-70 | 2 | 2.2 |
GY-50 | 50 | 25-100 | 3 | 4 |
GY-100 | 100 | 50-200 | 4 | 5.5 |
GY-150 | 150 | 70-300 | 5 | 7.5 |
GY-200 | 200 | 100-500 | 6 | 11 |
GY-250 | 250 | 125-600 | 8 | 15 |
GY-315 | 315 | 150-700 | 8 | 18.5 |
GY-500 | 500 | 250-1200 | 12 | 22 |
GY-800 | 800 | 400-1800 | 15 | 30 |
GY-1200 | 1200 | 600-2500 | 20 | 37 |
Packing & Delivery
Wooden cases
Company Profile

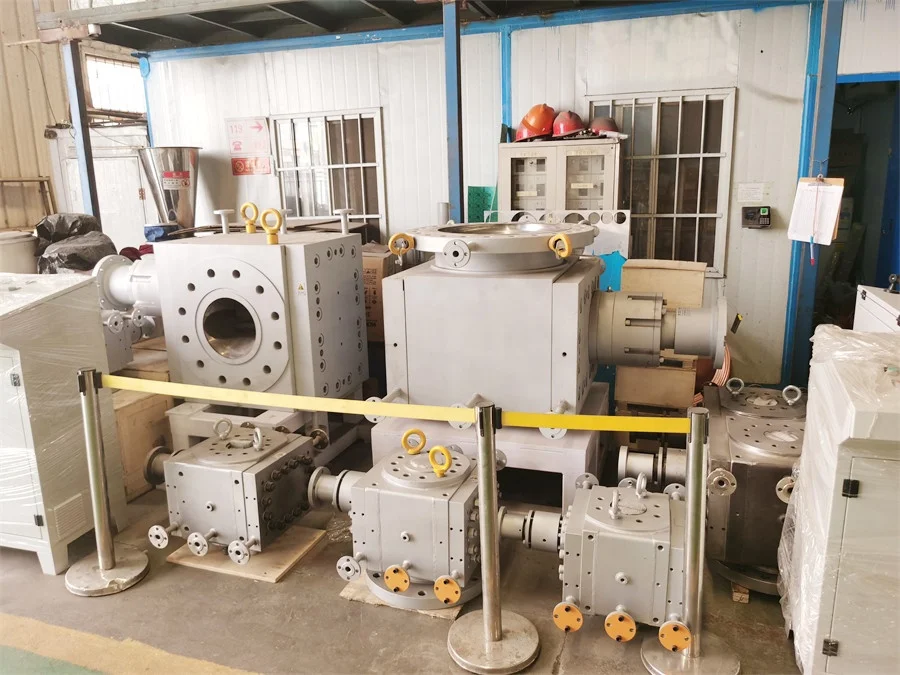

Zhengzhou Gurnay Improt and Export Co.,Ltd although registered as trading company, we based on our factory Gurnay Machinery as supporting. Mainly manufacture kinds of extrusion equipment like melt pump, screen changer, granulator and so on which is widely used on kinds of plastic production lines. Having more than 20 years experience engineers and advanced high-precision machinning equipments, heat-treatment and many different equipment and instruments, all these can insure the product quality to meet high requirements of processing technology.
How to choose a melt pump?
We should know this following information before choose a melt pump.
1. The equipment used by customers, generally speaking, the equipment used by customers are extruders, reaction still/reactor,
rubber extruders, equipment in the chemical fiber industry, etc.
2. The materials used by customers, material viscosity and temperature requirement.
3. The production line pressure.
4. Output of production line
1. The equipment used by customers, generally speaking, the equipment used by customers are extruders, reaction still/reactor,
rubber extruders, equipment in the chemical fiber industry, etc.
2. The materials used by customers, material viscosity and temperature requirement.
3. The production line pressure.
4. Output of production line
