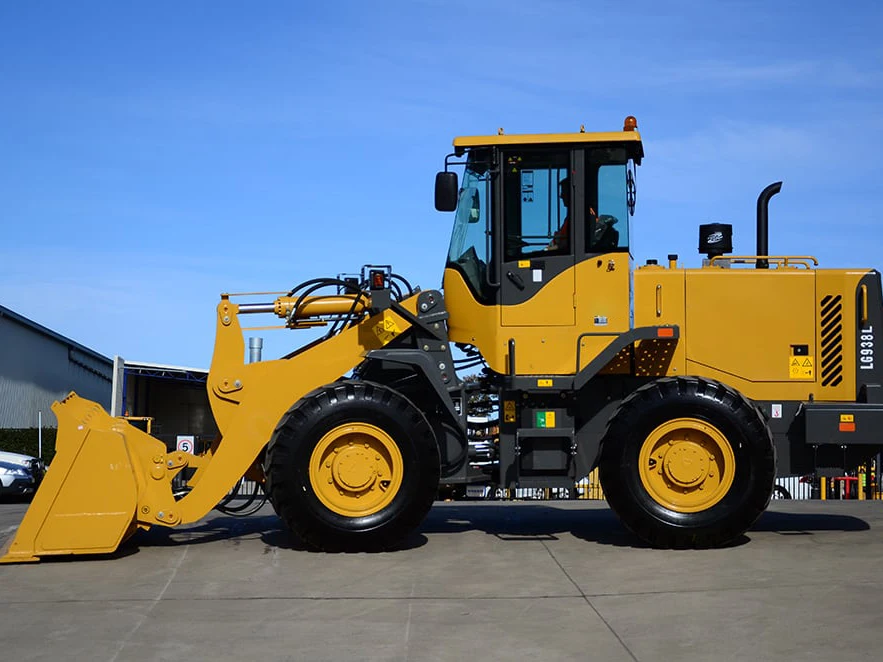

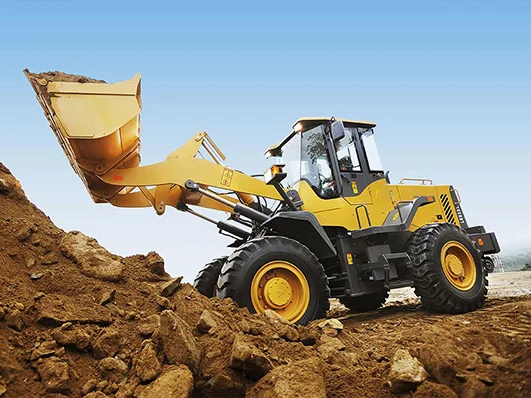

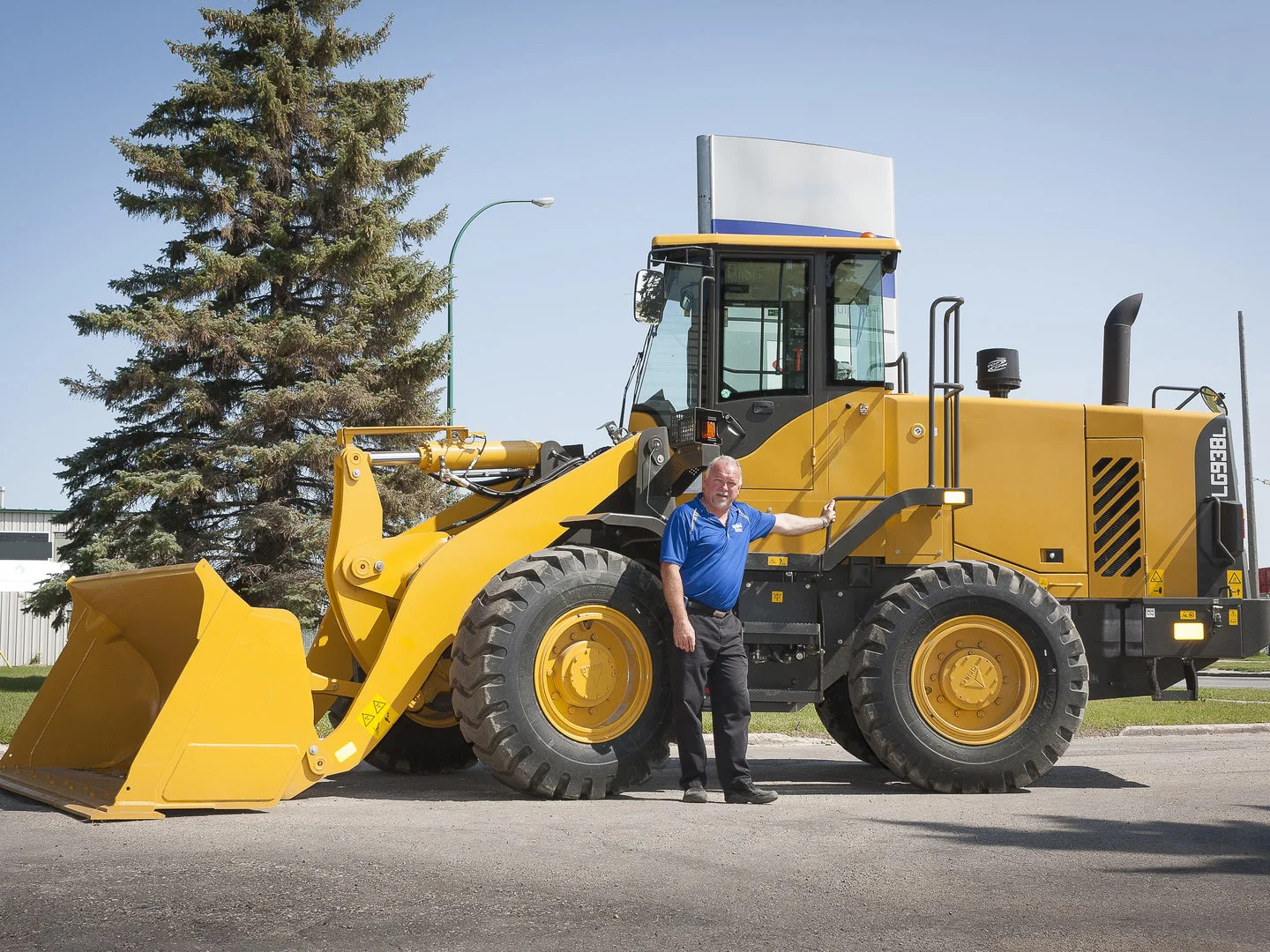

Energy Conversation Front end Loader L938 3TON WHEEL LOADER
- Category: >>>
- Supplier: Oriemac Machinery & Equipment (Shanghai) Co. Ltd.Oriemac Ltd.
Share on (1601080471006):
Product Overview
Description
Products Description
3Ton Wheel Loader L938 Payload Ace Diesel Engine Parts Spare Price for Earth-moving Construction
FEATURES:
L938 is high-end product of SDLG 3-ton class machines, equipped with countershaft transmission and large displacement pump. It can be applied to soil, sand, gravel, coal, and garbage station etc.
Reliable：
Weichai Tier III engine, high efficient air cleaner, hyprboloid fan with electromagnetic clutch, six-point supported fuel tank,
fuel strainer with lock, new designed fuel indicator; Countershaft power shift transmission; SDLG strengthened axle or wet brake axle, 16PR tyre; Reinforced frame;ISO standard quick coupler; Optimized hydraulic system, single joystick control, load sensing full hydraulic steering; hydraulic hoses with secondary seal; Dual brake pedal. Air over hydraulic disc brake; Electric air control drum parking brake; Full hydraulic wet brake, electric hydraulic control drum parking brake.
Energy conversation：
Weichai Tier III engine, with 3 different power curves, multistage energy saving mode, hyperboloid fan with electromagnetic clutch.
Comfort：
ISO ROPS&FOPS cab, suspension seat, stepping dashboard; adjustable panel; Stepping dashboard, with bucket leveling and boom lifting limit switch; AC evaporator with filters; Soft absorber between front and rear frame.
Convenience：
Centralized filters layout; Have tropical kit as standard, 3rd connection optional; EECU control, CAN connection, with diagnostic port, electronical components centralized layout; Anti-slip ladder
CONTACT
Hi I'm Doria Lu, more details please contact me.
Mobile/Whatsapp/Wechat: +8618539810658
Email: doria@oriemac.com
PRODUCT SPECIFICATIONS
Overall dimension | ||
L*W*H | 7100*2520*3170mm | |
Wheel base | 2850mm | |
Min. ground clearance | 370mm | |
Max. dumping height | 2950mm | |
Dumping distance | 1050mm | |
Dumping angle | 45 | |
wheel tread | 1865mm | |
steering angle | 37 | |
horizontal crossing radius | 6020mm | |
Min. turning radius | 5381mm | |
Overall parameters | ||
Backet capacity | 1.8m3 | |
Rated load | 3000kg | |
operating weight | 10220kg | |
Max. tractive force | 99kN | |
Max. breakout force | 96kN | |
Tipping load | 66kN | |
Engine | ||
Model | WP6G125E22 | |
Type | Inline, watercooled, dry cylinder liner, direct injection | |
Rated power | 92kW | |
Rated speed | 2200r/min | |
Engine displacement | 6750ml | |
Max. torque | 560N.m | |
Emission standard | GB 20891-2007(China Phase II) | |
Min. fuel-consume ratio | 235g/kw.h | |
Transmission system | ||
Torgue converter | single-stage four-element double-turbine hydraulic torque converter | |
Transmission type | Axis-fixed electro-hydraulic transmission | |
Gears | Forward 4 reverse 3 | |
Hydraulic system of working device | ||
Type | Hydraulic pilot control | |
total time | 8.6s | |
Brake system | ||
Service brake type | Air over hydraulic disc type | |
Parking brake type | Electric pneumatic internal expansion shoe type | |
Steering system | ||
Type | Load sensing full hydraulic articulated steering | |
System pressure | 12 Mpa | |
Fill capacity | ||
Fuel | 140L | |
Hydraulic oil | 130L | |

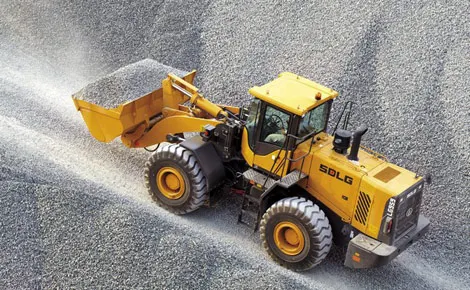

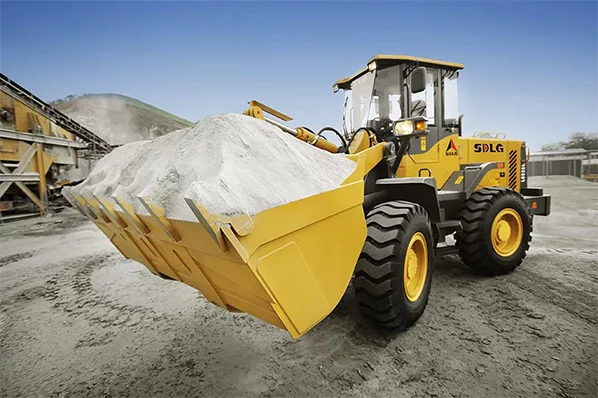

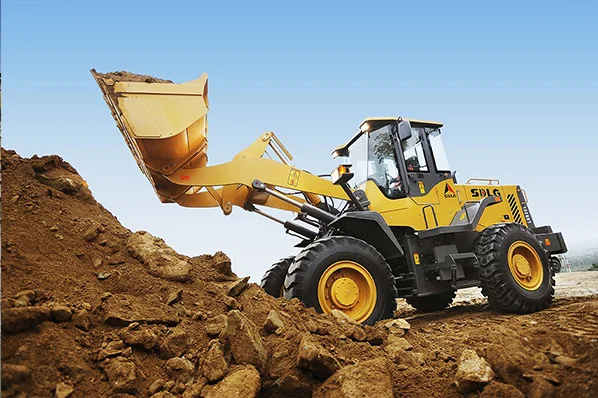

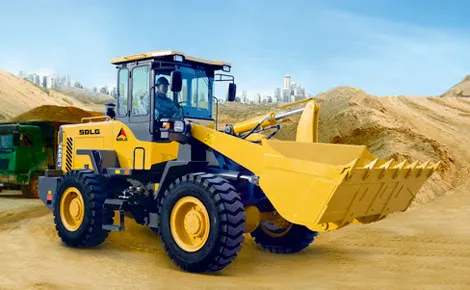

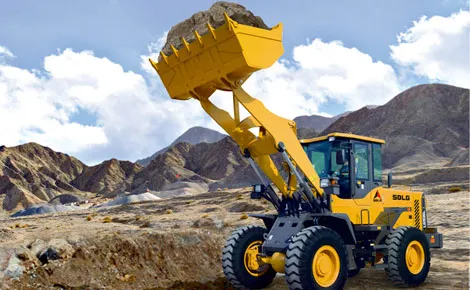

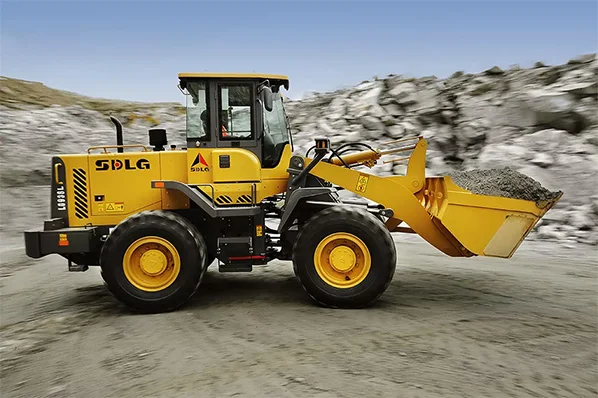

PRODUCTS PICTURES
